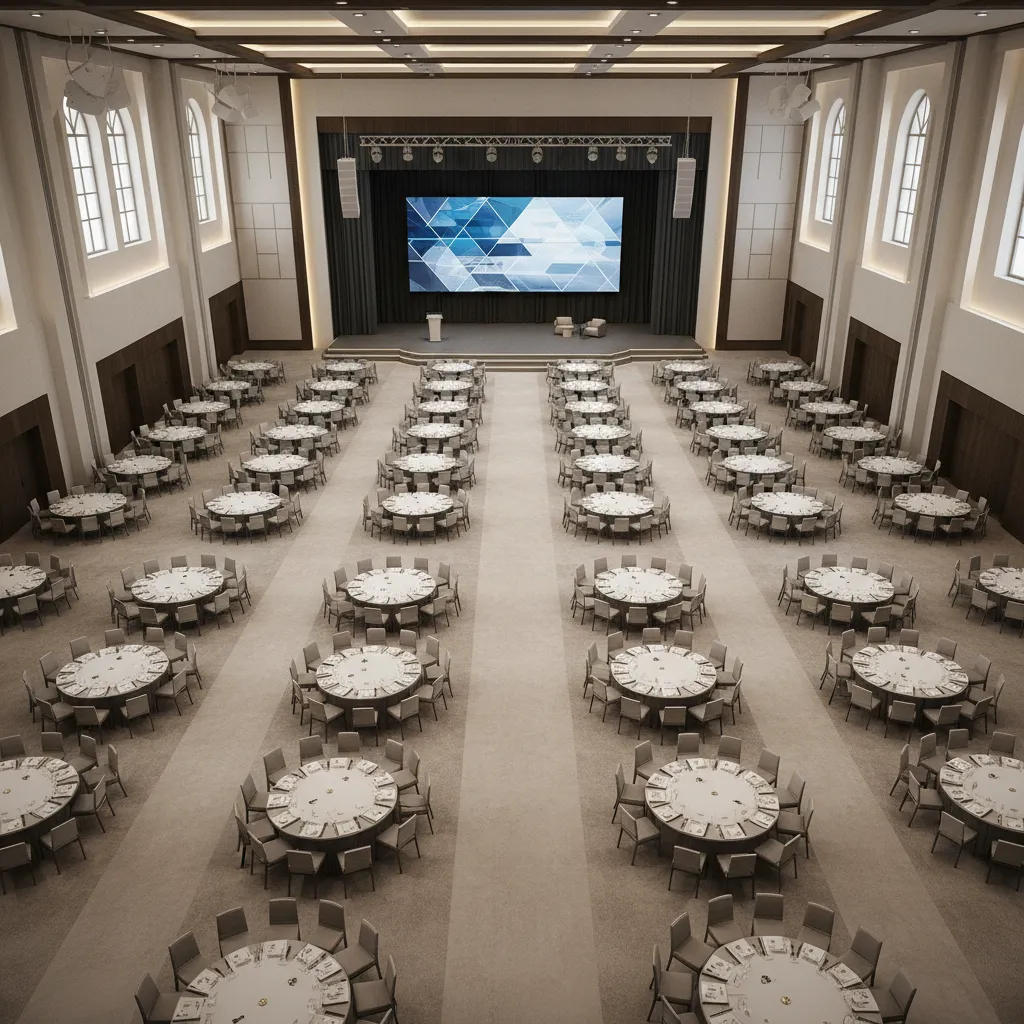

Creating an Effective Event Floor Plan Design: A Comprehensive Guide to Event Space Planning

Direct Answer

An effective event floor plan design organizes space to guide guest movement, balance crowd density, and support event goals such as networking, dining, or presentations. The best layouts prioritize circulation paths, visibility, and functional zones rather than simply filling a room with tables and booths.

In real event projects, the difference between a smooth event and a chaotic one often comes down to how intentionally the floor plan was designed.

Quick Takeaways

1. A successful event floor plan design starts with traffic flow, not furniture placement.
2. Clear circulation paths reduce congestion and improve guest experience.
3. Zoning the space improves functionality for networking, dining, and presentations.
4. Overcrowding the layout is the most common mistake in event planning.
5. Testing layouts with scale diagrams prevents costly setup changes.

Introduction

After working on dozens of event venue layouts—from hotel ballrooms to outdoor corporate activations—I've learned that event floor plan design is rarely just about aesthetics. It's about how people move.

Many organizers focus on stage placement or table counts first. But in practice, the real issues show up later: traffic jams near entrances, empty sponsor booths, or networking areas nobody uses.

A well-designed event floor plan quietly solves these problems before the event even starts. In this guide, I'll walk through the layout principles I rely on in real projects, the mistakes I see most often, and how to design a floor plan that actually works for guests and organizers.

save pin

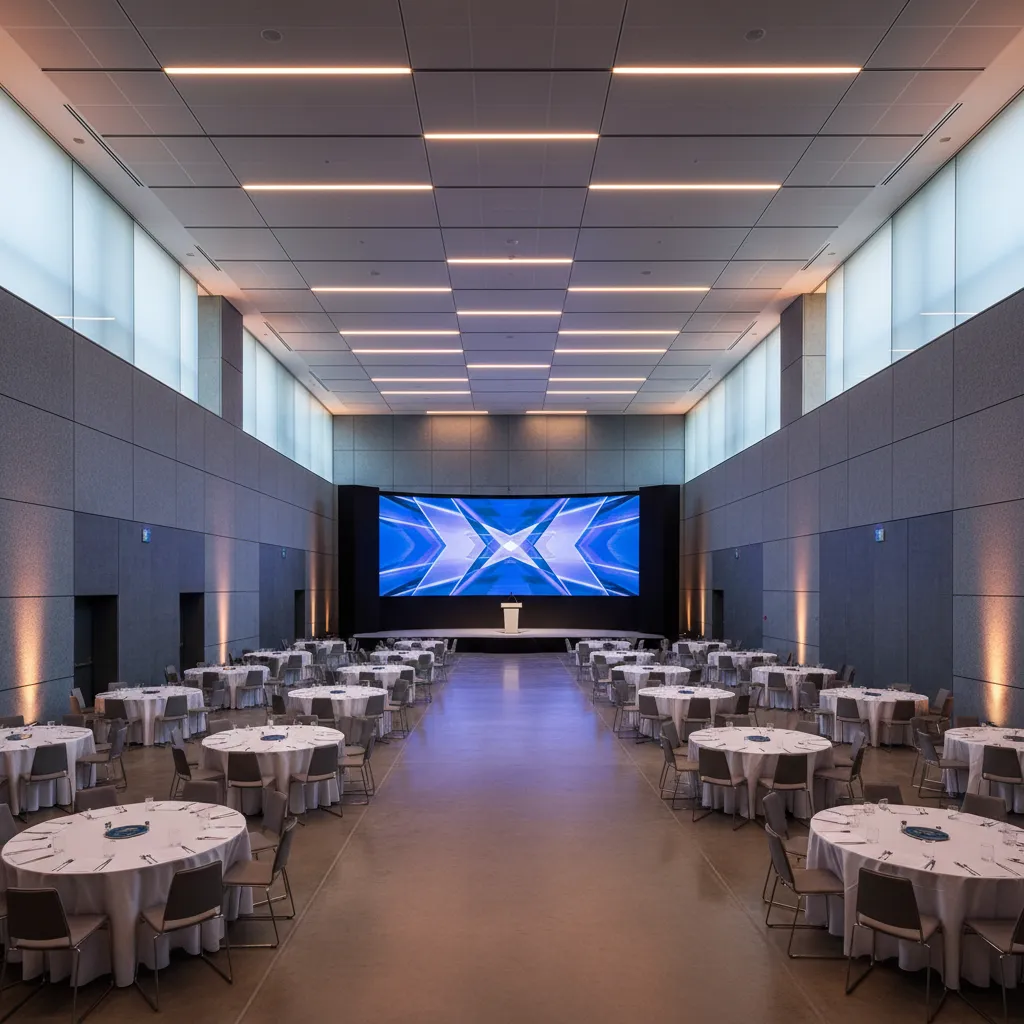

Why Event Floor Plan Design Matters More Than Most Planners Expect

Key Insight: The layout of an event space directly affects guest behavior, engagement levels, and even revenue opportunities.

When a floor plan is poorly structured, people cluster in random areas while other sections remain empty. I've seen sponsor booths placed in dead zones where foot traffic dropped by more than half compared to central pathways.

Good event floor plan design creates intentional movement. Guests naturally circulate through key areas without feeling forced.

Common goals a layout should support:

1. Smooth entry and registration flow
2. Balanced traffic across exhibitor or activity zones
3. Comfortable seating without overcrowding
4. Clear sightlines toward stage or presentations
5. Accessible service areas such as bars or buffets

Large conference organizers such as IMEX and EventMB consistently highlight layout planning as one of the most critical operational decisions for attendee satisfaction.

How Do You Start Designing an Event Floor Plan?

Key Insight: Start with event objectives and crowd movement patterns before placing any furniture.

One mistake I see repeatedly is starting with a table count. That almost always leads to cramped layouts.

Instead, begin with a structured planning process.

Step-by-step approach:

1. Define the event purpose (conference, networking, gala dinner, expo).
2. Estimate realistic guest attendance.
3. Identify required zones such as stage, dining, booths, lounges.
4. Map primary traffic routes from entrance to major areas.
5. Place functional zones along these routes.
6. Add furniture last.

This sequence prevents what I call "furniture-first planning"—a layout mistake that causes most crowding issues.

save pin

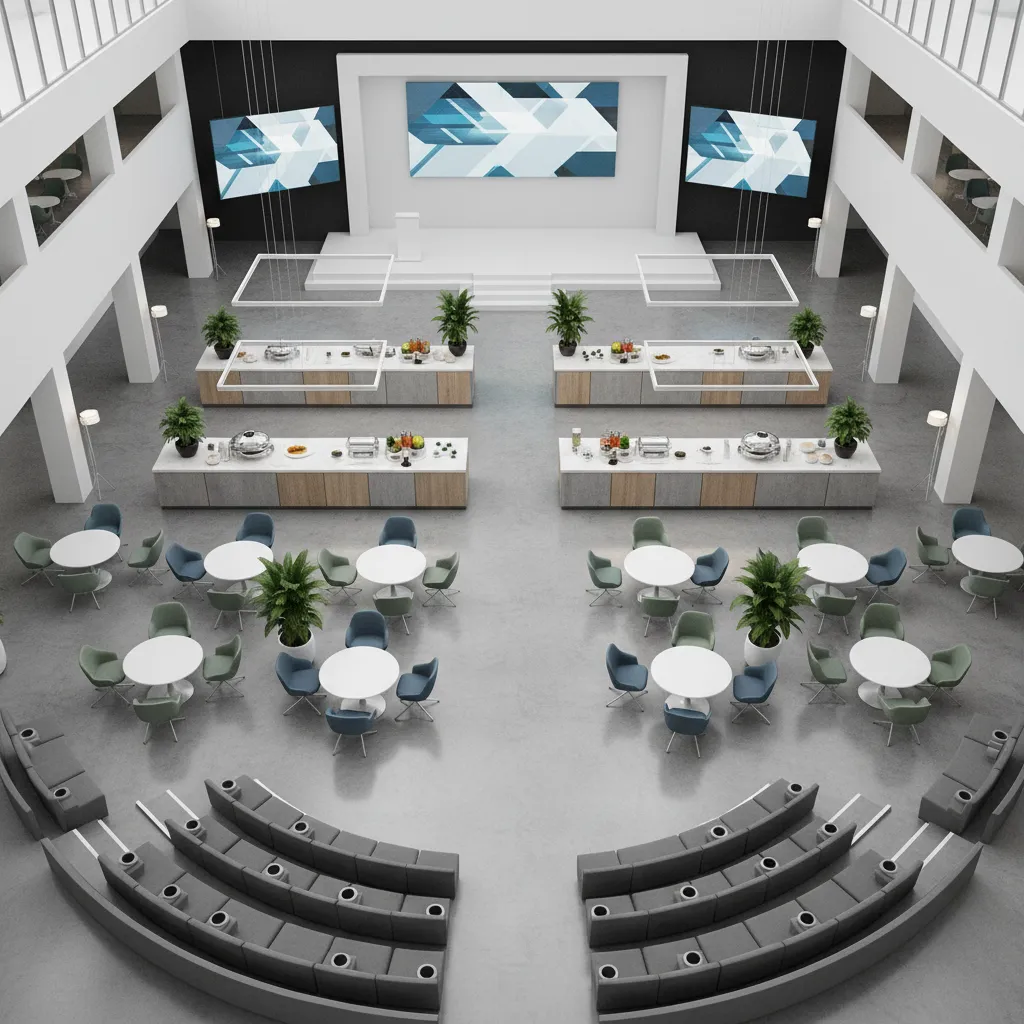

What Are the Essential Zones in a Successful Event Layout?

Key Insight: Clear spatial zoning helps guests instantly understand how to use the venue.

In effective event floor plan design, every area has a clear purpose. When zones overlap or feel ambiguous, guests hesitate or avoid the area entirely.

Typical event zones include:

1. Entrance and registration area
2. Main stage or presentation area
3. Dining or seating sections
4. Networking or lounge spaces
5. Sponsor or exhibitor booths
6. Food and beverage stations

A practical rule I use: high-energy zones (bars, food stations, networking) should sit near circulation routes, while focused zones (presentations or dining) should be slightly separated.

save pin

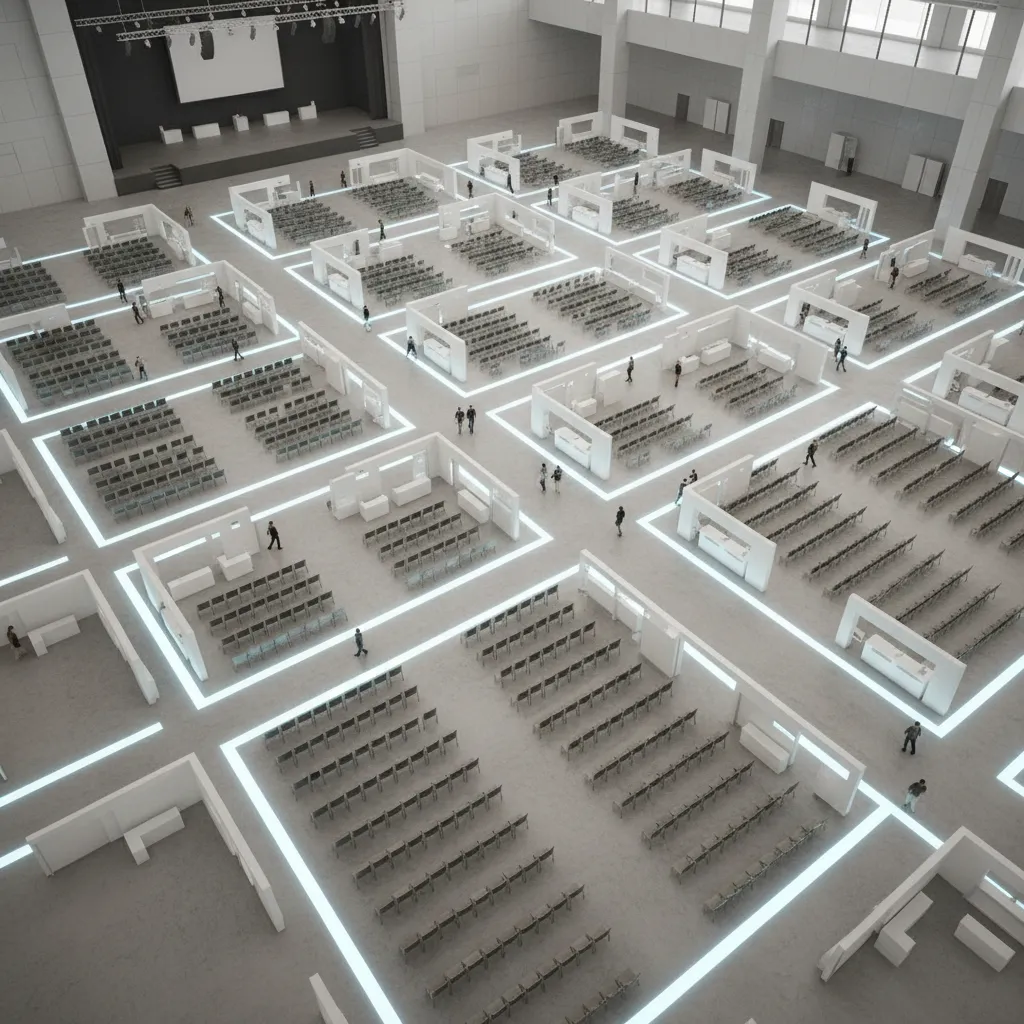

How Wide Should Walkways and Traffic Paths Be?

Key Insight: Walkway width determines whether a layout feels spacious or chaotic.

Many event floor plan designs underestimate circulation space. When guests must squeeze through narrow aisles, the entire event experience suffers.

Recommended walkway widths:

1. Main circulation paths: 10–12 feet
2. Secondary aisles: 6–8 feet
3. Between dining tables: at least 5 feet
4. Service access paths: 8–10 feet

These measurements align with standards used by major convention centers and event planning associations.

When planning layouts for events over 200 guests, I often widen primary walkways even further to reduce bottlenecks.

Common Event Floor Plan Mistakes That Cause Problems

Key Insight: Most event layout failures come from overcrowding and poor traffic planning rather than design style.

Frequent mistakes I see in real projects:

1. Too many tables added after the initial layout
2. Registration placed directly inside the entrance
3. Food stations placed in narrow corners
4. Stage sightlines blocked by columns or décor
5. Exhibitor booths placed in dead-end areas

One hidden cost of poor event floor plan design is operational disruption. Staff spend the entire event redirecting guests or rearranging furniture—something that should never happen with a properly planned layout.

Should You Use Software for Event Floor Plan Design?

Key Insight: Digital planning tools dramatically reduce layout errors and speed up event setup decisions.

In the past, most planners relied on paper diagrams. Today, event layout software allows planners to simulate the entire venue before setup day.

Benefits of digital floor plan tools:

1. Accurate scale measurements
2. Realistic furniture placement
3. Quick layout adjustments
4. Collaboration with venues and vendors
5. Visual previews for stakeholders

Popular event planning platforms such as Social Tables and Allseated have made floor planning far more precise than traditional methods.

Answer Box

The most effective event floor plan design focuses on guest movement, functional zoning, and adequate circulation space. When traffic flow and activity zones are planned before furniture placement, events feel organized, comfortable, and engaging for attendees.

How Do Professionals Test an Event Layout Before the Event?

Key Insight: The best planners stress-test layouts using realistic crowd scenarios.

Before finalizing a design, experienced planners simulate how guests will interact with the space.

Simple layout testing checklist:

1. Walk the main path from entrance to stage
2. Check lines at bars and food stations
3. Ensure booths are visible from main traffic routes
4. Verify emergency exits remain unobstructed
5. Confirm accessibility for mobility devices

Many venue managers recommend performing a "crowd imagination walkthrough"—mentally filling the room with guests to identify bottlenecks early.

Final Summary

1. Event floor plan design should prioritize traffic flow before furniture placement.
2. Clear zoning improves guest understanding of the space.
3. Wide circulation paths prevent congestion and safety issues.
4. Digital planning tools reduce layout mistakes.
5. Testing layouts before the event prevents operational problems.

FAQ

What is an event floor plan design?

An event floor plan design is a layout that organizes seating, stages, booths, and circulation paths within a venue to support guest movement and event activities.

How do you create an event floor plan?

Start by defining the event purpose, estimating guest numbers, mapping traffic routes, placing activity zones, and then adding furniture within the available space.

What software is used for event floor plan design?

Common tools include Social Tables, Allseated, and CAD-based layout software used by event planners and venue managers.

How much space should you allow per guest at an event?

Standing receptions typically allow 6–8 square feet per person, while seated dinners may require 10–12 square feet per guest.

Why is traffic flow important in event floor plans?

Good traffic flow prevents congestion, improves accessibility, and ensures guests interact with key areas like stages, booths, and networking zones.

What is the biggest mistake in event floor plan design?

The most common mistake is overcrowding the layout with too many tables or booths, leaving insufficient space for walkways.

Can small venues still have effective event floor plan design?

Yes. Strategic zoning and wider circulation paths often make small venues feel more comfortable and organized.

How early should you finalize an event floor plan?

Most planners finalize layouts 2–4 weeks before the event to coordinate with venues, vendors, and logistics teams.
