Debugging a 50 Sq Ft Layout: Common Design Failures and Fixes: A practical troubleshooting guide for fixing circulation, storage conflicts, and hidden logic errors in ultra‑small floor plans.

Direct Answer

Most 50 sq ft layout problems come from circulation conflicts, overlapping functions, and poorly sequenced spatial modules. Treating the layout like a system—where each function has inputs, outputs, and movement paths—makes it possible to debug and fix the space without increasing its size.

In ultra‑small rooms, design failures rarely come from aesthetics. They come from broken spatial logic.

Quick Takeaways

1. Most tiny layouts fail because circulation paths intersect functional zones.
2. Storage placed in the wrong module often blocks the only viable movement route.
3. Debugging a layout works best when each function is isolated and tested.
4. Refactoring furniture positions can restore usability without increasing square footage.
5. Testing a layout in 3D reveals hidden collisions the floor plan cannot show.

Introduction

Designing a 50 sq ft layout is closer to debugging software than decorating a room. After working on dozens of micro‑spaces—sleep pods, micro studios, and ultra‑compact guest rooms—I noticed something interesting: when these layouts fail, they fail for the same structural reasons.

The room technically "fits" everything on paper. Bed, desk, storage, door clearance. Yet the moment someone tries to live in it, the system collapses. You can't open a drawer without blocking the door. Sitting at the desk traps you inside the room. The closet becomes unusable.

That’s not a furniture problem. It’s a logic problem.

When I troubleshoot micro‑spaces, I start by rebuilding the spatial logic from scratch. Often I begin by mapping the layout digitally using a visual floor plan creator for testing ultra‑small layouts. Seeing movement paths clearly usually exposes the hidden bugs immediately.

In this guide I'll walk through the most common failure patterns I see in 50 sq ft floor plans—and how to debug them step by step.

save pinOpen in 3D Planner Processing...

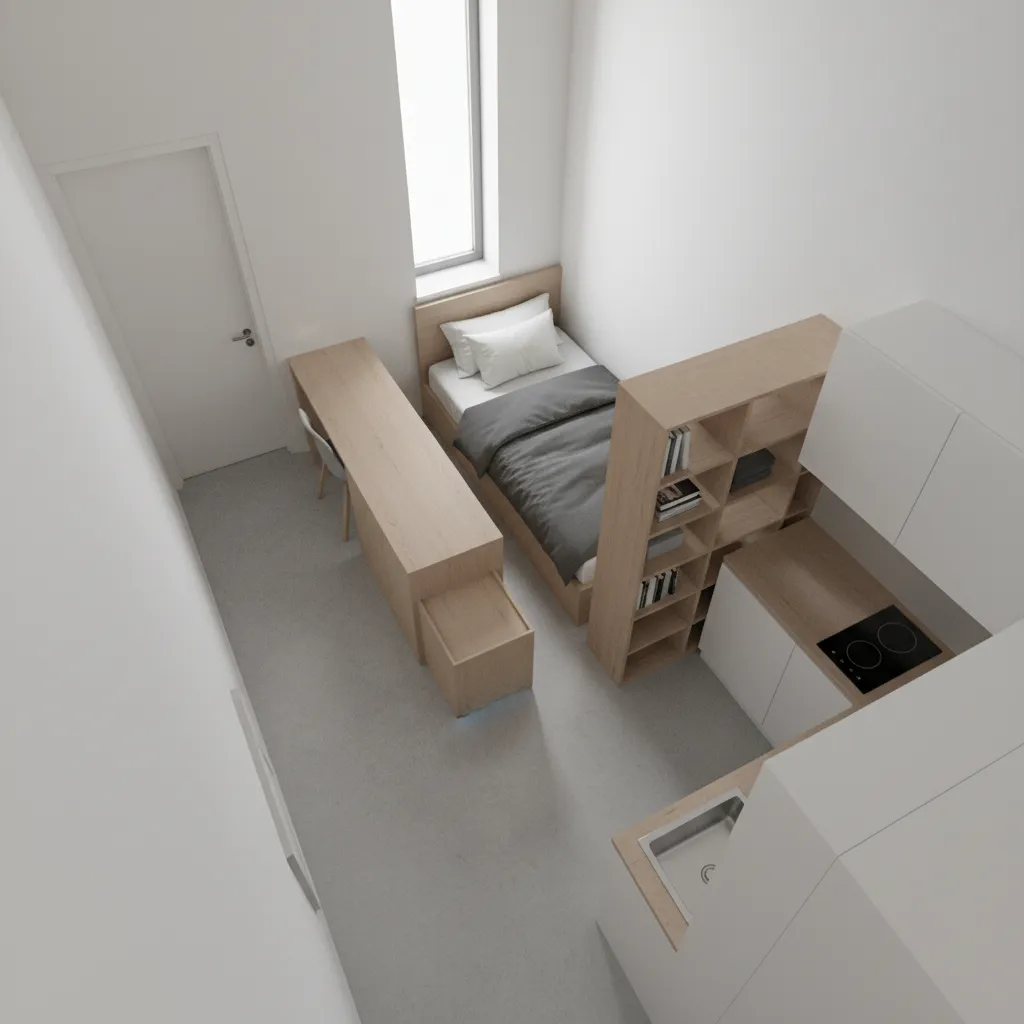

Why Ultra Small Floor Plans Break Down

Key Insight: Ultra‑small layouts fail when too many functions compete for the same physical pathway.

In normal apartments, circulation errors are forgiving. In a 50 sq ft room, a 6‑inch mistake can make the entire layout unusable.

Across micro‑housing projects I've reviewed, three failure patterns appear repeatedly:

1. Stacked functions in the same zone — bed, desk, and storage share the same movement path.
2. Door swing conflicts — the entry door eliminates half the usable circulation.
3. Invisible clearance requirements — drawers, chair movement, and reach zones aren't considered.

One counterintuitive lesson: the smaller the room, the more empty space you actually need. Designers often try to "fill" the room, but micro layouts depend on a single clear circulation spine.

Without that spine, every function begins to collide with the next.

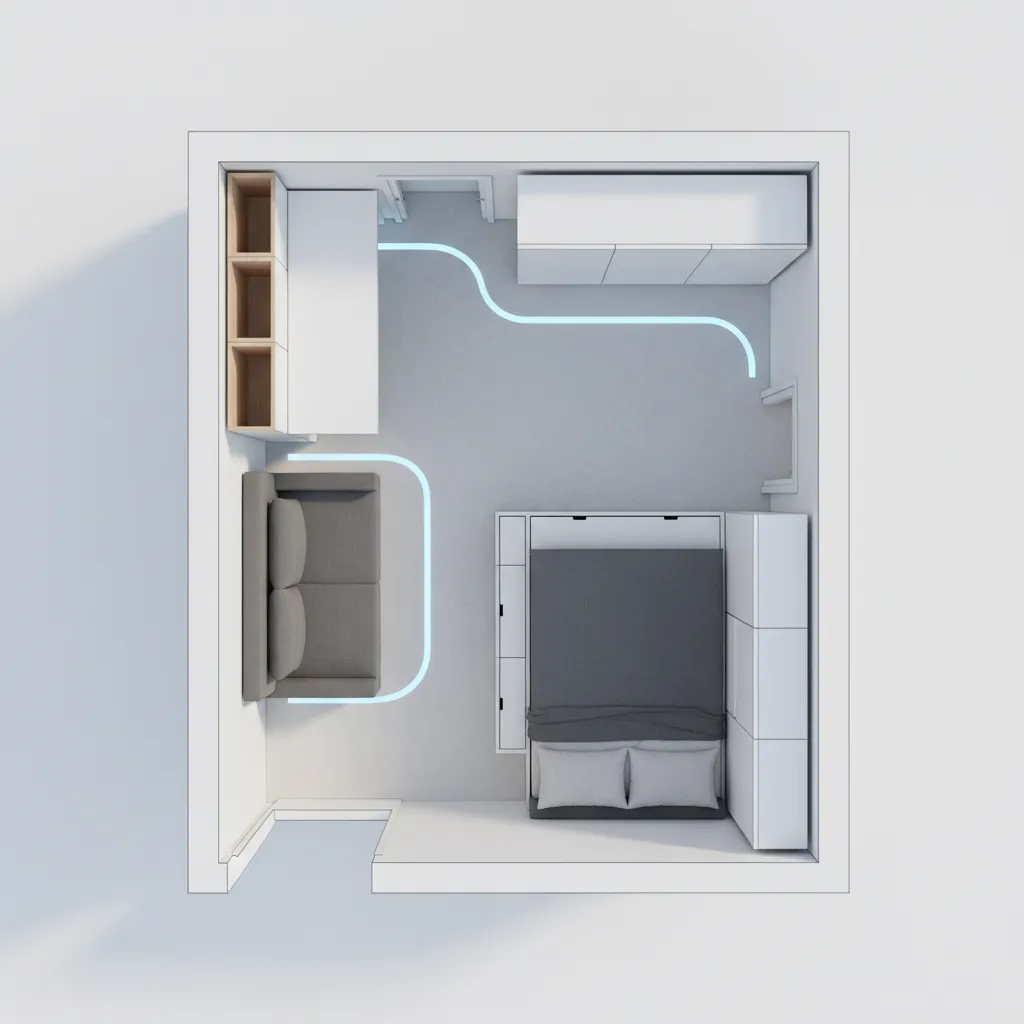

Circulation Conflicts in 50 Sq Ft Spaces

Key Insight: In tiny rooms, circulation must be designed before furniture is selected.

Most designers do the opposite—they choose furniture first and then try to squeeze circulation around it.

Instead, start with the movement path.

A reliable circulation structure for a 50 sq ft layout usually follows this pattern:

1. Entry point
2. Main movement spine (18–24 inches minimum)
3. Functional nodes branching from that spine

Example micro‑layout logic:

1. Entry → narrow walkway
2. Walkway → desk alcove
3. Walkway → sleeping module
4. Walkway → storage wall

Notice something important: none of the functions interrupt the walkway.

When troubleshooting small apartment layouts, circulation conflicts account for roughly 70% of usability problems I see in client plans.

save pinOpen in 3D Planner Processing...

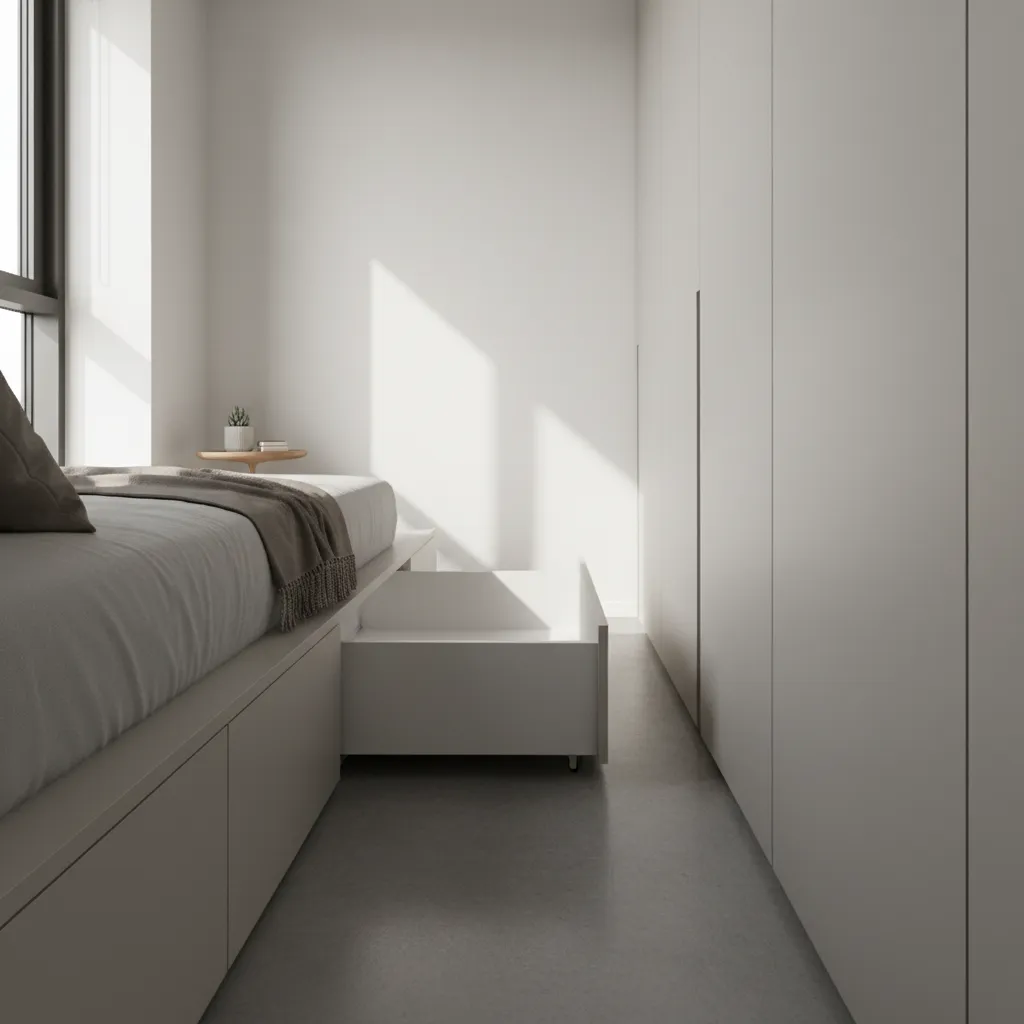

Storage Overlap and Functional Collisions

Key Insight: Storage is the most common hidden bug in micro floor plans.

Designers love adding storage in tiny rooms. Unfortunately, storage creates movement requirements that most plans ignore.

Common examples:

1. Drawer needs 18–22 inches to open.
2. Closet doors require swing clearance.
3. Pull‑out storage blocks walkways.

This creates what I call a functional collision—two modules requiring the same physical space at the same time.

Three safer storage strategies for a 50 sq ft room:

1. Vertical storage walls instead of horizontal cabinets
2. Sliding doors instead of swing doors
3. Overhead storage above circulation zones

When I'm testing storage placement, I often simulate interactions using a 3D room planner for checking furniture clearance. Seeing drawers open in simulation quickly reveals collisions the plan view hides.

save pinOpen in 3D Planner Processing...

How to Debug Spatial Modules Step by Step

Key Insight: Treat each functional area like an independent module that must pass a usability test.

Instead of redesigning the whole layout at once, isolate the components.

My typical debugging process looks like this:

1. Identify the core path
2. Draw the primary circulation line from entry to the farthest point.
3. Freeze the circulation zone
4. No furniture should intrude into this path.
5. Test modules individually
6. Bed module, desk module, storage module.
7. Simulate user actions
8. Sitting, opening drawers, entering the room.
9. Remove failing components
10. If a module blocks circulation, refactor it.

This "module testing" approach is the fastest way to debug tiny floor plan problems without starting from scratch.

Answer Box

The fastest way to fix a failing 50 sq ft layout is to identify the primary circulation path and rebuild all functions around it. Most micro‑space problems come from storage and furniture blocking movement.

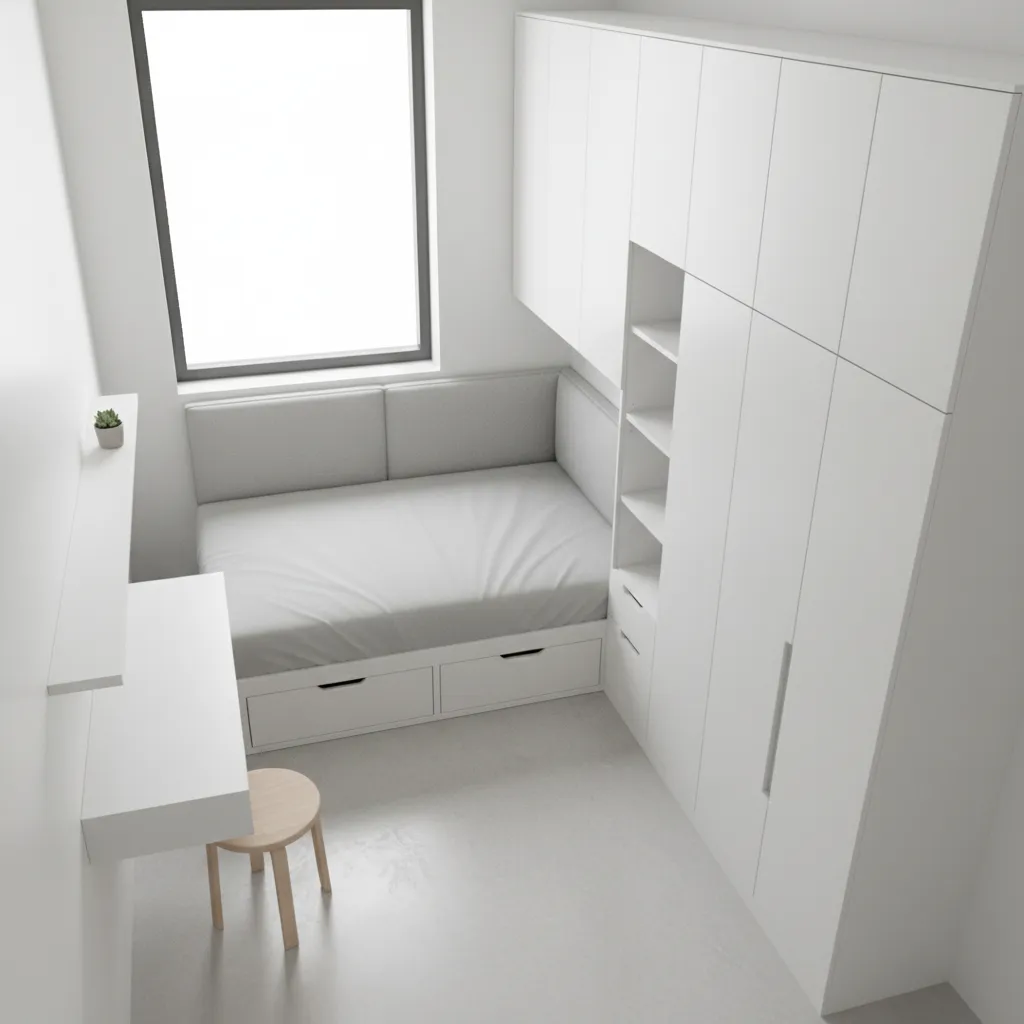

Refactoring a Tiny Layout Without Increasing Size

Key Insight: Repositioning functions often improves usability more than reducing furniture size.

Many people assume they need smaller furniture. In reality, the layout logic is usually the issue.

Three layout refactors that frequently solve 50 sq ft layout problems:

1. Rotate the bed 90 degrees to restore a circulation path.
2. Convert the longest wall into a storage spine.
3. Move the desk to the entry zone to reduce internal circulation.

This kind of spatial refactoring works because it reorganizes movement rather than shrinking furniture.

save pinOpen in 3D Planner Processing...

Testing the Layout Like a Program

Key Insight: A micro layout should be tested through simulated movement scenarios.

I often describe tiny space planning as "running the program." Every action should work without collision.

Test scenarios I run for debugging small apartment layouts:

1. Enter the room and sit at the desk
2. Open storage while someone is inside
3. Transition from sleeping to workspace mode
4. Exit quickly without moving furniture

Running these simulations in a realistic 3D floor plan simulation environment reveals spatial bugs immediately—especially clearance conflicts that flat drawings hide.

Final Summary

1. Most 50 sq ft layout failures come from circulation conflicts.
2. Storage placement often creates hidden spatial collisions.
3. Debugging works best when modules are tested independently.
4. Reorganizing layout logic is more powerful than shrinking furniture.
5. Simulating real movement exposes invisible design errors.

FAQ

Why do 50 sq ft layouts fail so often?

Because circulation paths overlap with functional zones. In micro spaces, even small clearance mistakes break usability.

What is the biggest mistake in tiny floor plan design?

Designing furniture first and circulation second. Movement paths should define the layout structure.

How much walkway space is needed in a 50 sq ft room?

Ideally 18–24 inches. Anything narrower starts creating usability issues.

Can a 50 sq ft layout realistically include a bed and desk?

Yes, but only if the functions are arranged along a clear circulation spine.

How do I fix circulation problems in tiny rooms?

Identify the main path first, then reposition furniture so nothing interrupts that route.

Is vertical storage better for micro layouts?

Yes. Vertical storage preserves floor circulation and reduces movement conflicts.

What tool helps debug tiny floor plans?

A 3D layout simulator helps reveal clearance conflicts and overlapping functions.

What makes a good 50 sq ft layout?

A clear movement path, modular furniture zones, and storage that doesn't block circulation.
