Design Your Own Gym Floor Plan: Create the Perfect Layout for Your Fitness Space

Direct Answer

To design your own gym floor plan, start by defining workout zones for strength, cardio, and mobility, then allocate enough clearance around equipment to maintain safe movement flow. A well‑planned layout improves safety, efficiency, and motivation. The key is balancing equipment placement, circulation space, and storage so the gym feels open rather than crowded.

Quick Takeaways

1. A good gym floor plan separates strength, cardio, and mobility zones.
2. Leave at least 3–4 feet of clearance around most equipment.
3. Small gyms benefit more from vertical storage than extra machines.
4. Lighting and mirrors influence motivation and perceived space.
5. Overcrowding equipment is the most common layout mistake.

Introduction

After designing dozens of home fitness spaces over the past decade, I’ve learned that the difference between a gym people actually use and one that becomes a storage room usually comes down to the floor plan. Most homeowners think the equipment matters most. In reality, the layout matters more.

When people start to design their own gym floor plan, they often buy equipment first and figure out placement later. That approach almost always leads to cramped corners, blocked walkways, and wasted square footage. A better strategy is to plan the space around movement patterns and workout flow before anything gets installed.

In this guide, I’ll walk through the layout principles I use when planning home gyms—from compact garage setups to dedicated fitness rooms—so you can build a space that actually works.

save pin

Why Does a Gym Floor Plan Matter More Than Equipment?

Key Insight: A smart layout improves workout efficiency more than adding another machine.

Many people assume that a bigger equipment list equals a better gym. In practice, poor layout quickly makes even expensive equipment frustrating to use. A treadmill too close to a wall or a squat rack blocking circulation will disrupt workouts every day.

Professional fitness facilities invest heavily in spatial planning because movement flow directly affects usability. The same logic applies at home.

Common layout mistakes I see in projects:

1. Equipment pushed against every wall
2. No dedicated warm‑up area
3. Walkways blocked by benches or racks
4. Ignoring ceiling height for lifts
5. Underestimating storage space

According to guidance from organizations like the American Council on Exercise (ACE), safe exercise areas require clear space around equipment to reduce injury risk and allow full range of motion.

How Much Space Do You Need for a Home Gym?

Key Insight: Even a small 100–150 sq ft room can function well if zones are planned correctly.

People often delay building a home gym because they think they need a large room. In reality, layout efficiency matters more than square footage.

Typical space guidelines I use when planning layouts:

1. Yoga / mobility area: 6 × 6 ft minimum
2. Treadmill or bike: 7 × 3 ft footprint plus clearance
3. Power rack: about 8 × 8 ft safe zone
4. Dumbbell training area: 6 × 6 ft
5. Walkway circulation: at least 3 ft

Small-space design trick I often recommend: place large equipment along one wall and keep the center flexible. This prevents the room from feeling cramped.

save pin

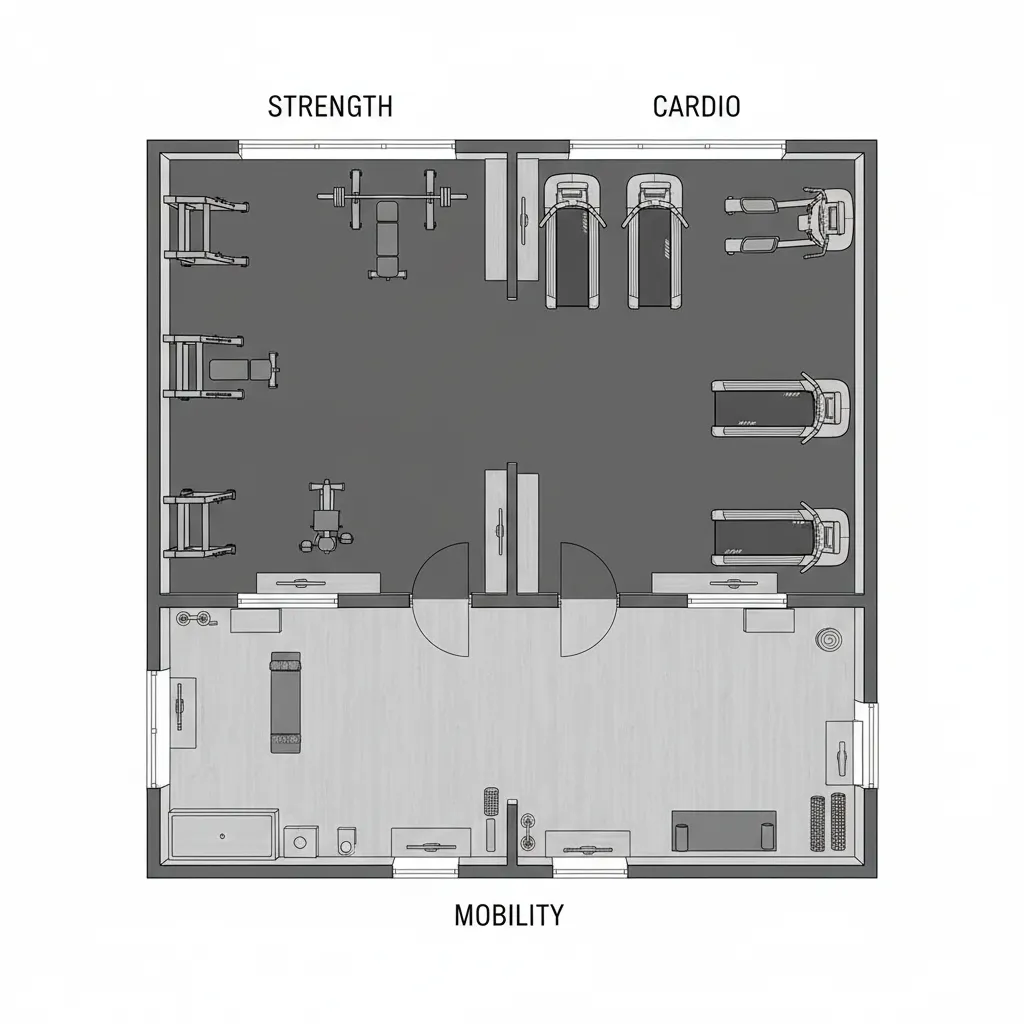

What Are the Essential Zones in a Gym Floor Plan?

Key Insight: Dividing a gym into workout zones creates better flow and reduces clutter.

Instead of randomly placing machines, I organize most gym floor plans into three main functional zones.

Typical zoning structure:

1. Strength zone – squat rack, bench, dumbbells
2. Cardio zone – treadmill, rower, bike
3. Mobility zone – mats, stretching area

This structure mirrors layouts used by many commercial gyms because it minimizes equipment conflicts. Someone stretching should not be directly behind a lifter doing deadlifts.

Design tip from real projects: place the cardio zone near windows when possible. Natural light dramatically improves perceived energy and motivation during longer workouts.

save pin

How Do You Design a Gym Layout for Small Spaces?

Key Insight: In compact gyms, vertical storage and multi‑function equipment matter more than extra machines.

Small home gyms—especially garage gyms or spare bedrooms—require smarter layout decisions.

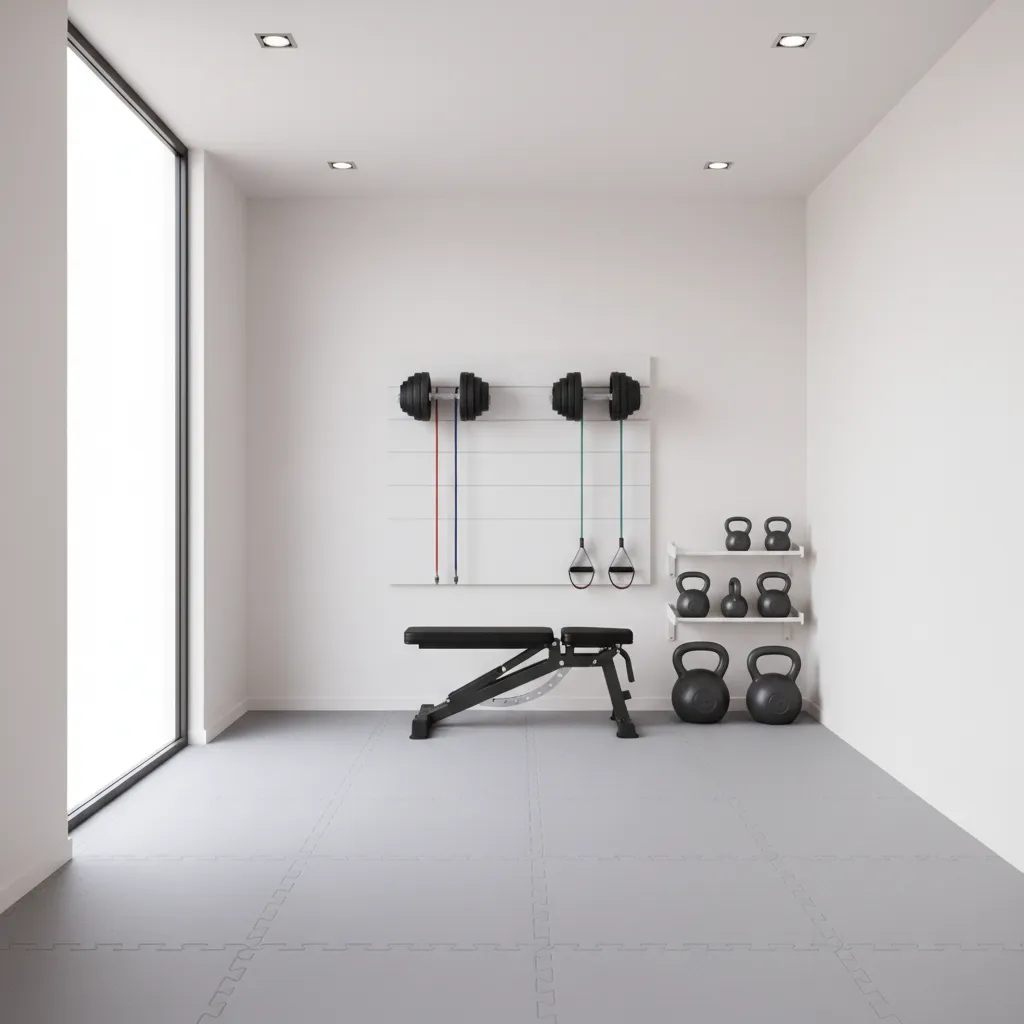

Space‑saving strategies I often use:

1. Wall‑mounted racks instead of freestanding ones
2. Foldable benches
3. Vertical dumbbell storage
4. Adjustable dumbbells replacing large sets
5. Wall mirrors to visually expand the room

One surprising observation from many projects: removing one bulky machine often improves the entire gym experience. Open space is an underrated feature in gym design.

Common Mistakes When People Design Their Own Gym Floor Plan

Key Insight: Most DIY gym layouts fail because people plan for equipment instead of movement.

After reviewing dozens of client layouts, a few mistakes appear repeatedly.

1. Buying equipment before measuring the room
2. Ignoring door swing or ceiling height
3. No storage for weights and accessories
4. Poor lighting planning
5. Placing mirrors incorrectly

Lighting is especially overlooked. According to several interior wellness studies, brighter environments improve perceived energy levels and workout consistency. A dim basement gym often gets used less frequently.

Answer Box

The most effective gym floor plans focus on movement flow rather than equipment quantity. Divide the space into strength, cardio, and mobility zones, keep at least three feet of clearance around equipment, and prioritize open space over extra machines.

What Tools Can Help You Design Your Own Gym Floor Plan?

Key Insight: Simple room planning tools make it far easier to visualize spacing before buying equipment.

Before installing anything, I recommend creating a rough digital layout.

Useful planning tools include:

1. Floor planning apps like RoomSketcher
2. SketchUp for detailed 3D layouts
3. Printable graph paper for quick sketches

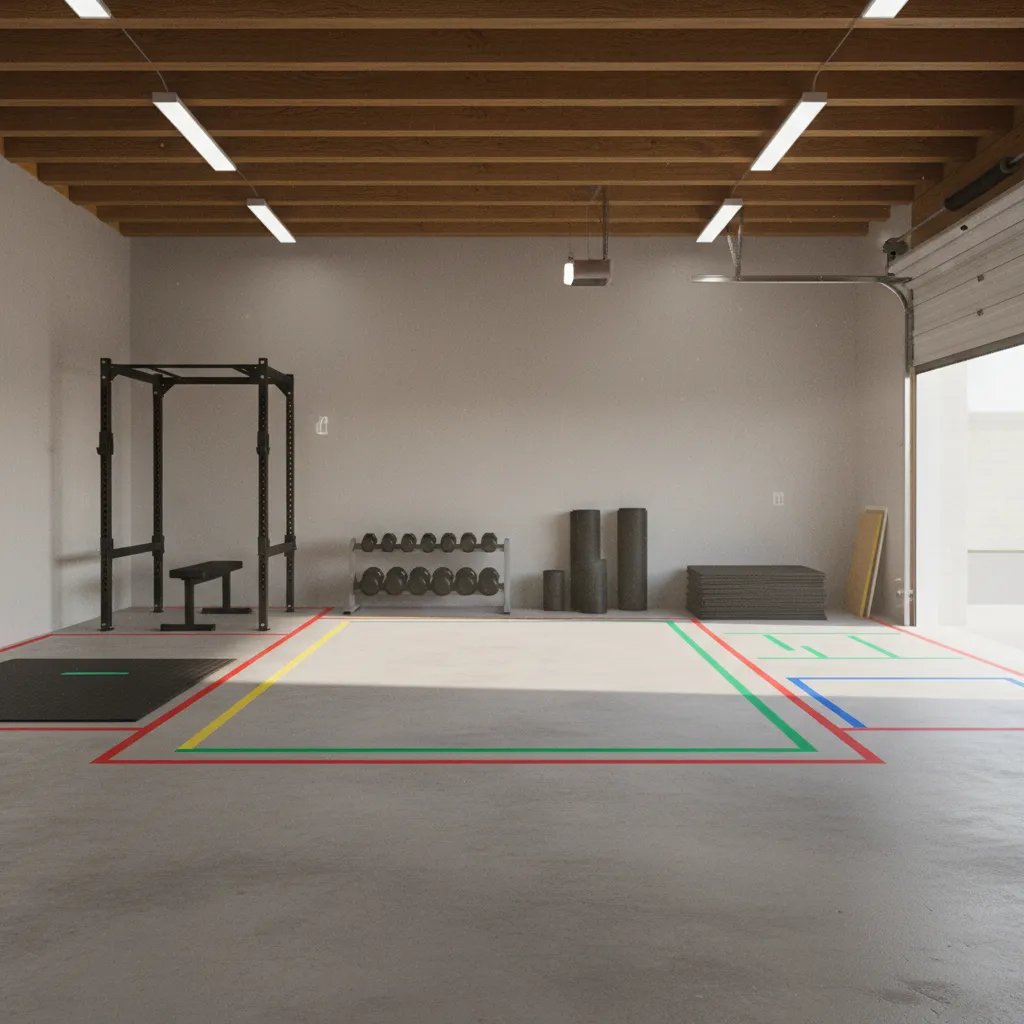

4. Painter’s tape on the floor to test equipment footprints

The tape method is surprisingly effective. I often mark equipment dimensions directly on the floor so homeowners can walk through the space before purchasing anything.

save pin

Final Summary

1. A functional gym starts with layout planning, not equipment shopping.
2. Divide the room into strength, cardio, and mobility zones.
3. Leave 3–4 feet of clearance around equipment.
4. Prioritize open floor space over additional machines.
5. Use vertical storage to make small gyms feel larger.

FAQ

How big should a home gym be?

A practical home gym can work in 100–200 square feet if the floor plan separates equipment and leaves open training space.

What is the best layout for a small home gym?

Place large equipment along walls and keep the center open for mobility and bodyweight training.

Can I design my own gym floor plan without software?

Yes. Many people sketch layouts on graph paper or mark equipment sizes with tape directly on the floor.

How much clearance should gym equipment have?

Most equipment needs 3–4 feet of clearance around it to allow safe movement.

What flooring works best in a home gym?

Rubber gym flooring or interlocking mats provide shock absorption and protect subfloors.

Should mirrors be included in a gym floor plan?

Yes. Mirrors help with form correction and visually expand smaller workout rooms.

Is a garage good for a home gym?

Garages work well because they typically provide higher ceilings and flexible layouts.

What is the first step when you design your own gym floor plan?

Measure the room and map equipment footprints before purchasing machines.
