Designing a Free 2D Floor Plan for Small Spaces: Maximize Your Space with Simple 2D Floor Planning Tools

Direct Answer

A free 2D floor plan for small spaces helps you visualize layout, circulation, and furniture placement before moving anything in real life. By mapping walls, doors, and furniture to scale, you can identify wasted space, improve flow, and maximize every square foot. Even simple 2D planning tools can dramatically improve how a small apartment or studio functions.

Quick Takeaways

1. A free 2D floor plan reveals wasted space before furniture is purchased.
2. Small layouts work best when circulation paths stay clear and consistent.
3. Furniture scale matters more than style in compact homes.
4. 2D plans often solve layout problems faster than jumping into 3D design.
5. Testing multiple layouts digitally prevents expensive rearranging later.

Introduction

In more than a decade working on apartments, micro‑lofts, and compact condos, I've noticed something interesting. Most small space problems aren't caused by lack of square footage—they're caused by poor layout decisions. A simple free 2D floor plan for small spaces often reveals issues instantly: blocked pathways, oversized furniture, or dead corners that quietly waste valuable room.

Many homeowners jump straight into decorating before understanding their layout. That usually leads to frustration—sofas that barely fit, dining tables that interrupt circulation, or storage that never quite works.

The good news is that creating a 2D layout is quick, free, and incredibly effective. I'll walk through how designers actually approach small space planning, the mistakes most people make, and how a simple plan can completely change how your space feels.

save pin

Why Start With a 2D Floor Plan Instead of Jumping to 3D?

Key Insight: A 2D plan forces you to solve layout logic first, which is the real problem in most small spaces.

Clients often assume 3D visualization is the most important step. In reality, professional designers almost always begin with a flat plan. Why? Because layout decisions become obvious when viewed from above.

A 2D plan immediately reveals:

1. Walking paths that are too narrow
2. Furniture collisions
3. Door swing conflicts
4. Unused corners
5. Imbalanced room zones

When working on a 420‑square‑foot studio in Santa Monica, we tested six layouts in 30 minutes using simple 2D blocks. The final arrangement added space for a small work desk without removing the dining area.

Industry groups like the American Institute of Architects consistently emphasize early layout planning as the most impactful stage of interior design.

How Do You Design a Free 2D Floor Plan for Small Spaces?

Key Insight: The best layouts begin with accurate measurements, then furniture zones—not decoration.

Here's the exact workflow I recommend to homeowners and junior designers.

Step‑by‑step process:

1. Measure the room walls, windows, and doors.
2. Input the dimensions into a free floor planning tool.
3. Mark fixed elements like plumbing, radiators, or columns.
4. Create zones for living, sleeping, dining, and storage.
5. Add furniture shapes scaled to real dimensions.
6. Test multiple layout variations.

The biggest mistake people make is placing furniture before defining zones. Small homes need functional areas first—then furniture that fits those areas.

save pin

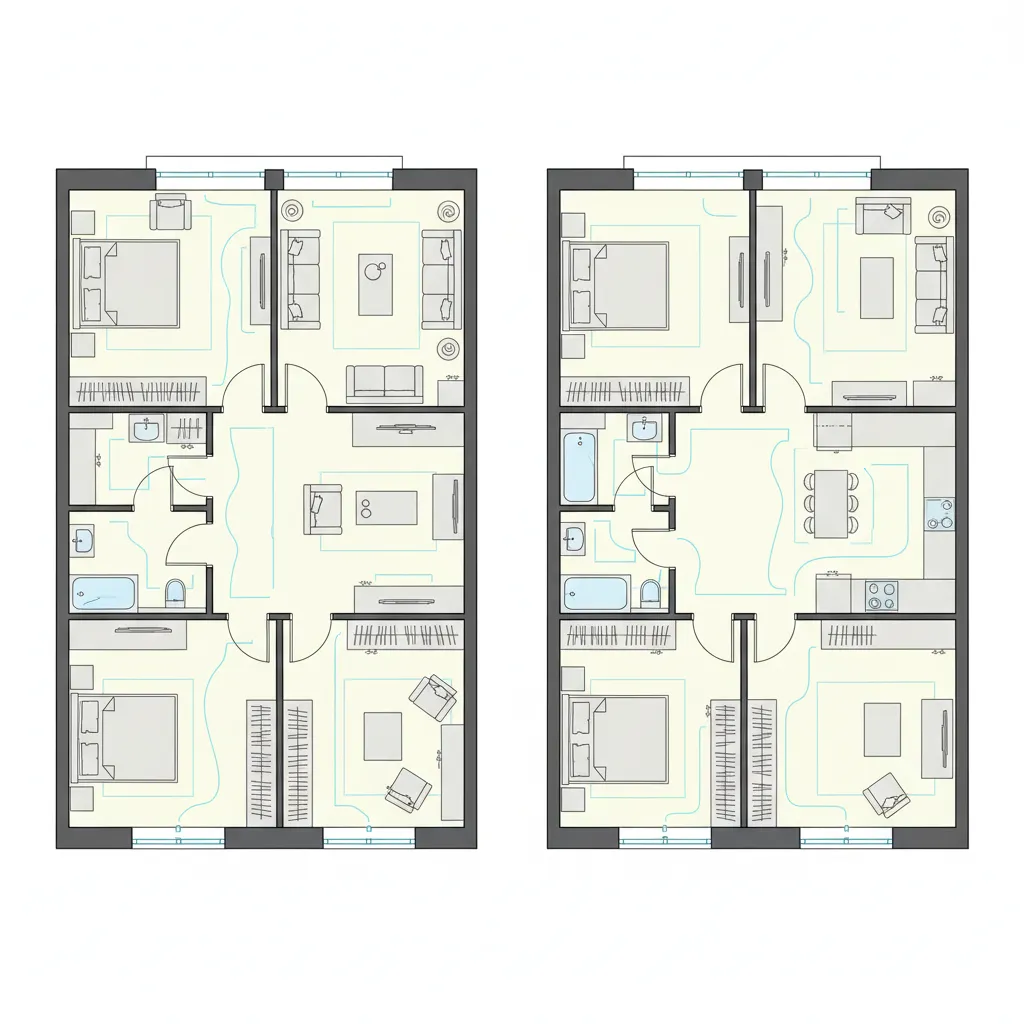

What Layout Mistakes Waste the Most Space?

Key Insight: In compact homes, poor circulation planning wastes more space than oversized furniture.

After reviewing hundreds of small apartment layouts, several problems appear repeatedly.

Common hidden layout errors:

1. Placing furniture directly in walking paths
2. Overusing center‑room furniture instead of wall placement
3. Ignoring door clearance zones
4. Creating dead corners behind furniture
5. Using too many small pieces instead of fewer functional ones

One counterintuitive trick: pushing more furniture against walls actually makes a small room feel larger. Floating layouts look great in large homes but often break small‑space circulation.

Real estate staging professionals frequently follow the same principle to visually enlarge compact rooms.

save pin

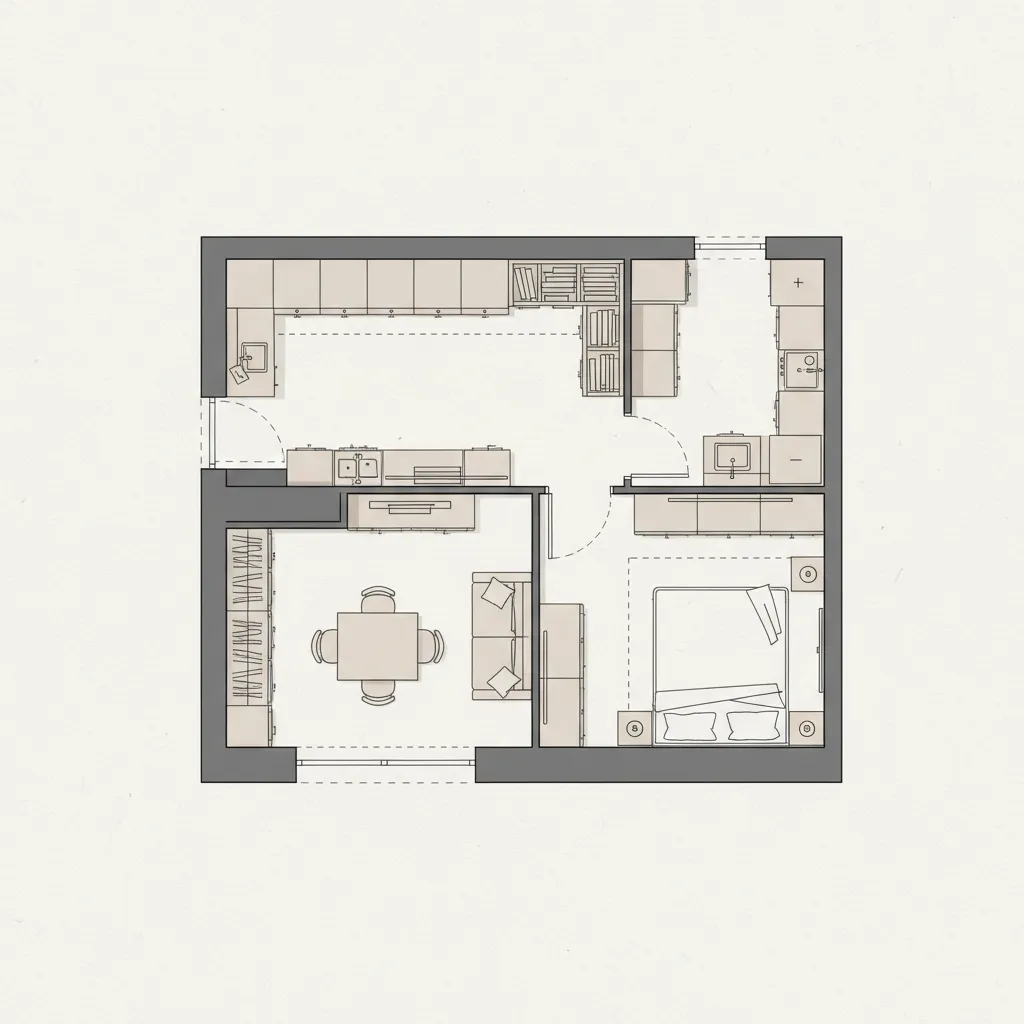

Can a 2D Floor Plan Improve Storage in Small Homes?

Key Insight: Storage opportunities often appear only after mapping unused wall segments and corner areas.

When you view a room from above, hidden storage zones become obvious.

Look for these overlooked opportunities:

1. Vertical storage along narrow wall segments
2. Corner shelving units
3. Storage benches near entry areas
4. Bed platforms with integrated drawers
5. Floating shelves above workspaces

In a recent 500‑square‑foot condo redesign, mapping the layout revealed a 32‑inch wall gap beside the entry. Installing vertical cabinetry there added more storage than the entire original closet.

Urban housing trends reported by the National Association of Home Builders show that compact homes increasingly rely on integrated storage planning during the layout stage.

save pin

Answer Box

A free 2D floor plan for small spaces helps identify layout problems, improve circulation, and test multiple furniture arrangements before committing to a final design. Starting with a simple overhead layout often saves both money and valuable square footage.

Which Free Tools Work Best for Creating 2D Floor Plans?

Key Insight: The best free tools balance simplicity with accurate scaling.

Over the years I've tested dozens of layout tools with clients. A few consistently work well for quick planning.

Popular free tools include:

1. Floorplanner
2. Planner 5D
3. RoomSketcher (free tier)
4. Sweet Home 3D
5. IKEA Home Planner

The most important feature isn't fancy graphics—it's accurate measurements. If furniture dimensions are correct, your layout decisions become far more reliable.

How Many Layout Versions Should You Test?

Key Insight: Designers rarely settle on the first layout; testing 3–5 variations usually reveals better solutions.

In practice, the first layout is almost never the best one.

Try experimenting with:

1. Rotating the bed or sofa orientation
2. Combining dining and work areas
3. Switching between wall‑based and corner layouts
4. Reducing furniture count

Small homes reward experimentation. Because the space is limited, small adjustments often create surprisingly large improvements in usability.

Final Summary

1. A 2D floor plan is the fastest way to fix small‑space layout problems.
2. Circulation and furniture scale determine whether compact homes feel comfortable.
3. Testing multiple layouts often reveals unused storage areas.
4. Free tools make professional‑level planning accessible to anyone.
5. Smart layouts matter more than room size.

FAQ

1. What is a free 2D floor plan?

A free 2D floor plan is a top‑down layout drawing that shows walls, doors, windows, and furniture placement using accurate measurements.

2. Why is a 2D floor plan useful for small spaces?

A 2D layout clearly shows circulation paths and furniture scale, helping prevent cramped or inefficient arrangements.

3. How accurate should measurements be?

Ideally within one inch. Accurate measurements ensure furniture actually fits the planned layout.

4. Can beginners create a free 2D floor plan?

Yes. Many tools are designed for homeowners and allow drag‑and‑drop furniture with automatic scaling.

5. What furniture should be placed first?

Start with the largest pieces like beds, sofas, or dining tables. These define the room's functional zones.

6. How many layouts should I test?

Designers usually test three to five versions before choosing the best one.

7. Do I need a 3D model after creating a 2D floor plan for small spaces?

Not always. A well‑designed 2D floor plan for small spaces often solves the main layout challenges.

8. Can a 2D plan help with storage planning?

Yes. Overhead views make unused walls and corners easier to identify for shelving or cabinets.
