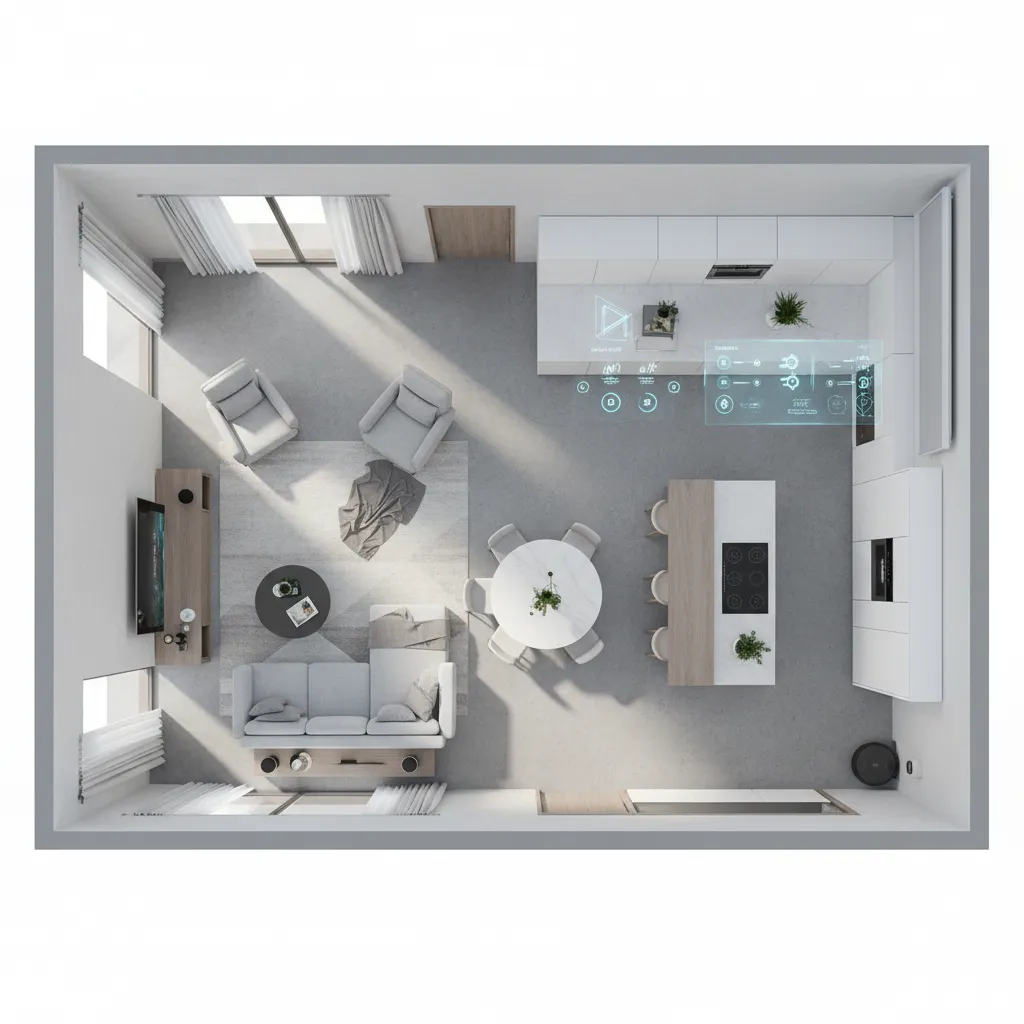

Designing an AI Smart Home Floor Plan: Creating the Perfect Layout for Modern Living

Direct Answer

An AI smart home floor plan is designed so sensors, automation systems, and connected devices can work efficiently with daily living patterns. The layout prioritizes visibility, movement flow, and centralized control points so AI systems can monitor, learn, and automate tasks naturally.

In practice, this means planning open sightlines, smart device zones, flexible rooms, and infrastructure for sensors, hubs, and network coverage from the beginning of the design process.

Quick Takeaways

1. AI smart homes work best when floor plans support sensor visibility and natural movement patterns.
2. Centralized living zones improve automation accuracy and device coordination.
3. Hidden infrastructure like wiring paths and network nodes should be planned early.
4. Over‑automating small rooms often creates more problems than benefits.
5. The best AI layouts still prioritize human comfort first.

Introduction

After working on more than a decade of residential projects, I've noticed something interesting about the rise of the AI smart home floor plan. Many homeowners assume smart homes are mostly about gadgets. But in reality, the floor plan often determines whether the technology actually works well.

I’ve walked into beautiful houses filled with sensors, voice assistants, and automated lighting systems that still felt frustrating to use. The problem wasn’t the technology. It was the layout.

A well-designed AI-ready layout allows systems to observe patterns, automate routines, and respond naturally to how people move through the home. In this guide, I’ll walk through the design principles I use when planning homes that truly support AI automation instead of fighting against it.

save pin

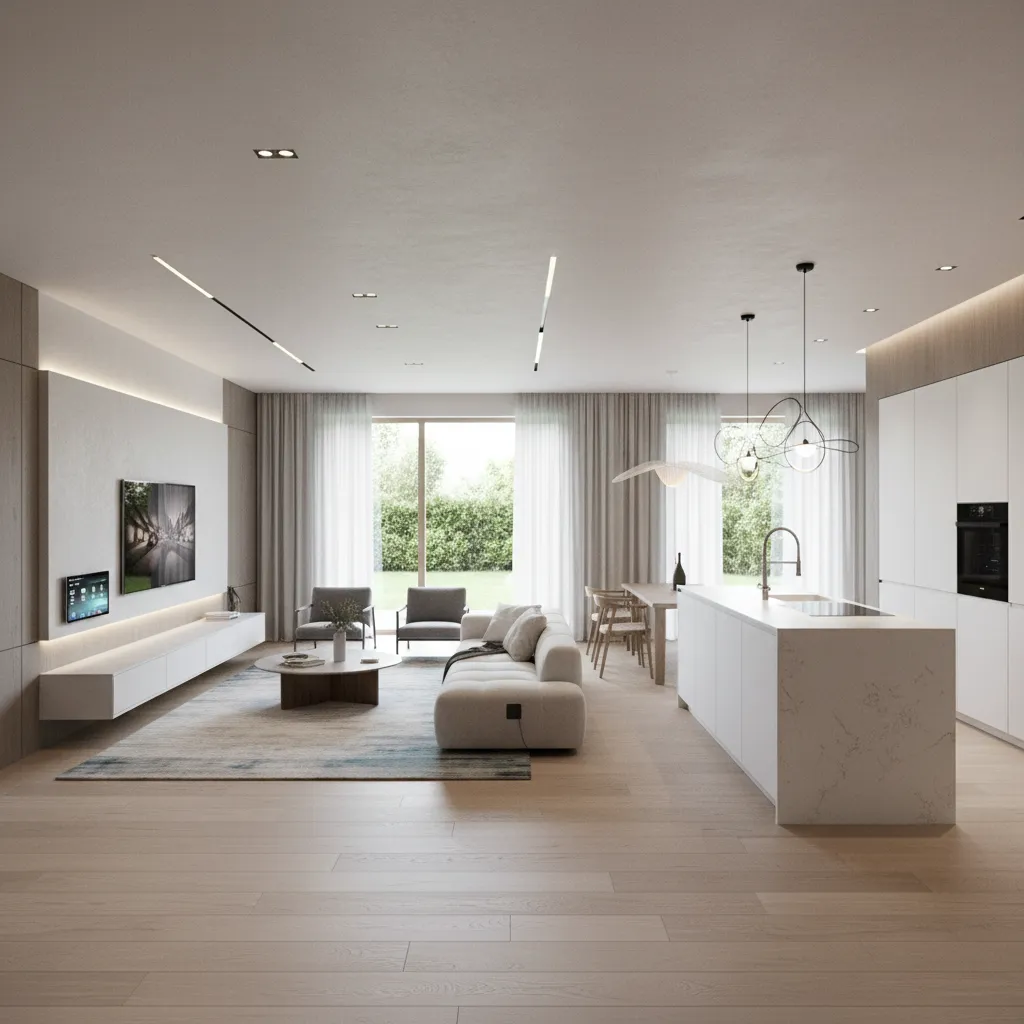

Why Floor Plans Matter More Than Devices in Smart Homes

Key Insight: The architecture of the home determines how effectively AI systems can observe, learn, and automate daily routines.

Most smart home marketing focuses on devices: speakers, cameras, thermostats, and sensors. But in real projects, the biggest success factor is spatial logic.

AI automation relies heavily on movement patterns. If rooms are fragmented or poorly connected, the system receives incomplete data and automation becomes inconsistent.

In projects where we optimized layout for automation, clients reported noticeably smoother routines like lighting, climate control, and security monitoring.

Layout factors that improve AI performance include:

1. Clear movement paths between common spaces
2. Open visual connections for motion detection
3. Centralized hubs for voice assistants
4. Consistent lighting zones
5. Reliable Wi‑Fi coverage across all rooms

According to research from the Consumer Technology Association, more than 70% of smart home frustrations come from device connectivity and automation failures rather than device quality. Many of those issues are rooted in poor layout planning.

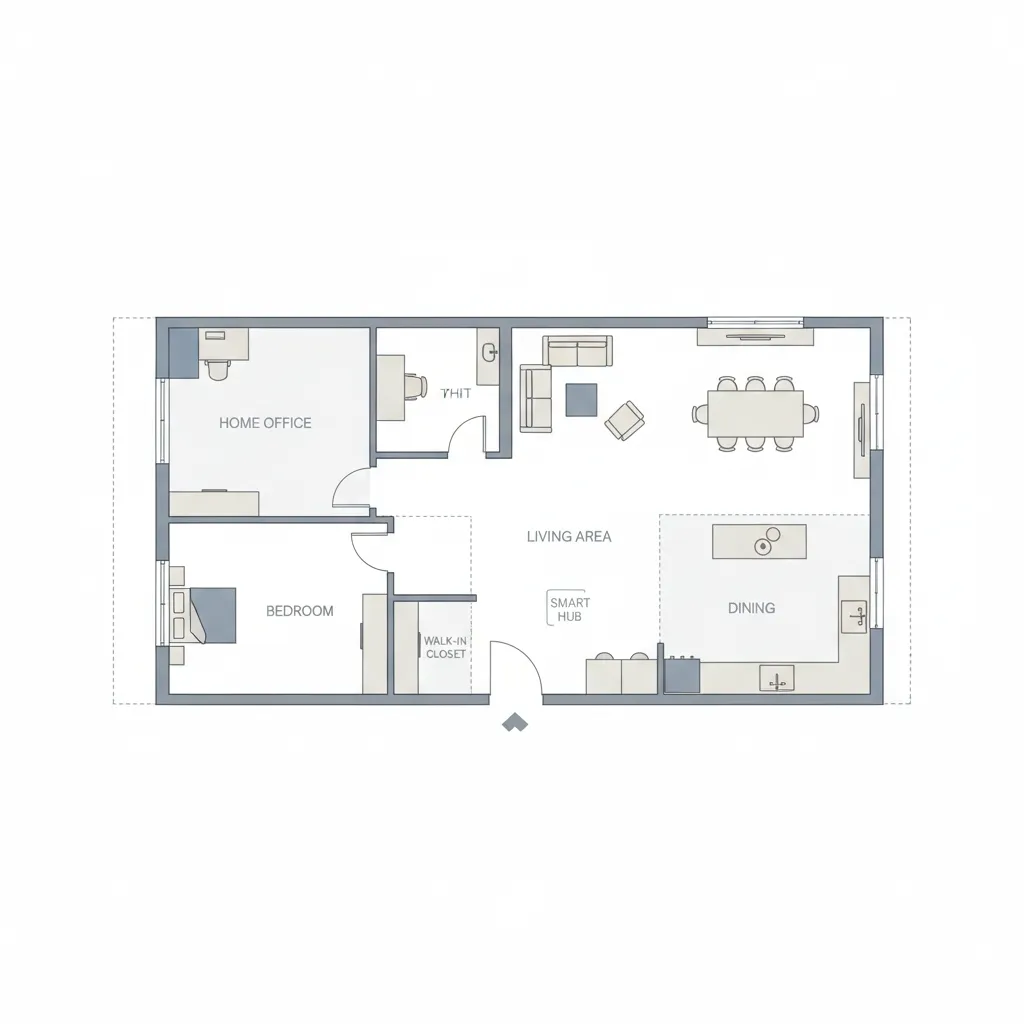

How Should an AI Smart Home Floor Plan Be Organized

Key Insight: The most effective AI smart homes organize spaces into predictable activity zones.

Instead of thinking only in terms of rooms, I often design smart homes around behavioral zones. AI automation works best when activities happen in consistent areas.

Typical AI activity zones include:

1. Living zone (living room, kitchen, dining)
2. Private zone (bedrooms and bathrooms)
3. Work zone (home office or study)
4. Transition zone (hallways, entryways)
5. Outdoor interaction zone (patio, backyard)

Each zone can then support automation patterns such as:

1. Lighting schedules
2. Temperature adjustments
3. Voice assistant responses
4. Security monitoring

save pin

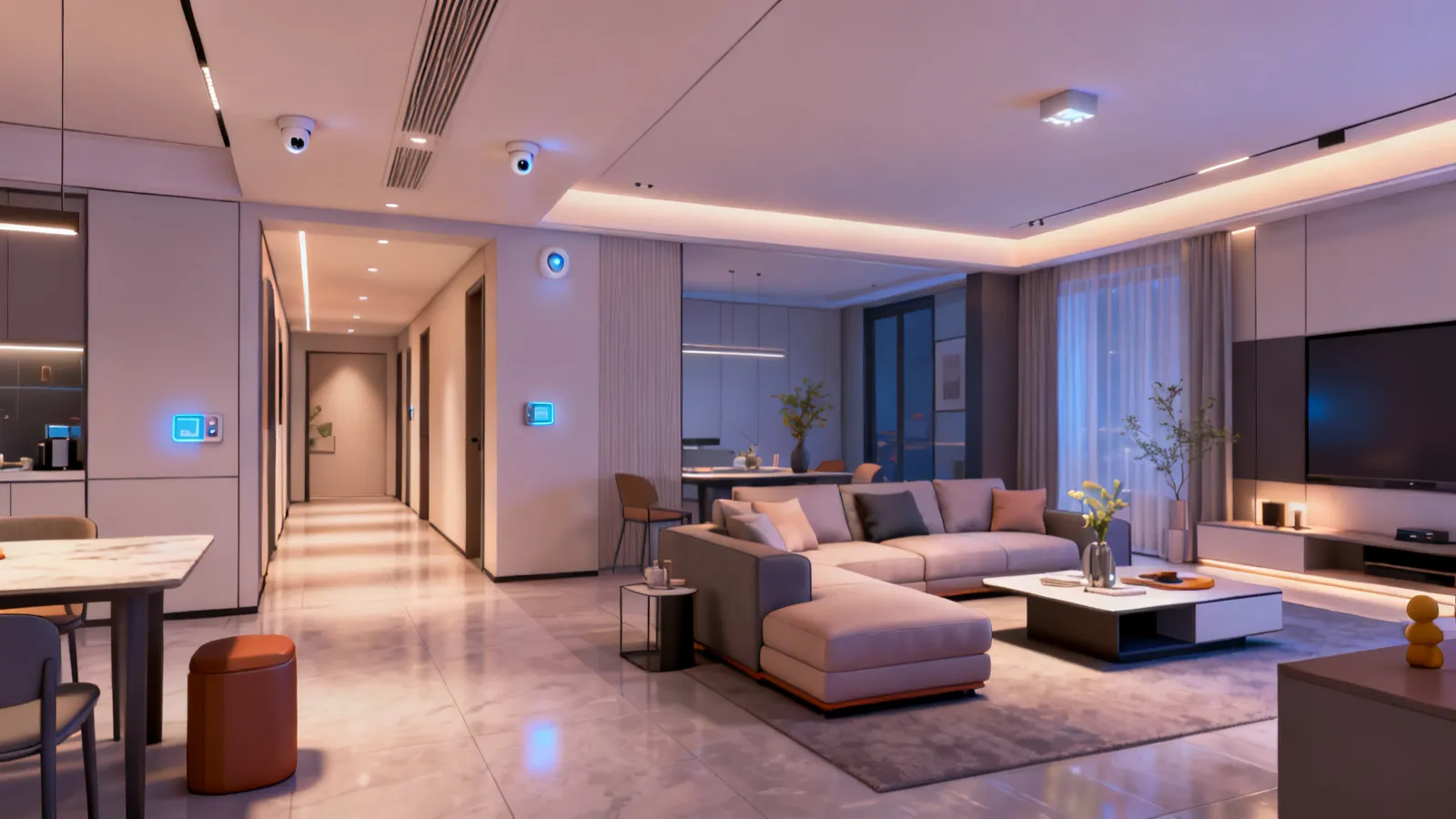

What Layout Features Improve AI Automation Accuracy

Key Insight: Sightlines, sensor placement, and circulation paths directly influence how accurately AI understands home activity.

One mistake I often see is placing smart sensors randomly after construction. By then, many critical observation points are already blocked.

During planning, I typically evaluate three elements:

1. Sensor visibility

1. Entryways
2. Main corridors
3. Living spaces

2. Voice assistant coverage

1. Kitchen island
2. Living room seating
3. Bedroom nightstands

3. Lighting automation zones

1. Separate task lighting from ambient lighting
2. Group fixtures by activity instead of room

Smart lighting companies like Lutron and Philips Hue often recommend zoning lighting by activity rather than walls, which aligns closely with AI behavior learning.

save pin

Common Mistakes When Designing AI Smart Home Layouts

Key Insight: The biggest smart home design failures come from over-automation and poor infrastructure planning.

In several remodel projects I’ve worked on, the homeowner invested heavily in automation systems but overlooked the architectural framework needed to support them.

Common design mistakes include:

1. Too many small enclosed rooms
2. Weak Wi‑Fi coverage areas
3. No dedicated location for smart hubs
4. Smart controls hidden in inconvenient places
5. Over-automating rarely used spaces

A particularly overlooked issue is network infrastructure. AI-powered homes depend on strong connectivity. Without properly placed access points, automation delays and device failures become common.

Hidden Costs of Poor Smart Home Planning

Key Insight: Retrofitting AI systems into an existing layout is often far more expensive than designing for them from the start.

In retrofit projects, we frequently have to reopen walls, reroute wiring, and add network equipment just to support automation that could have been integrated during construction.

Typical retrofit costs include:

1. Additional wiring and conduit installation
2. Extra Wi‑Fi access points
3. Relocation of lighting circuits
4. New sensor placements

Planning the AI smart home floor plan early can reduce these costs dramatically while also producing a cleaner, more reliable system.

Can Small Homes Benefit From AI Smart Layouts

Key Insight: Smaller homes often benefit the most because AI automation works better in compact, predictable environments.

In apartments and smaller houses, fewer rooms and shorter travel paths make automation patterns easier for AI systems to learn.

Design strategies for compact AI-ready homes:

1. Open living areas
2. Multi‑functional rooms
3. Centralized device hubs
4. Minimal sensor overlap

Ironically, some of the most efficient smart homes I’ve designed were under 1,200 square feet. The smaller footprint made automation far more reliable.

Answer Box

The most effective AI smart home floor plans prioritize human movement patterns, clear sensor coverage, and strong connectivity infrastructure. When architecture supports automation from the beginning, AI systems become far more reliable and intuitive to use.

Final Summary

1. AI smart home performance depends heavily on floor plan design.
2. Activity zones help AI systems learn routines faster.
3. Sensor visibility and network coverage are critical.
4. Over‑automation often creates more friction than convenience.
5. Designing for AI early prevents expensive retrofits later.

FAQ

What is an AI smart home floor plan?

An AI smart home floor plan is a layout designed to support automation systems, sensors, and connected devices so they can observe activity patterns and automate household tasks effectively.

How is an AI smart home different from a regular smart home?

Traditional smart homes rely on manual control or schedules. AI smart homes analyze behavior patterns and automatically adjust lighting, temperature, and devices.

Do I need a special layout for an AI smart home?

Not strictly, but a thoughtful layout improves automation reliability, sensor accuracy, and device coordination.

Where should sensors be placed in a smart home?

Common locations include entryways, hallways, kitchens, and living rooms where movement patterns are easiest to detect.

Can an existing home be converted into an AI smart home?

Yes, but retrofitting infrastructure such as wiring, sensors, and network coverage may increase installation costs.

Does an AI smart home floor plan work in small houses?

Yes. Smaller homes often allow automation systems to learn patterns faster due to simpler layouts.

How many smart hubs should a house have?

Most homes benefit from one central hub and one backup or secondary hub depending on size.

What is the biggest mistake when designing a smart home?

Adding devices without considering layout, network coverage, and automation zones.
