Designing Your Dream Kitchen Floor Plan with Measurements: Tips for Creating a Functional and Stylish Kitchen

Direct Answer

A well-designed kitchen floor plan with measurements balances workflow, appliance spacing, and walking clearance. Most functional kitchens follow the classic work triangle, keep 42–48 inches of walkway clearance, and use standardized cabinet depths and aisle widths to ensure cooking, storage, and movement work together efficiently.

Quick Takeaways

1. Keep 42–48 inches of clearance between counters for comfortable kitchen movement.
2. The ideal work triangle distance totals between 13 and 26 feet.
3. Standard base cabinets are 24 inches deep and 36 inches high.
4. An island requires at least 36 inches of clearance on all sides.
5. Good floor plans prioritize workflow before visual design.

Introduction

Designing a kitchen floor plan with measurements is where most successful kitchen renovations actually begin. After working on dozens of residential remodels across California, I can tell you the biggest mistakes happen long before cabinets are installed. They start with poor planning.

Homeowners often focus on finishes first—backsplash, cabinet color, lighting—but ignore how the kitchen actually functions. A beautiful kitchen that forces you to walk around an island just to reach the sink quickly becomes frustrating.

A smart kitchen floor plan with measurements solves that problem early. In this guide, I'll walk through the layout principles, spacing standards, and design decisions I use when planning real client kitchens.

save pin

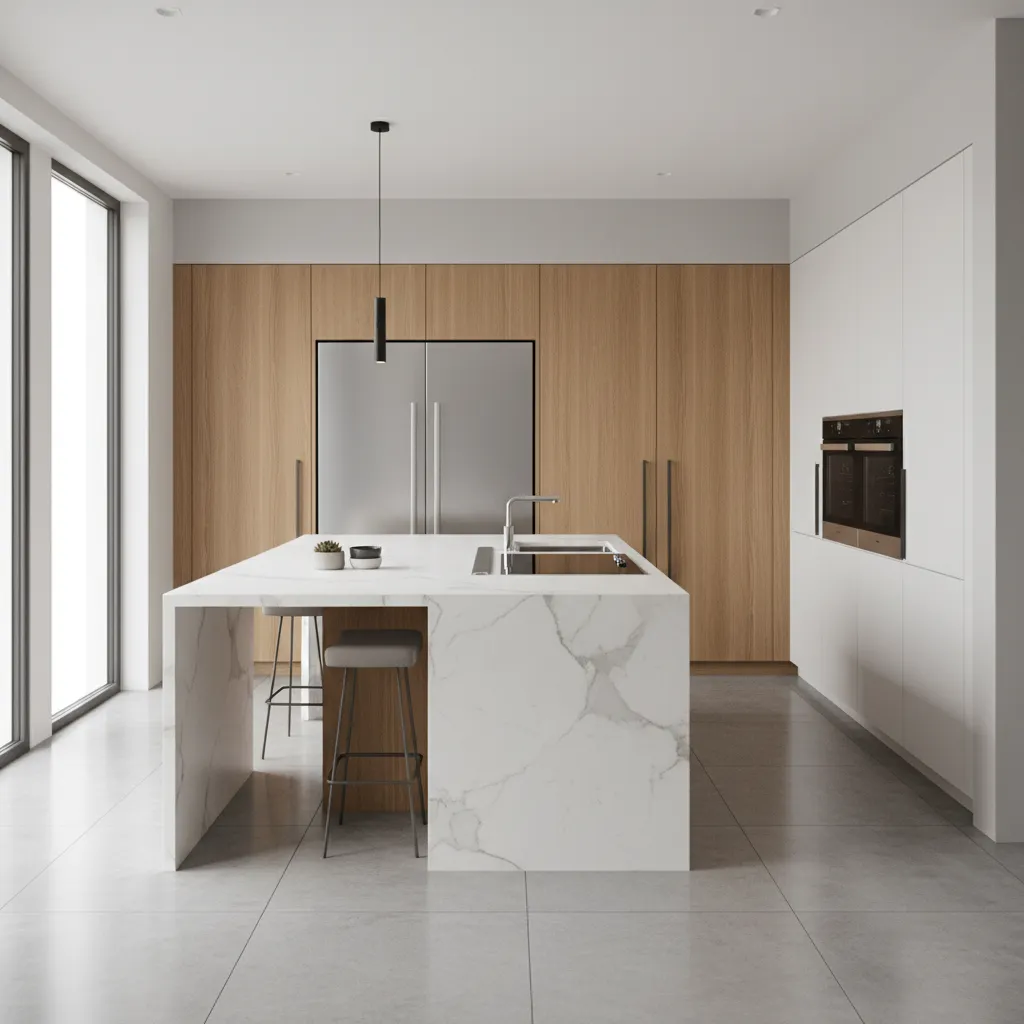

Why Measurements Matter More Than Style

Key Insight: A kitchen that looks stunning but ignores spacing rules will feel uncomfortable to use every single day.

In design consultations, I often show clients two layouts: one visually impressive and one properly measured. The second option almost always wins once we simulate daily movement.

The reason is simple. Kitchens are high-traffic workspaces. Small measurement mistakes compound quickly.

Common spacing rules I rely on in projects:

1. Walkway clearance: 42 inches minimum
2. Island seating clearance: 44–48 inches
3. Dishwasher to sink distance: ideally within 36 inches
4. Refrigerator landing space: at least 15 inches

Organizations like the National Kitchen and Bath Association publish planning guidelines that professional designers reference to maintain ergonomic flow.

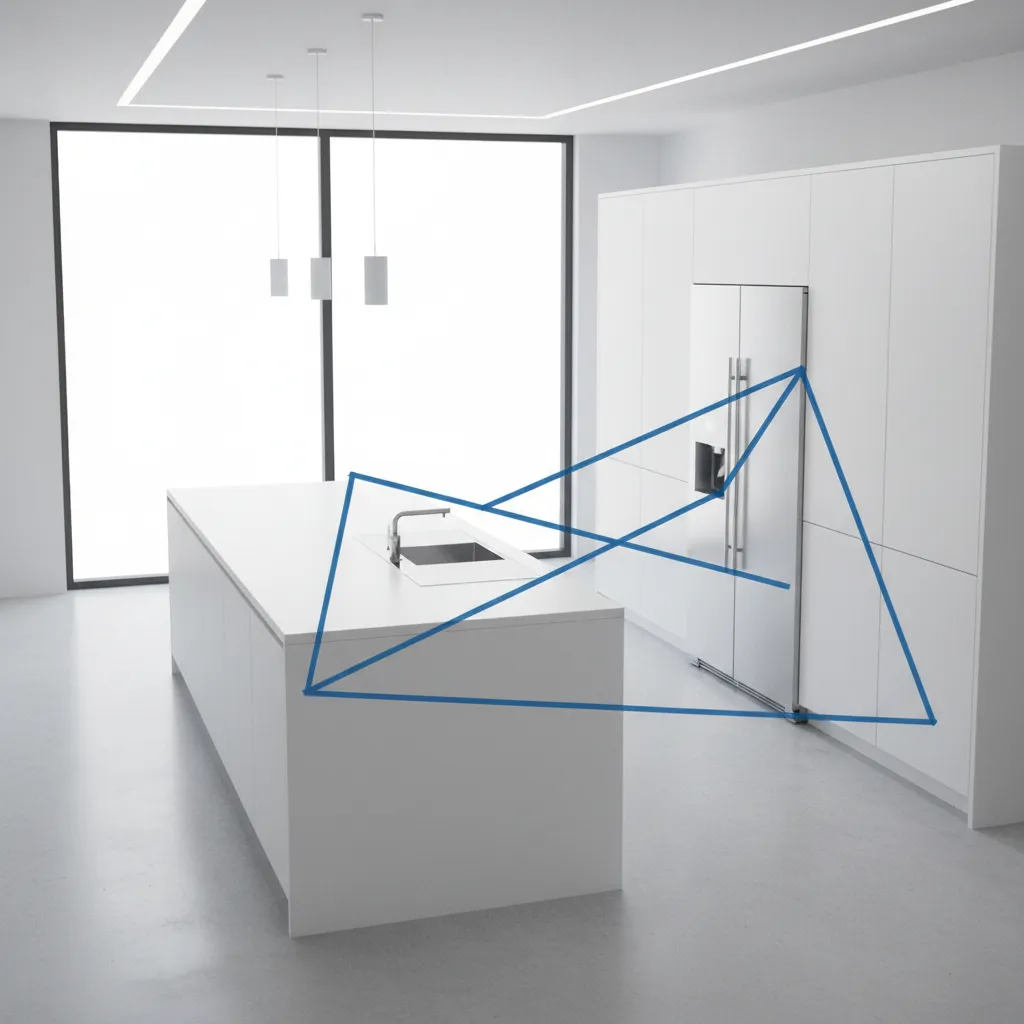

What Is the Ideal Kitchen Work Triangle?

Key Insight: The most efficient kitchens place the sink, stove, and refrigerator within a balanced triangle.

The "work triangle" is still one of the most reliable planning tools in kitchen design. It connects the three most-used areas:

1. Sink
2. Cooktop or range
3. Refrigerator

Design standards recommend:

1. Each triangle leg: 4–9 feet
2. Total triangle perimeter: 13–26 feet
3. No major traffic cutting through the triangle

In open-concept homes, I sometimes modify the triangle into a "work zone" layout, especially when large islands or multiple cooks are involved.

save pin

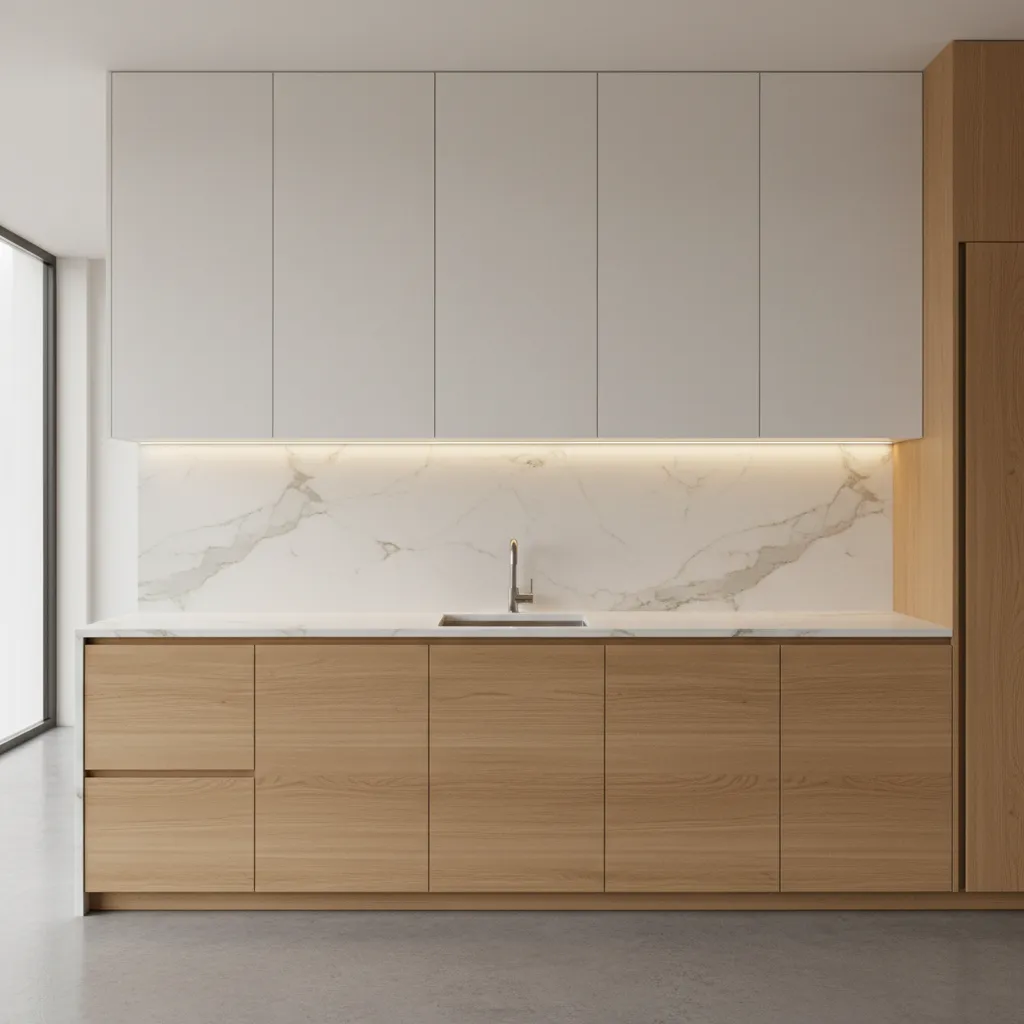

Standard Kitchen Cabinet and Counter Measurements

Key Insight: Most kitchen layouts succeed because they follow standardized cabinet dimensions.

Manufacturers design cabinets around a few consistent measurements. Designing your floor plan around these sizes keeps costs predictable.

1. Base cabinet depth: 24 inches
2. Base cabinet height with countertop: 36 inches
3. Wall cabinet depth: 12 inches
4. Standard countertop depth: 25–26 inches
5. Typical backsplash height: 18 inches

Trying to deviate too much from these dimensions often increases construction cost because cabinets must be custom-built.

save pin

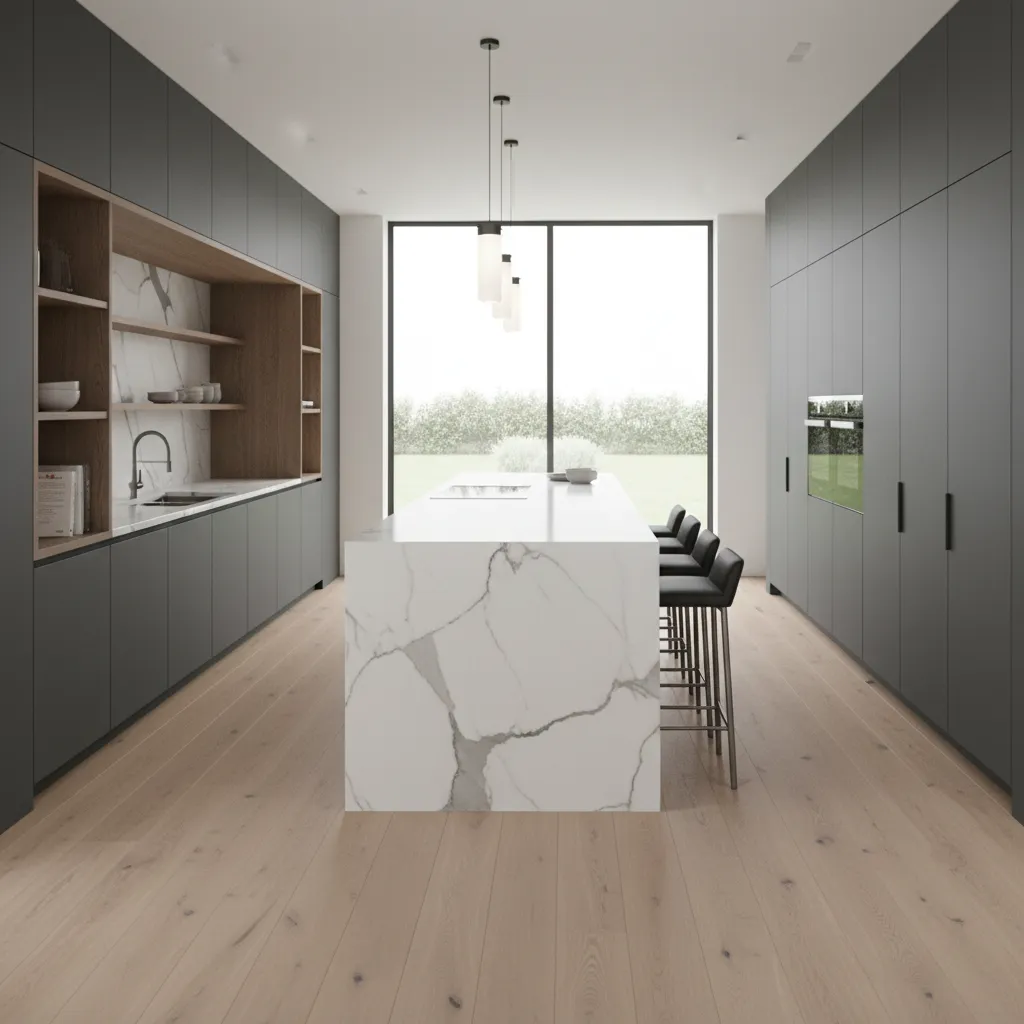

How Much Space Do You Need Around a Kitchen Island?

Key Insight: A kitchen island only works when there is enough clearance around it.

Islands are one of the most requested features in modern kitchens, but they are also one of the most frequently mis-sized elements.

Minimum spacing guidelines:

1. 36 inches clearance: tight but workable
2. 42 inches clearance: comfortable for one cook
3. 48 inches clearance: ideal for multiple people

For seating areas, I recommend at least 15 inches of overhang and about 24 inches of width per stool.

In smaller homes, I sometimes recommend a movable island or peninsula instead of forcing a fixed island into limited space.

Common Kitchen Floor Plan Mistakes Most Guides Ignore

Key Insight: Many kitchen layout problems come from hidden planning mistakes rather than obvious design errors.

Here are issues I see repeatedly in renovation projects:

1. Dishwasher doors blocking walkways
2. Refrigerator doors hitting islands
3. Corner cabinets wasting usable space
4. Too many narrow cabinets instead of fewer wide drawers

One overlooked improvement is replacing multiple small cabinets with wide drawer units. Deep drawers often increase usable storage by 20–30 percent compared with traditional cabinet shelving.

save pin

How Designers Actually Start a Kitchen Floor Plan

Key Insight: Professional kitchen layouts start with appliances and workflow before cabinetry.

My typical process looks like this:

1. Measure the room including windows and door swings.
2. Place the sink, stove, and refrigerator first.
3. Define work zones for prep, cooking, and cleaning.
4. Add storage cabinets and pantry placement.
5. Refine spacing and walking paths.

This sequence prevents the most common homeowner mistake—designing cabinets first and realizing later that appliances no longer fit logically.

Answer Box

A functional kitchen floor plan with measurements prioritizes workflow, appliance spacing, and clearance distances. Following standard kitchen dimensions and work triangle guidelines ensures the space remains comfortable and efficient for everyday cooking.

Final Summary

1. Kitchen layouts should prioritize workflow before style.
2. Maintain 42–48 inches of clearance for comfortable movement.
3. The work triangle still improves cooking efficiency.
4. Standard cabinet dimensions simplify planning and reduce costs.
5. Careful appliance placement prevents long-term usability issues.

FAQ

What is the ideal size for a kitchen floor plan?

Most comfortable kitchens range between 150 and 300 square feet, though smaller layouts can still function well with efficient planning.

How wide should kitchen walkways be?

A kitchen walkway should be at least 42 inches wide for one cook and 48 inches when multiple people use the kitchen.

What measurements are used in a kitchen floor plan?

Common measurements include cabinet depth, appliance spacing, aisle width, and the work triangle distance between sink, stove, and refrigerator.

Can a small kitchen still follow the work triangle?

Yes. Even compact kitchens can use a shortened work triangle by placing appliances efficiently along a single wall or L-shaped layout.

How big should a kitchen island be?

Most islands are 24–48 inches deep and 4–7 feet long, depending on kitchen size and required seating space.

Do all kitchen floor plans need an island?

No. In smaller kitchens, a peninsula or mobile island often works better and maintains proper walking clearance.

What software helps create a kitchen floor plan with measurements?

Tools like SketchUp, Planner 5D, and IKEA Kitchen Planner allow homeowners to design a kitchen floor plan with measurements before construction.

How detailed should a kitchen floor plan be?

A complete kitchen floor plan should include wall lengths, appliance placement, cabinet dimensions, door swings, and walking clearance.
