Dining Hall Layouts in AutoCAD: Banquet vs Cafeteria vs Community Style: How to choose the right dining hall layout before drafting in AutoCAD—based on real-world space planning and seating flow.

Direct Answer

The three most common dining hall layouts used in AutoCAD planning are banquet, cafeteria, and community seating. Banquet layouts maximize formal seating density, cafeteria layouts optimize traffic flow and food service efficiency, and community layouts prioritize large shared tables for group interaction. The right choice depends on circulation patterns, service style, and group size.

Quick Takeaways

1. Banquet layouts prioritize seating capacity and formal table arrangements.
2. Cafeteria layouts focus on traffic flow between serving lines and seating.
3. Community layouts use long shared tables to support large group interaction.
4. Your layout type significantly changes how you draft circulation in AutoCAD.
5. Most design mistakes come from ignoring movement patterns, not table spacing.

Introduction

When designers start planning dining hall layouts in AutoCAD, most people jump straight into drawing tables. After working on dozens of university cafeterias, event halls, and corporate dining spaces, I can tell you that the layout decision actually matters far more than the drawing itself.

The biggest mistake I see? People treat banquet, cafeteria, and community layouts as simple table arrangements. In reality, each one completely changes circulation paths, service efficiency, and seating density.

Before drafting anything, I always map the layout logic first. It saves hours of redrawing later. If you're still exploring how digital planning tools simulate layouts before drafting, you can look at how designers experiment with dining space layouts using AI-assisted floor planningto test seating density and circulation quickly.

In this guide, I'll break down the real differences between banquet, cafeteria, and community dining layouts—and more importantly, how each one changes the way you build your AutoCAD plan.

save pin

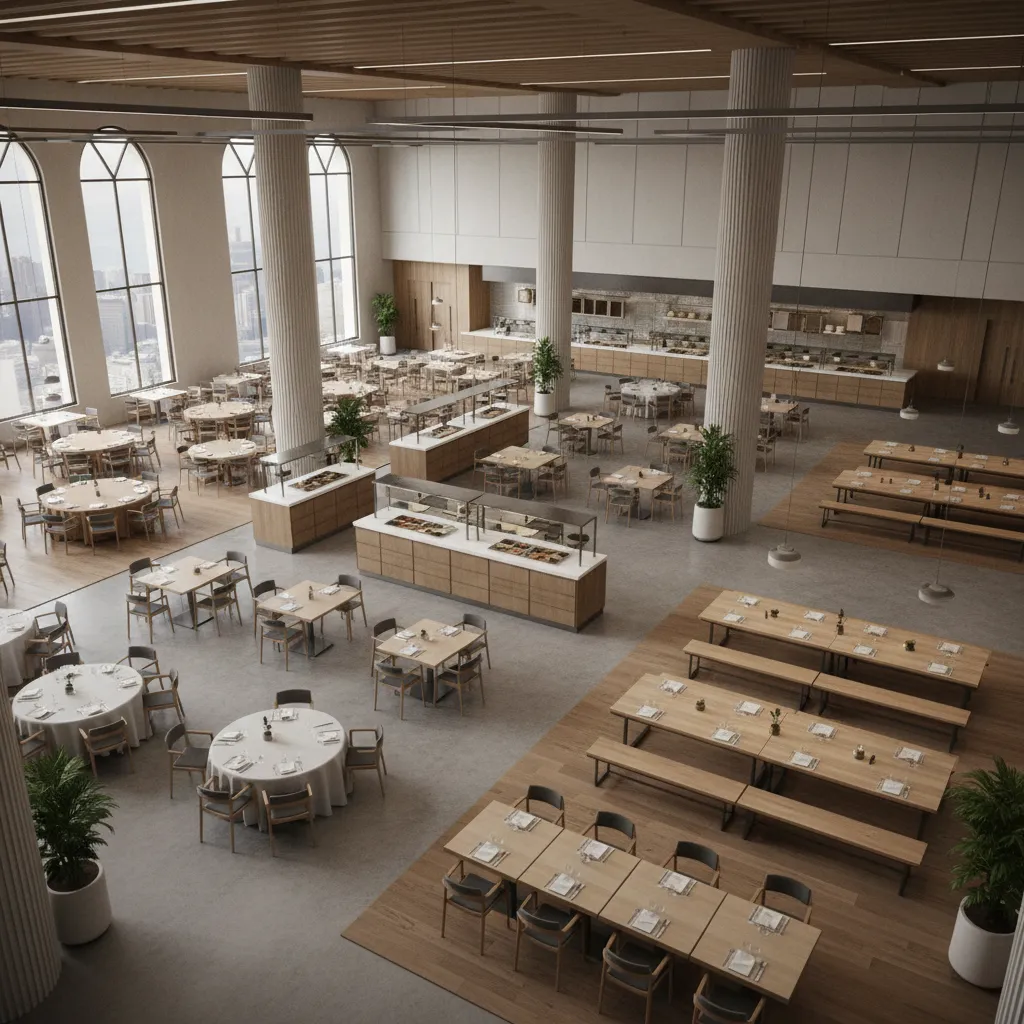

Understanding the Main Dining Hall Layout Types

Key Insight: Dining hall layouts differ primarily in how they manage circulation, service access, and seating density.

In design practice, dining halls typically follow three structural models. The layout you choose determines the traffic flow pattern of the entire room.

Primary layout types:

1. Banquet style – Round or rectangular tables arranged in rows for formal dining.
2. Cafeteria style – Seating arranged around a food service circulation path.
3. Community style – Long shared tables designed for large groups.

Each model affects three design variables:

1. Seat density
2. Walking aisle width
3. Service accessibility

According to hospitality planning guidelines from the American Institute of Architects, circulation space often consumes 30–40% of the total dining area in high-traffic dining environments. That number shifts dramatically depending on the layout type.

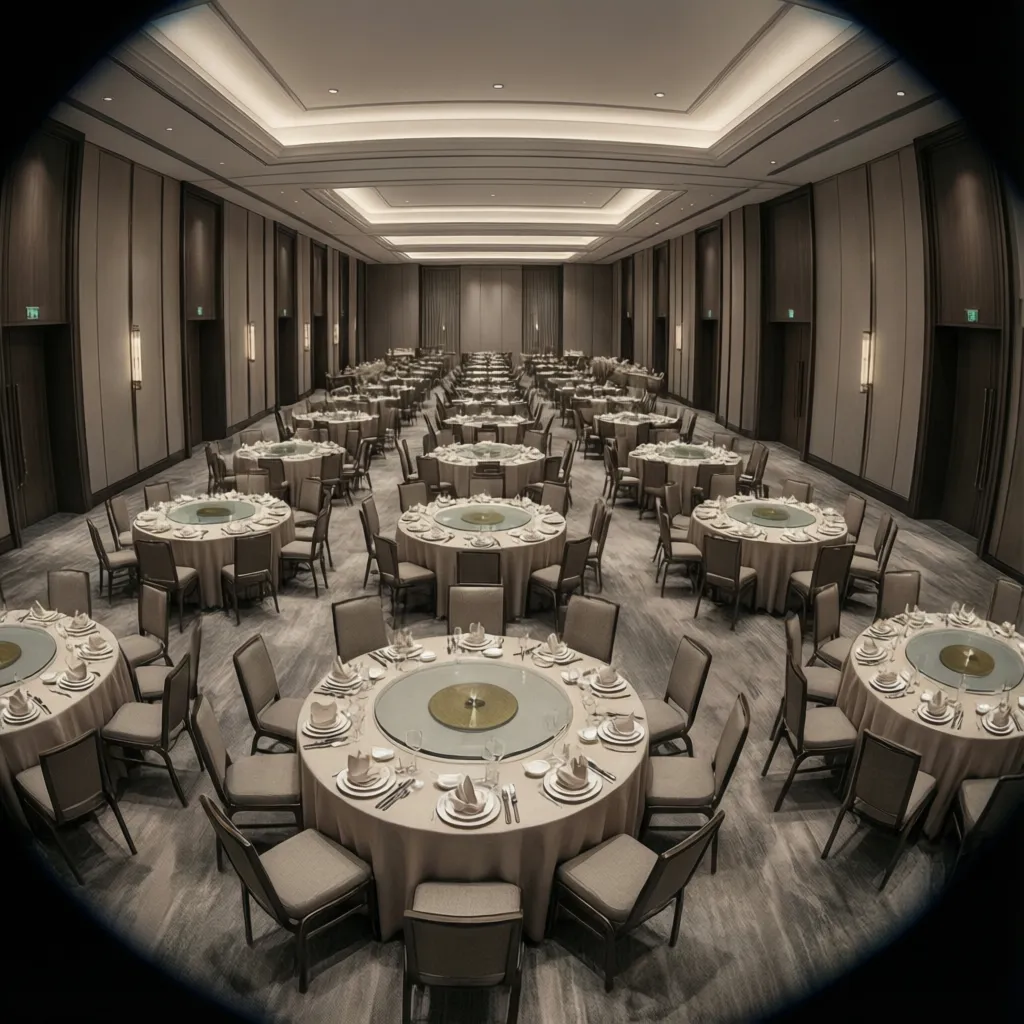

Banquet Style Layout: Space Use and Table Arrangement

Key Insight: Banquet layouts maximize seating capacity but require carefully structured aisle spacing.

Banquet layouts are common in wedding halls, conference centers, and hotel event spaces. The goal is simple: seat as many people as possible while keeping aisles accessible for service staff.

Typical banquet layout characteristics:

1. Round tables (60–72 inch diameter)
2. 8–10 seats per table
3. 1.2–1.5 m (4–5 ft) aisle spacing
4. Central stage or focal point

What many design articles miss is the hidden trade-off: banquet layouts look dense but actually waste space near walls and columns because tables require circular clearance.

In AutoCAD drafting, designers usually create table blocks with clearance rings to simulate chair movement. Without this step, seating counts become unrealistic.

save pin

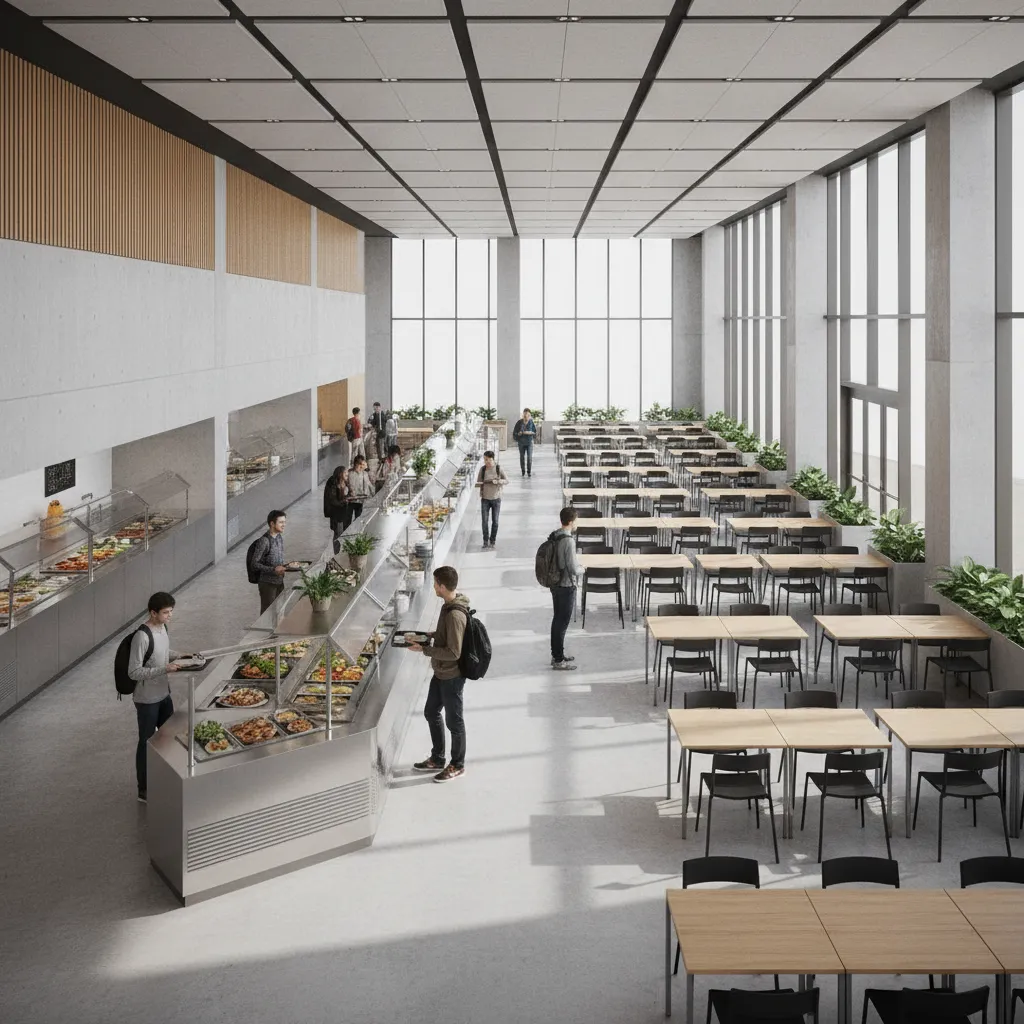

Cafeteria Style Layout: Flow and Service Efficiency

Key Insight: Cafeteria layouts prioritize circulation efficiency over maximum seating density.

Unlike banquet spaces, cafeteria dining halls revolve around movement. People queue, collect food, search for seats, and exit continuously.

The design challenge is managing traffic flow.

A functional cafeteria layout usually includes:

1. Linear or island service counters
2. Main circulation aisles (6–10 ft wide)
3. Mixed table sizes for flexible seating
4. Clear entry and exit points

In university dining halls I’ve worked on, poor traffic planning caused more problems than seating shortages. Students would cross traffic paths carrying trays, creating bottlenecks.

One helpful technique is modeling circulation before furniture placement. Designers often test seating arrangements and walking paths with interactive room layout simulationsto see how people move between tables and service areas.

This approach dramatically reduces redesign during drafting.

save pin

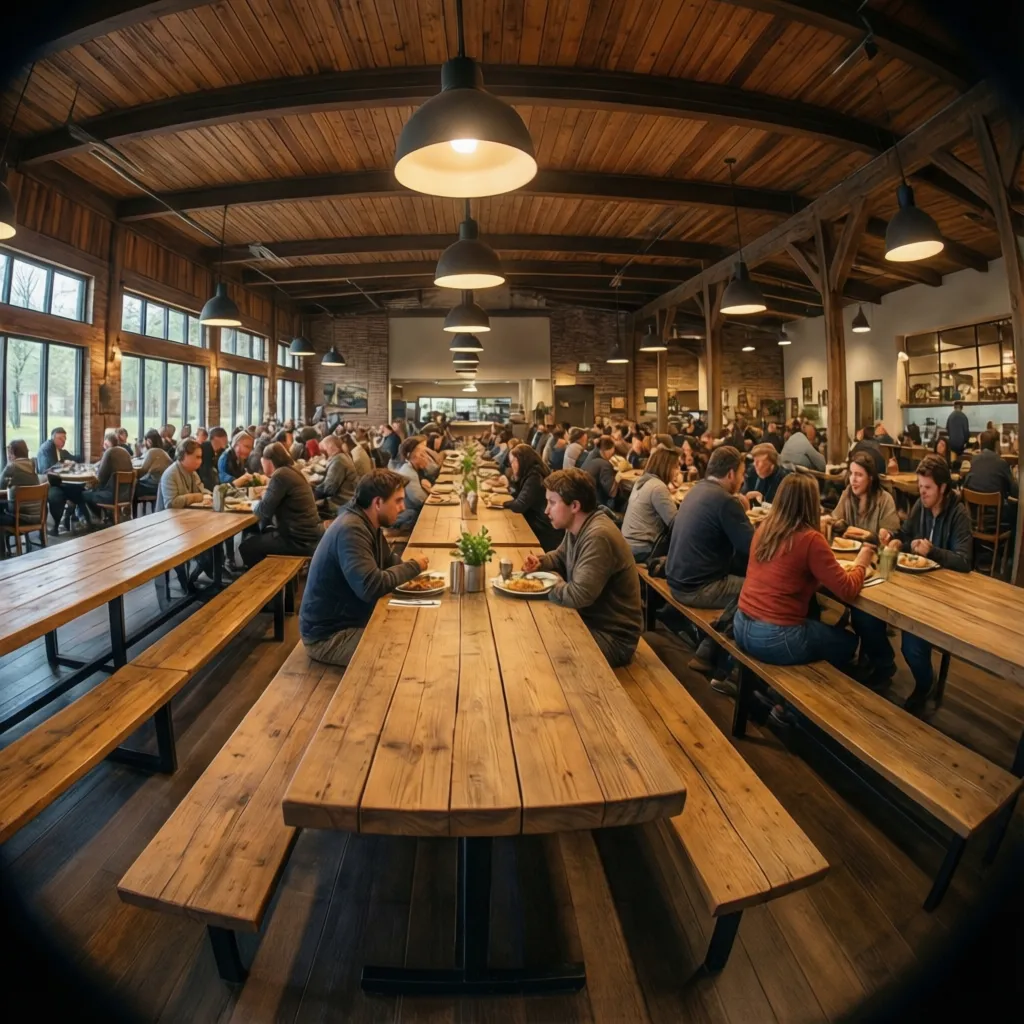

Community Dining Layout: Large Group Seating Patterns

Key Insight: Community layouts sacrifice privacy but dramatically increase seating efficiency for large groups.

Community dining halls use long shared tables instead of individual ones. You'll see this model in:

1. school dining halls
2. retreat centers
3. camp facilities
4. modern coworking cafeterias

Typical community table configuration:

1. Table length: 8–12 ft
2. Seats per table: 10–16
3. Aisle width: 5–6 ft

The interesting part is psychological. Research from Cornell's Food and Brand Lab suggests shared tables increase social interaction and group meal duration compared with smaller private seating.

However, designers often overlook acoustic impact. Long tables concentrate conversation noise, which can make large dining halls surprisingly loud.

save pin

Answer Box

The best dining hall layout depends on service style and circulation needs. Banquet layouts maximize seating for events, cafeteria layouts optimize food service flow, and community layouts support large shared groups. In AutoCAD planning, circulation paths often matter more than table placement.

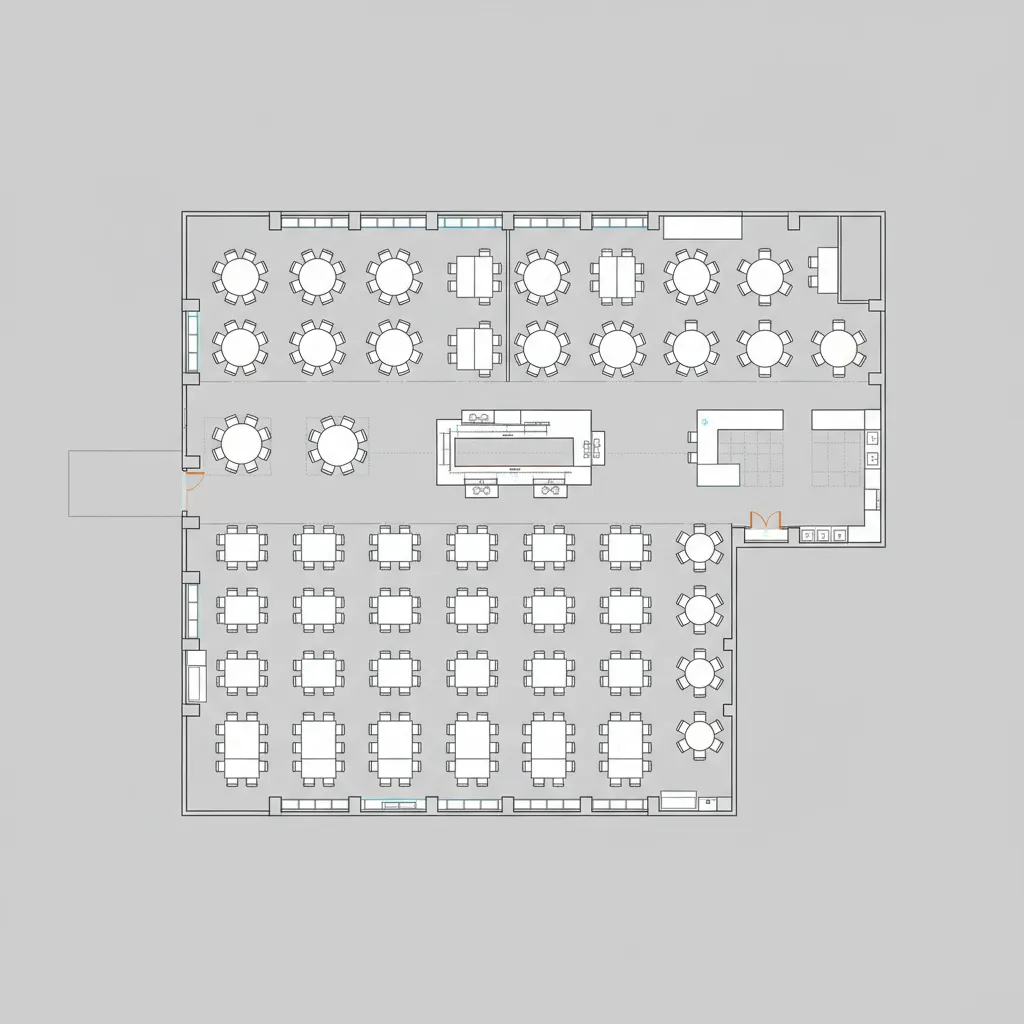

How Each Layout Changes Your AutoCAD Drafting Approach

Key Insight: Different dining hall layouts require different drafting priorities in AutoCAD.

Many beginners draw furniture first. In professional projects, we usually draft circulation layers before seating.

Drafting priorities by layout type:

1. Banquet: table blocks, chair clearance, stage alignment
2. Cafeteria: service counters, circulation routes, tray return areas
3. Community: long table modules, parallel aisle spacing

Using modular furniture blocks speeds up layout testing dramatically. Many planners now start with tools that generate quick 3D dining space layouts from floor plans before converting the final concept into AutoCAD drafting.

This workflow helps visualize spacing problems early.

Choosing the Right Layout for Your Dining Hall Project

Key Insight: The correct dining hall layout depends more on user behavior than room size.

Before drafting, I usually ask three questions:

1. Will guests stay seated for long periods?
2. Is food served individually or self-service?
3. Do people arrive all at once or continuously?

Quick decision guide:

1. Events and weddings → Banquet layout
2. Schools or corporate dining → Cafeteria layout
3. Camps or large group meals → Community layout

In real projects, hybrid layouts are also common. A dining hall might combine community tables with smaller cafeteria seating zones to support both large groups and individuals.

Final Summary

1. Banquet layouts maximize seating density for events.
2. Cafeteria layouts prioritize traffic flow and service efficiency.
3. Community layouts work best for large group dining.
4. Circulation planning should happen before table placement.
5. Testing layouts early prevents major AutoCAD redraws.

FAQ

What is the most efficient dining hall layout?

Cafeteria layouts are usually the most operationally efficient because they support continuous movement between food service areas and seating.

Which dining hall layout fits the most people?

Banquet layouts typically fit the most people because round tables can be arranged in dense grids.

What are common types of dining hall layouts in AutoCAD?

The most common types of dining hall layouts in AutoCAD are banquet seating, cafeteria-style layouts, and community dining tables.

How wide should aisles be in a dining hall layout?

Main aisles should typically be 4–10 feet wide depending on traffic volume and service style.

Is community seating good for large groups?

Yes. Community dining layouts are specifically designed to accommodate large groups efficiently with long shared tables.

How do you increase dining hall seating capacity?

Reducing unused circulation zones and using modular table arrangements can significantly increase seating capacity.

Should you design dining halls in 2D or 3D first?

Many designers test layouts in 3D planning tools first, then finalize accurate dimensions in AutoCAD.

What table shapes work best in dining hall layouts?

Round tables work well for banquet seating, while rectangular tables are more efficient in cafeteria and community layouts.

References

American Institute of Architects – Hospitality Design Guidelines

Cornell University Food and Brand Lab – Social Dining Research
