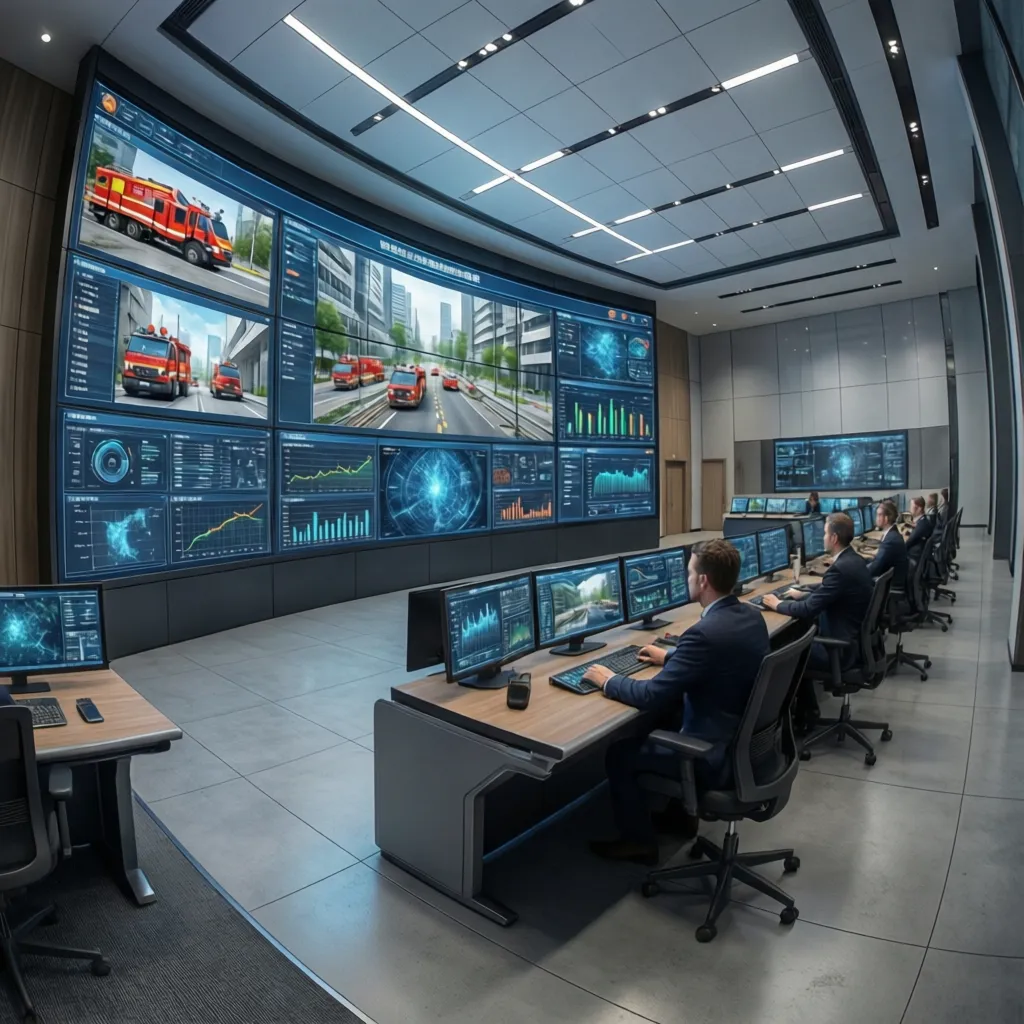

Dispatch Room Design Standards Across Different Industries: How emergency, transportation, utility, and security sectors design dispatch rooms for reliability, speed, and operational control

Direct Answer

Dispatch room design standards vary by industry because each sector manages different types of real‑time information, response timelines, and risk levels. Emergency services prioritize rapid communication and redundancy, transportation centers focus on monitoring and traffic flow visibility, utilities emphasize system stability, and security operations centers prioritize surveillance coverage and incident tracking.

Quick Takeaways

1. Emergency dispatch centers prioritize visibility, redundancy, and immediate communication access.
2. Transportation control rooms emphasize multi‑screen monitoring and traffic data visualization.
3. Utility control rooms require ergonomic layouts for long monitoring shifts.
4. Security operations centers focus on surveillance walls and incident response coordination.
5. Most industries start from a similar core layout but adapt technology zones differently.

Introduction

In over a decade working on operational facilities, I've noticed one common mistake when teams plan a new dispatch center: they assume every dispatch room layout works the same. It doesn't. Dispatch room design standards change dramatically depending on what kind of incidents operators manage.

An emergency 911 dispatch center deals with life‑or‑death response times measured in seconds. A transportation control room manages constant traffic flow across dozens of digital feeds. Utility companies monitor infrastructure stability that must operate continuously for years without interruption.

Despite those differences, many organizations still begin with a generic room design and only later realize it doesn't support their workflow. When teams experiment with layout simulations using tools designed for planning operational control spaces before construction begins, the workflow gaps usually become obvious within minutes.

This guide breaks down how dispatch room layout requirements differ across industries and what design standards actually matter in real operations environments.

save pin

Why Dispatch Room Layout Requirements Differ by Industry

Key Insight: Dispatch rooms are built around information flow, and every industry processes information differently.

The core function of a dispatch room is situational awareness. But the type of data operators watch—calls, sensors, cameras, traffic feeds, or grid systems—changes how the room must be organized.

In practice, this creates several design variables:

1. Decision speed requirements – emergency response vs long‑term monitoring
2. Screen density – number of displays required per operator
3. Collaboration frequency – individual work vs team coordination
4. Redundancy systems – backup infrastructure and failover equipment
5. Shift duration – some operators work 12‑hour monitoring cycles

The International Organization for Standardization (ISO 11064), which provides guidelines for control room ergonomics, highlights that workstation arrangement and visual access directly affect operator performance and fatigue levels.

That's why copying another industry's dispatch layout often creates operational inefficiencies.

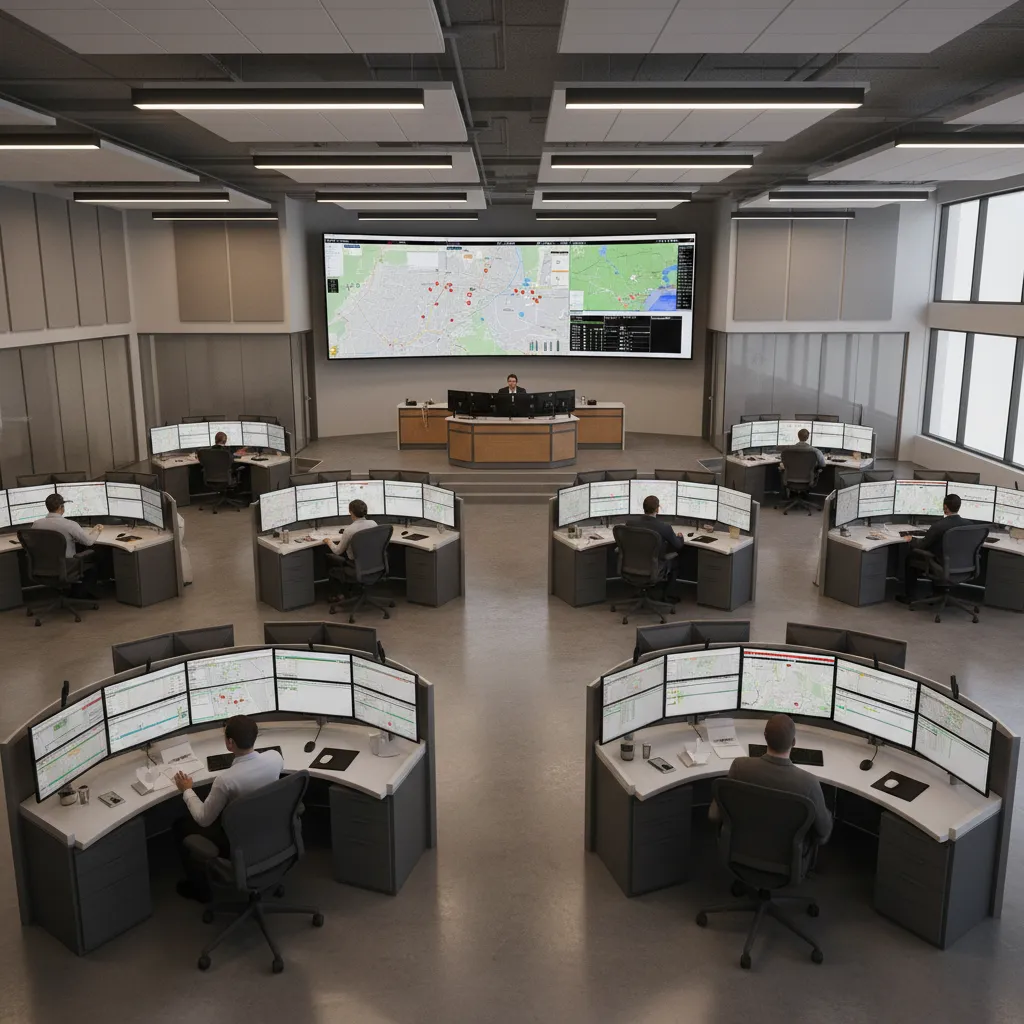

Emergency Services Dispatch Center Layout Standards

Key Insight: Emergency dispatch centers prioritize speed of communication and line‑of‑sight coordination between operators.

911 and emergency operations centers must handle high call volumes while coordinating with police, fire departments, and medical responders simultaneously.

In projects I've consulted on, the most effective emergency dispatch layouts usually follow a pod‑based configuration.

Typical layout elements include:

1. Clustered operator pods for police, fire, and EMS teams
2. Supervisor station with full room visibility
3. Large incident display wall
4. Redundant communication equipment
5. Acoustic separation between pods

According to the National Emergency Number Association (NENA), dispatch centers should maintain clear visual access between supervisors and operators to reduce response delays during multi‑agency incidents.

save pin

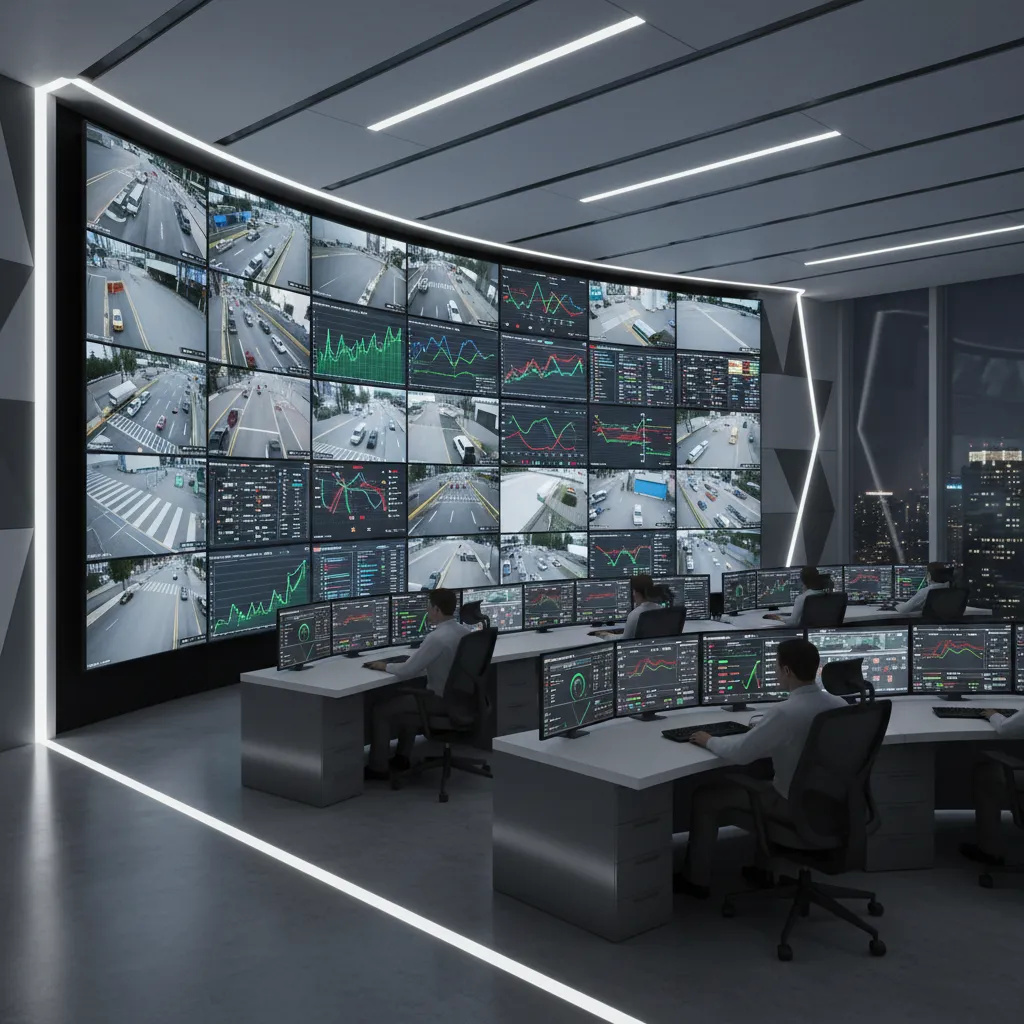

Transportation and Traffic Control Room Layouts

Key Insight: Transportation dispatch rooms prioritize screen visibility and real‑time data monitoring over direct operator communication.

Traffic management centers and rail dispatch operations rely heavily on video walls and monitoring dashboards. Operators spend most of their time observing systems rather than answering calls.

Because of this, layouts often focus on viewing angles and display hierarchy.

Common design features include:

1. Tiered seating or semi‑circular desk arrangements
2. Central video wall displaying traffic cameras
3. Individual operator multi‑screen workstations
4. Dedicated incident coordination desks

When teams experiment with visualizing multi‑screen control room layouts in 3D before installation, they often discover that small viewing angle adjustments dramatically improve operator comfort.

Transportation agencies such as the U.S. Federal Highway Administration recommend designing traffic management centers so all operators maintain unobstructed views of the primary video wall.

save pin

Utility and Energy Control Room Design Practices

Key Insight: Utility dispatch rooms prioritize ergonomic stability and long‑term monitoring efficiency.

Electric grid, water management, and energy pipeline control rooms operate continuously. Operators often monitor systems for hours without major incidents.

This creates a different design priority: reducing fatigue.

Effective utility control rooms typically include:

1. Large curved desks supporting multiple monitors
2. Ergonomic seating and sit‑stand workstations
3. Low‑glare lighting systems
4. Acoustic noise management
5. Minimal visual distractions

The Electric Power Research Institute (EPRI) notes that operator fatigue is one of the most overlooked risk factors in control room environments.

Designing for 24/7 monitoring often matters more than designing for rapid response.

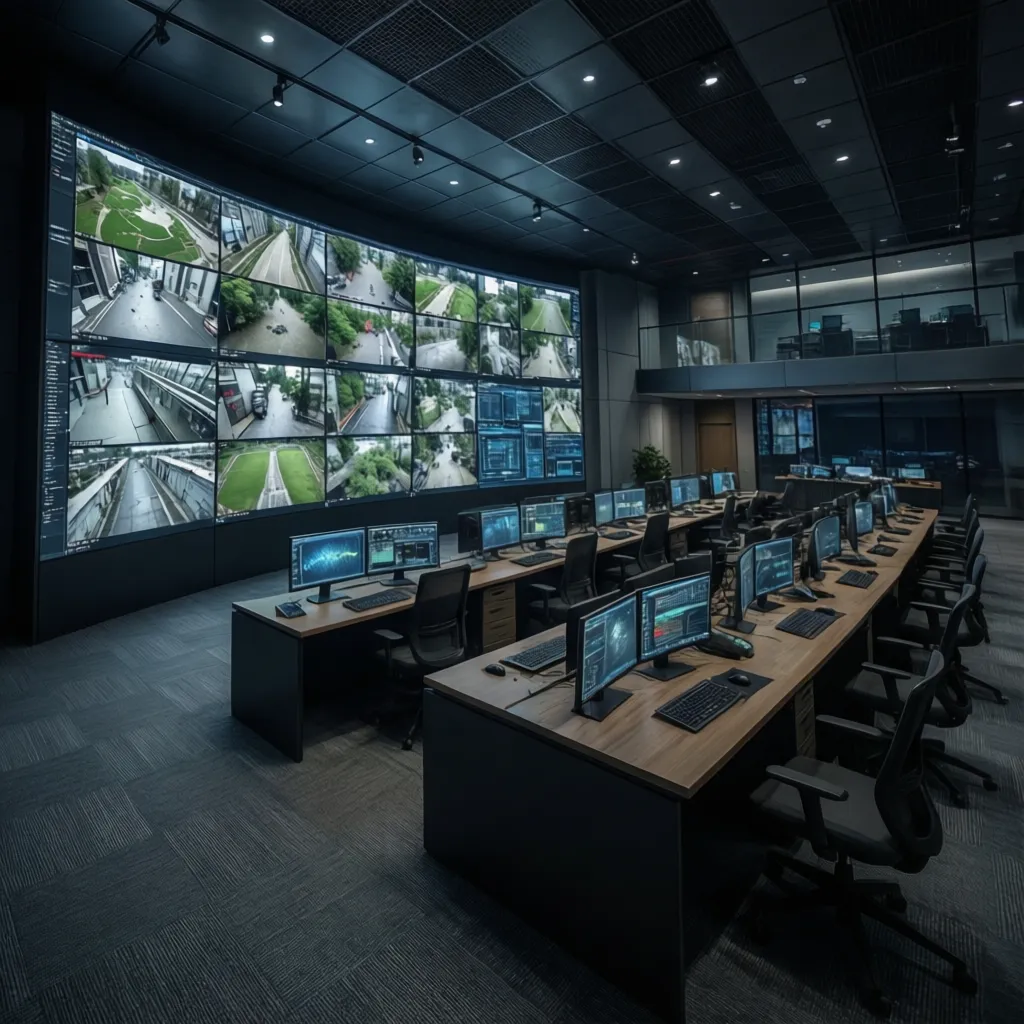

Security Operations Center Layout Considerations

Key Insight: Security operations centers require layouts that support both surveillance monitoring and coordinated incident response.

SOCs typically manage hundreds of cameras and cybersecurity alerts simultaneously. Unlike traffic centers, operators also collaborate frequently during incidents.

Effective SOC layouts usually combine surveillance walls with collaborative zones.

Typical design components:

1. Centralized video wall displaying camera feeds
2. Operator desks arranged in rows facing the wall
3. Incident response collaboration table
4. Supervisor command position
5. Secure equipment rack zones

Many organizations prototype these layouts using interactive room layout simulations for operations centersbefore installing expensive display infrastructure.

save pin

Answer Box

Dispatch room design standards differ across industries because operational workflows, monitoring systems, and response timelines are not the same. Emergency services focus on communication speed, transportation centers emphasize screen visibility, utilities prioritize ergonomic monitoring, and security centers balance surveillance with coordinated response.

Adapting a Core Dispatch Layout to Industry Needs

Key Insight: Most dispatch rooms begin with a similar structural layout, but technology zones and visual priorities are customized by industry.

A flexible core design usually includes:

1. Centralized video display wall
2. Operator workstation clusters
3. Supervisor command position
4. Technical equipment room
5. Breakout or incident coordination areas

The real difference comes from how these zones are arranged and prioritized. Emergency centers move communication closer together. Traffic centers orient desks toward display walls. Utility rooms emphasize ergonomic spacing.

In practice, successful dispatch room design is less about copying standards and more about aligning layout with operational workflow.

Final Summary

1. Dispatch room layouts differ because industries process information differently.
2. Emergency centers prioritize communication speed and supervision visibility.
3. Transportation control rooms focus on screen visibility and monitoring efficiency.
4. Utility control rooms emphasize ergonomics and long monitoring shifts.
5. Security operations centers balance surveillance with incident collaboration.

FAQ

What are dispatch room design standards by industry?

They are layout guidelines that adapt dispatch center design to the operational needs of specific sectors such as emergency response, transportation monitoring, utilities, and security operations.

What is the most important feature of an emergency dispatch center layout?

Clear communication flow and visual coordination between operators and supervisors are the top priorities.

How is a traffic control room layout different from a dispatch center?

Traffic control rooms prioritize large video walls and multi‑screen monitoring rather than call handling.

Why do utility control rooms emphasize ergonomics?

Operators monitor systems continuously for long shifts, so reducing fatigue improves long‑term operational reliability.

What is a typical security operations center room design?

Most SOCs use rows of operator desks facing a central surveillance video wall, with collaboration areas for incident response.

Can the same dispatch layout work for every industry?

Not effectively. Each industry requires different workstation arrangements, monitoring systems, and communication setups.

How many monitors do dispatch operators typically use?

Most operators use three to six screens depending on the monitoring systems required.

What is the biggest mistake in dispatch room design?

Designing the room before mapping operational workflows and information flow.
