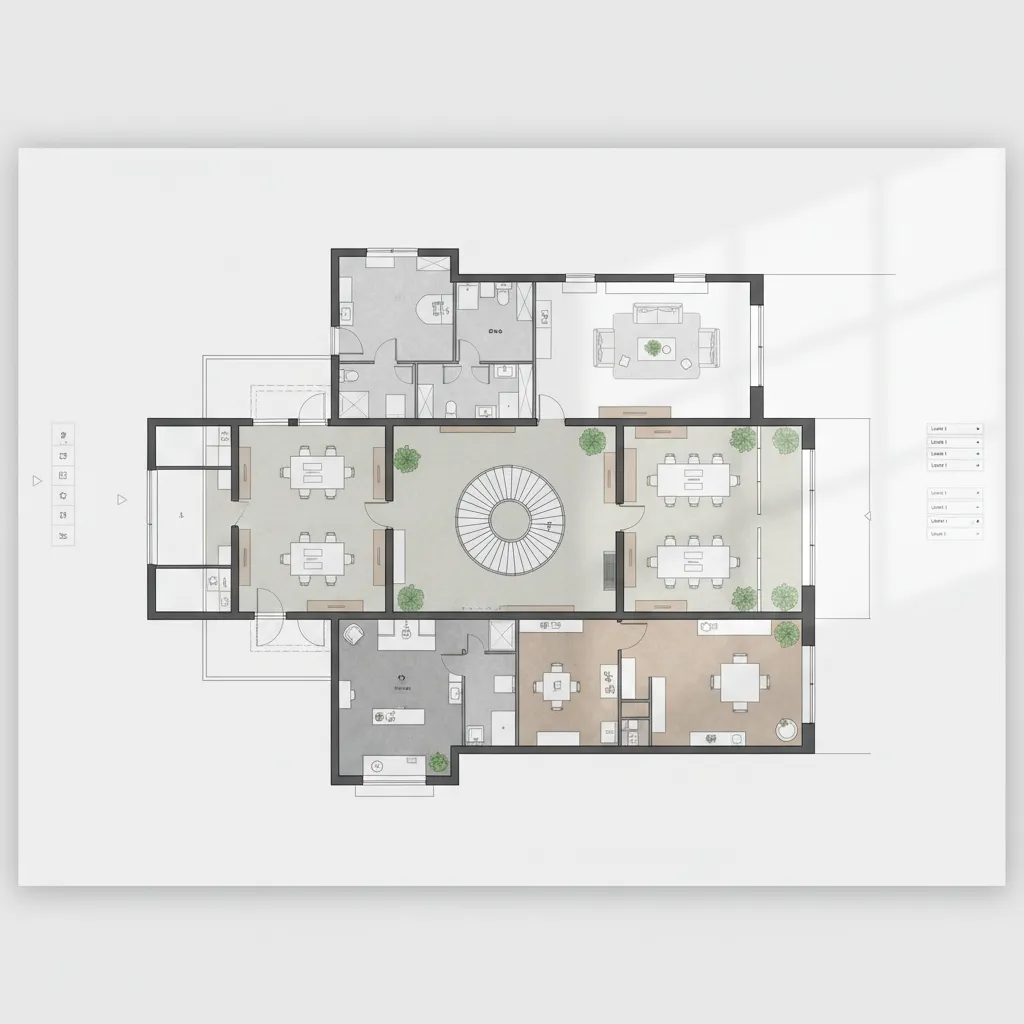

Displaying All Levels in Floor Plan Creator: A Guide to Efficiently Show Levels in Your Floor Plans

Direct Answer

Displaying all levels in Floor Plan Creator usually requires enabling multi level visibility in the layer or floor manager so different floors can be viewed simultaneously. Most designers turn on a reference view or transparency mode that lets the current level stay editable while other floors appear as guides. This approach keeps alignment accurate between stairs, walls, and structural elements.

Quick Takeaways

1. Use the floor manager to toggle visibility of multiple levels simultaneously.
2. Reference view or ghost mode helps align stairs, walls, and shafts between floors.
3. Avoid editing multiple levels at once to prevent structural mistakes.
4. Layer transparency keeps upper and lower floors readable without clutter.
5. Consistent grid alignment ensures all levels stay structurally accurate.

Introduction

One of the most common questions I get from homeowners and junior designers is how to handle displaying all levels in Floor Plan Creatorwithout turning the drawing into a visual mess. After working on residential remodels and multi level layouts for more than a decade, I can tell you this is where many beginners struggle.

When you're planning stairs, plumbing stacks, or structural walls, you need to see how one level relates to another. But if every floor is fully visible, the drawing becomes unreadable fast. The trick is not simply showing all levels. The trick is controlling how they appear so they guide your design instead of overwhelming it.

In this guide I will walk through the methods designers actually use to display multiple levels clearly while keeping plans accurate and easy to edit.

save pin

Why do designers need to see multiple floor levels at once

Key Insight: Viewing multiple levels at once prevents alignment mistakes between structural and vertical elements.

In real projects, floors never exist in isolation. Staircases, plumbing stacks, elevator shafts, and load bearing walls must align across every level. If you design each floor separately without visual reference, misalignment is almost guaranteed.

I learned this the hard way early in my career on a townhouse remodel. The staircase looked perfect on the first floor plan, but when the second level was drafted later, the stair opening cut directly into a bathroom wall. A simple reference overlay would have prevented the mistake.

Situations where multi level viewing matters most:

1. Designing staircases or double height spaces
2. Aligning structural walls
3. Stacking plumbing and ventilation systems
4. Planning elevator shafts or service cores
5. Maintaining consistent column placement

Professional design software like Revit and Archicad has used multi level referencing for years. Floor Plan Creator includes similar concepts through floor visibility and reference overlays.

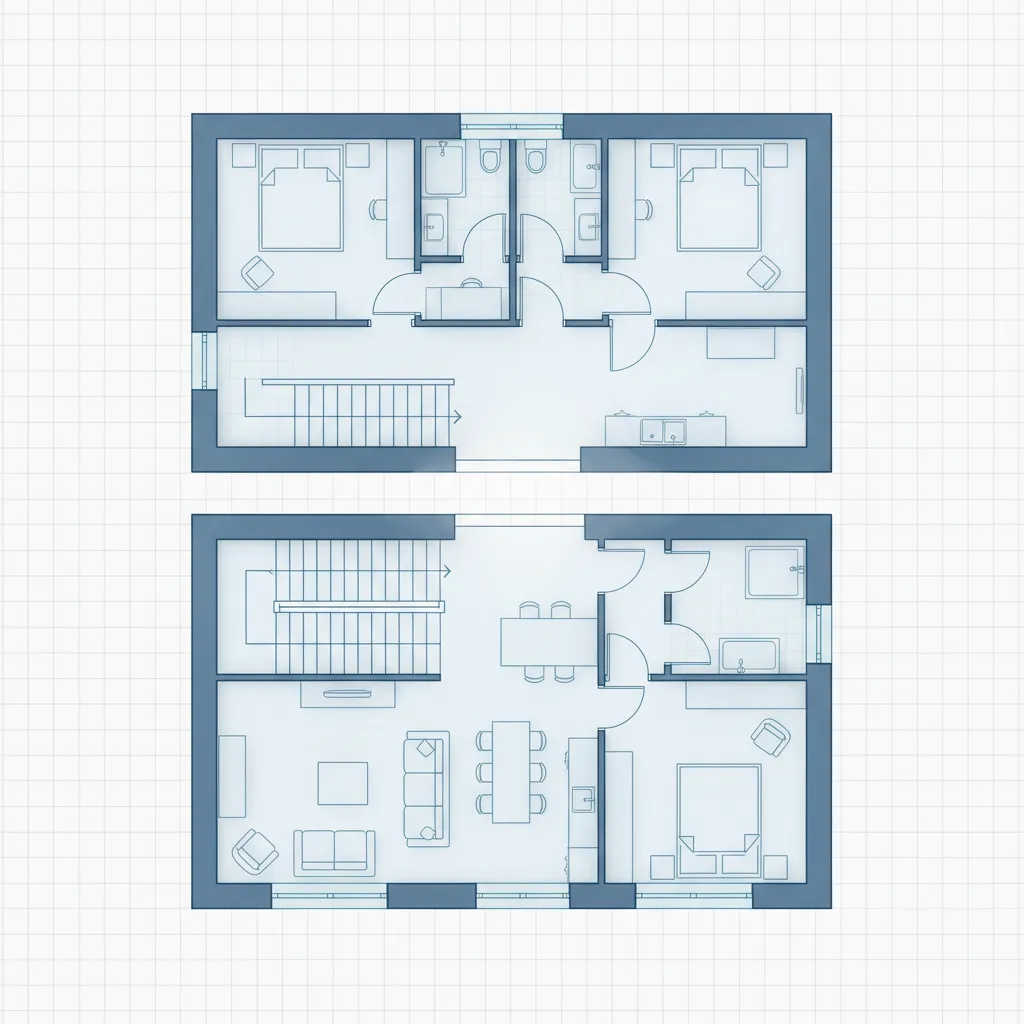

How to display all levels in Floor Plan Creator without clutter

Key Insight: The best method is showing other levels as faded references rather than fully editable layers.

Simply turning on every floor at full visibility creates visual chaos. Instead, experienced designers use a ghosted reference system where only the active floor is editable.

A practical workflow looks like this:

1. Open the Floor Manager panel.
2. Select the active floor you want to edit.
3. Enable visibility for other levels as reference layers.
4. Reduce opacity or activate ghost mode.
5. Lock non active floors to prevent accidental edits.

This method allows you to see structural alignment without accidentally moving objects on other levels.

In many projects I keep the floor above at 40 percent opacity and the floor below around 20 percent. That balance keeps the drawing readable while still providing spatial context.

save pin

What is the best way to align walls and stairs across floors

Key Insight: Always anchor vertical elements to the same grid or structural reference.

Even with multi level visibility turned on, alignment errors still happen if there is no shared reference system. The most reliable solution is a structural grid.

Professional architects rarely draw freehand floor relationships. Instead, they anchor everything to a consistent framework.

Elements that should align between floors:

1. Load bearing walls
2. Structural columns
3. Stair openings
4. Elevator shafts
5. Plumbing stacks

One overlooked trick is to copy the stair opening outline to every level first before designing the surrounding rooms. This ensures the staircase footprint never shifts accidentally.

save pin

Common mistakes when displaying multiple levels

Key Insight: Too much visual information is the main reason multi level plans become confusing.

I regularly review floor plans created by beginners, and the same problems appear again and again. Showing every detail from every level rarely helps.

The most common mistakes include:

1. Displaying furniture from all floors simultaneously
2. Editing two levels at the same time
3. Using identical colors for every floor
4. Ignoring grid alignment
5. Forgetting to lock reference floors

A simple rule I teach junior designers is this: reference floors should guide structure, not decoration. Furniture, cabinetry, and small details should stay hidden on non active floors.

Answer Box

The most effective way to display all levels in Floor Plan Creator is to enable multi floor visibility while keeping non active floors in transparent reference mode. This keeps vertical alignment accurate while preventing editing errors and visual clutter.

Can you show upper and lower floors at the same time

Key Insight: Showing both adjacent levels provides enough context without overwhelming the drawing.

In most residential projects you rarely need to see every floor simultaneously. Showing the level above and below is usually enough.

This approach works because most structural relationships occur between adjacent levels. For example:

1. Stairs connect two floors
2. Plumbing stacks run through consecutive levels
3. Structural columns repeat vertically

Displaying three or more floors at full detail often reduces readability. I typically keep only one reference level visible while drafting.

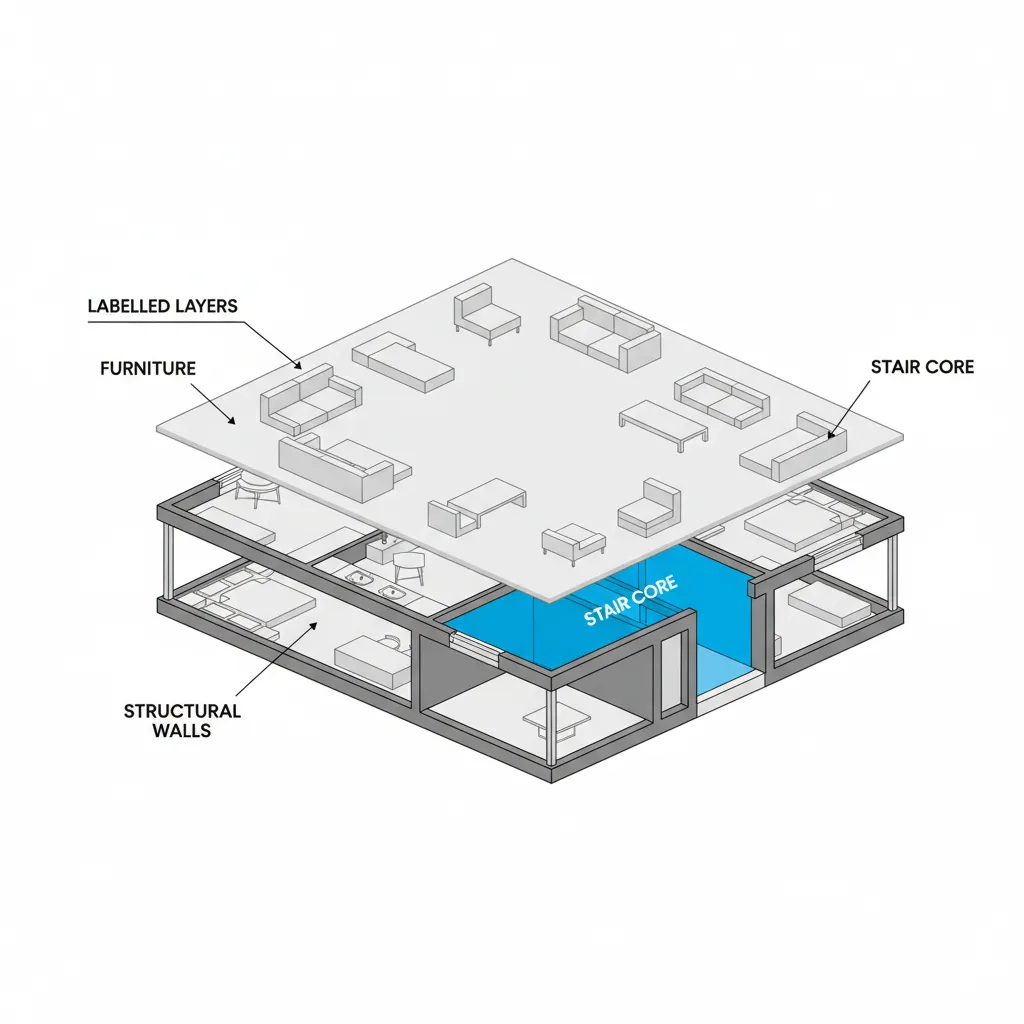

How professionals organize multi level floor plans

Key Insight: Organized layer control is what separates clean professional plans from chaotic ones.

Professional interior designers structure their drawings so each floor remains readable on its own but still aligns with the entire building.

A typical layer setup includes:

1. Structural walls
2. Interior partitions
3. Stairs and vertical circulation
4. Plumbing and mechanical zones
5. Furniture and layout

When displaying multiple levels, only structural layers remain visible across floors. This dramatically reduces visual noise.

In my studio we follow a simple rule: if an element does not affect vertical alignment, it should not appear on reference floors.

save pin

Final Summary

1. Display other levels as transparent references rather than full drawings.
2. Align stairs and structural walls using a consistent grid.
3. Limit visibility to adjacent floors for clarity.
4. Hide furniture and decorative layers on reference floors.
5. Lock non active floors to prevent editing mistakes.

FAQ

How do you display all levels in Floor Plan Creator?

Use the floor manager to enable visibility for multiple levels and set non active floors to reference or transparent mode.

Can I edit multiple floors at the same time?

It is technically possible in some tools but usually discouraged. Editing one active floor while others remain locked prevents structural mistakes.

Why do my floors look cluttered when I enable all levels?

Too many layers are visible. Hide furniture and decorative items from reference floors to keep the drawing readable.

What opacity should reference floors use?

Most designers keep upper floors around 30 to 40 percent opacity and lower floors around 15 to 25 percent.

Does displaying all levels affect plan accuracy?

No. In fact, displaying all levels in Floor Plan Creator often improves accuracy by helping align vertical elements.

Should furniture be visible on other floors?

No. Furniture usually adds noise. Reference floors should only show structural elements.

How do professionals align stairs between floors?

They copy the stair opening footprint to each level and anchor it to a structural grid.

Is it necessary to see every floor simultaneously?

Not usually. Viewing the floor above or below provides enough alignment context.
