DIY Floor Plan Creator: Create Your Own Floor Plans with Ease

Direct Answer

A DIY floor plan creator is a tool or method that lets homeowners design room layouts, wall placements, and furniture arrangements without hiring an architect. With the right approach and a few practical design rules, you can produce a functional floor plan that is accurate enough for renovation planning or interior layout decisions.

The key is combining measurement accuracy, logical room flow, and realistic furniture scaling rather than simply drawing walls on a grid.

Quick Takeaways

1. A DIY floor plan creator works best when you start with real measurements instead of template grids.
2. Room flow matters more than room size in most residential layouts.
3. Furniture scale mistakes are the most common DIY floor plan error.
4. Simple digital tools can produce layout clarity comparable to early professional drafts.
5. Always test walking paths before finalizing your plan.

Introduction

After more than a decade working as an interior designer, I've seen a growing number of homeowners experiment with a DIY floor plan creator before they ever talk to a professional. Honestly, that’s not a bad thing. Some of the best renovation projects I’ve worked on started with a homeowner sketching their own layout ideas.

The problem is that most DIY floor plans fail for very predictable reasons: inaccurate measurements, unrealistic furniture sizes, or poor traffic flow. The tools themselves are not the problem. The missing piece is understanding how designers actually think about space planning.

In this guide, I'll walk through the practical methods I use in real residential projects so your DIY floor plan can move from a rough sketch to a layout that actually works.

save pin

What Makes a Good DIY Floor Plan Creator?

Key Insight: The best DIY floor plan creator is not the one with the most features but the one that keeps scale accurate and layouts easy to adjust.

Many beginners assume that complex design software automatically produces better layouts. In reality, most professional designers begin with very simple spatial diagrams before adding detail.

What actually matters:

1. Precise measurement input
2. True-to-scale drawing grid
3. Furniture libraries with realistic dimensions
4. Easy wall adjustment tools
5. Clear top‑down visualization

According to the American Institute of Architects, early-stage floor plans are typically produced as simple scaled diagrams before any 3D modeling happens. That same approach works surprisingly well for DIY creators.

How Do You Start Creating a Floor Plan Yourself?

Key Insight: Every successful DIY floor plan starts with accurate measurements of the existing structure.

Before opening any software, measure the actual space. I’ve seen homeowners spend hours designing a beautiful plan that fails simply because one wall measurement was wrong.

Step-by-step process:

1. Measure wall lengths, ceiling height, and door openings.
2. Mark window positions and widths.
3. Record structural elements such as columns or load‑bearing walls.
4. Draw the perimeter layout first.
5. Add internal walls and door swings.

Professional designers often sketch the first draft on paper before digitizing it. This simple step helps clarify spatial relationships much faster.

save pin

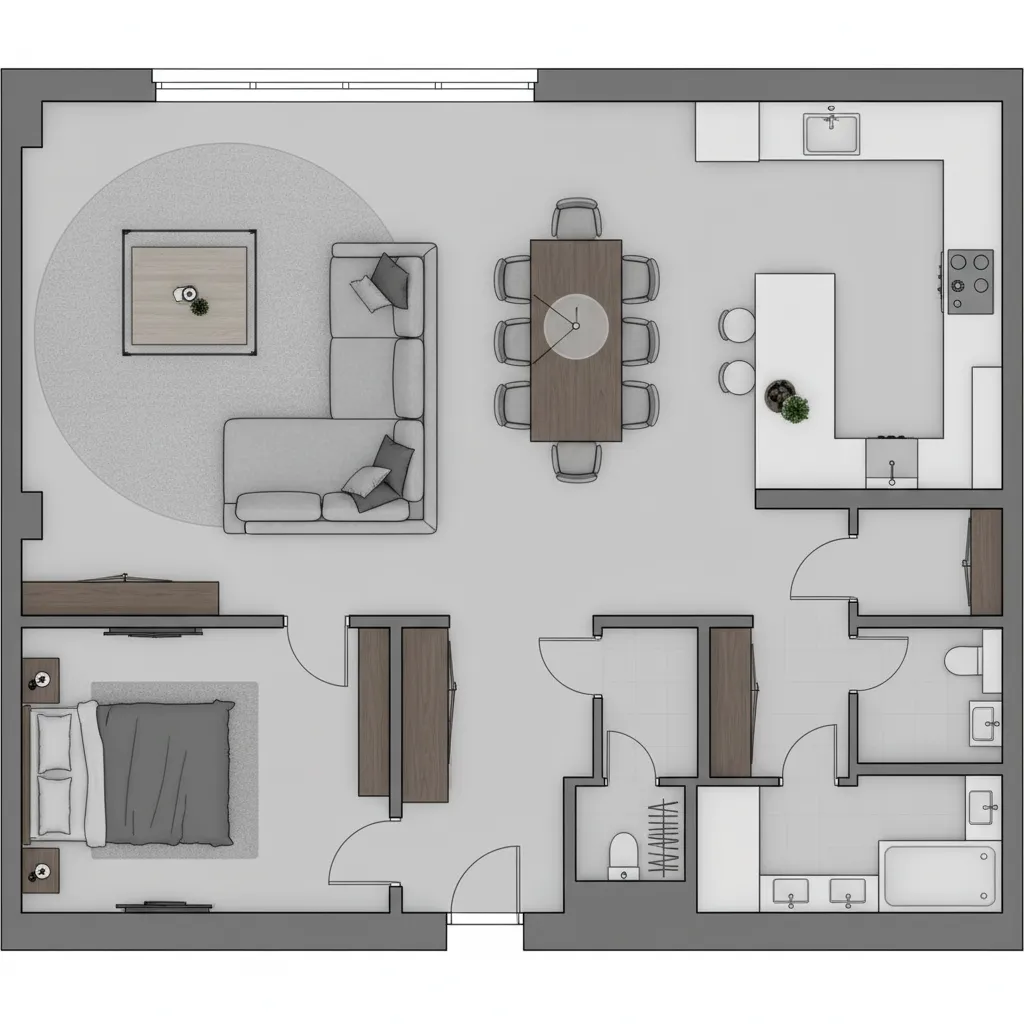

Why Furniture Scaling Is the Most Common DIY Mistake

Key Insight: Most DIY floor plans fail because furniture pieces are drawn smaller than they exist in reality.

In real projects, the layout is usually driven by furniture placement rather than wall placement. A living room might technically fit within a certain size, but once a sectional sofa, coffee table, and walkway clearances are added, the space can quickly become cramped.

Typical real-world furniture dimensions:

1. Standard sofa: 84–96 inches
2. Queen bed: 60 x 80 inches
3. Dining table for six: about 72 inches long
4. Comfortable walkway clearance: 36 inches minimum

One technique I recommend is placing furniture first in your DIY floor plan creator and then adjusting walls if needed. This approach mirrors how many interior designers solve layout problems.

save pin

Can Free DIY Floor Plan Tools Produce Professional Results?

Key Insight: Free floor plan tools can produce surprisingly accurate layouts when used with proper scaling discipline.

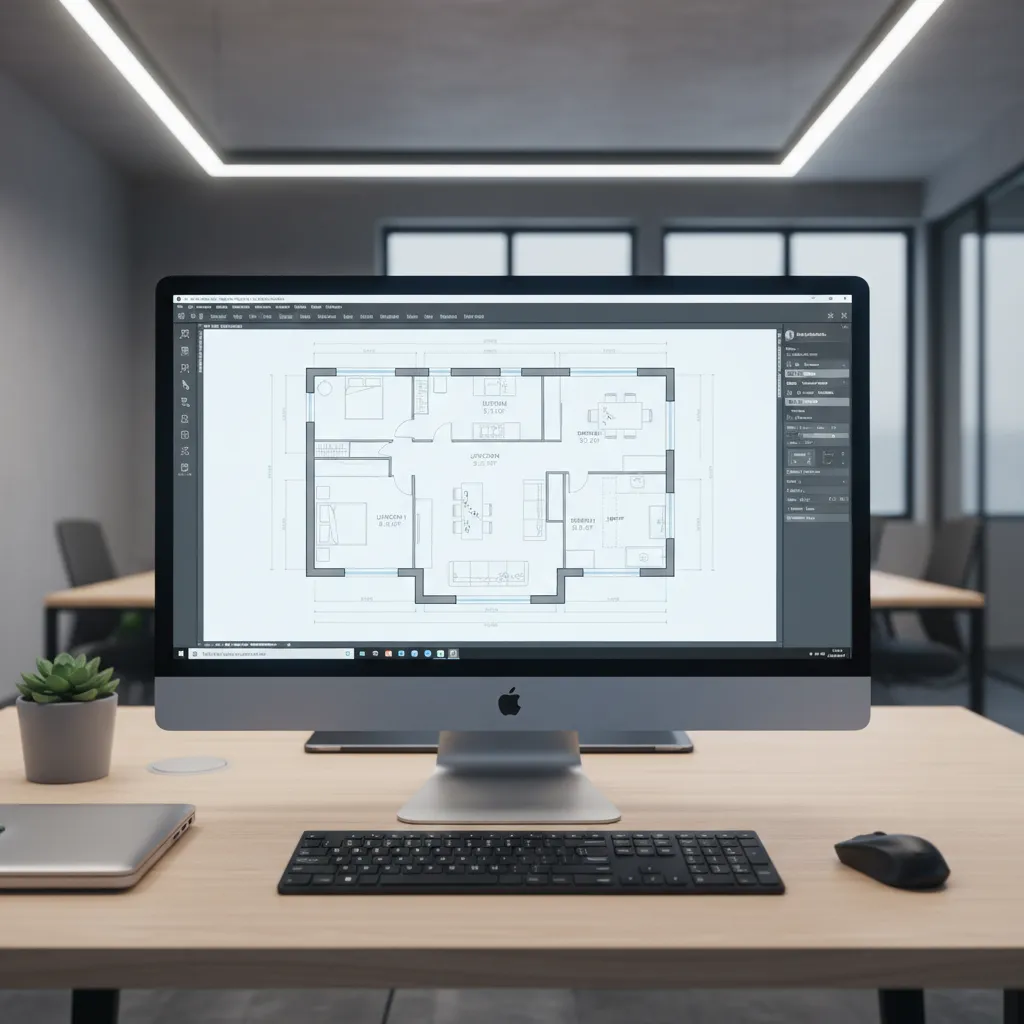

In recent years, browser-based design tools have improved dramatically. Many homeowners now produce plans detailed enough to discuss with contractors or designers.

Common capabilities in modern DIY tools:

1. Drag-and-drop walls
2. Automatic dimension labeling
3. Furniture libraries
4. 2D and simple 3D views
5. Room area calculations

The limitation is not accuracy but architectural knowledge. A tool can draw walls, but it cannot always identify structural constraints or plumbing requirements.

Hidden Layout Problems Most DIY Plans Ignore

Key Insight: The biggest weakness in DIY floor plans is not aesthetics but circulation flow.

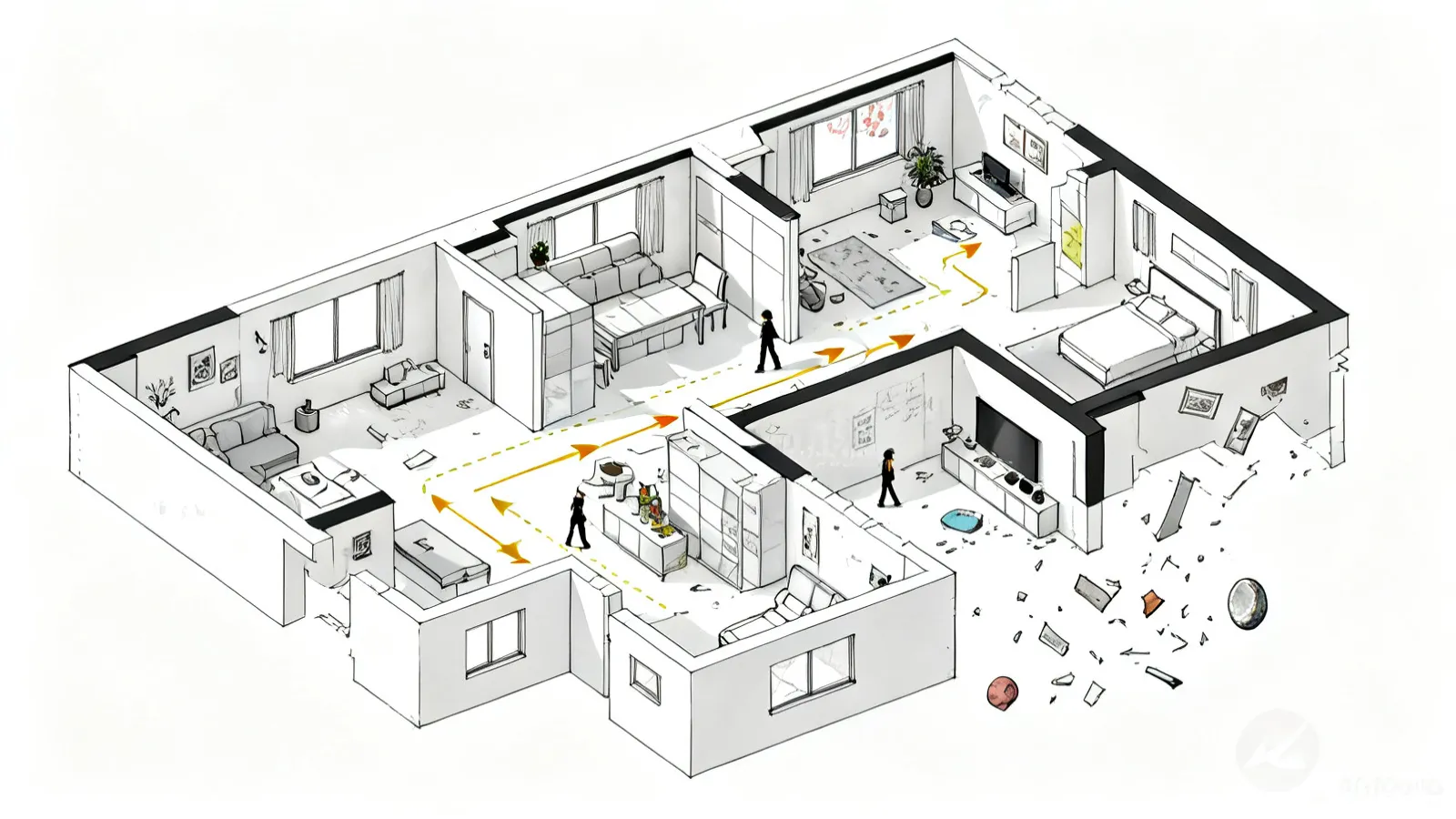

Circulation refers to how people move through a space. Designers think about this constantly, but it rarely appears in beginner layouts.

Common hidden issues:

1. Door swings blocking walking paths
2. Kitchen work triangle inefficiency
3. Furniture interrupting natural pathways
4. Overlapping traffic between rooms

A useful rule I share with clients: imagine walking through the house while carrying groceries, laundry, or luggage. If movement feels awkward in your plan, it will feel worse in reality.

save pin

How Designers Evaluate a Floor Plan Before Finalizing It

Key Insight: Professional designers test a layout against usability rules before worrying about decoration.

When I review a floor plan created with a DIY floor plan creator, I usually check five things first:

1. Room proportions relative to function
2. Clear walking paths between zones
3. Furniture spacing and comfort clearances
4. Window placement relative to seating
5. Door conflicts and accessibility

This evaluation stage is where many designs improve dramatically. A layout might look fine visually but fail once these spatial rules are applied.

Answer Box

The most effective way to use a DIY floor plan creator is to start with accurate measurements, place real‑size furniture first, and then refine wall placement around circulation paths. Layout logic matters far more than decorative details.

Final Summary

1. A DIY floor plan creator works best when measurements are precise.
2. Furniture scale determines whether a layout feels comfortable.
3. Circulation flow is the most overlooked design factor.
4. Simple tools can create highly functional home layouts.
5. Testing real movement paths improves almost every DIY plan.

FAQ

What is a DIY floor plan creator?

A DIY floor plan creator is a tool that allows homeowners to design room layouts, wall placement, and furniture arrangement without hiring a professional designer.

Are DIY floor plan tools accurate enough for renovations?

They can be accurate for layout planning if measurements are correct. Structural changes should still be reviewed by an architect or contractor.

Can beginners create a floor plan without design experience?

Yes. With clear measurements and basic furniture sizing knowledge, beginners can create functional layouts using a DIY floor plan creator.

What is the biggest mistake in DIY floor plans?

Using unrealistic furniture sizes. Many layouts appear spacious until real furniture dimensions are applied.

How detailed should a DIY floor plan be?

Include wall lengths, door swings, windows, furniture placement, and walkway clearances for the most useful layout.

Do professionals ever use simple floor plan tools?

Yes. Many designers begin with simple scaled diagrams before moving to advanced architectural software.

How long does it take to create a floor plan?

A basic layout can take 30–60 minutes, while detailed plans may take several hours.

Is a DIY floor plan creator good for furniture planning?

Yes. Many homeowners primarily use these tools to test furniture arrangements before purchasing large pieces.
