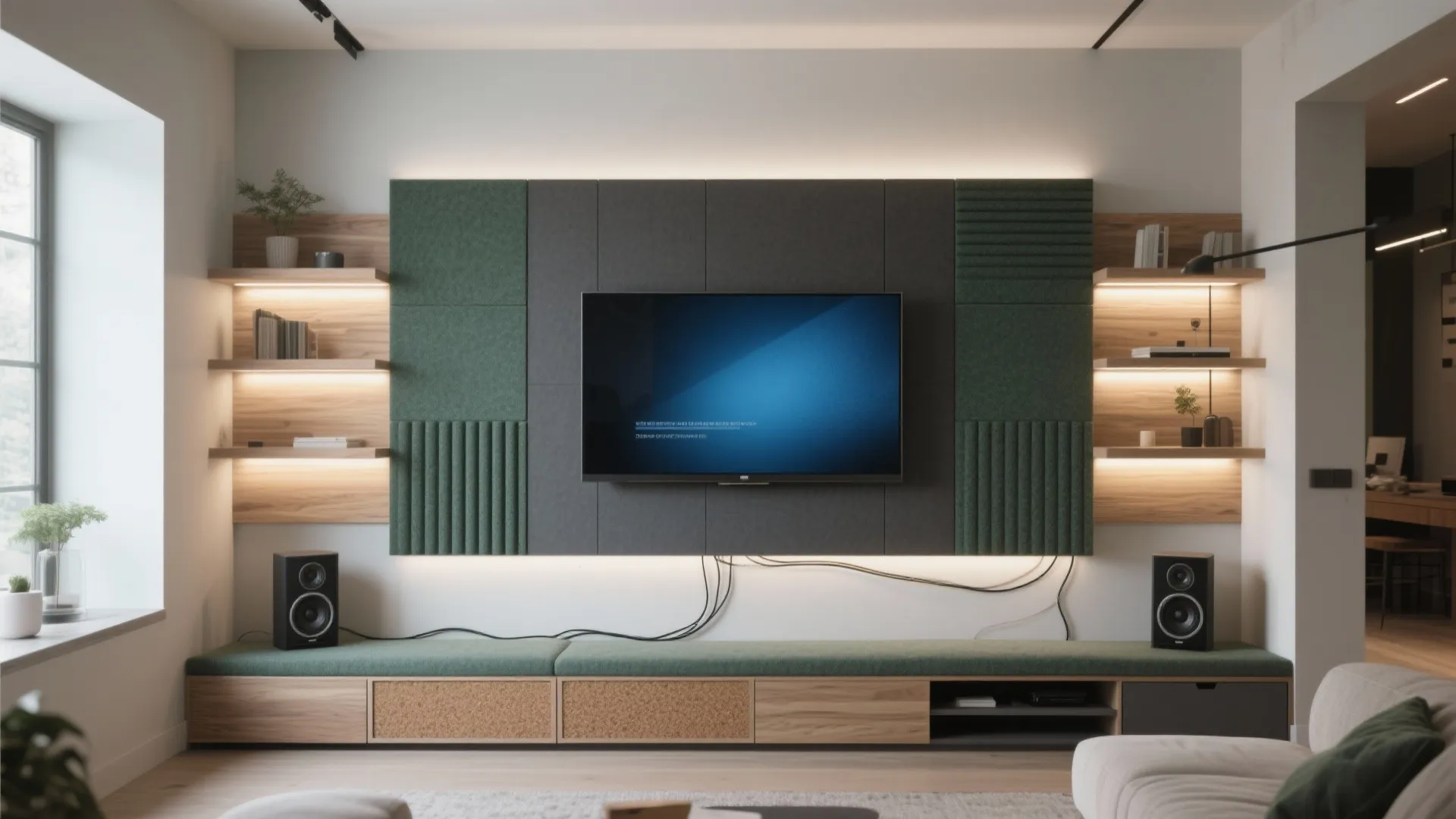

DIY Media Wall Ideas for Small Spaces: 1 Minute to Smartly Maximize Small Spaces with a DIY Media Wall

Small spaces don’t limit impact; they sharpen it. A well-designed DIY media wall can anchor a compact living room, studio, or bedroom while doubling as storage, cable management, and an acoustic buffer. In my projects, the best results come from treating the TV wall as a multi-functional plane—part shelving, part lighting feature, part sound moderator—scaled to the room’s proportions and viewing distance.

Scale and ergonomics matter from the start. For comfortable viewing, I keep eye level at one-third from the bottom of the screen and maintain a viewing distance of roughly 1.5–2.5 times the screen diagonal for 4K content—this aligns with common practice and contemporary AV guidelines. Lighting drives visual comfort too: the Illuminating Engineering Society recommends 75–150 lux for living rooms, so I layer bias lighting behind the TV with dimmable wall washers to reduce eye strain and glare. Wellness-centered design frameworks also emphasize glare control and visual acuity; the WELL Building Standard highlights managing contrast and providing adaptable lighting to support comfort and circadian needs (see WELL v2 guidance at wellcertified.com). For color and mood, muted neutrals with one saturated accent can create focus without visual clutter—Verywell Mind notes that deep blues and greens support calm, while warm neutrals add coziness.

Compact Media Wall Principles

Before you pick up a drill, map the wall in elevations and plan cable routes. In small rooms, I target a media wall thickness of 6–12 inches to conceal wiring, power strips, and a soundbar while keeping floor area free. Ventilation is non-negotiable: allow at least 2 inches of airflow around devices and a perforated panel or open shelf zone for receivers and game consoles. For audio, aim for a symmetrical layout around the screen to keep imaging centered; soft finishes near first reflection points (side walls, opposite wall) improve clarity without adding bulk.

Idea 1: Floating Panel with Hidden Raceway

Mount a plywood or MDF panel 1–1.5 inches off the wall using cleats, then mount the TV to the panel. The air gap becomes a cable raceway. Finish with matte laminate, limewash paint, or wood veneer to pull the TV into a refined plane. Add a shallow ledge (3–4 inches) for remotes and small speakers. Integrate an LED bias strip behind the panel: 2700–3000K for warmth, CRI 90+ for accurate color. This setup reduces visual clutter, avoids drilling multiple studs, and keeps the composition light.

Idea 2: Slim Built-In with Vertical Rhythm

In rooms under 180 square feet, I keep vertical modules narrow—8–12 inches wide—and alternate open cubbies with closed doors to avoid a “bookcase wall” feeling. Use vertical fluting or battens to create rhythm and conceal touch-latch doors. A 6–8 inch deep lower plinth hides power bricks and a low-profile subwoofer; use perforated cane or speaker fabric for door fronts where ventilation is needed.

Idea 3: Shelf-Frame TV with Acoustic Inserts

Build a frame of 1x2 or 1x3 stock around the TV, then flank with shallow shelves (6–8 inches). Swap a few shelf backs for cork, PET felt, or wool upholstery panels to absorb flutter echo. Keep the frame darker than the wall for contrast; a 30–50% light reflectance value difference helps the screen visually “sit” into the composition and reduces perceived glare.

Idea 4: Corner Media Wall

When walls are short, pivot to the corner. A triangular floating shelf with a mitered front edge can carry a 32–55 inch TV, with cable drop through the corner cavity. Extend a single battened panel across one wall to visually widen the corner while hiding conduits. Angle speakers 22–30 degrees from centerline for a tighter stereo image in tight footprints.

Idea 5: Sliding Art or Slat Door Concealment

If your living area doubles as a workspace, hide the screen with a lightweight sliding panel. I prefer 1/2-inch plywood wrapped in canvas or acoustic fabric on top rails, or two-part slatted doors riding in a shallow aluminum channel. Soft-close dampers keep it quiet. This approach calms visual noise, improves focus, and protects the screen.

Idea 6: Low Media Bench + Wall Rail

Pair a 12–16 inch tall bench with a slender wall rail system for adjustable shelves. Keep the bench under 14 inches deep in tight rooms; use drawers for remotes, controllers, and cables. Pegged or slotted rails allow you to shift speakers and books for seasonal changes—handy when space doubles for hosting.

Idea 7: Paint + Lighting Illusion

Use a darker painted panel behind the TV—40–50% of the wall width—to compress the visual field and make the room feel deeper. Edge it with a 3000K LED channel set to ~150–200 lux at the wall surface in evening mode. This trick reduces perceived contrast between bright screens and dark rooms, easing eye strain during late viewing.

Idea 8: Micro-Niche in a Stud Bay

In older buildings with deeper studs, carve a 3.5-inch recess for a soundbar or streaming device shelf between studs (verify load and avoid plumbing/electrical). Add a removable grill for access. The TV remains surface mounted, while peripherals tuck into the wall, saving critical inches.

Idea 9: Hybrid Work-Play Wall

For studios, integrate a fold-down desk under the TV and a magnetic backboard to pin cables and accessories. Use cord reels and a recessed power strip to switch between work and entertainment quickly. A matte anti-glare screen finish helps when daylight hits the wall.

Layout Planning Tips for Tight Rooms

Start with sightlines: place the TV opposite the longest uninterrupted wall and avoid placing it across from strong windows. Keep a 24–30 inch clearance zone in front of low benches for circulation. When testing viewing distances or speaker placement, a digital interior layout planner helps you iterate quickly; try a layout simulation tool to test clearances, viewing angles, and storage module sizes before you build: room layout tool.

Material Choices That Work Hard

- Fronts: matte lacquer or soft-touch laminate to fight reflections in small rooms.

- Carcasses: plywood or high-density MDF for clean edges; pre-finished birch saves time.

- Panels: PET felt, cork, or wool-wrapped boards for acoustic absorption without bulk.

- Hardware: tip-on latches, low-profile wire grommets, and cable combs for tidy routing.

- Finishes: low-VOC paints for healthier indoor air; aim under 50 g/L where possible.

Lighting: Balance, Contrast, and Control

Layered lighting makes or breaks comfort. Target ambient lighting in the 75–150 lux band for living zones (aligned with common IES guidance), use bias lighting behind the TV at ~10% of screen luminance, and add a dimmable wall washer to control contrast. Warm dim (3000K dropping to 2200K) keeps evening viewing restful. Glare control—shielded fixtures, matte surfaces—will do more for comfort than brute brightness.

Sound and Acoustics in Small Rooms

Hard, parallel surfaces create flutter. Break symmetry with books, textiles, and soft panels near first reflection points (approximately midway between speakers and the listening position on side walls). A rug with a dense pad in front of the media bench lowers slapback. Keep subwoofers slightly off corners to reduce boom; 1/5th room length placement is a helpful starting heuristic.

Cable Management and Ventilation

Plan one dedicated vertical chase for power and a separate one for low-voltage cables to avoid interference. Use 2-inch grommets and Velcro straps; label both ends of every cable. Provide 20–30 square inches of passive venting per shelf housing electronics; cut slots along the back edge and hide them with an overhang.

Color and Psychology in Small Media Walls

Colors influence perception of space and restfulness. Verywell Mind’s overview of color psychology notes that blues and greens can promote calm, while warm earth tones feel welcoming—use these to balance screen brightness. In compact rooms, I limit the palette to three tones: a mid-tone wall, a darker media panel, and light shelves to keep the composition airy.

Installation Checklist

- Locate studs and map loads; use a mount rated for 2–3x the TV weight.

- Keep center of screen at seated eye height (typically 40–44 inches from floor to screen center).

- Confirm outlet and low-voltage access; avoid sharing circuits with high-load appliances to reduce noise.

- Dry fit the panel and doors; adjust reveals to 2–3 mm for clean lines.

- Test airflow and cable slack before final fastening.

Future-Proofing a Small Media Wall

Design for change: add an extra conduit, a few spare shelves, and adjustable rails. Choose mounts with vertical/horizontal adjustment to accommodate future screens. Keep finishes classic and let decor do the seasonal heavy lifting.

FAQ

Q1: What is the ideal viewing distance in a small room?

A1: For 4K TVs, 1.5–2.5 times the screen diagonal is a solid range. In very small rooms, err on the shorter end for immersion and ensure the center of the screen sits near seated eye level.

Q2: How bright should the room be for comfortable viewing?

A2: Aim for ambient lighting around 75–150 lux with dimmable control. Add bias lighting behind the TV at about 10% of screen luminance to cut eye strain and reduce perceived contrast.

Q3: Can I hide a soundbar in a shallow build?

A3: Yes—design a 3–4 inch recess with a fabric or perforated cane front for ventilation. Leave at least 2 inches clearance around the unit and route cables through a dedicated low-voltage chase.

Q4: Which materials help with acoustics without bulk?

A4: PET felt panels, cork tile, and wool-wrapped boards absorb mid-to-high frequencies and can be integrated as shelf backs or door infills. A plush rug and curtains complement the setup.

Q5: How do I avoid glare on the TV?

A5: Place the TV perpendicular to primary windows, use matte wall finishes, and add dimmable, shielded fixtures. Consider a darker panel behind the TV and warm-dim lighting for evening use.

Q6: What’s the best height for a TV in a small living room?

A6: Position the screen center around 40–44 inches from the floor for typical sofa seating. If seating is lower or you often recline, adjust downward slightly to keep neutral neck posture.

Q7: Can a corner media wall work with surround sound?

A7: It can, with careful speaker angles. Keep front left/right about 22–30 degrees from centerline and use compact satellites. Add soft finishes in the first reflection zones to improve clarity.

Q8: How do I keep cables tidy in a DIY build?

A8: Plan two chases—one for power, one for data—use grommets, Velcro ties, and labels at both ends. A removable back panel makes future changes painless.

Q9: What color palette makes a small media wall feel larger?

A9: A restrained trio works: mid-tone room color, darker media panel, and light shelves. This creates depth without visual noise and helps the screen recede when off.

Q10: Do I need ventilation if I only use a streaming stick?

A10: Minimal heat, but still allow some airflow behind panels. If you add a soundbar or console later, you’ll be glad you planned the vents and access panels.

Q11: How deep should a slim media bench be?

A11: In tight rooms, 12–14 inches is a safe target. Use full-extension, low-profile drawers and cable pass-throughs to maximize utility.

Q12: Can I design the layout digitally before building?

A12: Yes, a room design visualization tool helps you test clearances, viewing angles, and shelf dimensions quickly, reducing mistakes before you cut materials.
