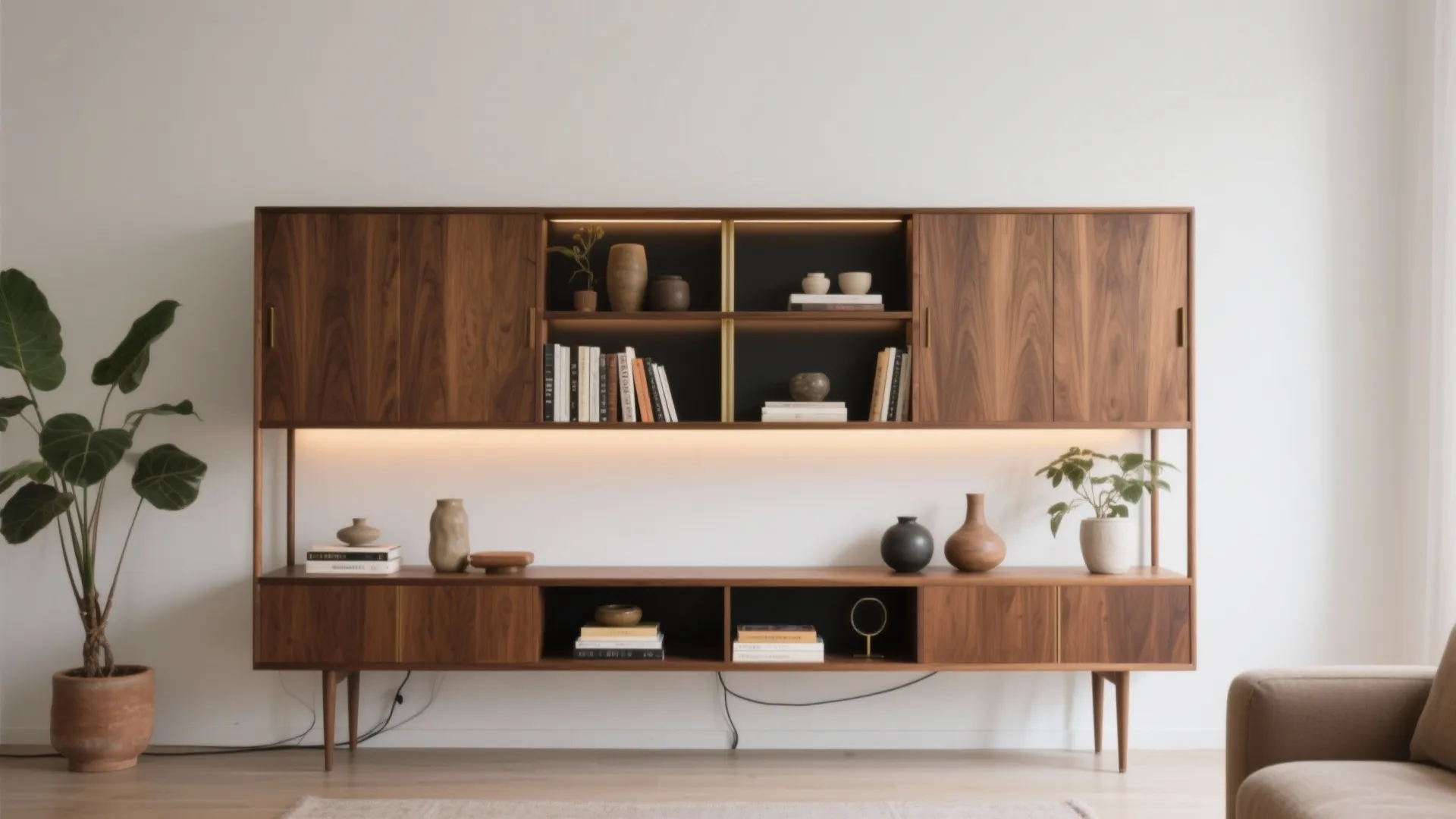

DIY Mid Century Modern Wall Unit: Step-by-Step Guide: Save Hours – Fast-Track Guide to Building a DIY Mid Century Modern Wall Unit

I’ve built and restored more mid-century modern wall units than I can count, and the magic lives in proportion, rhythm, and clean joinery. Before you pick up a saw, anchor the vision: warm woods, slender verticals, matte black or brass accents, and a floating lightness. Around 3000–3500K ambient lighting keeps walnut and teak looking true-to-tone without pushing too yellow or too cool, aligning with WELL v2’s guidance on balanced light for visual comfort, and task illuminance near 300–500 lux meets common interior recommendations referenced by IES for reading and display clarity. On the ergonomics side, storage that keeps the most-used items between 28–60 inches off the floor reduces strain; Steelcase research regularly highlights that human reach comfort centers within this mid-zone for daily use.

Design intent matters. The golden ratio is a helpful guide but not a rule; I often target shelf rhythm in simple 1:2 or 2:3 intervals to keep the composition calm. When planning modules, I keep vertical supports slim—about 1–1.25 inches—and set shelves at 10–14 inches tall for books, 7–9 inches for media or decor. According to Verywell Mind’s notes on color psychology, mid-century palettes benefit from a restrained base (wood, off-white) and sparing pops of color—mustard, rust, bottle green—to avoid visual fatigue while keeping energy up. For workplace or reading nooks, Steelcase research points to reduced mental clutter when storage is organized by task zones, which is exactly how I group bays: media, library, bar, display.

Step 1: Define the Module Grid and Overall Dimensions

Start with the wall length and ceiling height. For a typical 10–14 ft wall, I prefer a modular approach: three to five bays, each 24–36 inches wide. Maintain consistent vertical spacing to avoid visual noise. If your room layout needs a tighter plan before you commit, use a layout simulation tool to visualize clearance and anchoring before you cut: room layout tool. Key clearances: 18–24 inches between the lowest shelf and floor when floating; 30–36 inches minimum for console depth circulation in front. Leave at least 6 inches from ends to adjacent walls/doors to prevent cramped sight lines.

Step 2: Select Materials with Mid-Century Integrity

Materiality drives authenticity. Pick one primary species and stick with it. Walnut veneer over MDF or plywood core is true to the era and stable; solid walnut for edges and face frames adds tactile warmth. If budget is tight, white oak or ash can be tinted with a light walnut stain. Hardware: concealed brackets, low-profile shelf pins, and slim black or aged brass pulls. Finish: a hand-rubbed oil or low-sheen waterborne lacquer at 10–20 gloss keeps reflections down and grain honest. Sustainability angle: specify CARB II-compliant cores and waterborne finishes to reduce VOCs; WELL v2 encourages specifying low-emitting materials for indoor air quality.

Step 3: Structural Strategy—Floating vs. Floor-Based

Two proven approaches: a) wall-mounted rails with cantilevered shelves and cabinets; b) floor-based consoles with vertical standards up to the ceiling. For floating systems, find studs and distribute loads: each shelf should not exceed about 2–3 lb per linear inch for typical concealed brackets. Tall bays need anti-tip anchoring. For floor-based designs, include a 3–4 inch recessed plinth (toe-kick) to make the unit visually lighter and accommodate flooring transitions.

Step 4: Proportions for Shelves, Bays, and Doors

Keep shelves at 3/4 inch thick for lightness, 1 inch for long spans. Over 36 inches, consider edge-stiffening or hidden steel flat bar. Door fronts: slab style with continuous grain—bookmatching the veneer across a bay elevates the piece. Common cabinet depths: 12–14 inches for books and decor, 16–20 inches for media and bar storage. If you add a desk module, set the work surface at 28–29 inches high; Herman Miller research on ergonomics places comfortable seated work heights around this range to reduce shoulder loading.

Step 5: Electrical and Lighting Integration

Plan for power early. Route a dedicated channel behind the console for cable management and leave grommets at each bay that needs power. For shelf lighting, use 2700–3000K LED strips with a high color rendering index (CRI 90+) to keep wood tones accurate. Dimming is essential—target 150–300 lux for display shelves and 300–500 lux for reading zones. Shield LED strips behind a lip to avoid glare; IES glare control principles suggest avoiding direct line-of-sight to luminous sources.

Step 6: Joinery and Assembly Details

Mid-century reads clean because joints are deliberate. Rabbets for shelf ends, domino or dowel joinery for face frames, and quality edge banding on veneer cores are my go-tos. Pre-finish panels before final assembly to keep edges crisp. Use a consistent reveal—1/16–1/8 inch—around doors and drawers. If you’re including sliding doors, aluminum tracks with felt guides reduce rattle; acoustic comfort improves when hard surfaces aren’t allowed to chatter.

Step 7: Finishing—Color, Sheen, and Texture

Keep the palette disciplined. Wood plus two accents is plenty. If the room needs brightness, paint the wall behind the unit a soft white with a warm LRV (60–75) to bounce light without glare. Verywell Mind’s take on color psychology suggests muted greens can calm, while a small dose of mustard energizes—use color behind open bays rather than on doors if you want easy refreshes. Matte finishes lower specular highlights and let the grain read true at evening light levels.

Step 8: Installation and Leveling

Dry-fit every bay before final fastening. Shim to dead level; mid-century lines punish unevenness. For wall-mount rails, hit each stud with lag bolts and use toggles where studs don’t align with design rhythm, but keep loads conservative. Once installed, check door reveal consistency and adjust hinges. Cable management should be invisible from normal sight lines.

Step 9: Styling the Unit—Balance and Rhythm

Curate objects with negative space. Books and records anchor, ceramics and plants soften, and one or two sculptural forms create focal points. Keep heavy visual mass low, lighter pieces high. Use odd-number groupings and vary heights to avoid monotony. If the unit integrates a media center, center the screen in a darker bay and keep surrounding shelves clean.

Common Module Recipes

- Media bay: 60–70 inch screen zone, 16–20 inch deep console with venting, cable chase, and adjustable shelves.

- Library bay: 12–14 inch deep shelves at 10–12 inch vertical spacing; add one tall shelf for art books.

- Bar bay: 16–18 inch deep with a 12 inch pull-out, bottle rail, and LED strip at 2700K.

- Desk bay: 28–29 inch work surface, 18–24 inch leg clearance, task light at 300–500 lux.

Maintenance and Longevity

Oil finishes need light refreshes every 6–12 months in high-touch zones; waterborne lacquers are tougher but still benefit from gentle cleaners. Keep humidity stable (40–55%) to avoid warping. Re-level annually if your flooring settles.

FAQ

Q1: What wood species best match mid-century aesthetics?

A: Walnut is the archetype; teak is period-correct but pricier and harder to source sustainably. White oak and ash are strong alternatives with straight grain that takes stain well.

Q2: How wide can shelves span without sagging?

A: For 3/4 inch shelves in plywood/veneer, keep spans to 24–30 inches. Over 36 inches, use a 1 inch shelf or reinforce with a hidden steel bar or front edge stiffener.

Q3: What lighting temperature should I use?

A: 2700–3000K for shelf accent lighting and 3000–3500K for ambient light. Aim for CRI 90+ to keep wood tones honest and minimize color cast.

Q4: How high should cabinets and open shelves start?

A: Floating consoles often sit 18–24 inches above the floor. Open shelves above should keep most-used items between 28–60 inches high for ergonomic access.

Q5: Do I need to anchor a floor-based unit?

A: Yes. Even with a plinth, tall bays should be anti-tip anchored to studs, especially if doors or drawers may be opened simultaneously.

Q6: What finish is most durable?

A: Waterborne lacquer with low sheen is tough and low-VOC. Hand-rubbed oil gives warmth but needs periodic maintenance.

Q7: How do I manage cables cleanly?

A: Plan cable chases behind the console, use grommets in each bay, and choose furniture-grade cord clips. Keep power supplies in ventilated cabinets with mesh or rear cutouts.

Q8: Can I integrate a desk module ergonomically?

A: Yes. Set the surface at 28–29 inches. Pair it with a task chair adjusted so elbows are roughly 90 degrees and the screen top is near eye level.

Q9: What color accents complement walnut?

A: Mustard, rust, bottle green, and deep blue pair well. Limit accent colors to one or two and keep saturation moderate for visual calm.

Q10: How do I ensure good acoustic comfort?

A: Avoid rattling hardware, line sliding door tracks with felt, and mix soft elements (rugs, curtains) near the unit to absorb reflections from the wood surfaces.

Q11: Is veneer acceptable?

A: Absolutely. High-quality veneer over stable cores is period-accurate and resists warping. Edge with solid wood for durability.

Q12: What’s a safe load per shelf?

A: As a rule of thumb with concealed brackets, keep around 2–3 lb per linear inch, but verify bracket specs and anchor into studs for heavy loads.
