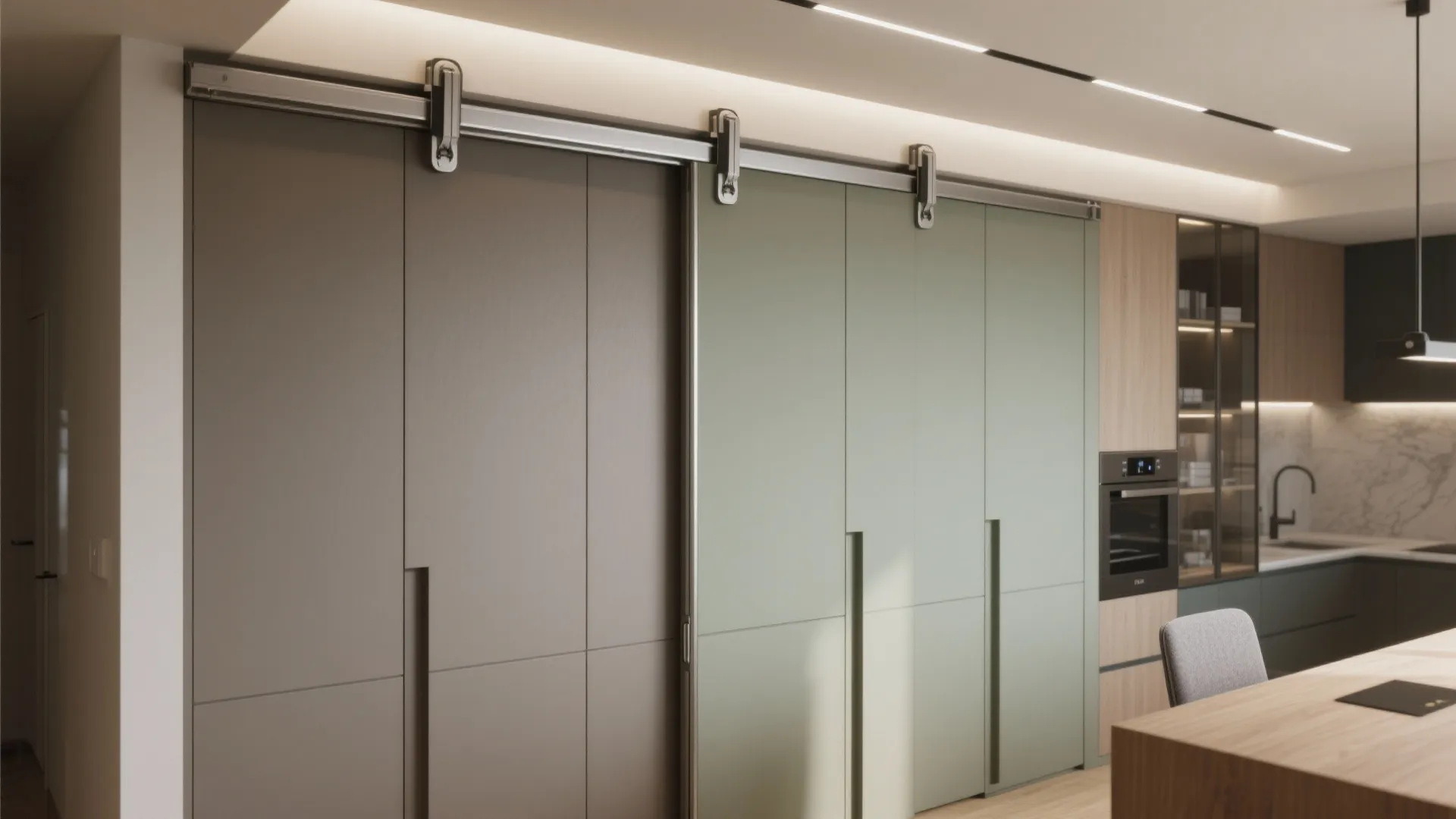

DIY Sliding Door Cabinet: Space-Saving Design Guide: Fast-Track Guide to Building a DIY Sliding Door Cabinet in 1 Hour

I’ve designed and installed more sliding-door cabinets than I can count, and they remain my go-to move for tight floor plans or narrow circulation zones. Sliding fronts eliminate door swing clearance, open up usable square footage, and create a clean, continuous elevation that works in kitchens, utility rooms, home offices, and bedrooms.

Space efficiency isn’t just anecdotal. In workplace environments, Gensler’s research reports that clear circulation and unobstructed paths contribute to perceived effectiveness and user satisfaction, linking spatial legibility to productivity gains. In residential kitchens, NKBA planning guidelines cite a minimum 36-inch walkway for one-cook zones, which is frequently compromised by hinged doors; sliding fronts resolve that conflict by removing the swing arc and reducing accidental bumps. For ergonomics, Herman Miller’s research emphasizes reducing repetitive reach and awkward postures—sliding doors allow frontal access with less side-step or pivot.

Lighting and visual performance matter, especially along storage walls. IES recommends balanced vertical illuminance to reduce shadows on cabinet faces; in practice, a 300–500 lux task band with warm-neutral 3000–3500K lighting makes hardware easier to grasp and contents easier to read. WELL v2 similarly highlights visual comfort, glare control, and appropriate light levels as contributors to user wellbeing. When I plan millwork, I aim for glare-free, indirect lighting above a sliding run, moving bright sources out of sight to prevent specular highlights on glossy fronts.

Planning the Footprint and Clearances

Before cutting a single panel, map the footprint and approach angles. Sliding door cabinets excel where a 90-degree swing would collide with a walkway or adjacent furniture. Keep a minimum 36-inch passage in kitchens (per NKBA) and 42 inches for multi-cook zones. In bedrooms, maintain 24–30 inches clear in front of the cabinet so a user can stand and bend without backing into the bedframe. If you’re experimenting with shelf spacing and door stacking, use a layout simulation tool such as the room layout tool to visualize, iterate, and confirm door overlap and handle reach.

Choosing the Sliding Mechanism

There are three common routes: top-hung tracks, bottom-rolling tracks, and bypass systems.

1. Top-hung: Clean visual lines and minimal threshold dust; requires solid structure to carry the door weight. Ideal for modern, flush designs.
2. Bottom-rolling: Easier retrofit, good for heavy doors; ensure precise leveling to prevent drift.
3. Bypass: Two or more doors sliding past each other; great for longer spans. Accept that only a portion of the cabinet is accessible at once.

Look for soft-close dampers, adjustable rollers, and anti-derail safety profiles. I prefer aluminum tracks with nylon or polymer rollers for quiet operation and lower maintenance. If you anticipate heavy use (pantry, office files), spec bearings rated above the door weight by 30–50% for longevity.

Door Panels: Materials and Proportions

Material selection impacts acoustics, durability, and visual balance. Options include:

1. Melamine or HPL over MDF: Cost-effective, consistent finish, easy to clean. Edge-band with ABS to protect corners.
2. Plywood (furniture-grade): Better screw-holding, lower VOC options available; face with veneer for warmth.
3. Solid wood stiles with lightweight infill: Classic look; manage seasonal movement with floating panels.
4. Glass (tempered or laminated): Adds reflectivity and perceived depth; consider acoustic interlayers to soften slide noise.

Maintain a calm rhythm: I like a 1:2 panel-to-rail proportion on tall units and aim for door widths between 24–36 inches for manageable weight. For acoustics, a felt brush or silicone edge gasket along the meeting stile cuts rattle and improves the close.

Color Psychology and Finish Strategy

Color sets behavioral tone. According to Verywell Mind, blues and greens tend to be calming and can reduce stress responses, while saturated reds signal urgency and energize. For storage walls, I design neutral bases (warm gray, sand, soft white) with selective accents—muted sage or slate blue—so the elevation reads orderly without visual fatigue. Matte finishes reduce glare; semi-matte works if you want a slight sheen. If you add glass, opt for low-iron to avoid green cast on light woods.

Hardware and Handles

Flush pulls keep lines clean and protect passersby from snags in tight halls. Recessed aluminum edge pulls are my default on minimal fronts. For a tactile grip, leather-wrapped tabs age beautifully and soften the contact. Position handles between 36–42 inches above finished floor for most users; for tall doors, a secondary pull at 60 inches helps multi-user households. Soft-close and damped catches reduce impact noise and protect contents.

Interior Layout: Shelves, Drawers, and Access

Sliding doors change how you access storage. Plan interior zones to match opening widths. For a 30-inch door, stagger shelves so frequently used items sit within that window: eye-level 48–54 inches for daily use, heavy items between 18–30 inches, light/rare items above 60 inches. Mixing shallow drawers (4–6 inches high) with adjustable shelves keeps small objects from migrating. If the cabinet is deep, add pull-out trays to prevent the out-of-sight problem. When refining these placements, an interior layout planner like the room design visualization tool helps test shelf heights and door overlap.

Structural Considerations

Top-hung systems demand robust headers—laminated beams or doubled studs—especially for wide spans. Anchor tracks into solid backing, not just drywall. If you’re working with freestanding cabinetry, build a torsion box base to resist racking. Long doors (over 84 inches) benefit from anti-bow stiffeners—aluminum T-bars or concealed ribs—to keep a crisp reveal over time. Always confirm plumb and level; even a 2–3 mm tilt will telegraph as drift or rub along the track.

Lighting Integration and Glare Control

Integrate lighting to avoid stripey reflections across doors. I place linear LED strips at the shelf front, slightly recessed, with diffusers and 3000–3500K output for warm-neutral color rendering. Target 300–500 lux on task planes and avoid point-source spots that mirror on glossy panels. Use soft-start drivers to avoid the snap-on effect that can jolt visual comfort. In glass-front cabinets, run backlighting along verticals to evenly wash contents.

Acoustic Comfort

Sliding systems can produce track rumble or panel chatter. Between rollers and aluminum profiles, a polymer isolator or felt insert quiets movement. Add a cork underlay beneath bottom tracks in freestanding builds. Seal the meeting stile with a slim silicone baffle; it cuts high-frequency clicks when doors meet and reduces dust migration.

Sustainability and Indoor Air Quality

Choose low-VOC substrates and finishes. CARB-compliant plywoods and waterborne lacquers keep odors down. Specify durable hardware to extend service life; replacing worn rollers every 5–7 years is simpler than swapping the entire cabinet. Consider fasteners that allow disassembly and recycling—confirm your panels’ recycle pathways before committing to exotic veneers.

Step-by-Step Build Overview

1) Measure and model: Confirm clearances and door widths; decide on top-hung vs bottom-rolling. 2) Prepare structure: Add backing or headers; check level. 3) Cut panels: Maintain square edges; pre-drill for hardware. 4) Install tracks: Shim and align; test with a sacrificial door. 5) Hang doors and adjust: Set plumb, reveal, and soft-close dampers. 6) Fit interiors: Shelves, drawers, pull-outs, and lighting. 7) Final tune: Quiet gaskets, handle heights, and glide resistance.

Common Mistakes I Avoid

- Oversizing doors beyond roller capacity—always over-spec bearings.

- Ignoring vertical lighting—shadows make contents hard to see.

- Flush mounting without ventilation in kitchen zones—allow air gaps behind panels near appliances.

- Skipping meet-stile gaskets—rattle will drive you crazy in quiet rooms.

- Misaligned pulls—keep a consistent axis for visual calm.

FAQ

How wide should each sliding door be?

Between 24–36 inches is a comfortable range. Wider doors feel heavy and can stress rollers; narrower doors increase hardware count and seams.

What’s the best track type for heavy doors?

Bottom-rolling with high-capacity bearings is more forgiving for heavy, solid fronts. Add anti-derail guides and a stiff header for alignment.

How much clearance do I need in front of a cabinet?

In kitchens, keep at least 36 inches clear for single-cook zones per NKBA; add more for multi-cook layouts. For closets, 24–30 inches works for most users.

What lighting should I use inside the cabinet?

Linear LEDs with diffusers at 3000–3500K, delivering about 300–500 lux on shelves, provide readable, low-glare illumination.

Do sliding doors reduce access compared to hinged doors?

Bypass systems expose only part of the cabinet at once. Mitigate by aligning frequently used zones with the opening width and adding pull-out trays.

How do I minimize noise?

Use nylon rollers, felt or silicone gaskets at meeting stiles, and polymer isolators in tracks. Soft-close dampers curb impact sounds.

Are glass sliding doors practical?

Yes, if tempered or laminated. They enhance perceived depth and light but need careful glare control. Consider acoustic interlayers to soften slide noise.

What finishes are most durable?

HPL over MDF or furniture-grade plywood with waterborne lacquer holds up well. Edge-band with ABS to protect corners from chipping.

How do color choices impact perception?

Calm neutrals and desaturated greens/blues reduce visual clutter and stress, aligning with color psychology findings reported by Verywell Mind.

Can I retrofit sliding doors onto an existing cabinet?

Usually. Verify structural backing for a top rail or use bottom-rolling tracks. Check squareness; out-of-plumb cases cause binding and drift.
