DIY Wall Bed Ideas for Small Spaces: 1 Minute to Smart, Space-Saving DIY Wall Beds

A wall bed (often called a Murphy bed) can be the single smartest move in a tight apartment or studio. I’ve designed and installed variations in micro-units and accessory guest rooms, and the space dividend is immediate: fold the bed up, and you reclaim a work area, play zone, or yoga mat footprint without moving a thing.

Real-world data backs the impact of flexible furniture on productivity and wellbeing. In workplace studies, Gensler’s U.S. Workplace Survey notes that people with access to spaces matching task needs report higher effectiveness, especially when they can shift functions in the same footprint—exactly what a wall bed enables in home offices and living rooms. WELL v2 also emphasizes adequate sleep environments and access to daylight; a wall bed lets you position a sleeping surface away from glare while preserving daytime natural light—both linked to better rest quality and daytime alertness.

Lighting and human factors matter as much as carpentry. I follow IES recommendations for bedrooms of 10–20 foot-candles (roughly 100–200 lux) for ambient lighting, with 300–500 lux task lighting when the bed is stowed and the area serves as a desk. That split keeps visual comfort high and reduces eye strain when you transform the room.

Plan the Footprint First

Measure the clear envelope for a twin, full, queen, or horizontal fold. A queen mattress typically needs about 60" x 80" plus frame, while clearance for the fold-down arc calls for 86"–90" vertical height for standard vertical orientation. In compact rooms, horizontal wall beds fit under lower ceilings and avoid clashing with pendant fixtures. To test traffic paths, I often simulate circulation and hinge arcs using a room layout tool—helpful before you commit to hardware and cut sheets.

Choose a Safe, Proven Mechanism

DIY doesn’t mean improvising the lift system. Use rated wall bed hinges or pistons designed for mattress weight and cycle count. Steel counterbalance mechanisms with gas struts are common; aim for components with published load ratings and cycle testing. Anchor the frame to wall studs (or a continuous plywood backer) with structural screws. If your wall is masonry, use sleeve anchors sized for shear loads. I add redundant safety cables that catch the platform if a fastener ever fails.

Frame and Panel Construction

For small spaces, I prefer a torsion-box platform: 1x3 or 1x4 internal grid with 1/2" plywood skins. It resists warp, stays light, and keeps the profile thin. The wall cabinet can be 3/4" plywood sides with face frames in solid wood. If weight is critical, swap to high-quality Baltic birch ply or an aluminum angle perimeter for the platform. Finish edges with hardwood lipping to survive daily use.

Integrate the Bed as Furniture

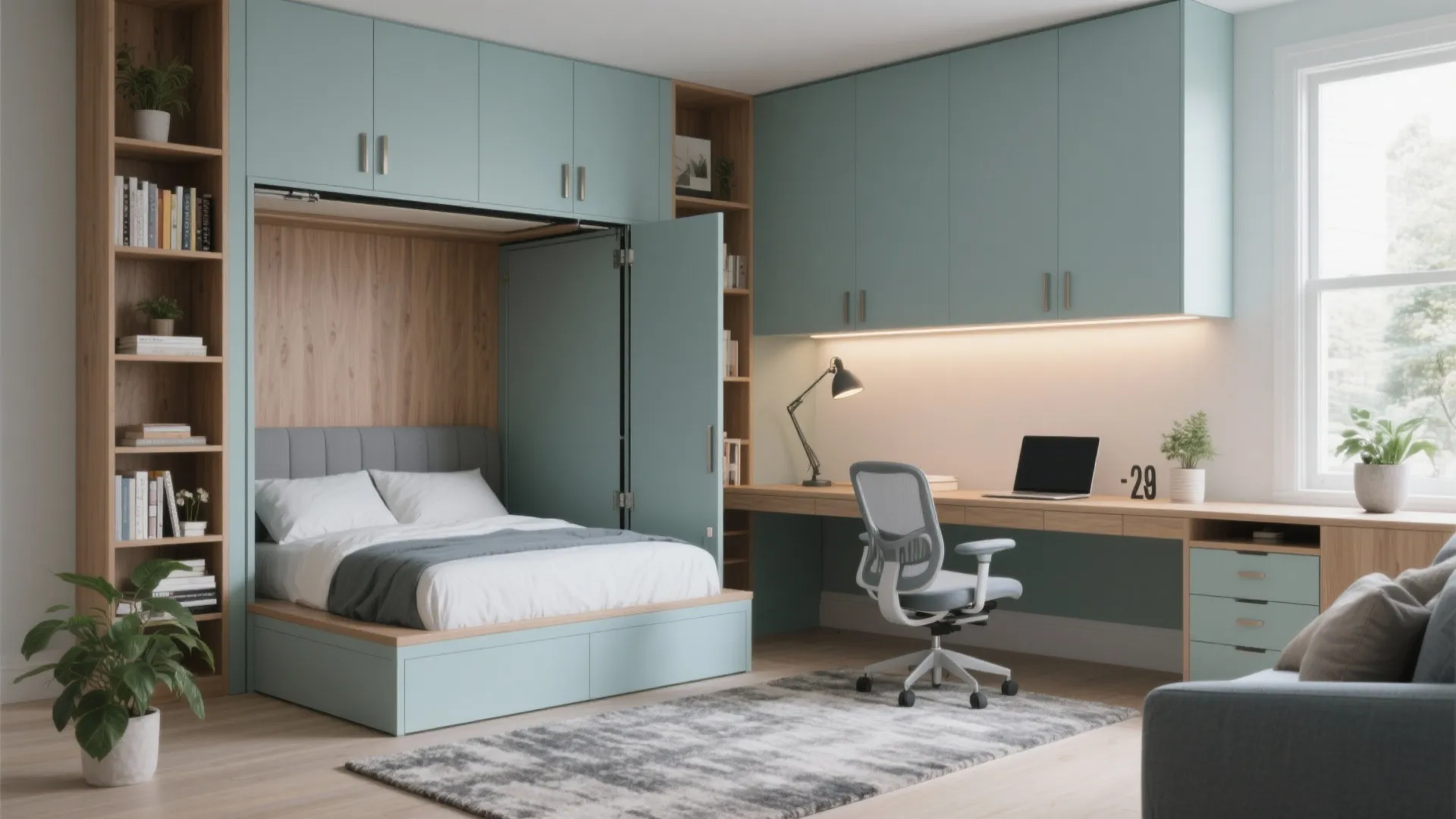

A wall bed looks best when it reads as a built-in. Consider flanking bookcases, shallow wardrobes, or a drop-down desk on the underside of the bed platform. When the bed folds up, the desk pivots to horizontal—perfect for hybrid living rooms. Maintain ergonomic desk height near 28"–29" for most adults, and allow knee clearance of at least 24" depth. During design, use an interior layout planner to balance storage, desk span, and fold arcs without crowding door swings.

Lighting: Dual Mode for Sleep and Work

Glare control is critical. Position indirect wall washers above the cabinet and warm-dim LEDs (2700–3000K) for bedtime. When stowed, switch to neutral 3500–4000K task light aimed away from glossy surfaces to keep unified luminance across the workplane—this reduces visual fatigue. Tie both modes to a single control scene for fast transitions. Night-time egress lighting at 1–3 lux helps prevent trips without disrupting melatonin.

Color Psychology for Compact Rooms

Light, desaturated hues make fold-up fronts feel less monolithic. Soft blue-greys and pale sage can lower perceived stress, while warmer creams keep the room inviting. Accent colors on adjacent shelving help cue function changes—work mode versus sleep mode—shifting mood without repainting the entire cabinet front.

Mattress, Ventilation, and Bedding

Use a mattress compatible with vertical storage—foam or hybrid models that don’t slump heavily. Add breathable slats or perforations to the platform to prevent moisture buildup. Secure bedding with elastic straps at the foot; pillows can stow in a shallow top cabinet. If allergies are a concern, washable covers and low-VOC finishes keep indoor air cleaner.

Acoustic Comfort in Small Spaces

Folding hardware can rattle if tolerances are loose. Use felt bumpers at contact points, and isolate cabinet sides from wall irregularities with thin neoprene shims. If your living area is multi-use, add a wool rug and fabric panels behind the fold-down headboard to absorb mid-frequency noise—handy for late-night guests.

Material Choices and Sustainability

Opt for CARB II or TSCA Title VI compliant plywood. Waterborne finishes reduce odor and off-gassing. If you’re painting the face, durable conversion varnish or high-resistance acrylic enamel holds up to daily handling. In high-humidity regions, seal both sides of panels to prevent bowing and use stainless fasteners.

Storage and Access Strategy

Think of the wall bed as the anchor for a vertical storage column: overhead cabinet for seasonal bedding, side shelves sized to 12" depth for books, and a concealed compartment for laptop and power strip. Pass-through grommets let you charge devices while the bed is stowed, minimizing cable clutter.

Safety Details I Never Skip

Bed straps across the mattress, locking side latches, and anti-tip brackets between cabinet and studs are non-negotiable. If the bed doubles as a kid zone when closed, add soft-close hinges for any fold-out desk and finger guards at pivot points. Test the mechanism 50–100 cycles before regular use.

Budget Paths: From Minimal to Premium

Entry builds use off-the-shelf piston kits, plywood face, and painted finish. Mid-tier adds integrated shelves, warm-dim lighting, and a torsion-box platform. Premium treatments include veneered fronts, flush pulls, and concealed counterweights—ideal when you want the bed to disappear behind paneling.

Layout Recipes for Specific Rooms

Studio Apartment

Place a vertical queen wall bed on the least windowed wall, with a drop-down desk and shallow wardrobes. Keep a 36" clear path from entry to kitchen. Use a layout simulation tool to fine-tune circulation around dining chairs.

Guest Room / Home Office

Choose a horizontal full bed under a window to preserve wall height for shelving and pinboards. Add acoustic panels behind the platform to keep Zoom calls crisp. Desk lighting at 4000K when stowed; warm 2700K sconces for guest nights.

Kids’ Flexible Room

Twin wall bed with protected pivots and soft materials. Low storage bins on casters roll out when the bed drops. Keep operating handles above child reach to prevent unsupervised use.

Build Steps at a Glance

1) Confirm structure and stud spacing; add a 3/4" plywood backer across studs. 2) Assemble torsion-box platform to weight spec from your hardware kit. 3) Install cabinet carcass and square it carefully. 4) Mount mechanism per manufacturer torque settings. 5) Add face panel, pulls, and latches. 6) Wire dual-mode lighting and test for glare. 7) Cycle-test and adjust dampers. 8) Finish edges, set bedding straps, and anchor anti-tip hardware.

References You Can Trust

For lighting levels and sleep-supportive environments, I look to the WELL Building Standard (WELL v2) guidance for light and comfort, and IES standards for illuminance in residential settings. Both are practical anchors when you design a space that shifts gracefully between day and night.

FAQ

Q1: What ceiling height do I need for a vertical wall bed?

A: Most vertical queen builds need around 86"–90" clear height to accommodate the fold and cabinet. If your ceiling is lower, a horizontal orientation is typically the solution.

Q2: How much lighting should I plan for when the bed is stowed?

A: Target around 300–500 lux on the work surface, with ambient in the 100–200 lux range. This aligns with IES guidance and keeps the area comfortable for desk tasks.

Q3: Can I use a regular mattress?

A: You can, but foam or hybrid models that hold shape vertically work best. Very heavy pillow-top mattresses can strain mechanisms and add sag over time.

Q4: What’s the safest way to anchor into drywall?

A: Always anchor into studs. If stud positions don’t align with your cabinet, install a continuous plywood backer screwed to multiple studs, then fasten the bed cabinet to the backer.

Q5: How do I prevent the underside from looking “too utility”?

A: Finish the face with veneered panels or painted shaker frames. Integrate a shallow fold-down desk or art panel so the surface feels intentional, not mechanical.

Q6: Will a wall bed make my room feel smaller?

A: Done right, it feels larger. Keep cabinet depth to 15–20" if possible, use light colors, and add indirect lighting above the unit to visually lift the mass.

Q7: What about acoustics for guest comfort?

A: Add a rug, fabric headboard, and soft-close hardware. These dampen mid-high frequencies and eliminate clacks during fold-down, making late-night use quieter.

Q8: How much should I budget?

A: DIY piston kits and plywood builds can land under a modest budget. Mid-tier with integrated lighting and veneers rises accordingly. Premium hardware and custom millwork are the biggest cost drivers.

Q9: Can I include a power outlet on the bed face?

A: Yes, but route flexible cable safely with strain relief and consider magnetic breakaway connections. Never pinch cords in hinge lines.

Q10: Is a horizontal bed comfortable for adults?

A: Absolutely. Horizontal full or queen beds feel normal during sleep; they just pivot differently. They’re ideal for low ceilings or rooms with pendant lights.

Q11: Do I need ventilation gaps?

A: Provide slats or perforations in the platform to prevent moisture buildup, especially for foam mattresses. It keeps bedding fresher over time.

Q12: What finishes are best for durability?

A: Waterborne acrylic enamels or conversion varnish on wear surfaces. Use low-VOC products to keep indoor air quality healthier.
