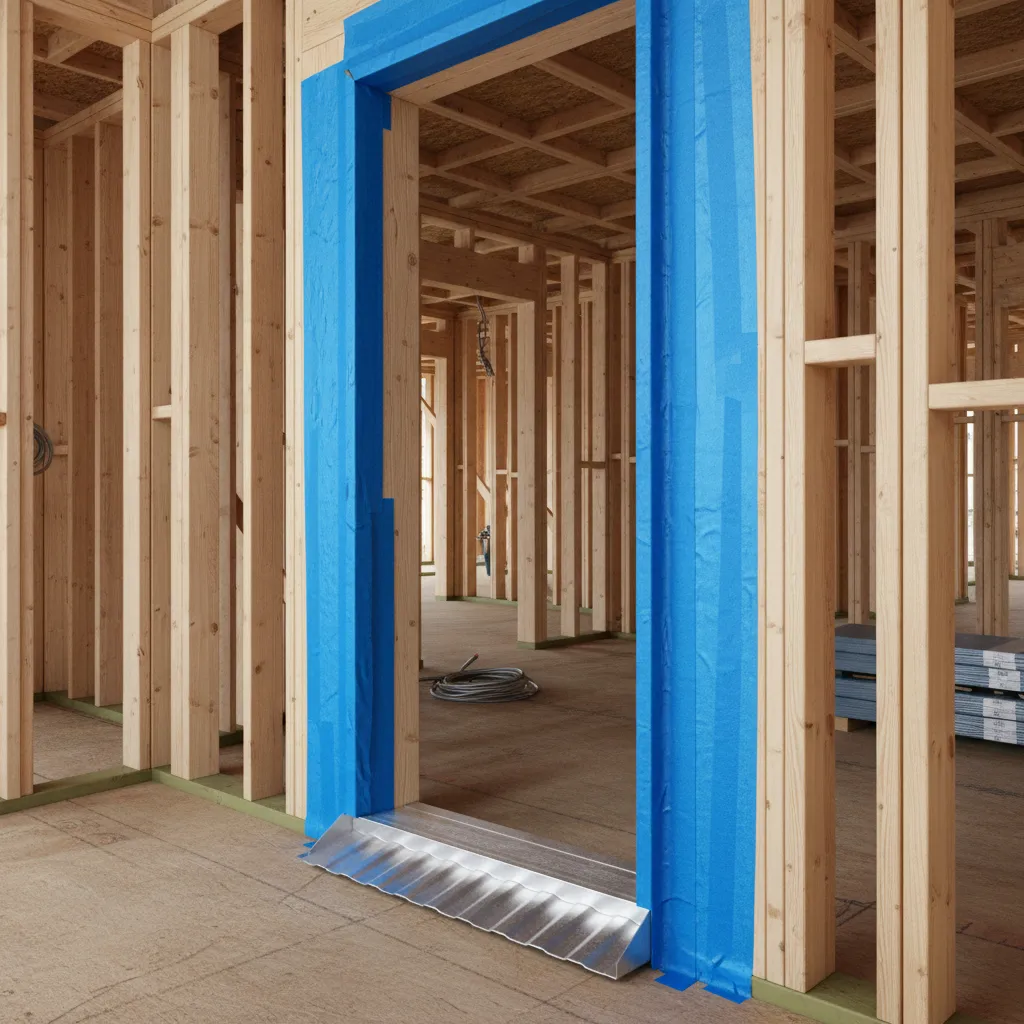

Door Flashing Tape vs Metal Sill Pan Which System Protects Exterior Door Openings Better: Understand how flashing tape and sill pans handle water so you can choose the safer exterior door waterproofing system

Direct Answer

Both flashing tape and metal sill pans help protect exterior door openings from water intrusion, but they work differently. Flashing tape seals joints and overlaps around framing, while a sill pan creates a physical drainage path under the threshold. In most professional installations, the most reliable system combines a preformed sill pan with self‑adhesive flashing tape layered above it.

Quick Takeaways

1. Sill pans manage bulk water by directing it outward beneath the door threshold.
2. Flashing tape seals seams but cannot drain trapped water by itself.
3. Professional installers often combine both systems for redundancy.
4. Improper layering causes more leaks than the material choice itself.
5. High‑rain climates benefit significantly from rigid sill pan drainage systems.

Introduction

When homeowners ask me about door leaks, the conversation almost always turns to one question: flashing tape vs metal sill pan. Which one actually protects an exterior door opening better?

After working on residential remodels and new builds for more than a decade, I’ve learned that water problems rarely come from the door itself. They come from what sits underneath it. The bottom of the rough opening is one of the most vulnerable points in the entire building envelope.

Many builders still rely on adhesive flashing alone. Others insist that a rigid sill pan is the only safe method. The truth is more nuanced. The right system depends on drainage design, climate exposure, and how carefully the layers are installed.

Before comparing systems, it helps to understand how exterior door openings are actually constructed. If you want to visualize how framing and thresholds interact with layout planning, this interactive way to visualize residential floor layouts in 3Dmakes it easier to see how door placement affects exterior wall exposure.

In this guide I’ll break down how flashing tape works, how sill pans manage water, and which system performs better in real-world conditions.

save pin

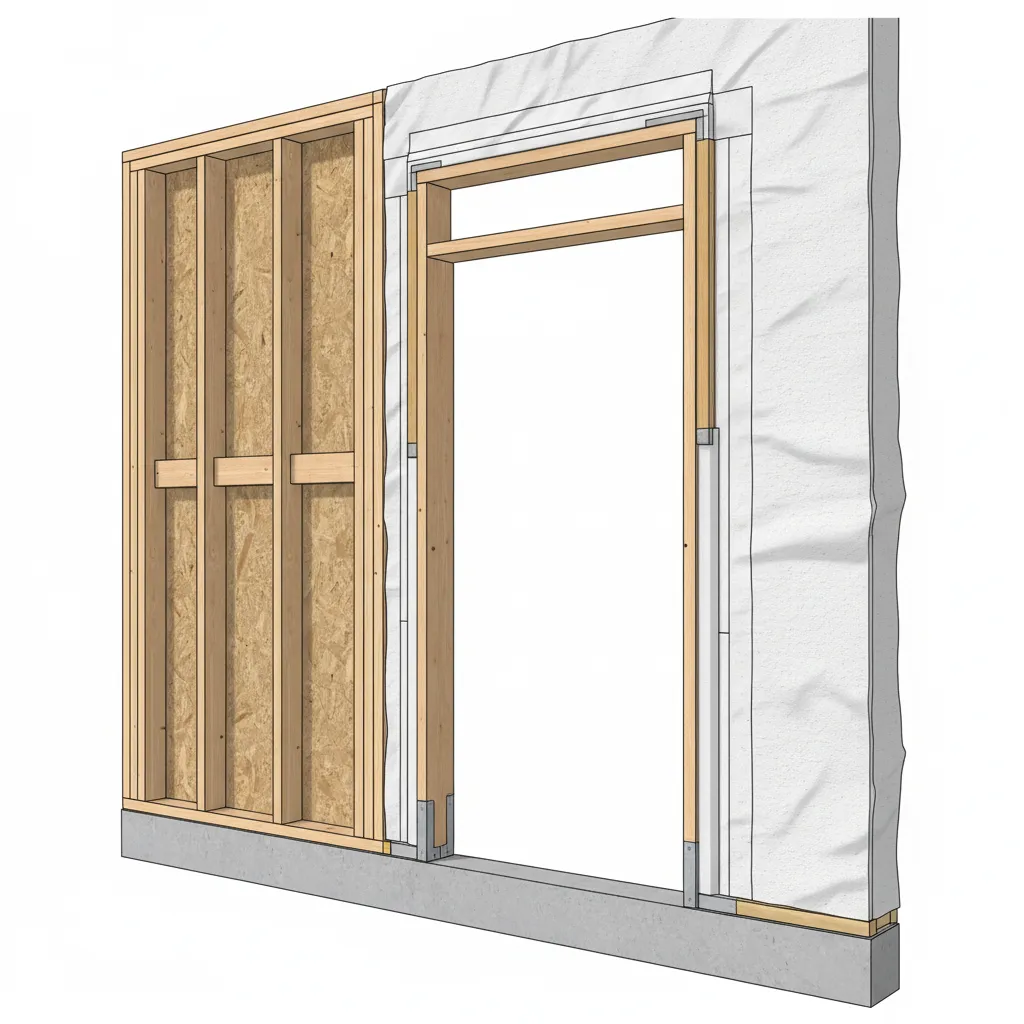

What Is Flashing for Exterior Door Openings?

Key Insight: Door flashing is not just sealing; it is a layered drainage system designed to redirect water safely outside the wall assembly.

Flashing protects the structural framing beneath doors and windows. Without it, even small amounts of water infiltration can soak the subfloor, rot framing, and cause mold problems inside wall cavities.

In exterior door openings, flashing usually protects three areas:

1. The rough sill (bottom framing)
2. The jamb sides
3. The head above the door

According to guidance from the International Residential Code and building science experts like Joseph Lstiburek of Building Science Corporation, the key principle is simple: water must always have a path outward. If water gets trapped behind seals or membranes, damage becomes inevitable.

Most flashing systems use one of two approaches:

1. Adhesive membranes (flashing tape)
2. Preformed drainage pans (metal or PVC)

Both can work, but their mechanisms are very different.

How Self Adhesive Flashing Tape Systems Work

Key Insight: Flashing tape creates a continuous waterproof barrier around joints, but it depends entirely on correct layering.

Self‑adhesive flashing tape is typically made from butyl or rubberized asphalt membranes with a protective backing. Installers apply it directly to sheathing and framing to seal seams around the door opening.

Typical installation sequence:

1. Apply flashing tape along the sill
2. Install door unit
3. Tape the side jambs
4. Finish with head flashing

Advantages of flashing tape:

1. Flexible and adaptable to irregular framing
2. Lower material cost
3. Quick installation for experienced installers

However, there’s a hidden issue many homeowners never hear about.

If water ever gets behind the door threshold—through wind‑driven rain or seal failure—flashing tape alone cannot drain it away. The water often sits on the membrane, slowly working into fastener holes or seams.

That’s why many building envelope consultants now recommend pairing membrane flashing with drainage components.

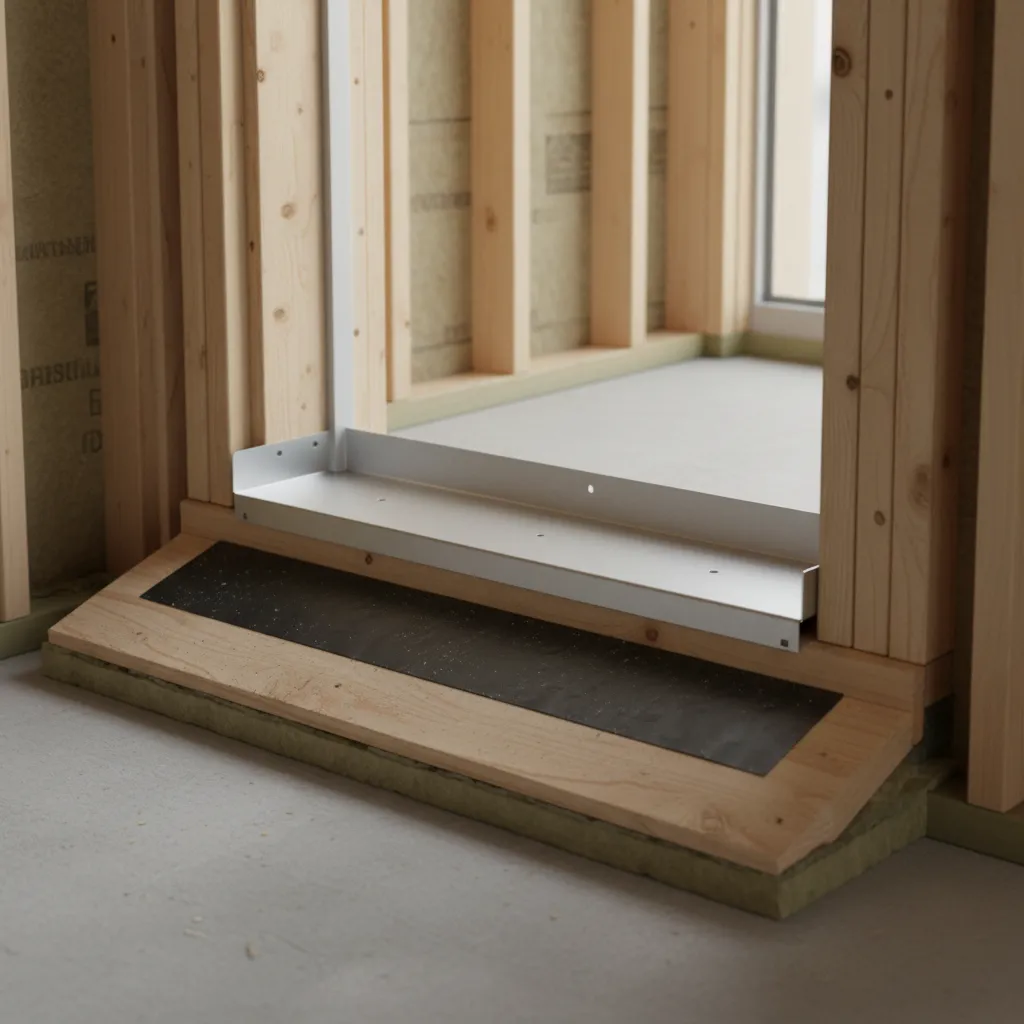

How Metal and PVC Sill Pans Manage Water

Key Insight: Sill pans work like miniature gutters, physically directing water out of the wall before it can reach framing.

A sill pan is a rigid or semi‑rigid tray installed beneath the door threshold. It usually includes:

1. Back dam to stop water from reaching interior flooring
2. Sloped base directing water outward
3. End dams to prevent side leakage

Common sill pan materials include:

1. Galvanized steel
2. Aluminum
3. PVC or composite plastic

In heavy rain or wind‑driven storms, water that enters beneath the door lands in the pan and exits through the front edge. This is why sill pans are common in coastal regions and high‑exposure elevations.

In my own projects—especially hillside homes in Southern California—I rarely install an exterior door without one. Even perfectly sealed doors eventually experience seal fatigue.

To visualize how entry points interact with interior layouts and thresholds, many designers model door zones using a

save pin

visual room planning layout that maps door placement and circulation before construction begins.

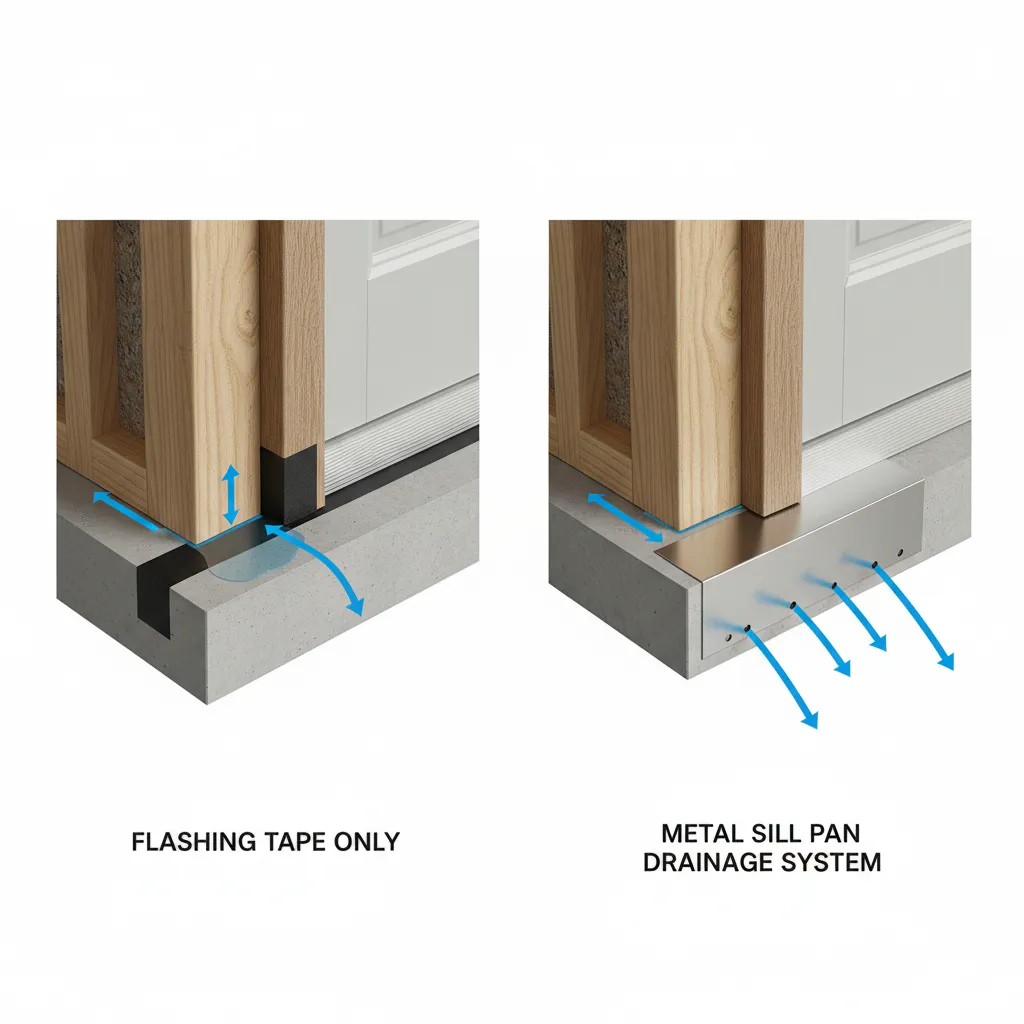

Performance Comparison in Real Weather Conditions

Key Insight: In controlled conditions flashing tape works well, but sill pans outperform it when real-world water intrusion occurs.

Let’s compare how both systems respond to common weather scenarios.

Scenario comparison

1. Wind‑driven rain
2. Melting snow buildup
3. Threshold seal failure
4. Clogged exterior drainage

Flashing Tape

1. Excellent seam sealing
2. Prevents water from entering joints
3. Cannot drain trapped water

Sill Pan

1. Handles bulk water effectively
2. Provides drainage path
3. Requires proper integration with flashing layers

Field studies from building envelope consultants consistently show that failures occur when flashing is installed as a sealed bowl rather than a drainage system.

save pin

Cost Installation Difficulty and Longevity

Key Insight: Flashing tape costs less initially, but sill pans often reduce long‑term repair risk.

Typical cost comparison:

1. Flashing tape system: $20–$60 per opening
2. Preformed sill pan: $40–$120 per opening

Installation complexity:

1. Tape systems require careful layering
2. Sill pans require precise leveling and integration

Longevity factors:

1. Adhesive membranes can degrade under UV exposure
2. Metal or PVC pans remain structurally stable for decades

The biggest hidden cost I see during renovations isn’t material failure—it’s installation mistakes. Incorrect layering around door openings accounts for a surprising percentage of moisture repairs.

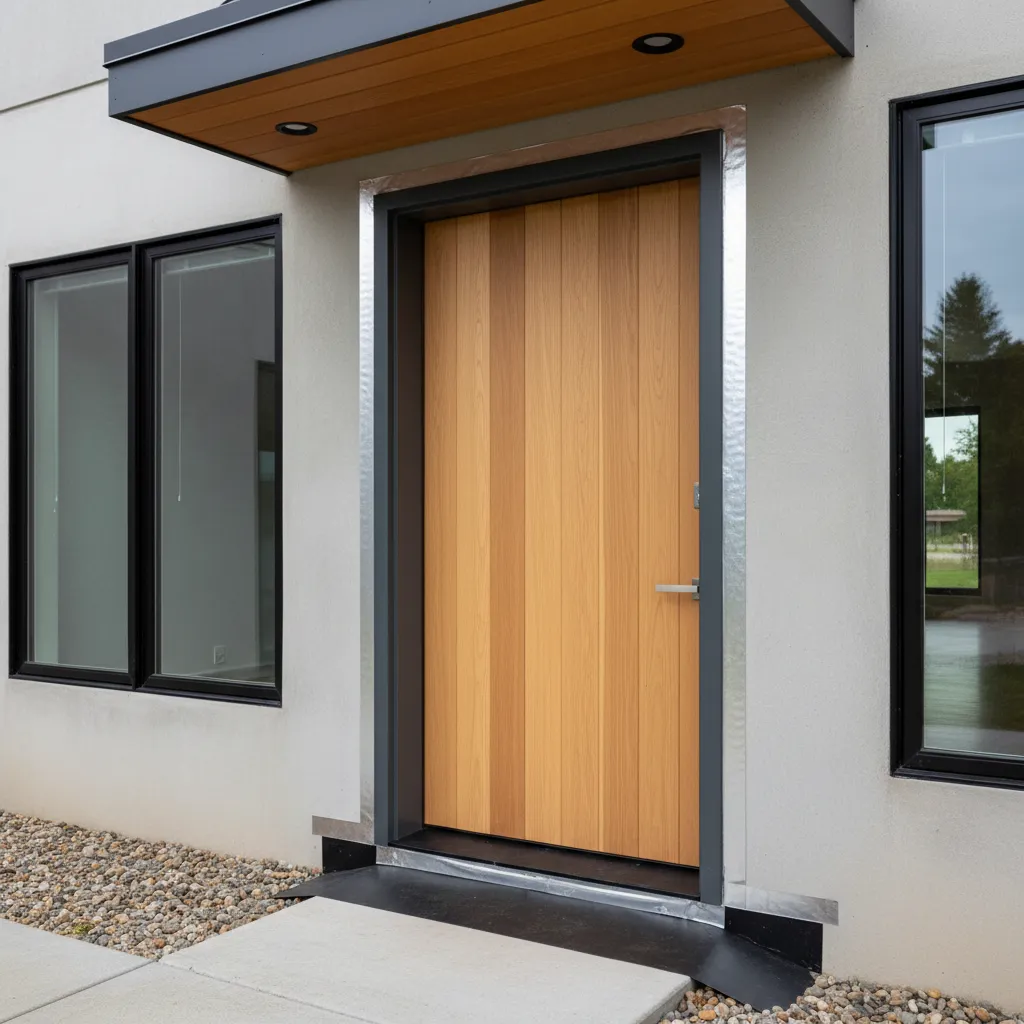

Answer Box

The most reliable exterior door waterproofing system combines a sill pan for drainage and flashing tape for sealing. One manages water flow while the other prevents infiltration.

Which Flashing System Is Best for Your Door Installation?

Key Insight: The best flashing system is usually a layered combination rather than choosing one method alone.

Use this guideline when selecting a system:

1. Low rainfall climates: flashing tape may be sufficient if installed correctly.
2. Moderate rainfall areas: combine tape with a flexible sill membrane.
3. High rainfall or coastal climates: install a rigid metal or PVC sill pan with full flashing integration.

Modern exterior door installations increasingly use hybrid systems that include:

1. Preformed sill pan
2. Butyl flashing tape
3. Sloped rough sill
4. Head flashing drip cap

During design stages, mapping door placement and water exposure zones can prevent many installation problems. Tools that allow homeowners to visualize the full exterior and entry area in realistic home renderingsmake it easier to anticipate drainage details early in the process.

save pin

Final Summary

1. Sill pans provide active drainage beneath door thresholds.
2. Flashing tape seals seams but cannot redirect standing water.
3. Hybrid systems combining both methods offer the best protection.
4. Correct installation matters more than material choice alone.
5. High‑rain environments benefit most from rigid sill pan systems.

FAQ

Is flashing tape enough for exterior door installation?

Flashing tape can work in mild climates, but many professionals recommend combining it with a sill pan for reliable drainage protection.

What is the difference between flashing tape and a sill pan?

Flashing tape seals seams and joints, while a sill pan physically directs water out from beneath the door threshold.

Which is better flashing tape vs metal sill pan?

In most cases, a metal sill pan performs better because it provides drainage. The strongest system uses both materials together.

Can flashing tape fail over time?

Yes. Adhesive membranes can lose adhesion due to UV exposure, temperature changes, or improper surface preparation.

Do building codes require sill pans for exterior doors?

Some jurisdictions require them, especially in high rainfall regions, but codes vary by location.

How long do metal sill pans last?

Properly installed aluminum or galvanized steel sill pans can last the lifetime of the door assembly.

What causes door flashing failures?

The most common cause is incorrect layering that traps water rather than directing it outward.

Can you install a sill pan on an existing door?

Yes, but it usually requires removing the door unit to properly integrate the drainage pan beneath the threshold.
