Door Sweep vs Door Threshold: Which Is Better for Sealing Exterior Doors: Understand the real difference between door sweeps and thresholds—and which one actually stops drafts, rain, and pests at your exterior door.

Direct Answer

A door sweep and a door threshold serve different but complementary roles in sealing exterior doors. A door sweep attaches to the bottom of the door to block drafts and insects, while a threshold is a fixed sill on the floor that creates a sealing surface. In most exterior doors, the best performance comes from using both together.

Quick Takeaways

1. A door sweep seals the moving gap under the door.
2. A threshold creates a stable sealing surface and improves weather resistance.
3. Most exterior doors perform best when both components work together.
4. Door sweeps are easier and cheaper to install than thresholds.
5. Thresholds provide better water control and structural sealing.

Introduction

In more than a decade working on residential renovations and entryway upgrades, I’ve noticed that many homeowners misunderstand the difference between a door sweep vs door threshold. People often install one and assume the job is done—then wonder why cold air, dust, or even rain still finds its way inside.

The reality is that exterior door sealing is a system, not a single product. A door sweep blocks airflow under the door leaf, while the threshold creates the sealing surface and drainage structure. Ignore one of them, and the other struggles to perform.

When planning entryway improvements for clients, I often recommend starting with a clear view of how the bottom of the door interacts with flooring, trim, and weatherproofing. If you're also redesigning the surrounding space, tools that help visualize door clearances and floor transitions in a 3D layoutcan prevent costly installation mistakes.

In this guide, I’ll break down the real difference between door sweeps and thresholds, when each works best, and the most common installation mistakes I see in real projects.

save pin

What Is a Door Sweep and How It Works

Key Insight: A door sweep is designed to move with the door and close the gap between the door bottom and the floor.

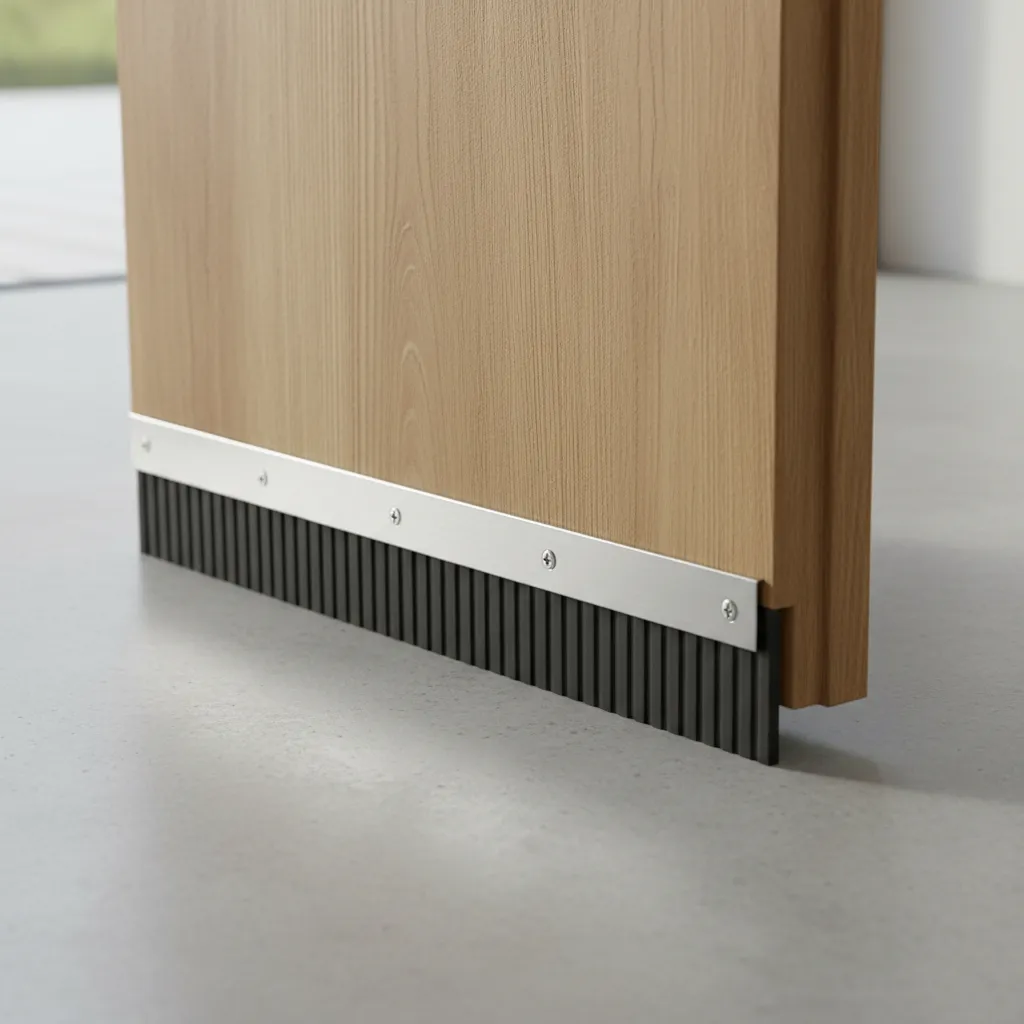

A door sweep is a strip—usually rubber, silicone, vinyl, or brush material—mounted to the bottom edge of a door. When the door closes, the sweep presses lightly against the threshold or floor surface to block airflow.

In real homes, the gap under exterior doors usually ranges from 1/4 inch to 3/4 inch. Without a sweep, that opening becomes a direct path for cold air, dust, insects, and sometimes even rodents.

Types of door sweeps commonly used:

1. Rubber blade sweeps – best for weather sealing
2. Brush sweeps – good for uneven flooring
3. Double-fin sweeps – improved air sealing
4. Aluminum carrier sweeps – durable for exterior doors

One mistake I see constantly: homeowners install sweeps expecting them to stop heavy rain. They rarely do. Sweeps are designed primarily for air and debris control, not water management.

What Is a Door Threshold and Its Role in Door Sealing

Key Insight: A threshold forms the structural base of the doorway and provides the surface the door sweep seals against.

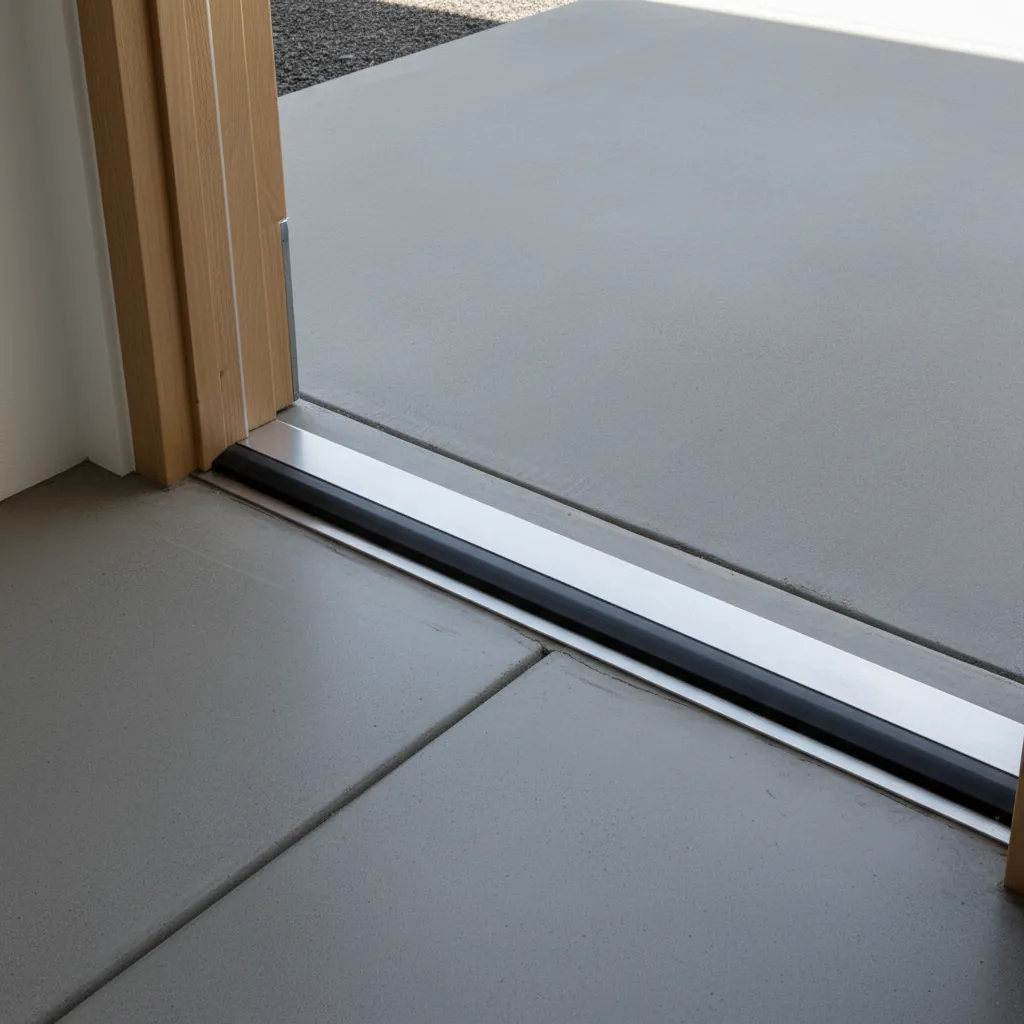

A door threshold sits on the floor of the doorway and spans from one side of the frame to the other. Most exterior thresholds are aluminum with a raised ridge or adjustable sealing cap.

The threshold performs several critical roles:

1. Creates the sealing surface for the sweep
2. Blocks water from entering under the door
3. Supports door alignment
4. Bridges flooring transitions

According to building envelope guidance from the U.S. Department of Energy, thresholds and door bottoms together form a key barrier against air leakage in residential entry doors.

Modern thresholds often include adjustable screws that raise or lower the center seal. This small detail can dramatically improve weather sealing without replacing the door.

save pin

Key Differences Between Door Sweeps and Thresholds

Key Insight: Door sweeps move with the door, while thresholds remain fixed and control water, alignment, and structural sealing.

Understanding the functional difference between these two parts prevents a lot of wasted DIY effort.

1. Location
2. Sweep: attached to the door
3. Threshold: mounted to the floor
4. Movement
5. Sweep: moves with door opening/closing
6. Threshold: stationary
7. Main purpose
8. Sweep: blocks drafts and insects
9. Threshold: blocks water and supports sealing
10. Installation complexity
11. Sweep: easy DIY install
12. Threshold: moderate installation effort
13. Durability
14. Sweep: wears out over time
15. Threshold: long-lasting structural component

Another hidden issue: many homes actually have thresholds installed incorrectly. During remodel planning I often review entry layouts using tools that help test door placement and entryway airflow in a digital interior model. Even a 1/4 inch misalignment can cause sealing failure.

save pin

When a Door Sweep Is the Better Solution

Key Insight: Door sweeps are the fastest fix for drafts caused by small under-door gaps.

If your door already has a solid threshold but you still feel cold air coming through, a new sweep is usually the quickest fix.

Situations where sweeps work best:

1. The gap under the door is less than 1/2 inch
2. The existing threshold is intact
3. You mainly want to stop drafts or insects
4. You need an inexpensive upgrade

In rental properties and older homes, replacing worn sweeps can improve comfort almost immediately. It’s also one of the lowest-cost energy efficiency improvements you can make.

When a Threshold Provides Better Performance

Key Insight: Thresholds are essential when water control, structural sealing, or large gaps are involved.

Door sweeps alone cannot solve problems caused by poor thresholds. If the bottom of the doorway is uneven or lacks a raised sealing ridge, air and water will bypass the sweep entirely.

You likely need a threshold upgrade if:

1. Rainwater enters during storms
2. The floor slopes toward the door
3. The door gap exceeds 3/4 inch
4. The current threshold is cracked or warped

Many modern exterior doors include composite thresholds designed to work with compression seals. These dramatically outperform flat metal sills found in older homes.

Answer Box

The most effective exterior door sealing system combines both components. A threshold manages water and creates the sealing surface, while the door sweep blocks airflow and debris. Installing only one usually leaves gaps.

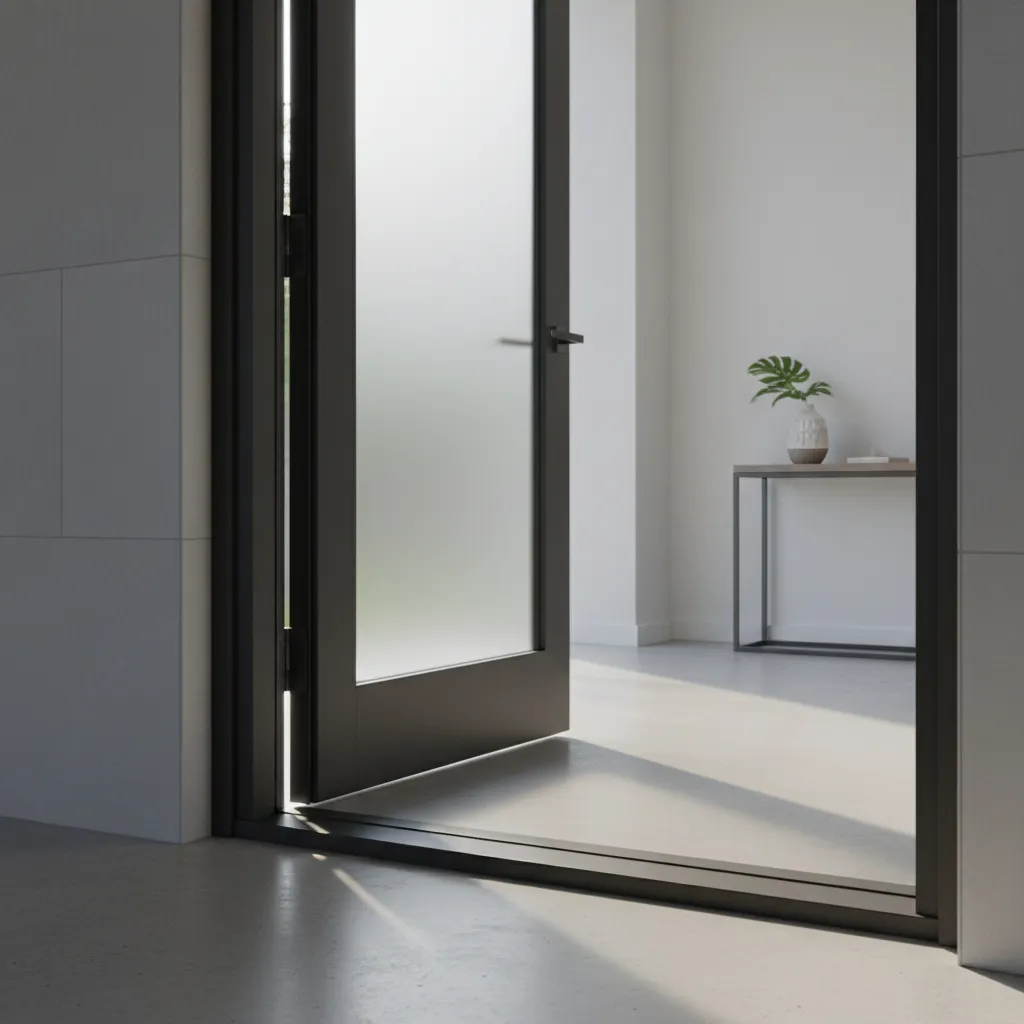

Using Both Together for Maximum Sealing

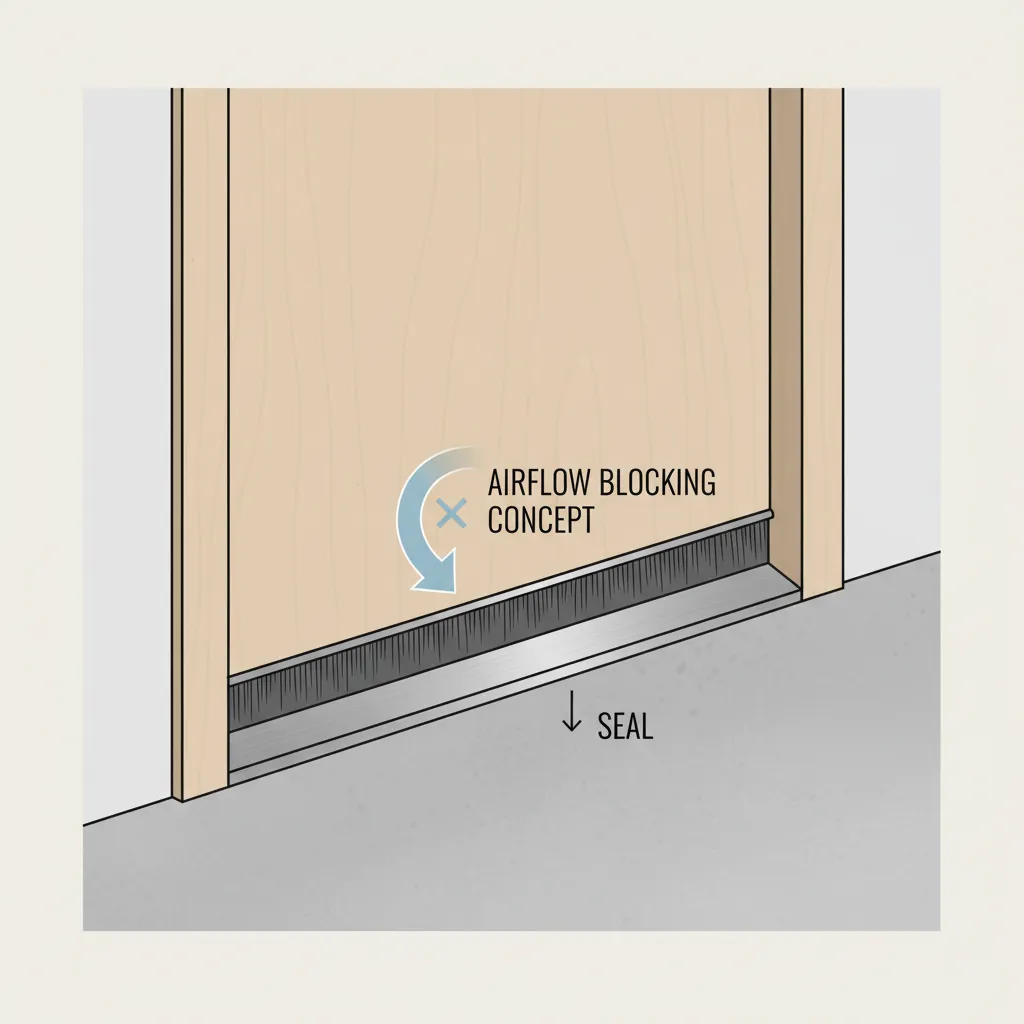

Key Insight: The best exterior door seal happens when the sweep lightly compresses against a properly adjusted threshold.

In professional installations, we rarely treat these as separate products. Instead, they work as a coordinated system.

A properly sealed door typically includes:

1. Adjustable aluminum threshold
2. Compression weatherstripping on the frame
3. Rubber or silicone door sweep
4. Correct door clearance (about 1/8 inch)

When designing entryways for new homes or remodels, I often create a quick visual check using tools that help preview realistic exterior door installations in rendered home scenes. It’s surprisingly helpful for spotting clearance problems before construction.

save pin

Final Summary

1. Door sweeps seal moving gaps under the door.
2. Thresholds provide the structural base for sealing.
3. Most exterior doors need both components working together.
4. Sweeps solve drafts; thresholds solve water intrusion.
5. Incorrect door clearance is a common hidden cause of sealing failure.

FAQ

1. What is the main difference between a door sweep and a threshold?

A door sweep attaches to the door bottom and moves with it. A threshold is fixed to the floor and provides the sealing surface.

2. Do I need a door sweep if I already have a threshold?

Yes. A threshold alone cannot block airflow. A door sweep completes the seal between the door and threshold.

3. Which is better for stopping drafts?

For drafts specifically, a door sweep usually provides the biggest improvement.

4. Can a door sweep stop rain from entering?

Not reliably. Rain protection depends more on a properly installed threshold and exterior door sill design.

5. What size gap can a door sweep seal?

Most sweeps seal gaps between 1/4 inch and 3/4 inch.

6. Should the door sweep touch the floor?

It should lightly compress against the threshold but not drag heavily on the floor.

7. How long do door sweeps last?

Most exterior door sweeps last 3–5 years depending on weather exposure and use.

8. Is installing a door threshold difficult?

It requires removing the old sill and sealing the new one properly, making it a moderate DIY project.
