Double Door Risks in Small Spaces: Structural and Safety Factors: What designers and homeowners should understand before installing double doors in tight architectural layouts.

Direct Answer

Double doors in tight architectural layouts can create structural stress, clearance conflicts, airflow pressure problems, and safety compliance issues. When the surrounding wall, frame width, or circulation space is limited, the door system often experiences hinge strain, poor swing clearance, and potential building code conflicts.

In many compact layouts, a well-designed single oversized door or sliding system performs better than double doors.

Quick Takeaways

1. Double doors require more structural width than most small openings can safely support.
2. Tight layouts increase hinge stress and shorten door hardware lifespan.
3. Poor airflow balance can cause door slamming or pressure resistance.
4. Building codes often restrict double doors in narrow exit paths.
5. Smart hinge placement and swing planning can reduce many risks.

Introduction

Double doors look elegant. They signal openness, symmetry, and architectural intention. But after working on residential interior projects for more than a decade, I’ve learned something that rarely gets mentioned in design inspiration galleries: double door risks in small spaces are very real.

In compact homes, apartments, and remodeled layouts, installing double doors inside a tight opening often creates problems that only show up months later—misaligned hinges, doors that collide with furniture, or airflow pressure that causes doors to slam unexpectedly.

Before committing to this layout, I usually recommend visualizing the full circulation path first. A quick way many homeowners test layouts is by using tools that help visualize door swing and circulation inside a 3D floor layout. Seeing the door movement in context often reveals issues that a flat blueprint hides.

This guide breaks down the structural, usability, and safety risks of installing double doors in restricted spaces—and more importantly, how experienced designers reduce those risks.

save pin

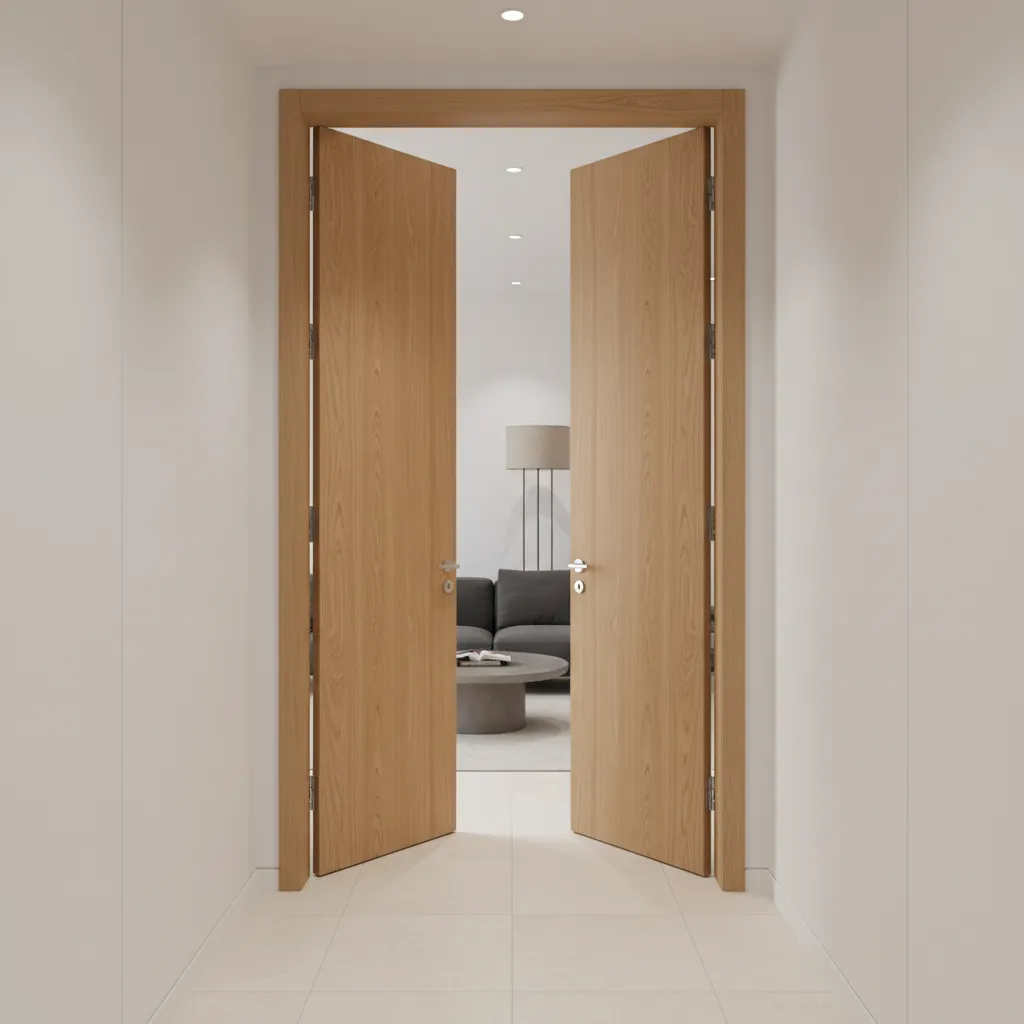

Structural Limitations of Narrow Door Frames

Key Insight: Narrow openings often lack the wall strength needed to properly distribute the load of two swinging doors.

Most people assume that if a doorway is wide enough for two panels, it can structurally support double doors. That’s not always true. Each door leaf introduces independent hinge forces, torsion loads, and lateral stress on the frame.

In tight openings, these forces concentrate on very small wall segments.

Common structural limitations:

1. Insufficient framing depth for double hinge systems
2. Thin drywall partitions lacking reinforcement
3. Header beams sized only for single-door loads
4. Limited anchor points for heavy hardware

In renovation projects I’ve reviewed, the most frequent hidden issue is hinge pull-out after 12–24 months of regular use. This happens because narrow frames flex slightly every time the door moves.

According to guidance from the National Association of Home Builders (NAHB), door frame reinforcement is critical whenever door leaf weight exceeds typical interior standards.

Airflow and Pressure Issues With Double Doors

Key Insight: Two lightweight doors react more dramatically to indoor pressure changes than a single heavier door.

This is one of those subtle design issues that most homeowners never anticipate.

In smaller homes or tight corridors, airflow pressure differences—caused by HVAC systems, window placement, or exhaust fans—can push both door leaves at the same time.

Typical symptoms include:

1. Doors slowly drifting open
2. Doors slamming shut unexpectedly
3. Uneven closing alignment between panels
4. Latch failure from repeated impact

I’ve seen this especially in small apartments where kitchen exhaust fans create negative pressure. The double doors leading to hallways begin to behave almost like lightweight flaps.

save pin

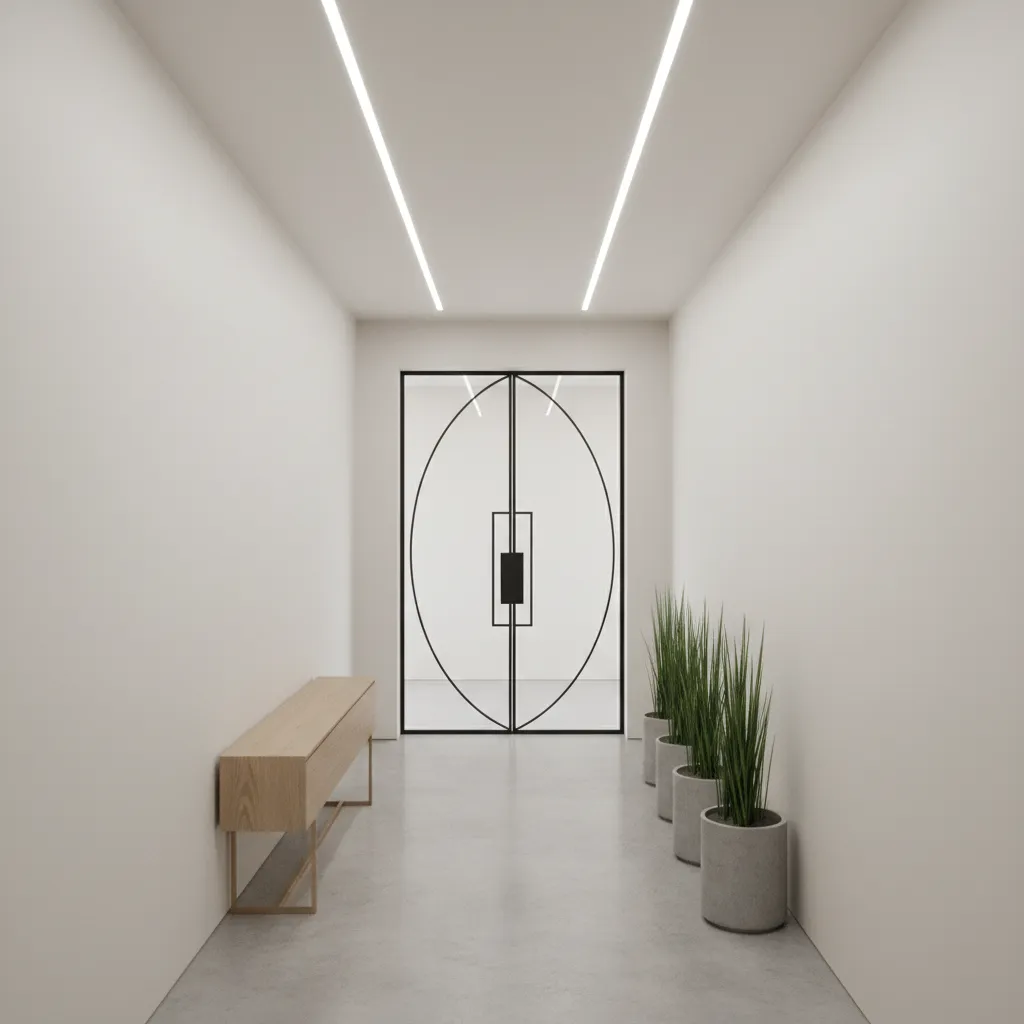

Emergency Exit and Accessibility Concerns

Key Insight: Poorly planned double doors can reduce usable exit width instead of improving it.

Many people assume double doors automatically improve accessibility. In reality, the opposite can occur in compact layouts.

Here’s why:

1. If only one door leaf is used daily, the actual clearance equals a single narrow door.
2. Inactive leaves often require bolts that slow emergency exit.
3. Swing direction may block evacuation paths.
4. Door leaves can collide with walls or furniture.

The International Building Code (IBC) emphasizes unobstructed egress paths. When double doors swing into restricted corridors, they can temporarily block evacuation routes.

Designers usually test these conditions by mapping circulation first. Some homeowners experiment with tools that help simulate room layouts and furniture placement before committing to door positions, which makes clearance conflicts easier to detect.

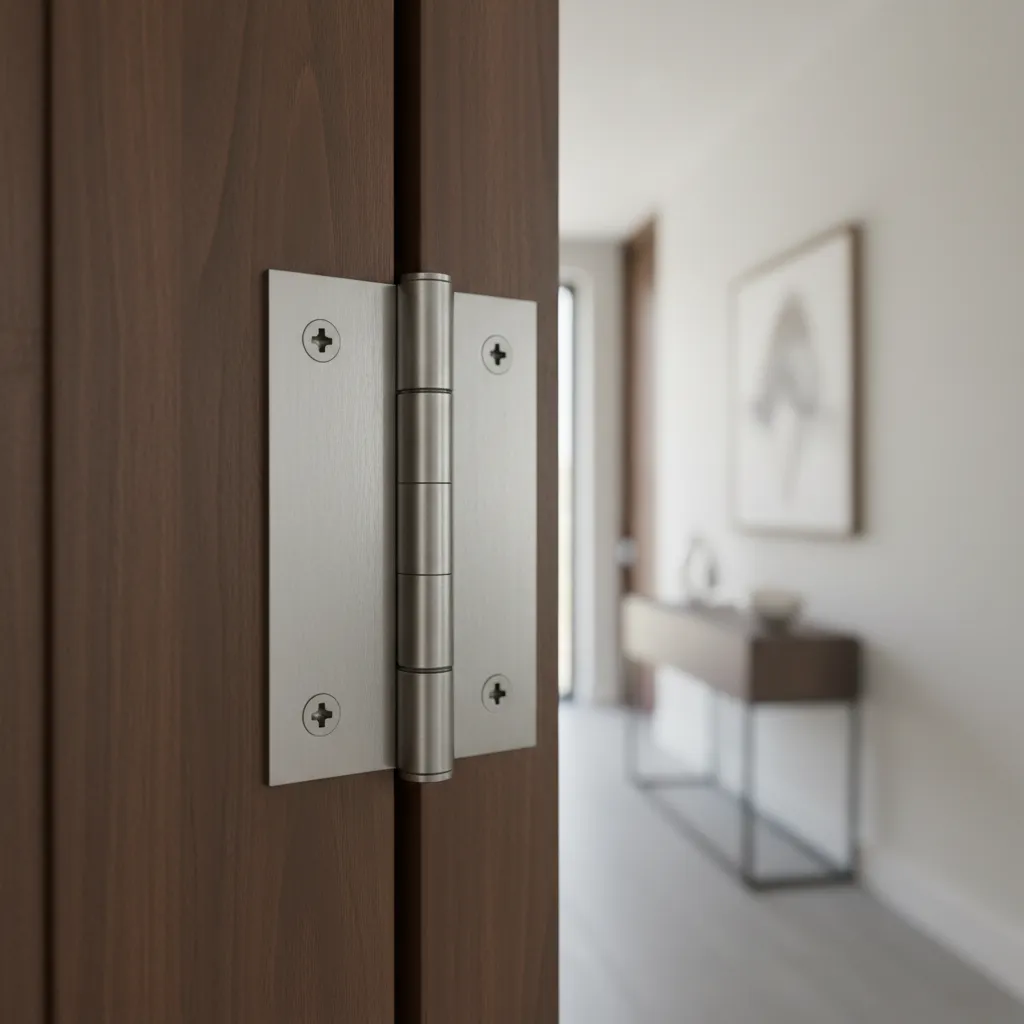

Wear and Tear on Hinges in Compact Layouts

Key Insight: Limited swing clearance forces users to push doors from awkward angles, accelerating hinge wear.

This is one of the most overlooked mechanical problems with double doors.

In narrow entry zones, people rarely open doors evenly. Instead they push on the edge of one leaf while partially opening the other.

That creates three types of hardware stress:

1. Twisting torque on hinge screws
2. Uneven weight distribution between leaves
3. Repeated impact against door stops

Over time this leads to:

1. Door sagging
2. Misaligned latch plates
3. Grinding hinge sounds

Professional installers often upgrade hinge systems to heavy-duty ball-bearing hinges when doors exceed standard residential weight.

Building Code Considerations

Key Insight: Certain compact layouts simply cannot legally support double doors under modern building codes.

Building regulations vary by region, but several common code concerns appear repeatedly in small openings.

Typical code-related issues:

1. Minimum clear egress width requirements
2. Maximum door swing obstruction limits
3. Accessibility standards under ADA guidelines
4. Fire safety door hardware rules

In particular, emergency exit doors must maintain consistent usable width. If one leaf of a double door remains fixed, the effective clearance may fail compliance tests.

Answer Box

Installing double doors in small spaces introduces structural stress, airflow imbalance, hinge wear, and potential building code conflicts. Many compact layouts perform better with alternative door systems unless the opening width and circulation space are carefully engineered.

save pin

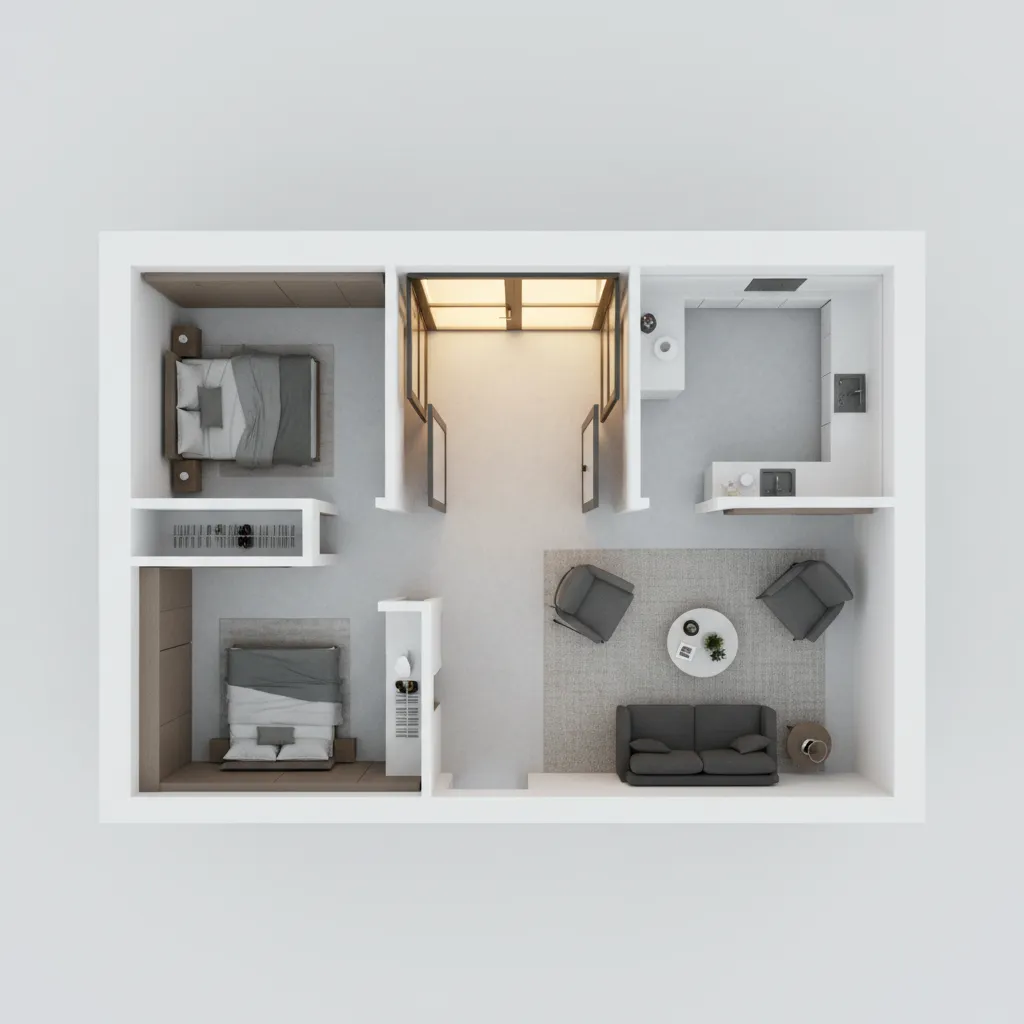

How to Reduce Risk With Smart Door Design

Key Insight: The right design adjustments can make double doors viable even in moderately tight layouts.

When clients strongly prefer double doors, I usually apply several technical adjustments.

Risk reduction strategies:

1. Reinforced door framing with structural backing
2. Ball-bearing or heavy-duty hinges
3. Magnetic hold-open hardware
4. Reduced door leaf width for balanced swing
5. Soft-close or controlled hinge systems

Planning the swing path early also helps prevent clearance issues. Many designers test these layouts by using tools that generate accurate floor plans with movable doors and walls before construction begins.

When to Avoid Double Doors Entirely

Key Insight: Some spaces simply function better without double doors, regardless of aesthetic preference.

Through years of residential design work, I’ve noticed that double doors are usually a mistake in the following conditions:

1. Entry corridors under 4 feet wide
2. Doorways smaller than 60 inches total width
3. Rooms with heavy furniture near entrances
4. Spaces requiring frequent door use

In these situations, alternatives often work better:

1. Wide single pivot doors
2. Pocket doors
3. Sliding barn-style systems
4. Offset double doors with unequal leaves

Interestingly, many modern compact homes now favor oversized single doors rather than double systems because they preserve flow without adding mechanical complexity.

save pin

Final Summary

1. Double doors place higher structural loads on narrow frames.
2. Airflow pressure can cause operational problems.
3. Compact layouts accelerate hinge wear.
4. Building codes may limit double-door use in tight exits.
5. Smart layout planning can reduce—but not eliminate—risks.

FAQ

Are double doors safe in small spaces?

They can be safe if the opening width, framing strength, and circulation space are properly engineered. However, double door risks in small spaces increase when swing clearance and structural support are limited.

What is the minimum width needed for double doors?

Most residential double doors require at least 60 inches of total opening width for functional use. Anything narrower often leads to usability problems.

Do double doors require stronger hinges?

Yes. Double doors often benefit from heavy-duty or ball-bearing hinges because each door leaf adds mechanical load to the frame.

Why do double doors slam in small homes?

Air pressure differences caused by HVAC systems, exhaust fans, or open windows can push lightweight door leaves, causing sudden movement.

Are double doors allowed for emergency exits?

They can be, but building codes usually require both leaves to open easily and maintain minimum clear exit width.

What are common double door safety issues in narrow entryways?

Common double door safety issues include blocked swing paths, hinge stress, reduced exit clearance, and collision with nearby furniture.

Do double doors wear out faster in small rooms?

Yes. Tight layouts cause uneven use patterns that accelerate hinge wear and misalignment.

What is the best alternative to double doors in tight layouts?

Pocket doors, sliding systems, or oversized single doors often work better in compact layouts.
