Electrical Code and Industry Standards for Bathroom Fan and Light Switches: A practical guide to NEC rules, safety requirements, and professional installation standards for bathroom fan and light switch wiring.

Direct Answer

Bathroom fan and light switches must follow National Electrical Code (NEC) safety rules covering ventilation, GFCI protection, dedicated circuits, and safe switch placement. In most homes, bathroom exhaust fans must vent outdoors, switches must be accessible outside wet zones, and circuits often require GFCI or AFCI protection depending on the installation.

Following these electrical standards prevents moisture damage, electrical shock risks, and failed inspections during renovation or resale.

Quick Takeaways

1. Bathroom exhaust fans must vent outdoors and cannot terminate in attics.
2. Switches must be placed outside shower and tub zones for safety.
3. Many bathroom circuits require GFCI and AFCI protection under modern NEC rules.
4. Dedicated 20‑amp circuits are commonly required for bathroom receptacles.
5. Professional wiring ensures code compliance and smoother inspections.

Introduction

Bathroom electrical work looks simple on the surface, but bathroom fan switch electrical code requirements are stricter than most homeowners expect. After working on residential renovations for over a decade, I’ve seen more failed inspections caused by bathroom wiring than almost any other small electrical detail.

The common assumption is that a bathroom fan and light switch is just basic wiring. In reality, moisture, steam, and proximity to water introduce serious safety risks. That’s why electrical codes regulate everything from fan venting paths to switch placement and circuit protection.

Before designing layouts or planning a remodel, it helps to visualize how fixtures, switches, and airflow interact. Many professionals start with a spatial planning tool like this guide to creating accurate bathroom floor plans before installing fixturesso electrical points are positioned correctly the first time.

In this article I’ll break down the NEC requirements for bathroom exhaust fan switches, explain real‑world installation standards, and highlight the mistakes that most online guides completely overlook.

save pin

Why Electrical Codes Matter in Bathroom Installations

Key Insight: Bathroom electrical codes exist primarily to manage moisture‑related safety risks and ensure long‑term ventilation performance.

Bathrooms combine three things electrical engineers worry about: water, humidity, and confined space. Without proper ventilation and protected circuits, moisture can damage wiring insulation, trip breakers, or create shock hazards.

Electrical codes also evolve. For example, the NEC expanded AFCI protection requirements in recent code cycles, meaning older wiring setups that once passed inspection may no longer meet modern standards.

Three problems I regularly see during renovation inspections:

1. Fan vents terminating in the attic instead of outdoors.
2. Switches installed too close to the shower enclosure.
3. Shared lighting circuits overloaded with heaters or exhaust fans.

The National Association of Home Builders reports that poor bathroom ventilation is one of the leading causes of moisture damage inside residential walls.

NEC Requirements for Bathroom Ventilation Fans

Key Insight: The NEC does not just regulate wiring—it also requires that bathroom exhaust fans safely remove moisture to the exterior.

Most bathroom exhaust fan installations must follow both NEC electrical rules and International Residential Code (IRC) ventilation standards.

Key NEC and building code requirements include:

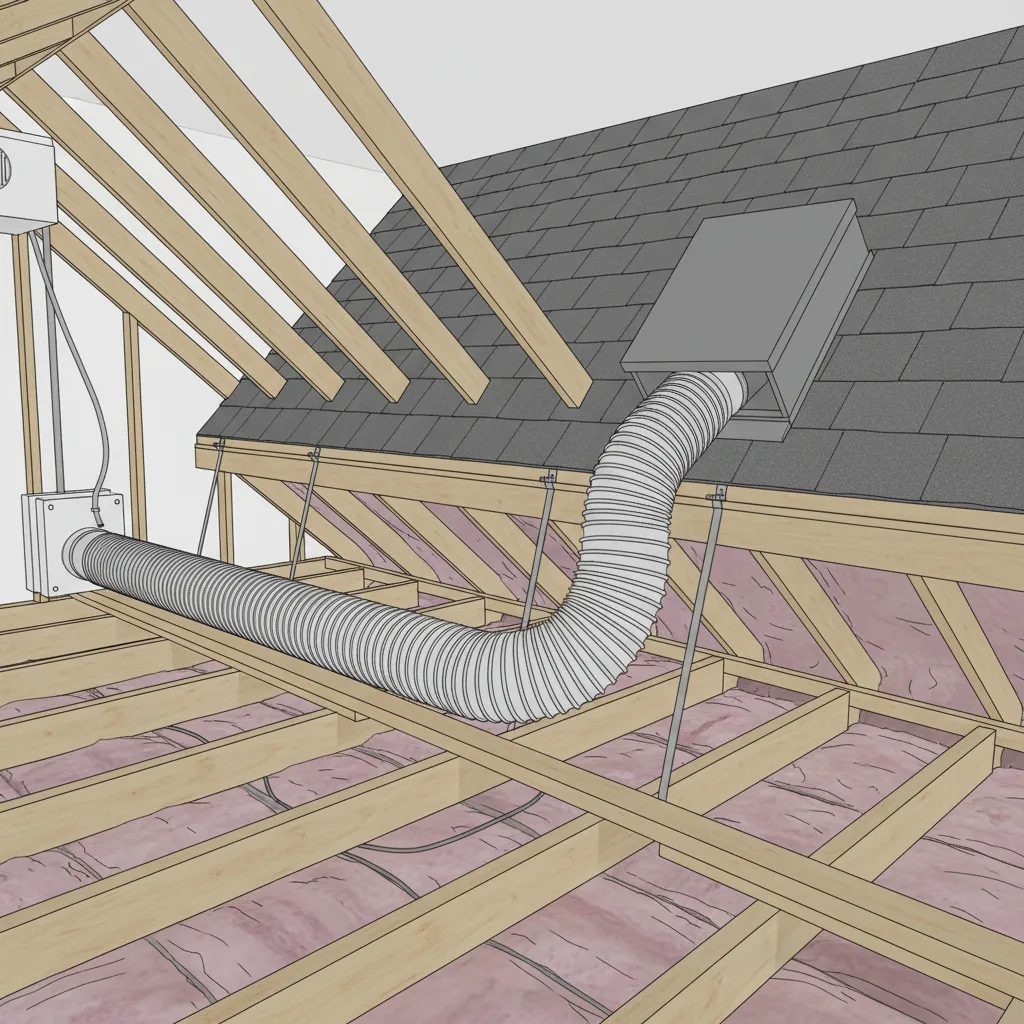

1. Exhaust fans must vent outdoors, not into attic spaces.

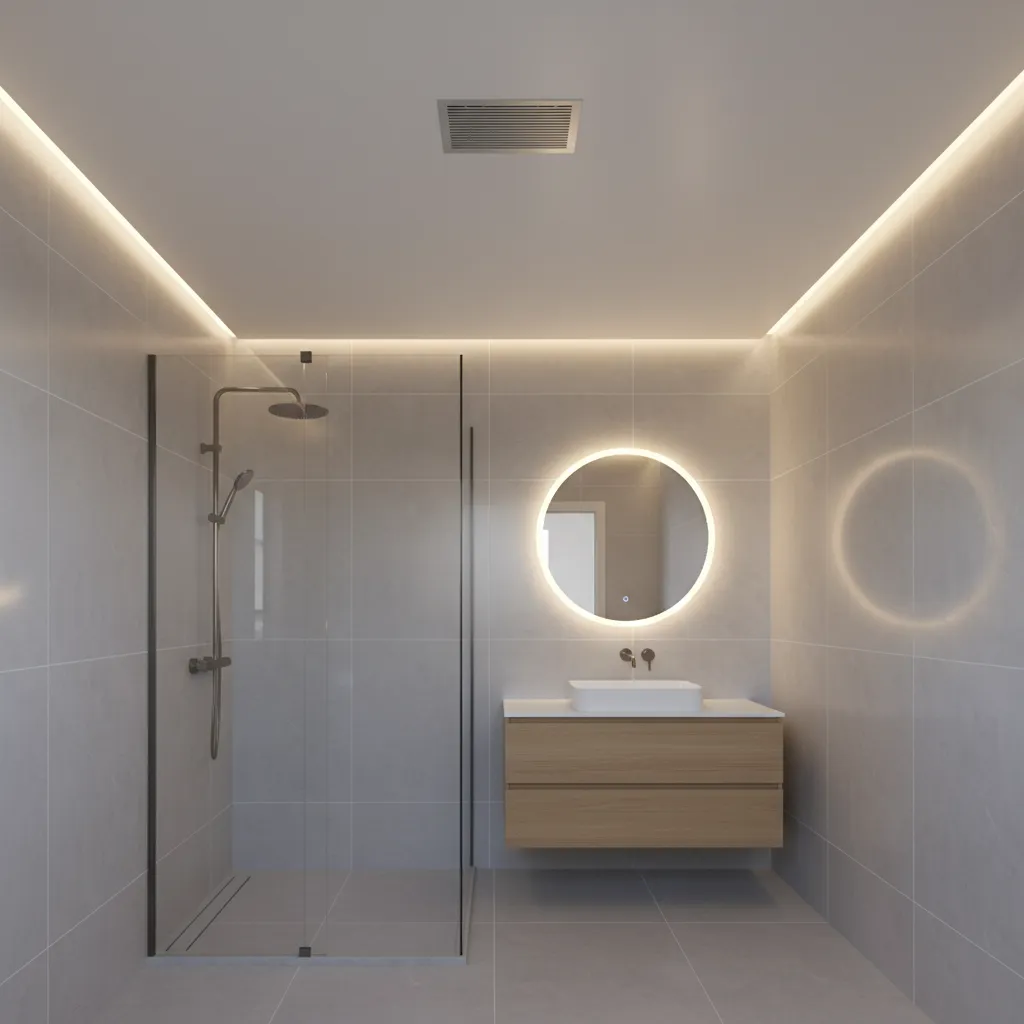

2. Fans installed above showers require a rating for wet locations.
3. Fan motors must be connected to a properly rated branch circuit.
4. Units above tubs or showers typically require GFCI protection.

Fan capacity is also regulated by ventilation standards. The Home Ventilating Institute recommends a minimum of 50 CFM for standard bathrooms and up to 100 CFM for larger spaces.

save pin

Switch Placement and Accessibility Standards

Key Insight: Bathroom switches must remain accessible while staying outside defined wet zones.

Improper switch placement is one of the most common code violations during bathroom remodel inspections.

General placement standards include:

1. Switches should not be reachable from inside a tub or shower.

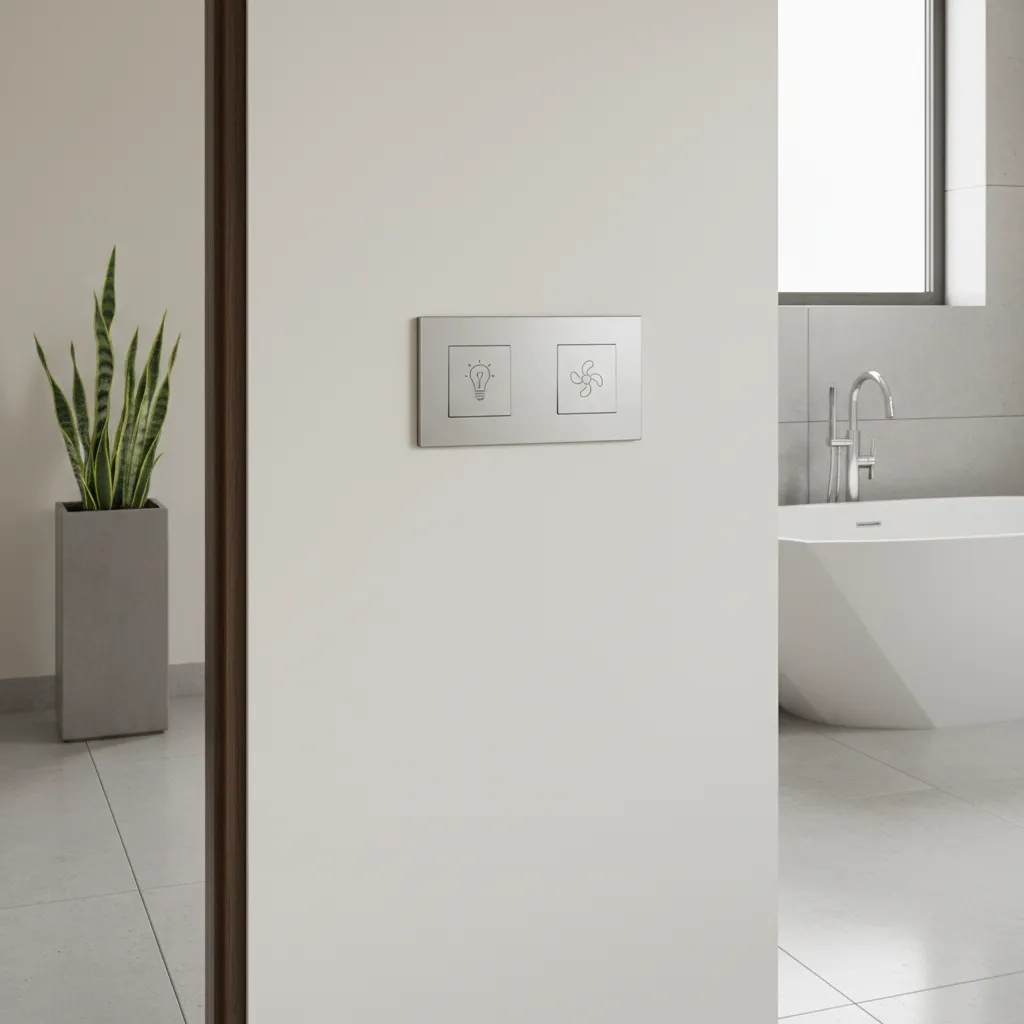

2. Most switches are installed near the bathroom entry door.
3. Fan and light switches may be combined or separated.
4. Smart timers are often used to ensure ventilation after showers.

In professional design work, layout planning plays a huge role here. Designers frequently simulate switch placement during the planning phase using tools like a visual room layout planner for bathroom remodeling projectsto confirm safe clearances before wiring begins.

save pin

GFCI and Circuit Requirements

Key Insight: Modern NEC rules increasingly require GFCI and AFCI protection in bathroom electrical circuits.

Bathrooms are classified as high‑risk electrical environments because water dramatically increases the chance of electrical shock.

Typical NEC requirements include:

1. Bathroom receptacles must have GFCI protection.
2. Lighting circuits may require AFCI protection depending on jurisdiction.
3. Receptacles usually must be served by a dedicated 20‑amp circuit.
4. Multiple bathrooms may share one circuit only for receptacles.

A common hidden mistake is tying the exhaust fan into a heavily loaded lighting circuit. This may work temporarily but can cause nuisance breaker trips over time.

Professional Installation Best Practices

Key Insight: Code compliance alone is not enough—good installations also prioritize durability, airflow efficiency, and maintenance access.

After managing dozens of bathroom remodels, I’ve found that long‑term performance depends on details most code checklists never mention.

Best practices used by professional electricians:

1. Install insulated ducting to prevent condensation.
2. Use timer switches instead of standard toggles for fans.
3. Avoid sharp duct bends that reduce airflow.
4. Choose quiet fans under 1.5 sones for residential comfort.

Design visualization can also prevent expensive layout mistakes. Many remodel teams review lighting and ventilation placement using a 3D home visualization before construction begins.

Answer Box

Bathroom fan and light switches must follow NEC rules covering GFCI protection, switch accessibility, proper ventilation, and circuit capacity. The most common compliance issues are improper venting, unsafe switch placement, and overloaded lighting circuits.

Inspection and Compliance Considerations

Key Insight: Even correctly wired systems can fail inspection if ventilation, placement, or documentation standards are ignored.

Building inspectors typically evaluate several factors when reviewing bathroom electrical work:

1. Proper GFCI protection
2. Dedicated bathroom circuits
3. Outdoor fan vent termination
4. Correct cable protection and labeling

Another overlooked issue is access to fan housings and junction boxes. If inspectors cannot reach them for maintenance verification, installations may fail compliance checks.

Final Summary

1. Bathroom fan switches must follow NEC safety and ventilation standards.
2. Switch placement must avoid shower and tub reach zones.
3. GFCI protection is essential for most bathroom electrical circuits.
4. Outdoor ventilation prevents mold and structural moisture damage.
5. Professional planning reduces inspection failures.

FAQ

Do bathroom exhaust fans need their own switch?

No. A fan can share a switch with the light, but many professionals recommend separate controls for better ventilation timing.

Is a GFCI required for a bathroom fan switch?

Not always for the switch itself, but bathroom circuits and fans above showers often require GFCI protection.

What is the NEC rule for bathroom exhaust fans?

NEC requires proper wiring protection and safe circuit design, while building codes require the fan to vent outdoors.

Can a bathroom fan share a circuit with lights?

Yes, but the circuit must not exceed load capacity and must follow NEC branch circuit requirements.

Where should a bathroom fan switch be installed?

Typically near the bathroom entrance and outside shower or tub reach zones.

What size circuit is required for bathroom outlets?

The NEC usually requires a dedicated 20‑amp circuit for bathroom receptacles.

Do smart fan timers meet bathroom fan switch electrical code?

Yes, as long as the wiring and circuit protection meet NEC requirements.

Is a permit required for installing a bathroom fan switch?

Many jurisdictions require permits for new circuits or significant electrical modifications.
