Electrical Code and Safety Rules When Drawing Power From a Light Switch: Understand NEC rules, box limits, and safety checks before tapping power from a switch box.

Direct Answer

Drawing power from a light switch is allowed under electrical code only if the circuit configuration, box capacity, grounding, and conductor rules meet National Electrical Code (NEC) requirements. In many modern homes, a switch box may not contain a neutral wire, which makes tapping power illegal or unsafe. Always verify wiring type, load limits, and box fill before modifying the circuit.

Quick Takeaways

1. Tapping power from a light switch is only safe when a neutral wire and proper grounding are present.
2. The NEC requires strict box fill limits based on conductor count and wire gauge.
3. Many switch boxes only contain switch loops and cannot legally supply constant power.
4. Improper modifications increase fire risk and may violate electrical inspection requirements.
5. When circuits are unclear, a licensed electrician should evaluate the wiring.

Introduction

Homeowners often ask whether they can pull power from a light switch to run a new outlet, smart device, or lighting fixture. The short answer is: sometimes—but only if the wiring inside the box meets electrical code requirements.

In more than a decade of working with renovation projects and reviewing electrical layouts for interior redesigns, I’ve seen this mistake repeatedly: people assume a switch box always has usable power. In reality, many switches only interrupt a hot wire and do not contain the neutral conductor required to power additional devices.

Before attempting any modification, it's important to understand the wiring configuration, code limitations, and safety rules involved in tapping power from a switch box. If you’re still exploring the layout possibilities for wiring and fixtures in a room, reviewing a step-by-step guide to visualizing electrical layouts within a 3D floor plancan help identify where additional power sources might actually make sense.

This guide explains the NEC principles, box capacity rules, grounding requirements, and the situations where DIY work should stop and a licensed electrician should step in.

save pin

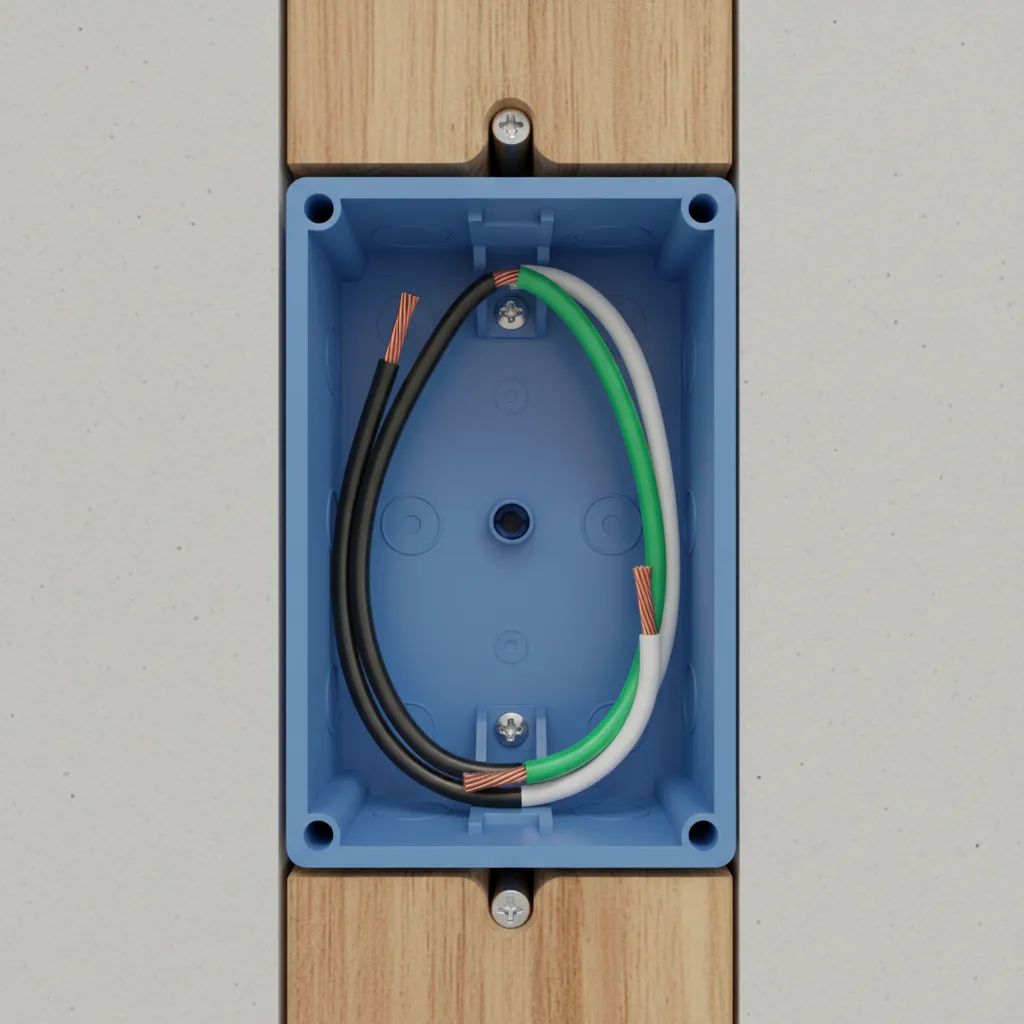

National Electrical Code Basics for Switch Circuits

Key Insight: The National Electrical Code does not prohibit tapping power from a light switch, but it strictly controls how conductors, neutrals, and grounding must be handled.

The NEC governs residential wiring in the United States and provides the baseline safety rules electricians must follow. When modifying a switch box, the most important sections relate to conductor identification, neutral availability, and overcurrent protection.

One major change came with NEC 2011 and later revisions: most switch boxes are now required to contain a neutral wire. This change was driven largely by the growth of smart switches and electronic controls that require constant power.

However, homes built before this requirement often use older "switch loop" wiring where the neutral is located only at the light fixture, not the switch.

Key NEC concepts affecting switch modifications:

1. Switch boxes must maintain proper grounding continuity.
2. Neutral conductors must remain available for future devices.
3. Circuit ampacity cannot be exceeded by added loads.
4. Wire splicing must occur within an approved electrical box.

The National Fire Protection Association (NFPA), which publishes the NEC, consistently identifies faulty wiring and improper modifications as leading contributors to residential electrical fires.

When It Is Legal to Tap Power From a Switch Box

Key Insight: It is legal to tap power from a switch box only when a constant hot, neutral, and grounding conductor are all present in the box.

Many homeowners are surprised to learn that most switch boxes cannot actually supply continuous power. The reason is simple: the wiring may only include a switched hot conductor.

To legally draw power from the box, the following conductors must be present:

1. Constant hot wire
2. Neutral wire
3. Equipment grounding conductor

If any of these are missing, the circuit cannot safely power additional devices.

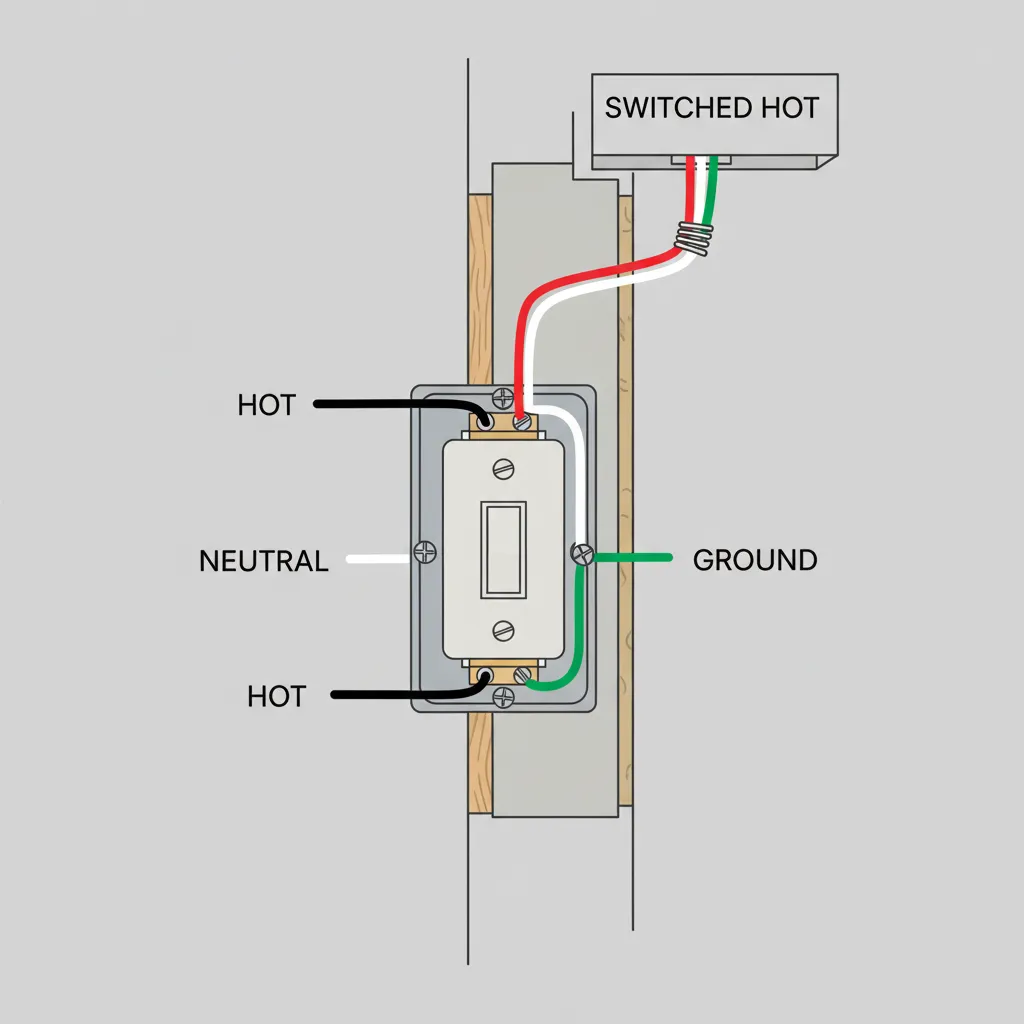

Typical switch box configurations:

1. Switch loop: Only hot and switched hot present — cannot supply new loads.
2. Power-through switch: Hot and neutral present — may allow additional connections.
3. Smart switch wiring: Neutral included — typically safe for added low loads.

In practice, electricians often recommend pulling power from a nearby outlet circuit instead. From a design perspective, mapping device locations with a room layout planner that visualizes outlets and fixture placementoften reveals a safer wiring path than modifying an existing switch box.

save pin

Box Capacity and Conductor Count Rules

Key Insight: Electrical boxes have strict volume limits, and exceeding them is one of the most common code violations when tapping power from a switch.

Every electrical box is rated for a maximum number of conductors based on its cubic-inch volume. The NEC box fill calculation prevents overcrowded wiring, which can cause overheating and insulation damage.

Typical conductor volume allowances:

1. 14 AWG wire: 2.0 cubic inches per conductor
2. 12 AWG wire: 2.25 cubic inches per conductor

Each of the following counts toward box fill:

1. Each insulated conductor
2. All grounding wires together count as one conductor
3. Each device (switch or receptacle)
4. Internal clamps

Example:A standard 18 cubic inch box with 12‑gauge wiring typically allows only 8 conductors. Adding a new cable for tapping power can easily exceed that limit.

This is why professional electricians frequently replace the box with a deeper one during modifications.

save pin

Grounding Requirements for Modified Circuits

Key Insight: Any modification to a switch circuit must maintain a continuous equipment grounding path.

Grounding protects people and equipment by providing a safe path for fault current. When tapping power from a light switch box, the grounding conductor must remain bonded to:

1. The electrical box (if metal)
2. The switch device
3. Any new cable added to the circuit

Common grounding mistakes:

1. Failing to pigtail the ground to the switch
2. Leaving grounding wires disconnected
3. Using the metal box as the only ground path

Modern electrical inspections specifically check grounding continuity because it significantly reduces shock risk during faults.

Answer Box: Key Code Requirement for Switch Box Power Tapping

The NEC allows tapping power from a light switch box only when a neutral, constant hot, and grounding conductor are present and box fill limits are not exceeded. If the switch box contains only a switch loop or lacks space, the circuit must not be modified.

Situations That Require a Licensed Electrician

Key Insight: If the wiring configuration inside a switch box cannot be clearly identified, the work should be handled by a licensed electrician.

Some electrical situations involve risks that go beyond normal DIY work.

Call an electrician if you encounter:

1. Aluminum wiring
2. Multi‑wire branch circuits
3. Overcrowded boxes
4. Mixed wire gauges
5. Unknown breaker protection

In renovation projects where lighting layouts change, professionals often re-evaluate the entire circuit path rather than adding new taps. When planning larger changes, reviewing a visual floor plan showing lighting and outlet locationscan make it easier to decide whether a new circuit would be safer.

save pin

Safety Checklist Before Turning Power Back On

Key Insight: A careful inspection before restoring power prevents the most common wiring failures.

After modifying a switch box, electricians typically run through a quick verification process.

Safety checklist:

1. Breaker is rated correctly for wire gauge
2. Wire nuts are tight and properly sized
3. Grounding wires are bonded together
4. No exposed copper outside connectors
5. Box fill limits are not exceeded
6. Switch operates correctly before closing the box

A simple non-contact voltage tester is often used to confirm the circuit is de‑energized before work and functioning correctly after power restoration.

Final Summary

1. Tapping power from a light switch is only allowed when hot, neutral, and ground are present.
2. Many older switch boxes cannot supply constant power.
3. Box fill limits are a major electrical code requirement.
4. Ground continuity must remain intact after modifications.
5. Unclear wiring conditions should be evaluated by an electrician.

FAQ

Can I legally tap power from a light switch?

Yes, but only if the switch box contains constant hot, neutral, and grounding wires and meets NEC box fill limits.

Do all switch boxes contain a neutral wire?

No. Many homes built before 2011 used switch loops where the neutral wire is only located at the light fixture.

What is the biggest risk when tapping power from a switch?

Overloading the box or connecting to a switched hot instead of constant power can cause device malfunction or overheating.

What are box fill limits in electrical code?

Box fill limits define how many wires can safely fit inside an electrical box based on its cubic-inch capacity.

Do smart switches require a neutral wire?

Most modern smart switches require a neutral to maintain constant power for electronics.

Is tapping power from a switch safe?

It can be safe if the circuit follows NEC rules and the wiring configuration supports constant power.

Should I add a new circuit instead?

In many renovations, running a new circuit from the panel is safer and avoids overcrowding switch boxes.

How do electricians identify constant power in a switch box?

They use voltage testers or multimeters to verify which conductor remains energized when the switch is off.
