Electrical Safety and Risk Control in Illuminated POP Displays: Practical safety strategies to prevent overheating, wiring failures, and compliance risks in illuminated retail POP structures

Direct Answer

Electrical safety in illuminated POP displays depends on three fundamentals: certified lighting components, proper wire routing inside the structure, and heat management. Most risks—overheating, short circuits, and electrical failures—occur when lighting systems are installed in confined retail displays without ventilation or proper load planning.

When POP displays use LEDs, transformers, and concealed wiring, safety planning must be integrated into the structural design rather than added after installation.

Quick Takeaways

1. Most POP display lighting failures are caused by heat buildup inside enclosed structures.
2. Certified LED drivers and UL‑rated components significantly reduce electrical risk.
3. Poor wire routing inside display pillars is a leading cause of short circuits.
4. Routine inspection is critical for long‑term retail display safety.

Introduction

In more than a decade working with illuminated retail displays, I’ve seen beautiful POP installations fail because electrical safety was treated as an afterthought. The structure looks great, the lighting is bright, and then six months later a transformer overheats or wiring insulation breaks down inside a tight cavity.

Electrical safety in illuminated POP displays is not just about compliance—it’s about protecting the store environment, the brand presentation, and the people interacting with the display every day.

Many designers focus heavily on aesthetics but overlook how wiring, drivers, and ventilation behave inside confined structures. If you're designing or installing a lighting‑integrated display pillar, understanding safe layouts early in the process can prevent costly retrofits later. You can see practical layout examples in this guide on visualizing retail display lighting layouts before installation.

Below are the key safety principles I use when evaluating illuminated POP installations in real retail environments.

save pin

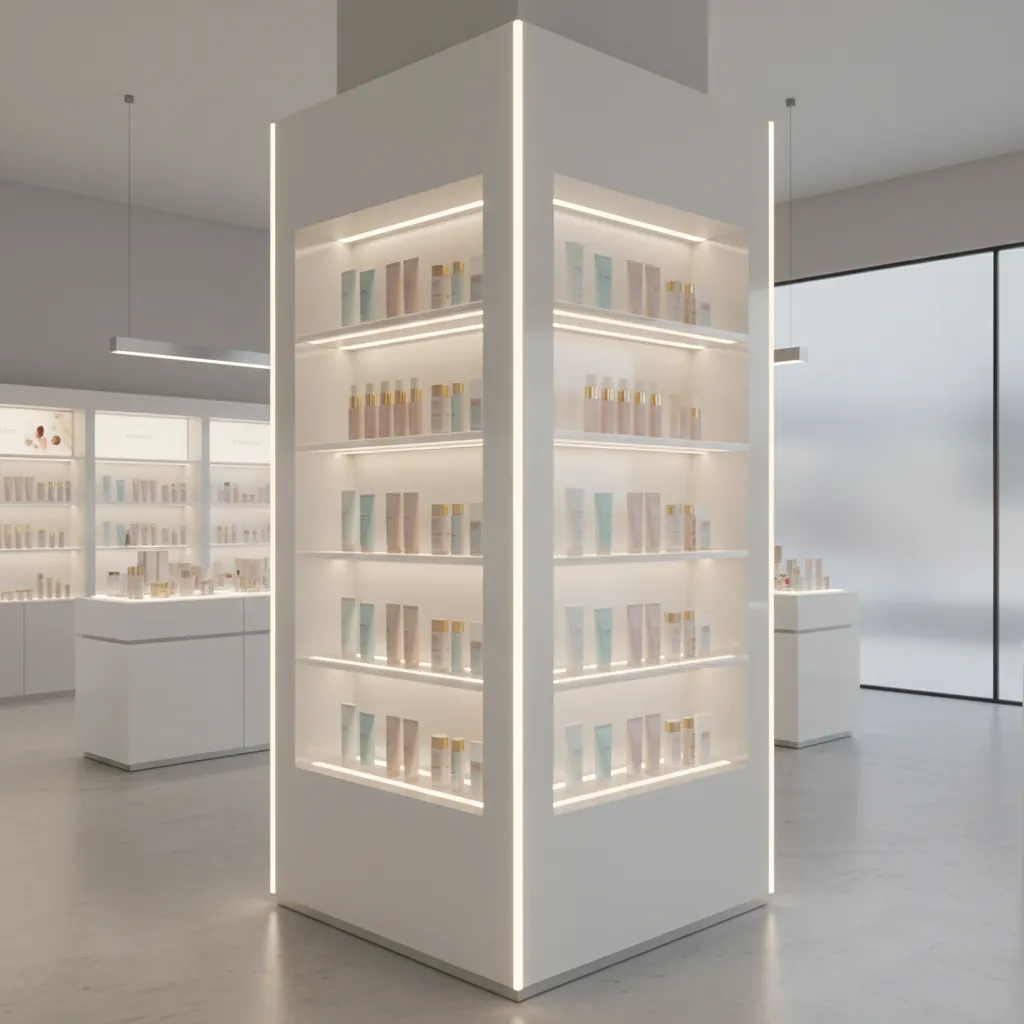

Understanding Electrical Risks in POP Display Lighting

Key Insight: The biggest electrical risks in POP displays come from confined spaces where lighting components generate heat but lack airflow.

Retail display structures are often built from MDF, acrylic, or laminated panels—materials that trap heat. When LED strips, drivers, and transformers operate continuously in these spaces, temperatures can rise faster than most designers expect.

Common electrical hazards include:

1. Driver overheating inside sealed compartments
2. Insulation damage caused by friction against structural edges
3. Power supply overload from multiple LED strips
4. Unprotected wiring exposed during customer interaction

According to guidance from the National Fire Protection Association (NFPA), confined electrical equipment without adequate ventilation significantly increases failure risk in low‑voltage systems.

In my projects, the rule is simple: any lighting system hidden inside a display must assume limited airflow and be designed accordingly.

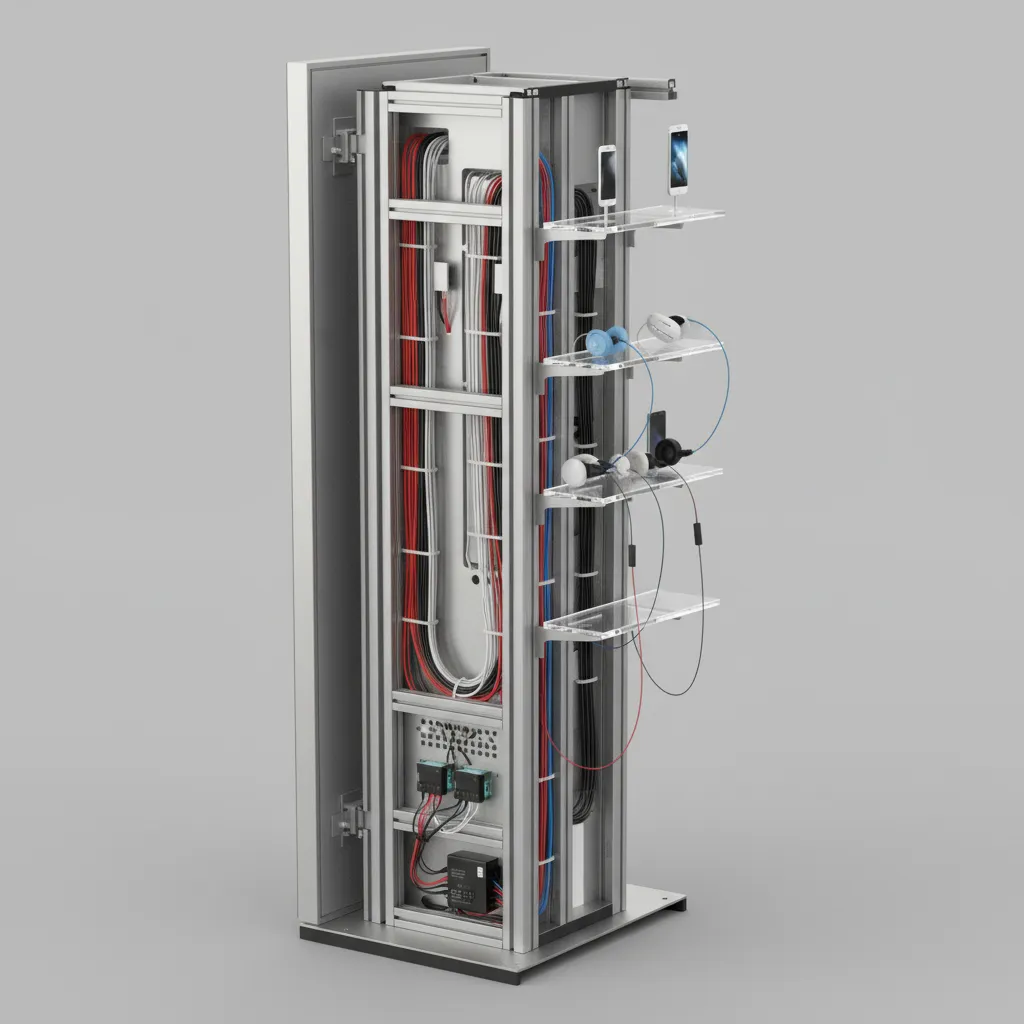

Safe Wiring Practices for Horizontal POP Pillars

Key Insight: Organized wire routing dramatically reduces short‑circuit risks in illuminated display pillars.

Horizontal POP pillars often hide wiring channels behind panels or inside structural ribs. Poor routing leads to friction, tension, and accidental compression when panels are assembled.

Best‑practice wiring setup includes:

1. Dedicated cable channels inside the pillar frame
2. Rubber grommets at panel pass‑through points
3. Separate routing paths for power and control wires
4. Service access panels for maintenance

When we prototype retail structures, we typically simulate cable paths during the design phase. Tools used for mapping structural layouts for complex retail fixtureshelp visualize internal routing before fabrication.

save pin

Choosing Certified Lighting Components

Key Insight: Certification of LED drivers and power supplies is one of the most effective ways to reduce electrical failure risk.

Low‑cost lighting components are a hidden risk in retail POP displays. They often lack thermal protection or stable voltage regulation.

Certified components typically include:

1. UL‑listed LED drivers
2. CE‑certified power supplies
3. Short‑circuit protection
4. Thermal shutdown features

A small cost difference in certified hardware can prevent display failures that damage retail installations or require emergency replacements.

From experience, uncertified drivers are responsible for a surprising number of overheating cases in retail displays.

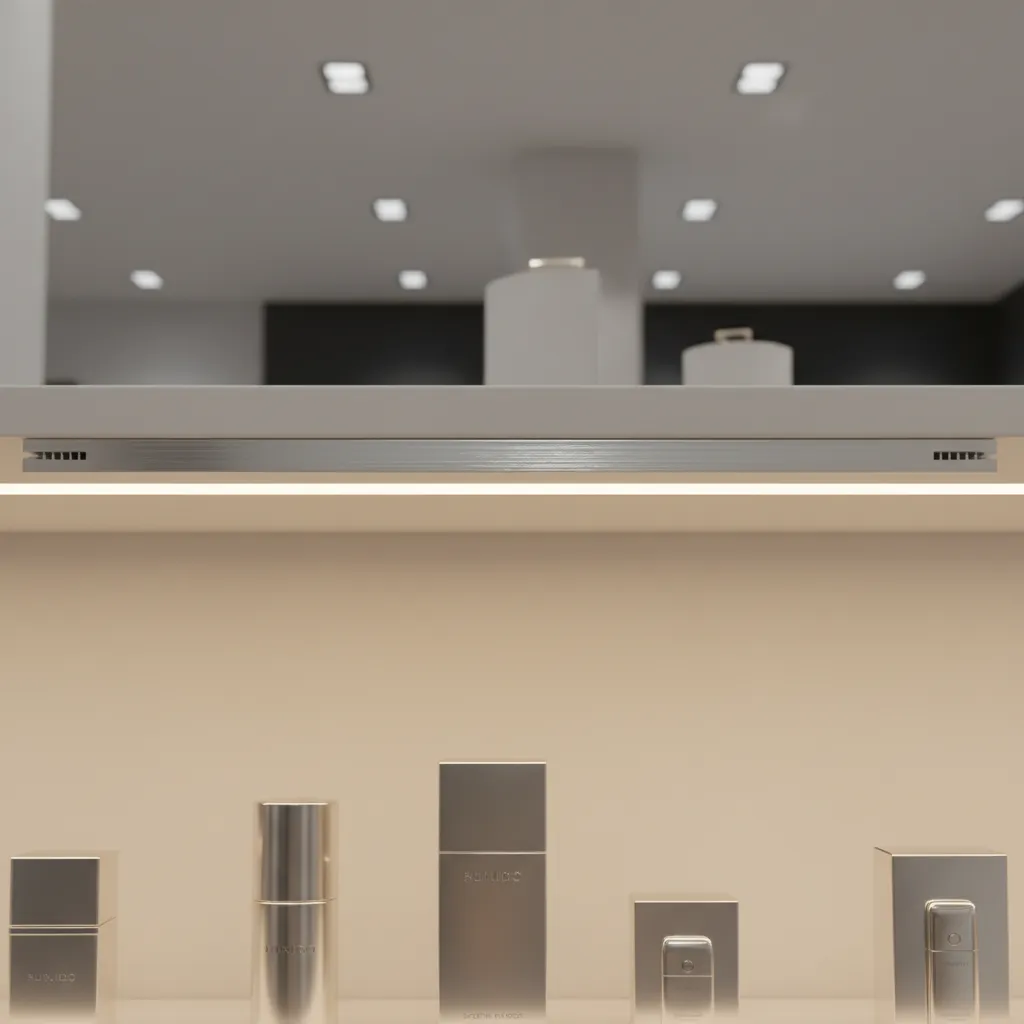

Preventing Overheating in Enclosed Display Structures

Key Insight: Heat management—not power consumption—is the limiting factor in most illuminated POP displays.

Designers often underestimate how quickly heat accumulates when LED drivers and strips operate in sealed spaces.

Effective overheating prevention methods include:

1. Ventilation gaps hidden behind structural panels
2. Aluminum LED channels that act as heat sinks
3. Remote mounting of drivers outside the display body
4. Limiting LED density per linear meter

One common mistake is installing high‑density LED strips inside acrylic light boxes without thermal dissipation. Over time, this degrades both the LED and the diffuser material.

save pin

Retail Safety Standards for Illuminated Displays

Key Insight: Compliance with retail electrical standards protects both brand liability and store safety.

Different markets follow different safety standards, but most large retailers expect POP installations to follow recognized electrical guidelines.

Common compliance references include:

1. UL standards for lighting systems
2. NFPA electrical safety guidelines
3. IEC low‑voltage directives
4. Local retail installation codes

Large retail chains often require vendors to submit electrical documentation before approving illuminated displays.

Planning lighting systems with realistic spatial models—like those used when creating accurate 3D lighting simulations for interior fixtures—helps verify heat clearance and wiring space before production.

Answer Box

The safest illuminated POP displays use certified LED components, organized wiring channels, and heat‑managed structures. Most electrical failures occur when drivers overheat inside sealed display cavities.

Inspection and Maintenance Safety Checklist

Key Insight: Even well‑designed POP lighting systems require routine inspection to remain safe.

Retail environments operate displays for long hours, often seven days a week. Over time, vibration, heat cycles, and customer interaction can affect wiring stability.

Basic safety inspection checklist:

1. Check LED drivers for abnormal heat
2. Inspect wiring insulation for abrasion
3. Verify ventilation openings remain unobstructed
4. Ensure power connectors remain secure
5. Test lighting stability during long operation cycles

In most retail programs, quarterly inspections are enough to detect early warning signs before failures occur.

Final Summary

1. Heat buildup is the primary electrical risk in POP display lighting.
2. Proper wire routing prevents short circuits in display structures.
3. Certified drivers and power supplies reduce system failure risk.
4. Ventilation and thermal management extend lighting lifespan.
5. Routine inspection keeps illuminated displays safe in retail environments.

FAQ

1. What is the biggest safety risk in illuminated POP displays?

Overheating inside enclosed display structures is the most common electrical failure risk.

2. Are LED lights safe for retail POP displays?

Yes. LEDs are generally safe when used with certified drivers and proper heat dissipation.

3. What wiring is recommended for illuminated retail displays?

Low‑voltage insulated wiring with protected routing channels is commonly used.

4. How do you prevent overheating in display lighting structures?

Use aluminum channels, ventilation gaps, and remote driver placement.

5. Do POP displays need electrical certification?

Large retailers typically require UL or similar safety certification for illuminated displays.

6. How often should illuminated displays be inspected?

Quarterly inspections are generally recommended for retail environments.

7. Can poor wiring cause LED failures?

Yes. Improper routing can cause insulation damage and short circuits.

8. What standards apply to POP display lighting electrical safety?

UL standards, NFPA electrical safety guidance, and local retail installation codes commonly apply.
