Electrical Symbol Standards Used in Different Engineering Industries: Understand how construction, manufacturing, and power sectors use different electrical symbol standards in real engineering drawings

Direct Answer

Electrical symbol standards vary by engineering industry, but most drawings rely on two global systems: IEC (International Electrotechnical Commission) and ANSI (American National Standards Institute). Construction projects typically follow IEC‑style symbols, industrial automation often blends IEC and ISA conventions, and power utilities frequently use ANSI and IEEE standards. Understanding which system your industry follows ensures electrical schematics are readable, compliant, and safe to execute.

Quick Takeaways

1. Most industries rely on IEC or ANSI electrical symbol standards.
2. Construction drawings emphasize simplified symbols for quick field interpretation.
3. Industrial automation schematics integrate IEC, ISA, and manufacturer-specific symbols.
4. Power utilities commonly follow ANSI and IEEE documentation standards.
5. Using the wrong symbol set can cause costly miscommunication between engineers and contractors.

Introduction

After more than a decade reviewing electrical layouts alongside architects, mechanical engineers, and facility planners, I’ve noticed something many new designers underestimate: electrical symbols are not universal across industries. Two diagrams might look similar, yet follow completely different electrical symbol standards.

That difference matters. A contractor reading a construction blueprint expects one visual language, while a manufacturing engineer debugging a PLC cabinet expects another. If those symbols don’t align with industry standards, confusion spreads quickly across the project team.

In projects where architectural planning overlaps with electrical planning, teams often coordinate layouts using digital tools such as platforms designed to create detailed building floor layouts before electrical routing begins. Once the spatial structure is defined, electrical symbols are layered onto the drawing according to the standards used by that industry.

This guide explains how electrical symbol standards differ between construction, manufacturing, and power infrastructure, and how engineers decide which CAD symbol library to use.

save pin

Why Electrical Symbol Standards Matter Across Industries

Key Insight: Electrical symbols exist to create a universal visual language, but that language changes depending on the engineering environment.

In theory, electrical schematics should be universally readable. In reality, every sector evolved its own documentation habits based on how systems are built, maintained, and inspected.

For example:

1. Construction teams prioritize speed and clarity for electricians on site.
2. Manufacturing engineers prioritize control logic and device connectivity.
3. Power utilities focus on grid topology and safety compliance.

This difference affects how symbols are drawn and how detailed they appear.

Common standards used globally include:

1. IEC 60617 – widely used in Europe and international construction projects
2. ANSI Y32 / IEEE 315 – common in North American engineering
3. ISA S5.1 – used in industrial instrumentation diagrams
4. NFPA electrical documentation practices for building systems

The IEEE Standards Association notes that consistent schematic notation significantly reduces engineering errors during system installation and maintenance.

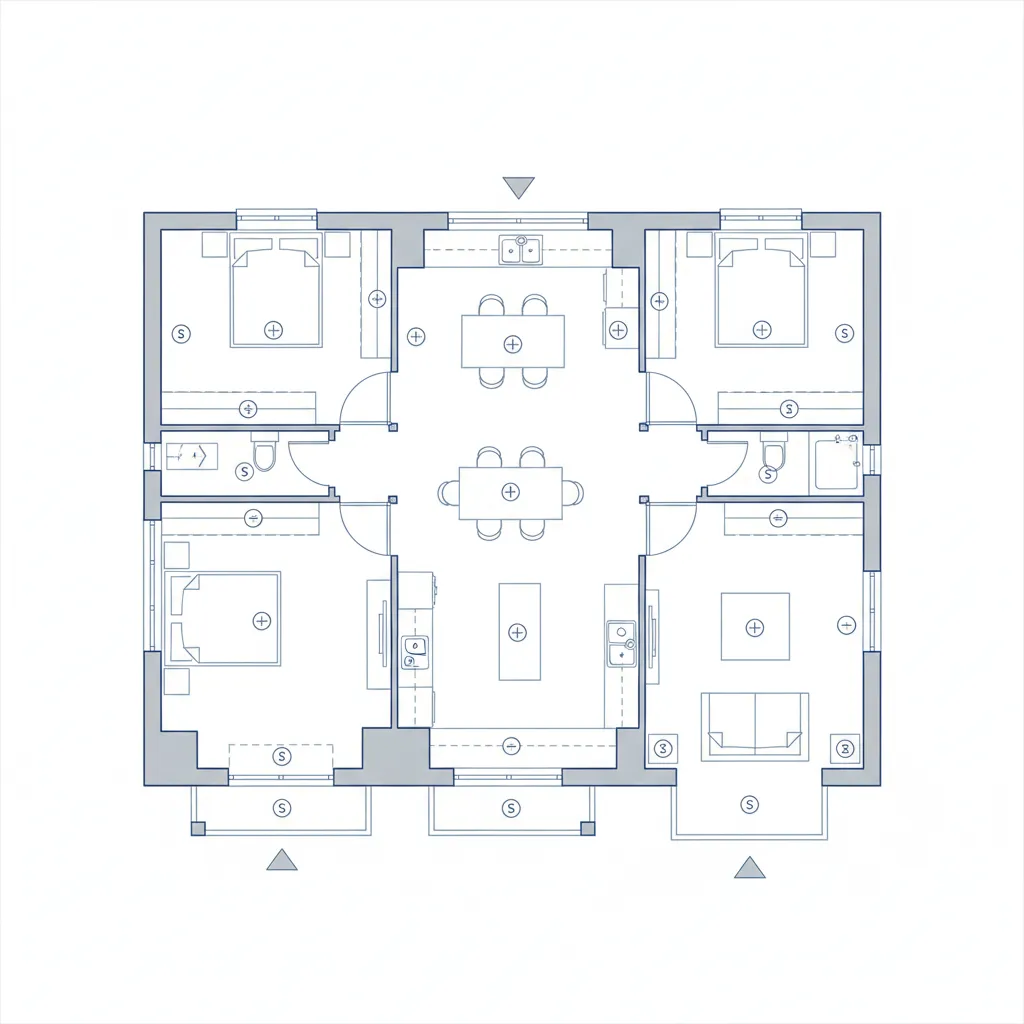

Electrical Symbols in Building and Construction Drawings

Key Insight: Construction electrical drawings use simplified symbols optimized for installation crews rather than detailed circuit analysis.

When working on residential or commercial building projects, electrical plans are designed for field execution. Electricians need to quickly recognize outlets, switches, lighting fixtures, and panels without decoding complex diagrams.

Typical construction drawing symbols include:

1. Duplex outlet
2. Ground fault outlet
3. Lighting fixture
4. Single‑pole switch
5. Three‑way switch
6. Electrical panel

Most architectural plans follow IEC‑style icons or simplified ANSI equivalents.

In practice, electrical designers frequently coordinate layouts with spatial planning tools used to map room layouts and equipment placement before electrical drafting begins. That coordination prevents conflicts between furniture, lighting placement, and circuit routing.

save pin

Hidden mistake I see often:

1. Mixing architectural electrical symbols with industrial schematic symbols
2. Overcomplicating construction drawings with control-level detail
3. Using manufacturer icons instead of standardized symbols

Those mistakes slow down installation teams and increase interpretation errors.

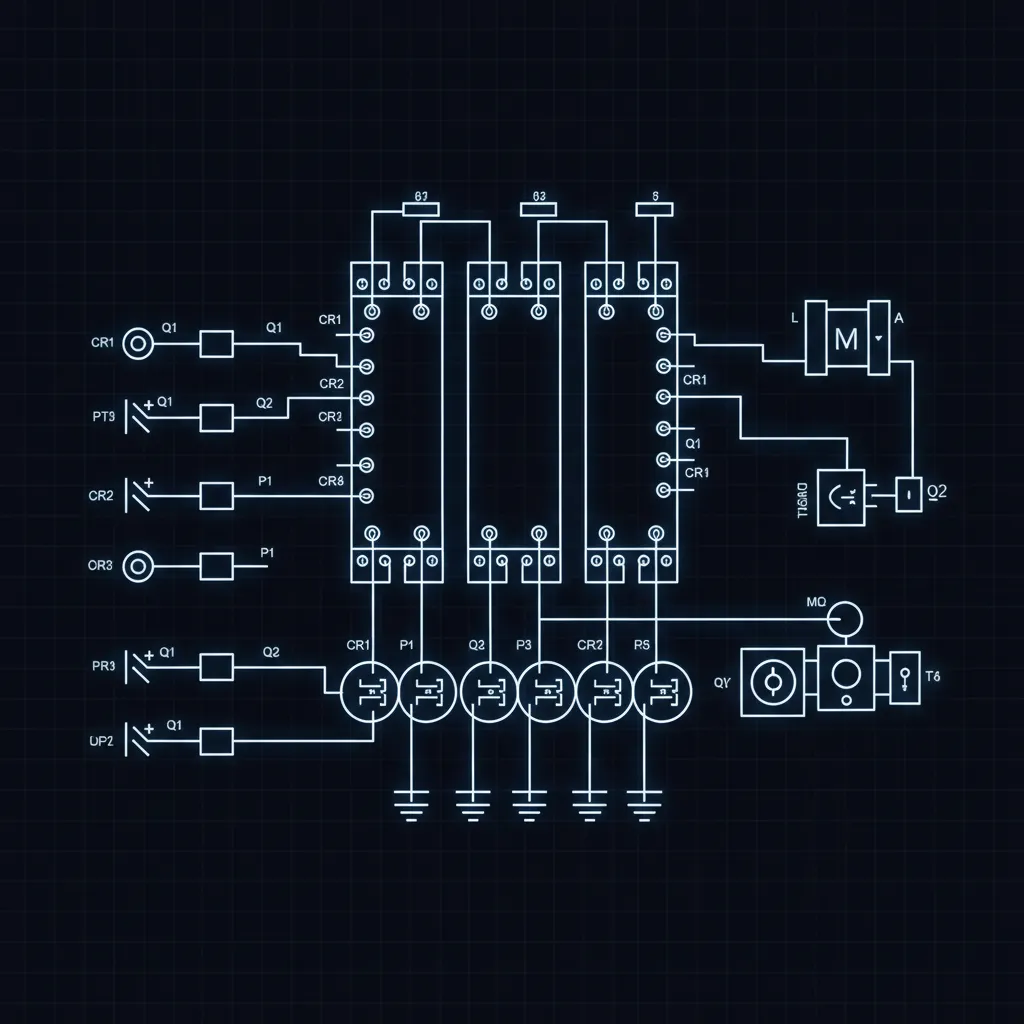

Symbols Used in Industrial Automation and Manufacturing

Key Insight: Industrial automation drawings combine electrical power symbols with control and instrumentation diagrams.

Manufacturing facilities rely on far more complex documentation than building construction. Instead of simple outlet layouts, engineers must represent control circuits, relays, sensors, PLC inputs, and safety interlocks.

Common symbols used in automation schematics:

1. Relay coils and contacts
2. PLC input and output modules
3. Limit switches
4. Proximity sensors
5. Motor starters
6. Variable frequency drives

These diagrams typically combine multiple standards:

1. IEC symbols for electrical devices
2. ISA standards for instrumentation
3. Manufacturer documentation for specialized components

According to ISA (International Society of Automation), consistent symbol documentation improves troubleshooting speed during equipment downtime—one of the most expensive events in manufacturing operations.

save pin

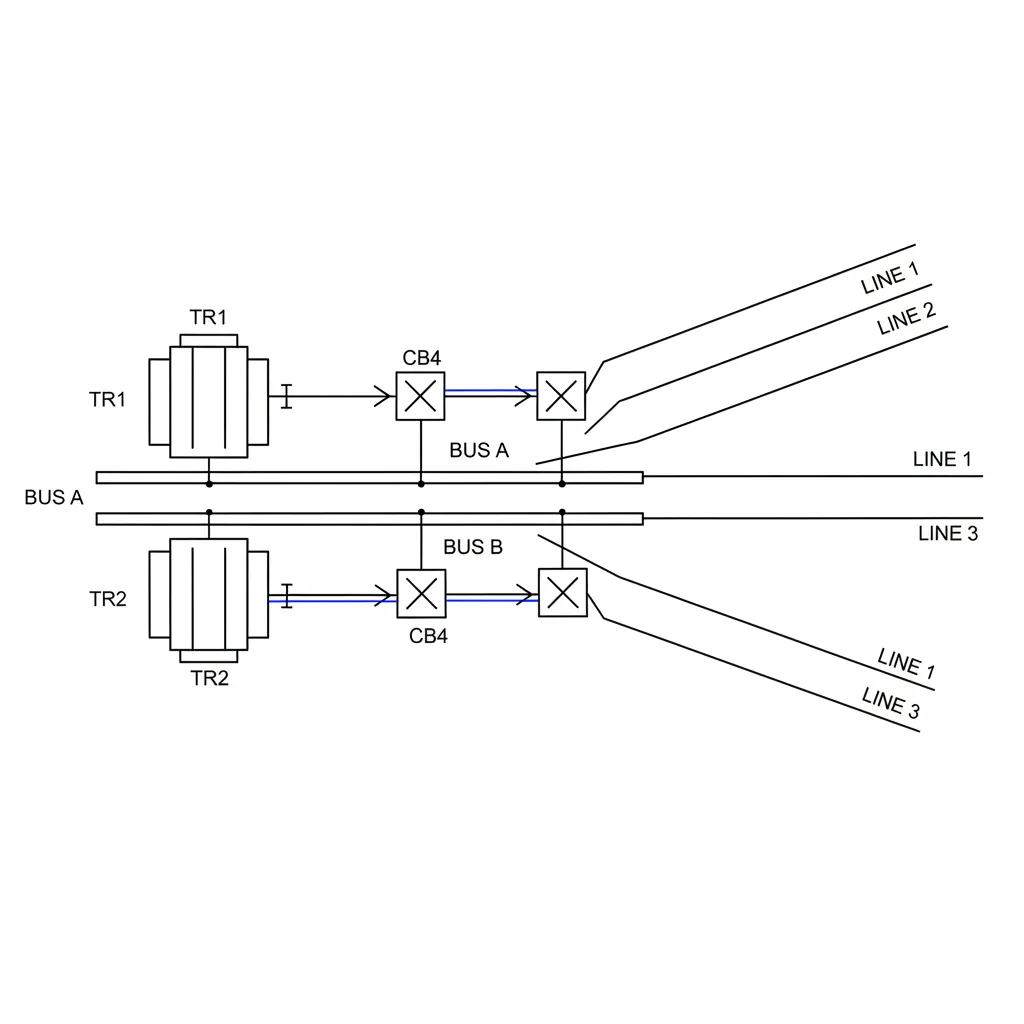

Power Generation and Utility Electrical Symbols

Key Insight: Power system schematics prioritize grid topology and protection systems rather than building-level wiring.

Power plants, substations, and transmission networks use a different schematic style called a single-line diagram.

Instead of showing every wire, engineers represent entire electrical systems with simplified symbols.

Typical utility schematic symbols:

1. Generators
2. Transformers
3. Circuit breakers
4. Busbars
5. Transmission lines
6. Protective relays

ANSI and IEEE standards dominate this sector, especially IEEE 315 and IEEE C37 documentation practices.

Utility engineers rely heavily on clarity because these diagrams are used during emergency grid operations.

save pin

Differences Between Industrial and Residential Electrical Schematics

Key Insight: Residential electrical diagrams show physical wiring locations, while industrial schematics describe system logic.

One of the most overlooked differences between industries is what the drawing is meant to communicate.

Residential drawings focus on:

1. Outlet placement
2. Lighting circuits
3. Breaker panel distribution
4. Physical wiring paths

Industrial schematics focus on:

1. Control logic
2. Machine interlocks
3. Automation sequences
4. Sensor feedback systems

This difference explains why symbol libraries vary so dramatically between sectors.

Choosing the Correct CAD Symbol Set for Your Industry

Key Insight: The correct CAD symbol library depends on the type of system being designed, not just the software used.

In real projects, the best practice is to start by identifying the documentation standard required by the industry or regulatory body.

Practical selection checklist:

1. Identify whether the project follows IEC or ANSI standards
2. Confirm requirements from contractors or engineering consultants
3. Match symbol libraries to the type of drawing being produced
4. Ensure consistency across the entire project documentation

For large commercial projects, teams often coordinate electrical layouts with broader building planning workflows used to organize workspace layouts and infrastructure planning. That alignment ensures electrical symbols correspond correctly with the spatial environment where systems will actually be installed.

Answer Box

Different engineering sectors rely on different electrical symbol standards. Construction drawings typically follow IEC-style simplified icons, industrial automation uses mixed IEC and ISA symbols, and power utilities rely heavily on ANSI and IEEE single-line diagram conventions.

Final Summary

1. Electrical symbols vary significantly between industries.
2. Construction drawings prioritize installation clarity.
3. Industrial automation schematics represent control logic.
4. Power utilities rely on ANSI and IEEE single-line diagrams.
5. Using the correct symbol standard prevents engineering miscommunication.

FAQ

What are the most common electrical symbol standards?

IEC 60617 and ANSI/IEEE 315 are the two most widely used electrical symbol standards worldwide.

Are electrical symbols the same in every country?

No. Many countries prefer IEC standards, while North America frequently uses ANSI-based electrical schematic symbols.

What symbols are used in construction electrical drawings?

Construction drawings typically include outlets, switches, lighting fixtures, panels, and grounding symbols designed for easy interpretation by electricians.

What are industrial electrical schematic symbols?

Industrial electrical schematic symbols represent control devices such as relays, PLC modules, sensors, and motor starters used in automation systems.

Why are single-line diagrams used in power systems?

They simplify complex power networks by representing major components like generators, transformers, and breakers with standardized symbols.

Can the same CAD symbol library work for every industry?

No. Different industries require specialized electrical symbol libraries that match their documentation standards.

Do engineers still follow industry standard CAD electrical symbols?

Yes. Standardized symbols remain essential for compliance, safety, and clear communication across engineering teams.

Where can beginners learn engineering drawing electrical symbols?

Engineering textbooks, IEEE documentation guides, and CAD symbol libraries are common starting points.
