Energy Efficiency Optimization for SIP Basement Construction: Practical strategies to maximize insulation, reduce thermal bridging, and improve whole‑home performance with SIP basement systems

Direct Answer

Energy efficiency in SIP basement construction is optimized by eliminating thermal bridges, sealing panel joints correctly, integrating continuous insulation, and controlling moisture and air movement. When installed and detailed correctly, SIP basement walls can outperform traditional concrete foundations in insulation performance and airtightness.

Quick Takeaways

1. SIP basement walls deliver high insulation because foam cores reduce heat transfer.
2. Thermal bridging at joints and framing is the most common efficiency loss.
3. Air sealing and moisture control are just as important as insulation value.
4. Whole‑home energy modeling improves basement system performance.
5. Testing with blower door and thermal imaging verifies real efficiency.

Introduction

Energy efficiency optimization for SIP basement construction is something I’ve spent a lot of time refining across residential projects over the last decade. On paper, structural insulated panels already offer strong insulation values, but the real performance difference shows up in the details: panel joints, moisture control, and how the basement connects to the rest of the home’s envelope.

Many homeowners assume that simply installing SIP basement panels guarantees maximum efficiency. In reality, the biggest energy losses I see happen after installation—through poorly sealed seams, small thermal bridges, or foundation transitions that were never modeled properly.

During one recent project in Oregon, our team improved projected heating efficiency by nearly 18% simply by redesigning the basement wall connections and sealing strategy. Small technical adjustments often outperform expensive upgrades.

Before construction even begins, planning the basement layout carefully can prevent major inefficiencies. I often recommend reviewing spatial flow and mechanical zones early using a visual basement layout planning workflow for early-stage design decisions, which helps catch insulation and duct conflicts before they become expensive corrections.

This guide walks through the most effective ways to improve SIP basement insulation performance—from thermal bridging solutions to real-world testing methods used by professional builders.

save pin

Why SIP Panels Provide High Basement Insulation Performance

Key Insight: SIP basement walls achieve high energy efficiency because their rigid foam core creates continuous insulation with minimal heat transfer.

Traditional concrete foundations rely heavily on added insulation layers after the wall is built. SIP systems integrate insulation directly into the structural panel. This eliminates many of the thermal gaps commonly found in stud or masonry construction.

Typical performance advantages include:

1. Continuous foam insulation core
2. Reduced air leakage compared to framed walls
3. Higher effective R‑value across the entire wall assembly

In real projects, the difference becomes noticeable in winter comfort levels. Rooms above SIP basements tend to maintain more stable temperatures because the foundation loses less heat to surrounding soil.

According to the U.S. Department of Energy, continuous insulation systems can significantly reduce conductive heat loss compared with conventional framing methods.

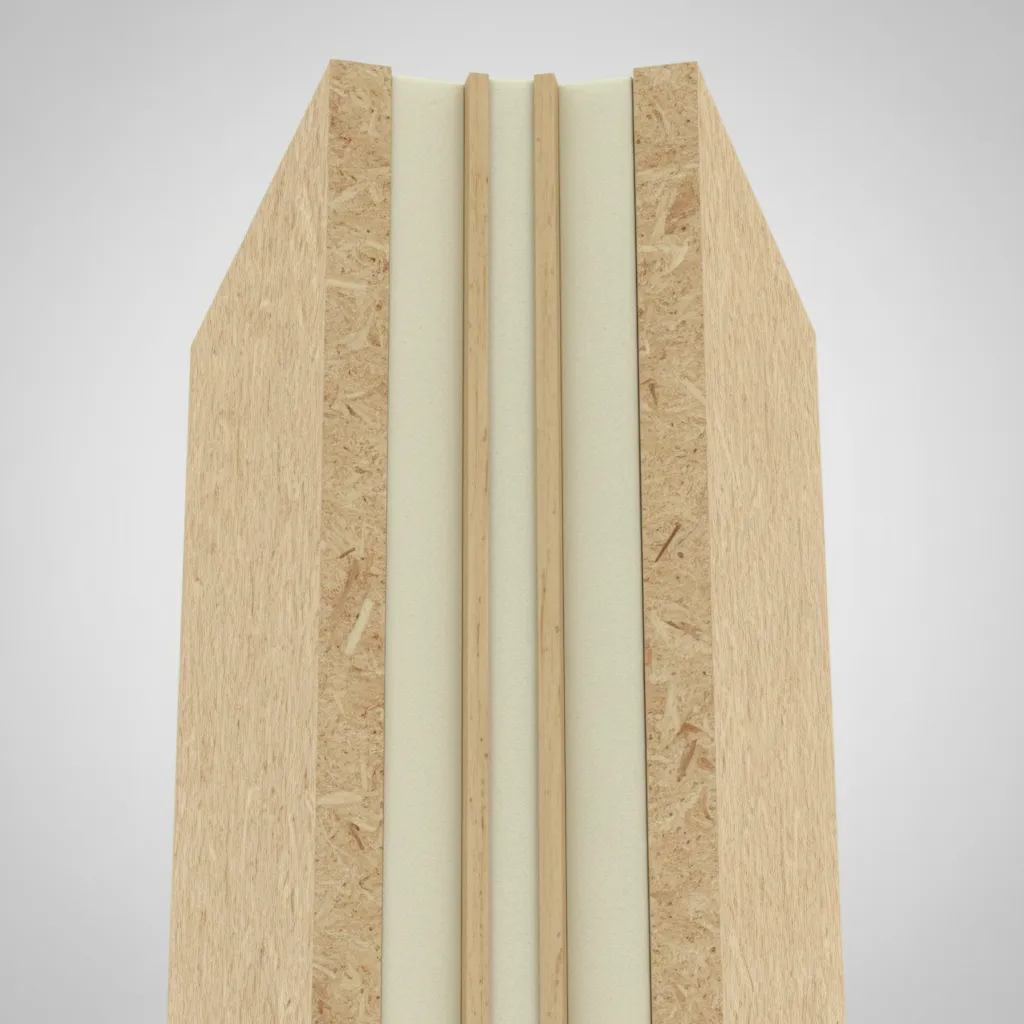

Optimizing Thermal Bridging in SIP Basement Walls

Key Insight: The most common efficiency loss in SIP basement systems occurs at panel joints and structural connection points.

Thermal bridging happens when heat bypasses insulation through more conductive materials like lumber, steel connectors, or poorly sealed seams. Even small bridges can reduce the effective R‑value of the entire wall system.

Typical thermal bridge locations include:

1. Panel splines
2. Rim joist connections
3. Foundation transitions
4. Mechanical penetrations

Effective solutions builders use:

1. Insulated splines instead of dimensional lumber
2. Continuous exterior insulation wraps
3. Spray foam sealing at structural junctions
4. Thermal break membranes between materials

One mistake I frequently see is over‑reliance on manufacturer R‑values without considering bridging losses. Field performance is determined by assembly design, not just panel specifications.

save pin

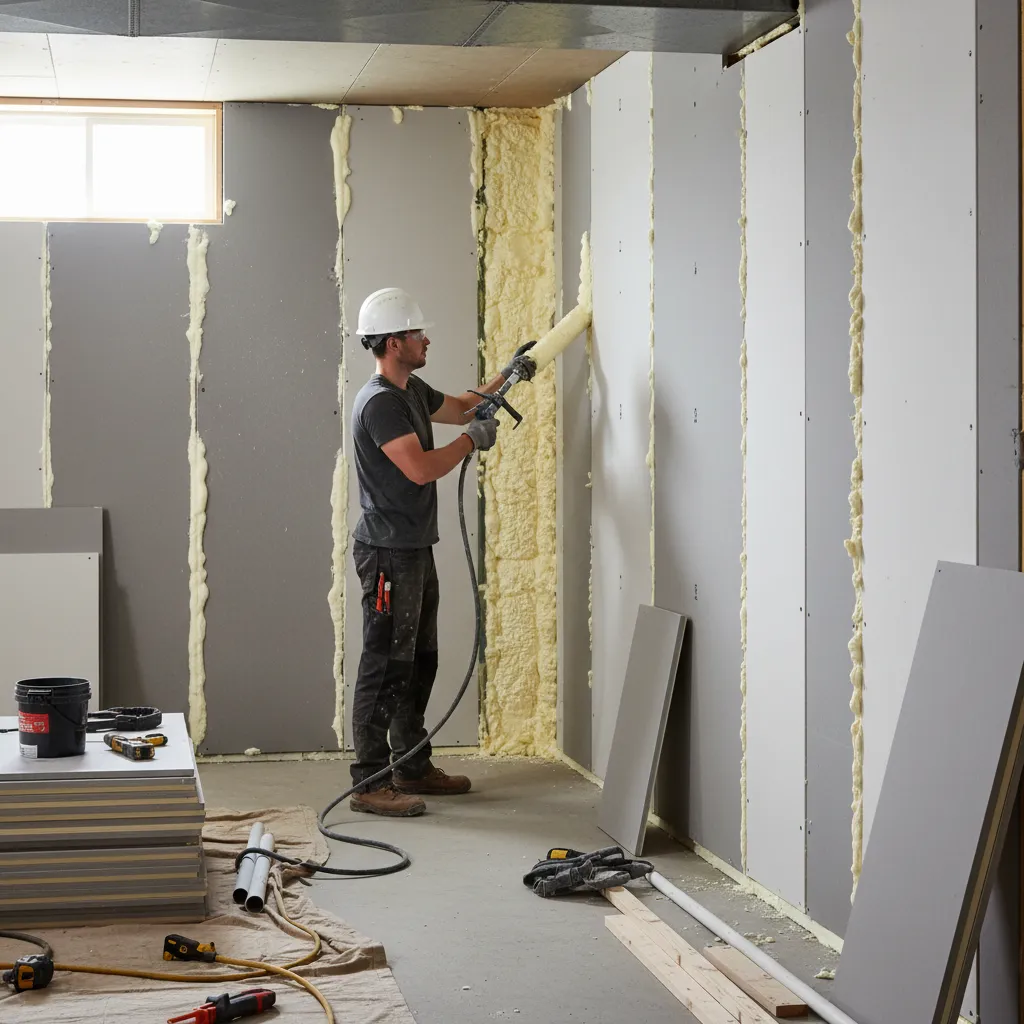

Best Insulation and Sealing Techniques for SIP Foundations

Key Insight: Air sealing quality often matters more than adding extra insulation layers.

In energy modeling tests, uncontrolled air leakage typically accounts for a larger efficiency drop than small insulation gaps. SIP basements can perform exceptionally well when sealing techniques are executed properly.

High‑performance sealing methods include:

1. Expanding foam at panel seams
2. Butyl tape or gasket sealing between panels
3. Continuous air barrier membranes
4. Foam sealing around pipe and conduit penetrations

Builders who combine these methods often achieve blower door test results below 1.5 ACH50 for the entire home—an impressive level of airtightness for residential construction.

Visualizing wall thickness, mechanical zones, and insulation layers early can prevent installation conflicts. Some designers map these details with a step‑by‑step foundation planning workflow for energy‑efficient layoutsbefore construction documents are finalized.

save pin

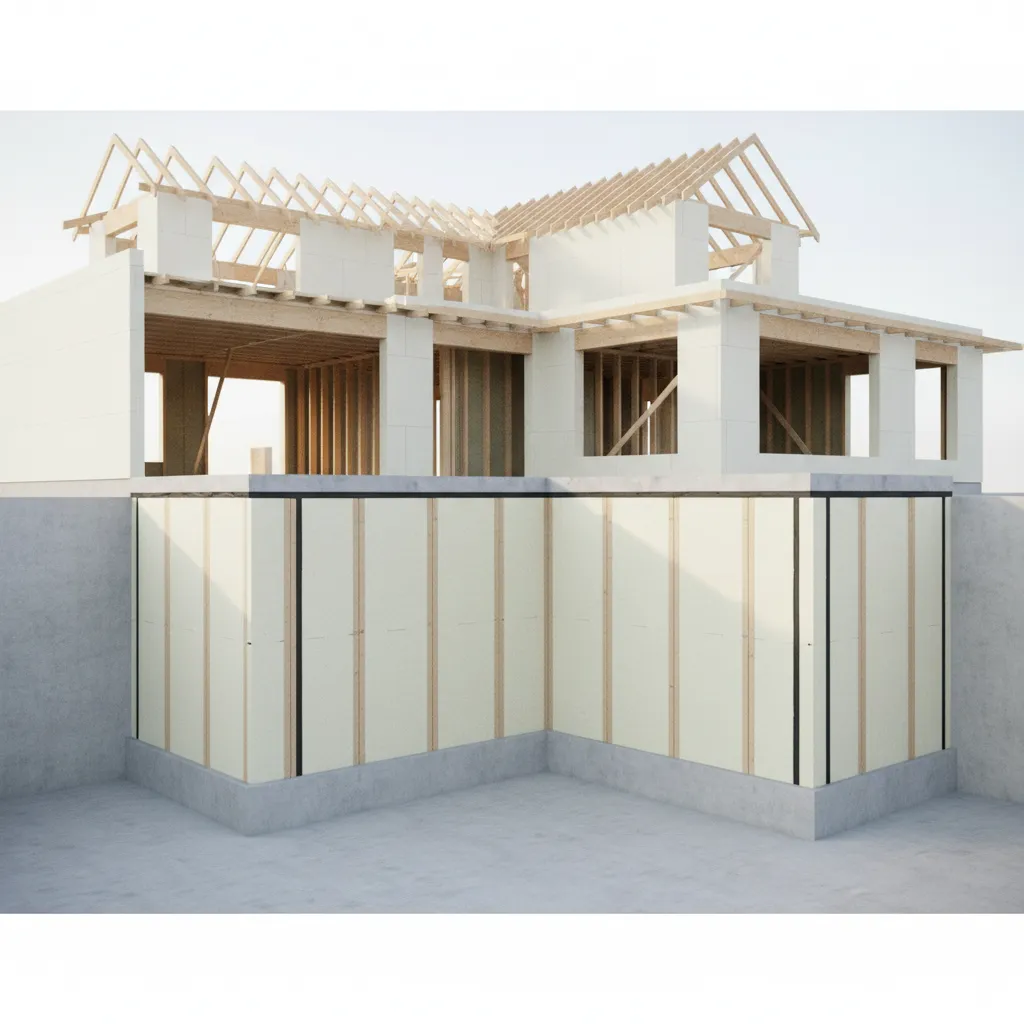

Integrating SIP Basements With Whole-Home Energy Design

Key Insight: SIP basement efficiency improves dramatically when the foundation is designed as part of the home's entire thermal envelope.

Basements are not isolated structures—they interact with wall assemblies, floor systems, HVAC layout, and ventilation design.

Key integration strategies include:

1. Continuous insulation alignment between basement and exterior walls
2. Air barrier continuity from slab to roof
3. Strategic placement of mechanical systems inside conditioned space
4. Minimizing duct runs in uninsulated zones

When these systems are coordinated early, SIP basements become part of a highly efficient envelope rather than a standalone structural component.

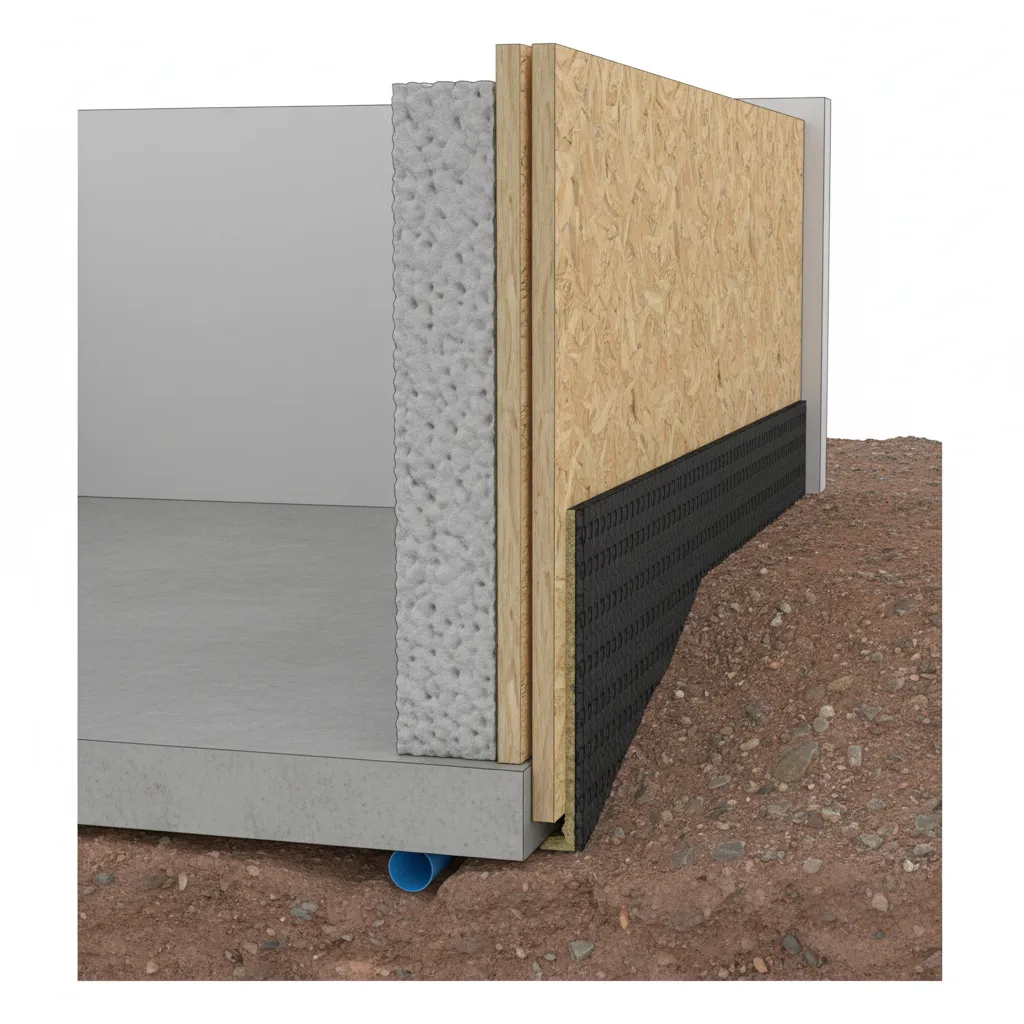

Moisture Barriers and Vapor Control for Efficiency

Key Insight: Moisture management directly affects insulation performance and long‑term efficiency.

Wet insulation loses thermal resistance. In basement environments where soil moisture and groundwater pressure exist, vapor control becomes essential.

Effective moisture protection typically includes:

1. Exterior waterproof membranes
2. Capillary breaks between foundation and panels
3. Drainage boards and footing drains
4. Interior vapor retarders when climate conditions require them

One overlooked problem is interior humidity buildup. Poor ventilation can slowly degrade insulation performance even when the walls themselves are sealed properly.

save pin

Energy Performance Testing for SIP Basement Systems

Key Insight: Real energy performance should always be verified through testing, not assumptions.

Professional builders use several diagnostic tools to confirm SIP basement efficiency after construction.

Common testing methods:

1. Blower door air leakage testing
2. Infrared thermal imaging
3. Energy modeling software
4. Moisture and humidity monitoring

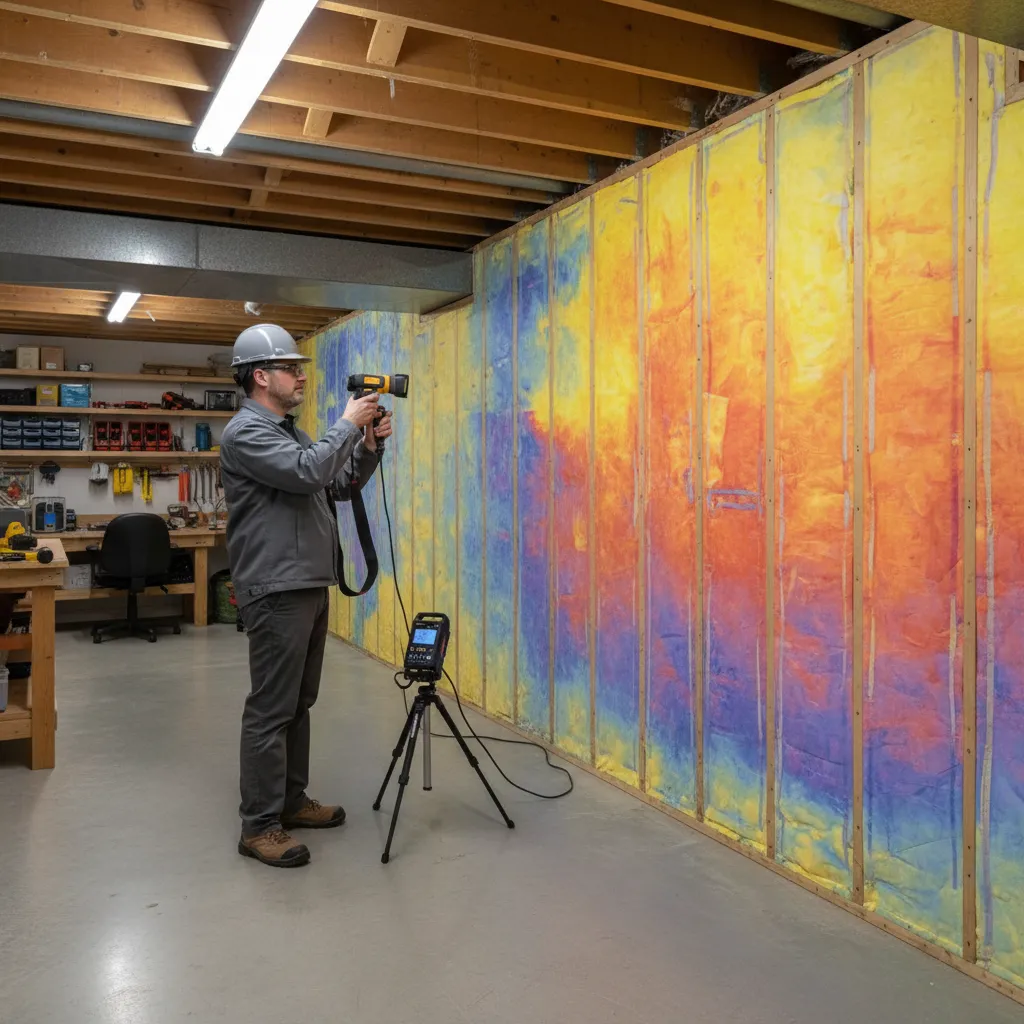

Thermal imaging is particularly useful for identifying hidden air leaks or missing insulation sections in basement wall joints.

During design stages, mapping circulation paths, insulation layers, and mechanical systems in a 3D space planning workflow that visualizes energy‑efficient home layouts can reveal potential efficiency problems before construction begins.

Answer Box

The biggest gains in SIP basement energy efficiency come from eliminating thermal bridges, sealing all panel joints properly, and integrating the basement into the home's continuous insulation system. Installation quality matters as much as the panel technology itself.

Final Summary

1. SIP basements provide strong insulation through continuous foam cores.
2. Thermal bridging at joints is the most common efficiency loss.
3. Air sealing and moisture management determine real‑world performance.
4. Whole‑home envelope design improves foundation efficiency.
5. Testing confirms whether insulation systems perform as expected.

FAQ

Are SIP basement walls more energy efficient than concrete?

Yes. SIP basement walls usually provide higher insulation values and better airtightness than standard poured concrete foundations.

What is the insulation value of a SIP basement wall?

Most SIP panels provide effective R‑values between R‑20 and R‑40 depending on thickness and foam core material.

How can I improve SIP basement insulation performance?

Focus on sealing panel joints, eliminating thermal bridges, and integrating continuous insulation with the rest of the home envelope.

Do SIP basements require additional insulation?

In many climates they do not, but exterior insulation or thermal breaks may be added to reduce bridging at structural connections.

Can SIP basement systems reduce heating costs?

Yes. Improved airtightness and insulation can significantly lower heating demand in cold climates.

What causes energy loss in SIP foundations?

The most common causes are poorly sealed panel joints, thermal bridges, and inadequate moisture protection.

Are SIP basements suitable for cold climates?

Yes. Their continuous insulation structure performs particularly well in cold regions where heat loss through foundations is significant.

How do builders test energy efficient SIP basement design?

They typically use blower door tests, infrared cameras, and energy modeling software to evaluate real performance.

References

U.S. Department of Energy – Building Envelope Guidelines

Building Science Corporation – Foundation Insulation Research

Structural Insulated Panel Association (SIPA) Technical Documents
