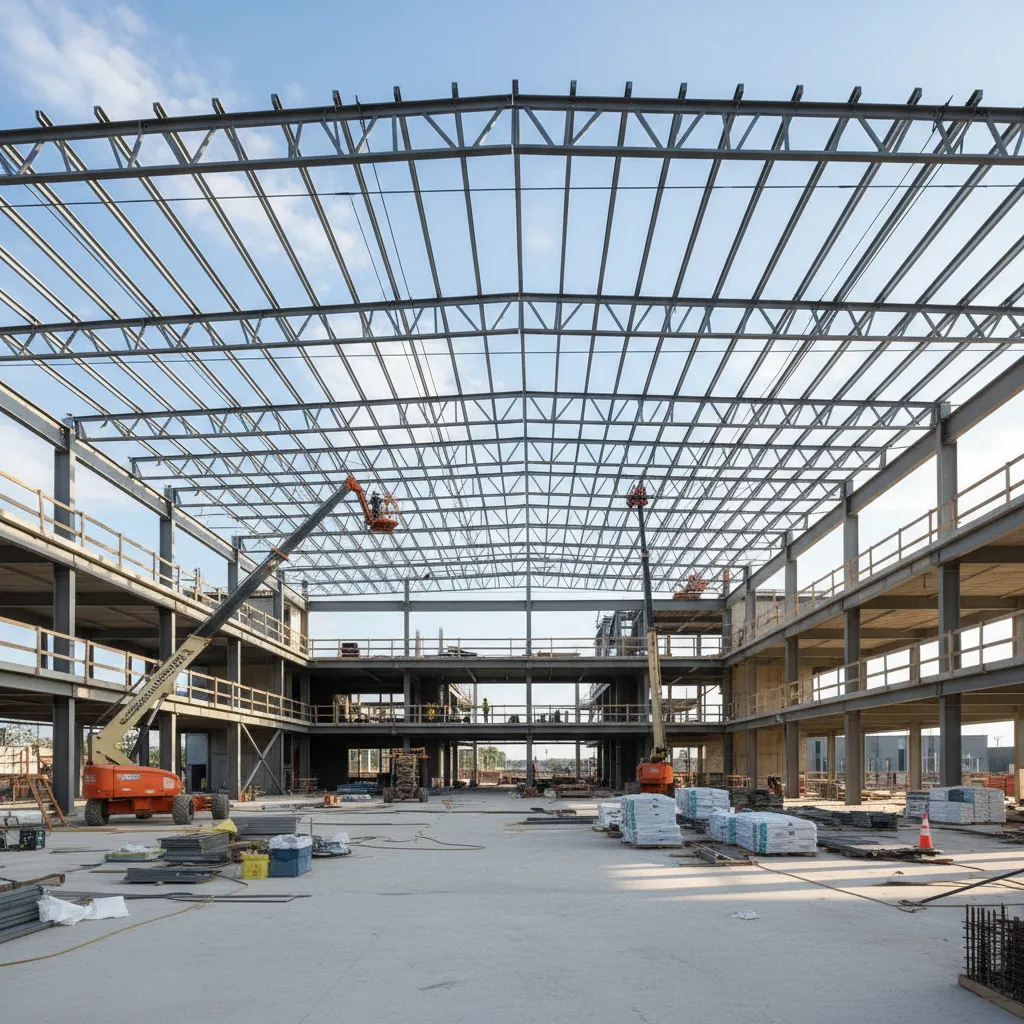

Exploring Flat Roof Metal Trusses for Modern Buildings: How flat roof metal trusses improve structural span, cost efficiency, and long term durability in modern construction

Direct Answer

Flat roof metal trusses are structural framing systems made from steel members designed to support flat or low slope roofs across wide spans. They distribute loads efficiently, reduce interior columns, and offer higher durability than traditional wood framing. In many modern residential and commercial projects, they are chosen for their strength, design flexibility, and long service life.

Quick Takeaways

1. Flat roof metal trusses allow longer structural spans with fewer interior load bearing walls.
2. Steel trusses resist warping, pests, and moisture better than wood framing.
3. They often reduce long term maintenance costs despite higher upfront fabrication.
4. Design flexibility makes them popular for modern homes and commercial buildings.
5. Proper detailing for drainage and insulation is critical for flat roof performance.

Introduction

Over the past decade working on residential renovations and modern builds in Los Angeles, I've seen a noticeable shift toward flat roof metal trusses. Architects love the clean roofline, developers appreciate the structural span, and homeowners often want the open interior layouts that come with it.

But the truth is that many people misunderstand how flat roof metal trusses actually work. Some assume they're only used in warehouses. Others worry about cost or insulation issues. In reality, when designed correctly, these systems solve several structural challenges that traditional wood framing struggles with.

In this guide, I'll break down how flat roof metal trusses work, where they make the most sense, and the hidden design decisions that often determine whether a project succeeds or becomes expensive to fix later.

save pin

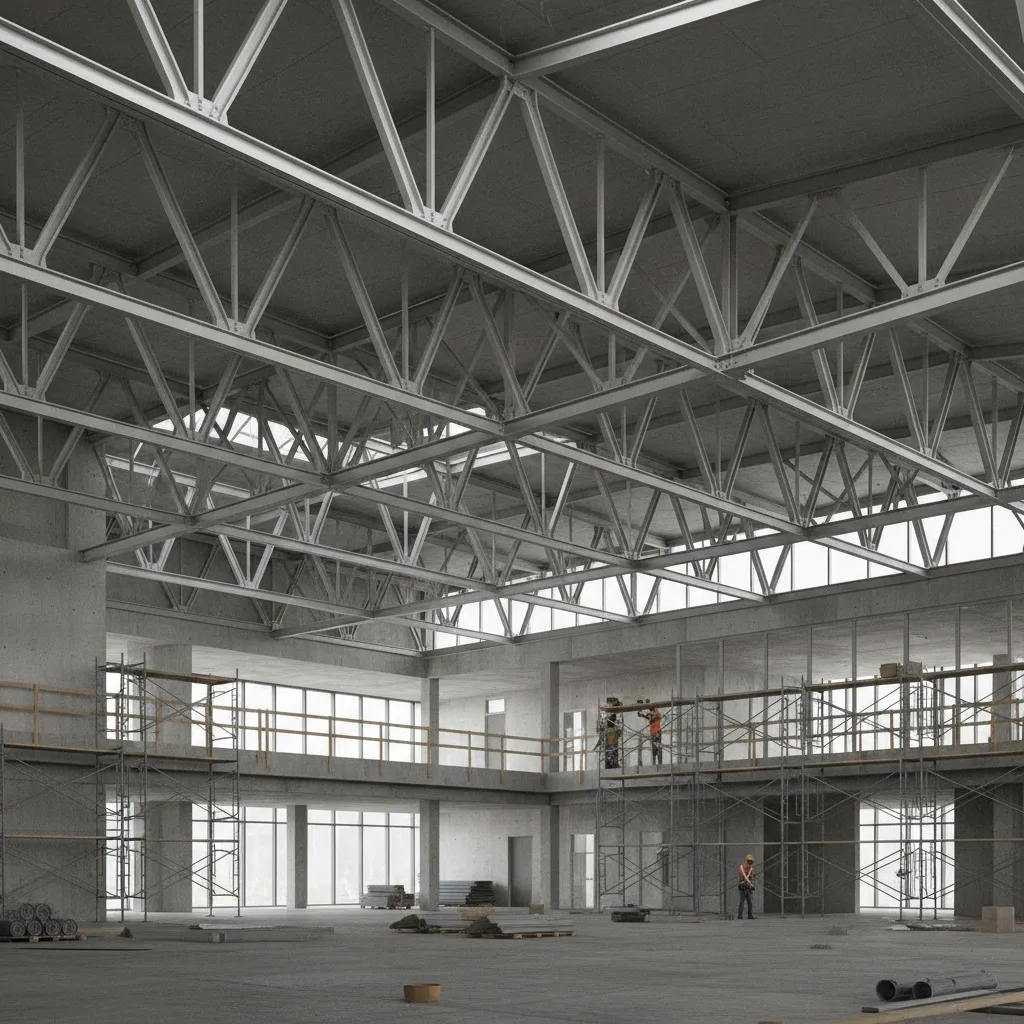

What Are Flat Roof Metal Trusses

Key Insight: Flat roof metal trusses use triangulated steel members to distribute loads across large spans while maintaining a shallow roof profile.

Unlike solid beams, trusses rely on triangular geometry to spread structural forces efficiently. This means less material can carry more load.

In flat roof applications, the top chord of the truss is typically designed with a slight pitch—usually between 1/8 and 1/4 inch per foot—to allow proper drainage.

Common components include:

1. Top chord supporting the roof deck
2. Bottom chord creating ceiling structure
3. Diagonal web members transferring loads
4. Steel gusset plates or welded joints

Steel trusses are typically fabricated off site using precision welding or bolted connections. According to the American Institute of Steel Construction, prefabricated steel systems reduce on site framing time and improve structural accuracy.

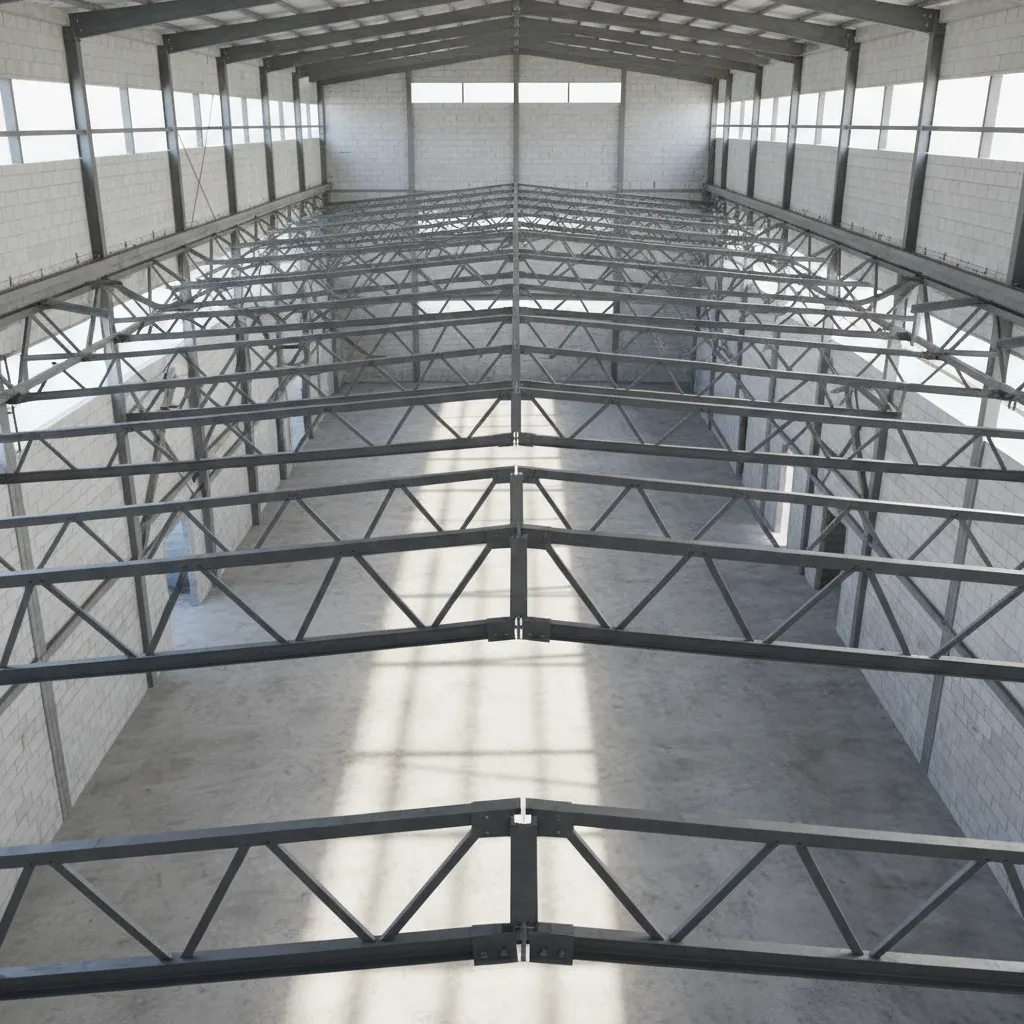

Why Are Metal Trusses Often Better Than Wood for Flat Roofs

Key Insight: Metal trusses outperform wood framing in flat roof applications because steel maintains structural stability across long spans and changing moisture conditions.

Flat roofs create unique structural challenges. Because they don't shed water as quickly as steep roofs, moisture exposure becomes a serious concern.

Wood framing can slowly warp or sag under these conditions. Steel trusses avoid many of these issues.

Key comparisons:

1. Span capability: Steel trusses often span 40–80 feet without interior supports.
2. Dimensional stability: Steel does not shrink, twist, or bow.
3. Pest resistance: No risk of termite damage.
4. Fire performance: Non-combustible structural material.

However, steel introduces thermal bridging risks, which is why insulation detailing becomes extremely important.

save pin

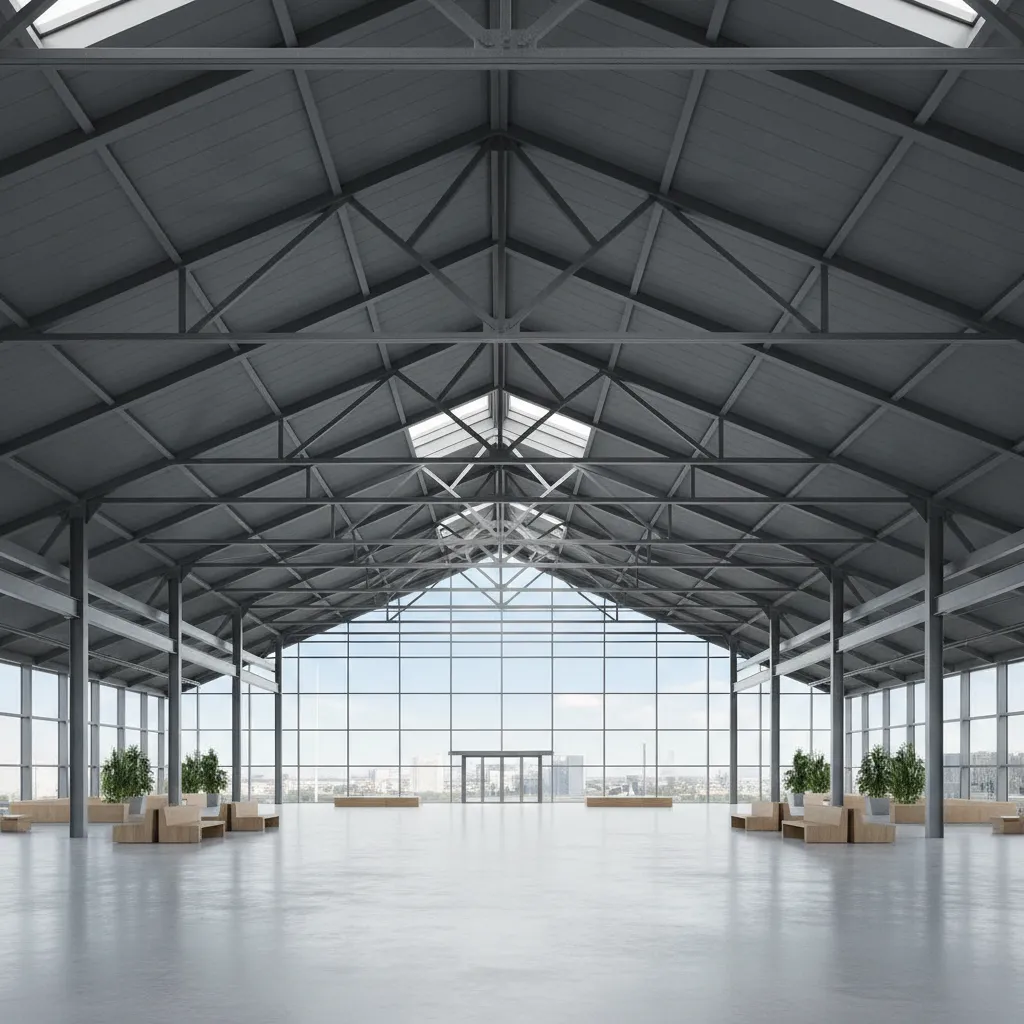

How Do Flat Roof Metal Trusses Improve Interior Layout Flexibility

Key Insight: Longer structural spans allow designers to eliminate load bearing interior walls and create open floor plans.

In many of the modern homes I've worked on, clients want wide living areas, integrated kitchens, and minimal structural interruptions. Traditional framing often forces columns or walls exactly where designers don't want them.

Flat roof metal trusses solve this by carrying loads across wider distances.

Typical span advantages:

1. Residential spans commonly reach 40–50 feet
2. Commercial spans may exceed 80 feet
3. Interior columns can often be eliminated

This flexibility is why you'll see steel trusses used in:

1. Modern residential architecture
2. Retail and restaurant interiors
3. Office spaces with open layouts
4. Large garages or workshops

Architects also appreciate that mechanical systems, ducts, and lighting can pass through truss openings rather than below beams.

save pin

What Hidden Design Problems Should You Watch For

Key Insight: The biggest failures in flat roof truss systems rarely come from the steel structure itself but from drainage, insulation, and detailing mistakes.

This is one of the most overlooked aspects of flat roof design. The truss structure is usually extremely strong, but surrounding design decisions can create problems.

Common hidden issues include:

1. Insufficient roof slope causing standing water
2. Poor insulation detailing creating condensation
3. Thermal bridging through steel members
4. Improper roof membrane selection

According to the National Roofing Contractors Association, poor drainage is one of the most common causes of premature flat roof failure.

Experienced structural and roofing coordination during early design stages prevents most of these issues.

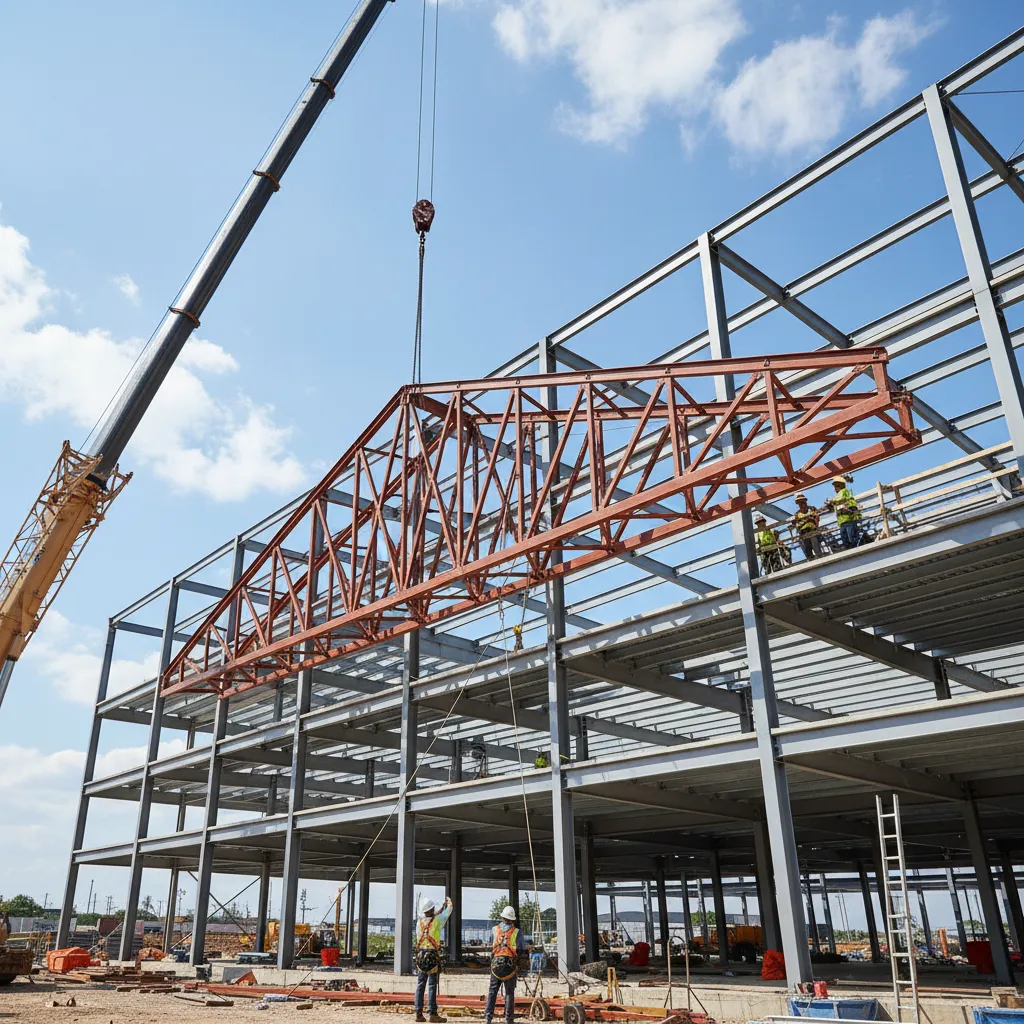

Are Flat Roof Metal Trusses More Expensive

Key Insight: Steel trusses typically cost more upfront but often reduce overall project costs through faster installation and structural efficiency.

Cost discussions often focus only on material price, which doesn't tell the full story.

Cost factors include:

1. Steel fabrication and transportation
2. Cranes required for installation
3. Reduced framing labor
4. Potential elimination of interior structural walls

In several multifamily projects I've worked on, switching from conventional framing to prefabricated steel trusses reduced framing time by nearly 30 percent.

Faster installation also reduces construction financing costs and weather exposure during framing.

save pin

When Should You Choose Flat Roof Metal Trusses

Key Insight: Metal trusses are most valuable when projects require long spans, open layouts, or high durability.

They make the most sense in these situations:

1. Modern architectural homes
2. Commercial buildings with wide interiors
3. Industrial structures
4. Renovations requiring large open spaces

However, for small homes with short spans, traditional wood framing may still be more economical.

The decision usually comes down to balancing span requirements, budget, and architectural goals.

Answer Box

Flat roof metal trusses provide strong, lightweight structural support for wide roof spans while maintaining a modern low profile roofline. When paired with proper drainage design and insulation detailing, they offer durability, layout flexibility, and long term structural stability.

Final Summary

1. Flat roof metal trusses support wide spans with fewer interior walls.
2. Steel framing resists moisture, pests, and structural warping.
3. Design success depends heavily on drainage and insulation detailing.
4. Higher upfront cost may reduce overall construction time.
5. They are ideal for modern architecture and open interior layouts.

FAQ

Are flat roof metal trusses stronger than wood trusses?

Yes. Steel trusses generally support longer spans and maintain structural stability better than wood under changing humidity and load conditions.

How long do flat roof metal trusses last?

Properly coated structural steel can last 50 years or more with minimal structural degradation.

Do metal trusses work for residential homes?

Yes. Flat roof metal trusses are increasingly used in modern residential architecture where open interior layouts are desired.

Do steel trusses make a building hotter?

Not necessarily. Thermal bridging must be addressed with proper insulation layers and roof assembly design.

What is the typical span for flat roof metal trusses?

Many flat roof metal trusses span between 40 and 80 feet depending on engineering design.

Are metal trusses more expensive than wood framing?

Material cost is usually higher, but reduced labor and wider spans can offset the difference.

Can flat roof metal trusses support rooftop equipment?

Yes. Engineers often design trusses to support HVAC units, solar panels, or rooftop decks.

Are flat roof metal trusses good for commercial buildings?

Absolutely. Many warehouses, offices, and retail buildings rely on flat roof metal trusses for structural efficiency.
