Exporting AutoCAD 3D Floor Plans to Rendering and Visualization Tools: Learn how to move AutoCAD 3D floor plans into modern rendering tools for realistic visualization and stronger client presentations.

Direct Answer

Exporting AutoCAD 3D floor plans to rendering software allows designers to transform technical models into photorealistic visuals for presentations and client approvals. The most reliable workflow usually involves exporting DWG or FBX files into visualization tools like 3ds Max, Lumion, Twinmotion, or SketchUp while preserving geometry and scale.

Preparing clean geometry, correct units, and optimized layers before export prevents most rendering issues and dramatically improves final image quality.

Quick Takeaways

1. Clean layers and simplified geometry dramatically reduce rendering problems after export.
2. FBX and DWG are the most stable formats for moving AutoCAD models to visualization software.
3. 3ds Max offers the deepest rendering control for architectural presentations.
4. Real-time tools like Lumion and Twinmotion produce faster client-ready visuals.
5. Export preparation often matters more than the rendering software you choose.

Introduction

Most architects and designers eventually hit the same wall: AutoCAD is fantastic for precision modeling, but it was never built to produce presentation-quality visuals. When clients want realistic lighting, materials, and atmosphere, a raw AutoCAD model rarely delivers.

That is why exporting AutoCAD 3D floor plans into rendering tools has become a standard part of the modern visualization workflow. After more than a decade working on residential and commercial interiors, I have rarely seen a project go straight from AutoCAD to client presentation without some form of rendering software in between.

Before jumping into rendering, it helps to understand how spatial visualization tools fit into the design process. Many designers first convert technical layouts into interactive models using tools like visual planning environments that transform floor plans into navigable 3D spaces. Once the structure is clear, exporting the AutoCAD model becomes far more predictable.

The challenge is that many guides focus only on export buttons and file formats. In reality, most visualization problems come from messy geometry, heavy models, or incompatible materials created during modeling.

In this guide, I will walk through the workflows professionals actually use to move AutoCAD models into rendering platforms, including preparation steps that save hours of troubleshooting later.

save pin

Why Export AutoCAD Floor Plans to Rendering Software

Key Insight: AutoCAD models communicate technical information well, but rendering software translates those models into images that clients can actually understand.

In professional practice, the biggest communication gap isn't between designers and builders—it's between designers and clients. A DWG file full of lines and surfaces may be perfectly clear to an architect, but most homeowners cannot interpret it.

Rendering tools solve this problem by converting geometry into environments with materials, shadows, and real-world lighting.

Typical benefits include:

1. Photorealistic materials such as wood, stone, and fabrics
2. Natural lighting simulations
3. Walkthrough animations and camera views
4. Faster client approvals

According to Autodesk documentation, visualization tools significantly reduce design revisions because clients can better understand the space before construction begins.

In many of my residential projects, a single rendered image eliminates weeks of back-and-forth revisions that often occur when clients only see technical plans.

Preparing Your 3D Model for Export

Key Insight: A clean AutoCAD model exports faster and produces dramatically better rendering results than a complex or poorly structured file.

This step is where most rendering workflows either succeed or fall apart. When designers complain that Lumion or Twinmotion "breaks" their model, the issue usually started inside AutoCAD.

Before exporting, I always run through a quick preparation checklist:

Model cleanup checklist

1. Purge unused blocks and layers
2. Remove duplicate geometry
3. Ensure all objects are properly grouped
4. Convert complex CAD blocks into simpler geometry
5. Confirm correct unit scale

One overlooked issue is extremely small or overlapping surfaces. Rendering engines treat these as separate objects, which can create flickering shadows or broken textures.

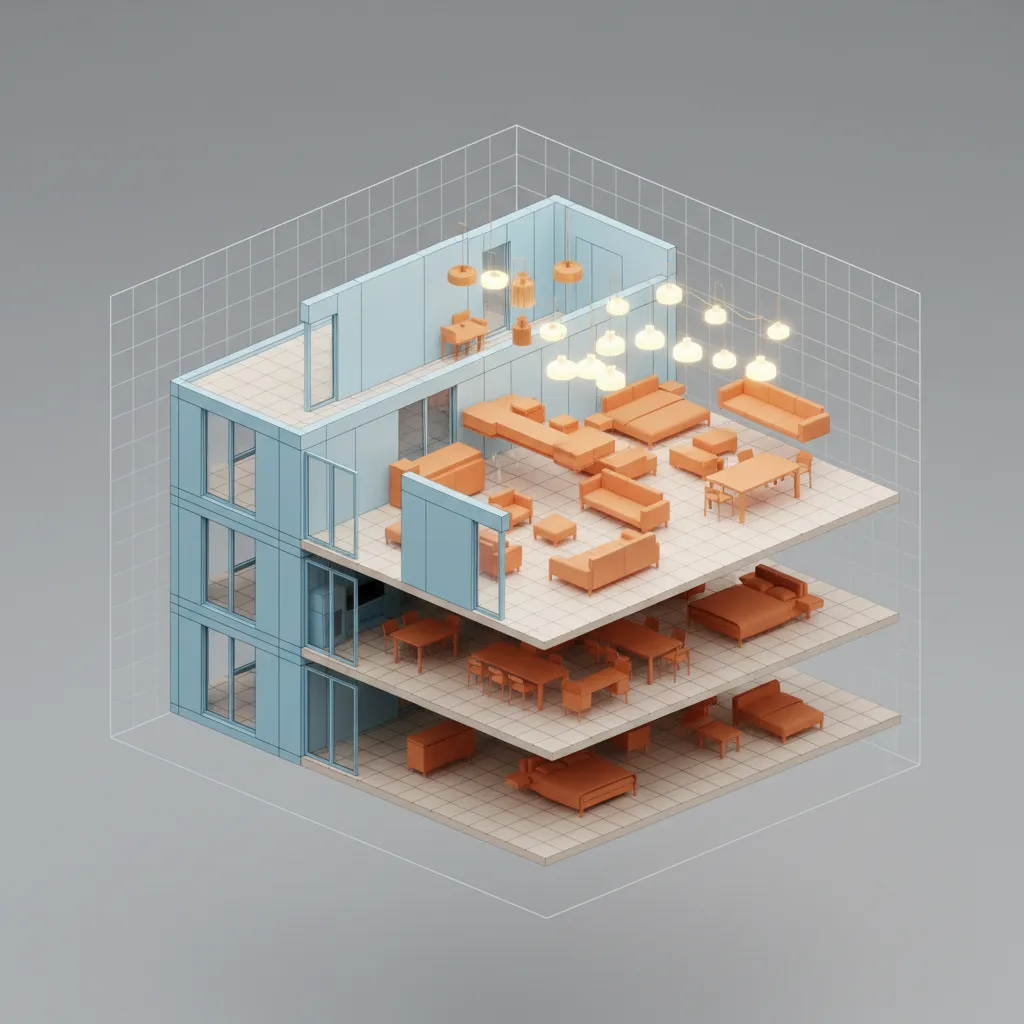

For interior projects, I also recommend separating the model into layers such as:

1. Walls
2. Floor slabs
3. Furniture
4. Lighting fixtures
5. Structural elements

This organization makes it far easier to assign materials later in visualization software.

save pin

Exporting AutoCAD Models to 3ds Max

Key Insight: 3ds Max remains the most powerful pipeline for detailed architectural rendering when exporting from AutoCAD.

In professional studios, the AutoCAD-to-3ds-Max workflow is still considered the gold standard for high-end visualization. Autodesk designed both platforms to integrate well together.

The typical workflow looks like this:

Step-by-step export workflow

1. Clean geometry and purge unused layers
2. Save the model as a DWG file
3. Import the DWG file into 3ds Max
4. Assign materials using the material editor
5. Set lighting and camera views
6. Render using V-Ray or Arnold

The major advantage is control. 3ds Max allows precise material adjustments, advanced lighting systems, and high-resolution rendering suitable for marketing visuals.

The trade-off is time. A fully rendered interior scene may require hours of setup and rendering.

Using SketchUp, Lumion, or Twinmotion for Visualization

Key Insight: Real-time rendering tools dramatically reduce visualization time while still producing convincing architectural visuals.

Over the past five years, many design studios have shifted toward real-time visualization platforms because they produce results in minutes instead of hours.

Common workflows include:

1. AutoCAD → SketchUp → Lumion
2. AutoCAD → FBX → Twinmotion
3. AutoCAD → SketchUp → Enscape

These tools focus on speed and ease of use rather than extreme rendering precision.

For example:

1. Lumion excels at outdoor environments and landscapes
2. Twinmotion is excellent for interactive walkthroughs
3. SketchUp simplifies geometry editing

Many designers now combine these workflows with modern visualization platforms that allow teams to turn conceptual interiors into photorealistic visual scenesbefore committing to final renders.

save pin

File Formats That Preserve Geometry and Materials

Key Insight: Choosing the correct export format prevents missing textures, broken geometry, and scaling errors.

Not all file formats handle architectural models equally well. Some prioritize compatibility, while others preserve detailed material data.

Common export formats

1. DWG – Best for Autodesk-based pipelines
2. FBX – Excellent for transferring geometry and materials
3. OBJ – Widely supported but limited material handling
4. SKP – Useful when exporting to SketchUp

In my experience, FBX tends to produce the most stable results when moving models into modern real-time renderers.

The most common export mistakes include:

1. Incorrect unit scale
2. Overly dense meshes
3. Exploded blocks creating thousands of small objects

Fixing these problems before export saves significant time later.

Answer Box

The most reliable workflow for visualizing AutoCAD 3D floor plans is to export a clean DWG or FBX model into rendering tools like 3ds Max, Lumion, or Twinmotion. Proper model preparation—especially layer cleanup and scale control—has a larger impact on rendering quality than the software itself.

Choosing the Best Rendering Workflow for Your Project

Key Insight: The best visualization workflow depends on project goals, rendering quality needs, and available production time.

After working on dozens of residential design projects, I usually categorize rendering workflows into three practical tiers:

Common visualization workflows

1. High-end marketing renders
2. AutoCAD → 3ds Max → V-Ray
3. Fast architectural visualization
4. AutoCAD → Lumion or Twinmotion
5. Concept design visualization
6. AutoCAD → interactive rendering tools

Another growing approach is to export the structure and then refine presentation scenes inside tools that allow designers to produce photorealistic home renderings for design presentationswithout building every material manually.

This hybrid workflow has become especially popular for interior designers who need fast visuals but still want professional-quality presentations.

save pin

Final Summary

1. AutoCAD models need rendering tools to create presentation-quality visuals.
2. Cleaning geometry before export prevents most visualization problems.
3. FBX and DWG formats offer the most reliable cross‑software compatibility.
4. Real-time rendering tools dramatically speed up client presentations.
5. The best workflow depends on project quality and time requirements.

FAQ

1. What is the best format to export AutoCAD 3D floor plans for rendering?

FBX and DWG are typically the most reliable formats. FBX preserves geometry and materials well for most modern rendering engines.

2. Can you render directly inside AutoCAD?

Yes, but AutoCAD rendering tools are limited compared with dedicated visualization software like Lumion, Twinmotion, or 3ds Max.

3. How do I export an AutoCAD 3D model to 3ds Max?

Save the model as a DWG file, then import it directly into 3ds Max using the built‑in import tool.

4. Why do textures disappear when exporting AutoCAD models?

Materials often break because of unsupported file formats or missing texture paths during export.

5. What software works best with AutoCAD for rendering?

3ds Max, Lumion, Twinmotion, and SketchUp are commonly used for visualizing AutoCAD architectural models.

6. How can I visualize AutoCAD architectural models quickly?

Real-time rendering platforms such as Lumion and Twinmotion allow rapid visualization of AutoCAD architectural models.

7. Is Twinmotion good for rendering AutoCAD floor plans?

Yes. Twinmotion handles AutoCAD 3D export workflows well and supports fast real‑time walkthroughs.

8. How heavy should an AutoCAD model be before exporting?

Keep polygon counts low and remove unnecessary geometry to ensure smooth rendering performance.
