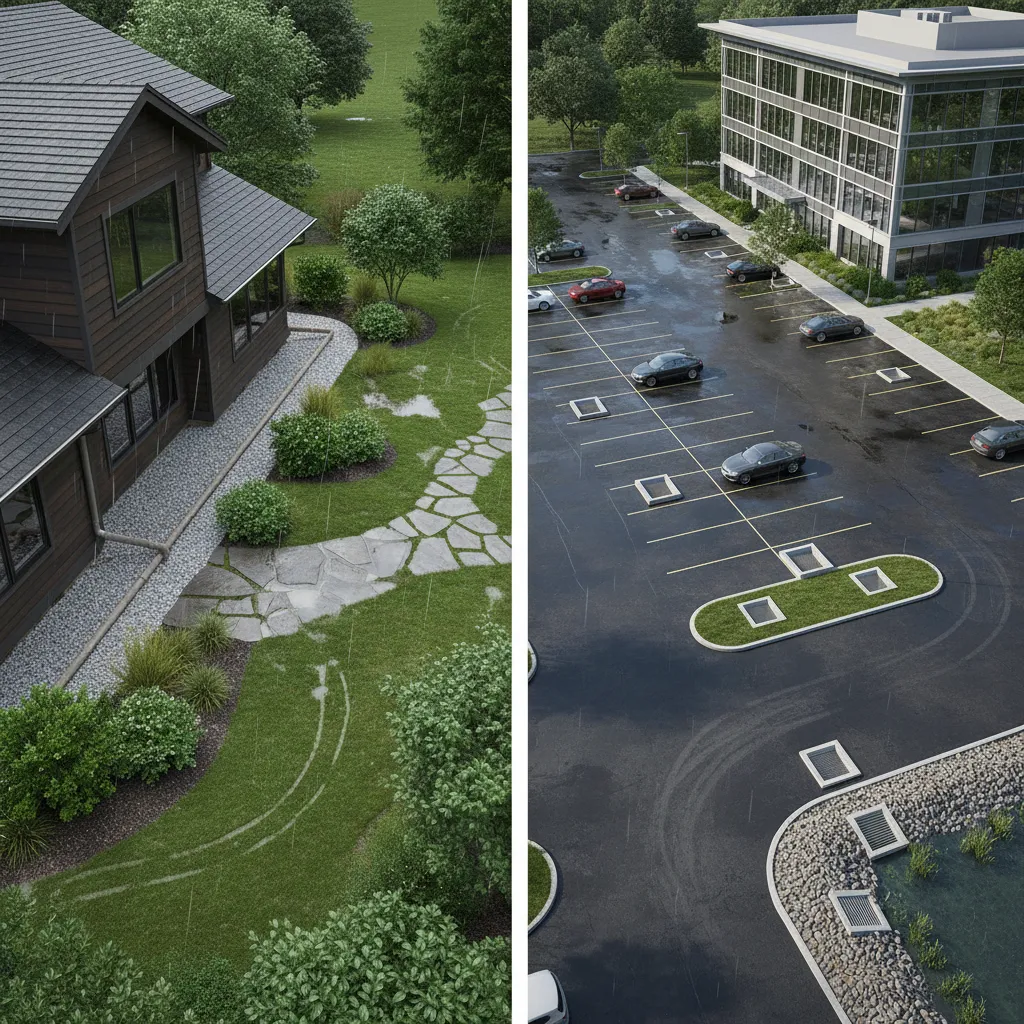

Exterior Drainage Systems in Residential vs Commercial Construction: Understand how drainage design, regulations, and infrastructure differ between homes and large building projects.

Direct Answer

Exterior drainage systems in residential construction typically focus on protecting a single home’s foundation and yard from water buildup, while commercial drainage systems manage significantly larger volumes of stormwater across complex surfaces like parking lots, roofs, and multi‑building sites. The difference lies in scale, regulatory requirements, infrastructure complexity, and long‑term stormwater management strategies.

Quick Takeaways

1. Residential drainage protects foundations and landscaping on relatively small lots.
2. Commercial drainage must manage stormwater across large impervious surfaces.
3. Commercial projects follow stricter engineering standards and regulatory reviews.
4. System components scale from simple yard drains to complex stormwater networks.
5. Poor drainage design can damage structures and cause regulatory violations.

Introduction

After working on residential renovations and consulting on several mixed‑use developments, I’ve learned that exterior drainage systems are often underestimated until problems appear. Homeowners usually think about wet lawns or basement leaks, while commercial developers worry about parking lot flooding, municipal inspections, and stormwater runoff compliance.

The underlying principle is the same: water must move safely away from structures. But the way we design for that goal changes dramatically between residential homes and commercial buildings.

In a typical house project, I might focus on grading adjustments, downspout extensions, or French drains. In commercial construction, drainage planning often begins before the building design is finalized because stormwater management affects the entire site layout.

If you want a visual reference for how drainage interacts with property layout, exploring how site layout and structures align within a full property plancan make these relationships much easier to understand.

This article breaks down the practical differences between residential and commercial exterior drainage systems, the regulations that guide them, and how contractors approach large‑scale drainage planning.

save pin

Overview of Exterior Drainage in Construction Projects

Key Insight: Exterior drainage exists to control how stormwater moves across a property and away from structures, preventing erosion, flooding, and structural damage.

Whether residential or commercial, the objective is the same: guide water away before it becomes destructive. But the complexity of that goal changes dramatically depending on the site.

In residential construction, water usually comes from three main sources:

1. Roof runoff
2. Surface rainwater
3. Groundwater accumulation

Commercial properties introduce additional challenges:

1. Large impervious surfaces like asphalt and concrete
2. Massive roof areas generating high runoff volumes
3. Municipal stormwater discharge regulations
4. Parking lot and traffic area drainage

According to the U.S. Environmental Protection Agency (EPA), urban surfaces dramatically increase runoff because water cannot infiltrate the soil. That’s why larger developments require engineered drainage systems rather than simple grading.

Residential Exterior Drainage System Design

Key Insight: Residential drainage systems prioritize foundation protection, soil stability, and yard usability.

In most home projects, drainage design revolves around protecting the building envelope. A poorly drained yard can lead to basement moisture, foundation cracks, and landscaping damage.

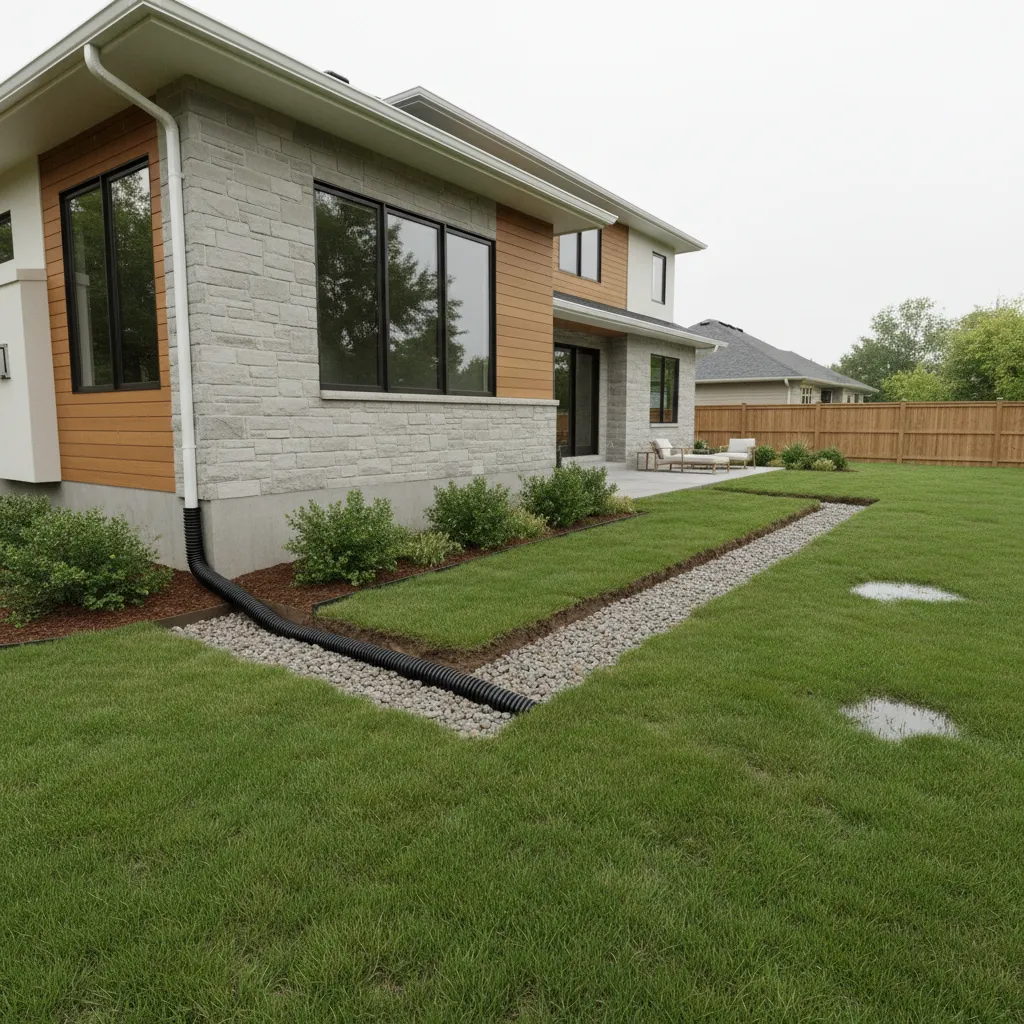

Typical residential drainage solutions include:

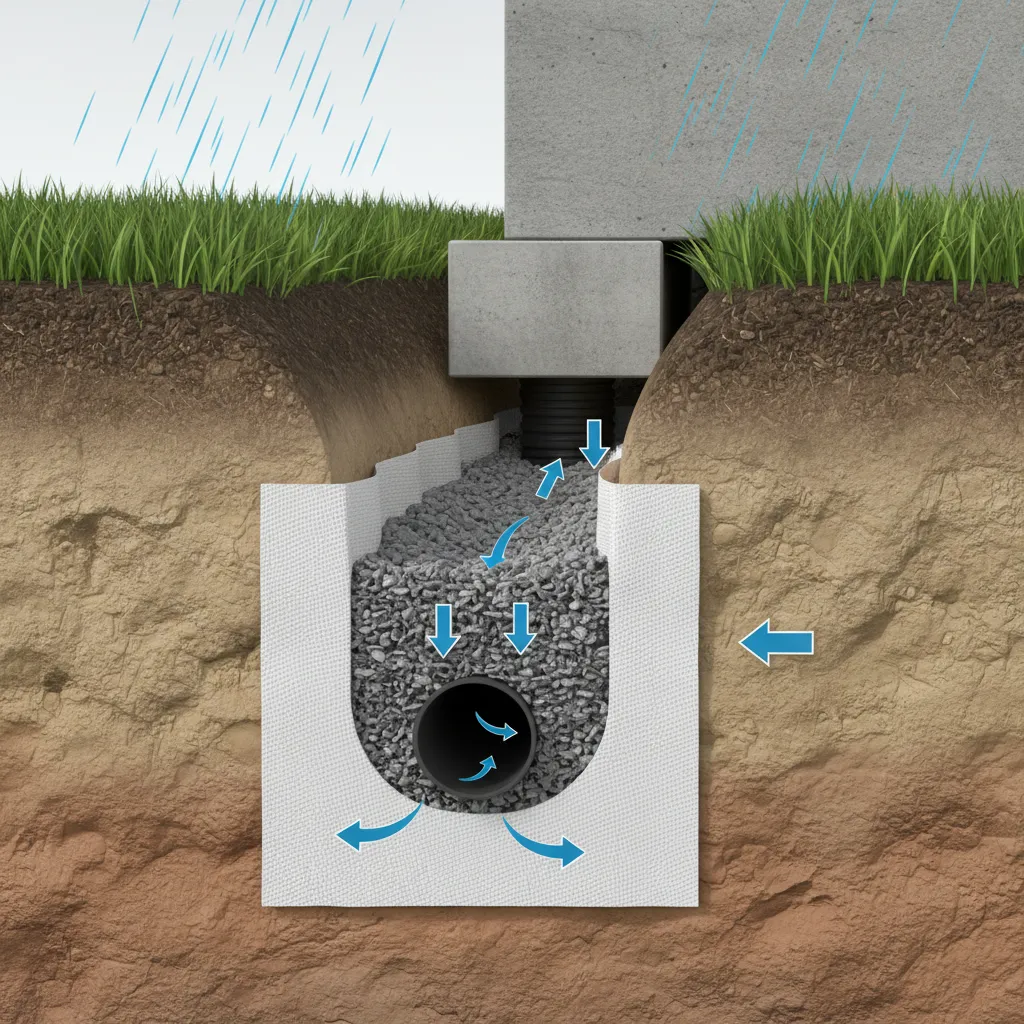

1. French drains along foundations
2. Surface channel drains in patios or driveways
3. Downspout extensions and splash blocks
4. Grading that slopes away from the home
5. Dry wells for localized water absorption

A common mistake I see homeowners make is focusing on a single fix instead of the entire drainage path. For example, installing a French drain without correcting roof runoff simply moves the water problem somewhere else.

Many design teams now model property grading early in planning. Tools that demonstrate how homeowners visualize property layouts and yard planninghelp reveal where water will naturally collect.

save pin

Commercial Drainage Requirements and Infrastructure

Key Insight: Commercial drainage systems must control massive stormwater volumes and safely channel runoff into municipal or engineered management systems.

Commercial sites introduce scale problems that residential drainage never encounters. A single shopping center roof can produce thousands of gallons of runoff during a heavy storm.

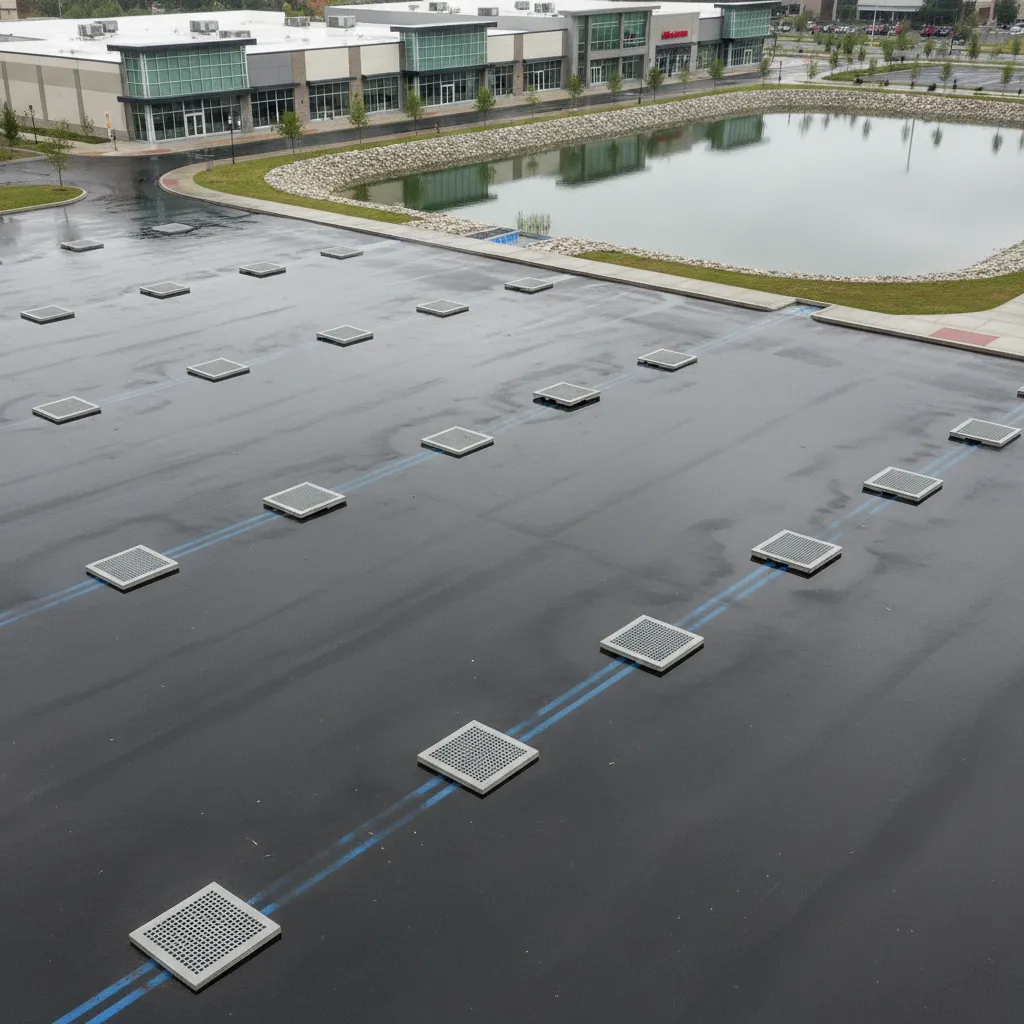

Because of this, commercial drainage systems often include:

1. Stormwater detention or retention ponds
2. Underground drainage pipe networks
3. Catch basins and trench drains
4. Permeable pavement systems
5. Large underground stormwater vaults

These systems are engineered to slow, store, or redirect stormwater before it reaches municipal infrastructure.

The hidden cost most developers underestimate is land allocation. Stormwater basins and drainage corridors can consume a significant portion of the site footprint.

save pin

Building Codes and Drainage Regulations

Key Insight: Residential drainage is guided mainly by building codes, while commercial systems must comply with broader environmental and municipal stormwater regulations.

For residential construction, drainage requirements are typically addressed in:

1. Local building codes
2. International Residential Code (IRC)
3. Foundation waterproofing standards

Commercial projects face additional layers of oversight such as:

1. Stormwater Pollution Prevention Plans (SWPPP)
2. Municipal stormwater discharge permits
3. EPA stormwater management rules
4. Civil engineering reviews

One overlooked challenge is runoff liability. Commercial property owners may be held responsible if site drainage negatively impacts neighboring properties.

Common Materials and Technologies Used in Industry

Key Insight: The materials used in drainage systems scale from simple perforated pipes in homes to reinforced concrete and engineered plastic vault systems in commercial projects.

Residential drainage commonly uses:

1. Perforated PVC pipes
2. Gravel drainage trenches
3. Plastic catch basins
4. Flexible corrugated pipe

Commercial construction uses heavier infrastructure such as:

1. Reinforced concrete storm pipes
2. High‑capacity trench drains
3. Stormwater filtration systems
4. Modular underground storage tanks
5. Geotextile filtration layers

Newer developments also incorporate sustainable drainage technologies such as bioswales, rain gardens, and permeable pavement to reduce environmental impact.

Answer Box

Residential exterior drainage systems protect a single structure and yard using grading, drains, and downspouts. Commercial drainage systems manage large volumes of stormwater through engineered infrastructure such as detention basins, catch basins, and underground piping networks.

How Contractors Plan Large Scale Drainage Systems

Key Insight: Commercial drainage planning starts with site grading and hydrology analysis before construction begins.

Large projects typically follow a structured planning process:

1. Topographic land survey
2. Stormwater flow modeling
3. Grading and slope planning
4. Drainage network design
5. Municipal review and approval

Contractors and designers often visualize the entire property before finalizing drainage routes. Seeing how large sites and building footprints are mapped together in early planning helps teams identify runoff paths before construction begins.

Final Summary

1. Residential drainage protects foundations and yard spaces.
2. Commercial drainage manages large stormwater volumes.
3. Regulations and environmental rules shape commercial system design.
4. Infrastructure complexity increases dramatically with property scale.
5. Early site planning is critical for effective drainage systems.

FAQ

What is the main difference between residential vs commercial drainage systems?

Residential systems manage water around a single home, while commercial drainage systems handle much larger stormwater volumes across complex sites.

Why are commercial drainage systems more complex?

Large impervious surfaces like roofs and parking lots generate massive runoff that requires engineered infrastructure and regulatory compliance.

Do residential homes need engineered drainage systems?

Most homes rely on grading, French drains, and gutters, but properties with steep slopes or heavy rainfall may require engineered solutions.

What are common yard drainage systems for residential homes?

Common solutions include French drains, channel drains, dry wells, and properly directed downspouts.

What is stormwater drainage in building projects?

Stormwater drainage refers to systems that collect, transport, store, or filter rainwater to prevent flooding and environmental damage.

Can poor exterior drainage damage foundations?

Yes. Persistent water buildup can weaken soil support, cause hydrostatic pressure, and eventually lead to structural damage.

Do commercial properties require stormwater permits?

Most large developments must submit stormwater management plans and obtain approval from local authorities.

How do contractors calculate drainage capacity?

Engineers analyze rainfall intensity, surface area, soil absorption rates, and slope to determine proper drainage infrastructure.
