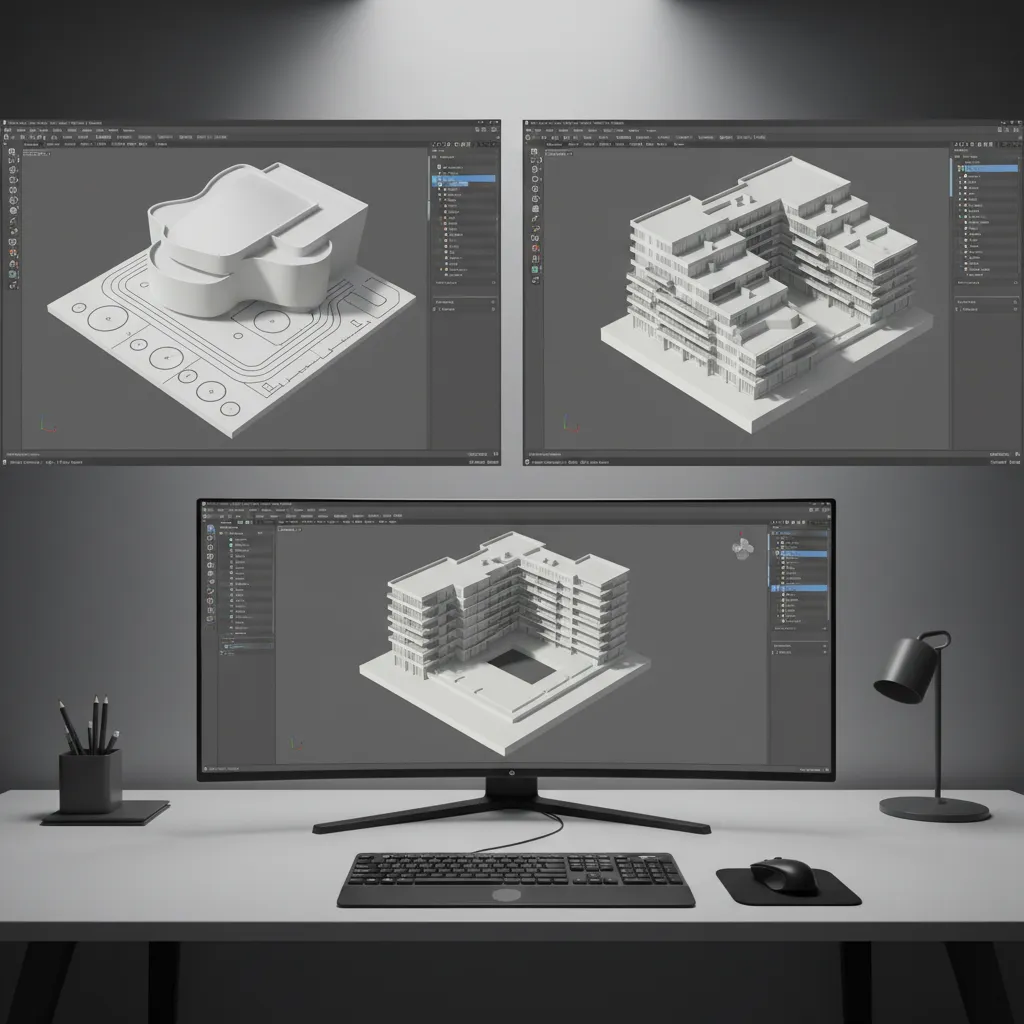

Extrude vs Sweep vs Loft for 3D Floor Plan Modeling: Understand which CAD modeling method actually works best when turning a 2D floor plan into a clean and accurate 3D structure

Direct Answer

Extrude, sweep, and loft are three common CAD modeling methods, but they serve different purposes in architectural workflows. For most 3D floor plan modeling tasks, extrusion is the fastest and most reliable method because it converts 2D wall outlines directly into vertical structures. Sweep and loft are better suited for curved paths, custom railings, or complex building forms rather than standard floor plan geometry.

Quick Takeaways

1. Extrusion is the fastest way to convert 2D wall outlines into 3D architectural structures.
2. Sweep is useful for elements that follow a path such as railings, pipes, or curved moldings.
3. Loft works best for complex transitions between shapes, often used in modern architecture.
4. Most residential and commercial floor plans rely primarily on extrusion.
5. Combining all three techniques produces the most flexible CAD workflow.

Introduction

When designers first start building a 3D floor plan model, they usually hear three terms thrown around in CAD tutorials: extrude, sweep, and loft. At first glance they look similar because all three convert 2D profiles into 3D geometry. But after working on residential renovations, office layouts, and visualization projects for more than a decade, I can say the choice between them dramatically affects modeling speed and accuracy.

In architectural modeling, extrusion is typically the backbone of the workflow. Walls, columns, and structural masses are almost always created by extruding floor plan outlines upward. If you want to see how professionals typically convert layouts into full spatial models, studying a complete workflow for building a 3D layout from a simple floor planis a good starting point.

However, sweep and loft are not useless alternatives. In fact, many modern buildings rely heavily on them for curved structures, sculptural elements, and parametric forms. The real question is not which tool is better overall, but which one fits the type of geometry you are building.

Let’s break down how each method works and where designers actually use them in real architectural modeling.

save pin

What Extrusion Does in 3D Floor Plan Modeling

Key Insight: Extrusion turns a 2D floor plan profile into a vertical 3D object by extending it along a straight axis.

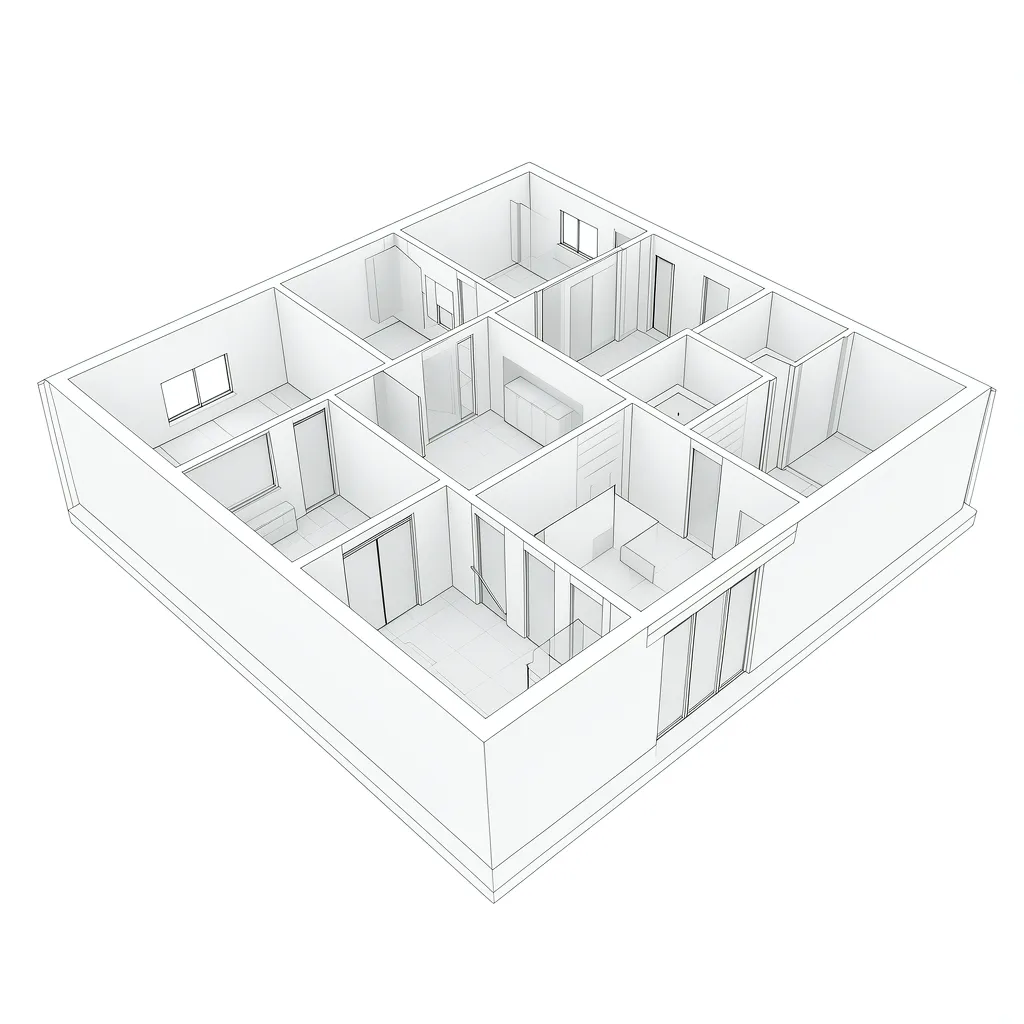

In practical architectural work, extrusion is the most common modeling operation. You start with a closed 2D outline—usually walls drawn from a floor plan—and extend that shape upward to create volume.

This approach works perfectly because most buildings are fundamentally vertical structures. Walls rise from the floor to the ceiling at consistent heights, which aligns exactly with how extrusion works.

Typical elements created with extrusion

1. Interior and exterior walls
2. Columns and structural cores
3. Floor slabs
4. Window openings
5. Door frames

One of the biggest advantages is modeling speed. When I worked on a 12‑unit apartment visualization project, nearly 85% of the building geometry came from simple extrusions of the floor plan.

Industry tools like AutoCAD, SketchUp, Revit, and many real‑time planners rely heavily on extrusion because it keeps models lightweight and predictable.

How Sweep Works for Architectural Elements

Key Insight: Sweep creates 3D geometry by moving a profile along a path rather than pushing it straight upward.

Unlike extrusion, sweep follows a curve or custom path. This makes it incredibly useful for architectural components that do not move in a straight vertical direction.

Common sweep applications in architecture

1. Handrails following stair curves
2. Pipe systems and conduits
3. Decorative trim and moldings
4. Curved beams
5. Complex façade elements

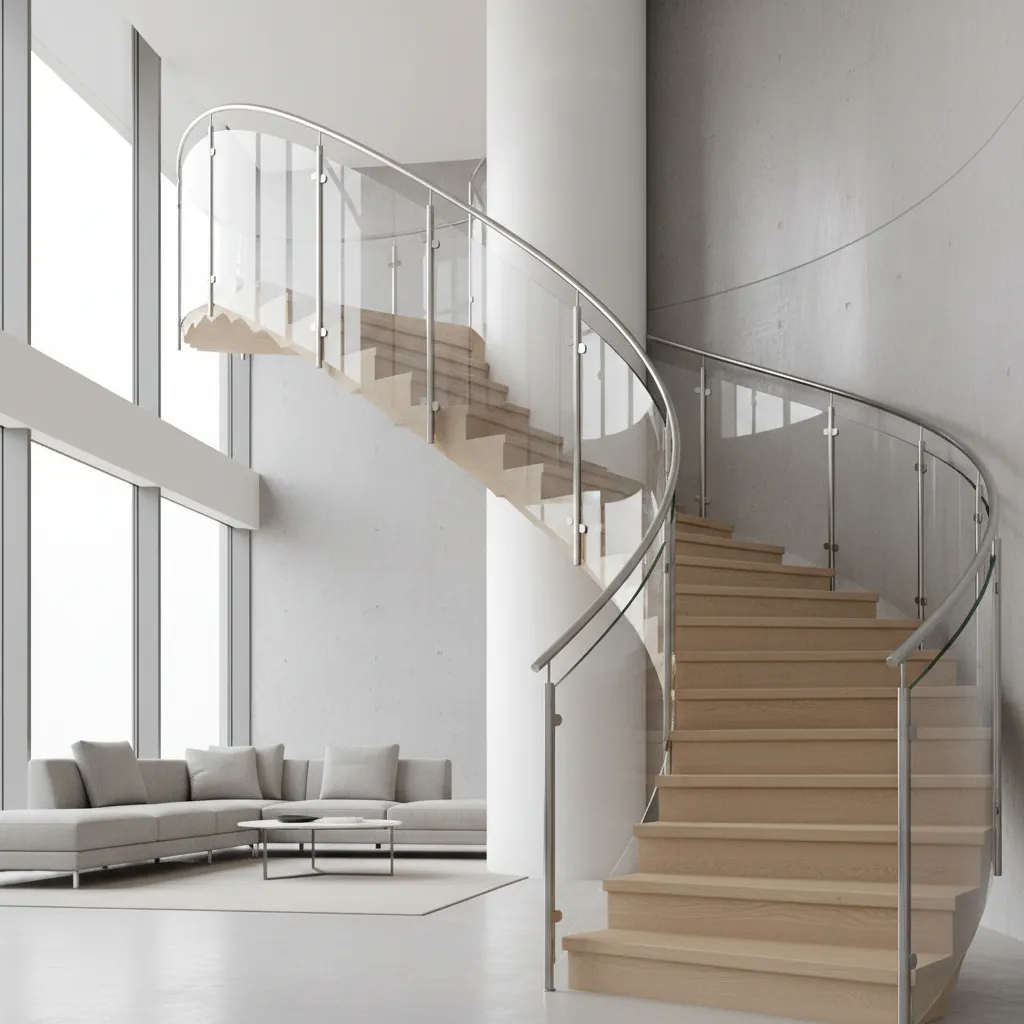

For example, when modeling a spiral staircase railing, extrusion simply cannot work because the geometry must follow the stair path. Sweep allows the profile of the railing to travel along that curved trajectory.

That said, using sweep for basic wall construction is usually a mistake. I occasionally see beginners try to sweep wall profiles along floor plan lines, which creates heavier geometry and complicates edits later.

save pin

Using Loft for Complex Building Shapes

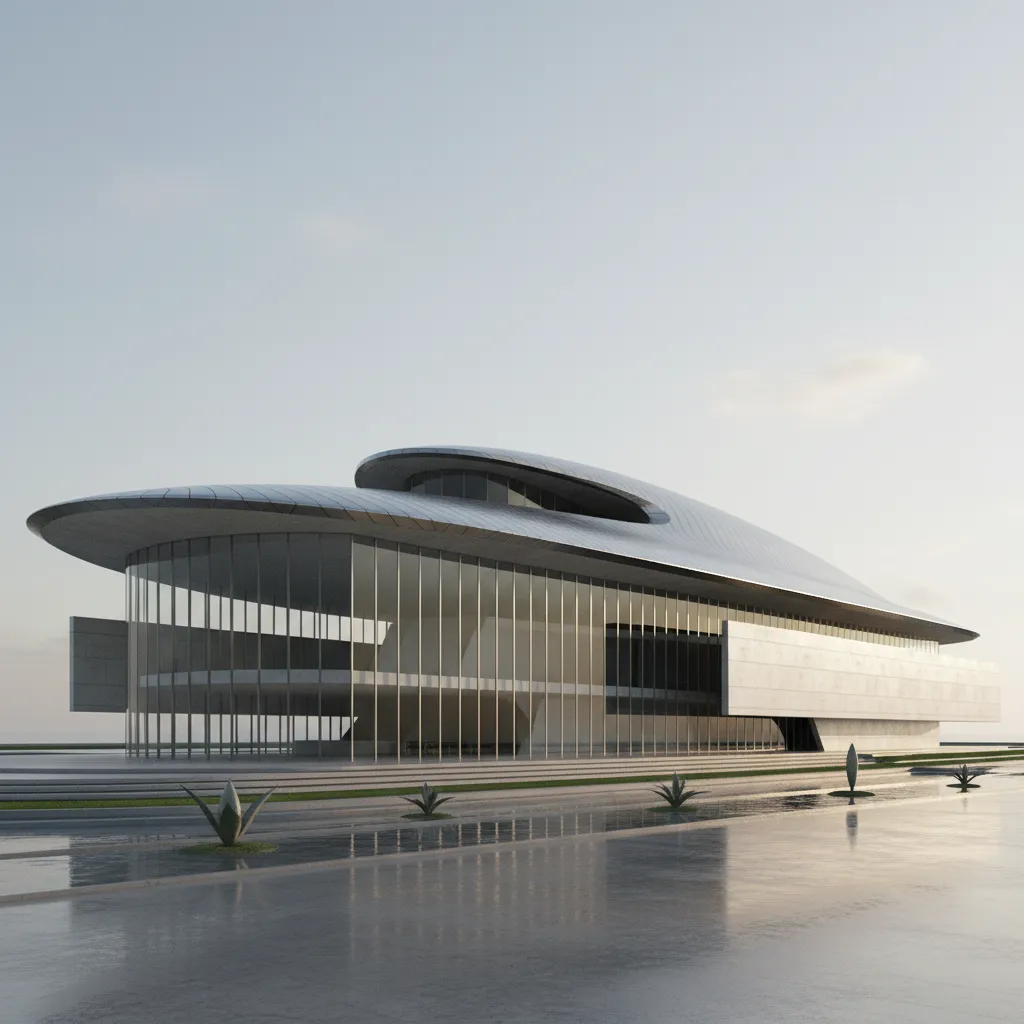

Key Insight: Loft connects multiple profiles to generate transitional surfaces, making it ideal for organic or non‑linear architecture.

Loft is where things get more advanced. Instead of extending a single shape, loft blends between two or more profiles.

Architects often use loft when designing:

1. Museum roofs
2. Parametric building skins
3. Organic pavilion structures
4. Twisting towers
5. Irregular atrium forms

Think about projects like the Guggenheim Museum Bilbao or contemporary airport terminals. Those flowing forms cannot be built using simple extrusions.

But for everyday floor plan modeling, loft introduces unnecessary complexity. Editing lofted surfaces later often requires rebuilding the entire shape.

save pin

Advantages and Limitations of Each Method

Key Insight: The real difference between extrude, sweep, and loft comes down to geometry simplicity versus shape flexibility.

After modeling hundreds of interior layouts and architectural concepts, I usually summarize the three methods like this:

1. Extrude – best for speed and structural geometry
2. Sweep – best for path‑based components
3. Loft – best for complex form transitions

Comparison overview

1. Extrusion: fastest modeling speed, simplest geometry
2. Sweep: flexible path control, moderate complexity
3. Loft: highest design freedom, hardest to edit

For most residential projects, extrusion handles walls, floors, and openings, while sweep and loft are used only for specific design features.

If you want to see how these operations fit into a real layout workflow, reviewing a step by step room layout planning process used by interior designers shows how structural modeling and spatial planning interact.

Answer Box

Extrusion is the best method for converting most floor plans into 3D models because architectural walls are vertical and consistent in height. Sweep and loft are specialized tools mainly used for curved paths or complex building forms.

When Extrusion Is the Best Choice for Floor Plans

Key Insight: Extrusion should be the default technique when modeling walls, slabs, and structural elements from a floor plan.

In practical architectural modeling, extrusion wins in three important areas.

1. Speed

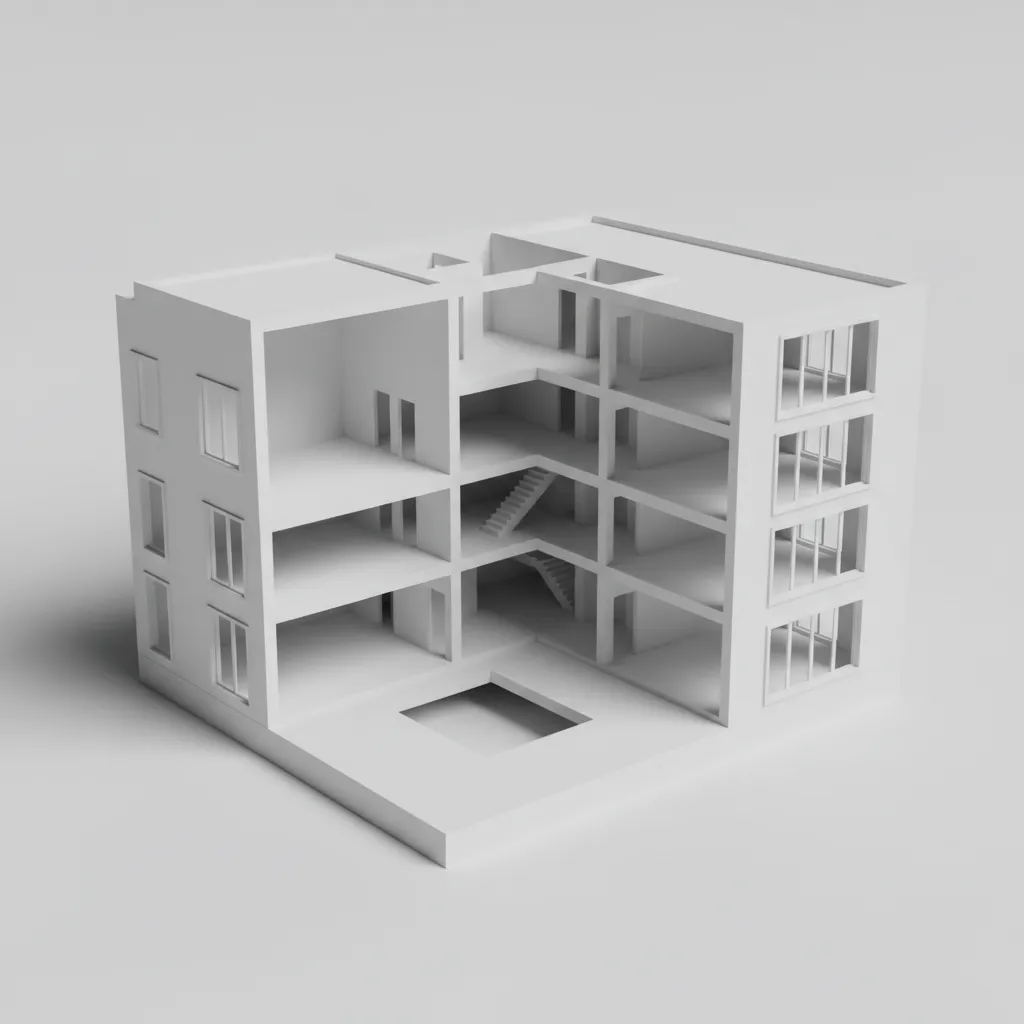

You can generate a full building shell in minutes by extruding wall outlines.

2. Clean geometry

Extruded solids produce predictable topology, which helps when exporting models for rendering or BIM coordination.

3. Easy edits

Changing ceiling height or wall thickness is straightforward with extruded objects.

For example, in visualization pipelines where designers generate realistic perspectives after modeling, many rely on tools that combine extrusion with automated rendering. A good example is exploring how professionals generate high quality interior visualizations directly from 3D layout models.

save pin

Choosing the Right Method for Your CAD Workflow

Key Insight: Efficient CAD workflows use extrusion as the structural base and add sweep or loft only where geometry demands it.

After years of architectural visualization and layout design, I usually recommend this simple workflow structure.

Recommended modeling sequence

1. Start with a clean 2D floor plan.
2. Extrude walls and structural components.
3. Add openings such as doors and windows.
4. Use sweep for rails, trims, and pipes.
5. Apply loft only for complex architectural features.

This layered approach keeps models easy to edit while still allowing advanced shapes where needed.

The biggest mistake I see beginners make is jumping straight into complex modeling tools before establishing a clean extruded structure. In architecture, simple geometry usually wins.

Final Summary

1. Extrusion is the fastest method for turning floor plans into 3D architectural models.
2. Sweep is best for elements that follow curved or custom paths.
3. Loft enables complex form transitions but increases modeling complexity.
4. Most building geometry should start with extrusion.
5. Efficient workflows combine all three methods strategically.

FAQ

What is the difference between extrude and sweep in CAD?

Extrude pushes a 2D profile in a straight direction to create 3D geometry. Sweep moves the profile along a custom path, which may be curved or angled.

Is extrusion the best method to convert a floor plan to 3D CAD?

Yes. For most architectural projects, extrusion is the best method to convert a floor plan to 3D CAD because walls and structural elements are vertically consistent.

When should I use loft in architecture modeling?

Use loft when creating complex forms that transition between multiple shapes, such as curved roofs or sculptural facades.

Can extrusion create curved walls?

Yes, if the floor plan contains curved lines. The extrusion will follow that outline vertically.

Is sweep slower than extrusion?

Generally yes. Sweep requires path calculations and often creates more complex geometry.

Which modeling method is easiest for beginners?

Extrusion is typically the easiest because it directly converts 2D shapes into simple 3D volumes.

Do architects use extrusion in BIM software?

Yes. BIM platforms like Revit use extrusion or similar operations for walls, floors, and massing models.

Can you combine extrusion, sweep, and loft in one model?

Absolutely. Most professional architectural models combine all three methods depending on the geometry required.
