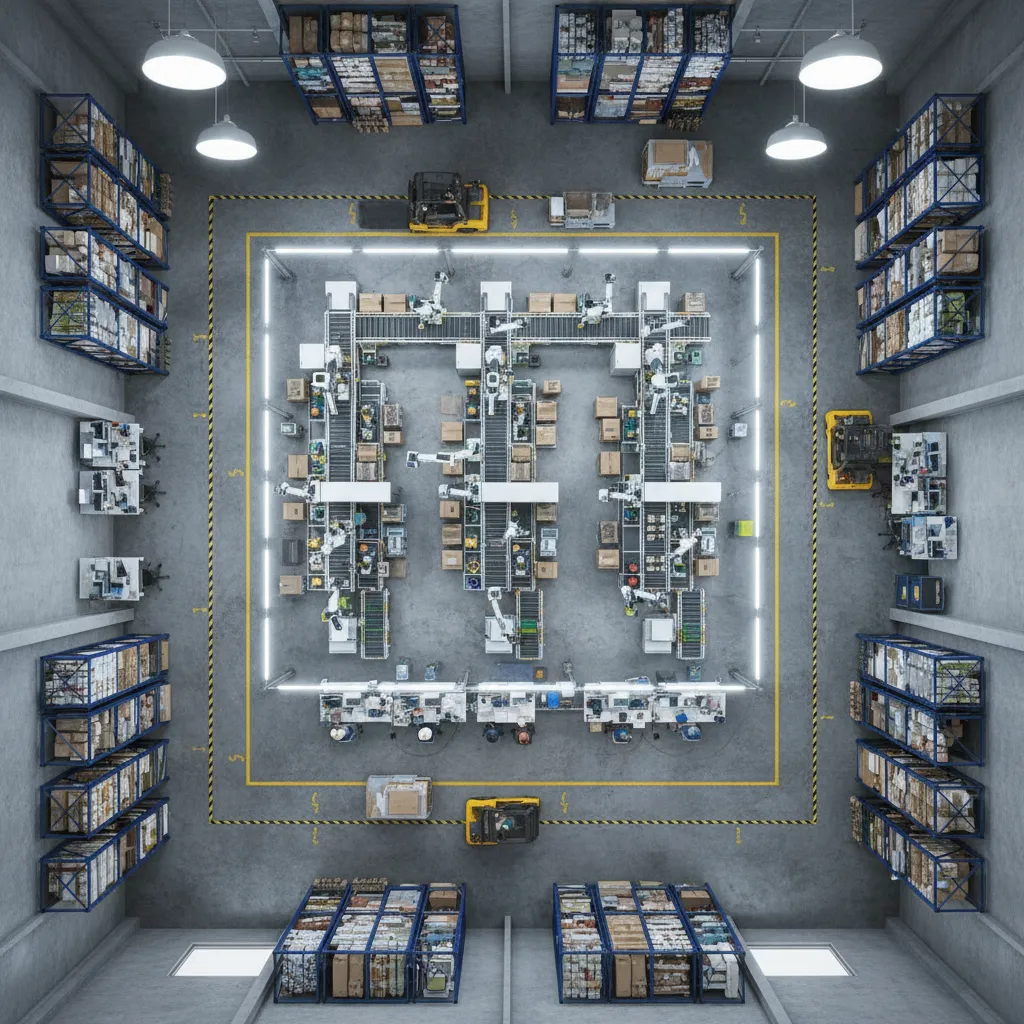

Factory Floor Plan Design Essentials: Key Considerations for Effective Factory Layouts

Direct Answer

Factory floor plan design focuses on arranging production areas, equipment, storage, and worker movement to maximize efficiency, safety, and scalability. A well‑designed factory layout reduces material handling time, prevents bottlenecks, and supports future production changes.

In most modern facilities, the best factory floor plans prioritize clear workflow, flexible production zones, safe traffic paths, and smart space allocation for equipment and inventory.

Quick Takeaways

1. Efficient factory floor plans minimize material movement and reduce production delays.
2. Clear workflow direction prevents bottlenecks and improves worker productivity.
3. Flexible layouts allow equipment upgrades and production changes.
4. Safety zones and traffic paths are as important as machine placement.
5. Storage placement strongly affects production efficiency.

Introduction

After working on multiple industrial renovation and facility planning projects, I have learned that factory floor plan design is rarely just about fitting machines into a large space. The real challenge is designing a layout that keeps materials moving smoothly, keeps workers safe, and still allows the factory to evolve as production changes.

Many factory owners initially focus on equipment placement. But in reality, workflow direction, storage positioning, and traffic separation often matter more. I have seen facilities lose 20–30% productivity simply because materials had to cross the same aisle multiple times.

This guide explains the essential principles behind an effective factory floor plan, based on practical design experience and common operational mistakes I frequently encounter.

save pin

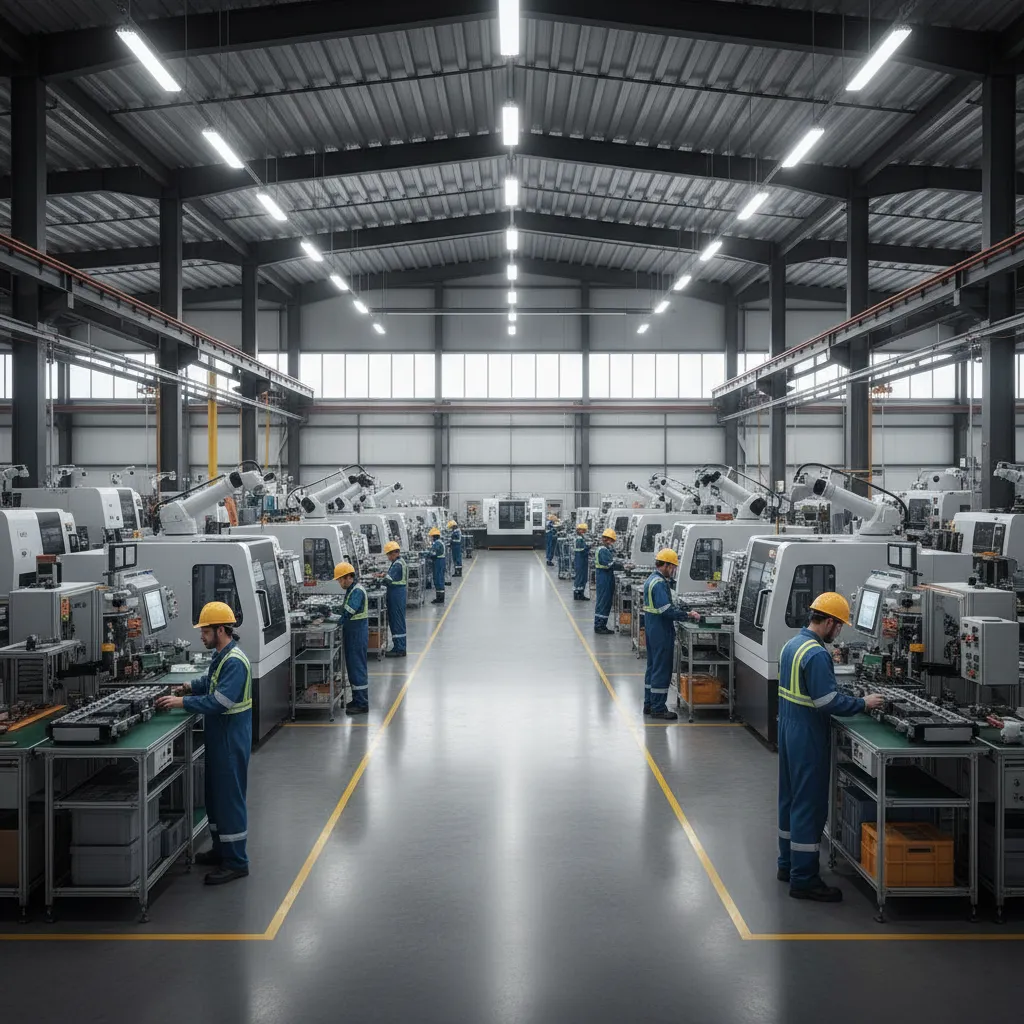

Why Factory Floor Plan Design Matters for Production Efficiency

Key Insight: The layout of a factory floor directly influences productivity, labor efficiency, and operational cost.

In manufacturing environments, time is often lost not during production itself but while moving materials between processes. According to research from the Manufacturing Extension Partnership (MEP), inefficient material handling can account for up to 30% of production time in poorly planned facilities.

Good factory floor plan design reduces that waste by aligning equipment with the natural production sequence.

Key efficiency goals of a factory layout:

1. Minimize material travel distance
2. Prevent cross‑traffic between forklifts and workers
3. Create clear process flow from raw materials to shipping
4. Allow quick maintenance access
5. Support production scaling

In one packaging plant redesign project I worked on, simply rotating the assembly line and relocating pallet storage cut forklift travel distance by almost 40%. The equipment never changed—the layout did.

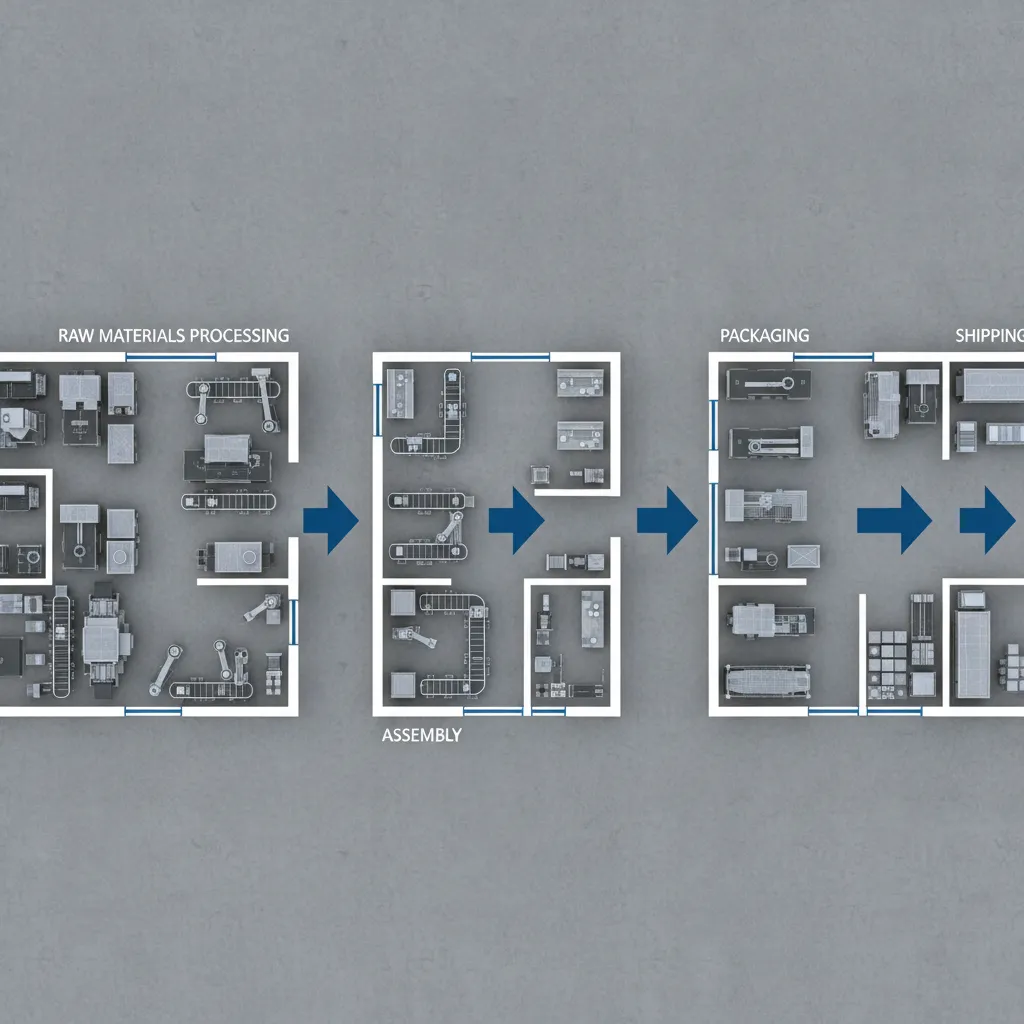

How Should Production Flow Be Organized in a Factory Layout

Key Insight: The best factory layouts follow a logical, linear production flow that minimizes backtracking.

A common mistake I see is equipment being arranged based on available floor space instead of process sequence. When machines are placed randomly, materials must move back and forth across the building.

Instead, design should follow the production journey.

Typical production flow structure:

1. Raw material receiving
2. Material storage
3. Primary processing
4. Secondary processing or assembly
5. Quality control
6. Packaging
7. Finished goods storage
8. Shipping and logistics

When these steps are aligned spatially, materials move in a predictable direction, often in an L‑shape, U‑shape, or straight line depending on building constraints.

Lean manufacturing systems often prefer U‑shaped layouts because they reduce walking distance and allow better supervision.

save pin

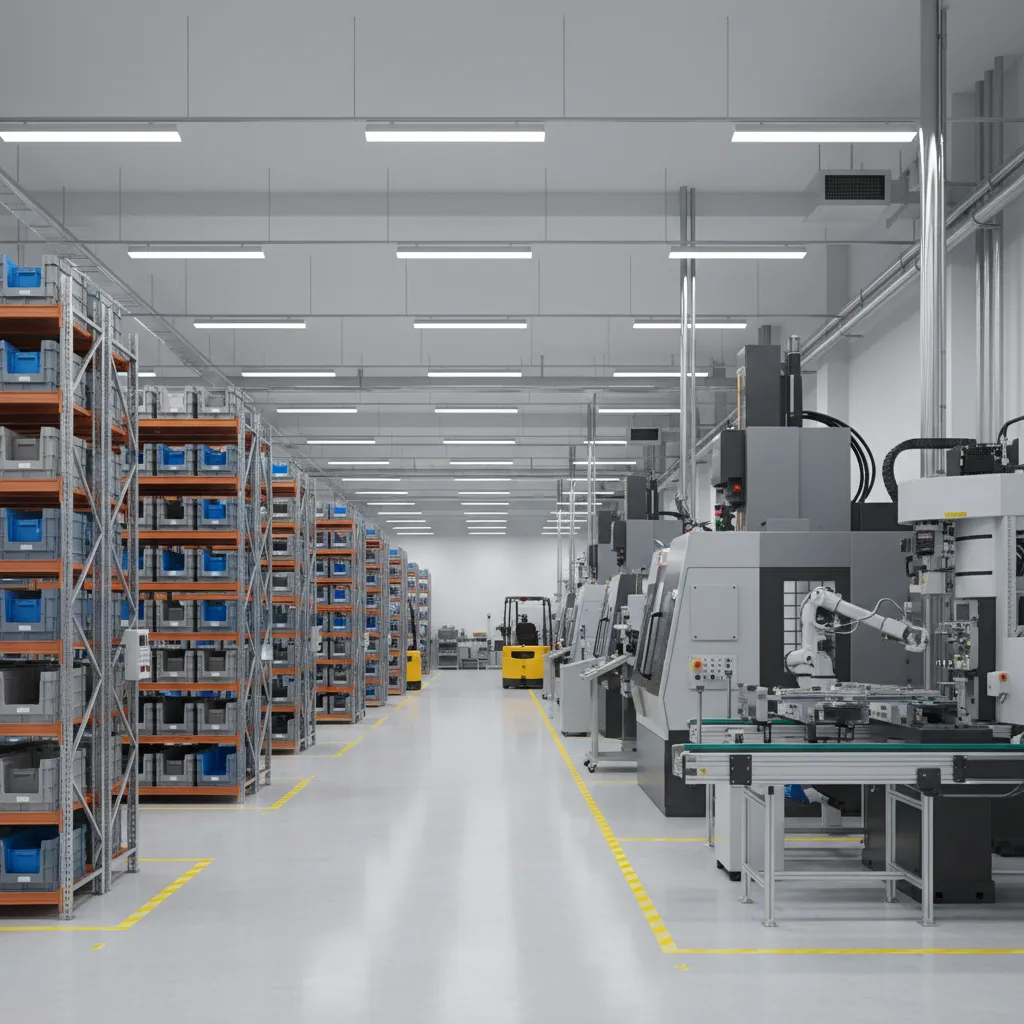

What Areas Must Be Included in a Complete Factory Floor Plan

Key Insight: A functional factory layout balances production, logistics, storage, and employee support spaces.

Many early-stage factory layouts fail because they only account for machines. But real factories require a range of operational zones.

Essential zones in a factory floor plan:

1. Production lines or manufacturing cells
2. Raw material storage
3. Finished goods warehouse
4. Quality inspection stations
5. Maintenance and tool storage
6. Forklift lanes and transport paths
7. Employee safety zones
8. Administrative or control areas

One hidden issue I frequently encounter is insufficient maintenance access. Machines are placed too close together, which makes repairs slow and expensive later.

save pin

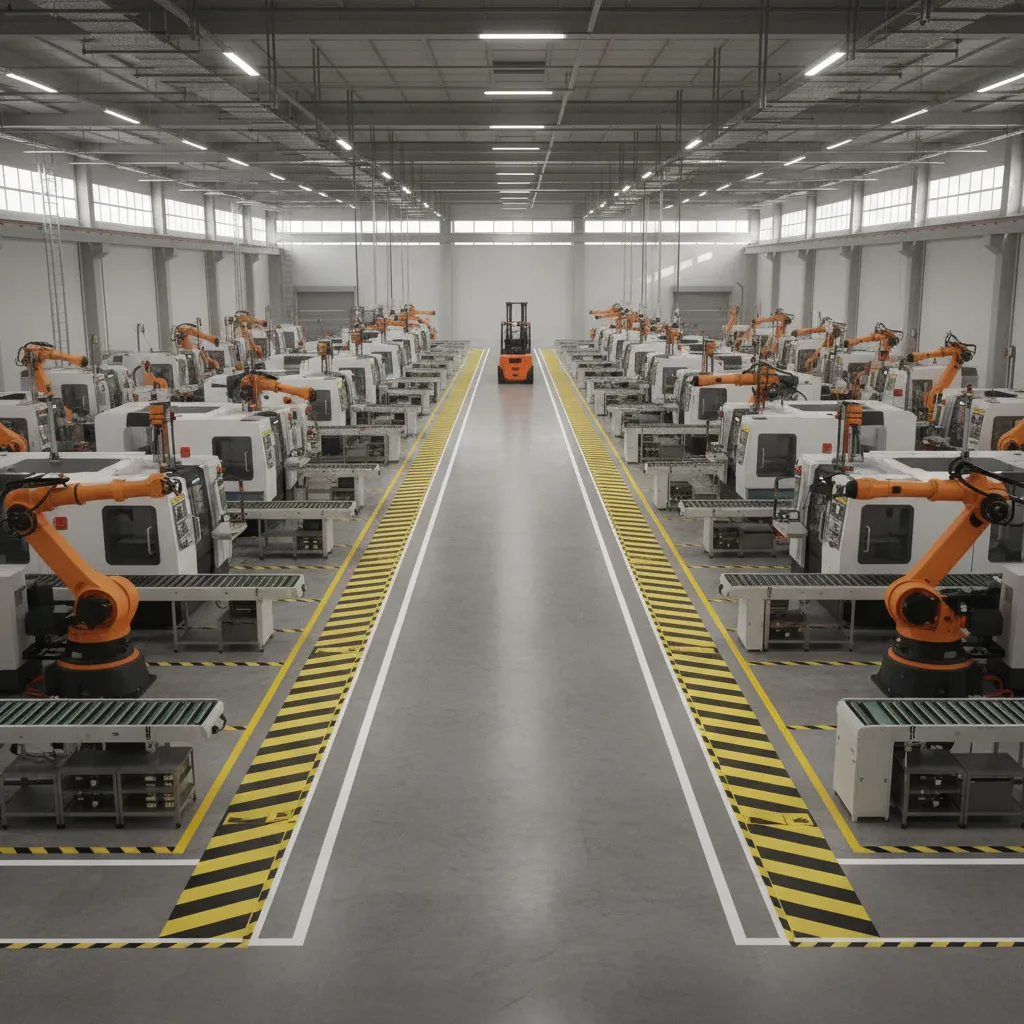

How Much Space Should Be Allocated for Equipment and Movement

Key Insight: Circulation space often requires as much planning as production equipment itself.

Industrial designers typically allocate additional clearance around equipment to support safety and maintenance.

Typical spatial guidelines used in industrial layouts:

1. Machine maintenance clearance: 3–5 feet minimum
2. Forklift aisle width: 10–13 feet depending on vehicle type
3. Worker walking paths: 3–4 feet
4. Emergency exits: clearly accessible from every zone

Ignoring these allowances leads to congestion and safety hazards. OSHA guidelines in the United States emphasize unobstructed exits and clear traffic routes in industrial environments.

Common Factory Layout Mistakes That Reduce Efficiency

Key Insight: The biggest factory layout problems usually come from short‑term thinking.

Many layouts are built for today's equipment without considering future production changes.

Frequent mistakes I see in real projects:

1. Storage placed far from production lines
2. Forklift traffic crossing worker walkways
3. No expansion space for new equipment
4. Machines installed without maintenance clearance
5. Poor visibility for supervisors

In older facilities, these issues accumulate over time. Production grows, new machines are added, and the layout becomes chaotic.

save pin

How Modern Technology Improves Factory Floor Planning

Key Insight: Digital tools and simulation software now allow factories to test layouts before construction.

Modern factory planning increasingly uses digital modeling tools such as AutoCAD, Revit, and specialized manufacturing simulation platforms.

Benefits of digital factory layout planning:

1. Simulate production flow
2. Identify bottlenecks early
3. Optimize equipment spacing
4. Test forklift traffic patterns
5. Plan future expansion zones

Some larger facilities even use digital twins to continuously analyze factory operations and adjust layouts over time.

Answer Box

A successful factory floor plan prioritizes workflow efficiency, safety, and flexibility. The most effective layouts align machines with production flow, provide clear transport paths, and reserve space for maintenance and expansion.

Poor layouts typically fail because they ignore circulation space, storage placement, and long‑term scalability.

Final Summary

1. Factory floor plan design directly affects productivity and operating costs.
2. Production flow should move logically from raw materials to shipping.
3. Circulation space for forklifts and workers is essential.
4. Flexible layouts allow factories to grow without major redesign.
5. Digital planning tools help test layouts before implementation.

FAQ

What is a factory floor plan?

A factory floor plan is a layout drawing that shows how machines, workstations, storage areas, and transportation paths are arranged within a manufacturing facility.

Why is factory floor plan design important?

Factory floor plan design affects production efficiency, worker safety, and operational costs by determining how materials and people move through the facility.

What is the best layout for a factory?

The best factory layout depends on the production process, but linear, U‑shaped, and cellular layouts are commonly used for efficient workflow.

How wide should factory aisles be?

Forklift aisles typically range from 10 to 13 feet depending on equipment size and turning radius.

What software is used for factory floor planning?

Common tools include AutoCAD, Revit, SolidWorks, and specialized factory simulation software.

What factors affect factory floor plan design?

Key factors include production flow, equipment size, safety regulations, storage needs, and future expansion plans.

How do you improve an existing factory layout?

Analyze production flow, reduce material movement distance, reorganize storage, and improve traffic paths.

Can a factory floor plan improve productivity?

Yes. A well‑designed factory floor plan can significantly reduce handling time and increase operational efficiency.
