Factory Truck Light Circuits Explained Before Adding Strobe Effects: Understand how truck lighting wiring works so you can safely integrate strobe modules without damaging factory electrical systems.

Direct Answer

Factory truck light circuits distribute power from the vehicle battery through fuses, relays, switches, and control modules before reaching headlights, brake lights, and turn signals. Understanding where power, ground, and signal wires operate is essential before adding a strobe module, because strobes must interrupt or pulse the positive lighting circuit without disrupting the truck’s control electronics.

Quick Takeaways

1. Factory truck lights operate through fused power circuits controlled by relays and vehicle switches.
2. Strobe modules work by rapidly interrupting the positive lighting wire.
3. LED lighting systems often require different strobe integration than halogen bulbs.
4. Improper wiring can trigger dashboard errors or damage lighting control modules.
5. Testing voltage and grounding points prevents most installation mistakes.

Introduction

Before installing strobe lighting on a work truck, understanding factory truck light circuits is more important than most people realize. In more than a decade of working with vehicle lighting layouts during custom garage and workshop projects, I’ve noticed that most strobe installation failures aren’t caused by the strobe module itself. They happen because installers misunderstand how the original lighting circuit behaves.

A modern truck lighting system isn’t just a wire running from the battery to the bulb. Power flows through multiple control points—fuses, relays, switches, and sometimes body control modules (BCM). When someone taps the wrong wire or interrupts the wrong section of the circuit, lights may flicker, error codes appear, or the strobe effect simply won’t work.

If you're trying to visualize where these circuits run inside the vehicle structure, it helps to look at structured wiring layouts similar to interactive 3D layout visualizations used to map complex system routing. Thinking about the truck like a layered electrical map makes troubleshooting far easier.

In this guide, I’ll walk through how factory truck lighting circuits actually work, where strobe modules fit into the system, and the hidden electrical behaviors many tutorials never explain.

save pin

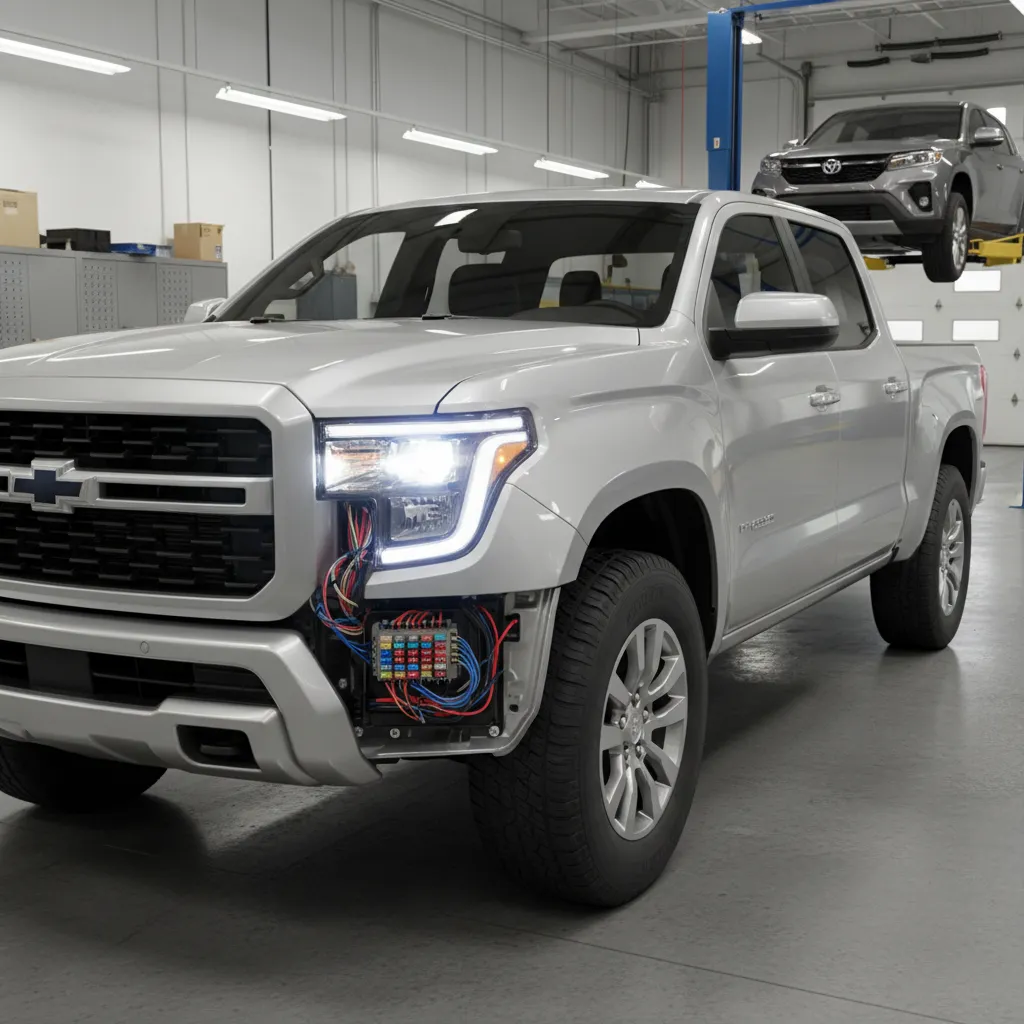

Overview of Factory Truck Lighting Systems

Key Insight: Factory truck lighting systems are built around protected power circuits controlled by switches, relays, and sometimes onboard computers.

In older trucks, the lighting circuit was extremely simple. The headlight switch directly controlled the power flowing to the lights. Modern vehicles, however, often route lighting commands through a Body Control Module (BCM). That module decides when power actually reaches the lights.

This design improves safety and diagnostics but complicates modifications.

Typical lighting circuit flow:

1. Battery supplies 12V power
2. Power passes through a fuse for protection
3. A relay or control module switches the circuit
4. The switch or control signal activates the relay
5. Electric current flows to the light
6. Ground completes the circuit

Because strobes work by interrupting or pulsing this power flow, knowing where each stage occurs helps you identify the correct wiring point.

How Headlight, Brake Light, and Turn Signal Circuits Are Wired

Key Insight: Each lighting function in a truck typically runs on its own dedicated positive wire but often shares a common ground.

Most trucks separate lighting circuits for reliability. If one circuit fails, the others still work.

Common circuit structure:

1. Headlights: relay-controlled high-current circuit
2. Brake lights: switch triggered by brake pedal
3. Turn signals: controlled by a flasher relay or control module

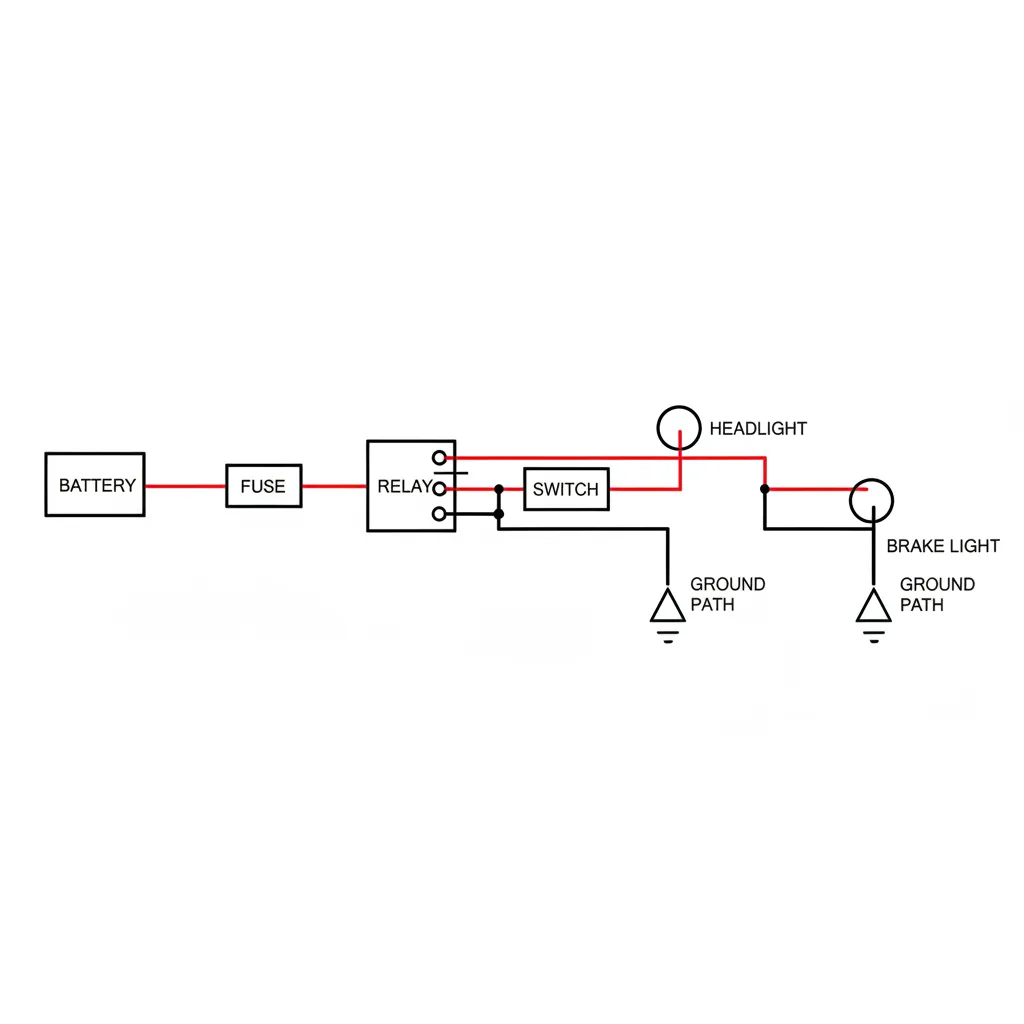

A simplified wiring layout looks like this:

1. Battery → Fuse → Relay → Light bulb → Ground

Turn signals add a timing device:

1. Battery → Fuse → Flasher relay → Signal switch → Bulb → Ground

Understanding these pathways matters because strobe modules must usually connect to the positive wire feeding the light rather than the ground.

save pin

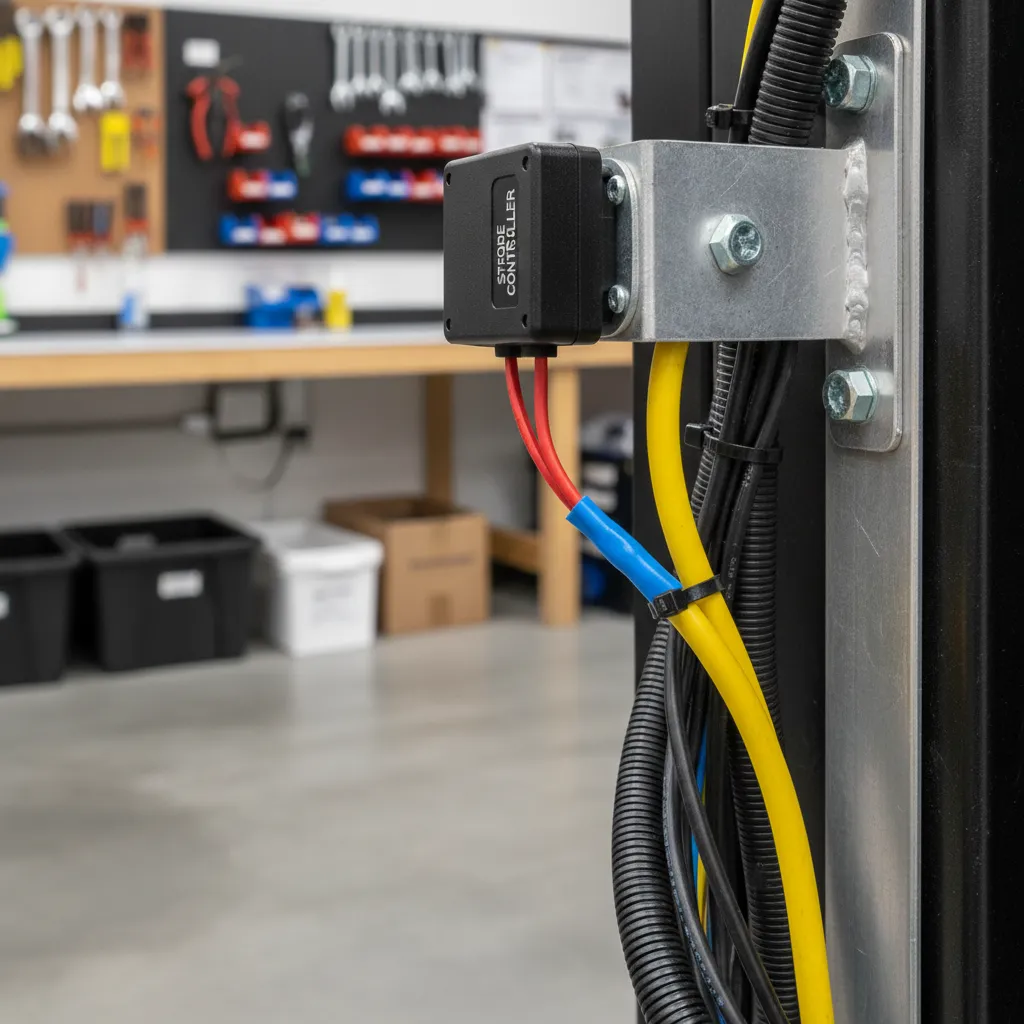

Where Strobe Modules Integrate Into the Circuit

Key Insight: A strobe module is typically inserted inline on the positive wire that powers the target light.

Most strobe modules work by rapidly interrupting voltage to create flashing patterns. Instead of powering the light directly, the module acts like a fast electronic switch.

Typical strobe integration method:

1. Identify the positive wire feeding the light.
2. Cut or splice into the circuit.
3. Route power through the strobe module.
4. The module pulses the current to create the strobe effect.

Correct wiring configuration:

1. Vehicle power → Strobe module input
2. Strobe module output → Light positive wire
3. Ground wire → Vehicle chassis

If you're mapping wiring routes across a vehicle frame or custom lighting layout, tools similar to a visual layout system used for planning structural wiring paths can help organize installation points before cutting into factory wiring.

Answer Box

Factory truck light circuits send power through fused and relay-controlled pathways before reaching the light fixture. Strobe modules work by inserting a rapid switching device into the positive wire so the light pulses instead of remaining continuously powered.

Understanding Voltage, Ground, and Relay Behavior

Key Insight: Most lighting problems during strobe installations come from misunderstanding grounding or relay behavior.

Three electrical principles matter most in vehicle lighting circuits:

Voltage

Truck lighting circuits operate on roughly 12–14 volts when the engine runs.

Ground

Vehicles use the chassis as the ground path. A poor ground connection can cause dim lights, irregular strobe patterns, or complete failure.

Relays

Relays allow a low-current switch to control a high-current lighting circuit.

Basic relay structure:

1. Control side: triggered by a switch
2. Load side: sends battery power to lights

If a strobe module is installed before the relay instead of after it, the relay may override the strobe signal entirely.

save pin

Common Differences Between Halogen and LED Truck Lights

Key Insight: LED truck lights often require specialized strobe controllers because their electronics respond differently than halogen bulbs.

Halogen lights behave like simple resistive loads. When voltage is applied, the filament glows.

LED systems include internal drivers that regulate power.

Key differences:

1. Halogen bulbs respond instantly to voltage interruption.
2. LED drivers may block or smooth rapid pulses.
3. Some LED systems use computer monitoring circuits.

This is why many modern trucks require dedicated LED-compatible strobe modules.

Safety Considerations Before Modifying Factory Wiring

Key Insight: Modifying lighting circuits without understanding load limits or control modules can damage expensive electronic components.

Before altering factory wiring, always verify:

1. Fuse ratings for the lighting circuit
2. Whether the circuit is BCM controlled
3. Voltage stability during engine operation
4. Ground continuity

Common mistakes installers make:

1. Tapping wires before the relay
2. Sharing weak ground points
3. Overloading factory circuits
4. Cutting wires controlled by onboard modules

Planning modifications carefully—similar to how professionals map equipment placement with an organized layout planning approach used for complex installations—helps prevent electrical problems later.

Final Summary

1. Factory truck light circuits route power through fuses, relays, and switches.
2. Strobe modules work by interrupting the positive lighting wire.
3. LED lighting systems may require specialized strobe controllers.
4. Incorrect wiring can interfere with relays or vehicle control modules.
5. Testing voltage and grounding points prevents most installation failures.

FAQ

How do factory truck light circuits work?

Factory truck light circuits send battery power through fuses and relays before reaching the lights. Switches or electronic modules control when power flows to each lighting function.

Where should a strobe module connect in a truck lighting circuit?

Most strobe modules connect inline with the positive wire feeding the light so the device can pulse the power.

Can you add strobes to factory LED truck lights?

Yes, but many LED systems require LED-compatible strobe controllers because internal drivers can interfere with flashing signals.

Why do my truck lights stop working after installing a strobe module?

Common causes include incorrect wiring points, poor grounding, or connecting the module before a relay or control module.

Do strobe lights damage factory truck light circuits?

If installed correctly using compatible modules, strobe lights typically do not damage factory truck light circuits.

Where can I find the positive wire for my truck lights?

Use a multimeter or wiring diagram to identify the positive wire that receives power when the light switch is activated.

Do LED headlights support strobe effects?

Some do, but others require special controllers designed for LED driver electronics.

Is it safe to modify factory vehicle lighting wiring?

Yes if done correctly. Always verify fuse ratings, wiring diagrams, and grounding points before modifying circuits.
