Factory Truck Lights Not Strobing: Common Wiring and Module Problems: Practical troubleshooting steps to diagnose wiring faults, controller issues, and LED compatibility when factory truck lights fail to strobe.

Direct Answer

If factory truck lights are not strobing after installing a strobe system, the most common causes are incorrect wiring, poor grounding, incompatible LED circuits, or a faulty strobe controller. In most installations I review, the issue is not the lights themselves but power routing, module configuration, or CAN‑bus interference.

Quick Takeaways

1. Most truck strobe failures come from wiring mistakes rather than defective lights.
2. Poor grounding is the single most common electrical issue in strobe installations.
3. Some factory LED headlights cannot strobe without compatible controllers.
4. A multimeter test quickly reveals whether power reaches the strobe module.
5. Controller replacement is sometimes cheaper than hours of rewiring diagnostics.

Introduction

Over the years I've helped troubleshoot dozens of installs where someone tried to add strobe functionality to factory lighting, only to find the truck lights refusing to flash. When factory truck lights are not strobing, frustration usually sets in quickly because everything appears correctly installed.

In reality, these systems fail for predictable reasons. I often see installers assume the strobe controller is defective when the real problem is a grounding issue, an incompatible LED driver, or a wiring configuration that interrupts the signal path.

If you arrived here after following a basic installation guide, this troubleshooting breakdown will help isolate the real cause. If you haven't yet reviewed the full installation process, it may help to start with this step‑by‑step explanation of how to convert standard truck lights into programmable strobe lighting.

The sections below walk through the most common failure points I encounter in real vehicle lighting setups.

save pin

Why Factory Truck Lights Sometimes Fail to Strobe

Key Insight: Factory lighting systems were never designed to pulse rapidly, so adding a strobe controller introduces electrical conflicts.

Modern trucks—especially those with LED headlights—use electronic drivers, current regulators, and sometimes CAN‑bus communication. When a strobe module interrupts that circuit, the factory electronics may prevent flashing entirely.

Common causes include:

1. LED driver circuits smoothing the pulse signal
2. Vehicle computer detecting abnormal current
3. Incorrect controller wiring
4. Shared grounds causing voltage drop

In my experience, trucks built after roughly 2016 have far more compatibility problems than older halogen systems.

Checking Power, Ground, and Fuse Issues

Key Insight: If the controller does not receive stable voltage, the strobe signal will never reach the lights.

Electrical basics sound obvious, but power and ground faults account for a huge percentage of failed installs.

What I check first on every truck:

1. Battery voltage at the controller input
2. Ground resistance between module and chassis
3. Inline fuse continuity
4. Loose crimp connectors

A good ground should measure under 0.2 ohms to chassis metal. Anything higher often causes intermittent strobe operation.

save pin

Diagnosing Faulty Strobe Modules or Controllers

Key Insight: A failed controller usually reveals itself through partial or inconsistent flashing patterns.

When truck strobe lights are not working after install, installers frequently suspect wiring first. But controllers do fail—especially inexpensive ones.

Signs of controller problems include:

1. Lights turning on but never entering strobe mode
2. Only one side of the vehicle flashing
3. Pattern switching not responding
4. Random shutdown after a few seconds

If you want to understand how the underlying circuits behave before adding controllers, reviewing how factory truck light circuits operate before modification often explains why some modules struggle with modern vehicles.

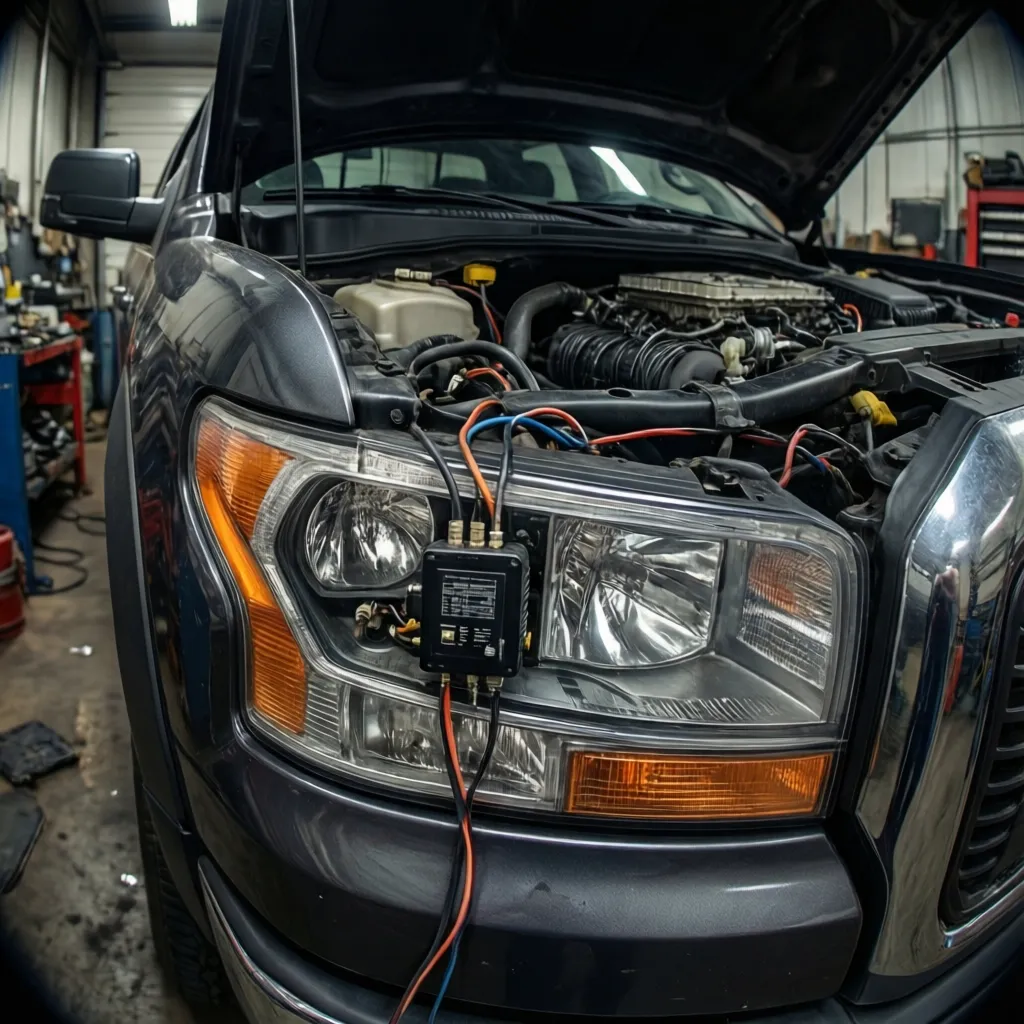

Common Wiring Mistakes in Truck Light Installations

Key Insight: Most strobe installation failures happen because installers tap into the wrong part of the lighting circuit.

Three wiring mistakes appear constantly in troubleshooting cases:

1. Tapping after the LED driver instead of before it
2. Combining left and right channels incorrectly
3. Running signal wires parallel to high‑current power lines

Another hidden problem is voltage drop caused by thin wire. If the controller receives inconsistent voltage, strobe pulses weaken and the lights remain steady.

save pin

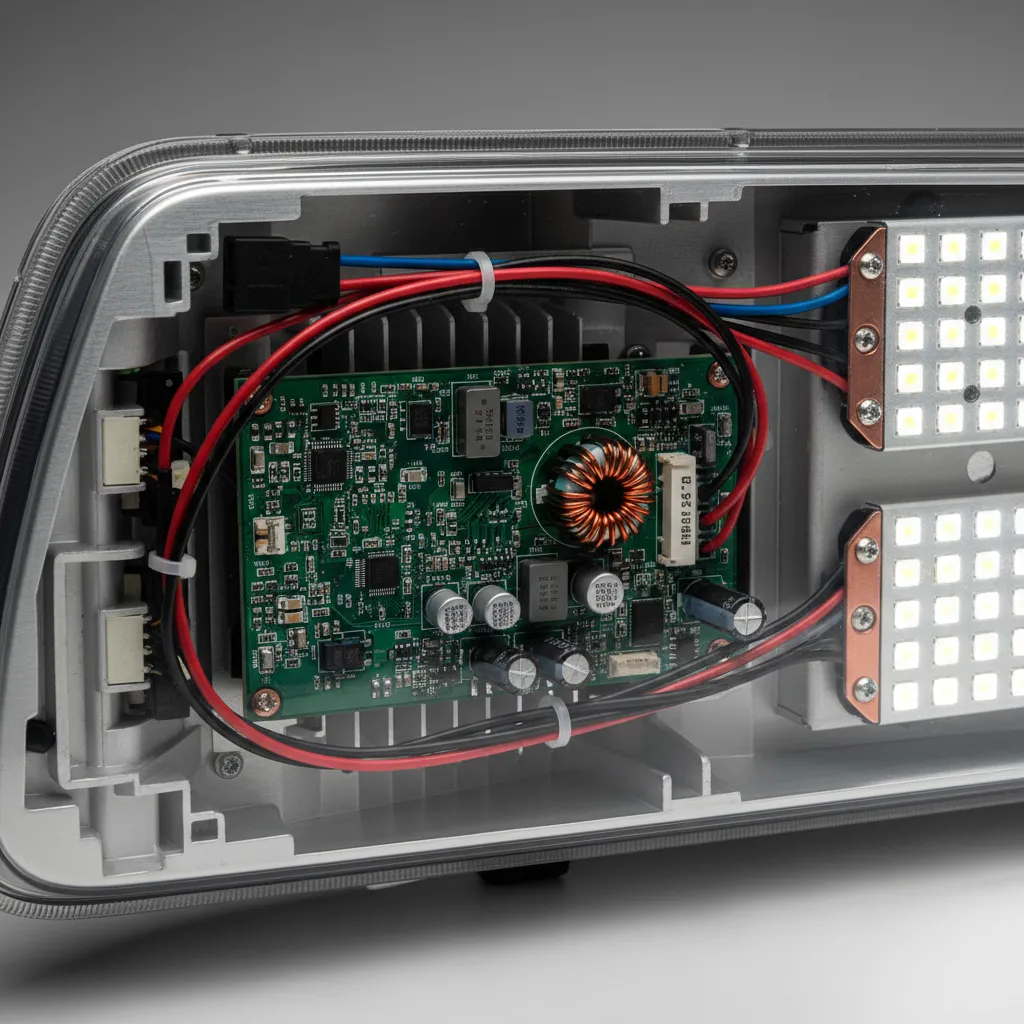

LED Compatibility Problems With Strobe Controllers

Key Insight: Some factory LED headlights simply cannot strobe without specialized controllers.

This is one of the least discussed issues online. Many OEM LED systems contain internal current regulators that filter rapid power changes.

Typical compatibility challenges:

1. Pulse signals smoothed by LED drivers
2. Smart lighting modules blocking external signals
3. Daytime running light circuits interfering with strobe timing

In these cases, installers sometimes bypass the internal driver and connect to dedicated LED modules or install external strobe‑capable lights instead.

Answer Box

The most common reason factory truck lights will not strobe is incorrect wiring or incompatible LED electronics. Testing power, ground, and controller output with a multimeter quickly isolates the issue.

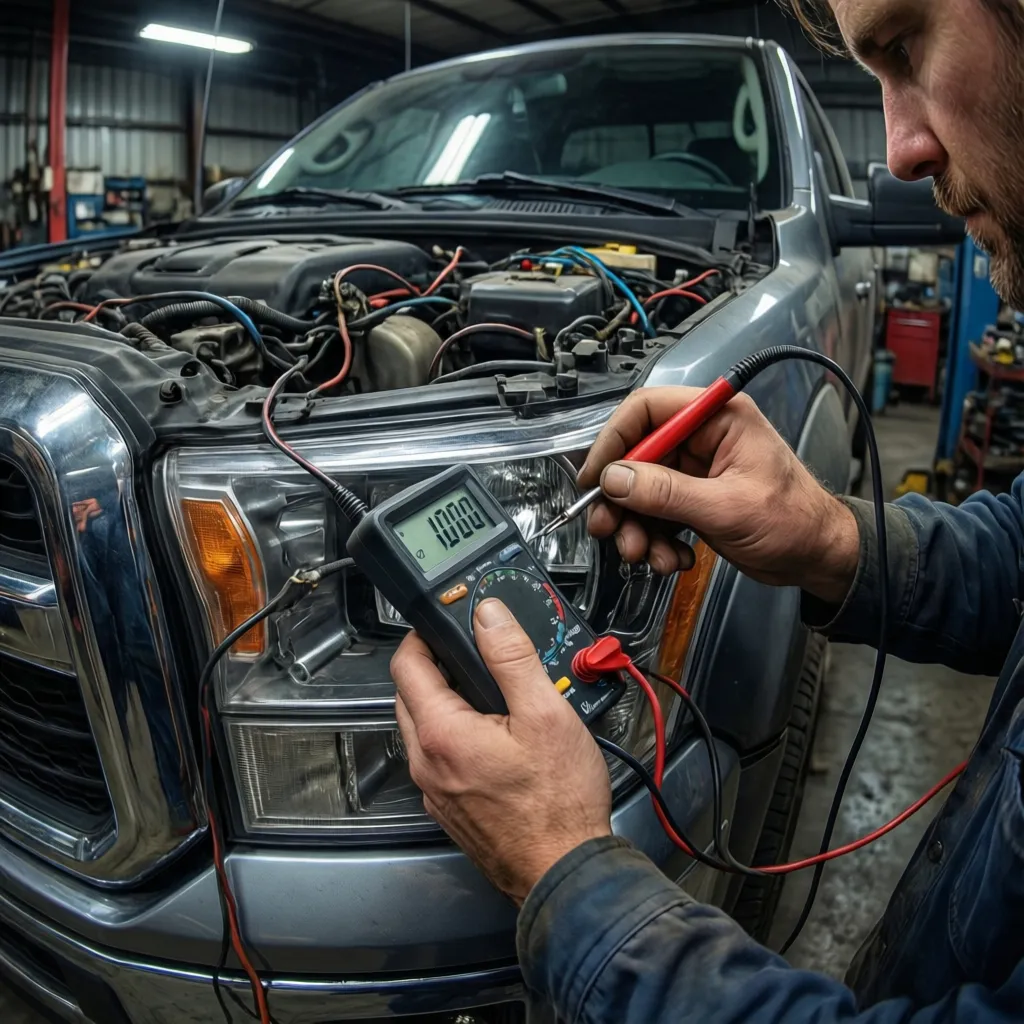

Testing the Lighting Circuit With a Multimeter

Key Insight: A simple voltage test often reveals the exact failure point in under five minutes.

Here is the diagnostic process I typically follow:

1. Check battery voltage at the controller input.
2. Activate the strobe switch and measure controller output.
3. Test voltage at the light input.
4. Verify ground continuity.

If voltage exists at the controller but not at the lights, the wiring path is the problem. If no output exists, the module itself is likely defective.

When to Replace the Controller or Rewire the Circuit

Key Insight: If troubleshooting takes longer than an hour, replacing the controller is often the fastest solution.

Professional installers often follow a simple rule: eliminate the cheapest possible failure point first.

Replace the controller when:

1. No output voltage appears
2. Patterns freeze or malfunction
3. The module overheats

However, if voltage never reaches the controller input, the entire circuit may need rewiring.

For trucks where the lights technically strobe but visibility or synchronization is poor, improving flash patterns can help. This guide on adjusting strobe patterns for better road visibility covers the optimization side.

Final Summary

1. Incorrect wiring causes most factory truck light strobe failures.
2. Ground issues are the most common electrical fault.
3. Modern LED systems sometimes block strobe signals.
4. A multimeter test quickly isolates controller or wiring problems.
5. Replacing a faulty module is often faster than complex rewiring.

FAQ

Why are my truck strobe lights not working after install?

The most common reasons are wiring mistakes, poor grounding, or incompatible LED circuits preventing the controller from pulsing the lights.

Can factory LED headlights strobe?

Some can, but many modern headlights include drivers that block rapid flashing. Specialized controllers may be required.

How do I test a strobe controller?

Use a multimeter to measure voltage at the module output while activating the strobe switch.

Do I need a relay for strobe lights?

Some installations benefit from relays to stabilize voltage and isolate high‑current circuits.

Why do my lights stay solid instead of flashing?

This usually means the strobe module is not sending a pulse signal or the LEDs are filtering it.

What wires should the strobe controller connect to?

Typically power, ground, and the light signal wires before the factory driver circuit.

Can a bad ground stop strobe lights from working?

Yes. Poor grounding is one of the most frequent causes of truck strobe lights not working after installation.

How long does it take to diagnose strobe light problems?

With proper testing tools, most issues can be identified within 15–30 minutes.
