False Ceiling Design for Low Height Room: Smart Solutions: Fast-Track Guide to Stylish False Ceilings for Compact Spaces

Low ceiling rooms can be both charming and challenging. I’ve spent a decade optimizing compact homes, studios, and retrofitted offices where every inch matters. The key is to deliver the benefits of a false ceiling—cleanly concealed services, integrated lighting, and acoustic control—while preserving headroom and amplifying vertical perception. Data consistently supports thoughtful ceiling strategies: the WELL Building Standard highlights that adequate illuminance and reduced glare correlate with improved visual comfort and alertness (WELL v2, Light concept), and Steelcase’s research links well-balanced ambient and task lighting to higher comfort and task performance in work settings. I translate those findings into slim, performance-first ceiling solutions.

Ceiling height impacts behavior and comfort more than most realize. Gensler’s workplace studies associate lighting quality with perceived spaciousness and satisfaction, while IES guidance underscores setting target horizontal illuminance (e.g., 300–500 lux in living/working zones) with careful uniformity and glare control to reduce visual fatigue. Pairing these standards with compact construction—micro-trims, low-profile lighting drivers, and selective soffits—lets me deliver a false ceiling experience without the penalty of a bulky drop.

Design Principle: Make the Ceiling Feel Higher Than It Is

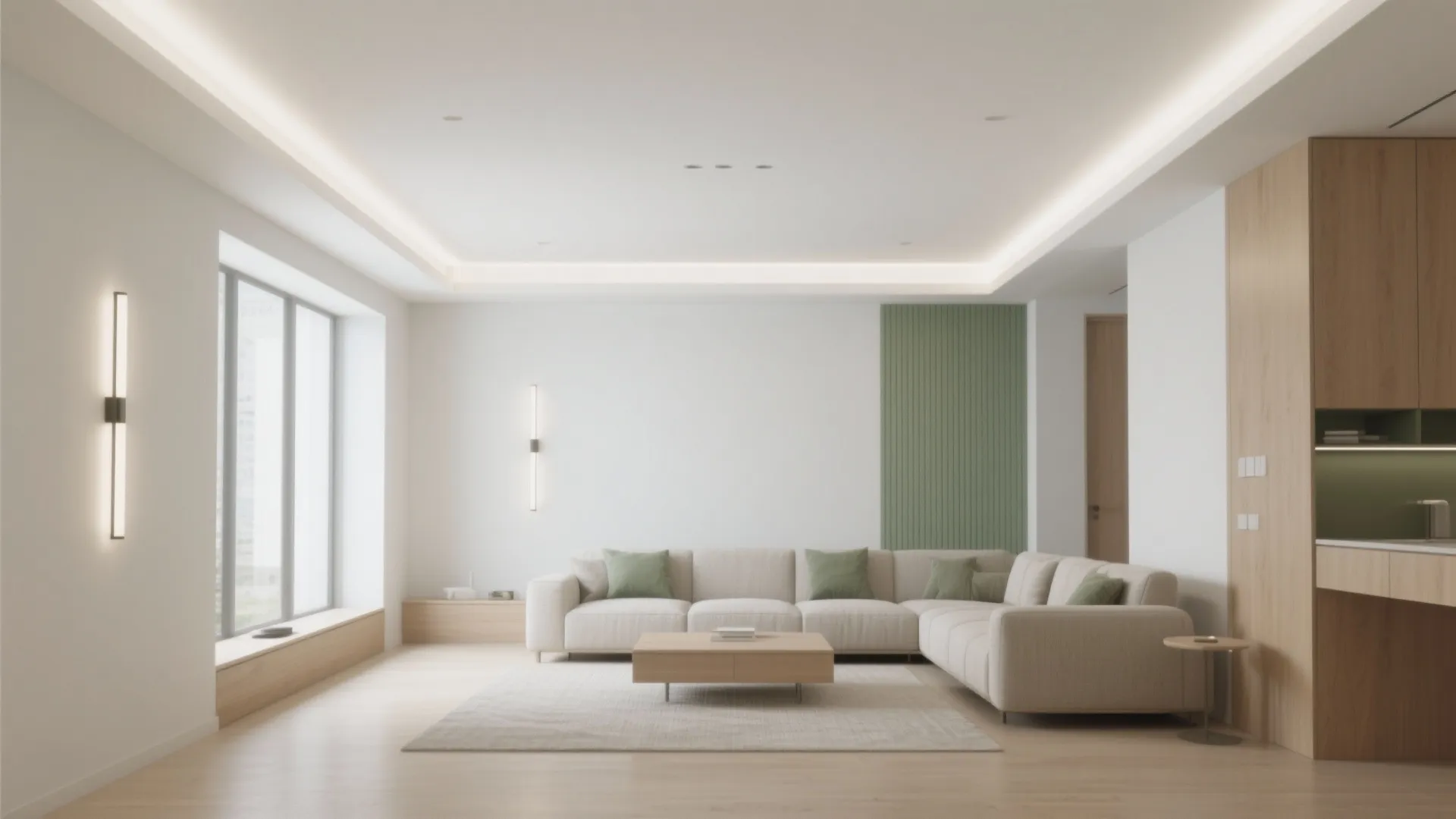

Perceived height is the first win. I favor continuous light coves at the room perimeter using ultra-shallow profiles (often 1.0–1.5 inches), washing light up the existing slab to dissolve edges. Vertical emphasis matters: slender wall-grazing sconces and soft uplight pull the gaze upward, reducing focus on the true ceiling plane. Color temperature also shapes perception; a neutral-white 3500–4000K ceiling wash keeps the envelope crisp without feeling clinical. Keep ceiling paint in a high-LRV matte (80+), which bounces light while taming glare.

Ultra-Shallow False Ceiling Systems

Not every ceiling needs full coverage. I often build a 2–3 inch service raceway around the perimeter for wiring, sensors, and curtain tracks, leaving the center at full height. This creates a floating, higher-looking middle while hiding clutter. Slim aluminum channels, micro-access panels, and flexible conduits allow maintenance without the bulk. In compact apartments, I’ll reserve a 6–8 inch pocket only where necessary (over entry or kitchen runs), and keep living areas as tall as possible.

Lighting Tactics That Do More With Less

Downlights can cost height. I swap heavy housings for shallow IC-rated fixtures (as low as 1.5–2 inches) or, better yet, pivot to linear lines of light at the perimeter. Layered lighting—ambient cove + portable task lamps—beats a grid of recessed cans. Target 300–500 lux on work surfaces (IES guidance), add dimming to support circadian comfort (WELL Light L03–L09 concepts), and keep Unified Glare Rating low by shielding LEDs from direct view. For living rooms, a soft 3000–3500K with high CRI (90+) maintains color fidelity while avoiding harshness.

Strategic Soffits: Only Where They Earn Their Keep

Place a soffit where you gain a function: hide a duct over the corridor, integrate a curtain pocket above windows, or form a shallow spine for sensors and smoke detectors. Keep the soffit slender and deliberate, then celebrate the untouched ceiling elsewhere. This contrast enhances visual height. When planning layouts, a digital interior layout planner helps you test soffit widths and lighting throw before building—using a layout simulation tool like a room layout tool can prevent costly on-site revisions.

Acoustics Without Bulk

Tinny rooms feel smaller. I integrate thin acoustic treatments—micro-perforated gypsum, 12–18 mm PET felt baffles in narrow ribbons, or fabric-wrapped panels near corners—to tame flutter without dropping the whole ceiling. In studios or bedrooms, a small framed acoustic cloud (1.5–2 inches) over the bed or desk soaks up reflections while keeping circulation paths free.

Color Psychology and Visual Rhythm

Light, cool ceilings tend to recede, visually lifting the space. Walls can carry a slightly deeper neutral to anchor the eye, while vertical elements—narrow bookshelves, tall drapery, or a thin ribbed panel—lead sightlines up. Avoid high-contrast heavy beams or chunky medallions that visually drag the ceiling down. If pattern is desired, run fine linear textures lengthwise to elongate the room; keep gloss down to mitigate sparkle glare from fixtures.

Materials and Finishes for Lean Profiles

Choose lightweight, dimensionally stable boards (calcium silicate, high-quality gypsum) and slim aluminum extrusions that don’t warp. Magnetic or concealed clip access points let you service drivers and sensors without large hatches. For kitchens and baths, moisture-resistant boards and sealed edges are essential. Specify low-VOC paints and adhesives to meet contemporary indoor air expectations.

Ergonomics and Human Factors

Low ceilings affect head clearance, reach, and wayfinding. I keep pendant drops minimal over dining (28–32 inches above the table) and ensure at least 80 inches of clear headroom in circulation paths. Sensors, sprinklers, and alarms must remain visible and compliant—coordinate early with MEP engineers to avoid unplanned drops that erode height late in the build.

Smart Integration: Hiding Tech in Thin Spaces

Low-profile drivers, remote power supplies in adjacent closets, and shallow surface-mounted tracks can deliver flexible, dimmable light without depth. For media rooms, route cables in the perimeter plenum and use micro access panels behind art or millwork. Keep maintenance in mind: anything you conceal must be reachable without tearing down finishes.

Step-by-Step Planning Workflow

1) Map services: ducts, wiring, sprinkler heads, and beams. 2) Decide which zones truly need a drop. 3) Model light distribution and glare to validate lux levels. 4) Prototype with cardboard coves or digital visualization to confirm proportions. 5) Detail edges: tiny shadow gaps (6–8 mm) around panels can make ceilings appear lighter and straighter. If you’re iterating layouts, an interior layout planner helps visualize soffit depths, fixture spacing, and furniture clearance before committing—a room design visualization tool is invaluable here.

2024–2025 Trends That Suit Low Ceilings

- Perimeter micro-coves with tunable white for circadian support. - Textured, matte ceilings that scatter light softly. - Hybrid acoustic-light baffles in thin modules. - Remote drivers centralized for streamlined ceiling profiles. - Warm-dim fixtures that shift from 3000K to 2000K in evening mode without extra depth.

Common Pitfalls (and My Fixes)

- Over-recessed cans: switch to linear coves or ultra-shallow trims. - Heavy center drops: keep the middle high; drop only the perimeter. - Busy fixture grids: simplify to two layers—ambient cove + targeted task. - Ignoring glare: shield sources, matte finishes, and consider UGR. - Forgetting access: include discreet panels aligned to joints.

FAQ

What is the thinnest practical false ceiling for a low room?

Perimeter coves can be as thin as 1–1.5 inches if only carrying wiring and LED tape. Where drivers or sensors live, expect 2–3 inches. Reserve deeper pockets (6–8 inches) only for ducts or large junctions.

How much light should I plan for without many downlights?

Aim for roughly 300–500 lux on work surfaces per IES guidance, delivered via perimeter coves, wall sconces, and portable task lamps. Add dimmers to adapt brightness across day and night.

Do false ceilings reduce noise in small rooms?

They can if you integrate thin acoustic elements—PET felt ribbons, micro-perforated boards, or a small acoustic cloud. Focus treatment where reflections are strongest rather than dropping the entire ceiling.

Which color temperature makes low ceilings feel higher?

Neutral-white 3500–4000K uplight or wallwash helps ceilings recede visually. Pair with a high-LRV matte ceiling paint to diffuse light and avoid glare.

Can I hide curtain tracks without losing height?

Yes—use a 2–3 inch soffit at the window wall to recess tracks. Keep it tight and let the rest of the room remain full height to enhance contrast and perceived height.

Are tunable white lights worth it in low rooms?

They help adapt to time of day and tasks. WELL research connects appropriate lighting to comfort and alertness; tunable white lets you shift from cooler focus to warmer relaxation without changing fixtures.

How do I plan soffits around sprinklers and sensors?

Coordinate early with MEP. Maintain code-required clearances and visibility. Often the cleanest solution is a narrow central band or perimeter pocket that routes around devices without creating multiple levels.

What finishes avoid a “cave” effect?

Matte, light-toned ceilings; low-sheen wall paints; slim light coves; and high-CRI sources. Avoid heavy beams, dark ceiling colors, and glossy sheens that cause hot spots and glare.

Can I retrofit lighting without opening the whole ceiling?

Yes—surface tracks with slim profiles, magnetic linear modules, or perimeter LED coves can often be added with minimal intrusion, especially when drivers are remote.

How high should pendants hang in low rooms?

Keep 28–32 inches above dining tables and at least 80 inches clear in paths. Choose shallow, wide shades to spread light without hanging low.

What’s the best way to visualize options before construction?

Use a layout simulation tool to test soffit depths, light distribution, and furniture clearance so you can refine details before committing.
