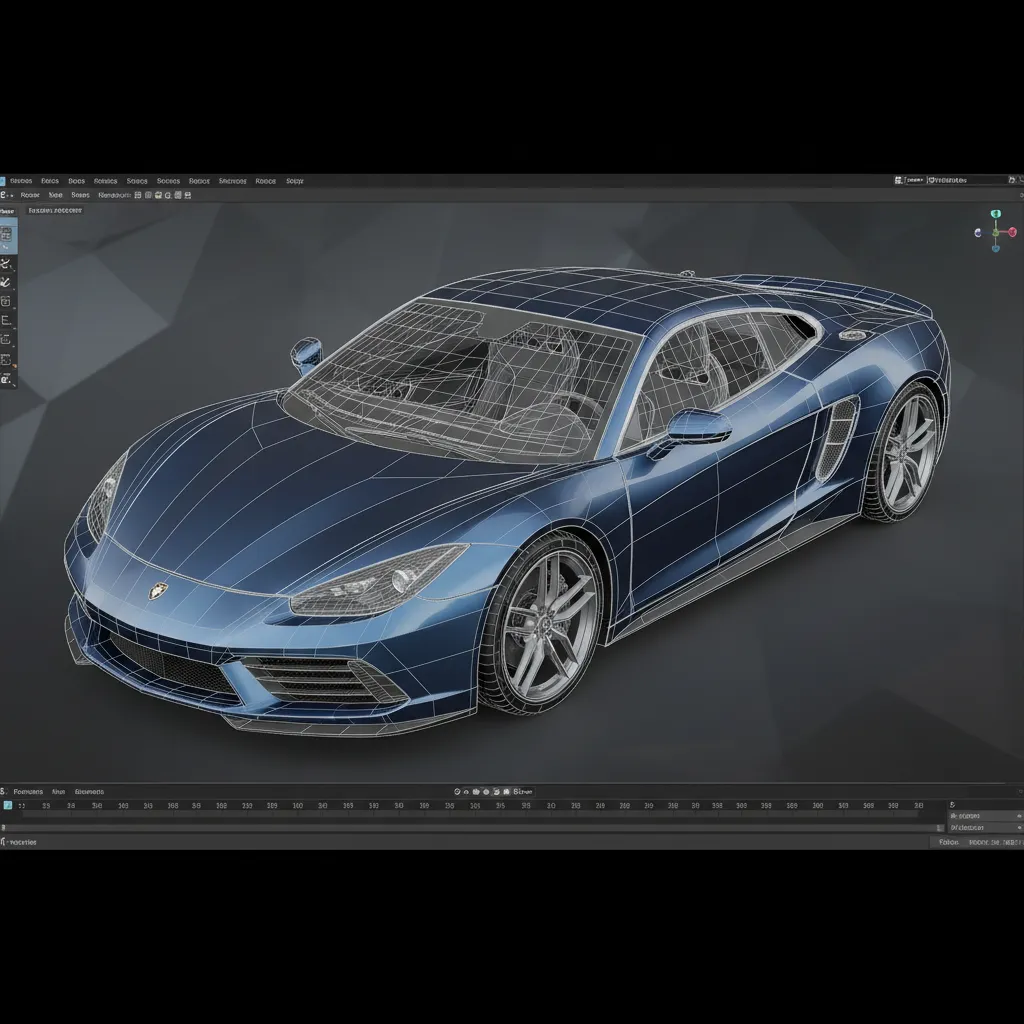

FBX Car Model Import Problems and How to Fix Them: Practical fixes for broken materials scale errors and mesh issues when importing vehicle FBX models into 3D software

Direct Answer

FBX car models often import incorrectly because of mismatched units, missing texture paths, unsupported materials, or corrupted geometry during export. Most problems can be fixed by relinking textures, correcting scale settings, recalculating normals, or re‑exporting the FBX with compatible settings.

In real production workflows, nearly every broken FBX vehicle model traces back to export configuration rather than the model itself.

Quick Takeaways

1. Most FBX car model issues come from export settings rather than damaged geometry.
2. Missing textures usually happen because texture paths are not embedded.
3. Scale problems occur when units differ between modeling software and the target engine.
4. Broken shading often comes from incorrect normals or triangulation during export.
5. Testing FBX imports in a clean scene helps isolate asset problems quickly.

Introduction

After working on dozens of real‑time visualization projects, I've learned one thing about a FBX car model: the model itself is rarely the problem. The import pipeline usually is.

Designers download a vehicle asset, bring it into Blender, Unity, Unreal, or another 3D environment, and suddenly everything looks wrong. Wheels appear massive, materials vanish, or the mesh looks completely broken. It feels like the model is corrupted, but most of the time it's just a translation issue between software.

I’ve seen this repeatedly in production environments when teams move assets between modeling tools and visualization engines. The same vehicle model might import perfectly in one tool and look unusable in another.

If you're trying to build scenes, visualize automotive concepts, or create high‑quality renders similar to professional high quality 3D visualization workflows used in modern rendering projects, understanding how FBX behaves across platforms becomes essential.

In this guide, I’ll walk through the most common problems people encounter when importing FBX vehicle models and how experienced 3D teams actually fix them.

save pin

Why FBX Car Models Sometimes Import Incorrectly

Key Insight: Most FBX import problems happen because the export settings used by the creator do not match the expectations of the target software.

The FBX format is widely supported, but every 3D application interprets it slightly differently. Maya, Blender, 3ds Max, Unity, and Unreal all read the format with their own assumptions about scale, material systems, and animation data.

That means a car model exported perfectly from one tool may still look broken in another.

Common root causes include:

1. Different measurement units (meters vs centimeters)
2. Texture paths not embedded in the FBX file
3. Unsupported material types
4. Non‑triangulated geometry
5. Incorrect smoothing or normals

A hidden issue many tutorials miss: Some creators export FBX using older format versions. Modern engines sometimes read those differently, especially for materials and animations.

When troubleshooting, I always test the asset in a fresh scene first. If it imports cleanly there, the issue is likely with your project settings rather than the model itself.

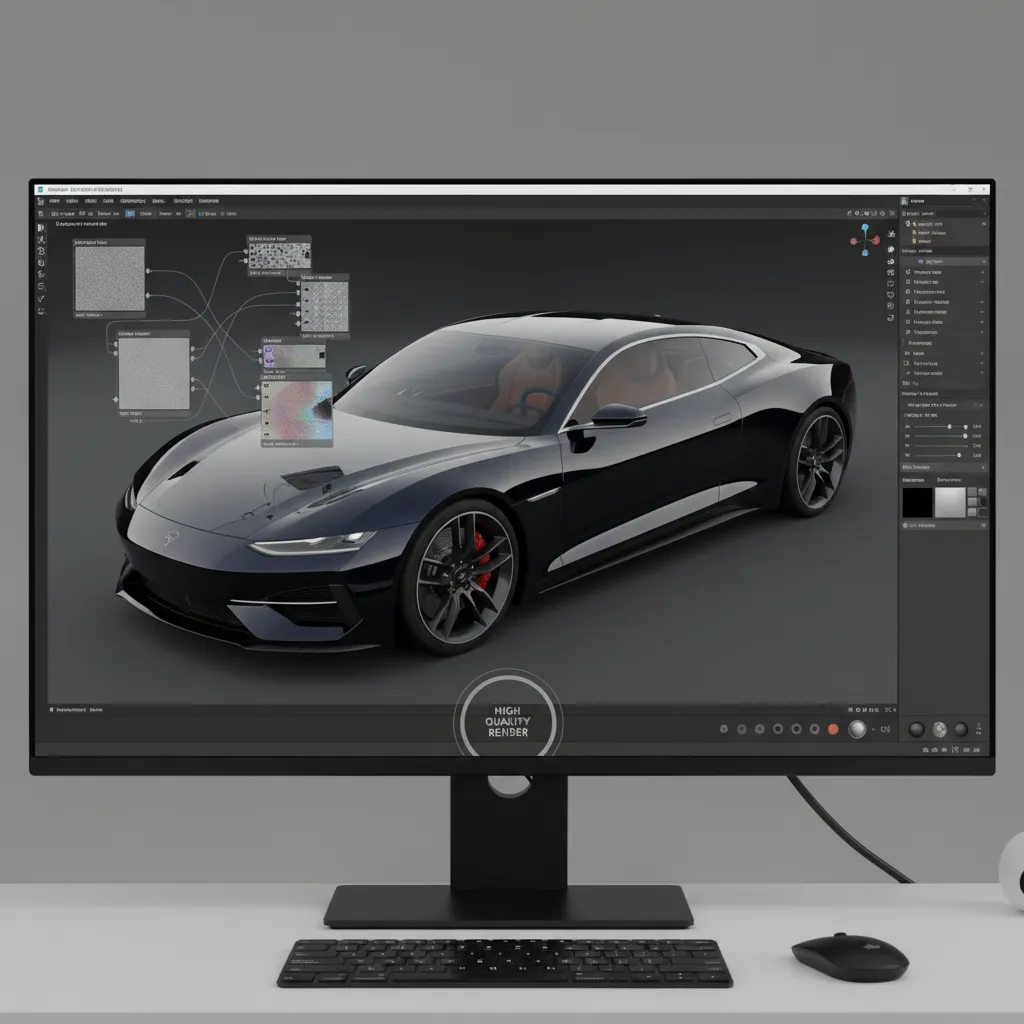

How Do You Fix Missing Textures and Broken Materials

Key Insight: Missing textures usually happen because the FBX file references external images that are not located during import.

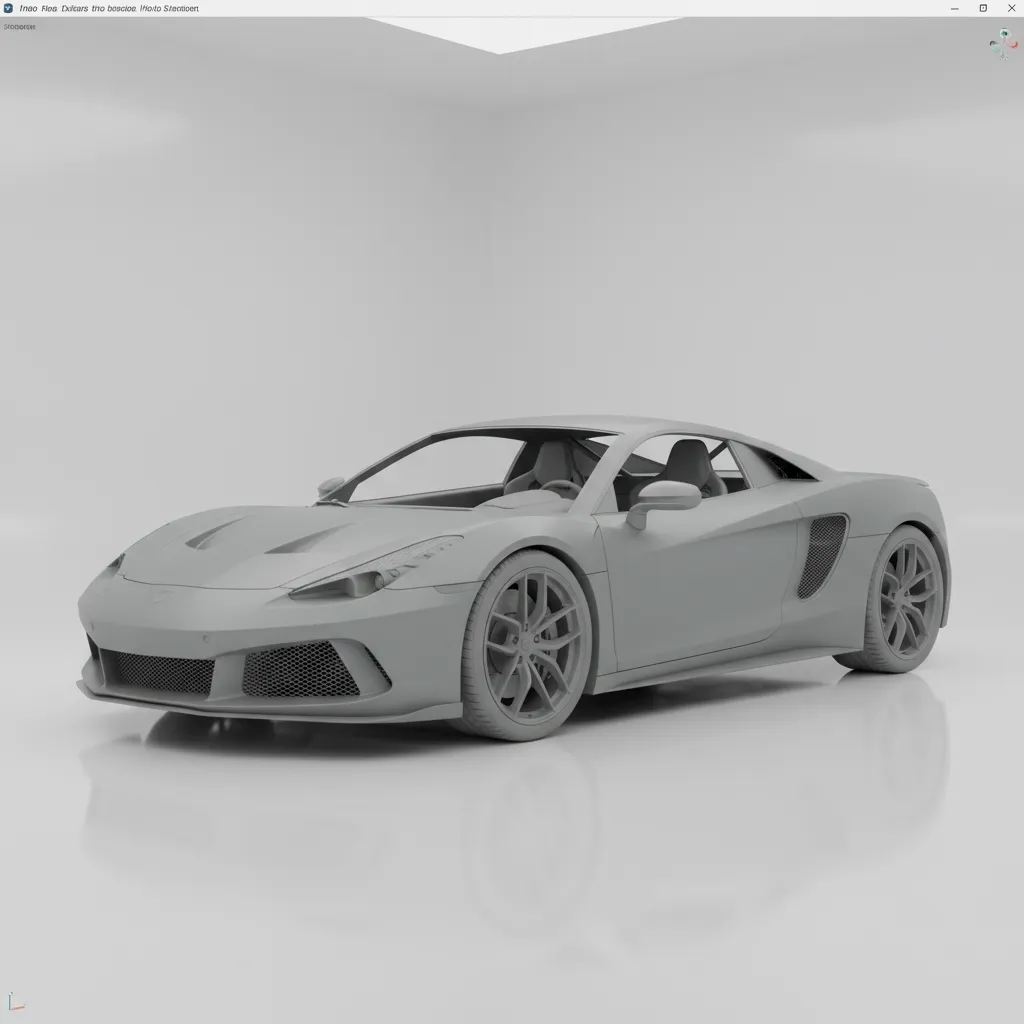

This is by far the most common complaint when importing vehicle models. The car appears gray or untextured even though the model preview looked perfect before download.

Typical fixes include:

1. Locate the original texture folder included with the asset.
2. Relink textures manually in the material editor.
3. Use "Embed Media" during FBX export.
4. Convert unsupported shader types into standard materials.

Common texture files used in car models:

1. Base color / albedo
2. Normal map
3. Roughness map
4. Metallic map
5. Ambient occlusion

Automotive models often rely on layered materials for paint, clear coat, and glass. When those advanced materials are exported, some engines simplify them, which can make the car look flat or unrealistic.

One workaround many studios use is converting complex materials to PBR maps before export.

save pin

Why Does the Car Model Import at the Wrong Scale

Key Insight: Scale errors occur when the modeling software and the target engine use different unit systems.

A car that should be 4.5 meters long might import as 450 meters or just a few centimeters depending on how the FBX was exported.

Typical unit differences:

1. Blender often uses meters
2. Maya typically uses centimeters
3. Game engines sometimes assume centimeters

Steps to fix scale issues:

1. Check the original scene unit settings.
2. Apply transforms before exporting.
3. Enable "Apply Unit" during FBX export.
4. Import using the correct scale factor.

One trick experienced artists use is measuring the wheelbase. If the distance between front and rear wheels is realistic, the rest of the model scale is usually correct.

Scale consistency becomes especially important when integrating vehicles into larger visualization scenes or layout simulations such as interactive room and environment planning workflows used in spatial design tools.

How Can You Correct Mesh Errors and Geometry Problems

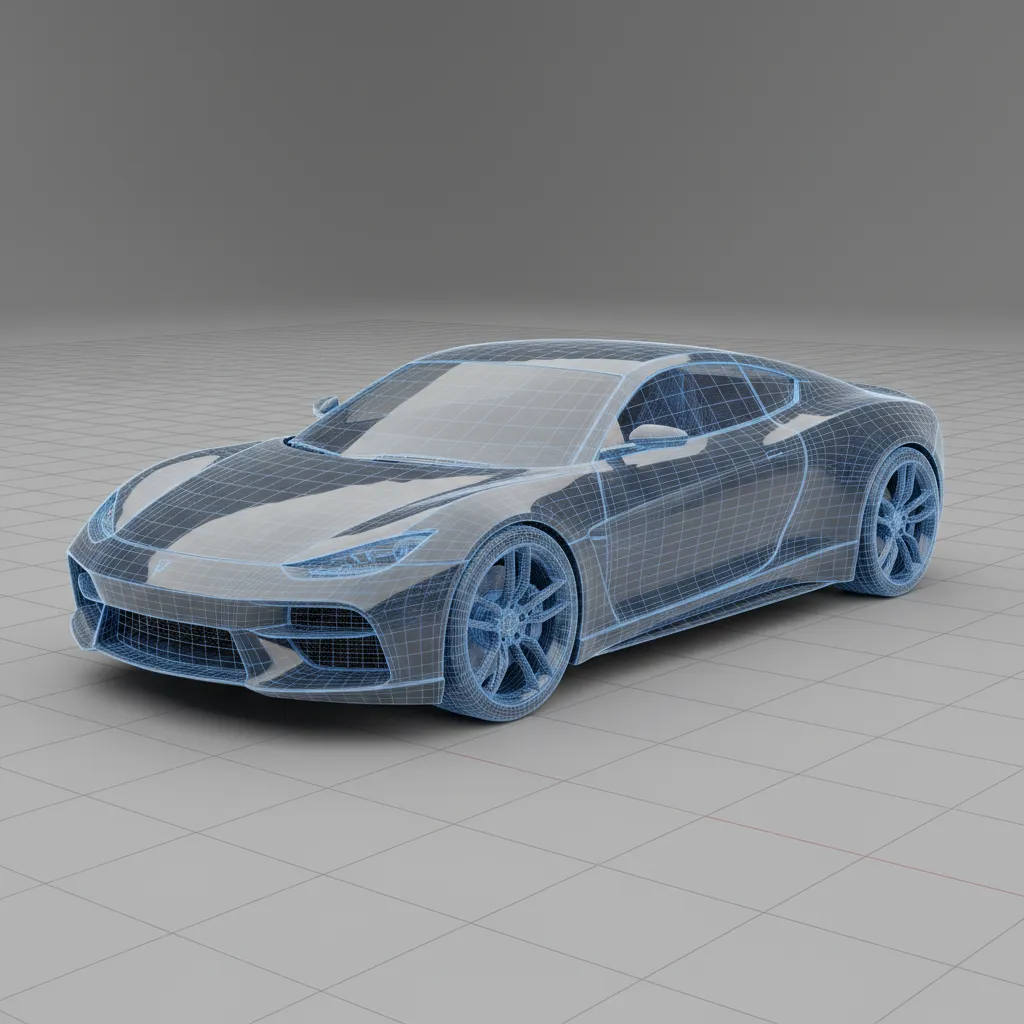

Key Insight: Broken shading and distorted surfaces usually come from flipped normals, non‑manifold geometry, or improper triangulation.

Car models are complex because they include curved body panels, sharp edges, and reflective materials. Even small geometry issues can become very visible.

Common geometry problems include:

1. Flipped normals causing black surfaces
2. Non‑manifold edges
3. Overlapping vertices
4. N‑gons not triangulated properly

Reliable fixes:

1. Recalculate normals outside
2. Merge duplicate vertices
3. Apply edge smoothing groups
4. Triangulate mesh before export

In automotive modeling, even minor normal errors on curved body panels can ruin reflections. That's why professional pipelines usually include a mesh validation step before export.

save pin

What Causes Animation or Rigging Problems in FBX Vehicle Models

Key Insight: Rigging errors typically happen when bone hierarchies or transform constraints are not supported by the importing software.

Vehicle models sometimes include rigged wheels, steering systems, or suspension components. If the rig structure differs from what the engine expects, the animation can break.

Typical animation problems:

1. Wheels rotating incorrectly
2. Steering bones missing
3. Animation timeline not imported
4. Constraints not supported

Recommended export practices:

1. Bake animations before export
2. Avoid complex constraint systems
3. Use simple bone hierarchies
4. Reset transforms

Most real‑time engines actually prefer very simple vehicle rigs. Overly complex rigs created for animation software often create more problems than benefits.

Best Import Settings for Popular 3D Software

Key Insight: Consistent import presets prevent most FBX car model issues before they happen.

After testing hundreds of assets across visualization tools, these import settings tend to produce the most stable results.

Recommended settings:

1. Enable automatic triangulation
2. Import normals and tangents
3. Preserve smoothing groups
4. Use automatic scale conversion
5. Enable material import but verify textures manually

One overlooked strategy is validating the asset in a neutral environment before integrating it into your main project. Teams building complex spatial scenes or interactive layouts often test assets in simplified visualization environments similar to AI assisted environment design workflows used for rapid scene prototyping.

Answer Box

Most FBX car model import issues come from mismatched export settings, missing texture paths, or incorrect unit scaling. Re‑exporting with embedded textures, applied transforms, and triangulated meshes solves the majority of problems.

Final Summary

1. Most broken FBX vehicle imports are caused by export configuration.
2. Embedding textures prevents the majority of missing material problems.
3. Unit mismatches are the main reason cars import at the wrong scale.
4. Mesh validation prevents shading and reflection artifacts.
5. Simple rigs work best for real‑time vehicle models.

FAQ

Why does my FBX car model import without textures?

The texture paths may not be embedded in the FBX file. Locate the texture folder and relink images manually or re‑export with "Embed Media" enabled.

Why is my FBX car model extremely large or tiny?

This usually happens due to unit mismatches between modeling software and the target engine. Adjust the import scale or export units.

How do I fix a broken FBX car model after import?

Check normals, apply transforms, relink textures, and verify scale settings. In many cases re‑exporting the FBX with proper settings resolves the issue.

Why does my FBX vehicle model look dark or shaded incorrectly?

Incorrect normals or smoothing groups can cause shading artifacts. Recalculate normals and ensure smoothing groups are preserved during export.

What software handles FBX car models best?

Most professional tools support FBX including Blender, Maya, 3ds Max, Unreal Engine, and Unity.

Should I triangulate a car model before exporting FBX?

Yes. Triangulation ensures consistent geometry interpretation across different 3D engines.

Why do the wheels rotate incorrectly in my vehicle FBX?

The rig hierarchy may not match the target engine requirements. Baking animation or simplifying the rig usually fixes this.

What is the best way to troubleshoot FBX vehicle assets?

Import the FBX car model into a clean scene first. If it works there, the issue likely comes from project settings.
