Fixing Common Terrain Import Problems from 3D Modelers: Practical fixes for scale errors, broken normals, and heavy terrain meshes when importing landscapes into real‑time engines

Direct Answer

Terrain import problems from 3D modelers usually come from scale mismatches, excessive polygon density, incorrect normals, or incompatible heightmap formats. Fixing unit settings, cleaning mesh data, optimizing geometry, and respecting engine‑specific terrain limits resolves most import failures.

In real production workflows, the majority of terrain import errors are not software bugs but pipeline inconsistencies between the modeling tool and the target engine.

Quick Takeaways

1. Most terrain import failures come from unit scale mismatches between the modeling software and the game engine.
2. Broken normals often cause terrain shading artifacts after export.
3. Heightmaps must match engine resolution limits and bit‑depth requirements.
4. Reducing polygon density dramatically improves terrain import stability.
5. Every engine has terrain size and tile limits that must be respected.

Introduction

Terrain import problems from Blender, Houdini, or other 3D modelers show up in almost every environment production pipeline I’ve worked on. After more than a decade designing environments and coordinating with real‑time teams, I’ve noticed something interesting: the terrain itself is rarely the problem. The real issue is usually the translation step between tools.

Artists build beautiful terrain meshes, export them, and then suddenly the landscape appears stretched, black‑shaded, missing details, or refuses to load at all. These problems often happen when moving assets into engines like Unreal, Unity, or custom render pipelines.

In many studios, teams now prototype environments using tools similar to interactive AI‑assisted layout generation used for rapid spatial visualization, but the same rule still applies: geometry pipelines must stay consistent from creation to import.

This guide walks through the most common terrain mesh not importing into game engine issues I see in real production pipelines—and the practical fixes that actually work.

save pin

Why Terrain Models Fail During Import

Key Insight: Most terrain import failures happen because the engine expects structured terrain data, while many modeling tools export raw geometry.

3D modeling tools treat terrain as ordinary meshes. Game engines, however, often expect heightmaps, tiled landscapes, or optimized terrain components.

When those expectations don’t match, several issues appear:

1. Terrain mesh not importing into game engine
2. Terrain appears extremely large or tiny
3. Lighting artifacts across slopes
4. Engine crashes during import
5. Heightmap import errors in terrain workflows

In one Unreal project I worked on, a terrain exported from Blender contained 18 million polygons. The engine technically supported it—but the import process stalled for over 20 minutes and eventually failed.

The lesson: engines prefer structured terrain systems rather than raw sculpted meshes.

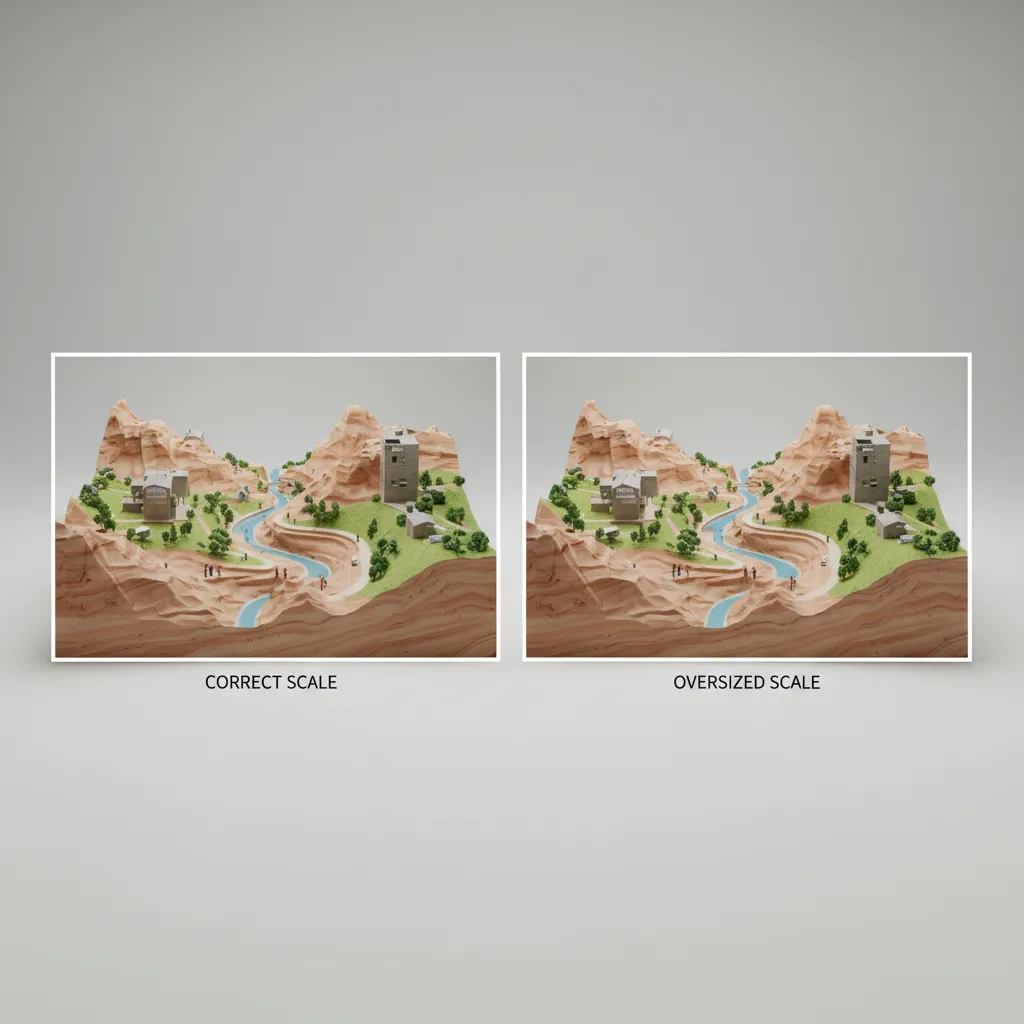

Fixing Scale and Unit Mismatch Issues

Key Insight: Terrain scale problems usually happen because modeling software and engines use different base units.

One of the most common terrain import problems from Blender is incorrect world scale. Blender defaults to meters, while some pipelines assume centimeters.

If the scale is wrong during export, the terrain may appear:

1. 100× larger than expected
2. extremely tiny
3. misaligned with physics systems

Steps to fix scale issues:

1. Apply scale transforms before export.
2. Match unit systems between tools.
3. Export using consistent measurement settings.
4. Confirm import scale settings inside the engine.

Typical pipeline unit settings used by studios:

1. Unreal Engine: centimeters
2. Unity: meters
3. Houdini heightfields: meters

If you regularly prototype environments visually, tools similar to interactive spatial planning systems used for quick layout visualizationdemonstrate how consistent scaling keeps large environments predictable.

save pin

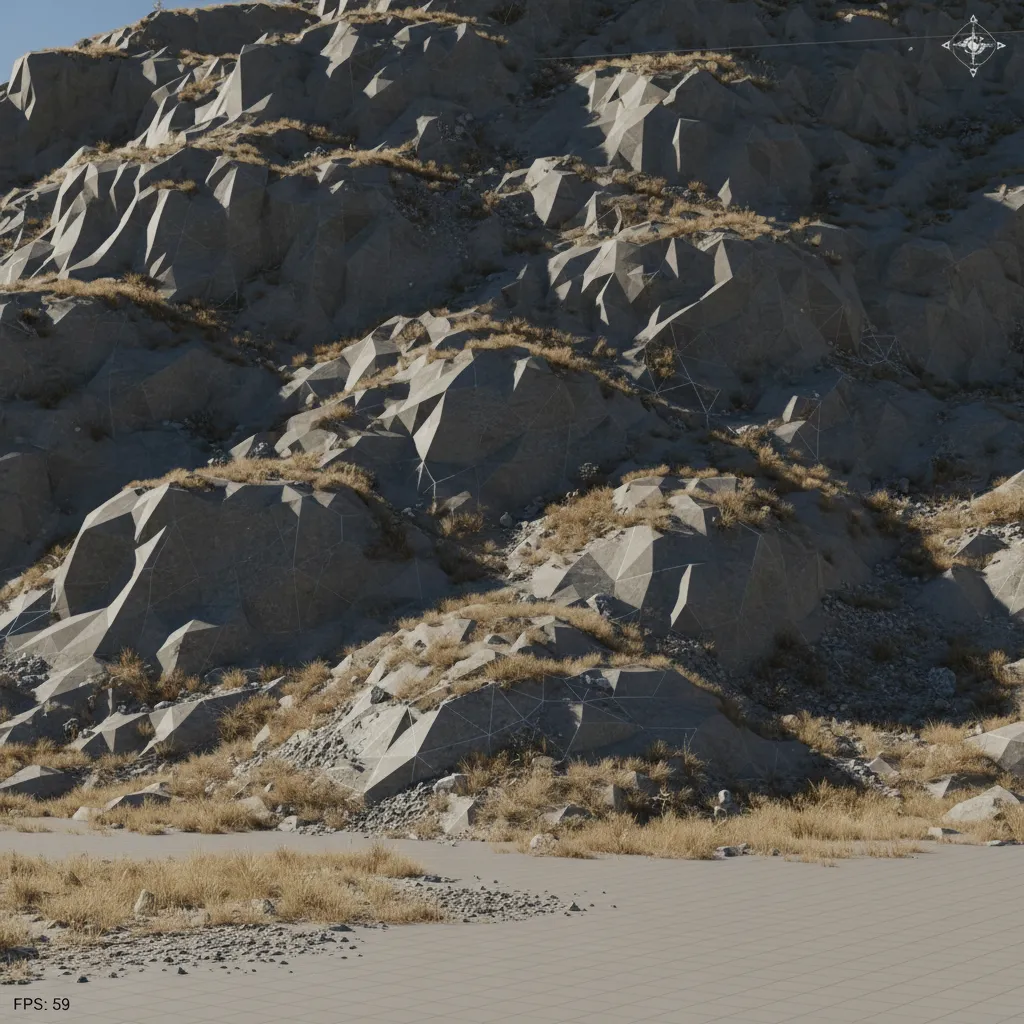

Resolving Broken Terrain Normals and Shading

Key Insight: Terrain shading problems after export usually come from corrupted or recalculated normals during mesh conversion.

When terrain normals break, you’ll see:

1. dark streaks across hills
2. sharp lighting seams
3. faceted shading on smooth slopes

These artifacts appear because engines recalculate normals differently than modeling software.

Common fixes:

1. Recalculate normals before export
2. Enable smooth shading
3. Remove duplicate vertices
4. Triangulate mesh before export

Another hidden issue is vertex splitting caused by UV seams. When this happens across terrain surfaces, lighting becomes inconsistent.

Professional environment teams often run a mesh cleanup pass before export to avoid this exact problem.

save pin

Handling Heightmap and Mesh Conversion Errors

Key Insight: Heightmap import errors usually occur when terrain resolution or bit depth doesn't match the engine’s expected format.

Most engines require specific heightmap formats:

1. 16‑bit grayscale images
2. power‑of‑two resolutions
3. tile‑friendly dimensions

Typical supported terrain sizes include:

1. 1025 × 1025
2. 2049 × 2049
3. 4097 × 4097

If the terrain mesh was sculpted rather than generated from a heightfield, conversion becomes necessary.

Common conversion workflow:

1. Convert mesh to heightmap using displacement bake
2. Export as 16‑bit PNG or RAW
3. Import into the engine terrain system

This method reduces terrain mesh size dramatically while preserving large‑scale elevation detail.

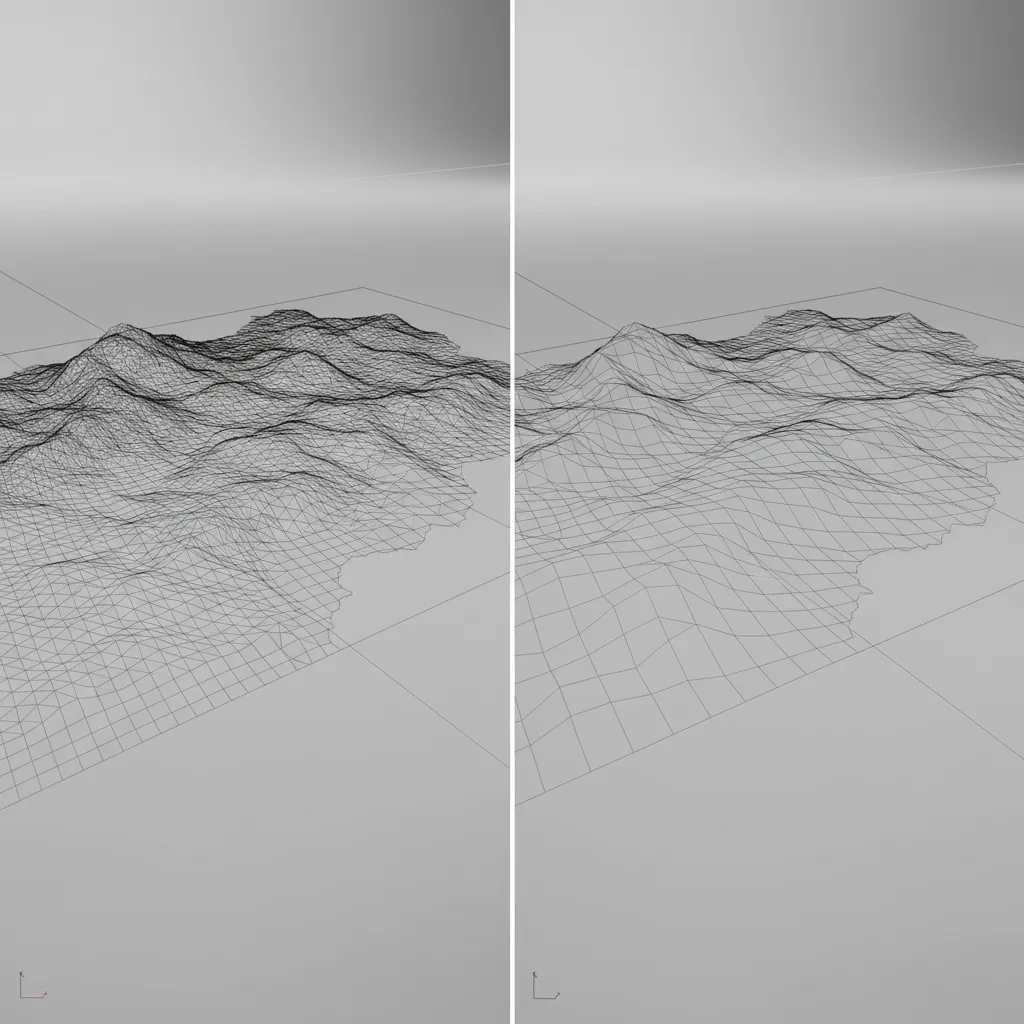

Reducing Polygon Density Before Import

Key Insight: Overly dense terrain meshes are one of the biggest causes of failed imports and poor performance.

I regularly see terrain meshes exported with millions of polygons—even when the final game terrain only needs a fraction of that detail.

Real‑time engines handle terrain differently than modeling tools. They rely on:

1. LOD systems
2. heightfield tessellation
3. streaming terrain tiles

Recommended optimization workflow:

1. Use decimation tools to reduce polygons
2. Retopologize terrain mesh
3. Convert terrain to heightmap if possible
4. Split terrain into tiles

Many teams also visualize terrain proportions during layout planning using tools similar to visual planning environments that help map spatial layouts before detailed modeling. The same concept applies to terrain: block the scale first, refine later.

save pin

Engine-Specific Terrain Import Limitations

Key Insight: Every engine imposes terrain size and resolution limits, which often cause silent import failures.

Common engine constraints include:

1. maximum terrain resolution
2. tile size restrictions
3. memory limits

Examples:

1. Unreal Engine landscapes rely on component grids.
2. Unity terrains prefer heightmap‑based terrain objects.
3. Some engines reject meshes above certain vertex counts.

A hidden production cost appears when artists ignore these limits. Terrain may import successfully but later fail during lighting, streaming, or physics generation.

Answer Box

The fastest way to fix terrain import problems is to standardize units, reduce polygon density, clean mesh normals, and ensure heightmaps match engine resolution requirements. In professional pipelines, terrain usually moves through a structured heightmap workflow instead of raw mesh exports.

Final Summary

1. Terrain import errors usually come from mismatched pipeline expectations.
2. Scale mismatches are the most common terrain export mistake.
3. Broken normals cause the majority of terrain shading artifacts.
4. Heightmaps are often more reliable than raw terrain meshes.
5. Engines impose strict terrain size and resolution limits.

FAQ

Why is my terrain mesh not importing into the game engine?

The terrain mesh may exceed polygon limits, use incorrect scale units, or contain broken geometry. Cleaning the mesh and reducing density usually resolves the issue.

How do I fix terrain scale issues after export?

Apply scale transforms before exporting and ensure the modeling software and engine use the same unit system.

What causes terrain shading problems after export?

Incorrect normals, duplicated vertices, or broken smoothing groups often create lighting artifacts on terrain surfaces.

What heightmap format do engines usually require?

Most engines accept 16‑bit grayscale heightmaps such as PNG or RAW files with specific terrain resolutions.

Why does my terrain appear extremely large in the engine?

This typically happens when exporting from meters into an engine expecting centimeters.

Can I import a sculpted terrain mesh directly?

Yes, but converting it to a heightmap usually produces better performance and stability.

What is the best fix for terrain import problems from Blender?

Apply scale, clean normals, reduce polygons, and export using compatible heightmap or mesh settings.

Why does the engine crash when importing large terrain meshes?

Extremely dense terrain meshes consume excessive memory during import, often exceeding engine limits.
