Fixing Non Manifold Edges and Mesh Errors Before 3D Printing: Learn how to diagnose and repair mesh issues that stop 3D models from becoming printable files.

Direct Answer

Non manifold edges and mesh errors occur when a 3D model contains geometry that cannot exist as a solid object. Fixing them involves detecting open surfaces, inverted normals, duplicate faces, or overlapping geometry and repairing them using mesh analysis and repair tools before slicing.

If a model is not manifold, the slicer cannot determine inside versus outside surfaces, which prevents successful 3D printing.

Quick Takeaways

1. Non manifold edges happen when geometry breaks the rule of a watertight solid.
2. Most printing failures come from holes, flipped normals, or overlapping faces.
3. Mesh inspection tools can automatically detect many geometry issues.
4. Repair workflows should always end with model validation before slicing.

Introduction

After preparing hundreds of models for fabrication, one issue shows up more often than almost anything else: non manifold geometry. Even beautifully designed models fail when exported because the mesh isn't technically printable.

In simple terms, a printer needs a perfectly closed solid. But CAD exports, sculpting tools, and downloaded models frequently contain hidden issues like internal faces, gaps, or edges shared by too many polygons. These problems lead to slicing errors, missing layers, or prints that collapse halfway through.

If you've ever asked yourself why your model looks correct but still refuses to slice, you're dealing with mesh errors.

This guide walks through how to identify them, how to fix non manifold edges, and how to validate a model before printing. If you're still early in the pipeline, you may also want to review the workflow explained in a step by step breakdown of turning digital layouts into structured 3D models, since clean topology at the start prevents most downstream issues.

save pin

What Non Manifold Geometry Means in 3D Printing

Key Insight: A manifold mesh is one where every edge belongs to exactly two faces, creating a completely closed volume.

3D printers interpret models as solids. If the geometry breaks this rule, the printer cannot determine which side of the surface contains material.

Common examples include:

1. An edge shared by three or more faces
2. Faces that overlap exactly in the same space
3. Open holes in the mesh
4. Internal surfaces trapped inside the model

In professional fabrication workflows, these issues are usually caught during model validation. Autodesk's additive manufacturing guidelines note that watertight meshes are a fundamental requirement before slicing.

Common Mesh Errors That Break Printability

Key Insight: Most STL failures are caused by a small set of recurring mesh mistakes.

After troubleshooting many problematic files, these are the issues that appear repeatedly.

1. Holes in the mesh – Missing faces leave the model open.
2. Inverted normals – Faces point inward instead of outward.
3. Duplicate geometry – Overlapping faces confuse slicing algorithms.
4. Zero thickness surfaces – Surfaces without volume cannot be printed.
5. Intersecting meshes – Separate objects collide without being merged.

A hidden mistake many people overlook is internal geometry created during Boolean operations. It doesn't always appear visually but causes major slicing errors.

save pin

How to Detect Mesh Problems in 3D Models

Key Insight: Automated mesh analysis is the fastest way to identify non manifold edges and structural issues.

Professional modeling software usually includes diagnostic tools designed specifically for print preparation.

Typical inspection workflow:

1. Run a mesh analysis tool.

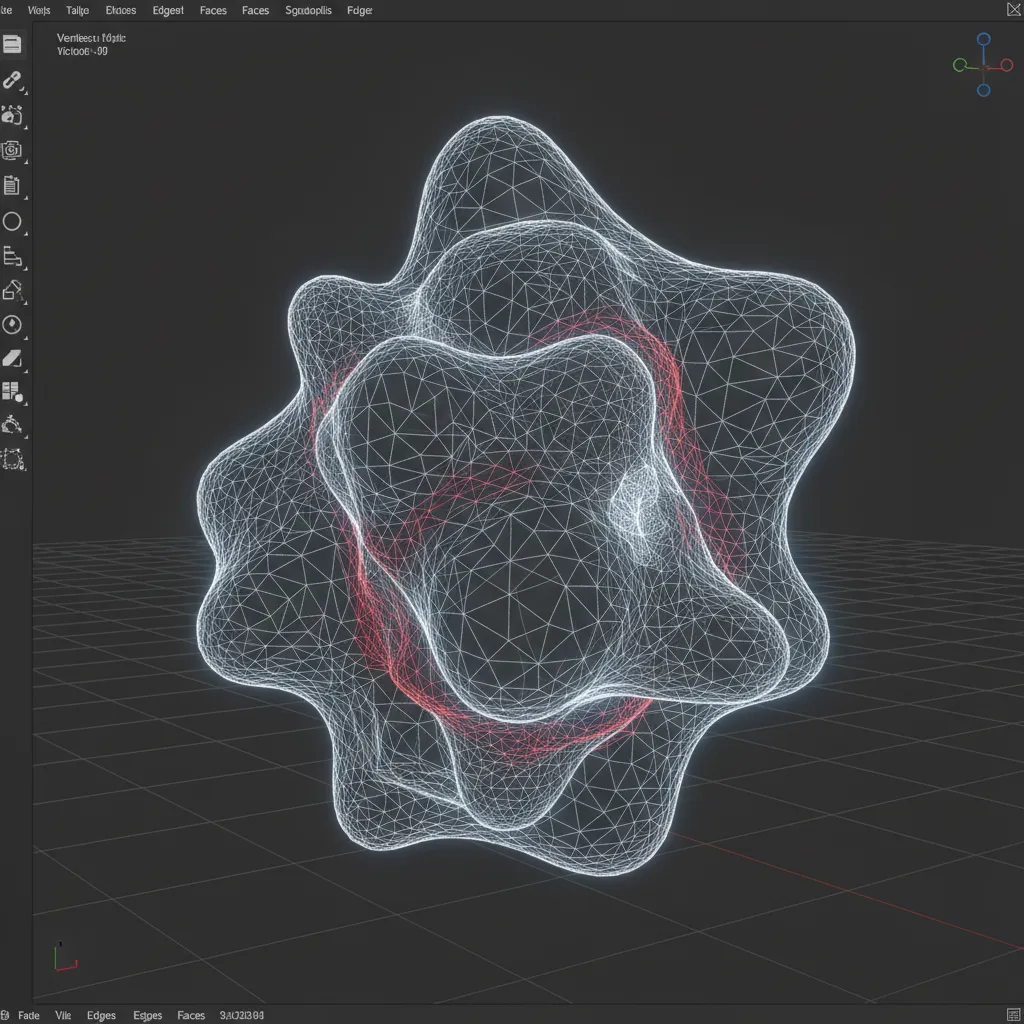

2. Highlight non manifold edges.
3. Locate holes or boundary edges.
4. Check face orientation and normals.
5. Detect overlapping or duplicate faces.

Visualization overlays are particularly useful because they show problematic edges directly on the model.

In workflows where models originate from spatial planning or layout tools, issues sometimes appear during export. When converting layouts into structural meshes, guides like a walkthrough on generating clean digital floor plans illustrate how structured geometry reduces downstream mesh errors.

Step by Step Methods to Repair Non Manifold Edges

Key Insight: Most mesh repair workflows follow a predictable order: remove bad geometry, close holes, then rebuild the surface.

Here is a practical repair sequence used in many production environments.

1. Delete duplicate vertices and faces
2. Merge overlapping elements that occupy identical coordinates.

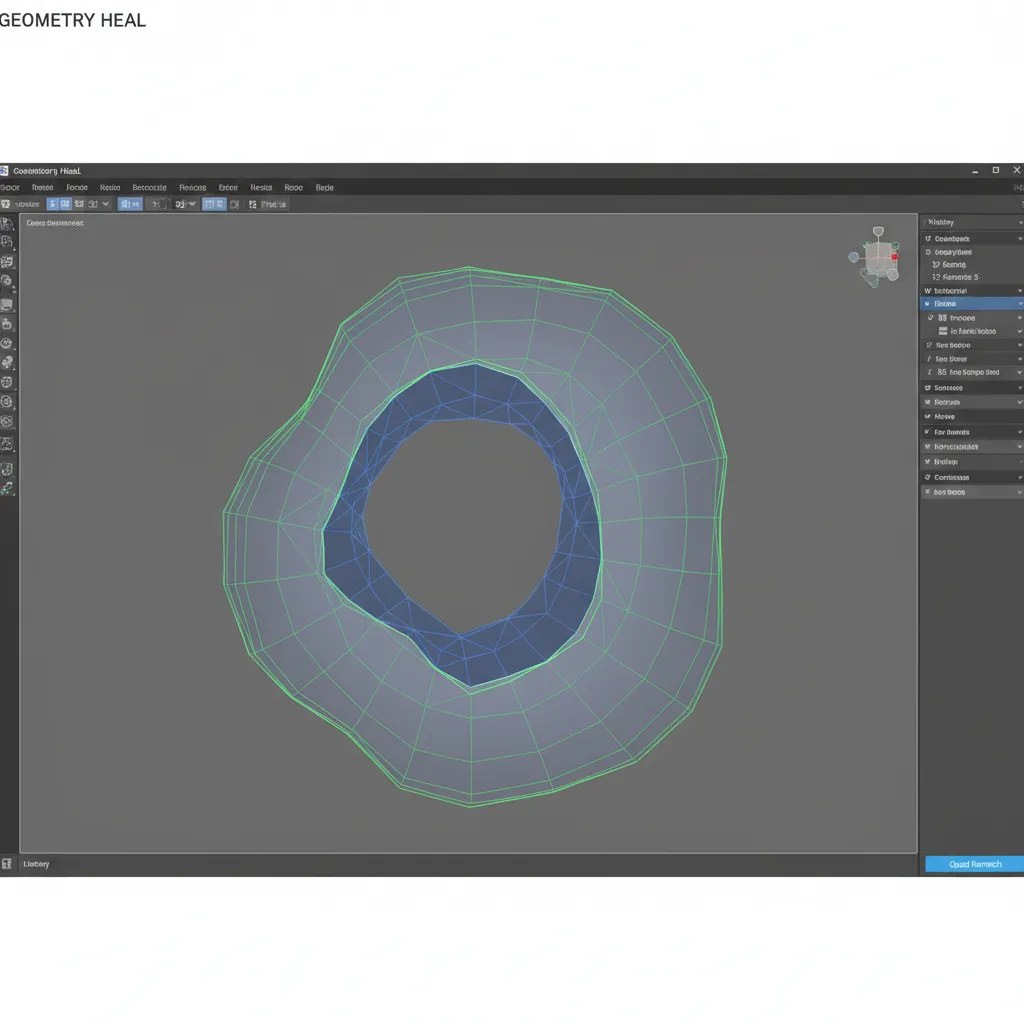

3. Fill boundary holes
4. Most modeling tools have automatic "fill hole" functions.
5. Recalculate normals
6. Ensure all faces point outward consistently.
7. Union intersecting meshes
8. Convert overlapping bodies into one continuous volume.
9. Remesh if necessary
10. Generate a clean topology when geometry becomes too fragmented.

One counterintuitive truth: sometimes repairing a model manually takes longer than rebuilding the mesh from scratch.

save pin

Tools That Automatically Fix Mesh Errors

Key Insight: Dedicated mesh repair tools can automatically fix a majority of non manifold issues.

Several applications specialize in preparing models for additive manufacturing.

1. Meshmixer – Excellent for automated repair and hollowing.
2. Netfabb – Widely used in professional printing workflows.
3. Blender – Provides manual control and strong diagnostic tools.
4. Microsoft 3D Builder – Simple automatic repair for STL files.

Many automated repair algorithms follow a similar process: detect boundary edges, rebuild missing surfaces, and reconstruct a watertight mesh.

Answer Box

The fastest way to fix non manifold edges is to run automated mesh analysis, repair holes, merge duplicate geometry, and confirm the model forms a fully closed solid.

A watertight mesh is the single requirement every 3D printer depends on.

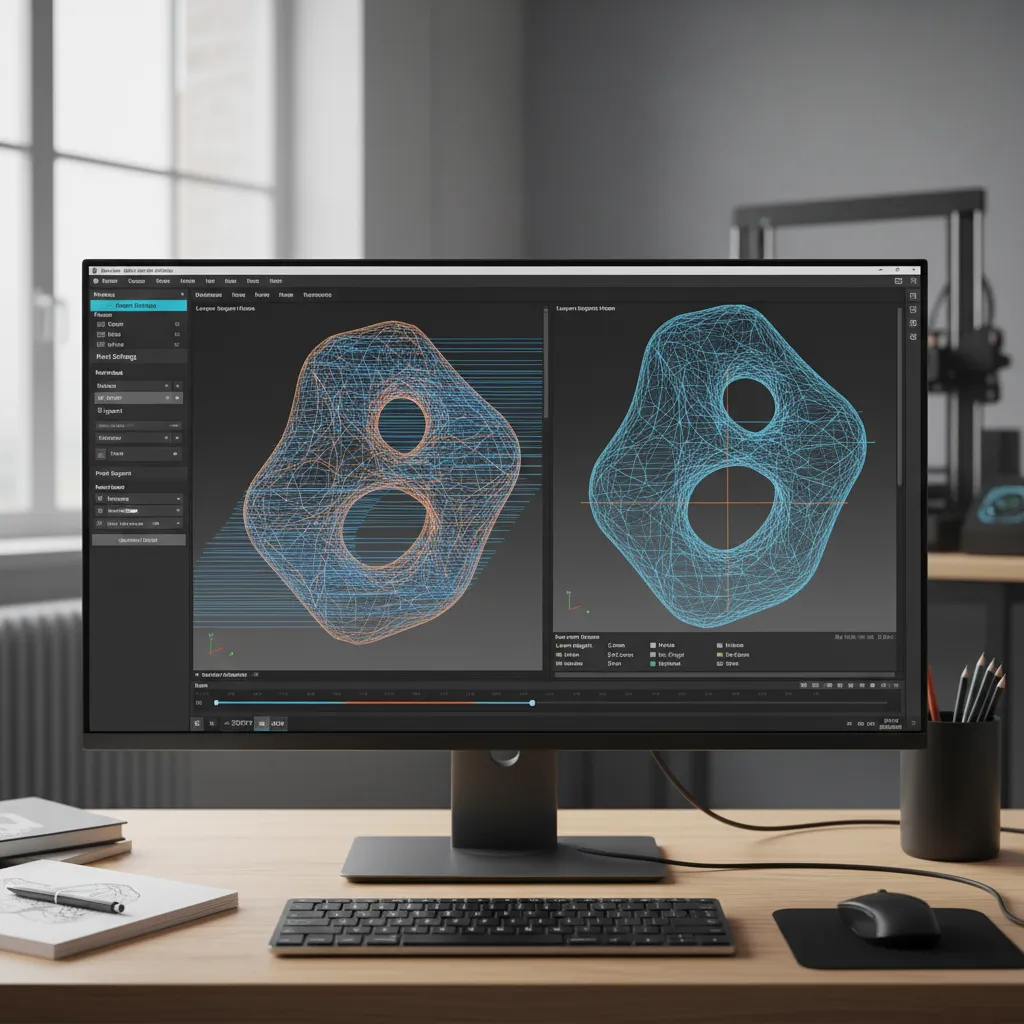

Validating a Model Before Sending It to the Slicer

Key Insight: Validation prevents wasted prints by ensuring geometry behaves like a physical object.

Before exporting to a slicer, run a final verification pass.

Checklist used in professional printing pipelines:

1. Mesh is fully watertight
2. No non manifold edges detected
3. Face normals oriented outward
4. No intersecting bodies
5. Wall thickness meets printer requirements

Visualization tools and rendering previews can also reveal hidden geometry problems. Techniques used when creating high fidelity 3D visualization previews of interior spacesoften expose structural issues before the model ever reaches the slicer.

save pin

Final Summary

1. Non manifold geometry prevents slicers from interpreting solid volumes.
2. Most mesh errors come from holes, flipped normals, or intersecting faces.
3. Automated repair tools can solve many STL issues quickly.
4. Always validate models before sending them to the slicer.
5. Clean topology during modeling avoids most repair work later.

FAQ

What are non manifold edges in 3D printing?

Non manifold edges occur when an edge belongs to more than two faces or breaks the rules of a closed solid, making the model impossible to interpret for printing.

How do I fix non manifold edges in an STL file?

Run mesh analysis in a repair tool, close holes, remove duplicate faces, and recalculate normals to ensure the model becomes a watertight mesh.

Why is my 3D model not manifold?

Common causes include Boolean operations, overlapping geometry, missing surfaces, or exporting from modeling tools without mesh validation.

Can slicers automatically repair mesh errors?

Some slicers attempt basic fixes, but complex geometry issues usually require dedicated mesh repair tools.

What software can repair mesh for 3D printing?

Meshmixer, Netfabb, Blender, and Microsoft 3D Builder are commonly used tools to repair mesh for 3D printing.

How do I fix holes in STL files?

Use a mesh repair tool to detect boundary edges and automatically fill the missing faces.

Do all 3D printers require manifold models?

Yes. Every slicing engine requires a watertight mesh to determine the inside and outside of the object.

What are mesh errors preventing 3D print slicing?

Typical errors include non manifold edges, flipped normals, intersecting meshes, duplicate faces, and zero thickness surfaces.
