Fixing Poor Foot Traffic in Mall Floor Plans: Practical layout adjustments that eliminate retail dead zones and improve visitor circulation in large shopping centers

Direct Answer

Poor foot traffic in mall floor plans usually comes from layout imbalances such as hidden corridors, weak anchor placement, and confusing navigation loops. Fixing the issue typically requires redesigning circulation paths, redistributing attractions, and improving visual sightlines so visitors naturally move through the entire mall rather than clustering in a few areas.

In most cases, small structural adjustments—like repositioning kiosks, improving entrances to side corridors, or relocating anchor tenants—can significantly increase traffic flow without rebuilding the entire mall.

Quick Takeaways

1. Retail dead zones usually form where sightlines, anchors, and circulation paths fail to guide visitors naturally.
2. Most traffic problems come from layout structure, not tenant quality.
3. Balanced anchor placement distributes visitor movement across the entire mall.
4. Improving visual connections between corridors often increases foot traffic immediately.
5. Traffic monitoring tools are essential after making layout changes.

Introduction

Over the past decade working on retail environments, I've seen the same complaint from mall operators again and again: certain corridors stay empty while others are constantly crowded. In many cases, the issue isn't marketing, tenant mix, or seasonal demand. It's the floor plan.

Poor foot traffic in mall floor plans is almost always a spatial problem. When circulation routes are unclear or anchor stores are poorly distributed, shoppers naturally cluster in a few areas while other sections become retail dead zones.

Before redesigning a mall, I usually recommend mapping visitor movement first. Tools that allow teams to visualize complex retail circulation layouts in three dimensional planning environmentshelp identify where shoppers hesitate, turn around, or avoid entire corridors.

Once those friction points are visible, the real design work begins. In this guide I'll walk through the most common layout problems that reduce mall traffic—and the design adjustments that consistently improve circulation.

save pin

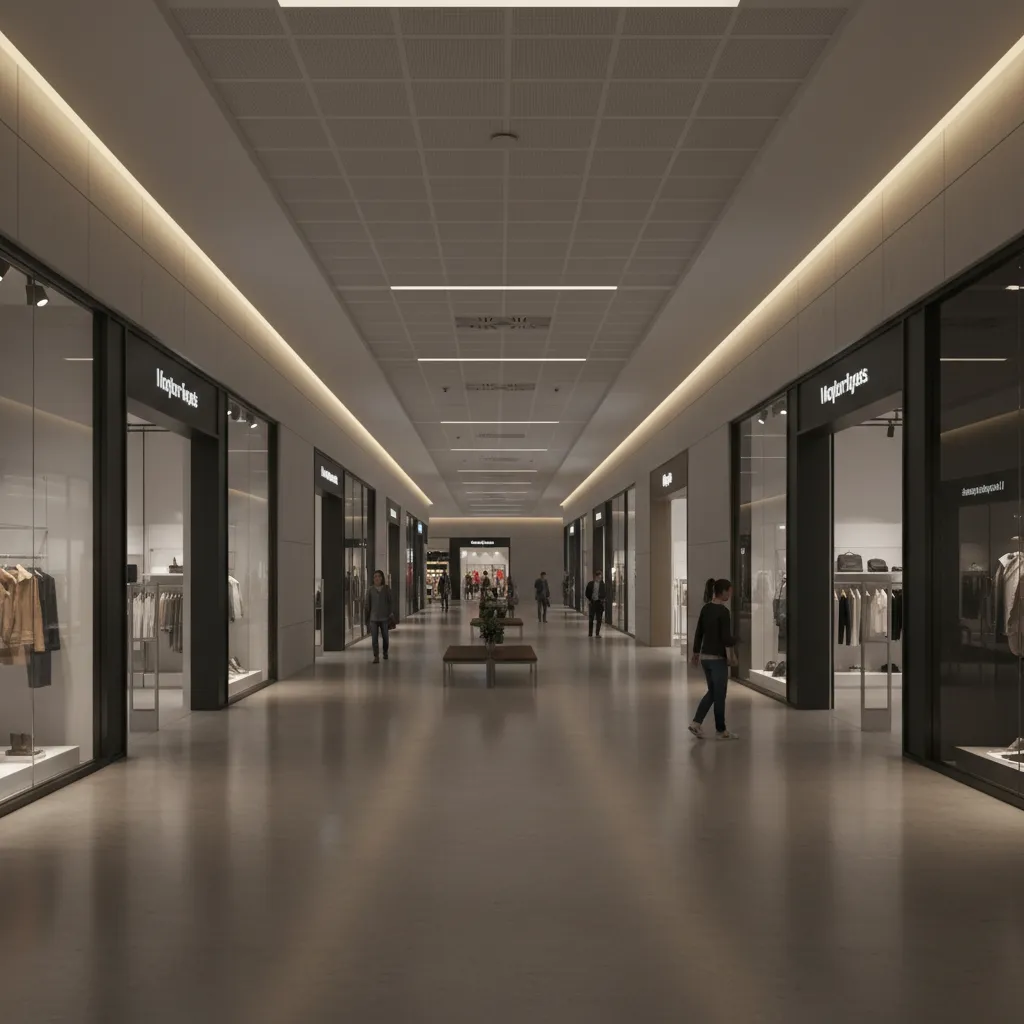

Why Poor Floor Plans Create Retail Dead Zones

Key Insight: Dead zones appear when the mall layout breaks the natural path shoppers expect to follow.

Visitors rarely explore randomly. Most people follow predictable spatial cues: clear sightlines, visible anchors, natural loops, and gradual discovery paths. When a floor plan disrupts those cues, entire areas lose traffic.

From my experience redesigning aging malls, three spatial factors create most dead zones:

1. Broken sightlines – corridors that appear visually disconnected from the main path.
2. Uneven anchor distribution – all major attractions concentrated in one zone.
3. Navigation friction – unclear wayfinding at intersections.

The International Council of Shopping Centers has repeatedly noted that balanced anchor positioning significantly increases cross‑mall movement. When anchors are clustered together, customers rarely explore the opposite end.

How Can You Identify Low Traffic Areas in a Shopping Mall

Key Insight: The most accurate way to identify low traffic zones is by analyzing movement patterns rather than relying on sales reports.

Many mall operators assume a struggling store means poor merchandising. In reality, the store may simply sit in a corridor most shoppers never reach.

Reliable traffic diagnostics usually involve:

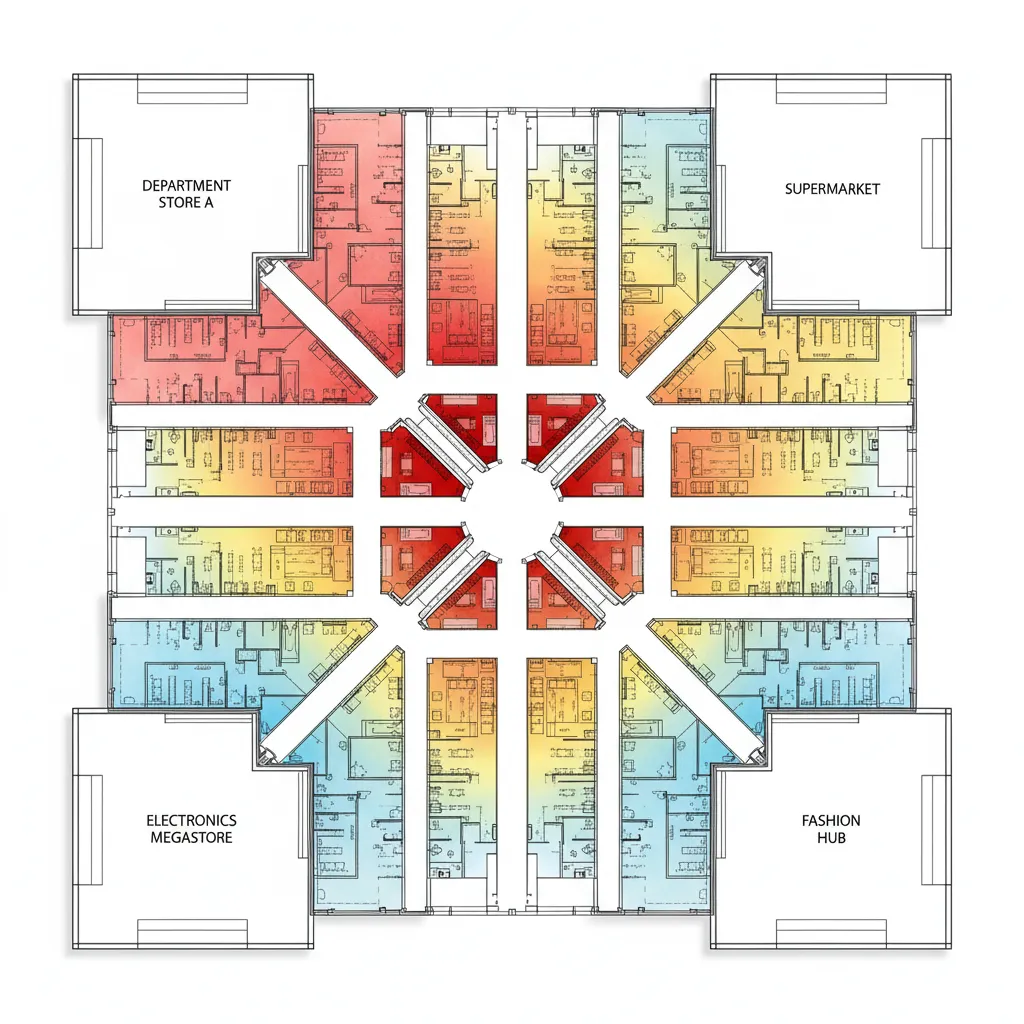

1. Heat maps from footfall sensors
2. Security camera movement analysis
3. WiFi or mobile device tracking
4. Manual observational studies

During several redevelopment projects I've worked on, heat maps revealed surprising patterns. One mall had a corridor with excellent tenants but almost zero visitors because the entrance was hidden behind an escalator core.

Mapping these patterns becomes easier when planners simulate traffic circulation with intelligent layout planning toolsbefore committing to structural changes.

save pin

What Mall Design Mistakes Most Often Reduce Customer Flow

Key Insight: The most damaging layout mistakes are subtle circulation problems rather than obvious structural flaws.

Across dozens of retail projects, a few recurring design mistakes consistently reduce traffic:

1. Dead-end corridors that offer no incentive to continue walking
2. Hidden secondary entrances with poor visibility
3. Overly wide atriums that break directional flow
4. Escalators placed side-by-side instead of creating movement loops
5. Tenant clustering by category instead of distributing attractions

One counterintuitive insight: extremely large open spaces can actually reduce circulation. When atriums are oversized, visitors often stop there rather than exploring surrounding corridors.

save pin

Design Adjustments That Improve Visitor Circulation

Key Insight: Small spatial cues can redirect thousands of daily visitors without major reconstruction.

When improving circulation in shopping malls, I usually start with adjustments that influence movement psychology rather than architecture.

Effective interventions include:

1. Adding visual anchors such as cafés or kiosks at corridor entrances
2. Narrowing overly wide pathways to create directional flow
3. Improving lighting toward underused areas
4. Relocating signage to decision points
5. Introducing micro‑attractions like pop‑up stores

Retail design research shows that visitors are naturally drawn toward activity clusters. Even temporary installations can revive a quiet corridor.

How Repositioning Anchors Restores Traffic Balance

Key Insight: Anchor placement determines the long‑term distribution of mall foot traffic.

Anchor stores—department stores, cinemas, food halls—are the primary drivers of visitor movement. When these anchors sit too close together, the mall effectively shrinks from a visitor perspective.

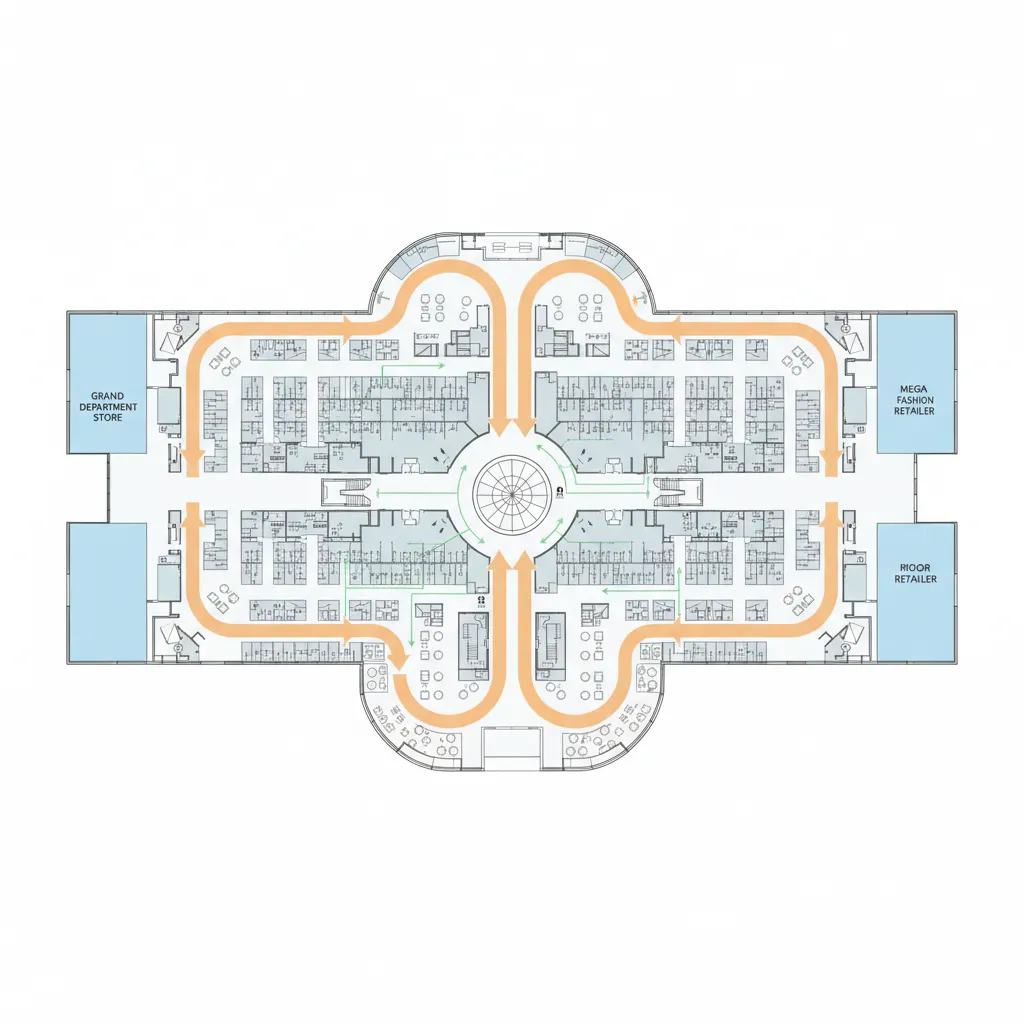

A balanced anchor strategy typically includes:

1. Major anchors placed at opposite ends of primary corridors
2. Secondary attractions located halfway along long pathways
3. Dining zones positioned near vertical circulation points
4. Entertainment venues acting as evening traffic magnets

In several redevelopment projects I've consulted on, simply relocating food courts closer to underperforming wings dramatically increased traffic in surrounding retail units.

save pin

How Should Mall Operators Monitor Traffic After Layout Changes

Key Insight: Layout improvements should always be followed by traffic monitoring to verify behavioral changes.

Even well-designed circulation strategies need real-world validation. After implementing layout changes, operators should track performance for several months.

Recommended monitoring methods include:

1. Footfall comparison before and after redesign
2. Tenant sales correlation by corridor
3. Visitor path tracking through digital sensors
4. Customer wayfinding surveys

Planning teams often use digital models to experiment with different spatial arrangements before implementing layout adjustments, which reduces costly trial-and-error changes later.

Answer Box

The fastest way to fix poor foot traffic in mall floor plans is improving circulation logic: balance anchor locations, strengthen corridor sightlines, and eliminate dead-end paths. Small layout changes often redistribute visitors more effectively than major structural renovations.

Final Summary

1. Most mall traffic problems originate from circulation design flaws.
2. Dead zones form where sightlines and anchors fail to guide visitors.
3. Heat maps and movement analysis reveal hidden traffic patterns.
4. Strategic anchor placement redistributes visitors across the mall.
5. Continuous monitoring ensures layout improvements actually work.

FAQ

What causes poor foot traffic in mall floor plans?

The most common causes are uneven anchor placement, hidden corridors, confusing navigation, and dead-end pathways that discourage visitors from exploring.

How do you fix retail dead zones in shopping malls?

Solutions include improving sightlines, adding attractions at corridor entrances, repositioning anchors, and redesigning circulation paths to create natural loops.

Can poor mall layout affect store sales?

Yes. Stores located in low-traffic corridors typically experience significantly lower sales regardless of merchandising quality.

What is the best mall layout for customer flow?

Loop-based or hybrid layouts typically perform best because they encourage continuous movement rather than forcing visitors to backtrack.

How can designers identify shopping mall dead zones?

Using footfall sensors, heat maps, camera analysis, and customer path tracking provides reliable insights into visitor movement.

Is redesigning a mall always necessary to fix traffic issues?

No. Many traffic problems can be solved with signage changes, kiosk placement, lighting improvements, or repositioning attractions.

What role do anchor stores play in mall circulation?

Anchor stores attract large visitor volumes and guide shoppers across the mall, balancing traffic distribution.

How long does it take to see improvements after layout changes?

Traffic shifts can appear within weeks, but reliable patterns usually emerge after several months of monitoring.

References

International Council of Shopping Centers (ICSC) Retail Design Reports

Urban Land Institute Retail Development Guidelines

Retail Design Institute Store Planning Resources
