Fixing scale alignment and geometry errors in floor plan to 3D models: Practical methods designers use to correct dimension mistakes wall misalignment and broken geometry during floor plan to 3D conversion

Direct Answer

Scale, alignment, and geometry errors in floor plan to 3D models usually happen when the original plan lacks consistent measurements or when walls and reference points are interpreted incorrectly during conversion. The most reliable fix is recalibrating the scale using a known dimension, snapping structural elements to a grid, and repairing overlapping surfaces before adjusting room sizes. Most modeling errors can be solved in minutes once the base reference measurement and wall alignment are corrected.

Quick Takeaways

1. Always set a reference measurement before building walls in a 3D model.
2. Most wall misalignment problems come from inconsistent snapping or off-grid imports.
3. Broken geometry often appears when duplicate surfaces overlap during conversion.
4. Fix scale first, then alignment, and only then adjust room dimensions.
5. Clean geometry dramatically improves rendering accuracy and lighting behavior.

Introduction

In the last decade working on residential visualization projects, I have converted hundreds of floor plans into 3D models. And I can tell you this: most technical problems are not dramatic modeling failures. They are small mistakes that compound quietly.

A wall is off by two inches. A room scale is slightly wrong. Two surfaces overlap without anyone noticing. Suddenly the entire model looks distorted.

These scale and alignment issues appear constantly during floor plan to 3D model conversion, especially when plans come from scanned drawings, PDFs, or hand‑drafted layouts.

If you're building layouts digitally, using a structured workflow like this step by step approach to creating accurate architectural layouts in 3Dcan prevent many of the most common modeling errors before they happen.

But if you're already dealing with misaligned walls, incorrect room sizes, or broken surfaces, don't worry. These problems are fixable. The key is knowing where errors actually originate.

In this guide I'll walk through how experienced designers diagnose and fix scale errors, alignment problems, and geometry glitches during floor plan conversions.

save pin

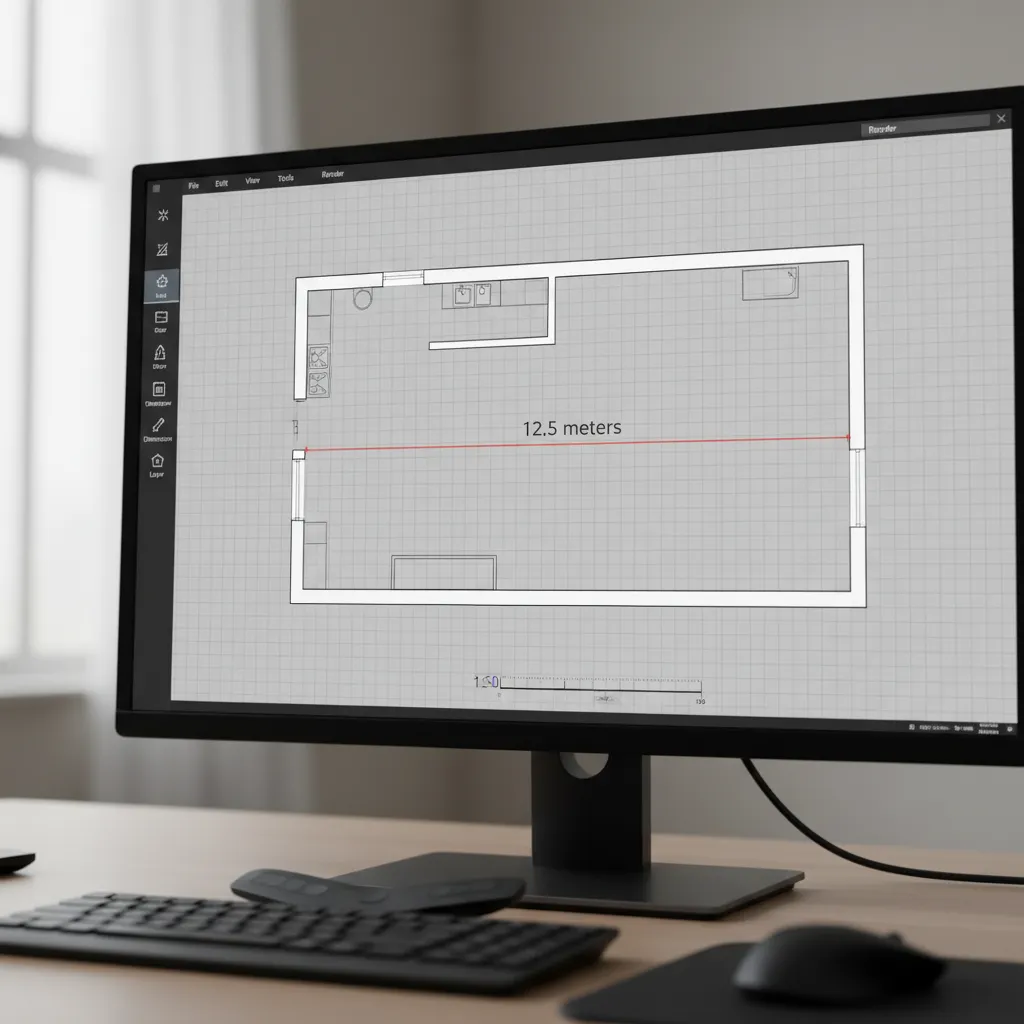

Why Scale Errors Happen When Converting Floor Plans

Key Insight: Scale errors usually originate from missing reference dimensions or incorrectly scaled imports.

When a 2D plan is converted into a 3D environment, the software must interpret the drawing's measurement system. If that interpretation is even slightly wrong, the entire model becomes distorted.

The most common causes I see in real projects include:

1. Imported PDFs without defined scale
2. Raster images used as modeling references
3. Plans drawn using inconsistent measurement units
4. Walls created before a global scale reference is set

In practice, professional modelers always start with a known dimension anchor. For example:

1. A 36 inch door width
2. A 10 foot wall
3. A known hallway length

Once that dimension is calibrated, the entire plan can be scaled proportionally. Without this step, every room measurement becomes unreliable.

According to architectural visualization workflows used by studios like Gensler and HOK, establishing a verified measurement baseline is the first validation step before any structural modeling begins.

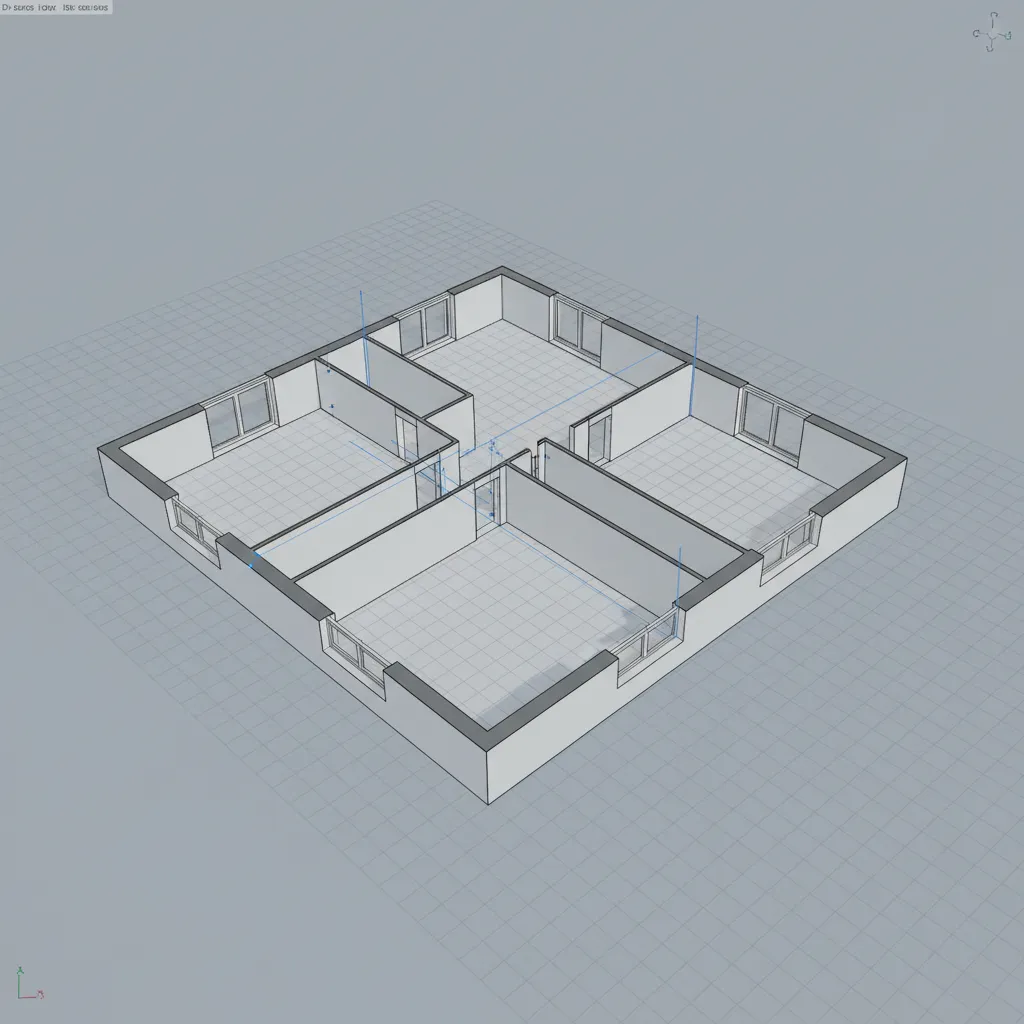

How to Detect Misaligned Walls and Structural Elements

Key Insight: Wall misalignment becomes visible when structural elements fail to snap consistently to a shared grid or reference line.

Misaligned walls are surprisingly common when floor plans are traced manually.

In many cases, designers place walls visually rather than geometrically. That works at first glance, but small angular deviations eventually cause major layout inconsistencies.

Here is how professionals diagnose alignment problems quickly:

1. Enable grid snapping.
2. Turn on orthogonal constraints.
3. Check wall endpoints for shared vertices.
4. Inspect intersection corners for tiny gaps.

Symptoms of alignment errors include:

1. Rooms that refuse to close properly
2. Floors that generate uneven surfaces
3. Door frames that appear slightly tilted
4. Lighting behaving strangely along edges

A structured modeling environment like this workflow for building accurate floor layouts with automated alignmentreduces the likelihood of these errors because walls automatically snap into consistent structural relationships.

save pin

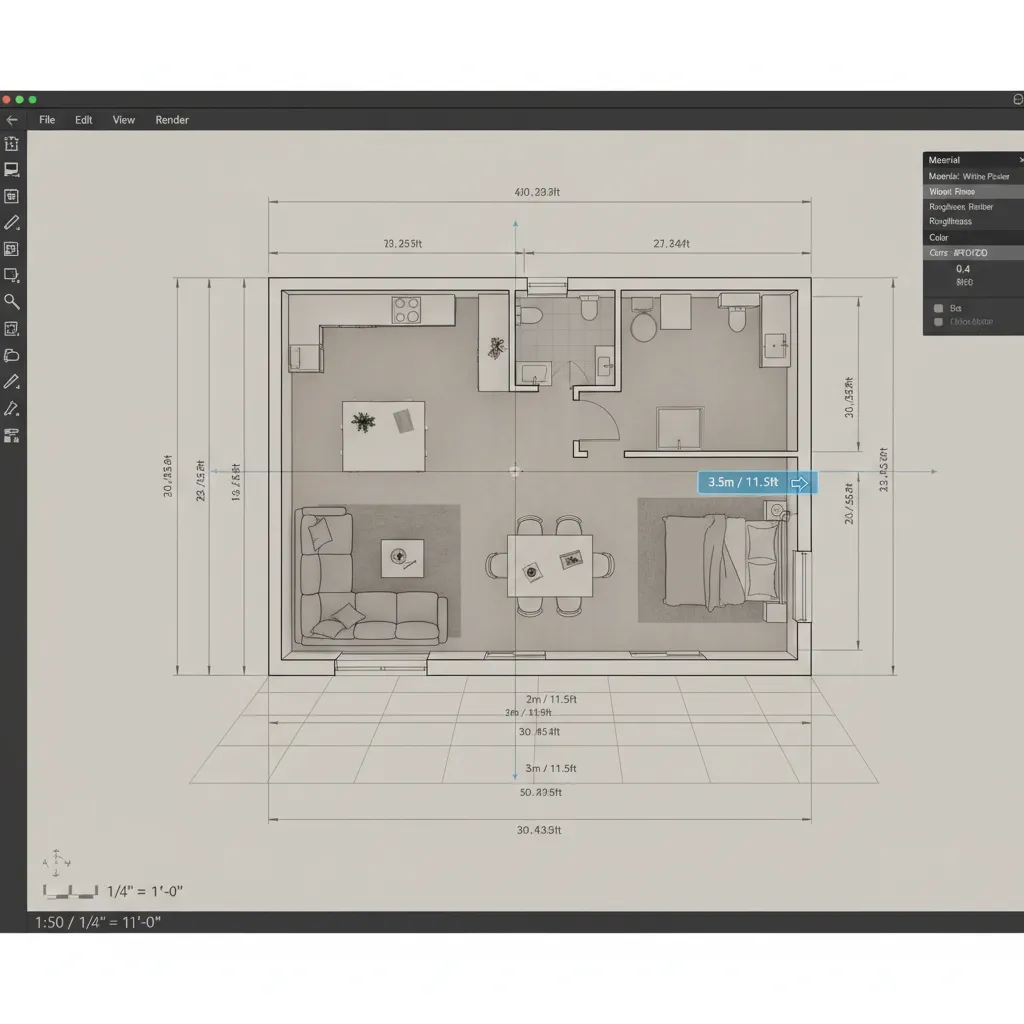

Fixing Incorrect Room Dimensions in 3D Models

Key Insight: Correcting room dimensions should always start with recalibrating the base scale rather than stretching individual walls.

A common mistake beginners make is adjusting room size by dragging walls until the space "looks right." Unfortunately that creates structural inconsistencies throughout the entire model.

The correct process looks like this:

1. Identify one verified real-world measurement.
2. Rescale the imported floor plan using that dimension.
3. Rebuild primary structural walls.
4. Adjust interior partitions afterward.

Professional modelers often use door widths, staircases, or corridor spacing as reliable calibration anchors because those measurements tend to follow building codes.

For example, residential corridors in the United States are commonly 36 to 42 inches wide. If your model shows a 28 inch hallway, your scale is immediately suspect.

save pin

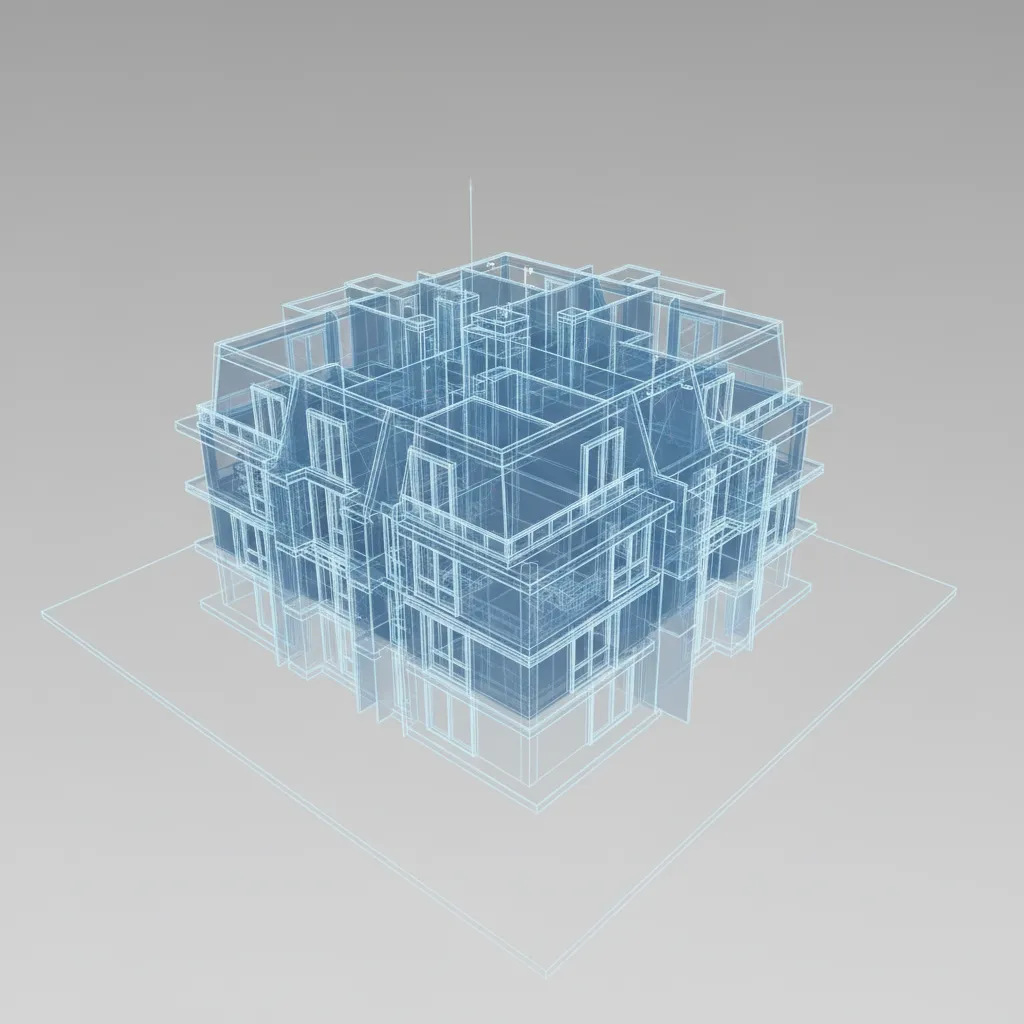

Repairing Broken Geometry and Overlapping Surfaces

Key Insight: Geometry errors usually come from duplicate faces, intersecting walls, or surfaces that were never properly merged.

Broken geometry is often invisible at first. The model might appear fine until rendering or exporting begins.

Typical geometry problems include:

1. Duplicate surfaces stacked together
2. Walls penetrating other walls
3. Unmerged vertices
4. Non‑manifold geometry

To repair them efficiently:

1. Run a mesh cleanup or geometry validation tool.
2. Delete overlapping faces.
3. Merge duplicate vertices.
4. Rebuild problematic intersections.

Many rendering problems that designers blame on lighting or materials are actually caused by invisible geometry conflicts.

Once the mesh is clean, visual output improves dramatically, especially when producing visualization assets like those shown in this example of photorealistic residential interior render workflows.

save pin

Tools That Help Identify Modeling Errors Quickly

Key Insight: Diagnostic visualization tools reveal structural mistakes much faster than manual inspection.

Experienced designers rarely rely on visual judgment alone. Instead they use built‑in analysis tools that highlight potential structural issues.

Some of the most useful checks include:

1. Wireframe view to detect overlapping surfaces
2. Section cuts to verify wall thickness
3. Dimension overlays to confirm room sizes
4. Edge highlighting to reveal broken geometry

Large architecture firms often run automated model validation scripts before final rendering or BIM export. Even in small design workflows, basic geometry checks can eliminate hours of troubleshooting later.

Preventing Future Errors in Floor Plan Conversions

Key Insight: A disciplined modeling workflow prevents most scale and geometry problems before they appear.

After fixing hundreds of flawed models, I noticed something interesting: nearly all technical errors originate in the first 10 minutes of modeling.

When designers rush the setup phase, the entire model becomes unstable.

A reliable workflow usually includes:

1. Set measurement units immediately
2. Establish a scale reference dimension
3. Enable grid and snapping
4. Build exterior walls first
5. Add interior partitions afterward

It sounds simple, but this structure prevents the majority of floor plan conversion problems.

Answer Box

The fastest way to fix scale and geometry issues in a floor plan to 3D model is recalibrating the plan with a known dimension, snapping walls to a consistent grid, and removing overlapping surfaces. Most structural errors originate from missing scale references during the initial modeling stage.

Final Summary

1. Scale problems usually start with missing measurement references.
2. Wall misalignment often comes from inconsistent snapping.
3. Broken geometry frequently hides in overlapping surfaces.
4. Fix scale first, then alignment, then dimensions.
5. Clean geometry improves rendering and structural accuracy.

FAQ

Why do walls misalign in 3D floor plan models?

Walls misalign when grid snapping or angle constraints are disabled during modeling. Small manual placement errors accumulate and cause structural gaps.

How do I fix scale issues in a floor plan to 3D model?

Use a verified dimension like a door width or hallway length, rescale the entire drawing, then rebuild structural walls.

What causes incorrect room dimensions in 3D architectural models?

Incorrect base scaling or stretching walls individually instead of recalibrating the plan typically causes wrong room sizes.

How can I detect geometry errors in architectural models?

Switch to wireframe view, check overlapping faces, inspect vertices, and run geometry validation tools.

Do geometry errors affect rendering quality?

Yes. Overlapping surfaces and broken meshes can cause lighting artifacts, texture glitches, and rendering noise.

Why does my floor plan conversion create uneven floors?

This usually happens when walls do not share aligned vertices or when geometry intersections are not merged properly.

Can beginners fix floor plan conversion alignment problems easily?

Yes. Most issues are solved by recalibrating scale and rebuilding the primary structural walls.

What is the first step when troubleshooting a floor plan to 3D model?

Verify the model scale using a known measurement before adjusting any walls or rooms.
