Fixing Uneven Hardwood Floor Board Alignment: Practical ways installers and DIY homeowners can correct misaligned hardwood planks and prevent repeating seam patterns.

Direct Answer

Uneven hardwood floor board alignment usually happens when installers fail to stagger end joints properly or start rows without a clear layout plan. The fix depends on timing: during installation you can redistribute board lengths and adjust seam spacing, but after installation repairs usually involve selective board replacement. Careful planning of plank distribution prevents most alignment issues.

Quick Takeaways

1. Repeating end joints usually appear when installers pull boards randomly from the same box.
2. Maintaining a minimum stagger of 6–8 inches prevents visible seam lines.
3. Layout planning before installation avoids patterned plank distribution.
4. Minor alignment problems can often be corrected during installation without removing large sections.
5. Professional installers typically pre-sort planks before starting the first row.

Introduction

Uneven hardwood floor board alignment is one of the most common problems I see when reviewing flooring installations. After working on residential remodels for more than a decade, I've noticed that most alignment issues don't come from bad materials—they come from rushed layout decisions.

Homeowners usually notice the issue when seams start lining up across the room or when the floor begins to look strangely patterned. The boards themselves are fine, but the layout makes the installation look amateur.

Before installing hardwood flooring, professionals typically map out plank distribution across the room. If you want to visualize how board placement interacts with the entire space layout, it's helpful to experiment with a floor plan layout before installing flooring. Seeing the whole room often reveals spacing problems early.

In this guide I'll break down why hardwood plank alignment issues happen, how installers correct them mid‑installation, and what realistic repair options look like once the floor is already finished.

save pin

Common Causes of Uneven Hardwood Board Alignment

Key Insight: Most alignment problems start before the second row is installed because the installer fails to control plank length distribution.

Hardwood planks typically come in mixed lengths. If installers simply grab boards randomly, patterns form surprisingly fast.

Common causes I see on job sites include:

1. Starting multiple rows using boards with identical lengths
2. Failing to stagger joints at least 6–8 inches
3. Not opening several boxes and mixing plank sizes
4. Trying to minimize cuts instead of controlling seam spacing

The National Wood Flooring Association recommends randomizing boards from multiple boxes specifically to avoid visible patterns. When installers skip this step, seams begin lining up within the first few rows.

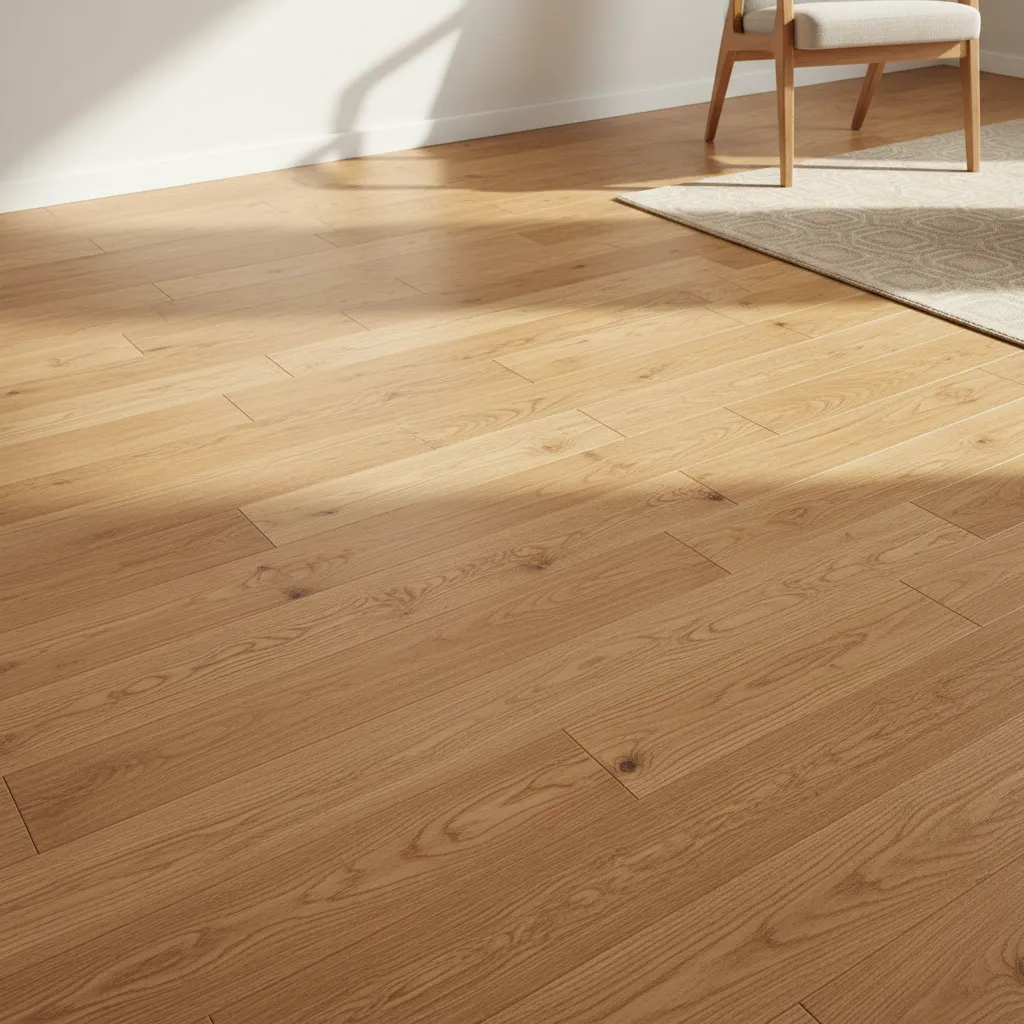

Why End Joints Start Forming Visible Patterns

Key Insight: Visible seam patterns usually emerge from repeated board lengths rather than actual installation mistakes.

Many flooring packages contain repeating length combinations. If boards are installed in the same order they were packed, a visual rhythm appears across the floor.

Typical seam pattern issues include:

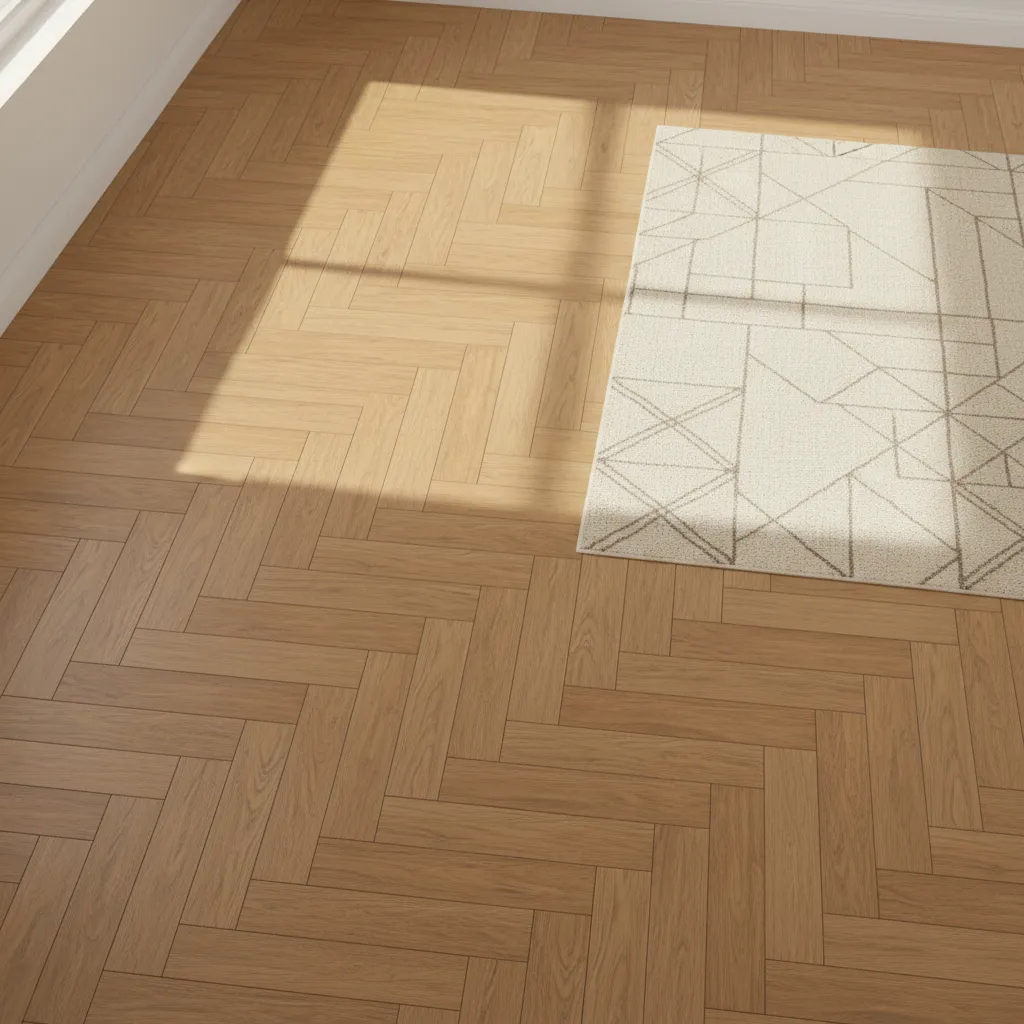

1. H‑patterns where joints line up every other row
2. Stair‑step patterns where seams gradually shift in the same direction
3. Grid patterns where multiple rows align visually

In large open areas like living rooms or offices, these patterns become even more noticeable because long sightlines highlight repeating seams.

save pin

How to Correct Layout Mistakes During Installation

Key Insight: If alignment issues are caught early, installers can correct them simply by redistributing board lengths and adjusting cut pieces.

When I supervise installations, we usually pause after the first three rows and evaluate seam spacing across the room.

Steps professionals use to correct alignment during installation:

1. Stop installation immediately when patterns appear.
2. Pull boards from multiple boxes and sort by length.
3. Reinstall problematic rows with varied plank sizes.
4. Use cut pieces strategically to break seam alignment.
5. Check sightlines from the room entrance before continuing.

If you want to visualize how board placement affects traffic flow and layout balance, many installers sketch layouts using tools that simulate the full room with a 3D floor planning workflow. It helps spot symmetry problems before installation begins.

save pin

Repair Options After Flooring Is Installed

Key Insight: Once hardwood flooring is fully installed, fixing alignment issues usually means replacing selected planks rather than relaying the entire floor.

Repair options depend on how severe the pattern looks.

Typical repair strategies:

1. Board replacement – removing a few planks and inserting varied lengths
2. Strategic seam breaks – cutting and inserting shorter boards
3. Partial row reconstruction – removing a section and redistributing planks

However, one hidden cost many homeowners overlook is finish matching. If boards are replaced after finishing, stain color or sheen may vary slightly.

For that reason, many contractors only recommend repairs when seam patterns are visually disruptive.

Tools That Help Maintain Consistent Board Alignment

Key Insight: Simple layout tools dramatically reduce the risk of repeating seams.

Professional installers often rely on pre‑planning tools rather than fixing problems later.

Helpful tools include:

1. Chalk lines to maintain straight rows
2. Board length sorting racks
3. Laser layout guides
4. Digital room planners

Digital layout visualization is becoming more common. Installers can now preview realistic room layouts and surface patterns before renovation, which makes seam distribution much easier to predict.

save pin

Preventing Alignment Problems in Future Projects

Key Insight: The best way to fix hardwood plank alignment issues is preventing them during the first five rows of installation.

In my experience, professionals follow a simple preparation checklist before installation begins.

Best practices used by experienced installers:

1. Open 4–6 boxes of flooring and mix planks
2. Sort boards into short, medium, and long piles
3. Plan seam staggering before installing row one
4. Avoid using identical board lengths in adjacent rows
5. Periodically step back and check visual patterns

This early planning stage usually takes only 20–30 minutes, yet it prevents hours of correction later.

Answer Box

Uneven hardwood floor board alignment is usually caused by poor plank length distribution during installation. Preventing visible seam patterns requires mixing boards from multiple boxes and maintaining proper joint staggering. If patterns appear after installation, selective plank replacement is the most practical repair method.

Final Summary

1. Uneven hardwood board alignment usually results from poor plank length distribution.
2. Repeating seams commonly form H‑patterns or stair‑step layouts.
3. Early installation adjustments can correct most layout mistakes.
4. After installation, selective plank replacement is the main repair option.
5. Sorting boards before installation prevents visible seam patterns.

FAQ

Why do my hardwood floor seams line up?

Seams usually line up when boards of identical lengths are installed consecutively. Mixing planks from multiple boxes helps avoid this issue.

What is the minimum stagger for hardwood flooring?

Most installers recommend staggering end joints at least 6–8 inches to prevent visible seam alignment.

Can uneven hardwood floor board alignment be fixed without removing the floor?

Minor issues sometimes can be corrected by replacing a few boards or inserting shorter planks to break patterns.

Why does my hardwood flooring look patterned?

This usually happens when similar board lengths repeat across rows, creating visual patterns rather than a random layout.

Is patterned hardwood flooring considered a defect?

No. It is usually considered an installation issue rather than a material defect.

How do professionals prevent hardwood plank alignment issues?

They sort planks by length, mix multiple boxes, and plan seam staggering before installing the first rows.

What causes hardwood plank alignment issues in DIY installations?

DIY installers often skip plank sorting and layout planning, which increases the chance of repeating seams.

How can I fix uneven hardwood floor board layout during installation?

Stop the installation, remove affected rows, and redistribute board lengths to create better seam staggering.
