Flat Clay Roof Tiles vs S Curve and Barrel Tiles Explained: Understand structural, visual, and installation differences so you can choose the right clay roof tile profile for your home.

Direct Answer

Flat clay roof tiles create a clean, modern roofline, while S‑curve and barrel tiles form deeper waves designed for traditional Mediterranean and Spanish architecture. The main differences lie in profile shape, water drainage behavior, installation method, and visual style.

Choosing between them usually depends on architectural compatibility, climate conditions, and installation budget rather than durability alone.

Quick Takeaways

1. Flat clay tiles create a sleek, modern roof appearance with tight horizontal lines.
2. S‑curve tiles combine flat and curved profiles to improve water drainage and visual depth.
3. Barrel tiles produce the classic Spanish or Mediterranean roof silhouette.
4. Installation complexity and labor cost increase with more curved tile profiles.
5. Climate, architecture, and roof slope should guide the final choice.

Introduction

When homeowners compare roofing materials, the conversation usually starts with durability or cost. But in my experience working on residential design projects across California and the Southwest, the shape of the tile profile often matters just as much.

Flat clay roof tiles, S‑curve tiles, and barrel tiles may all use similar clay materials, yet they behave very differently once installed. The profile determines how water flows, how shadows fall across the roof, and even how complicated the installation becomes.

I have seen homeowners fall in love with a roof style on Pinterest, only to realize later that it clashes with the architecture of their house or pushes the installation budget far higher than expected.

If you're planning a new build or renovation, it's often helpful to visualize how structural elements and roof lines interact with the rest of the home. Many homeowners start by exploring tools that help them experiment with full house layouts and structural planningbefore locking in architectural details like roof style.

In this guide, I'll break down the practical differences between flat clay tiles, S‑curve tiles, and barrel tiles—covering structure, aesthetics, durability, and installation realities that rarely get explained clearly.

save pin

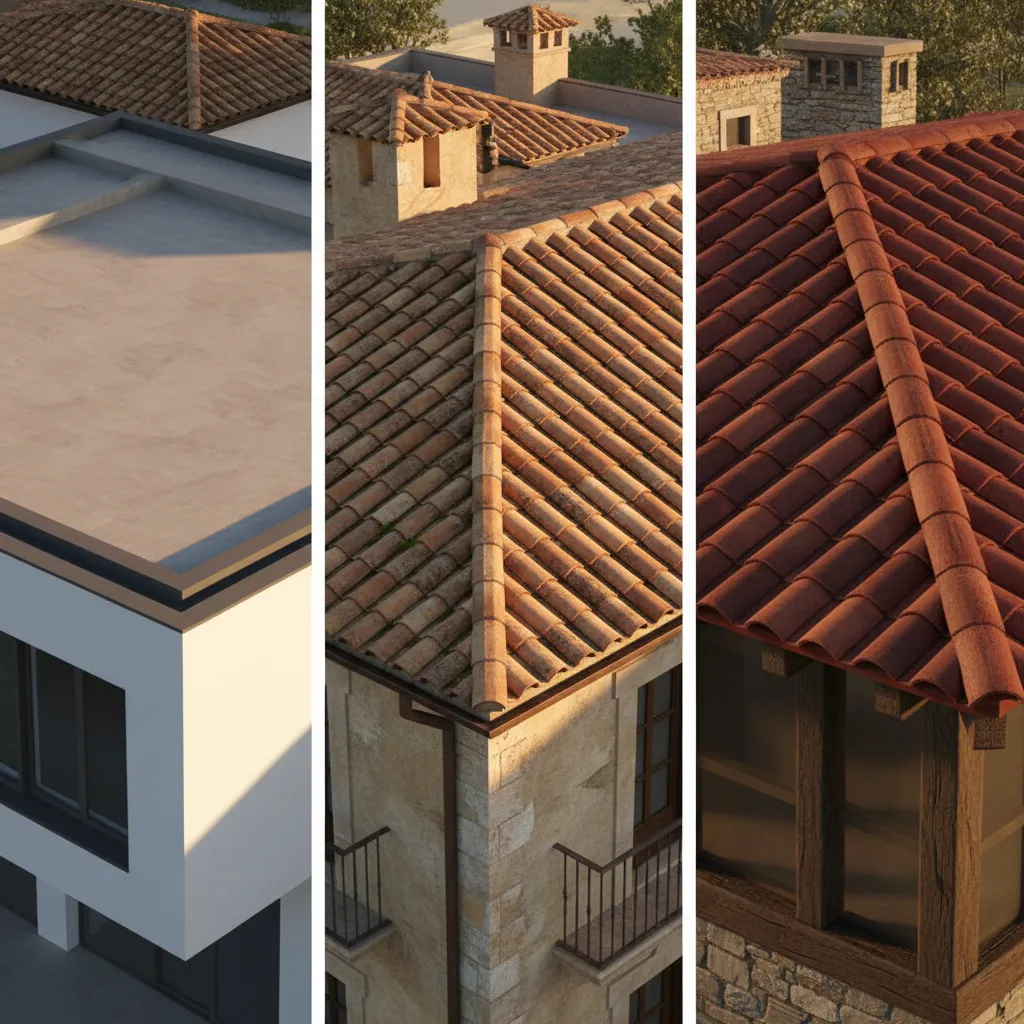

Overview of Common Clay Roof Tile Profiles

Key Insight: The three most common clay roof tile profiles differ primarily in curvature, which directly affects drainage, appearance, and installation complexity.

Clay roof tiles are manufactured in several shapes, but most residential roofs fall into three main categories. Each evolved from historical building traditions where climate and local architecture shaped roof design.

1. Flat Clay Tiles
2. Thin, flat profiles that sit tightly together. Popular in contemporary homes and modern European designs.
3. S‑Curve Tiles

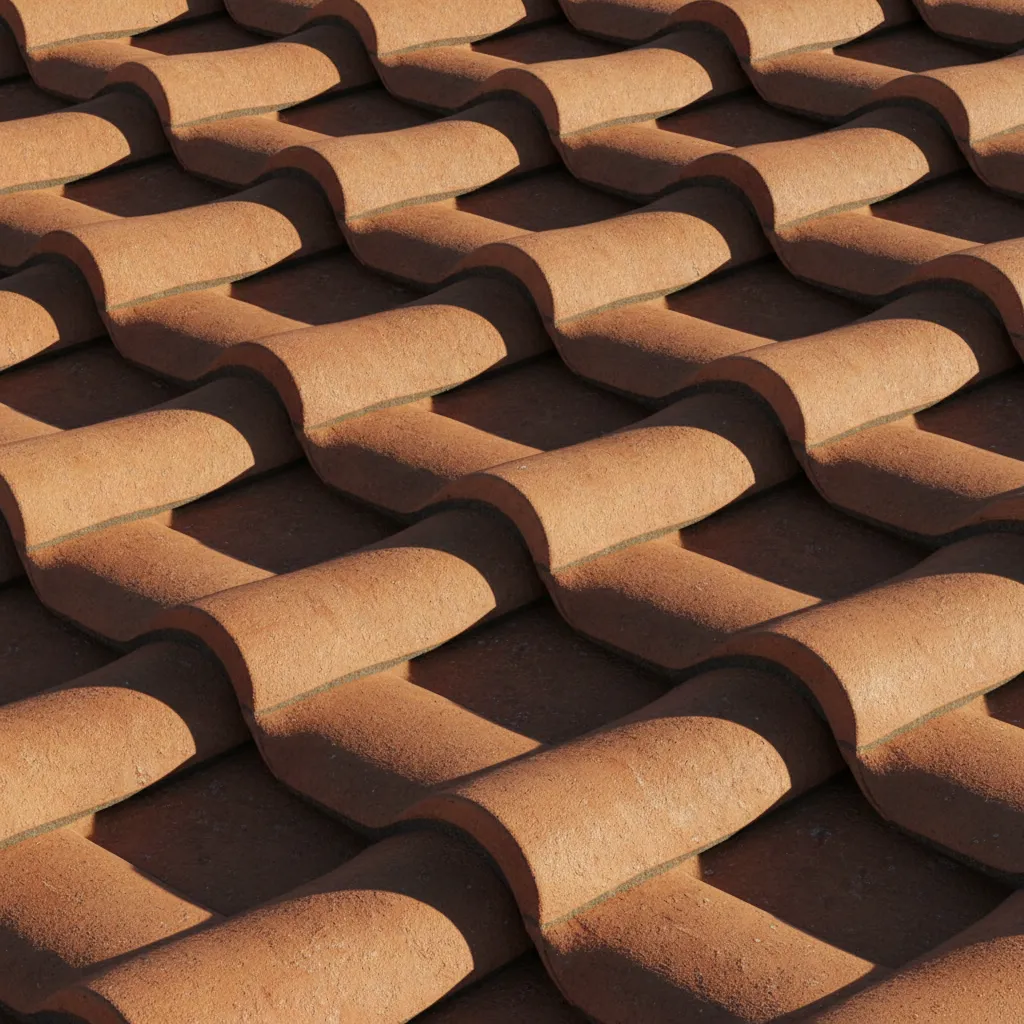

4. Also called "Spanish S" tiles. The tile forms an S‑shaped wave that combines water channels and curved ridges.
5. Barrel Tiles
6. Also known as "mission tiles" or "Spanish tiles." Installed as alternating convex and concave pieces.

The Tile Roofing Industry Alliance notes that profile choice influences not just style but also installation systems and underlayment requirements.

Structural Differences Between Flat, S Curve, and Barrel Tiles

Key Insight: Curved tiles create built‑in water channels, while flat tiles rely more heavily on precise overlap and underlayment systems.

This is the difference most homeowners underestimate.

Flat tiles depend on tight alignment and layered overlap to shed water efficiently. Because they sit closer to the roof deck, they typically require highly reliable underlayment systems.

S‑curve and barrel tiles, on the other hand, naturally create raised drainage channels. Rainwater flows through the valleys formed by the curves.

Here's a simplified comparison:

1. Flat TilesSmooth, stacked layers
2. Lower roof profile
3. Cleaner geometry
4. S‑Curve TilesAlternating ridge and channel
5. Improved water runoff
6. Moderate tile height
7. Barrel TilesSeparate cap and pan pieces
8. Large air gaps between tiles
9. Most pronounced roof depth

From a construction perspective, curved systems also create better ventilation pockets between the tile and roof deck.

save pin

Visual Style and Architectural Compatibility

Key Insight: Roof tile profiles strongly influence architectural identity, sometimes more than exterior wall materials.

Designers often treat roof tiles as an architectural language rather than a simple material choice.

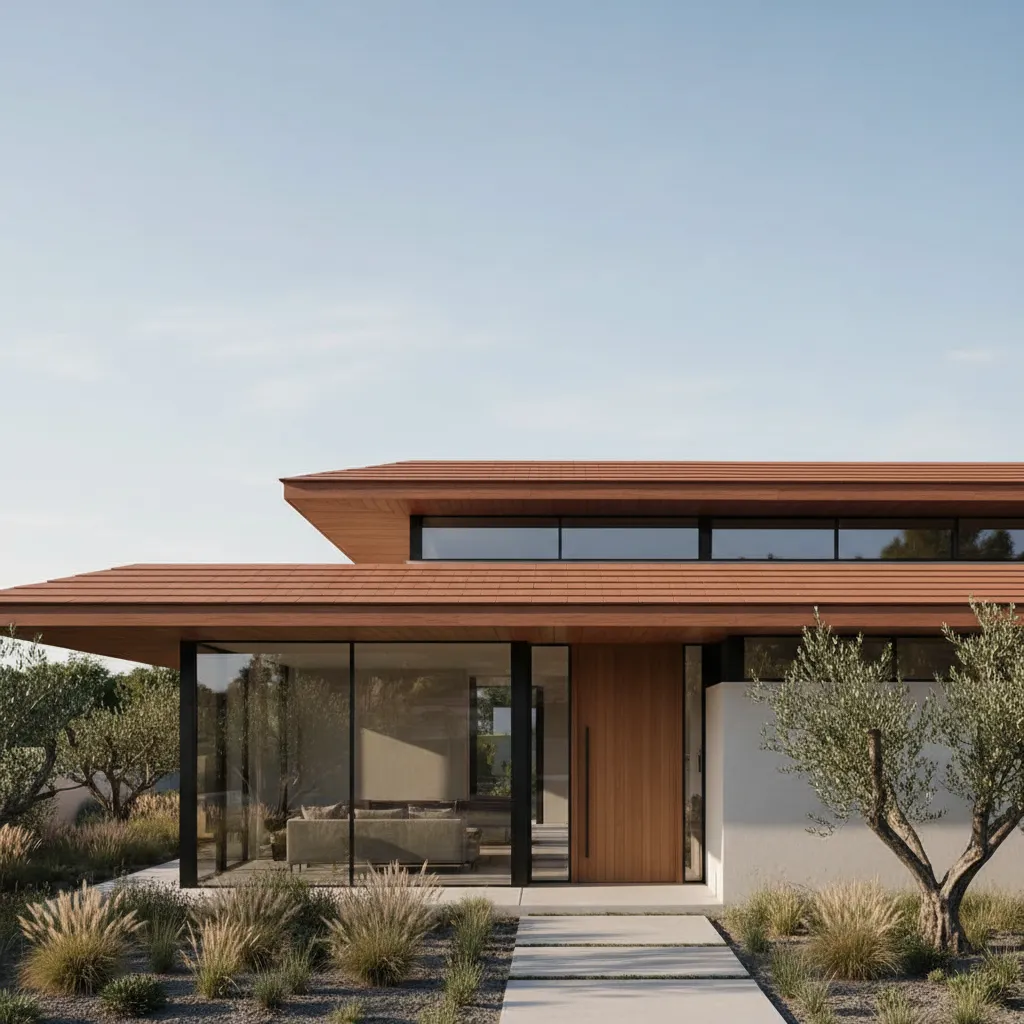

Flat tiles typically work best with:

1. Modern homes
2. Contemporary European designs
3. Minimalist architecture
4. Urban infill housing

S‑curve tiles are common in:

1. Spanish Colonial homes
2. Southwestern architecture
3. Mediterranean villas
4. Suburban homes seeking traditional texture

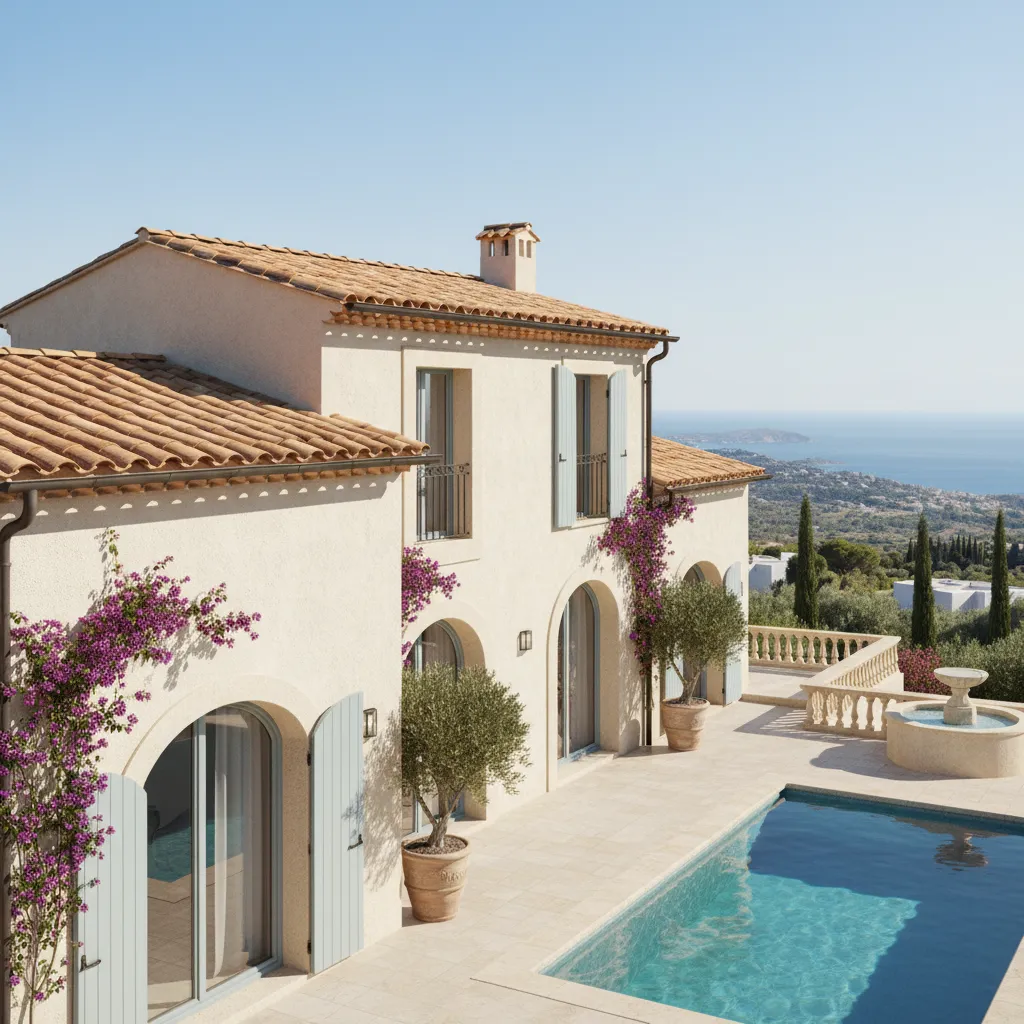

Barrel tiles dominate in:

1. Authentic Spanish or mission‑style homes
2. Luxury Mediterranean estates
3. Historic restorations

One design trick I use in visual planning is rendering the full exterior scene first. Tools that allow homeowners to visualize realistic exterior and interior architectural renders make it much easier to evaluate whether a roof profile fits the overall design language.

Durability and Weather Performance Comparison

Key Insight: All clay tile profiles are durable, but curved profiles often handle heavy rain and debris slightly better.

Clay itself is incredibly resilient. Properly installed clay tile roofs can last 50–100 years according to studies from the National Association of Home Builders.

However, profile shape influences how the roof behaves in different climates.

1. Heavy Rain Regions
2. S‑curve and barrel tiles provide stronger water channeling.
3. High Wind Areas
4. Flat tiles can perform better when tightly fastened.
5. Hot Climates
6. Barrel tiles allow greater airflow beneath tiles, reducing heat transfer.

One hidden factor many contractors mention is debris accumulation. Flat tiles tend to collect less wind‑blown debris because there are fewer deep curves.

save pin

Installation Complexity and Cost Differences

Key Insight: Barrel tile systems are usually the most labor‑intensive, while flat tiles offer the fastest installation.

Installation cost differences often surprise homeowners because material prices alone don't tell the full story.

Typical installation complexity ranking:

1. Flat tiles – simplest alignment system
2. S‑curve tiles – moderate complexity
3. Barrel tiles – most labor intensive

Barrel tile roofs require precise placement of both pan and cap tiles. That means more individual pieces, more fasteners, and more installation time.

Flat tile systems typically use interlocking edges, which speeds up installation.

During design planning, many architects evaluate roof slope and structure together with interior layout. Homeowners experimenting with space planning sometimes start by using tools that help plan room layouts and architectural structure together, which also reveals how roof geometry may affect the interior ceiling design.

Which Clay Tile Profile Is Best for Your Home

Key Insight: The best clay roof tile profile balances architecture, climate, and installation budget rather than aesthetics alone.

When I advise clients, I usually evaluate three factors first:

1. Architectural style of the house
2. Local climate conditions
3. Roof slope and structural load capacity

A practical rule of thumb:

1. Choose flat tiles for modern or contemporary homes.
2. Choose S‑curve tiles for traditional suburban or Mediterranean‑inspired houses.
3. Choose barrel tiles for authentic Spanish or historic architecture.

The mistake I see most often is homeowners selecting barrel tiles purely for aesthetics without realizing the added installation complexity and structural considerations.

Answer Box

Flat clay tiles provide a sleek, modern roof profile, while S‑curve and barrel tiles create deeper texture and traditional Mediterranean character. The right choice depends on architecture, climate drainage needs, and installation budget.

Final Summary

1. Flat tiles create modern rooflines and install faster.
2. S‑curve tiles balance drainage performance and traditional style.
3. Barrel tiles produce the most dramatic Mediterranean roof silhouette.
4. Installation labor increases as tile curvature increases.
5. Architectural compatibility should guide the final decision.

FAQ

What is the difference between flat clay tiles and barrel tiles?

Flat clay tiles lie flush in overlapping rows, while barrel tiles alternate concave and convex shapes that create deep channels and ridges.

Are flat clay tiles more modern than S‑curve tiles?

Yes. Flat clay tiles are commonly used in modern and contemporary architecture, while S‑curve tiles are associated with Spanish and Mediterranean designs.

Which clay roof tile profile is best for heavy rain?

S‑curve and barrel tiles typically perform better because their curved channels guide water runoff more efficiently.

Are barrel tiles more expensive to install?

Usually yes. Barrel tile systems require more pieces and more labor compared with flat clay tiles.

Do flat clay tiles last as long as curved tiles?

Yes. When properly installed, all clay tile profiles can last 50–100 years depending on climate and maintenance.

Can flat clay tiles work on low‑slope roofs?

They generally require a minimum slope similar to other clay tiles, often around 4:12 depending on the manufacturer.

What style homes use S‑curve roof tiles?

Spanish Colonial, Mediterranean villas, and Southwestern homes commonly use S‑curve tiles.

Is a flat tile vs Spanish tile roof mainly an aesthetic choice?

Not entirely. While style matters, drainage behavior, installation cost, and roof structure also influence the decision.
