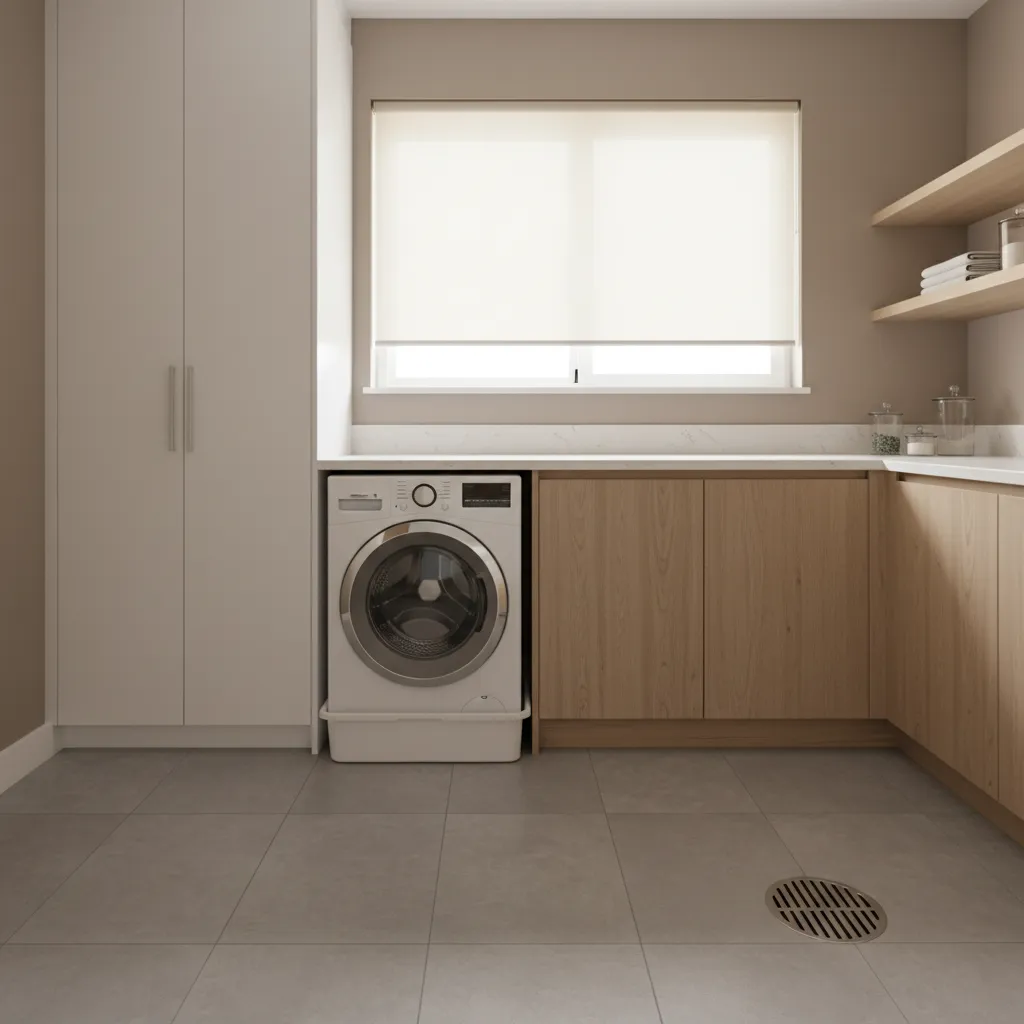

Floor Drain vs Drain Pan Systems for Second-Floor Laundry Rooms: Which upstairs laundry drainage system actually protects your home from leaks, overflow, and expensive ceiling damage?

Direct Answer

For a second‑floor laundry room, a floor drain offers the strongest protection against major water leaks because it removes water from the entire room. A washing machine drain pan system mainly contains small leaks directly under the washer. In practice, many modern homes use both: a drain pan for appliance leaks and a floor drain for full‑room overflow protection.

Quick Takeaways

1. Floor drains protect the entire laundry room from flooding, not just the washing machine.
2. Drain pans are easier and cheaper to install in upstairs laundry rooms.
3. Building codes in many areas allow drain pans but require proper drain routing.
4. Floor drains require correct floor slope and waterproofing to work properly.
5. The safest setup in high‑risk homes is combining a drain pan and a floor drain.

Introduction

In more than a decade designing residential interiors, I’ve noticed one pattern with second‑floor laundry rooms: the biggest arguments during planning rarely involve cabinets or finishes. They’re about water protection.

Homeowners ask the same question repeatedly when comparing a floor drain vs drain pan system for a second-floor laundry room. Builders often recommend a washer drain pan because it’s simple. Contractors sometimes push for a floor drain because it feels safer. The truth is that both systems solve different problems.

After working on multiple renovations where ceiling drywall had to be replaced because of a failed washer hose, I’ve become very practical about drainage planning. A small leak can quietly run for hours before anyone notices. And when laundry rooms are upstairs, gravity turns that leak into a living‑room disaster.

If you're planning an upstairs laundry layout, it's helpful to understand how drainage integrates with the overall room design and workflow. Many homeowners start by visualizing the space using tools like this interactive room layout planner for organizing laundry spacesbefore deciding where drains or containment systems should go.

Let’s break down how floor drains and drain pans actually work—and which system makes sense for different homes.

save pin

Why Water Protection Is Critical for Second-Floor Laundry Rooms

Key Insight: Upstairs laundry leaks are rarely small problems—water almost always spreads into ceilings, insulation, and electrical systems below.

Unlike basement laundry rooms, a second‑floor leak has multiple layers of damage potential. Water travels through subfloors, framing cavities, drywall ceilings, and sometimes lighting fixtures.

According to insurance industry data published by the Insurance Institute for Business & Home Safety (IBHS), washing machine failures are among the top appliance-related water loss claims in homes.

From what I’ve seen on renovation projects, the most common leak sources include:

1. Failed rubber supply hoses
2. Overfilled or blocked drain pipes
3. Cracked washer tubs
4. Loose plumbing fittings behind the wall
5. Unbalanced washers that walk and disconnect hoses

Here’s the hidden issue most homeowners miss: leaks rarely stay under the machine. Water spreads across flooring first, which is why whole‑room drainage sometimes becomes important.

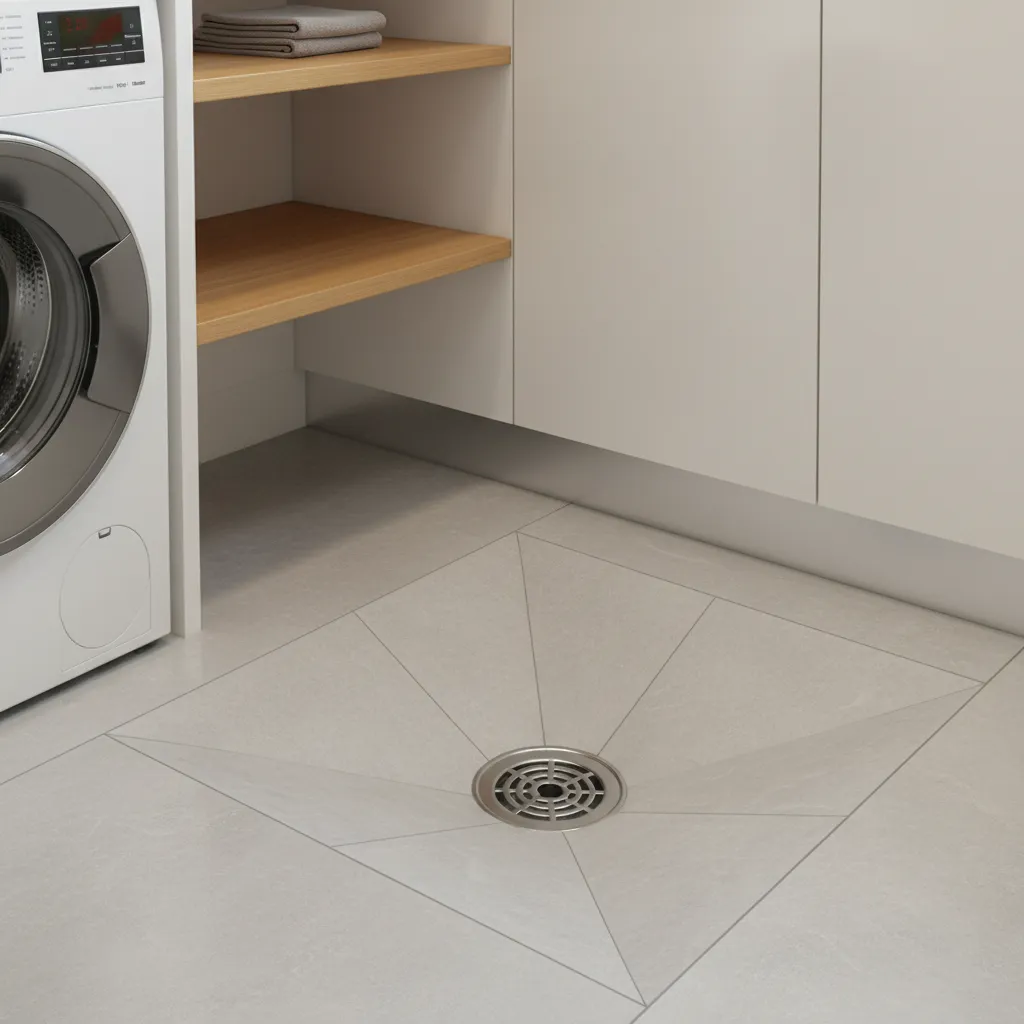

How Floor Drains Work in Residential Laundry Spaces

Key Insight: A floor drain protects the entire laundry room by removing water from the floor surface, not just from the appliance.

A typical residential floor drain connects to the home's plumbing system and sits at the lowest point of the room. When installed correctly, the floor is slightly sloped toward the drain so any spilled water flows into it.

Key components include:

1. Drain body connected to the waste line
2. P‑trap to block sewer gases
3. Waterproof floor membrane
4. Sloped subfloor or mortar bed

Designing the slope correctly is critical. Even a slight mistake can cause water to pool instead of draining.

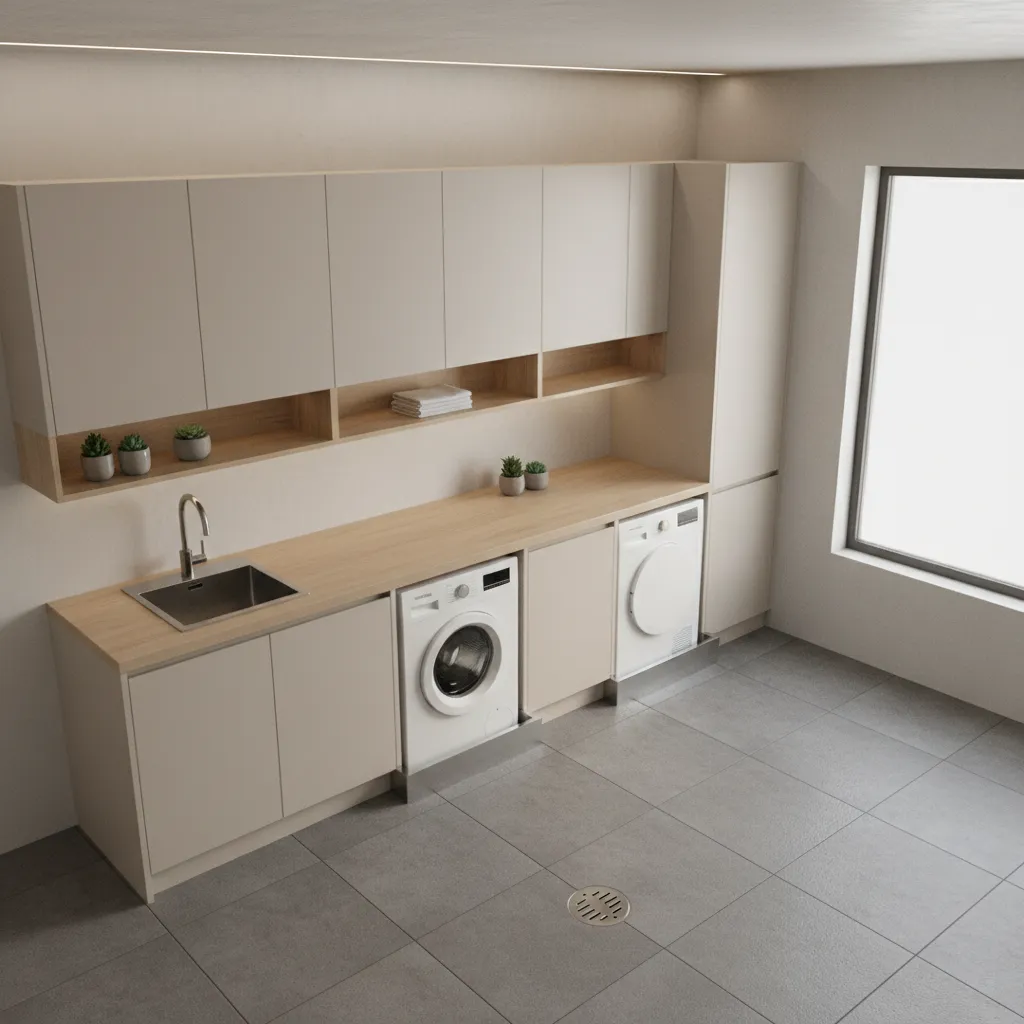

When we plan these rooms digitally, I often map slopes and appliance spacing using a 3D floor planning workflow for laundry room drainage layouts so contractors can visualize the drainage direction before construction begins.

Advantages of floor drains:

1. Handles major leaks or burst hoses
2. Protects the entire room
3. Allows easy floor cleaning

But there’s a catch: installing them upstairs requires structural planning, waterproofing, and proper pipe routing.

save pin

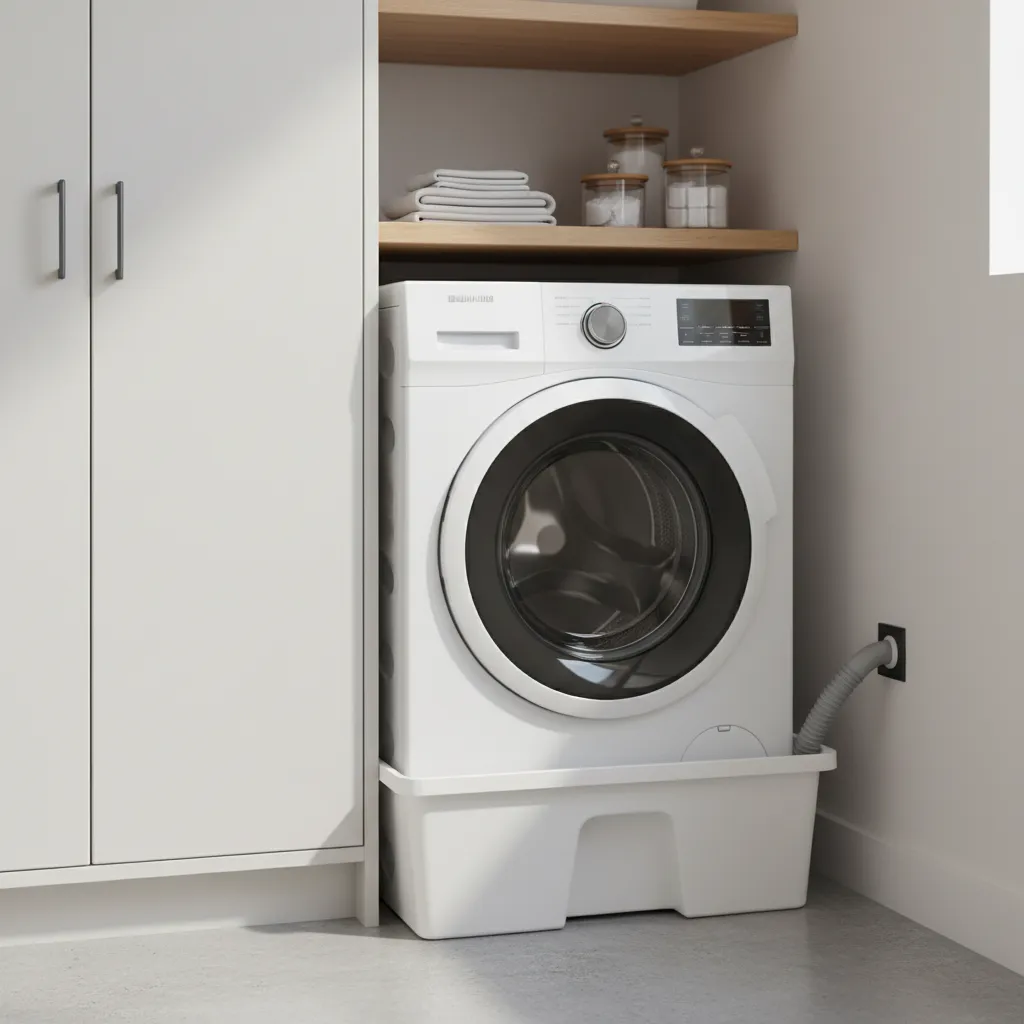

How Washing Machine Drain Pans and Emergency Drains Work

Key Insight: A drain pan is designed to catch slow leaks under the washing machine, not to handle full‑room flooding.

A washing machine drain pan sits directly beneath the washer. It's usually made from plastic, metal, or composite materials and includes a small drain outlet connected to a pipe.

Typical setup:

1. Pan placed under the washer
2. 1–1.5 inch drain outlet
3. Gravity drain pipe routed to a safe discharge location

Drain pans are common in modern construction because they’re inexpensive and easy to install.

However, in several projects I’ve inspected, they failed during major leaks. When a hose bursts, water can exceed the pan’s capacity within minutes.

Common limitations:

1. Only protects the area under the washer
2. Cannot handle overflow from sinks or utility tubs
3. Requires correct leveling to function

save pin

Key Differences Between Floor Drains and Drain Pan Systems

Key Insight: Floor drains manage room‑wide flooding, while drain pans manage appliance‑specific leaks.

The biggest misunderstanding I see is homeowners assuming these systems are interchangeable. They aren’t.

Here’s the practical comparison:

1. Protection area
2. Floor drain: entire laundry room
3. Drain pan: area directly under washer
4. Installation complexity
5. Floor drain: structural planning and waterproofing required
6. Drain pan: simple appliance accessory
7. Leak capacity
8. Floor drain: large water volumes
9. Drain pan: slow leaks only
10. Construction timing
11. Floor drain: must be planned during building or major renovation
12. Drain pan: can be added later

From a risk‑management perspective, the systems solve different layers of protection.

Cost, Installation Complexity, and Maintenance Comparison

Key Insight: Drain pans cost far less upfront, but floor drains may prevent significantly higher damage costs later.

Typical installation differences I’ve seen across projects:

1. Drain pan system
2. $50–$300 for the pan
3. $150–$400 for plumbing connection
4. Floor drain system
5. $500–$1500+ depending on framing changes
6. Waterproof membrane and floor slope required

Maintenance differences:

1. Floor drains need occasional trap priming to prevent odor.
2. Drain pans need debris checks to keep the outlet clear.

Another hidden cost: retrofitting a floor drain later is extremely difficult. In most upstairs renovations, it requires opening ceilings below.

Answer Box

For most second‑floor laundry rooms, a washer drain pan is the minimum protection, while a floor drain provides full‑room safety. When layout and plumbing allow it, combining both systems offers the most reliable water protection.

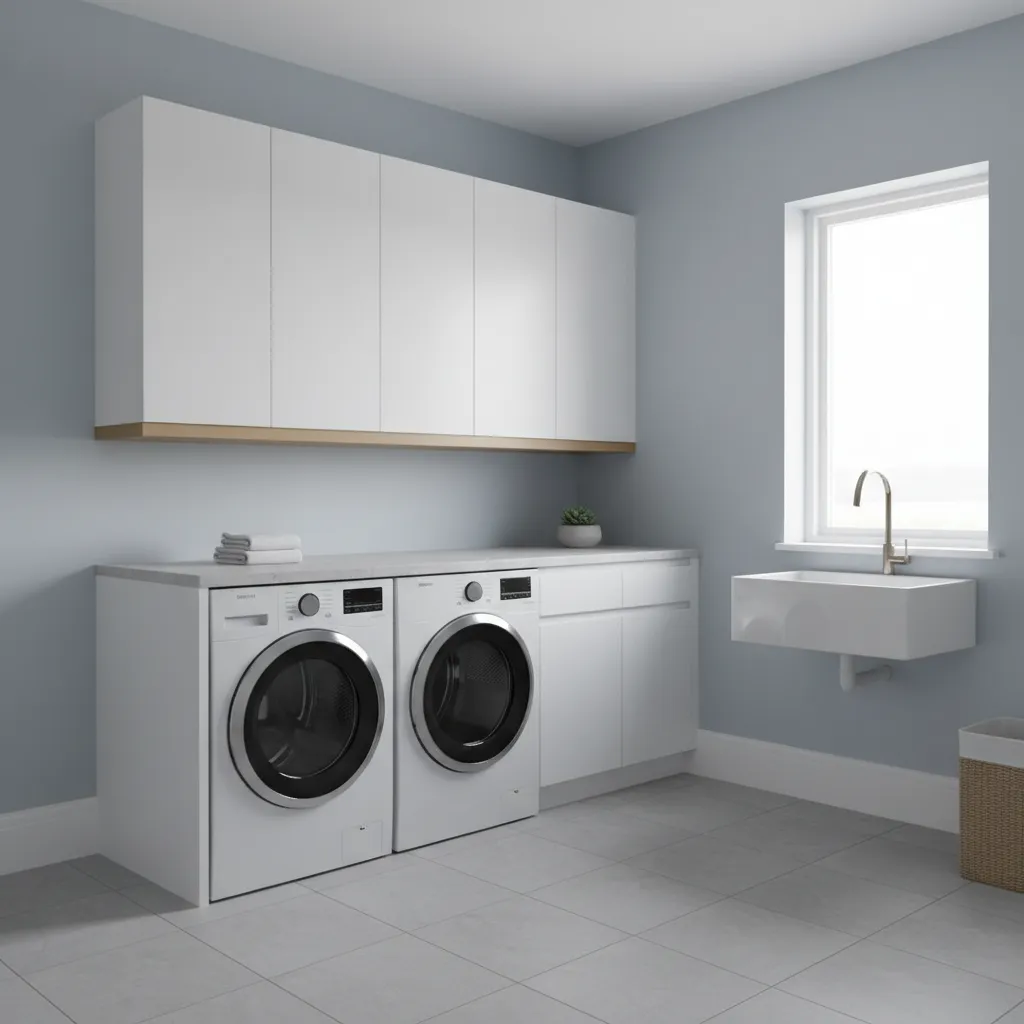

Which Option Is Best for Different Home Layouts

Key Insight: The best drainage system depends more on house structure and plumbing access than on appliance choice.

Here’s how I typically recommend choosing:

1. New construction homes
2. Best option: floor drain + washer drain pan
3. Renovated upstairs laundry rooms
4. Best option: drain pan with emergency drain
5. Luxury homes or large families
6. Best option: full waterproof floor and floor drain
7. Small laundry closets
8. Best option: drain pan only

If you're planning appliance spacing and cabinet placement, it helps to test layouts with a smart floor layout generator for laundry and utility roomsso drainage placement doesn’t conflict with cabinetry or walkways.

save pin

Final Summary

1. Floor drains protect the entire laundry room from major leaks.
2. Drain pans only catch leaks directly beneath the washer.
3. Floor drains require floor slope and waterproofing.
4. Drain pans are cheaper and easier to install.
5. The safest design often combines both systems.

FAQ

Do you need a floor drain in an upstairs laundry room?

It’s not always required by code, but many builders recommend it for added protection. A floor drain provides broader safety than a drain pan alone.

Is a washing machine drain pan enough for upstairs laundry?

A drain pan protects against small leaks under the washer. It may not handle large hose failures or room flooding.

Which is better: floor drain vs washer drain pan upstairs?

A floor drain offers better overall protection, but many homes use both systems together for layered water protection.

How much does installing a floor drain upstairs cost?

Costs usually range from $500 to $1500 depending on plumbing access and floor reconstruction requirements.

Can you add a floor drain to an existing second-floor laundry?

Yes, but it often requires opening ceilings below and rerouting plumbing, which increases labor costs.

Where should a washing machine drain pan drain?

Ideally into a dedicated drain pipe connected to the plumbing system or routed to a safe discharge point.

What is the best drainage option for second floor laundry rooms?

The best setup typically combines a washer drain pan and a floor drain for maximum leak protection.

Do building codes require washer drain pans?

Many modern building codes recommend or require them for upstairs laundry rooms, but regulations vary by location.
