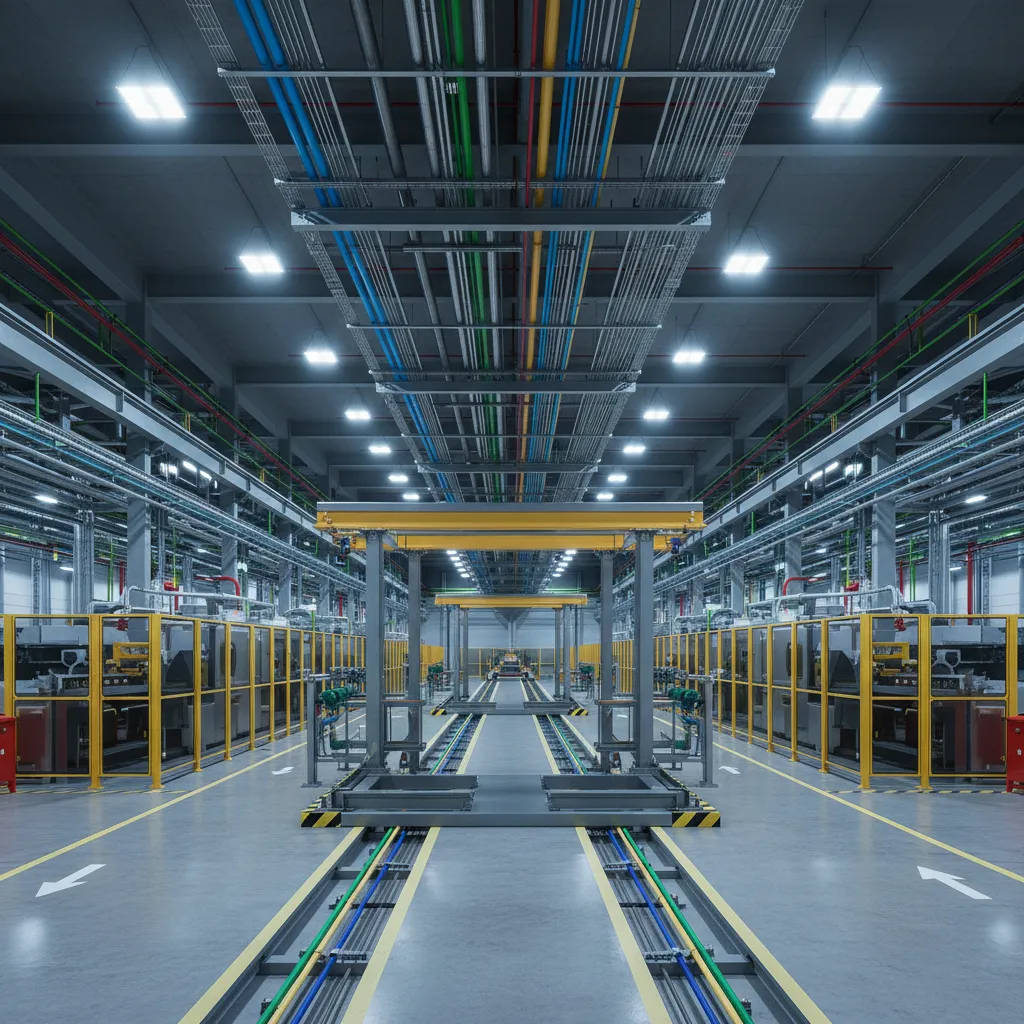

Floor Piping Layout vs Ceiling Piping Layout in Industrial Facilities: A practical comparison to help engineers and planners choose the right piping routing strategy for safety, maintenance, and space efficiency.

Direct Answer

The choice between a floor piping layout and a ceiling piping layout depends on safety requirements, maintenance access, and space utilization. Floor piping often simplifies installation and spill control, while ceiling piping keeps pathways clear and reduces contamination risk. Most modern facilities combine both approaches based on process zones and operational priorities.

Quick Takeaways

1. Floor piping simplifies installation but can interfere with movement and equipment.
2. Ceiling piping improves accessibility and safety in high‑traffic areas.
3. Maintenance costs differ depending on accessibility and isolation design.
4. Hybrid piping layouts are common in modern industrial facilities.
5. Early layout planning prevents costly routing changes later.

Introduction

In industrial facility planning, the debate around floor piping vs overhead piping layout comes up in almost every project kickoff meeting. After working on multiple facility design projects—from manufacturing plants to specialized laboratories—I have seen how a piping routing decision made early can influence maintenance cost, worker safety, and even long‑term operational flexibility.

Many teams assume overhead piping is automatically better because it "frees up floor space." In reality, that assumption often leads to maintenance headaches, complicated support structures, or difficult leak detection. On the other hand, floor piping can simplify installation but introduce safety hazards if poorly planned.

One reason these decisions are tricky is that piping rarely exists alone. It interacts with equipment placement, service corridors, and circulation paths. In fact, when teams start mapping layouts using tools that help visualize facility circulation and infrastructure routing early in planning, conflicts between piping routes and operational zones become obvious much sooner.

This guide compares floor and ceiling piping strategies from a practical design perspective—covering cost, maintenance, safety, and operational efficiency—so you can determine which layout actually fits your facility.

save pin

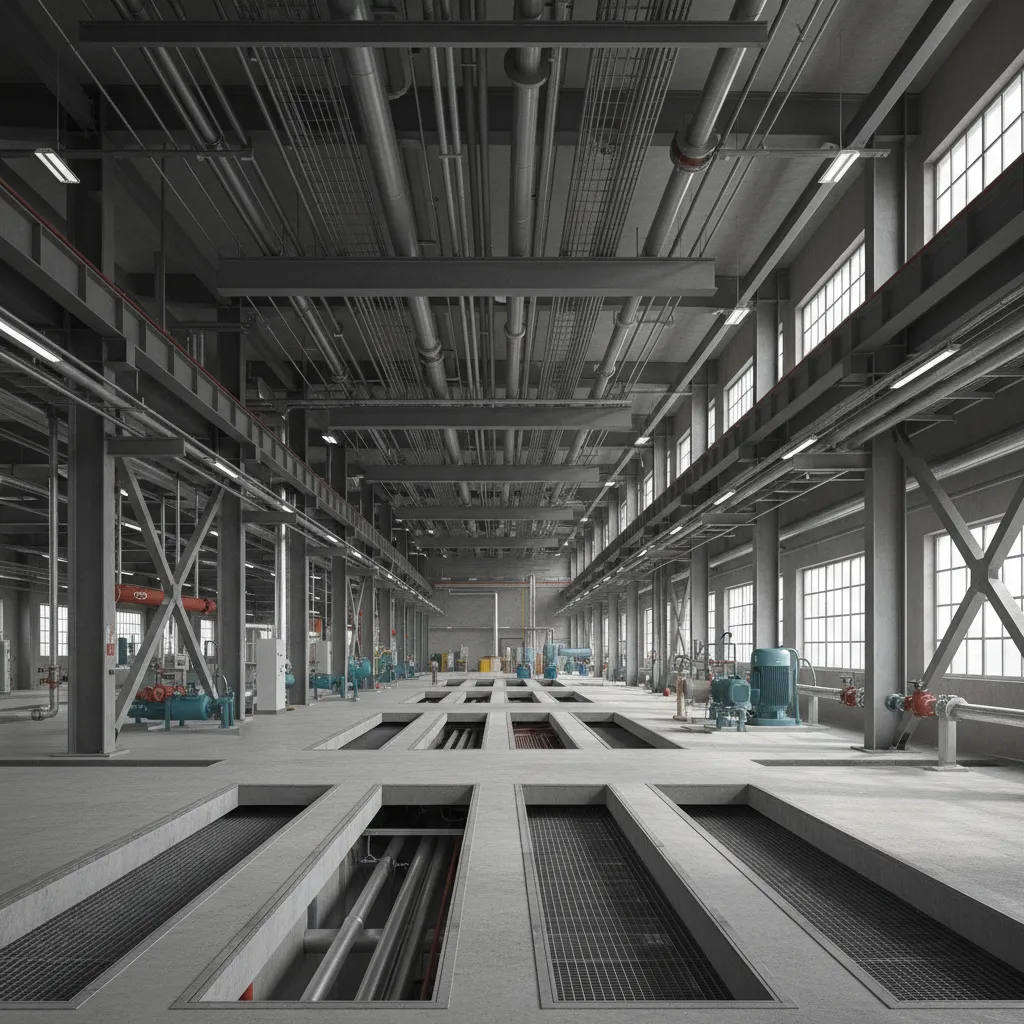

Overview of Floor and Ceiling Piping Layout Concepts

Key Insight: Floor and ceiling piping layouts are fundamentally routing strategies that prioritize different operational constraints.

Floor piping runs along ground level, within trenches, embedded channels, or low supports. Ceiling piping runs above operational zones using suspended racks, structural supports, or pipe bridges.

In industrial facilities, piping typically carries:

1. Process fluids
2. Cooling water
3. Compressed air
4. Chemical transfer lines
5. Steam and condensate

Each routing method introduces different spatial and operational tradeoffs:

1. Floor piping prioritizes simple installation and structural stability.
2. Ceiling piping prioritizes unobstructed movement and contamination control.

According to facility planning guidance from organizations like the International Society for Pharmaceutical Engineering (ISPE), many modern plants intentionally mix routing strategies to separate hazardous utilities from worker circulation paths.

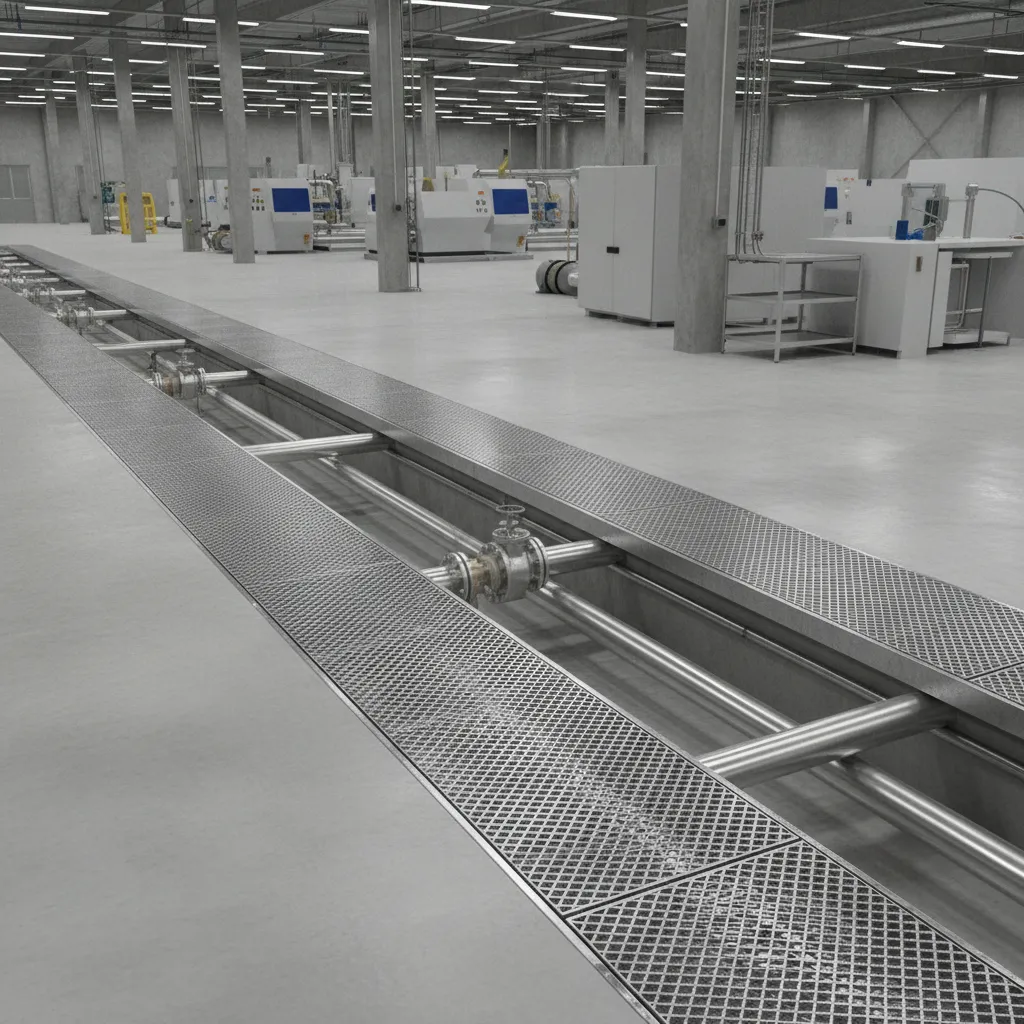

Advantages of Floor-Level Piping Systems

Key Insight: Floor-level piping is often the most cost‑efficient solution when installation simplicity and structural support matter more than open floor space.

In heavy industrial environments, floor piping frequently appears in utility corridors, trench systems, and mechanical zones. It reduces structural engineering complexity because the floor provides natural support.

Key advantages include:

1. Simpler installation – Fewer structural supports are required.
2. Easier leak detection – Spills or drips are visible sooner.
3. Better spill containment – Trenches can channel hazardous fluids.
4. Lower structural load concerns – Heavy piping systems don't stress ceiling frameworks.

However, the hidden issue many teams overlook is floor congestion. Equipment expansions, forklifts, and maintenance carts can quickly turn floor‑mounted piping into an obstacle network.

During one facility retrofit project I worked on, several floor pipelines had to be relocated because they interfered with automated guided vehicle routes—a costly change that could have been avoided with better early routing analysis.

save pin

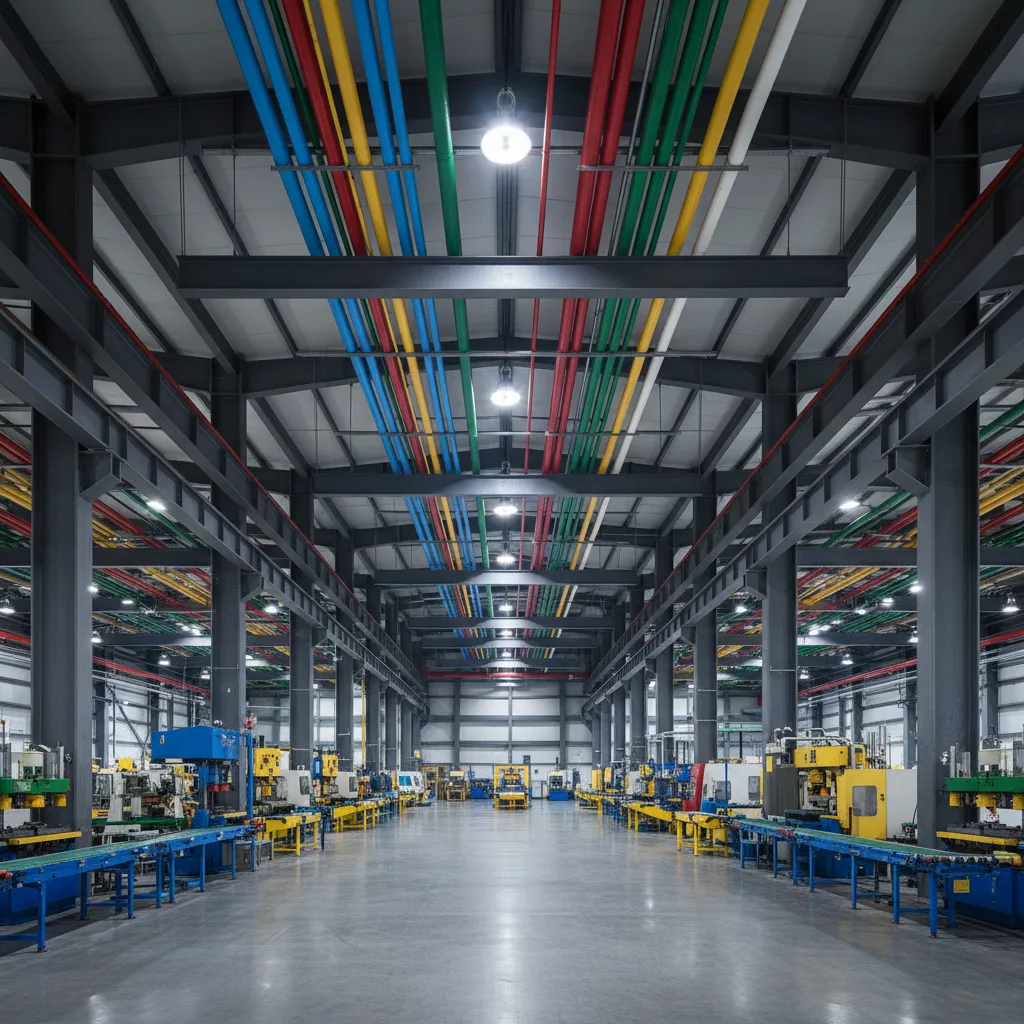

Advantages of Overhead Piping Systems

Key Insight: Overhead piping protects operational space and improves workflow efficiency in high‑traffic industrial environments.

Ceiling routing is common in modern production plants, food facilities, and pharmaceutical environments where floor sanitation and unobstructed movement are critical.

Major advantages include:

1. Clear operational floor space – Equipment and vehicles move freely.
2. Reduced contamination risk – Pipes remain away from spills or debris.
3. Improved process organization – Utilities can be grouped on pipe racks.
4. Scalability – Additional lines can be added to overhead racks.

However, overhead systems introduce structural complexity. Pipe racks, seismic supports, and suspension systems add engineering requirements and costs.

From a maintenance perspective, overhead piping also requires safe access platforms or lifts. This becomes a significant operational factor in facilities that need frequent inspections.

Cost, Maintenance, and Accessibility Tradeoffs

Key Insight: The cheapest installation option is not always the cheapest lifecycle solution.

When comparing ceiling piping vs floor piping design, lifecycle cost matters more than installation cost.

1. Installation cost: Floor piping usually costs less initially.
2. Maintenance access: Floor piping is easier to inspect.
3. Downtime impact: Overhead systems can reduce disruption to operations.
4. Expansion flexibility: Ceiling racks allow easier future routing.

One overlooked cost factor is isolation. Overhead systems often require additional valves and supports to isolate sections safely for maintenance.

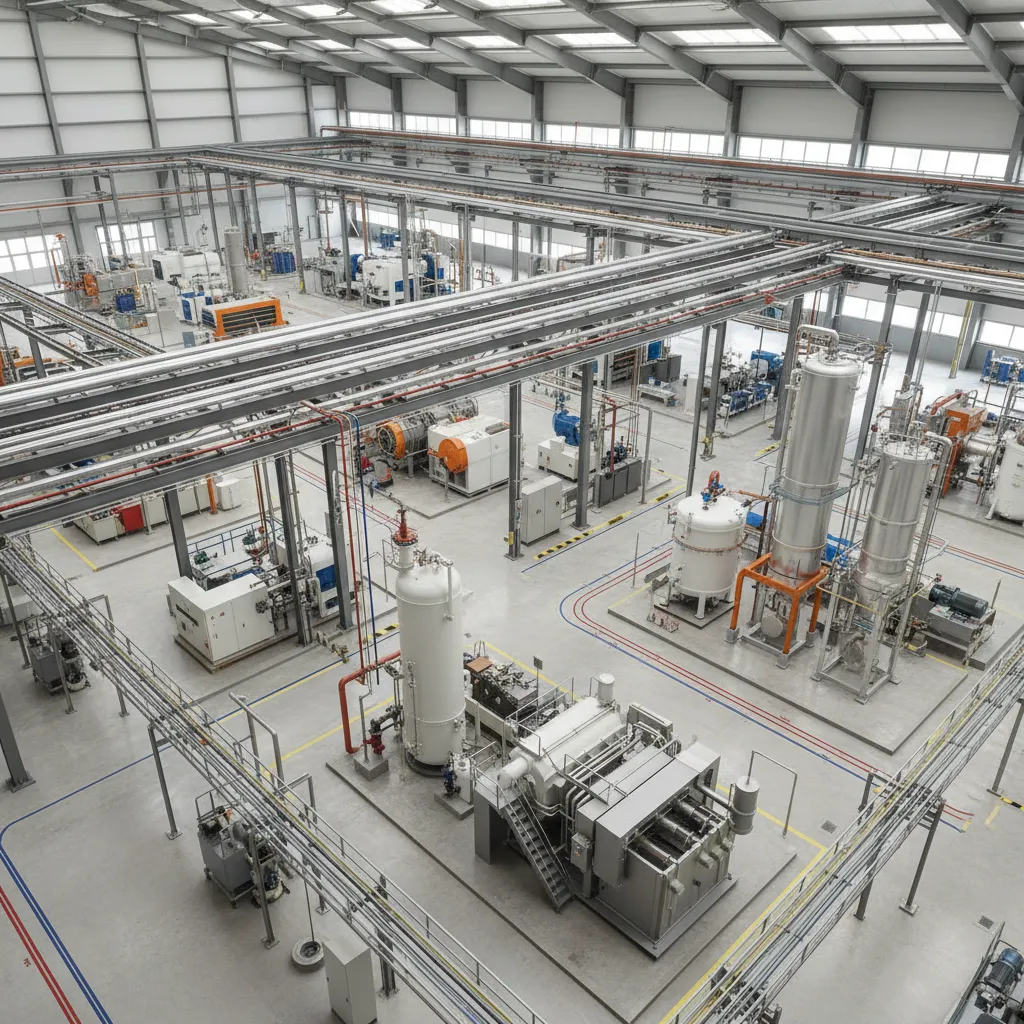

Teams planning new facilities often test these routing scenarios by modeling service corridors and utility paths early using tools that help experiment with infrastructure routing before construction begins. Visualizing maintenance access routes frequently reveals conflicts that aren't obvious in 2D diagrams.

save pin

Impact on Safety, Space Utilization, and Operations

Key Insight: Safety and workflow efficiency often outweigh installation cost when selecting piping layout strategies.

Poor piping routing can introduce operational risks:

1. Trip hazards from low piping
2. Difficult emergency access
3. Restricted equipment movement
4. Delayed leak detection in overhead systems

In regulated industries such as chemical processing, design standards often require hazardous fluid lines to avoid worker pathways whenever possible.

Common safety design considerations include:

1. Dedicated pipe corridors
2. Color‑coded utility lines
3. Clear maintenance access zones
4. Secondary containment for chemical pipes

Operational efficiency also improves when piping is organized logically above or beside equipment groups rather than crossing traffic zones.

Answer Box

The best piping routing strategy in industrial facilities usually combines floor and ceiling systems. Floor piping works well for heavy utilities and spill containment, while ceiling piping protects circulation areas and improves workflow efficiency.

When to Choose Floor Piping Over Ceiling Piping

Key Insight: Floor piping works best in controlled utility zones where heavy infrastructure and spill containment are priorities.

Situations where floor routing is often the better choice include:

1. Utility corridors or mechanical rooms
2. Chemical transfer systems requiring containment
3. Facilities with heavy steel piping systems
4. Low‑traffic industrial zones

Meanwhile, overhead piping is usually preferred for production floors and high‑movement areas.

Design teams evaluating these scenarios often map both routing strategies together to plan equipment placement and service corridors within the same layout model. Seeing piping routes in context with operations helps avoid costly layout conflicts.

save pin

Final Summary

1. Floor piping simplifies installation and supports heavy systems.
2. Ceiling piping protects workflow and keeps floors clear.
3. Maintenance access strongly influences lifecycle cost.
4. Hybrid routing strategies are common in modern plants.
5. Early layout modeling prevents expensive redesigns.

FAQ

What is the main difference between floor piping and overhead piping?

Floor piping runs along ground level or trenches, while overhead piping is suspended above operational areas using structural supports or pipe racks.

Which is cheaper floor piping or ceiling piping?

Floor piping usually has lower installation costs because it requires fewer structural supports, but overhead piping may reduce operational disruption long‑term.

Is floor piping safer than overhead piping?

Not always. Floor piping can create trip hazards, while overhead piping can delay leak detection. Safety depends on routing design and facility operations.

Why do many factories prefer overhead piping?

Overhead systems keep production floors clear, improve sanitation, and allow equipment movement without obstruction.

What industries commonly use floor piping systems?

Chemical plants, utility corridors, wastewater treatment facilities, and heavy manufacturing often use floor‑mounted piping.

How do engineers decide between floor piping vs overhead piping layout?

They evaluate maintenance access, safety requirements, equipment placement, structural capacity, and future expansion needs.

Can a facility use both floor and overhead piping?

Yes. Most modern industrial facilities combine both approaches depending on process zones and safety requirements.

What is the best piping layout for industrial facilities?

The best piping layout for industrial facilities balances safety, accessibility, expansion flexibility, and operational efficiency.
