Floor plan drawing online free: Walls, Doors & Windows Made Easy

The three elements that define any floor plan — walls, doors, and windows — are also the three things that stop most people before they start. Walls need to connect at precise angles. Doors need to be placed at the right position on the right wall, with the swing direction correctly indicated. Windows need to sit at the correct height and position relative to the room's proportions. Get any of these wrong and the floor plan stops being useful.

The assumption that drawing a floor plan requires either design software expertise or a professional is outdated. In 2026, the best tools let you draw your floor plan online for free with a workflow specifically designed to make walls, doors, and windows straightforward — not as things to figure out, but as things that snap into place correctly by default.

This guide covers exactly how the drawing process works, what makes each element easy or difficult depending on the tool, and how to go from a blank canvas to a complete, dimensioned floor plan ready for furniture placement and 3D visualization.

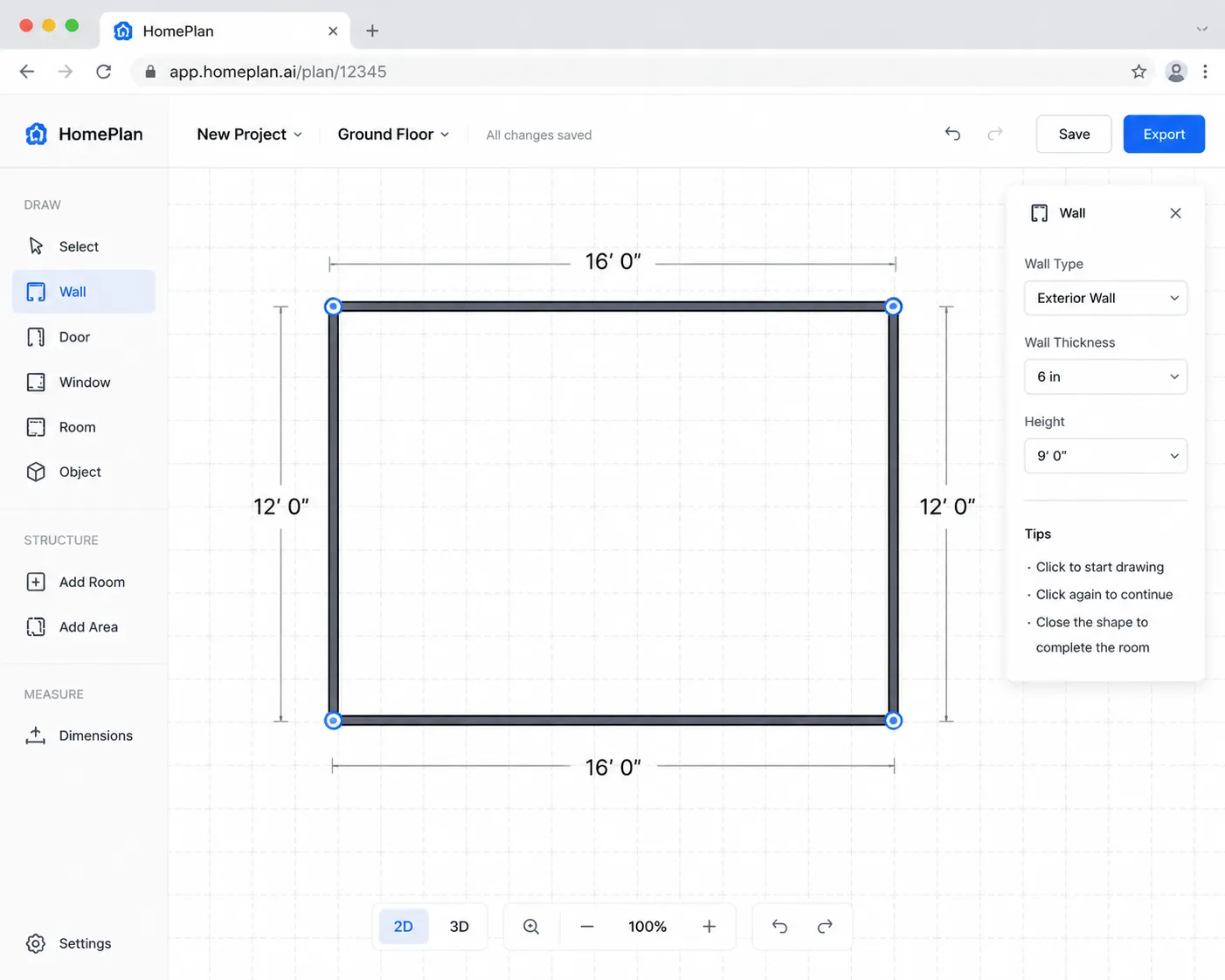

Why Walls, Doors, and Windows Are the Hard Part

Most floor plan tutorials skip over the drawing fundamentals and jump straight to furniture placement. This is backward. Furniture placement is easy — drag, drop, rotate. The room shell is where most people get stuck, and getting it right is what makes everything that follows accurate.

Walls seem simple until you realize that real rooms rarely have walls that meet at perfect 90-degree angles — or rather, they do, but getting four walls to form a closed rectangle without gaps or overlaps requires either precise input or good snapping behavior in the tool. A wall that almost closes at a corner leaves a gap in the room shell that breaks the 3D view and makes the plan unreliable for measurement purposes.

Doors introduce two complications: position and swing. Position means where on the wall the door sits — how far from the corner, how wide the opening is. Swing means which way the door opens, which determines how much floor space it occupies when open and what furniture clearance it requires. A door placed on the wrong wall, or with the wrong swing direction, produces a floor plan that looks right but doesn't reflect the actual room.

Windows are the most commonly oversimplified element. Most free tools represent windows as a gap in the wall with no indication of height or sill position. This is fine for basic layout planning but insufficient if you're thinking about furniture placement relative to natural light, or if you're planning window treatments.

A good online floor plan tool handles all three of these correctly by default — with snapping, standard sizing, and clear visual indication of swing direction and window position.

save pin

What to Look For in a Free Online Floor Plan Drawing Tool

Wall snapping and closure. The tool should snap walls to grid and to each other so that corners close correctly without manual adjustment. You shouldn't have to zoom in to verify that four walls form a sealed room.

Dimension input on every wall. Click a wall, type a number, and the wall updates to that exact length. This is the difference between a floor plan that approximates your room and one that accurately represents it.

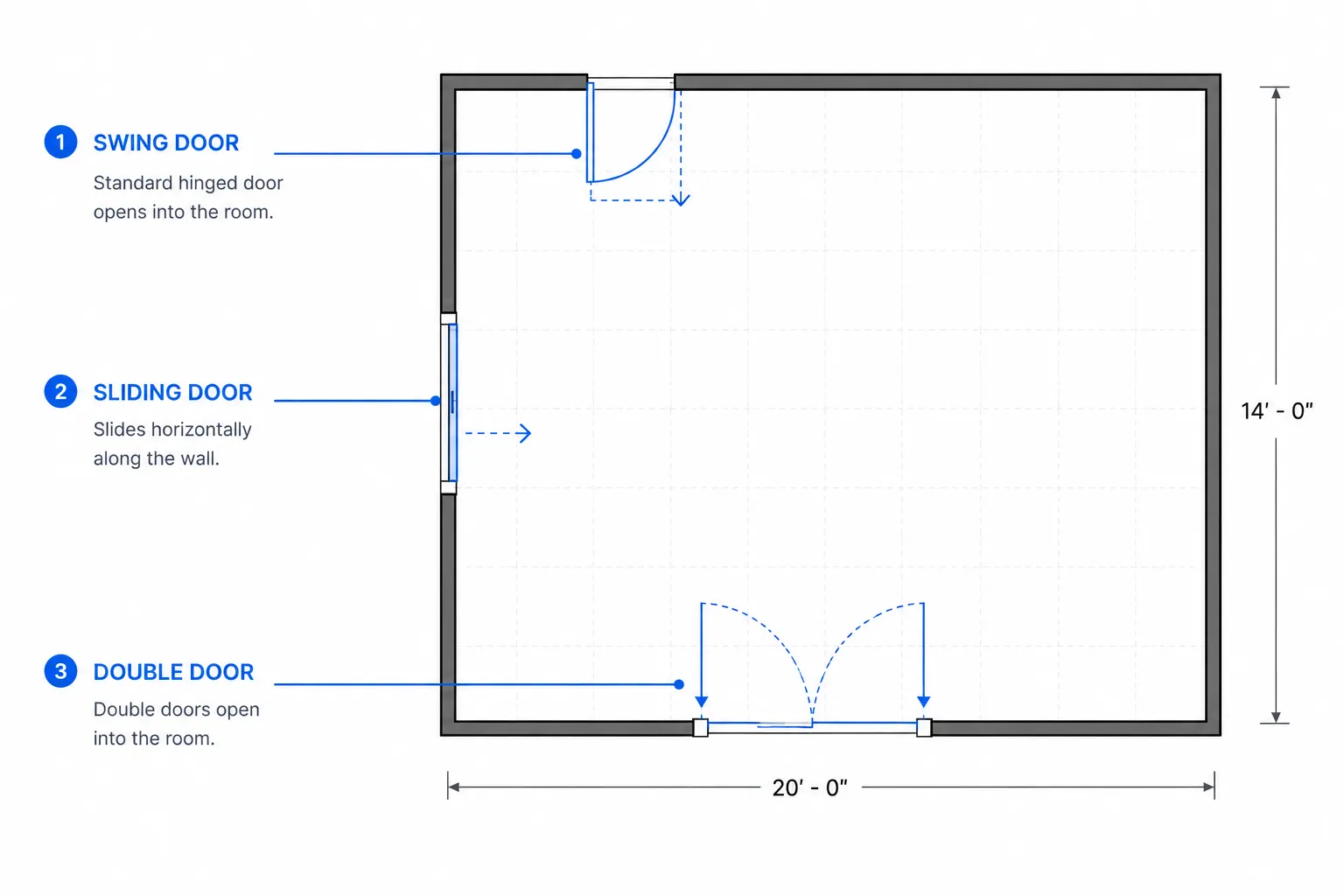

Standard door symbols with swing arcs. The swing arc — the quarter-circle that indicates which way the door opens — should be drawn automatically when you place a door. This is a standard architectural convention and essential for planning furniture clearance.

Window placement at correct wall height. Windows sit at a specific height above the floor — typically 30 to 36 inches for the sill. A tool that places windows correctly in the wall (visible in the 3D view at the right height) is more useful than one that only marks a gap in the 2D plan.

Real-time 3D preview. The 3D view is where you verify that the room shell is correct — that walls enclose the space properly, that doors and windows read correctly in three dimensions, and that the room feels spatially accurate before you start placing furniture.

save pin

The Best Free Tool for Drawing Floor Plans Online

Coohom

Coohom's free floor plan creator is built around a drawing workflow that handles walls, doors, and windows the way they should work: with snapping, standard sizing defaults, precise dimension input, and automatic swing arc rendering for doors.

Drawing a room in Coohom starts with wall placement. Click to start a wall, click to end it, and the tool snaps to grid by default so walls connect cleanly at corners. Input the exact wall length by clicking the wall and typing the dimension. The four walls of a standard room close into a sealed shell in under two minutes.

Doors and windows are added from the toolbar by dragging them onto any wall. Doors snap to the wall at the nearest logical position and render with the correct swing arc automatically. The swing direction can be flipped with a single click. Windows snap to the wall at standard height and are visible at the correct position in the 3D view.

The 3D view updates in real time as you draw — switch between 2D and 3D at any point to verify the room is reading correctly before moving to furniture placement.

The full drawing workflow, including precise dimension input, door and window placement, and 3D preview, is available on the free plan.

How to Draw a Floor Plan Online: Step by Step

Step 1 — Set Up Your Room Dimensions

Open the tool and start a new project. Select your unit system — metric or imperial — before drawing anything. Changing units after the fact requires rescaling the entire plan.

Input the overall room dimensions if known, or draw the walls to approximate size and correct the dimensions in the next step.

Step 2 — Draw the Walls

Use the wall tool to draw each wall by clicking start and end points. Let the snapping guide you — most tools will snap to 90-degree angles by default, which is correct for standard rectangular rooms.

After drawing all four walls, click each wall and input the correct dimension. The wall updates to the exact length. Check that all four corners are closed — zoom in on each corner to verify there are no gaps.

For non-rectangular rooms — L-shapes, rooms with alcoves — draw additional wall segments to create the correct outline. Each segment should connect to the previous one at a snapped corner.

Step 3 — Place Doors

Select the door tool and drag a door onto the wall where it belongs. The door snaps to the wall and places at standard width — typically 32 to 36 inches for interior doors. Adjust the width if your door is a non-standard size.

Check the swing direction. The arc should open into the room in the direction the door actually opens. If it's reversed, flip the swing direction with a single click. Place the door at the correct position along the wall — note how far from the corner the door sits in the actual room and match this in the plan.

Step 4 — Place Windows

Select the window tool and drag windows onto the correct walls. Standard windows snap to the wall at the default sill height. Adjust the window width to match your actual windows and position each window at the correct location along the wall.

In the 3D view, verify that windows appear at the right height and on the correct walls. A window on the wrong wall or at the wrong position will produce incorrect lighting behavior in the 3D render.

Step 5 — Add Architectural Details

With the primary elements in place, add any additional architectural features specific to your room: a bay window, an alcove or recess, a supporting column, built-in shelving, or a fireplace. These fixed elements affect furniture placement and should be in the plan before you start furnishing.

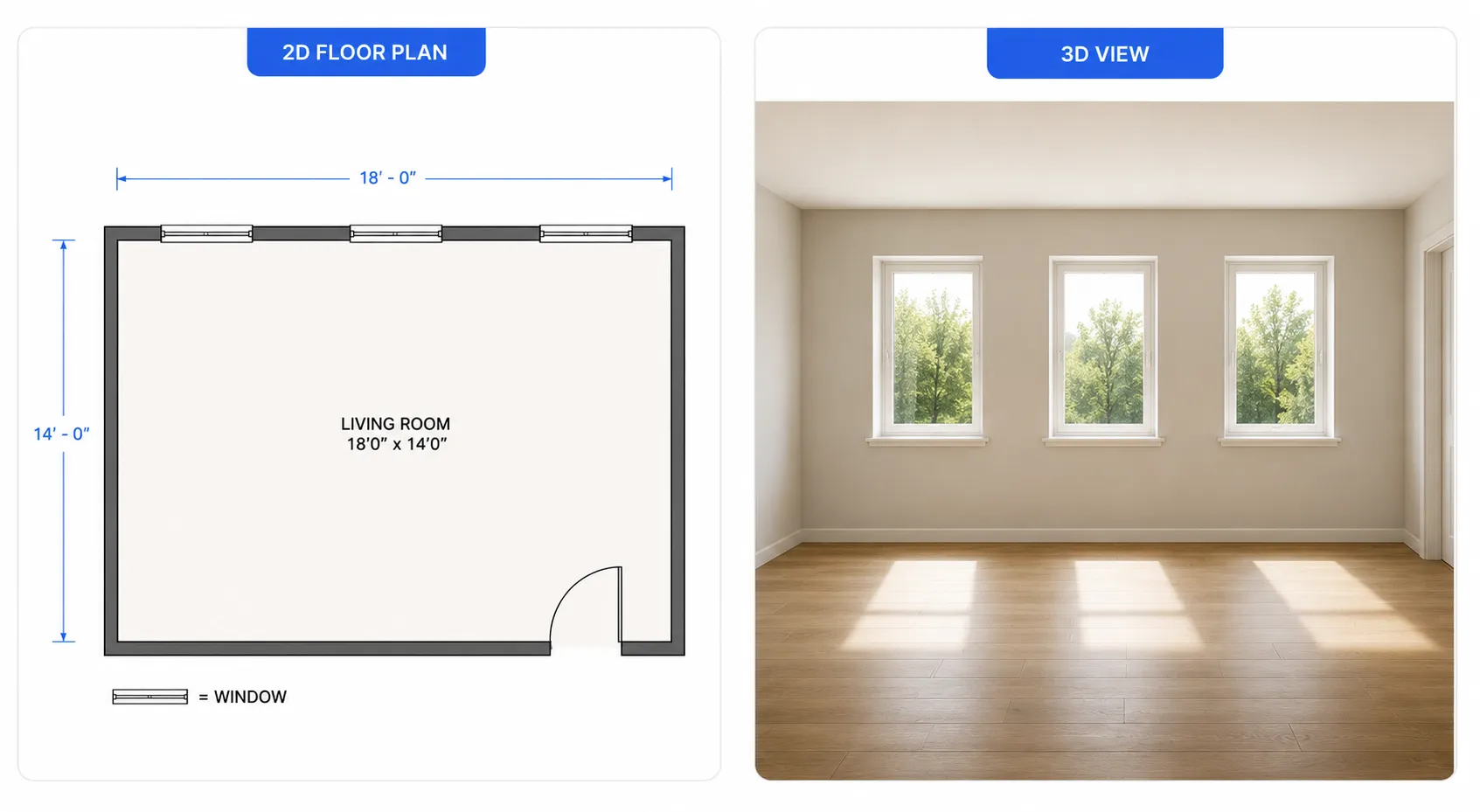

Step 6 — Verify in 3D Before Furnishing

Switch to the 3D view and walk through the room. Check:

1. All walls enclose the space with no gaps
2. Doors appear on the correct walls with visible swing arcs
3. Windows appear at the correct height and position
4. The room proportions feel correct relative to the ceiling height

If anything looks wrong in 3D, correct it in 2D and re-check. It's much faster to fix the room shell before placing furniture than after.

save pin

Common Drawing Mistakes and How to Avoid Them

Walls that don't close. The most common mistake. Always zoom in on each corner to verify the walls connect. A tiny gap invisible at normal zoom breaks the 3D view and makes the room shell inaccurate for measurement.

Wrong door swing direction. Easy to miss in 2D, obvious in 3D. Check swing direction after placing every door — it takes one click to fix and saves significant frustration when you discover furniture blocking an open door.

Skipping window placement. Windows are easy to add later, so many people skip them during the initial drawing phase. This produces a floor plan that works for 2D layout but renders incorrectly in 3D — a room without windows looks like a box, and furniture placed near window walls may conflict with the windows once they're added.

Not inputting exact dimensions. Drawing walls to approximate size and moving straight to furniture placement produces a floor plan that looks right but isn't — furniture that fits in the plan may not fit in the actual room. Always input exact wall dimensions before placing any furniture.

Frequently Asked Questions

Do I need design experience to draw a floor plan online? No. Tools designed for general users handle the technical conventions automatically — snapping, standard sizing, swing arc rendering. You need to know your room dimensions and where the doors and windows are. The tool handles everything else.

How long does it take to draw a single room? A standard rectangular room with two or three doors and a few windows takes 10 to 15 minutes from a blank canvas to a verified room shell. Non-rectangular rooms with complex outlines take longer — 20 to 30 minutes is typical for an L-shaped room or one with multiple alcoves.

Can I draw multiple connected rooms? Yes. Draw each room using the same wall tool and connect them by aligning shared walls. Doors between rooms are placed on the shared wall. This is how full apartment or house floor plans are built — room by room, connected into a single plan.

What's the difference between drawing a floor plan and using AI generation? Manual drawing gives you complete control and produces the most accurate result when you have precise measurements. AI generation produces a starting draft faster but requires correction and refinement. For a simple rectangular room where you know the dimensions, manual drawing is often faster than AI generation plus correction.

The Room Shell Is the Foundation

Every decision that follows — furniture placement, material selection, lighting design — rests on the accuracy of the room shell. Walls that close correctly, doors with accurate swing arcs, windows at the right positions: these are not details. They are the foundation that makes the rest of the floor plan reliable.

Getting the shell right takes 15 minutes with a good tool. It saves hours of adjustments afterward.

Draw your room, get the shell right, and everything else follows from there.
