Floor plan generator ai free: How to Prepare for High-Quality Results

Since the original version of this guide was published, AI-powered floor plan recognition has significantly improved in three key areas:

Higher Accuracy on Low-Quality Inputs

Modern recognition models now handle scanned PDFs, smartphone photos, and slightly skewed images with far better tolerance than before. The system can auto-detect walls, doors, and openings even when the source isn’t perfectly aligned.

Support for More File Formats In addition to JPG/PNG/PDF, most tools now accept SVG, WebP, HEIC, and even CAD-exported raster snapshots, reducing the need for manual conversion.

Automatic 3D Conversion After the 2D plan is processed, some platforms now generate a furnished 3D version automatically instead of requiring manual room creation. This eliminates hours of re-drawing.

Wall-Thickness Interpretation Logic

AI systems can now detect structural vs. partition walls based on thickness variation, allowing a more accurate editable model for furniture placement and material changes.

If you read this article before 2024, this is the most important shift: AI no longer just “reads the image” — it now builds an editable model from it.

Don’t Just Pick a Tool—Start with the Right Floor Plan

When people search for “floor plan generator AI free”, they usually want a quick, no-cost way to generate a professional-looking layout—whether it’s for a new home, renovation, or design proposal.

But here’s the catch:

Even the smartest AI tools can’t deliver great results if your floor plan is poorly prepared.

The secret to a smooth and accurate AI generation?

Give it a clean, AI-friendly floor plan.

What Makes a Floor Plan AI-Friendly?

AI tools like Coohom, Planner 5D, and Floorplanner rely on visual recognition. If your image is blurry, messy, or full of clutter, the output will either be wrong—or fail entirely.

7 Requirements for AI-Optimized Floor Plans:

1. Clear, bold lines – Walls must be closed and connected.
2. Clean background – Black on white or white on black; no textures or grids.
3. High resolution – At least 2000 pixels wide; avoid compression.
4. No annotations – Remove text labels, furniture icons, or measurement notes.
5. Consistent scale – Use one standard unit (e.g., meters or feet); include a scale bar if possible.
6. Simplified layout – No detailed decorations or symbols.
7. Recommended formats – JPG, PNG, or PDF; file size under 5MB

Midjourney Is Your Secret Weapon for Optimizing Floor Plans

Let’s say you have a rough sketch, a phone photo of an old drawing, or a messy layout you found online.

Before uploading it to an AI floor plan generator, you can dramatically improve its clarity using Midjourney.

Midjourney is an AI image generator that can recreate clean, high-contrast, architectural-style floor plans from simple prompt commands.

Test: Midjourney Delivers Readable Floor Plans

From my own testing, Midjourney is capable of generating high-resolution floor plans with clear, closed walls and minimal visual noise—using just a basic prompt.

The results are clean enough that tools like Coohom or Planner 5D can directly recognize and convert them into editable layouts.

Whether you're working from a hand-drawn sketch or just a rough concept, this method helps you create a visually perfect version ready for AI processing.

Prompt Example:

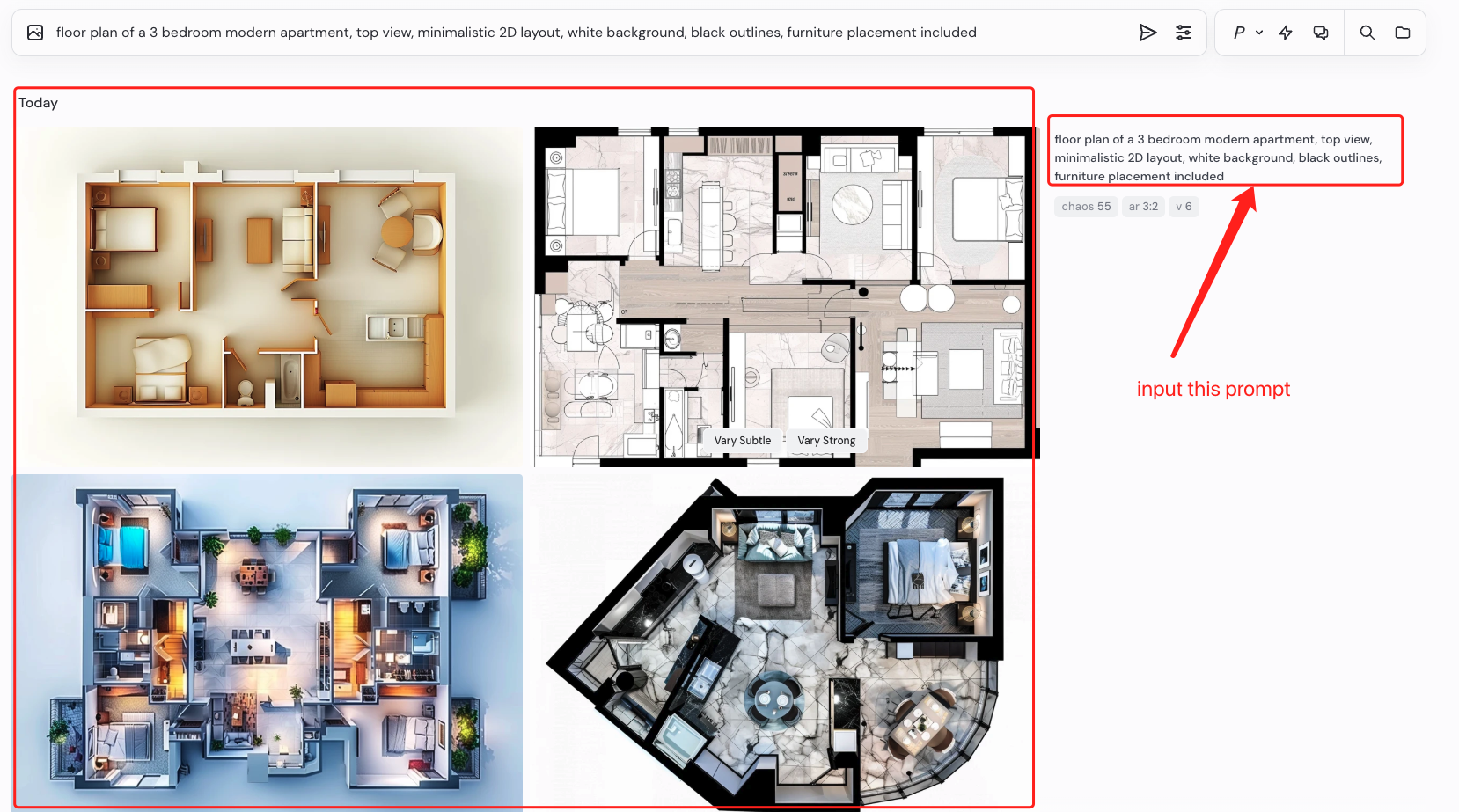

"clean top-down architectural floor plan, black and white, thick closed walls, no furniture, no text, minimal, high resolution"

What you’ll get:

1. Strong visual contrast
2. Accurate wall and room separation
3. Ideal input for AI-based floor plan tools

Within seconds, you’ll have a clean base image that AI tools can interpret flawlessly.

save pin

save pin

Once Your Floor Plan Is Ready, Try These Free AI Tools

With a well-prepared image in hand, you can now upload it to these free floor plan generator AI tools:

1. ✅ Coohom Floor planner – Accepts PDF/JPG uploads; auto-detects rooms and walls, and renders in 3D.
2. ✅ Planner 5D – Supports floor plan recognition from images; ideal for fast 2D/3D conversion.
3. ✅ Floorplanner – Upload a background image and trace over it for accurate modeling.

Final Takeaway

The key to AI-powered design isn’t just the tool—it’s the quality of the floor plan you give it.

Instead of uploading rough drafts or blurry scans, use Midjourney to generate clean, high-res architectural floor plans for free.

Once you’ve done that, tools like Coohom or Planner 5D will take care of the rest.
