Floor plan truck stop design layout: Creating an efficient and inviting truck stop layout

Direct Answer

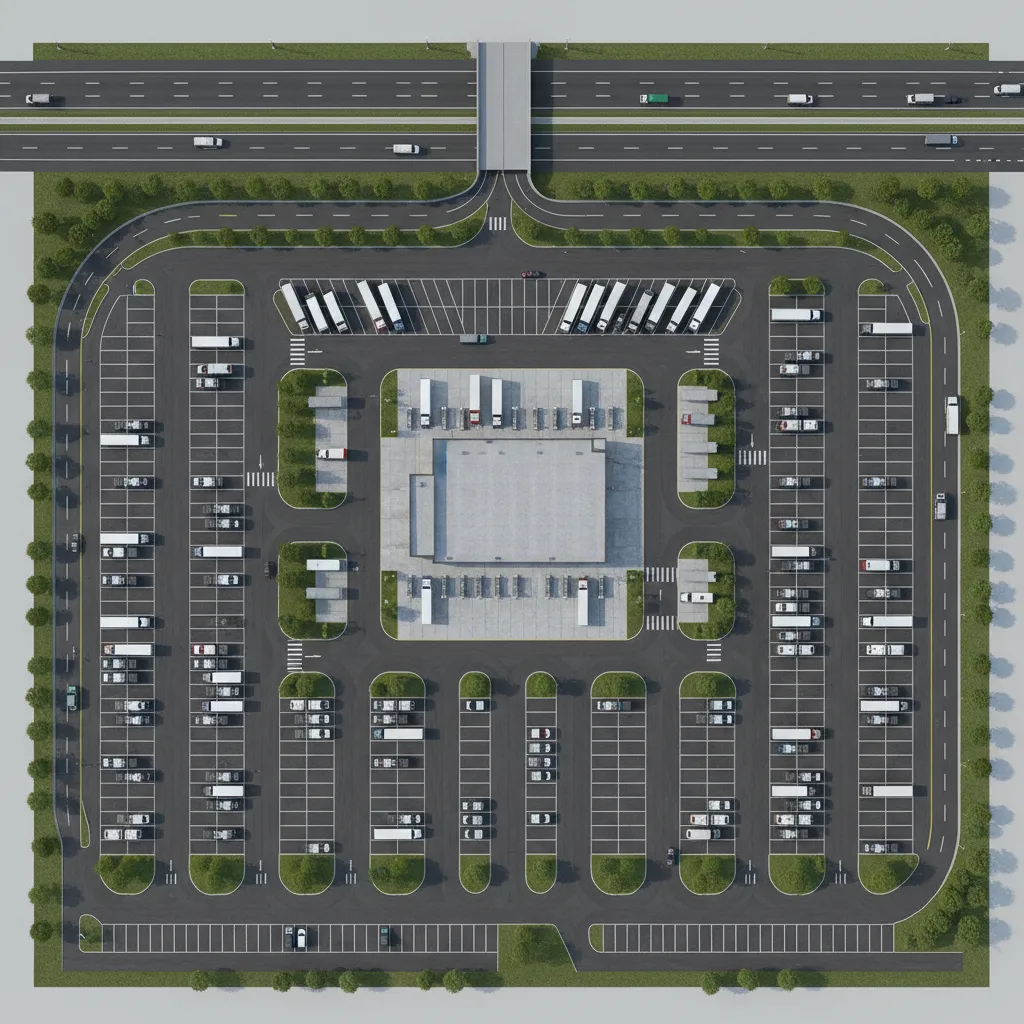

A functional truck stop floor plan design layout prioritizes clear truck circulation, separated car and truck traffic, efficient fuel island placement, and easy access to parking and services. The most successful layouts reduce turning conflicts, shorten fueling time, and guide drivers naturally toward parking, restrooms, and food areas.

In real-world projects, the difference between a profitable truck stop and a chaotic one almost always comes down to circulation design and parking efficiency.

Quick Takeaways

1. Truck circulation must form a continuous loop to prevent reversing or tight turns.
2. Fuel islands should sit directly along the primary truck route.
3. Truck parking requires larger buffer zones than most planners expect.
4. Separate car traffic early to prevent congestion near the store entrance.
5. Visibility from highway entry dramatically improves usability.

Introduction

Designing a truck stop floor plan design layout is very different from planning a typical gas station. After working on several highway service projects across the West Coast, I learned quickly that the biggest problems rarely come from the building itself. They come from how trucks move through the site.

Many layouts look good on paper but fail the moment a 70‑foot semi enters the property. Turning radii, fueling queue space, and parking circulation suddenly become the deciding factors.

The best truck stops feel effortless for drivers. Trucks enter, fuel, park, and exit without confusion. That doesn't happen by accident—it happens through deliberate layout planning.

save pin

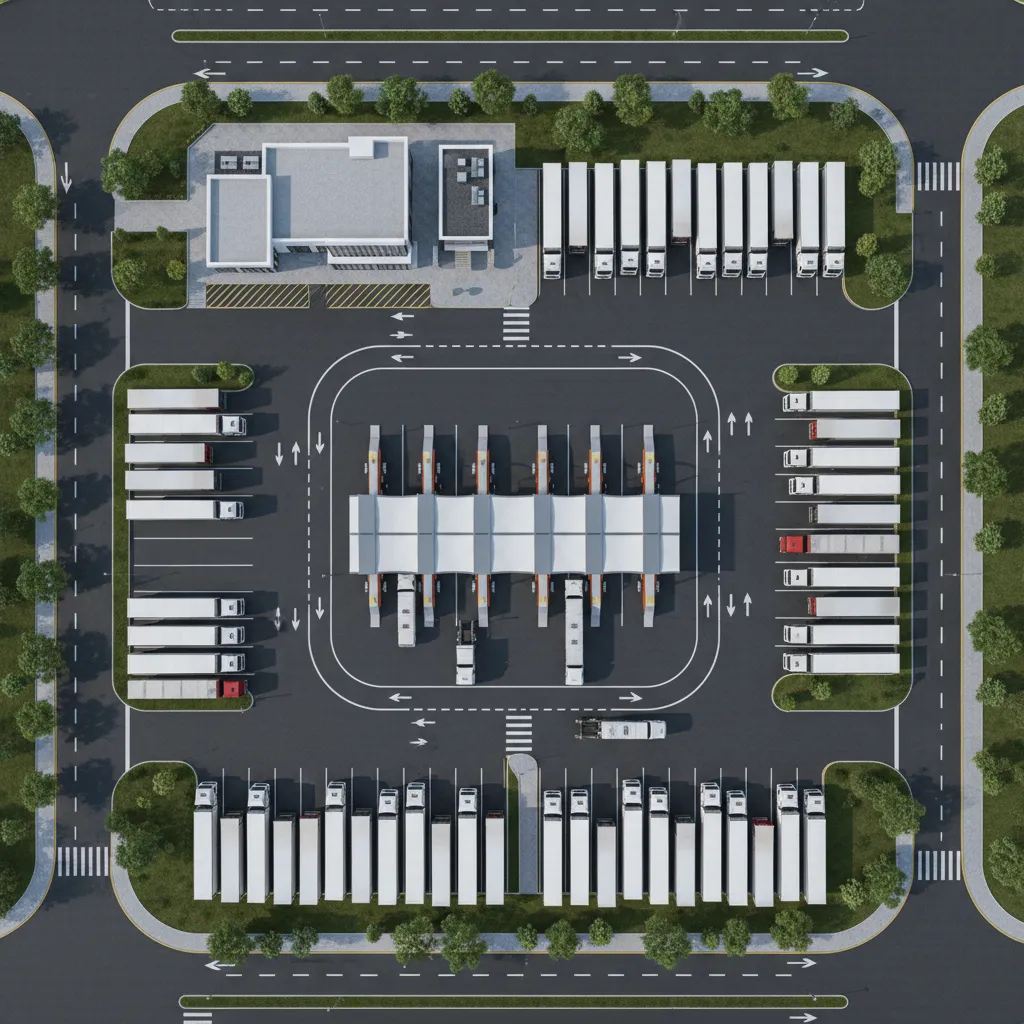

Why Is Truck Circulation the Most Important Part of a Truck Stop Layout?

Key Insight: Truck circulation determines whether the entire site works or fails.

Large trucks require enormous turning radii and predictable movement paths. If trucks need to reverse or cut across traffic, the layout will eventually create bottlenecks.

From experience, the most efficient truck stops follow a simple rule: trucks should move forward at all times in a loop-like pattern.

Typical circulation structure:

1. Highway entrance aligned with truck lanes
2. Direct path to fuel islands
3. Exit path leading naturally toward parking
4. Separate loop for departure back to highway

The American Association of State Highway and Transportation Officials (AASHTO) recommends designing for large truck turning templates, which typically require outer turning radii exceeding 50–55 feet.

A mistake I still see surprisingly often: designers place the convenience store in the middle of the truck circulation path. That forces trucks and cars to mix, which quickly leads to congestion.

How Much Space Do You Really Need for Truck Parking?

Key Insight: Most truck stop layouts underestimate parking maneuvering space.

A standard truck parking stall might be about 12 feet by 75 feet, but the maneuvering aisle is where most designs fail.

Typical dimensions used in modern truck stops:

1. Truck stall: 12 ft × 75 ft
2. Angled parking aisle: 90–120 ft maneuvering space
3. Drive lanes: 24–30 ft width
4. Buffer between rows: 15–20 ft

Angled parking (usually 60 degrees) dramatically improves usability because drivers can back in with fewer adjustments.

Industry operators like Pilot and Love's often design parking lots so trucks naturally flow from fueling toward parking without crossing paths with incoming vehicles.

save pin

Where Should Fuel Islands Be Located in the Layout?

Key Insight: Fuel islands should sit directly on the main truck approach route, never tucked behind buildings.

Truck drivers prioritize quick fuel access. If they must navigate around buildings or cars first, congestion grows immediately.

Best-practice placement:

1. Immediately visible from the entrance
2. Aligned parallel to truck traffic flow
3. Separate from car fuel pumps
4. Large staging area before pumps

One operational detail that designers sometimes miss: trucks often queue before fueling. A staging lane for 5–8 trucks prevents spillback onto the entrance road.

Large operators also place DEF pumps and windshield cleaning stations in a consistent location along the island to minimize driver confusion.

save pin

Should Cars and Trucks Share the Same Entrance?

Key Insight: Mixing car and truck traffic is one of the fastest ways to break a truck stop layout.

In smaller properties it may be unavoidable, but the moment traffic volume increases, shared entrances cause long queues and dangerous turning conflicts.

Better layouts separate vehicles early:

1. Truck entrance aligned with fueling lanes
2. Passenger vehicle entrance closer to store parking
3. Physical separation using medians or landscaping
4. Clear signage directing drivers immediately

This separation dramatically improves safety and reduces congestion during peak fueling times.

Transportation planners often recommend different curb radii: trucks require much wider turns than passenger vehicles.

What Support Facilities Should Be Included in the Floor Plan?

Key Insight: A successful truck stop layout supports drivers beyond fueling and parking.

Drivers often spend several hours—or an overnight stay—at truck stops. The building layout should reflect those real needs.

Typical facility components include:

1. Driver lounge and seating
2. Showers
3. Laundry facilities
4. Convenience store
5. Quick‑service restaurant
6. Maintenance or tire service area

From a design standpoint, placing the store near both truck parking and car parking increases retail revenue.

Another often overlooked detail: direct pedestrian paths from truck parking to the building improve safety at night.

save pin

Answer Box

The most effective truck stop floor plan design layout separates truck and car traffic, positions fuel islands along the primary truck route, and provides generous maneuvering space for parking. Circulation design—not building size—is the factor that most determines operational success.

Common Layout Mistakes Most Designers Overlook

Key Insight: Many truck stops fail because planners underestimate truck behavior.

After reviewing dozens of highway service projects, I consistently see a few repeated mistakes.

Common design errors:

1. Parking areas placed too far from the store
2. Insufficient queue space at fuel pumps
3. Truck traffic crossing car parking zones
4. Poor nighttime lighting planning
5. Entry points hidden from highway visibility

A subtle but costly mistake is ignoring driver sightlines. If truck drivers cannot clearly see fuel islands or exits from the entrance, they slow down or hesitate, which disrupts traffic flow.

Final Summary

1. Truck circulation loops are the foundation of a functional layout.
2. Fuel islands must sit directly on the truck traffic route.
3. Truck parking requires larger maneuvering space than expected.
4. Separating cars and trucks significantly improves safety.
5. Driver-focused facilities increase dwell time and revenue.

FAQ

What is the ideal size for a truck stop parking space?

Most truck parking stalls measure about 12 by 75 feet, with large maneuvering aisles for backing and turning.

How many fuel islands should a truck stop have?

Medium truck stops typically use 4–8 fuel islands, depending on highway traffic volume.

What makes a good truck stop floor plan design layout?

Efficient circulation, separated traffic types, visible fuel islands, and ample truck parking make a truck stop layout successful.

Why do truck stops use angled parking?

Angled parking allows drivers to back into stalls with fewer adjustments and reduces maneuvering conflicts.

How wide should truck lanes be?

Truck lanes are usually 24–30 feet wide to accommodate large turning movements.

Do truck stops need separate entrances?

Yes, larger facilities often separate truck and passenger vehicle entrances to prevent congestion.

Where should the convenience store be located?

Ideally near the center of pedestrian movement between truck parking and car parking.

Is lighting important in truck stop layouts?

Yes. Proper lighting improves safety, helps drivers navigate the site, and increases nighttime retail activity.
