Free Laundry Room Layout Planner: Design Your Perfect Laundry Space Easily With This Tool

Direct Answer

A free laundry room layout planner is an online tool that lets you map appliances, cabinets, counters, and walking space before building or renovating a laundry area. It helps homeowners visualize spacing, storage placement, and workflow so the room functions efficiently even in very small footprints.

When used correctly, these planners prevent expensive layout mistakes like blocked doors, tight appliance clearances, and wasted storage zones.

Quick Takeaways

1. A free laundry room layout planner helps visualize appliance spacing before installation.
2. Proper layouts improve workflow between washer, dryer, folding, and storage areas.
3. Most homeowners underestimate clearance space needed for doors and ventilation.
4. Small laundry rooms benefit most from digital layout planning tools.
5. Planning storage zones early avoids clutter and retrofit costs later.

Introduction

In more than a decade designing residential interiors, I have seen laundry rooms become one of the most underestimated spaces in a home. People focus heavily on kitchens and bathrooms, yet the laundry room often ends up squeezed into whatever corner remains.

That is exactly why a free laundry room layout plannercan be surprisingly powerful. Before cabinets are installed or appliances are delivered, you can test multiple layout options digitally. This simple step often reveals hidden problems such as appliance doors colliding, awkward walking paths, or zero folding space.

In many of my renovation projects, the difference between a frustrating laundry room and a highly efficient one comes down to layout planning. In this guide, I will walk through how layout planners work, when they matter most, and the design decisions that actually make a laundry room easier to use.

save pin

Why Laundry Room Layout Planning Matters More Than Most People Think

Key Insight: Laundry rooms fail more often due to layout mistakes than appliance choices.

Most homeowners assume the washer and dryer are the main decisions. In reality, the workflow around those machines determines whether the room feels functional or frustrating.

Through client projects, I repeatedly see the same problems:

1. Appliance doors hitting walls or cabinets
2. No surface for folding clothes
3. Detergent storage placed too far from the washer
4. Narrow walkways that make loading machines uncomfortable

A layout planner allows you to simulate these real-world movements before construction begins.

According to the National Association of Home Builders, utility rooms rank among the most requested functional upgrades in modern homes, yet they are frequently under-designed during initial planning stages.

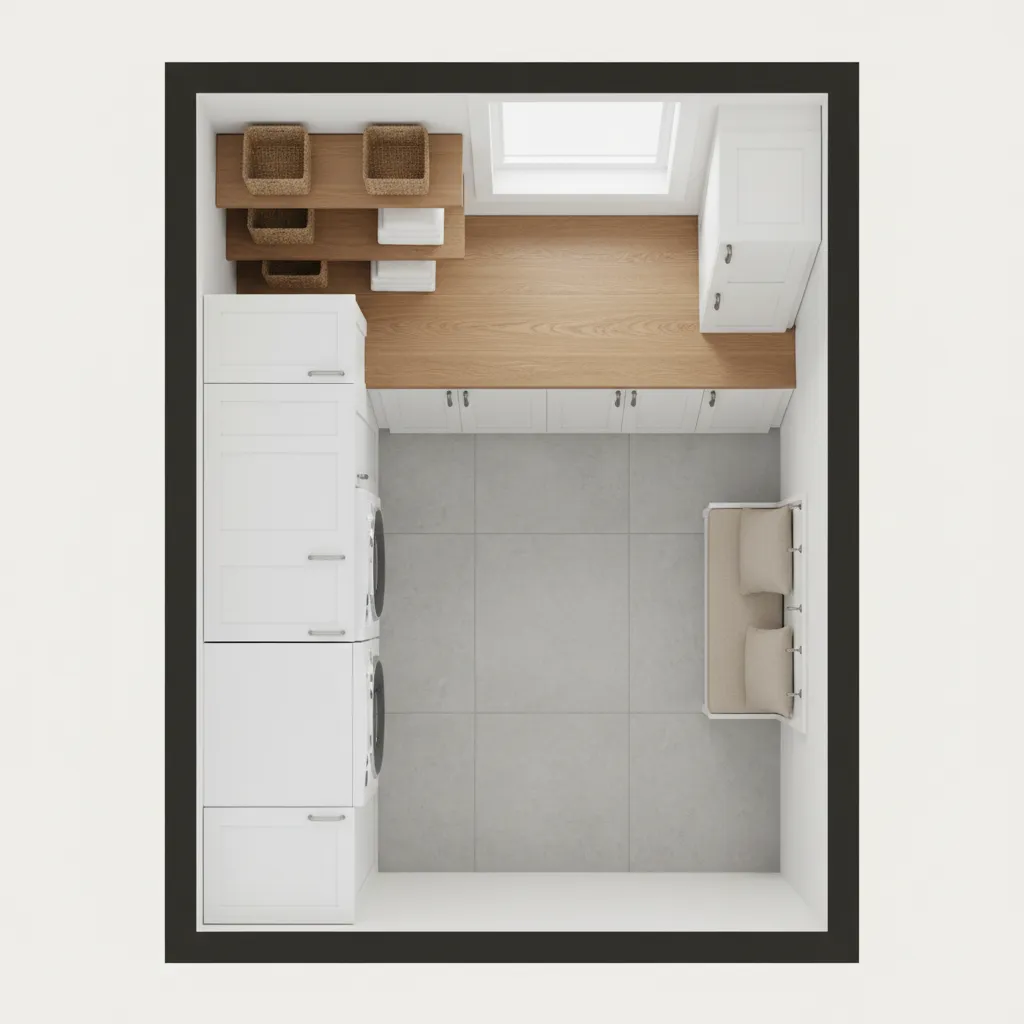

How Does a Free Laundry Room Layout Planner Actually Work

Key Insight: Most layout planners operate like simplified interior design software that lets you drag and place appliances within a scaled room.

The best free tools include basic architectural constraints like wall lengths, door swings, and appliance dimensions. These details matter far more than most people expect.

Typical planner features include:

1. Room dimension input
2. Washer and dryer placement
3. Cabinet and shelving blocks
4. Door swing visualization
5. Walkway spacing

In practice, this means you can test layouts such as:

1. Side by side washer and dryer
2. Stacked appliances
3. L shaped utility room
4. Galley style laundry room

save pin

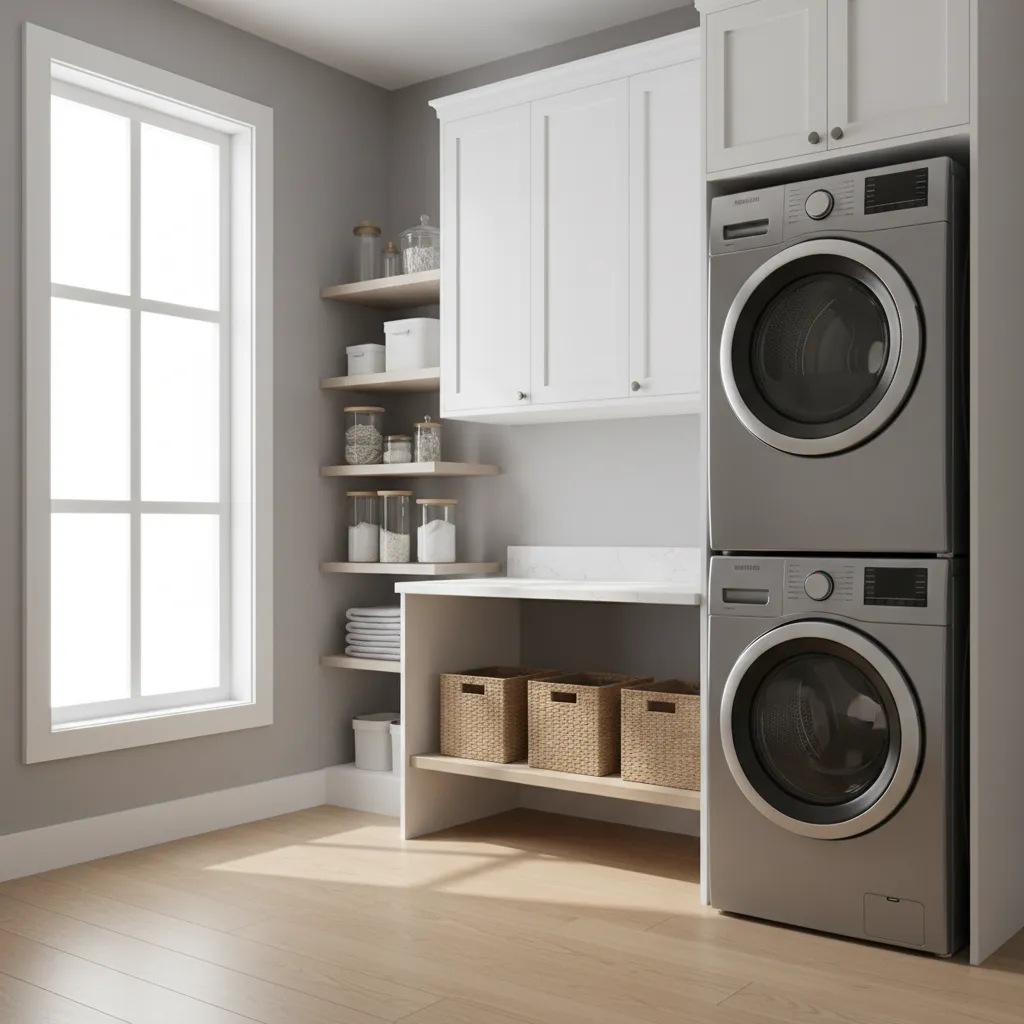

What Is the Ideal Laundry Room Workflow

Key Insight: The best laundry layouts follow a simple workflow: sort, wash, dry, fold, store.

When designing laundry rooms for clients, I map out this sequence physically inside the space. The goal is to reduce unnecessary movement.

A functional workflow typically looks like this:

1. Sorting zone near the entry or hamper area
2. Washer placement next in the sequence
3. Dryer directly beside or stacked above washer
4. Folding counter immediately after drying
5. Upper cabinets or shelves for storage

Many layout planners visually demonstrate this workflow, which helps homeowners identify inefficient arrangements.

Interior designers often refer to this concept as "task flow zoning"—a principle borrowed from commercial kitchen design but extremely effective in utility spaces.

save pin

Common Laundry Room Layout Mistakes That Free Planners Reveal

Key Insight: The biggest benefit of a free laundry room layout planner is catching mistakes before installation.

Some of the most common issues only become obvious when you see the space digitally.

Frequent hidden problems include:

1. Washer doors blocking dryer access
2. Insufficient 36 inch walkway clearance
3. No ventilation clearance behind dryers
4. Cabinets installed too low above machines
5. No dedicated folding surface

One surprising issue I often see: homeowners forget that front loading washer doors swing wide. When two machines are placed tightly in a corner, loading laundry becomes awkward.

Are Free Laundry Room Layout Tools Good Enough for Real Projects

Key Insight: Free planners are excellent for spatial planning but not always accurate for construction specifications.

In professional design projects we eventually switch to architectural software, but early layout planning rarely requires that level of complexity.

Free planners work well for:

1. Testing appliance arrangements
2. Evaluating storage placement
3. Estimating walking space
4. Comparing stacked vs side by side machines

However, they typically lack:

1. Precise plumbing locations
2. Electrical outlet planning
3. Vent routing

For most homeowners, using a free planner early still prevents the majority of layout mistakes.

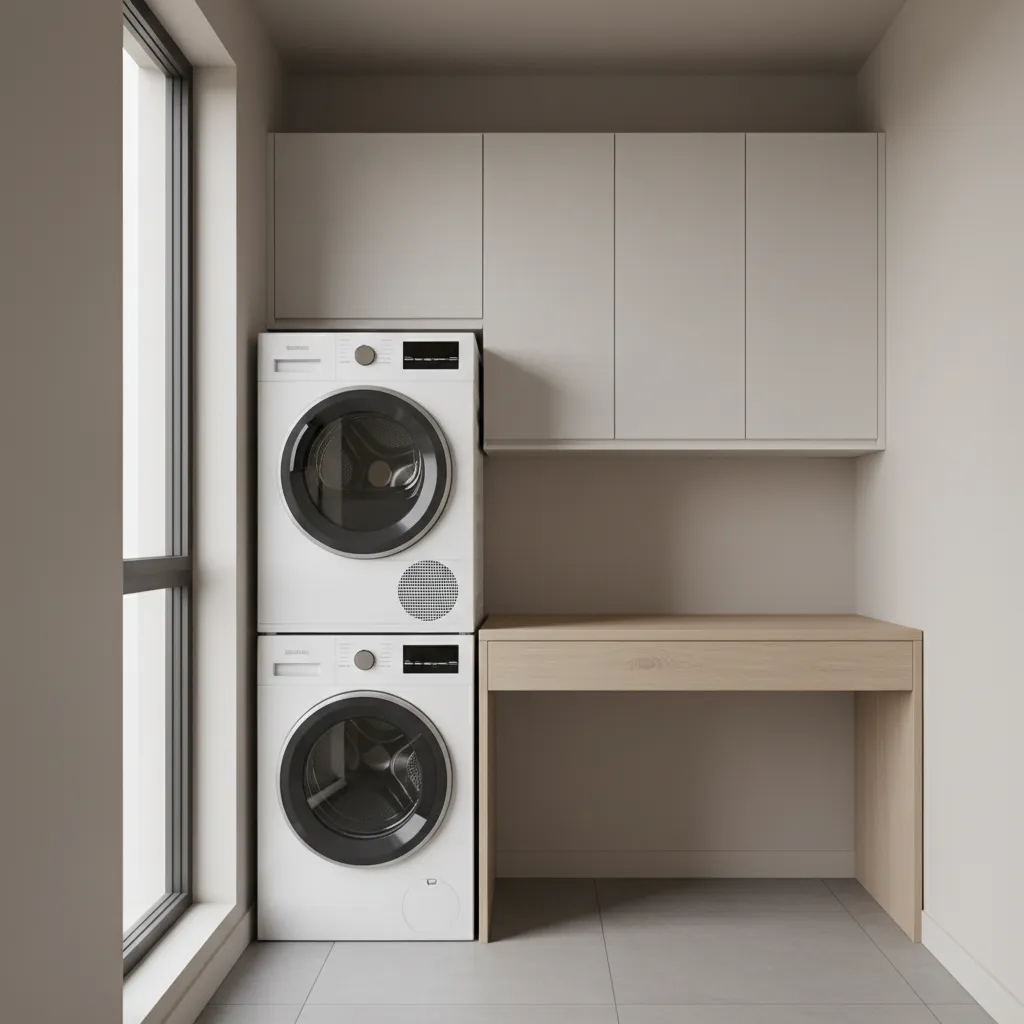

Small Laundry Room Layout Ideas That Planners Help Optimize

Key Insight: Small laundry rooms benefit the most from digital layout testing.

When space drops below about 50 square feet, every inch matters.

Layout planners allow experimentation with compact solutions such as:

1. Stacked washer dryer units
2. Sliding barn doors instead of swing doors
3. Wall mounted drying racks
4. Pull out folding counters
5. Vertical cabinet storage

In several apartment renovation projects I worked on in Los Angeles, simply switching from side by side machines to stacked units freed up enough space for a full folding counter.

save pin

Answer Box

A free laundry room layout planner helps homeowners visualize appliance placement, storage zones, and walking space before construction begins. It reduces layout mistakes and improves laundry workflow, especially in small or narrow utility rooms.

Final Summary

1. Laundry room efficiency depends more on layout than appliance type.
2. Free planners reveal spacing and workflow issues early.
3. Small laundry rooms gain the biggest benefit from layout planning.
4. Proper workflow should follow sort, wash, dry, fold, store.
5. Digital planning prevents costly renovation mistakes.

FAQ

1. What is a free laundry room layout planner?

A free laundry room layout planner is a digital tool that lets you design appliance placement, storage, and walking space before building or renovating the room.

2. Can I design a laundry room online for free?

Yes. Several home design platforms offer free planning tools that allow you to arrange washers, dryers, cabinets, and shelves inside a scaled room layout.

3. What size should a laundry room be?

A comfortable laundry room usually needs at least 5 by 7 feet for side by side appliances, though stacked layouts can work in smaller spaces.

4. Do layout planners include washer and dryer dimensions?

Most planners include standard appliance sizes, but it is best to confirm dimensions using the manufacturer specifications.

5. Can a free laundry room layout planner help with small spaces?

Yes. A free laundry room layout planner is especially useful for compact areas where appliance placement and walking clearance are critical.

6. What clearance is needed around laundry appliances?

Designers typically recommend about 36 inches of walking space and several inches behind dryers for ventilation and connections.

7. Is stacking washer and dryer better for small rooms?

Stacking often frees up floor space for folding counters or storage cabinets in narrow laundry rooms.

8. Should laundry rooms include a folding counter?

Yes. A dedicated folding surface dramatically improves usability and reduces the need to carry laundry into other rooms.
