Free Online Office Floor Plan Creator: Design Your Ideal Office Space with Ease

Office layout decisions are expensive to get wrong. Desks moved after installation, meeting rooms that don't support the collaboration they were designed for, circulation paths that create daily friction — every spatial decision in an office either supports or undermines how people work. Unlike residential spaces where you can rearrange furniture in an afternoon, office layouts involve cable management, network infrastructure, acoustic partitioning, and coordination across teams. Getting the plan right before implementation isn't just convenient; it's financially significant.

An office floor plan creator online addresses this directly. Before a single desk is moved or a partition wall is installed, you have a precise spatial plan — one that shows how many workstations fit, how teams are zoned relative to each other, where the meeting rooms sit in relation to the desks they serve, and whether the circulation paths that connect everything are wide enough to work. The plan is testable, shareable, and revisable at zero cost before anything physical happens.

This guide covers what makes an office floor plan effective, how to approach layout for different workspace types, and how to create a professional office floor plan in a browser without specialist software.

Why Office Layout Matters More Than Most Companies Realize

The connection between office layout and team performance is well-documented. Open-plan offices that group teams by function reduce inter-team communication. Desk arrangements that face individuals toward walls rather than toward the room create isolation. Meeting rooms placed far from the teams that use them most generate daily time waste from walking. Breakout areas positioned in high-traffic zones produce ambient noise that degrades focus work across the surrounding desks.

None of these are inevitable — they're planning failures. And planning failures at the layout stage are essentially free to fix. Planning failures discovered after the office is furnished and operational are expensive: new furniture, contractor fees, business disruption during re-configuration, and the productivity drag of a layout that doesn't work during the period before it's fixed.

The floor plan is where these failures get caught or missed. A floor plan that's reviewed critically before implementation surfaces the meeting room that's too far from the design team, the circulation path that's too narrow for the foot traffic it'll carry, and the collaboration zone that's adjacent to the focus work area in a way that will create constant noise conflicts.

Key Principles of Effective Office Layout

Zone by Work Mode, Not by Team

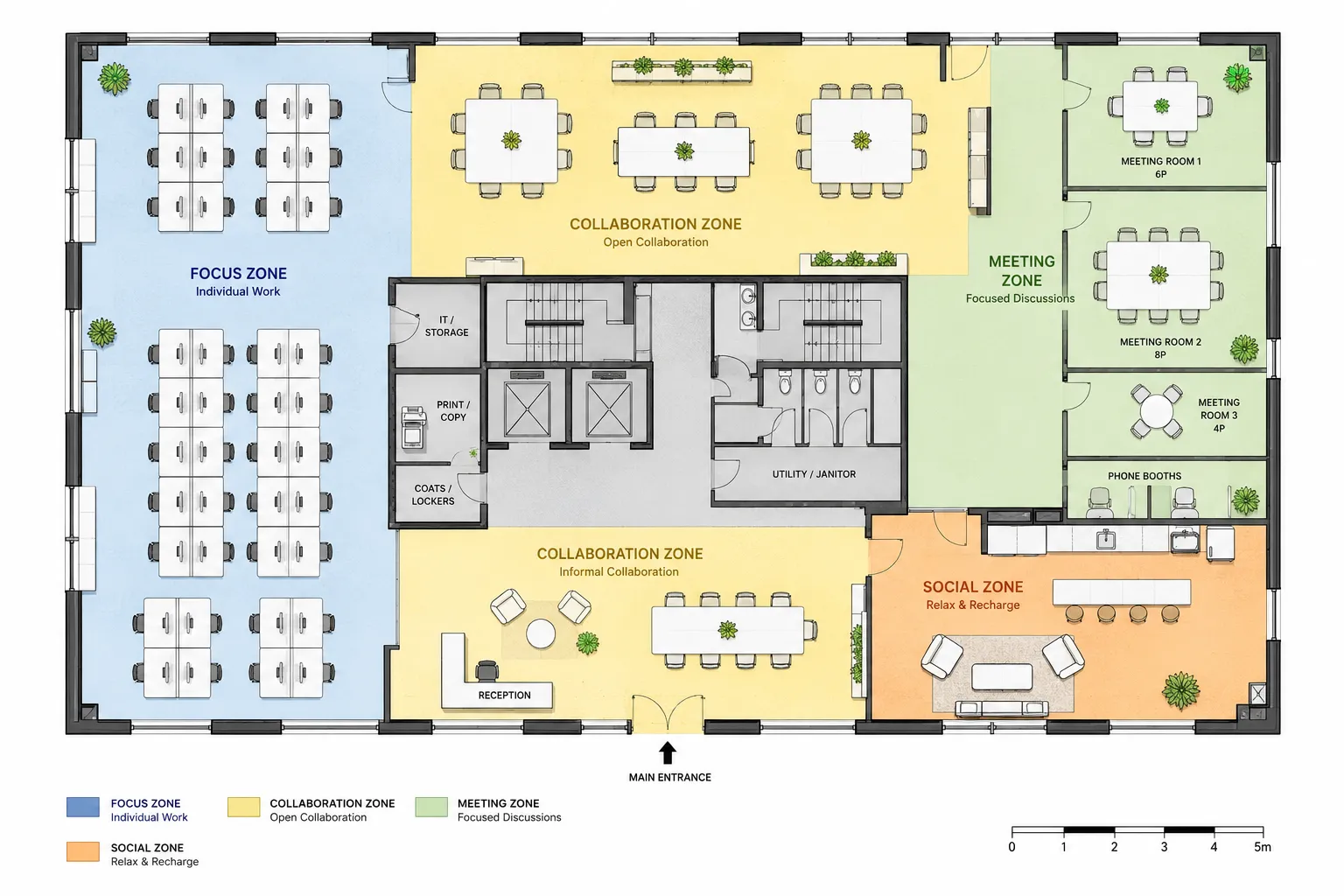

The most effective office layouts zone by the type of work being done, not by which team does it. Four primary zones appear in most productive offices:

Focus zones: Individual workstations for concentrated work. These require acoustic separation from high-activity areas, consistent lighting, and enough personal space that people don't feel crowded. Recommended minimum desk spacing: 60 inches front-to-back, 48 inches side-to-side.

Collaboration zones: Open areas with flexible seating for informal teamwork, whiteboard access, and standing-height tables. These should be acoustically separated from focus zones — either by distance, partition, or both — because the ambient noise that supports collaboration actively disrupts focused work.

Meeting zones: Enclosed or semi-enclosed rooms for structured meetings, video calls, and confidential conversations. The key planning consideration is proximity to the teams that use each room most heavily. A meeting room used primarily by the marketing team that's positioned adjacent to the engineering floor creates daily cross-floor movement that accumulates into significant time waste.

Social zones: Kitchen, lounge, and informal social areas. These generate the highest ambient noise and most unpredictable traffic patterns. Positioning them at the perimeter or in a distinct wing prevents their activity from bleeding into focus and meeting zones.

Plan Circulation Paths First

The desk layout should follow from the circulation paths, not the other way around. The primary circulation path — the main corridor connecting entry to the far end of the floor — should be a minimum of 44 inches wide to comply with standard accessibility requirements, with 60 inches preferred for comfort in busy offices. Secondary paths between desk clusters need a minimum of 36 inches.

In a floor plan tool, map these paths before placing any furniture. A desk arrangement that requires people to squeeze past occupied chairs on the way to the bathroom is a layout that creates friction every day for everyone who works in the office.

Account for the Space Around Furniture

A desk that measures 60 x 30 inches occupies 12.5 square feet. A workstation — the desk plus the chair in use, the space behind the chair for the person to stand up, and the secondary desk space for monitors and peripherals — occupies significantly more. Planning an office by fitting desks on paper without accounting for workstation footprint produces a floor plan that looks spacious and an installed office that feels cramped.

Standard workstation footprints to plan with:

1. Single desk workstation: 60 x 30 inches (desk) + 24 inches chair depth + 18 inches rear clearance = approximately 60 x 72 inch total footprint
2. Meeting room per person: 25 to 35 square feet including chair movement
3. Standing desk: same desk footprint but no chair clearance needed behind

save pin

Office Layout Types and When to Use Each

Open plan: All workstations in a shared space without partitions. Maximizes desk density and facilitates informal communication. Works best for teams whose work is inherently collaborative and whose communication benefits outweigh the noise costs. Requires acoustic treatment (carpet, ceiling panels, soft surfaces) to remain functional at scale.

Activity-based working (ABW): No assigned desks. Employees choose a workspace type — focus desk, collaboration table, phone booth, lounge seat — based on what they're working on. Reduces total desk count (typically 0.7 to 0.8 desks per person rather than 1:1), which allows more space per zone. Requires careful zone planning and enough variety of workspace types to prevent bottlenecks.

Hybrid layout: Fixed desks for roles that need consistent setups (developers with multiple monitors, design workstations) alongside flexible areas for roles with more variable space needs. The most common layout type in 2026, reflecting the reality that different roles have different space requirements.

Private offices with open bullpen: Senior leadership in private offices, with open-plan workstations for the broader team. The planning challenge is ensuring private offices don't dominate the perimeter and deprive open-plan desks of natural light. Private offices should generally be positioned on interior walls or at the ends of the floor plan, not along the window line.

save pin

How to Create an Office Floor Plan Online

Step 1 — Gather Your Inputs

Before opening the tool, collect: the floor plate dimensions (from the lease or building drawings), the positions of all fixed elements (columns, core walls, elevator shafts, stairwells), the locations of all windows and external walls, and your headcount and team structure.

Also confirm: electrical and data outlet positions if known (desk placement often follows infrastructure), emergency exit positions (circulation paths must keep exits clear), and any planning or building code requirements relevant to your jurisdiction.

Step 2 — Draw the Floor Plate

Input the floor dimensions into the tool. Place structural elements — columns, core walls — as fixed elements before adding any furniture. Draw the internal partition walls if any exist or are planned.

For open-plan floors, the floor plate is typically a large rectangle with a central core (containing lifts, stairs, and services). For older buildings, the floor plate may be more irregular with columns that constrain desk placement.

Step 3 — Establish Zones Before Placing Desks

Mark the four zone types on the floor plan before placing any furniture. Where does the focus zone sit? Which walls does it use? Where does the collaboration zone go, and how is it separated from the focus zone? Where do the meeting rooms cluster, and how far are they from the teams that use them?

Zone boundaries can be marked with colored areas in the tool. Getting this right before placing furniture prevents the most common office planning mistakes — collaboration zones that end up adjacent to focus desks, meeting rooms that are too far from their primary users.

Step 4 — Place Workstations and Verify Clearances

Add desk clusters to the focus zone, using the tool's dimension display to verify clearances between rows and at ends of clusters. Check the primary circulation path width after each cluster addition — it's easy to gradually narrow a circulation path as you add more desks.

Count workstations as you place them and compare against your headcount target. Most offices plan for 10 to 15% more desks than current headcount to allow for growth and reduce the risk of immediately needing to reconfigure.

Step 5 — Place Meeting Rooms and Shared Spaces

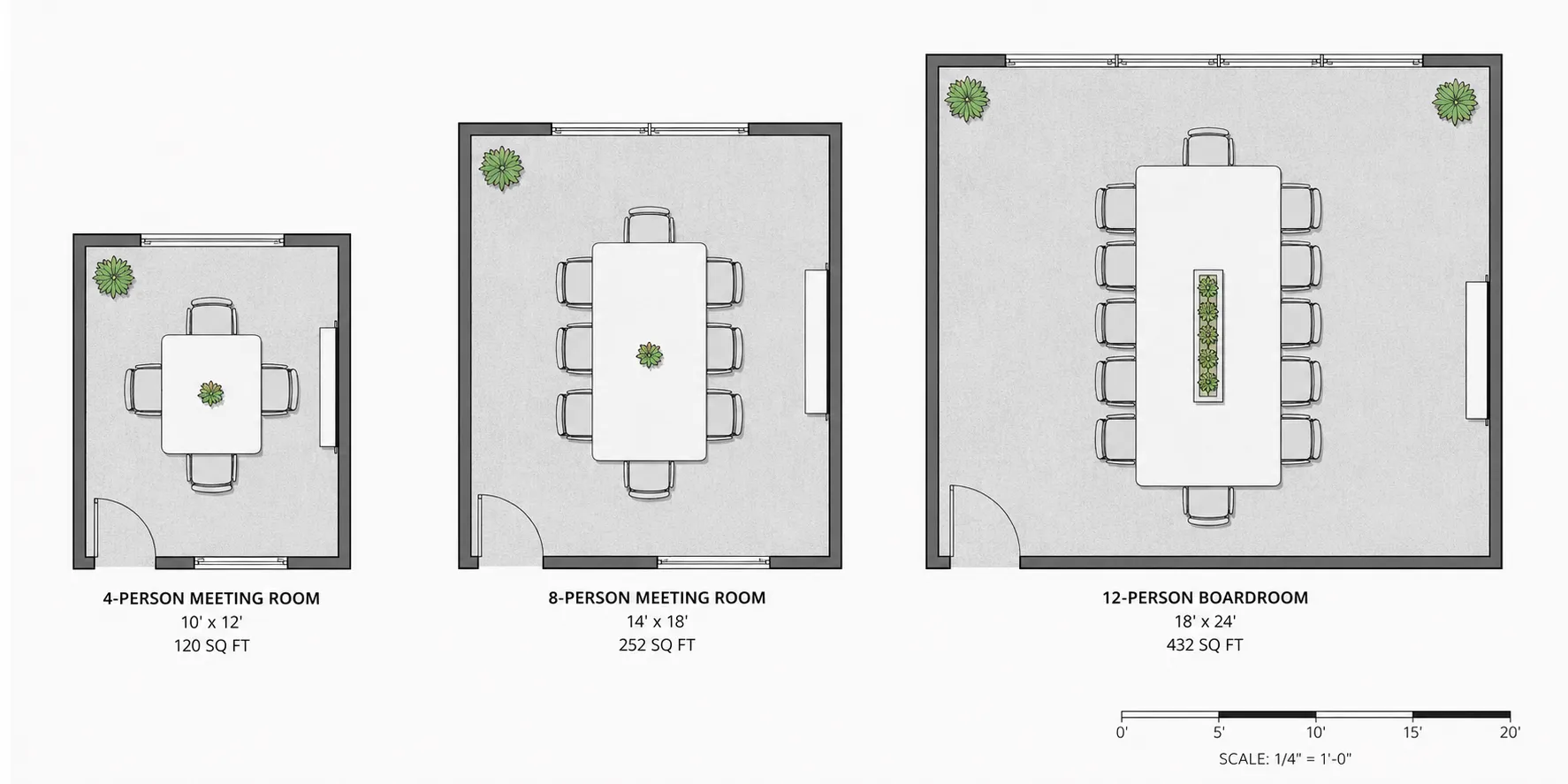

Add meeting room partitions and furnish them. Standard meeting room sizes: 4-person room — approximately 10 x 12 feet; 8-person room — approximately 14 x 18 feet; 12-person boardroom — approximately 18 x 24 feet. Verify that chairs can be pushed back from the table and that the entry door doesn't conflict with chair positions.

Place the kitchen, lounge, and social areas. Verify these don't create noise conflicts with adjacent focus desks.

Step 6 — Review in 3D and Share for Feedback

Switch to the 3D view and walk the floor plan virtually. Evaluate: does the focus zone feel focused? Does the collaboration zone feel energetic and open? Do the circulation paths feel wide enough? Is natural light reaching the workstations that need it most?

Export the floor plan and share with relevant stakeholders — leadership, facilities, team leads — for feedback before finalizing. The shareable link in Coohom allows anyone to view the interactive floor plan without creating an account.

Frequently Asked Questions

How much space do I need per person in an office? Standard planning ranges: 100 to 150 square feet per person for dense open-plan offices; 150 to 250 square feet per person for standard offices with meeting rooms; 250 to 400 square feet per person for offices with significant private office or collaborative space allocation. These figures include common areas, not just desk footprints.

Can I use a free tool for a professional office layout presentation? Yes. Coohom's export quality is suitable for internal presentations, landlord discussions, and contractor briefings. For formal architectural drawings required for planning permission or major construction projects, professional architectural drawings remain necessary.

How do I plan for hybrid work? Hybrid work reduces the number of desks needed relative to headcount but increases the variety of workspace types needed. Plan for 0.6 to 0.8 desks per person, and allocate the desk count reduction toward more meeting rooms, phone booths, and focus pods to support the types of work people come into the office specifically to do.

What's the best desk arrangement for a small team of 10 to 20 people? A cluster arrangement — groups of 4 to 6 desks facing each other or arranged in an L-shape — works well for small teams. It maintains informal communication within the cluster while keeping separation between clusters. Avoid a single long row of desks facing a wall, which creates isolation and makes it difficult for the team to communicate without standing up.

Plan the Office Before You Furnish It

An office layout that works is one that was designed before it was built, not discovered after the furniture arrived. The floor plan is where you test whether the headcount fits, whether the zones work in relation to each other, and whether the circulation paths support the way people will actually move through the space.

The tool is free. The time investment is under two hours for a standard single-floor office. The cost of getting the layout wrong and reconfiguring after the fact is significant in both money and disruption.

Design your office layout for free — draw your floor plate, zone the space, place every desk and meeting room, and review in 3D before a single piece of furniture moves.
