French Drain vs Surface Drain Which Exterior Drainage System Works Best: Understand the real differences between French drains and surface drains so you can choose the right drainage solution for your yard and foundation.

Direct Answer

A French drain works best for subsurface water problems such as soggy soil or hydrostatic pressure near foundations, while a surface drain is designed to quickly remove visible standing water after rainfall. The best exterior drainage system depends on whether the water problem occurs above the ground or below it.

Quick Takeaways

1. French drains redirect underground water using gravel and perforated pipes.
2. Surface drains collect and move water from patios, driveways, and lawns.
3. Foundation moisture issues are usually better solved with French drains.
4. Heavy rainfall runoff on flat yards often requires surface drains.
5. Many properties perform best using both systems together.

Introduction

In more than a decade of residential design work, I’ve seen exterior water problems ruin beautiful landscapes, crack patios, and even damage foundations. When homeowners search for a French drain vs surface drain comparison, they’re usually dealing with one frustrating issue: water that refuses to go where it should.

Sometimes the yard turns into a swamp after every storm. Other times the problem is more subtle—soil stays wet for days, basement walls feel damp, or landscaping slowly erodes.

The tricky part is that French drains and surface drains solve very different problems, yet they’re often recommended interchangeably online. In practice, choosing the wrong system can mean spending thousands of dollars without actually fixing the water issue.

When planning drainage around outdoor layouts, I often sketch water flow patterns using tools similar to those used for mapping outdoor drainage routes with a detailed property layout planner. Seeing where water travels across the site is usually the moment when the right drainage solution becomes obvious.

In this guide, I’ll break down how each system works, where each one excels, and the hidden installation mistakes most homeowners don’t discover until it's too late.

save pin

What Is a French Drain and How It Works

Key Insight: A French drain solves underground water buildup by redirecting water through a gravel trench and perforated pipe.

A French drain is essentially an underground drainage channel. It captures groundwater before it accumulates near structures or landscaping and carries it safely away from the property.

Despite the name, it isn’t really “French.” The system was popularized by Henry French, a 19th‑century American agricultural engineer who described the method in his drainage studies.

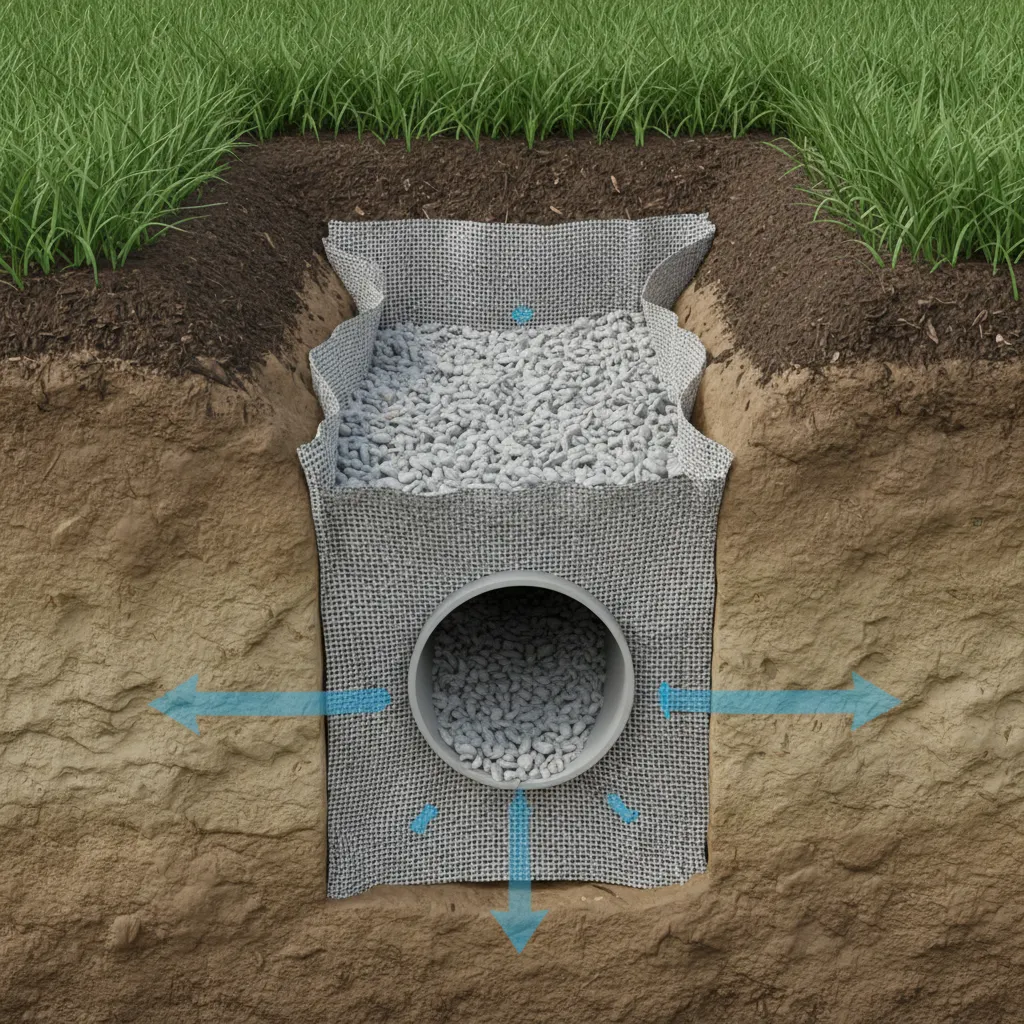

Typical French drain components:

1. Perforated drainage pipe
2. Gravel or crushed stone trench
3. Landscape fabric to prevent soil clogging
4. Outlet location or drainage basin

How the system works:

1. Groundwater seeps into the gravel trench.
2. The perforated pipe collects the water.
3. Gravity moves the water away from the house.
4. Water exits through a safe discharge point.

According to the U.S. Department of Housing and Urban Development, improper site drainage is one of the most common contributors to foundation moisture problems. French drains directly address that issue because they intercept water before it reaches the structure.

What Is a Surface Drain System

Key Insight: Surface drains are designed to collect and remove visible water sitting on the ground.

If water pools on patios, driveways, or lawns after storms, the problem usually exists above the soil rather than within it. Surface drains handle this type of runoff.

Unlike French drains, these systems capture water through grates or channels located directly at ground level.

Common types of surface drains:

1. Catch basin drains
2. Channel drains
3. Trench drains
4. Yard drain inlets

Where they are typically installed:

1. Driveways
2. Patios
3. Pool decks
4. Low points in lawns

Landscape contractors often combine these drains with underground pipes that carry water to the street, a dry well, or a stormwater outlet.

save pin

Key Differences Between French Drains and Surface Drains

Key Insight: The main difference between a French drain and a surface drain is where they intercept water—below ground versus at ground level.

Many homeowners assume both systems do the same thing, but their design purpose is fundamentally different.

Primary differences:

1. Water source: French drains handle groundwater; surface drains handle runoff.
2. Installation depth: French drains are buried; surface drains sit at ground level.
3. Visibility: French drains are hidden; surface drains use visible grates.
4. Best use case: French drains protect foundations; surface drains manage rainfall flow.

One mistake I often see is installing a surface drain where groundwater pressure is the real issue. The grate collects water on the surface, but the soil underneath remains saturated, so the foundation problems continue.

Planning the right solution usually starts by mapping slopes and runoff paths. Many landscape designers now visualize this using tools similar to creating a quick terrain layout to simulate how water flows across a property, which makes drainage planning far more predictable.

Best Situations for Each Drainage Solution

Key Insight: The correct system depends entirely on the type of water problem affecting your yard.

French drains work best when:

1. Basement walls feel damp
2. Soil remains wet for days
3. Water collects near the foundation
4. Yards have clay-heavy soil

Surface drains work best when:

1. Water pools on patios or driveways
2. Rainwater flows downhill toward the house
3. Low spots form puddles in the lawn
4. Stormwater needs quick removal

A common hybrid setup includes:

1. French drain along foundation walls
2. Catch basins in yard low points
3. Channel drains across driveways

In many real-world projects, combining systems produces the most reliable drainage performance.

save pin

Installation Complexity and Cost Comparison

Key Insight: French drains are usually more labor‑intensive and expensive to install than surface drains.

Costs vary widely depending on soil type, yard slope, and accessibility, but installation complexity plays a major role.

Typical comparison:

1. French drain installation: trench excavation, gravel layers, pipe installation, and fabric wrapping.
2. Surface drain installation: shallow trenching and drain inlet placement.

Hidden cost factors homeowners often miss:

1. Improper pipe slope
2. Clogging from missing filter fabric
3. Poor discharge location
4. Insufficient trench depth

These mistakes are why drainage failures often occur even when the “right” system is installed.

Answer Box

The choice between a French drain and a surface drain depends on water location. Underground moisture problems require French drains, while visible runoff requires surface drains. Many homes benefit from using both systems together.

How to Choose the Right Exterior Drainage System

Key Insight: The best exterior drainage system starts with identifying the source of the water, not the symptom.

Before choosing a solution, walk your property during or immediately after a heavy rain. Watch how water moves.

Quick evaluation checklist:

1. Where does water first appear?
2. Does the soil remain wet days later?
3. Are puddles forming on hard surfaces?
4. Is water flowing toward the foundation?

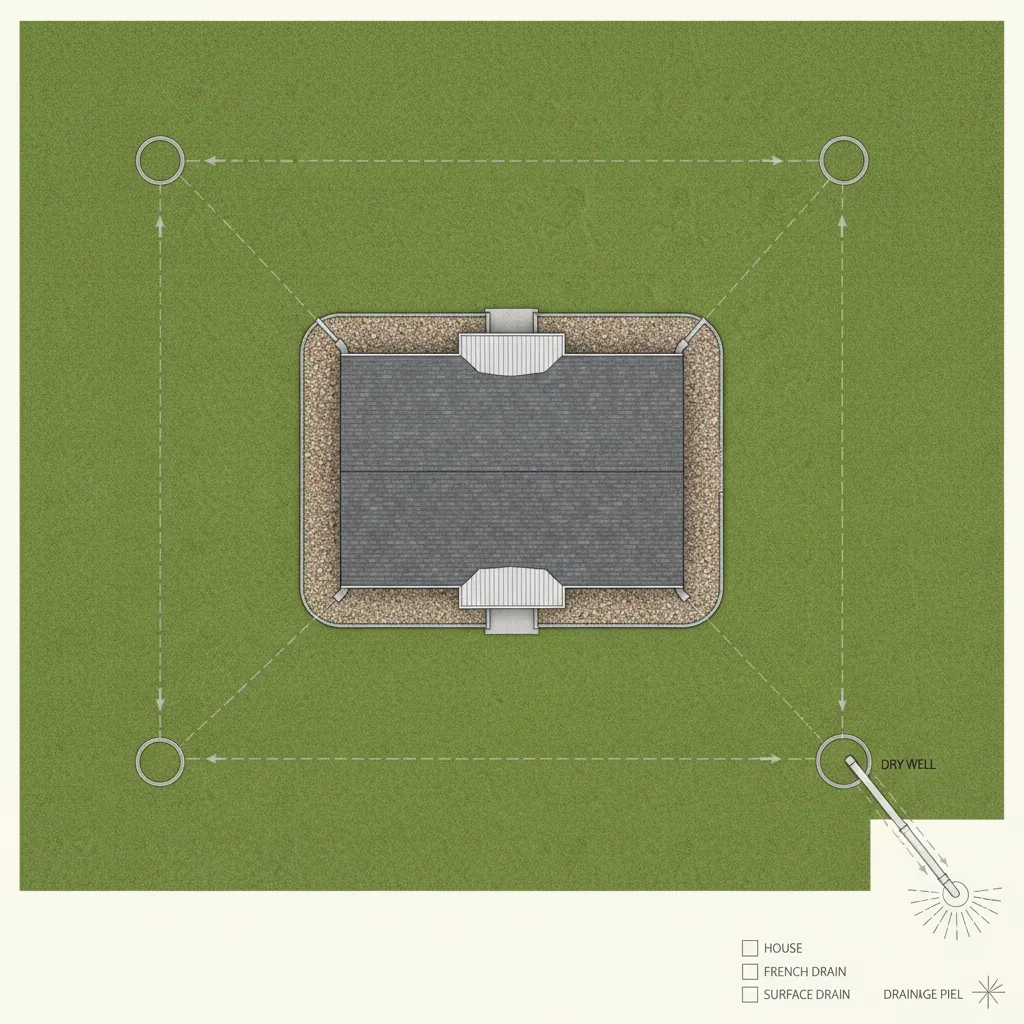

When designing drainage around patios or outdoor structures, I usually map grading and outlet points using tools similar to sketching an outdoor drainage layout before starting construction. Even a simple plan dramatically reduces installation mistakes.

The most effective properties almost always combine grading, gutters, surface drains, and subsurface drains into one coordinated system.

Final Summary

1. French drains manage underground water pressure around structures.
2. Surface drains remove visible rainwater from hard surfaces.
3. The source of water determines the correct drainage system.
4. Combining both systems often produces the best results.
5. Planning drainage before installation prevents costly failures.

FAQ

What is the main difference between a French drain and a surface drain?

A French drain handles underground water through gravel and perforated pipes, while a surface drain captures water from the ground surface through grates or channels.

Which drainage system is better for foundation protection?

French drains are generally better for foundation protection because they redirect groundwater before it builds pressure against basement walls.

Can a yard need both a French drain and a surface drain?

Yes. Many properties require both systems. Surface drains remove rainfall runoff, while French drains manage groundwater saturation.

How deep is a typical French drain?

Most residential French drains are installed 18 to 24 inches deep, though foundation drains may be deeper depending on footing depth.

Are surface drains cheaper to install?

Usually yes. Surface drains require shallower excavation and fewer materials, making them faster and less expensive to install.

Do French drains clog easily?

They can clog if installed without landscape fabric or if soil enters the gravel trench. Proper installation greatly reduces this risk.

What is the best exterior drainage system for a yard with standing water?

The best exterior drainage system depends on the source. Standing surface water usually requires surface drains, while persistent wet soil often needs a French drain.

How do I know which drainage system my property needs?

Observe where water collects after rain. Surface puddles suggest surface drains, while slow‑draining soil or basement moisture suggests French drains.

References

U.S. Department of Housing and Urban Development – Residential Site Drainage Guidelines

American Society of Landscape Architects – Stormwater Management Principles
