Gooseneck Roof Vent vs Box Vent vs Ridge Vent Comparison Guide: Understand how different roof vents affect airflow efficiency, installation cost, and the best use cases for each roofing system

Direct Answer

A gooseneck roof vent is best for targeted exhaust like bathrooms or kitchens, a box vent provides simple passive attic ventilation, and a ridge vent delivers the most balanced whole‑roof airflow when paired with soffit vents. The right choice depends on airflow goals, roof design, and installation complexity.

In most modern homes, ridge vents provide the most consistent ventilation, while gooseneck vents are ideal for mechanical exhaust systems.

Quick Takeaways

1. Gooseneck vents are designed for directed exhaust such as bathrooms, dryers, or kitchen vents.
2. Box vents are passive attic vents that rely on natural convection rather than mechanical airflow.
3. Ridge vents provide continuous ventilation along the roof peak and often outperform spot vents.
4. Installation cost and roof design heavily influence which vent type works best.
5. Combining ridge vents with soffit intake creates the most balanced roof ventilation system.

Introduction

After working on residential renovations and ventilation planning for more than a decade, I’ve noticed that homeowners often compare roof vents without realizing they serve completely different purposes. The debate around gooseneck roof vent vs box vent vs ridge vent usually starts when someone is trying to solve moisture buildup, attic heat, or bathroom exhaust problems.

The issue is that many articles treat these vents as interchangeable. They aren’t. I’ve seen projects where a homeowner installed multiple box vents hoping to fix a bathroom humidity problem—when the real solution was a single properly sized gooseneck exhaust vent.

Before choosing a vent type, I often recommend mapping airflow paths visually. Even a simple digital layout like this interactive roof and attic layout planning approachcan reveal where airflow actually enters and exits a home.

In this guide, I’ll break down how gooseneck vents, box vents, and ridge vents differ in airflow performance, installation complexity, and real‑world applications.

save pin

What Is a Gooseneck Roof Vent

Key Insight: A gooseneck roof vent is a mechanical exhaust outlet designed to direct air from specific appliances or rooms out through the roof.

Unlike passive attic vents, gooseneck vents are usually connected to ductwork from a bathroom fan, kitchen hood, or dryer. The curved "gooseneck" shape prevents rain from entering while allowing air to exit efficiently.

In practice, I almost always specify this vent when the goal is controlled exhaust rather than passive ventilation.

Common uses for gooseneck vents:

1. Bathroom exhaust fans
2. Kitchen range hoods
3. Dryer vent outlets
4. Radon mitigation systems
5. Commercial kitchen exhaust

Advantages:

1. Directed airflow through duct systems
2. Excellent moisture removal
3. Weather‑resistant hood design

Limitations:

1. Not suitable for whole‑attic ventilation
2. Requires duct routing
3. Incorrect sizing reduces airflow efficiency

According to guidance from the U.S. Department of Energy and multiple roofing manufacturers, mechanical exhaust vents should always discharge directly outdoors rather than into attic spaces—something gooseneck vents handle well.

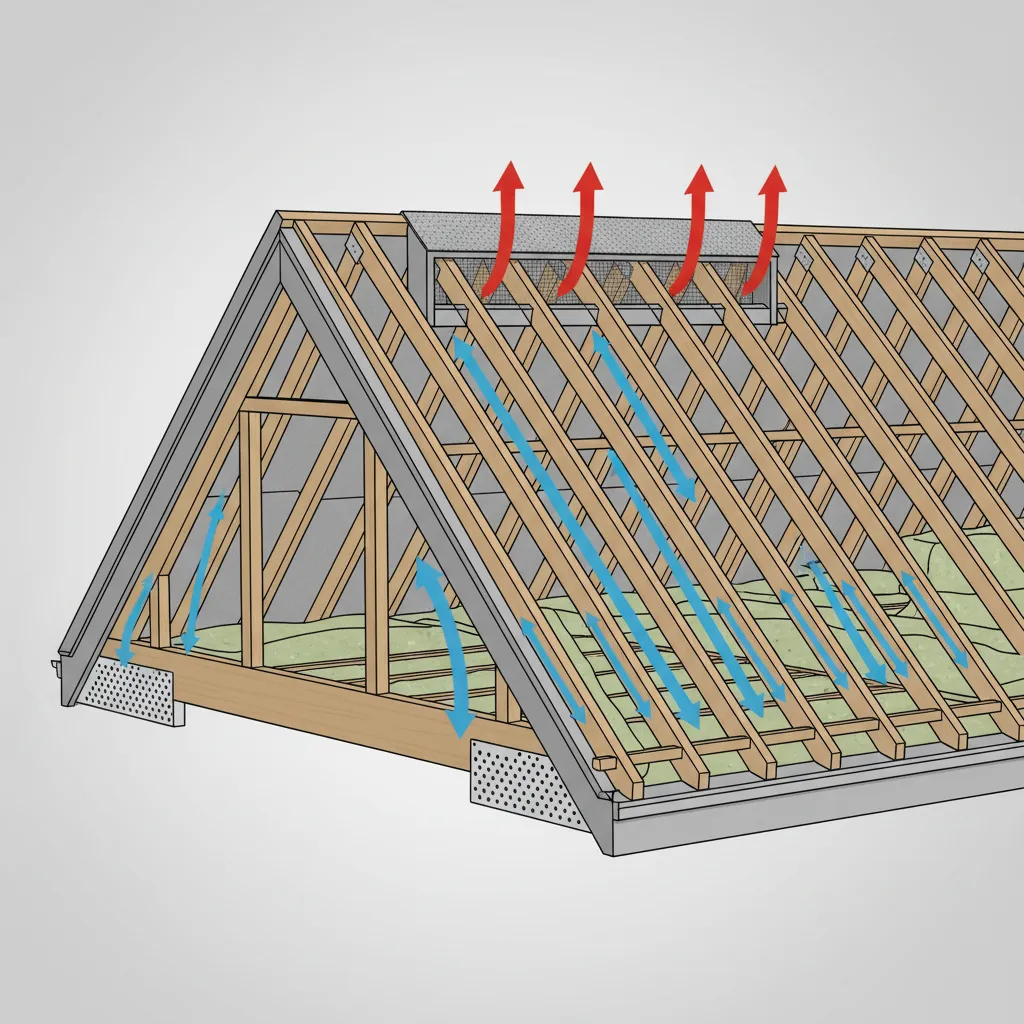

How Box Vents and Ridge Vents Work

Key Insight: Box vents and ridge vents rely on passive airflow created by temperature differences inside the attic.

Both vent types operate on convection. Warm air rises inside the attic and escapes through roof vents while cooler air enters through soffit vents.

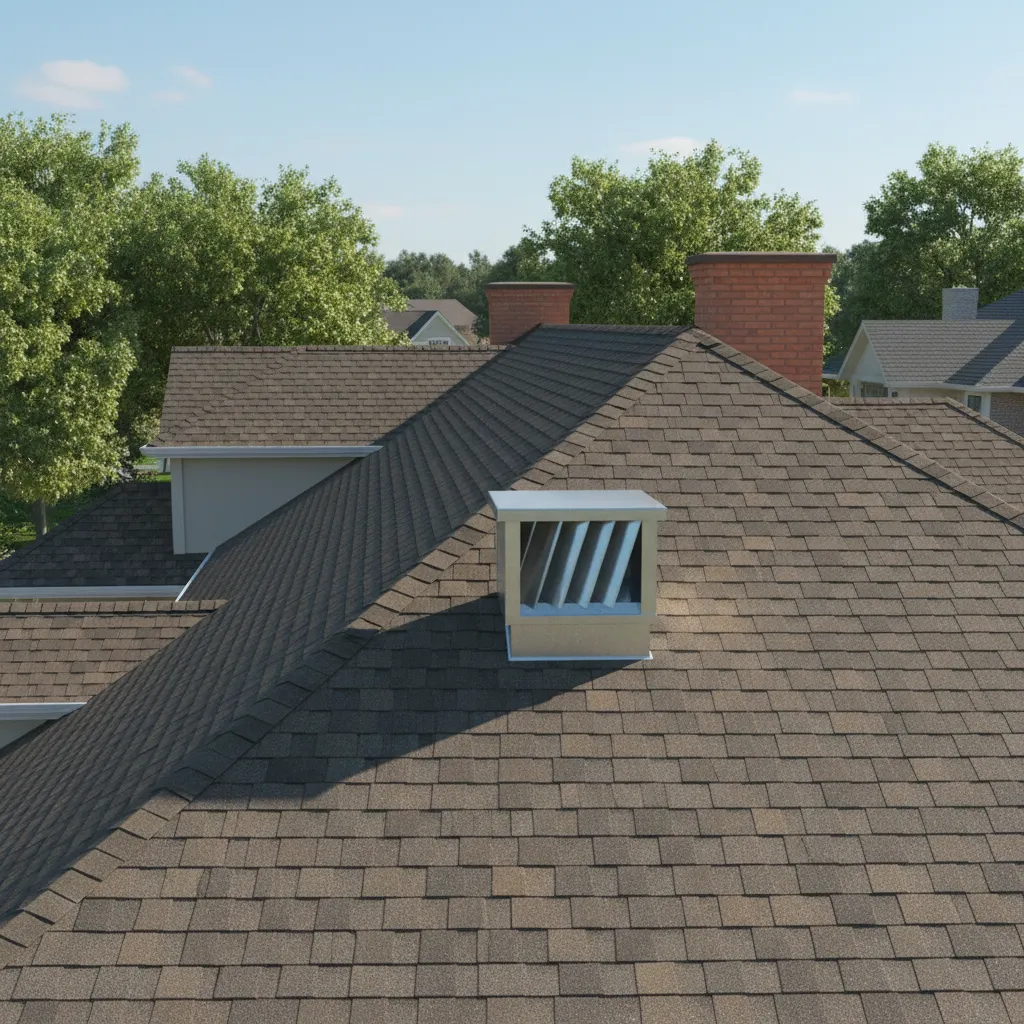

Box Vent (Static Vent)

1. Installed as individual units across the roof
2. Creates small exhaust points
3. Typically requires multiple vents per attic

Ridge Vent

1. Installed continuously along the roof ridge
2. Allows hot air to escape evenly along the peak
3. Works best with continuous soffit ventilation

Key difference:

1. Box vents create several small exit points
2. Ridge vents create one continuous exhaust channel

Most modern roofing contractors now favor ridge vents because they distribute ventilation evenly across the roof structure.

save pin

Airflow Efficiency Comparison Between Vent Types

Key Insight: Ridge vents typically provide the most balanced attic airflow, while gooseneck vents excel in targeted exhaust performance.

Airflow efficiency depends on whether the goal is attic ventilation or mechanical exhaust.

Typical airflow comparison:

1. Gooseneck vent: high airflow when connected to powered fans
2. Box vent: moderate passive ventilation
3. Ridge vent: continuous natural airflow across the entire attic

Hidden mistake I see often:

Homeowners install several box vents expecting them to remove bathroom humidity. Passive vents cannot replace mechanical exhaust.

To truly understand airflow movement through a home structure, many designers map ventilation paths the same way they plan interior spaces using tools like this visual room layout planning workflow.

Once airflow paths are clear, it becomes obvious which vent type belongs where.

Installation Complexity and Cost Differences

Key Insight: Ridge vents usually require the most roof modification, while box vents are the simplest to install.

Installation difficulty often drives the final decision more than airflow performance.

Typical installation comparison:

1. Gooseneck vent: requires duct routing and roof penetration
2. Box vent: quick roof cut and flashing installation
3. Ridge vent: requires cutting a continuous ridge slot

Cost considerations:

1. Gooseneck vents are inexpensive but require duct installation.
2. Box vents are low cost but require several units.
3. Ridge vents cost more initially but replace multiple static vents.

Roofing contractors often recommend installing ridge vents during a full roof replacement because the ridge cut is easiest during that process.

Best Applications for Each Roof Vent Type

Key Insight: The best roof vent depends entirely on the ventilation problem you’re solving.

Best use cases:

1. Gooseneck roof vent
2. Bathroom exhaust, kitchen hood ducts, dryer venting, radon mitigation systems.
3. Box vent
4. Small attic ventilation projects or homes without ridge vent capability.
5. Ridge vent
6. Whole‑attic ventilation in modern roofing systems.

When designing residential layouts, I often visualize airflow paths the same way interior designers visualize circulation and furniture placement, using detailed spatial renders like this realistic home visualization workflow.

Seeing the structure in 3D often reveals ventilation problems long before construction begins.

save pin

How to Choose the Right Vent for Your Roof System

Key Insight: The correct roof vent depends on airflow purpose, roof design, and whether ventilation is passive or mechanical.

When evaluating a roofing system, I usually walk through three simple questions.

Step 1: Identify the airflow goal

1. Attic cooling → ridge vent
2. Targeted exhaust → gooseneck vent
3. Basic attic ventilation → box vents

Step 2: Evaluate roof design

1. Long ridge lines favor ridge vents
2. Complex roofs sometimes rely on box vents

Step 3: Consider intake ventilation

1. Soffit vents must supply fresh air
2. Without intake vents, any exhaust system performs poorly

Roof ventilation works as a system, not a single component.

save pin

Answer Box

Gooseneck vents are best for mechanical exhaust systems like bathrooms and kitchens. Box vents provide basic passive attic ventilation. Ridge vents deliver the most balanced whole‑roof airflow when paired with soffit vents.

Final Summary

1. Gooseneck vents handle targeted exhaust through duct systems.
2. Box vents provide simple passive attic ventilation.
3. Ridge vents deliver the most balanced airflow across the roof.
4. The best roof vent depends on ventilation purpose.
5. Roof ventilation systems must include both intake and exhaust.

FAQ

1. What is the difference between a gooseneck roof vent and a box vent?

A gooseneck vent connects to ductwork for mechanical exhaust, while a box vent passively ventilates the attic using natural airflow.

2. Is a ridge vent better than a box vent?

In most cases yes. Ridge vents provide continuous airflow along the roof peak, making attic ventilation more consistent.

3. Can a gooseneck roof vent ventilate an attic?

No. A gooseneck roof vent is designed for ducted exhaust systems rather than passive attic ventilation.

4. What is the best roof vent for bathroom exhaust?

A properly sized gooseneck roof vent is usually the best option for bathroom exhaust fans.

5. How many box vents does an attic need?

The number depends on attic square footage and ventilation requirements defined by building codes.

6. Do ridge vents leak?

Modern ridge vents rarely leak when installed correctly with proper ridge caps and flashing.

7. Which roof vent is best for hot climates?

Ridge vents paired with soffit vents typically provide the best passive cooling for hot climates.

8. Are gooseneck roof vents weatherproof?

Yes. Their curved hood design helps prevent rain and debris from entering the duct.
