Direct Answer

The best retail floor plan layout depends on how customers should move through your store and how many products you need to display. Grid layouts maximize product density, free‑flow layouts encourage browsing and discovery, and loop layouts guide shoppers along a curated path that increases product exposure.

Most successful stores choose a layout based on product variety, store size, and the type of shopping behavior they want to encourage.

Quick Takeaways

1. Grid layouts maximize shelf space and work best for high‑SKU retail categories.
2. Free‑flow layouts prioritize aesthetics and browsing behavior.
3. Loop layouts guide customers through the entire store using a controlled path.
4. The right layout balances traffic flow, visibility, and merchandising strategy.

Introduction

After designing dozens of retail spaces—from compact boutique shops to large multi‑department stores—I've learned that the retail floor plan layout you choose quietly shapes almost every customer behavior inside the store.

Customers rarely notice the layout itself. But they absolutely feel its effects: how easy it is to navigate, how many products they see, and whether the store feels organized or overwhelming.

The mistake I see most often is store owners choosing a layout based purely on aesthetics instead of customer movement. A beautiful store can still perform poorly if traffic flow is awkward or product visibility is limited.

Before committing to shelving, fixtures, and pathways, it's worth experimenting with layout scenarios using tools that help visualize different store layouts before construction. A few early layout changes can dramatically improve how customers move through the space.

In this guide, I'll break down the three most widely used retail floor plan layouts—Grid, Free‑Flow, and Loop—and explain where each one works best based on real design experience.

save pin

Overview of the Three Core Retail Layout Models

Key Insight: Almost every retail store layout is built on one of three foundational patterns: grid, free‑flow, or loop.

These layouts aren't just visual styles—they're traffic systems that influence browsing time, product exposure, and purchasing decisions.

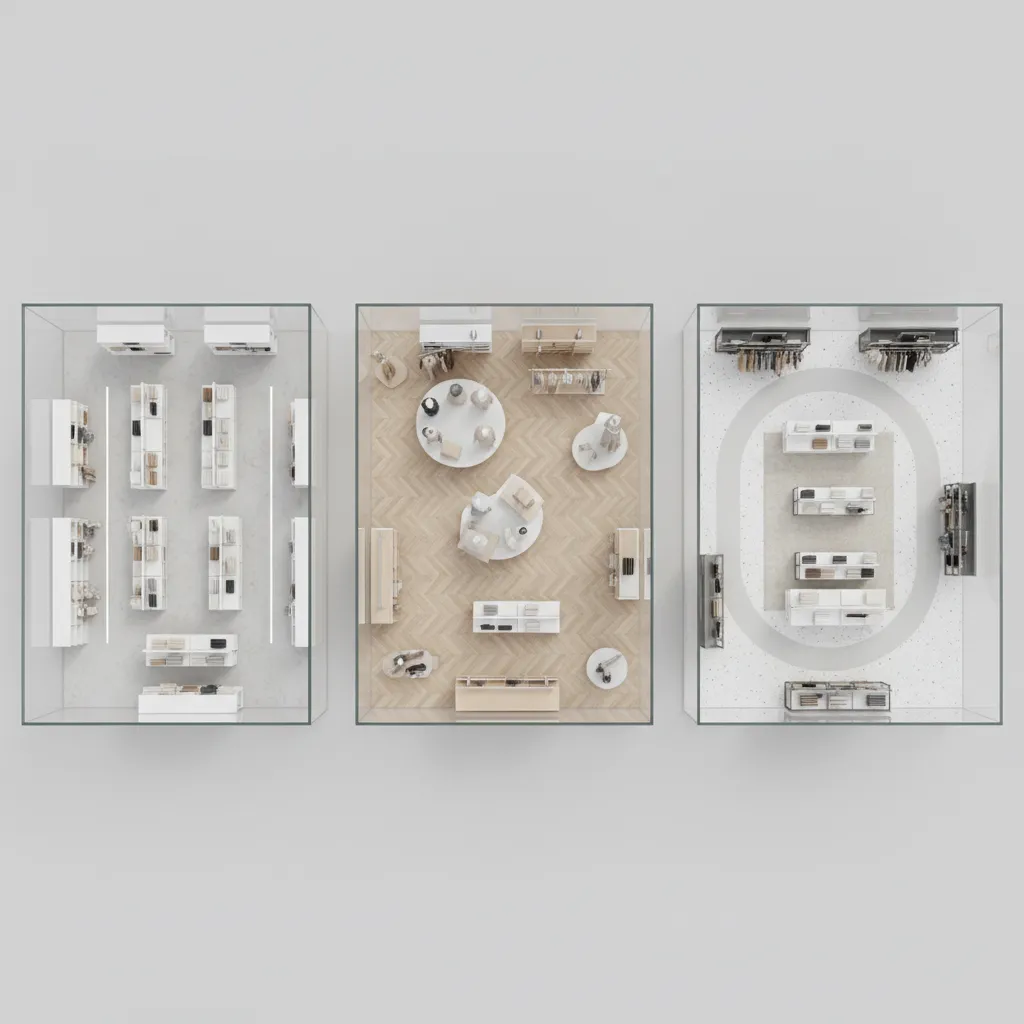

The Three Core Layout Types

1. Grid Layout – Straight aisles arranged in parallel rows.
2. Free‑Flow Layout – Open layout with organic movement paths.
3. Loop Layout – A guided path that leads customers around the store.

Typical Use Cases

1. Grid: supermarkets, pharmacies, convenience stores
2. Free‑Flow: fashion boutiques, lifestyle stores
3. Loop: furniture showrooms, IKEA‑style stores

Retail researchers and store planners consistently note that structured traffic patterns improve product exposure. The key difference between these models is how much freedom the shopper has while navigating the store.

Grid Layout: Structure, Benefits, and Limitations

Key Insight: Grid layouts maximize product density and operational efficiency but often sacrifice browsing experience.

The grid layout is the most common retail floor plan in the world. It organizes aisles in parallel rows, allowing retailers to display a large number of products in a predictable structure.

Major grocery chains and pharmacies rely on grid layouts because they support efficient inventory organization and make restocking easier.

Advantages of Grid Layouts

1. Maximum shelf space for high product volume
2. Easy navigation for repeat shoppers
3. Efficient inventory and stocking workflow
4. Works well for large SKU catalogs

Hidden Limitations Designers Often Ignore

1. Encourages “mission shopping” rather than discovery
2. Reduces visual excitement
3. Can make small stores feel crowded

When planning a grid layout, I typically model the aisle spacing early using a tool that helps test aisle widths and shelving placement in a 3D retail floor plan. Even small adjustments—like widening a main aisle—can significantly improve traffic flow.

save pin

Free‑Flow Layout: When Creative Navigation Works Best

Key Insight: Free‑flow layouts increase browsing time and brand experience but require careful zoning to avoid confusion.

Unlike grid systems, free‑flow layouts remove rigid aisles and allow customers to explore the space naturally.

This layout is extremely popular in fashion retail, where discovery and visual storytelling are more important than product density.

Common Design Elements in Free‑Flow Stores

1. Curated product islands
2. Wide walking paths
3. Visual focal points
4. Flexible display fixtures

A Common MistakeMany store owners assume free‑flow means "no structure." In reality, successful free‑flow layouts still rely on invisible guidance using lighting, display orientation, and focal displays.

Well‑designed boutiques subtly guide customers through the entire store without obvious aisles.

save pin

Loop Layout: Guiding Customer Movement Through the Store

Key Insight: Loop layouts maximize product exposure by guiding shoppers through a controlled circular path.

The loop layout—sometimes called a racetrack layout—creates a main pathway that circles the store and leads shoppers past key merchandise areas.

This layout is extremely effective when the goal is to expose customers to as many product categories as possible.

Why Large Retailers Use Loop Layouts

1. Encourages full‑store exploration
2. Improves product discovery
3. Supports storytelling through zones
4. Works well for large showrooms

Furniture stores, home improvement retailers, and large lifestyle brands frequently rely on loop layouts to stage immersive product environments.

Answer Box

The grid, free‑flow, and loop layouts each influence customer movement differently. Grid layouts optimize efficiency, free‑flow layouts encourage browsing, and loop layouts maximize product exposure across the store.

save pin

Which Layout Performs Best for Different Retail Categories

Key Insight: The most effective retail layout depends heavily on product category and shopping behavior.

Layout Performance by Retail Type

1. Grocery stores – Grid layout
2. Pharmacies – Grid layout
3. Fashion boutiques – Free‑flow layout
4. Furniture stores – Loop layout
5. Electronics stores – Hybrid layouts

In practice, many successful stores combine elements from multiple layouts. For example, a store might use a loop pathway while placing grid‑style shelving within departments.

How to Choose the Right Layout for Your Store Size and Goals

Key Insight: The right retail floor plan balances customer flow, product visibility, and operational efficiency.

When I evaluate layouts for clients, I usually look at three practical factors:

1. Store Size

1. Small stores benefit from free‑flow layouts.
2. Large stores benefit from grid or loop structures.

2. Product Volume

1. High SKU stores need structured shelving.
2. Curated brands need flexible displays.

3. Customer Journey

1. Quick shopping → grid
2. Browsing experience → free‑flow
3. Product storytelling → loop

If you're still unsure which model fits your store, one of the easiest ways to evaluate options is to experiment with AI‑assisted retail layout concepts before building. Seeing layouts visually often reveals traffic problems that are hard to notice on paper.

Final Summary

1. Grid layouts prioritize efficiency and product density.
2. Free‑flow layouts create an exploratory shopping experience.
3. Loop layouts guide customers through the entire store.
4. The best layout depends on product type and store size.
5. Hybrid layouts often outperform rigid single‑style designs.

FAQ

What is the most common retail floor plan layout?

The grid layout is the most widely used retail floor plan layout, especially in grocery stores and pharmacies.

Which store layout increases sales the most?

Loop layouts often increase product exposure, which can lead to higher impulse purchases.

Is a free‑flow layout good for small stores?

Yes. Free‑flow layouts can make small retail spaces feel larger and more inviting.

What industries use loop store layouts?

Furniture retailers, home improvement stores, and large lifestyle brands frequently use loop layouts.

What is the difference between grid and free flow retail layout?

A grid layout uses structured aisles, while a free‑flow retail layout removes rigid paths and encourages natural browsing.

Can stores combine multiple layout types?

Yes. Many retailers use hybrid layouts combining grid shelving with loop traffic patterns.

How wide should retail aisles be?

Most retail aisles range from 4–6 feet wide to allow comfortable customer movement.

How do designers test retail floor plan layouts before building?

Designers typically use 3D planning tools or layout simulations to evaluate traffic flow and product visibility.
