Gross Floor Area vs Net Floor Area: Key Differences When Calculating From Plans: Understand how architects distinguish GFA and NFA on drawings—and avoid costly measurement mistakes when reading floor plans.

Direct Answer

Gross Floor Area (GFA) measures the total floor area within the exterior walls of a building, including circulation spaces, structural elements, and service areas. Net Floor Area (NFA) measures only the usable interior space where activities actually occur, excluding walls, shafts, corridors, and mechanical areas. When calculating from architectural plans, GFA reflects the building's full envelope, while NFA focuses strictly on occupiable functional space.

Quick Takeaways

1. Gross Floor Area includes walls, corridors, and service spaces inside exterior walls.
2. Net Floor Area counts only usable rooms and activity spaces.
3. GFA is commonly used for zoning and building regulations.
4. NFA is used to evaluate usable or rentable interior space.
5. Misreading plan layers often causes incorrect GFA or NFA calculations.

Introduction

In almost every architectural project I’ve worked on—from compact apartment renovations to large commercial buildings—the same question eventually comes up: Are we talking about gross floor area or net floor area?

The difference between Gross Floor Area vs Net Floor Area sounds simple on paper, but when you start measuring directly from drawings, the distinction can dramatically change your numbers. I’ve seen developers miscalculate budgets, landlords misrepresent rentable space, and even junior architects accidentally double‑count corridors because they didn’t fully understand which metric they were using.

If you're interpreting architectural plans yourself, having the right measurement method matters. A reliable way to experiment with plan measurements is using a practical workflow for measuring floor areas from digital plans, which makes it easier to visualize how different definitions change your totals.

In this guide, I’ll break down how architects actually interpret GFA and NFA from plans, what spaces count in each method, and the subtle mistakes that often show up in real-world projects.

save pin

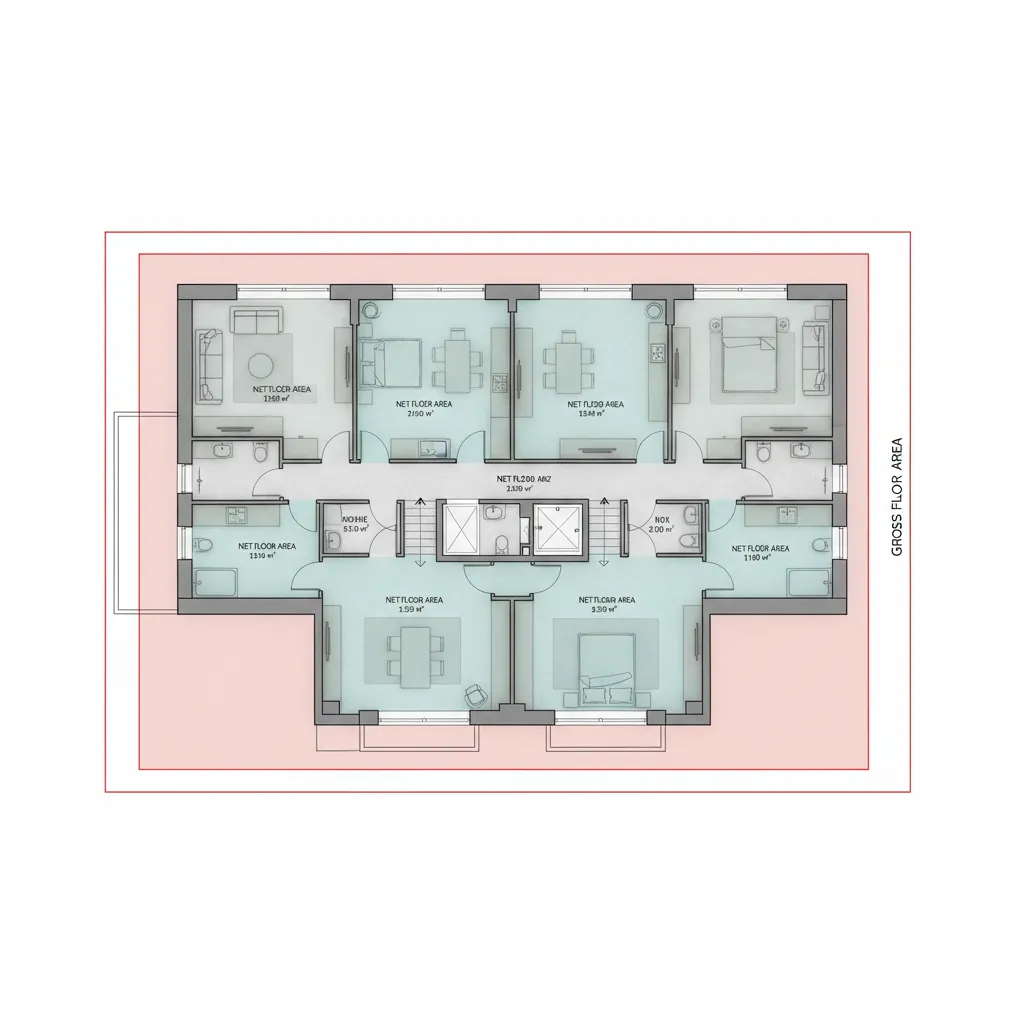

What Gross Floor Area and Net Floor Area Mean

Key Insight: Gross Floor Area measures the entire building footprint within exterior walls, while Net Floor Area isolates only functional, occupiable spaces.

Architecturally, the distinction exists because different stakeholders need different numbers.

City planners care about how much total building mass sits on a site. Tenants care about how much usable room they actually get. Those two perspectives create GFA and NFA.

Typical definition comparison:

1. Gross Floor Area (GFA): total area measured to the exterior wall surfaces of each floor.
2. Net Floor Area (NFA): usable area inside rooms where people can occupy or perform activities.

Spaces typically counted in GFA but not NFA:

1. Corridors and circulation zones
2. Structural walls and columns
3. Elevator shafts
4. Mechanical and electrical rooms
5. Stairwells

The American Institute of Architects and BOMA standards both recognize this separation between gross structural area and usable functional area.

How Each Measurement Is Calculated From Plans

Key Insight: The main difference when measuring from drawings is whether your boundary line follows exterior walls (GFA) or interior usable rooms (NFA).

When reviewing floor plans professionally, I usually calculate both metrics during early feasibility studies.

Typical workflow used in architectural practice:

1. Identify the plan scale and confirm drawing accuracy.
2. Trace the exterior building perimeter for GFA.
3. Trace only usable interior spaces for NFA.
4. Subtract circulation, shafts, and structural zones for NFA.

Modern digital plans make this easier. Tools that allow visualizing floor areas directly inside a 3D floor planning environmenthelp confirm that measurement boundaries align with walls and structural elements.

save pin

Measurement boundary comparison:

1. GFA boundary: exterior wall face
2. NFA boundary: interior finished surfaces of usable rooms

This difference may only look like a few inches of wall thickness per room—but across an entire building, that difference becomes substantial.

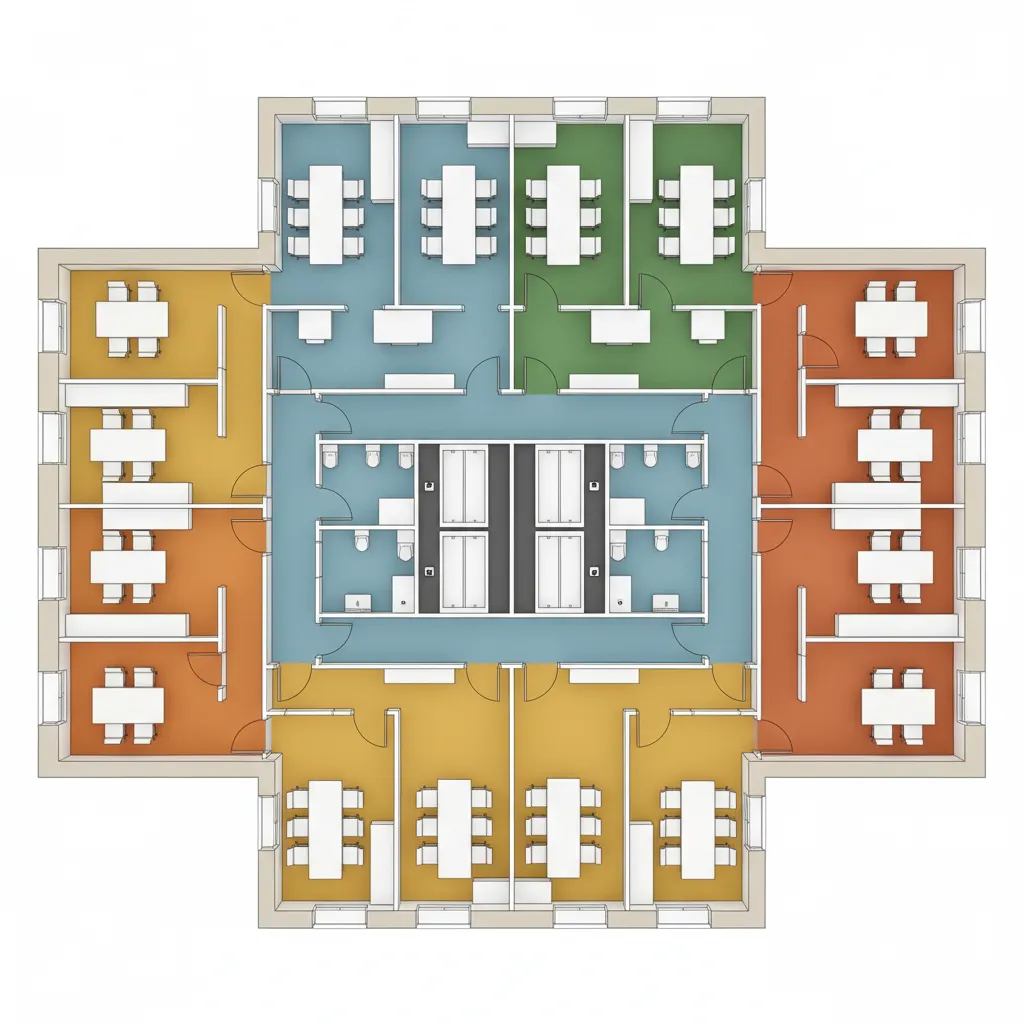

Spaces Included and Excluded in Each Method

Key Insight: The majority of confusion around GFA vs NFA comes from ambiguous spaces like lobbies, corridors, and mechanical zones.

In practice, these borderline spaces are where people make mistakes.

Common inclusion rules:

1. Included in GFA: lobbies, staircases, corridors, storage rooms, service rooms.
2. Excluded from NFA: walls, vertical shafts, common circulation, mechanical spaces.
3. Included in NFA: offices, living rooms, bedrooms, classrooms, retail areas.

For example, in a recent office project I worked on, the gross floor area was about 22% larger than the net floor area simply due to circulation space and core shafts.

That ratio—typically 15–30% depending on building type—is common across commercial developments.

save pin

When Professionals Use GFA vs NFA

Key Insight: GFA is used for regulatory and planning purposes, while NFA is used to evaluate usable building efficiency.

Each metric serves a different professional audience.

Common real‑world uses:

1. GFA is used for:Zoning compliance
2. Floor area ratio calculations
3. Construction cost estimation
4. Permit submissions
5. NFA is used for:Rentable office space
6. Apartment usability
7. Interior space planning
8. Workplace density analysis

In office design, we often analyze the ratio between GFA and NFA to evaluate efficiency. A well-designed building typically achieves a higher usable percentage.

If you're planning layouts yourself, experimenting with a visual room layout planner for testing usable space arrangements can help illustrate how much area actually becomes functional interior space.

Answer Box

Gross Floor Area includes the entire building footprint inside exterior walls, while Net Floor Area includes only usable interior rooms. When measuring from plans, GFA follows exterior walls, while NFA excludes circulation, structure, and mechanical spaces.

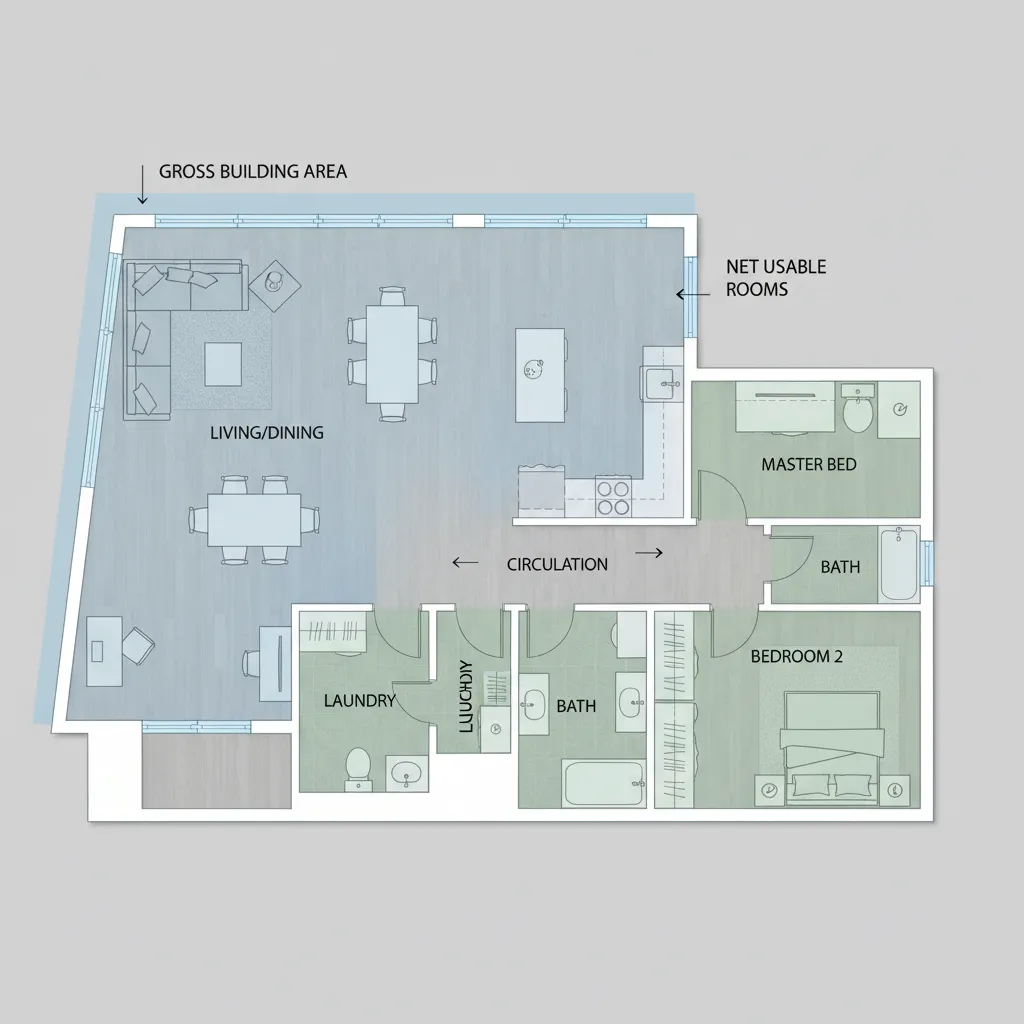

Common Misinterpretations in Floor Plan Measurements

Key Insight: The most frequent mistakes come from measuring the wrong boundary line or misunderstanding which spaces qualify as usable.

After reviewing hundreds of plans over the years, a few recurring errors appear again and again.

Typical measurement mistakes:

1. Measuring GFA to interior walls instead of exterior walls.
2. Counting corridors and staircases as net usable space.
3. Ignoring wall thickness when scaling drawings.
4. Double counting mezzanines or open atriums.

One hidden issue many people overlook: architectural drawings sometimes label areas using project-specific definitions rather than strict industry standards. Always check the drawing notes or legend.

save pin

Quick Checklist for Identifying the Correct Metric

Key Insight: Determining whether a drawing references GFA or NFA usually comes down to checking boundary lines and area labels.

Use this quick checklist when reading plans:

1. Does the measurement extend to the exterior wall face? → Likely GFA.
2. Are corridors and staircases excluded? → Likely NFA.
3. Does the drawing mention "usable" or "rentable" area? → Often NFA.
4. Is the measurement used for zoning or FAR? → Usually GFA.

Once you learn to identify these cues, interpreting floor plans becomes significantly easier.

Final Summary

1. Gross Floor Area measures the entire building inside exterior walls.
2. Net Floor Area counts only usable, occupiable interior spaces.
3. GFA supports zoning and construction calculations.
4. NFA evaluates real functional space inside buildings.
5. Misreading plan boundaries causes most measurement errors.

FAQ

1. What is the main difference between gross floor area and net floor area?

Gross Floor Area includes all space within exterior walls, while Net Floor Area includes only usable interior rooms where activities occur.

2. Is gross floor area always larger than net floor area?

Yes. GFA includes walls, corridors, shafts, and mechanical rooms, so it will always exceed the usable NFA measurement.

3. How do you identify gross floor area on drawings?

Look for measurements taken to the exterior wall face. This boundary typically defines gross floor area on architectural plans.

4. Does net floor area include hallways?

Usually no. Hallways and circulation areas are excluded because they are not considered functional occupiable spaces.

5. Why do architects use both GFA and NFA?

GFA is needed for planning regulations and building mass calculations, while NFA evaluates usable space efficiency.

6. Can net floor area be calculated directly from a floor plan?

Yes. By tracing usable rooms and excluding circulation, structure, and service spaces, NFA can be calculated from floor plans.

7. What spaces count in gross floor area?

Typical spaces include corridors, lobbies, stairwells, mechanical rooms, storage rooms, and structural areas.

8. Is net floor area the same as usable floor area?

In many projects the terms are similar, but definitions can vary slightly depending on building standards or local regulations.
