Hidden and Recessed Cabinet Lighting Techniques for Modern Kitchens: Design strategies professionals use to create seamless, invisible LED lighting inside and under modern kitchen cabinetry.

Direct Answer

Hidden and recessed cabinet lighting uses LED strips installed inside aluminum channels, behind cabinet lips, or within routed grooves so the light source itself is invisible. The result is a soft, floating glow that highlights cabinetry without exposing bulbs or strips. Designers rely on recessed channels, diffusers, and careful placement to achieve clean, modern lighting that feels built into the architecture rather than added afterward.

Quick Takeaways

1. Hidden cabinet lighting works best when the light source is completely invisible from normal viewing angles.
2. Recessed LED channels create cleaner lines and prevent harsh LED dots.
3. Lighting placement matters more than brightness when designing subtle cabinet accents.
4. Diffusers and aluminum profiles dramatically improve light quality.
5. Professional planning avoids shadows, glare, and uneven illumination.

Introduction

Hidden cabinet lighting has become one of the defining details of modern kitchen design. In many of the kitchens I've worked on over the past decade, clients initially ask for "LED strip lighting," but what they actually want is the subtle glow they see in high-end showrooms — light that seems to appear from nowhere.

The difference is installation technique. Simply sticking LED strips under cabinets almost always creates glare, visible dots, and messy wiring. True concealed kitchen cabinet lighting design hides the source completely and integrates lighting into the cabinetry itself.

When planning layouts for clients, I often sketch lighting zones alongside cabinetry placement. Tools like visual kitchen layout planning for cabinet zones and lighting placementhelp visualize where concealed light sources should live before construction even begins.

In this guide, I'll walk through the recessed LED cabinet lighting techniques professional designers use, where hidden lighting works best, and the installation decisions that make the difference between a DIY-looking strip and a luxury kitchen lighting effect.

save pin

What Hidden Cabinet Lighting Is and Why It Matters

Key Insight: Hidden cabinet lighting improves visual comfort and architectural clarity by hiding the light source while highlighting surfaces.

Many homeowners assume brighter lighting equals better lighting. In reality, the most sophisticated kitchens actually reduce visible fixtures and focus on indirect illumination.

When light is concealed, three things happen:

1. The kitchen feels calmer and more architectural.
2. Cabinet materials and textures become the focus.
3. Glare and harsh reflections disappear.

From a design perspective, concealed lighting also strengthens the visual hierarchy of the kitchen. Instead of seeing strips, wires, and fixtures, you see illuminated surfaces — countertops, backsplashes, floating shelves, and toe kicks.

Industry lighting guidelines from the Illuminating Engineering Society emphasize indirect light distribution for residential kitchens because it reduces visual fatigue while improving perceived brightness.

One mistake I see constantly: homeowners installing LED strips where the diodes are visible. Even expensive LEDs look cheap when exposed. Hiding the light source is what transforms basic lighting into architectural lighting.

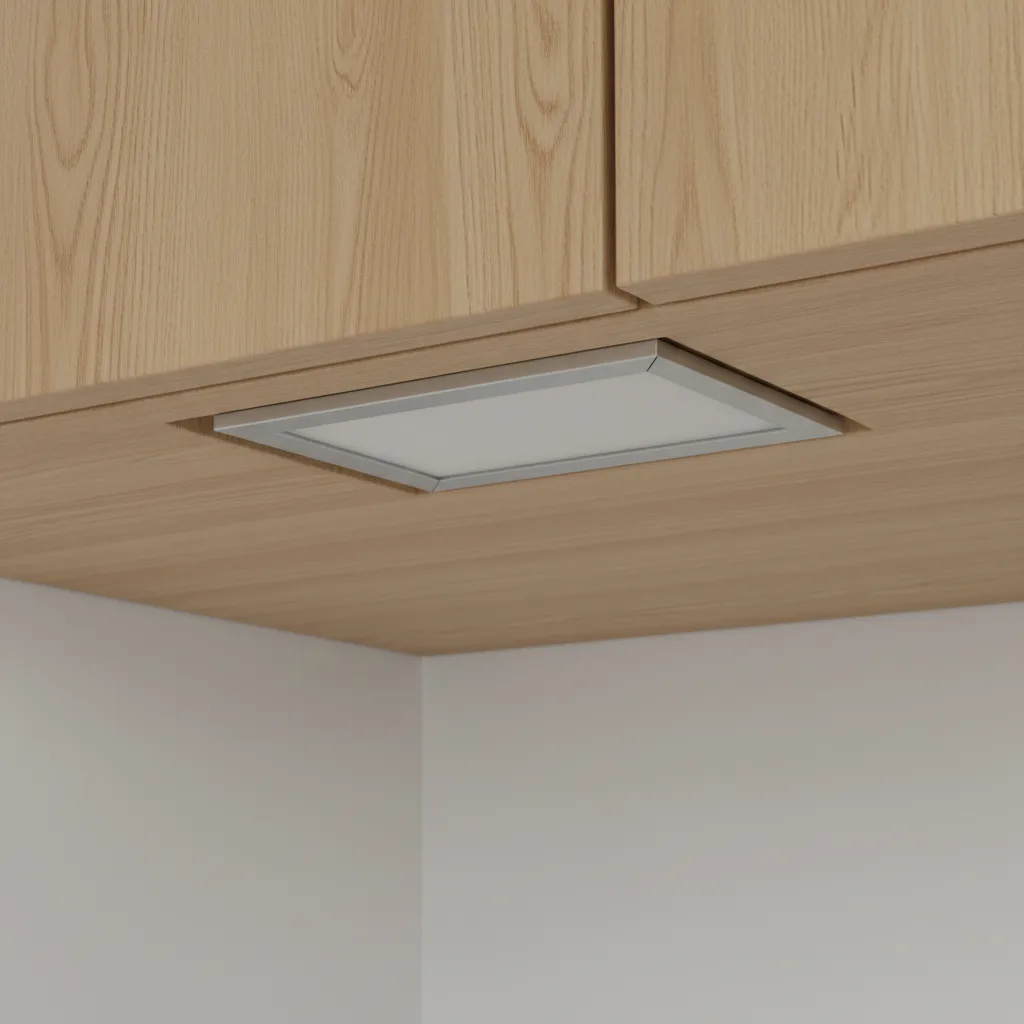

Recessed LED Channels for Seamless Cabinet Lighting

Key Insight: Aluminum LED channels with diffusers are the foundation of professional recessed cabinet lighting.

Recessed LED cabinet lighting techniques rely on mounting strips inside aluminum channels routed into cabinetry or trim pieces.

These channels serve three purposes:

1. Hide the LED strip
2. Dissipate heat for longer LED lifespan
3. Diffuse the light for smooth illumination

Common recessed channel types used in kitchens:

1. Surface channels – mounted under cabinets with a small lip hiding the LED.
2. Recessed channels – routed directly into cabinet panels.
3. Corner channels – placed at 45° angles for backsplash lighting.

Professional cabinet shops increasingly pre-route LED channels into custom cabinetry because it guarantees precise placement.

When clients want to preview how recessed lighting integrates with cabinetry lines, I often create quick visualizations using realistic kitchen lighting render previews before installation. Seeing the glow distribution early prevents expensive retrofits later.

save pin

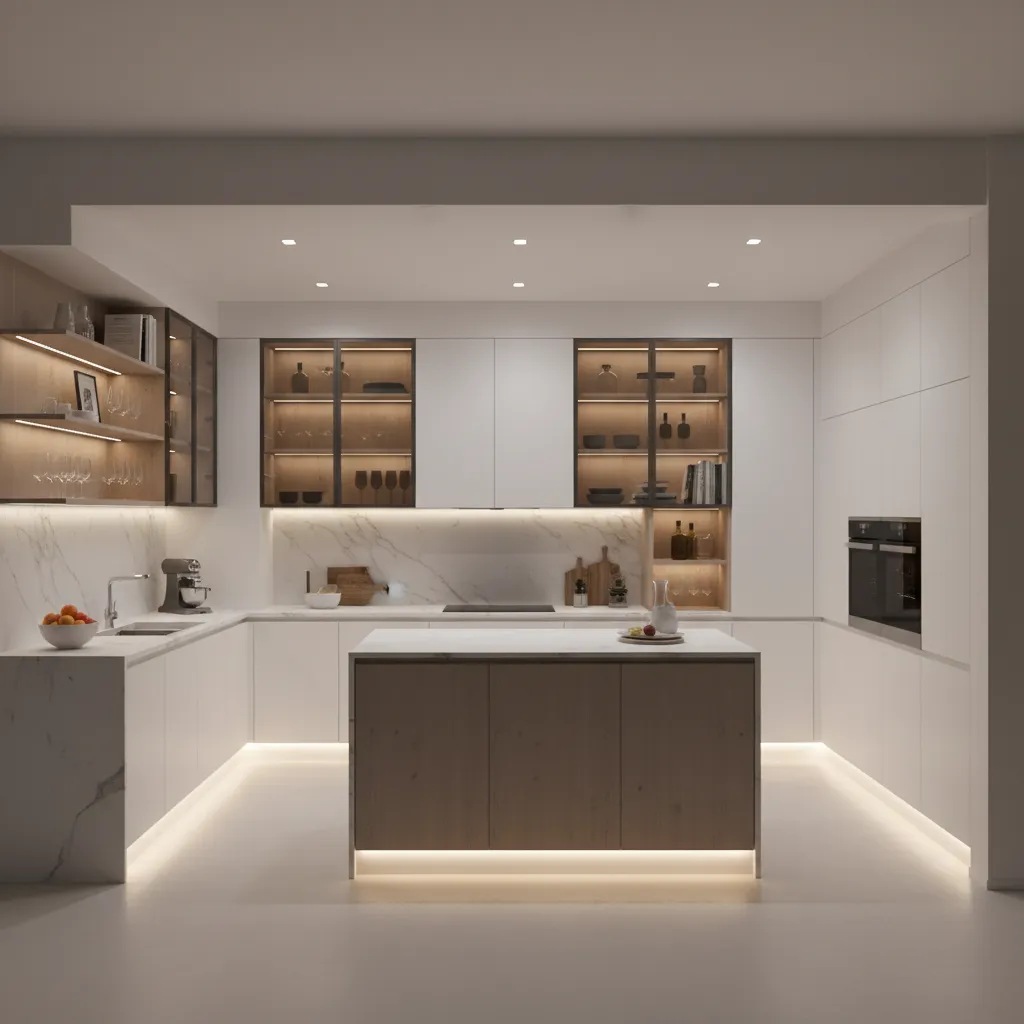

Best Locations for Concealed Accent Lighting

Key Insight: The success of hidden cabinet lighting depends more on placement than brightness.

In my experience, some locations consistently produce elegant lighting while others create glare or uneven shadows.

Best locations for hidden cabinet lighting ideas:

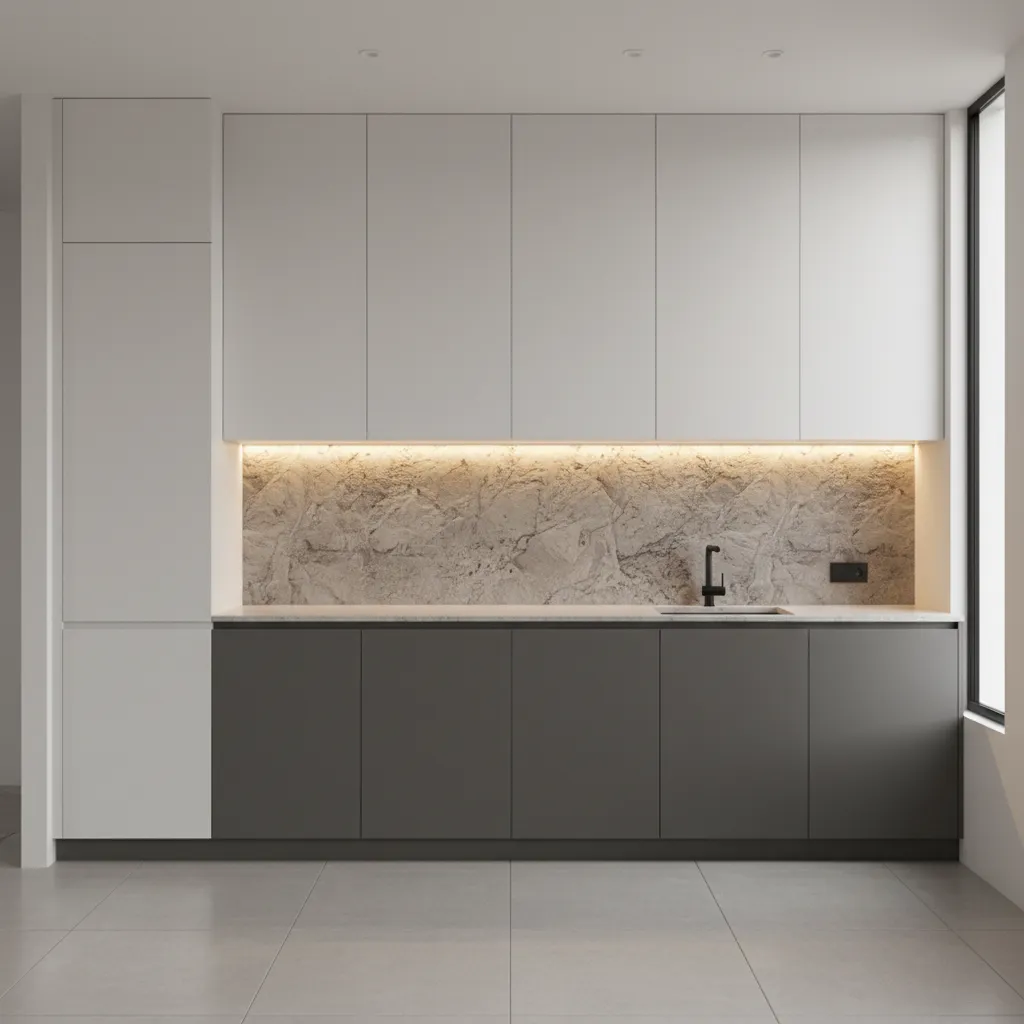

1. Under upper cabinets – task lighting with concealed LED strips.
2. Inside glass cabinets – soft display lighting.
3. Above cabinets – ceiling bounce lighting.
4. Toe kick lighting – floating cabinet effect.
5. Behind open shelves – wall wash lighting.

One under-discussed design trick: moving the LED strip slightly toward the backsplash instead of the cabinet edge. This prevents the countertop from creating harsh shadow lines.

Another subtle technique is "double-layer lighting" — combining hidden task lighting with ambient glow above cabinets. This layered approach is common in luxury kitchens because it adds depth without adding visible fixtures.

save pin

Choosing Diffusers and Aluminum Channels

Key Insight: Diffusers determine whether LED lighting looks premium or cheap.

LED strips by themselves produce visible diode dots. Diffusers smooth the light into a continuous line.

Common diffuser types:

1. Frosted diffusers – best for soft ambient glow.
2. Opal diffusers – strongest LED dot hiding.
3. Clear diffusers – brightest but least concealment.

For minimalist cabinet accent lighting ideas, I almost always specify opal diffusers paired with high-density LED strips (120+ LEDs per meter). The combination creates the "light ribbon" effect designers aim for.

Cheap LED strips with low diode density create visible spotting even with diffusers — one of the most common hidden lighting mistakes in renovations.

Installation Planning for Invisible Lighting Effects

Key Insight: Hidden lighting must be planned during cabinetry design, not after installation.

Trying to retrofit concealed lighting often exposes wires or forces awkward placements.

Professional installation planning usually follows this process:

1. Define lighting zones during kitchen layout planning.
2. Specify channel locations inside cabinet drawings.
3. Route grooves or add trim lips to hide strips.
4. Plan power supply locations in upper cabinets.
5. Use dimmable drivers and smart switches.

When homeowners plan kitchen remodels digitally, tools like interactive room layout planning for cabinetry and lighting zonesmake it easier to coordinate cabinets, electrical points, and lighting paths before contractors begin installation.

One hidden cost many people overlook: power supply placement. Poor placement can require opening finished cabinets later — something I learned the hard way early in my career.

save pin

Examples of Minimalist and Luxury Hidden Lighting Designs

Key Insight: The most effective concealed lighting designs rely on restraint rather than brightness.

Across high-end kitchen projects, a few design patterns appear repeatedly.

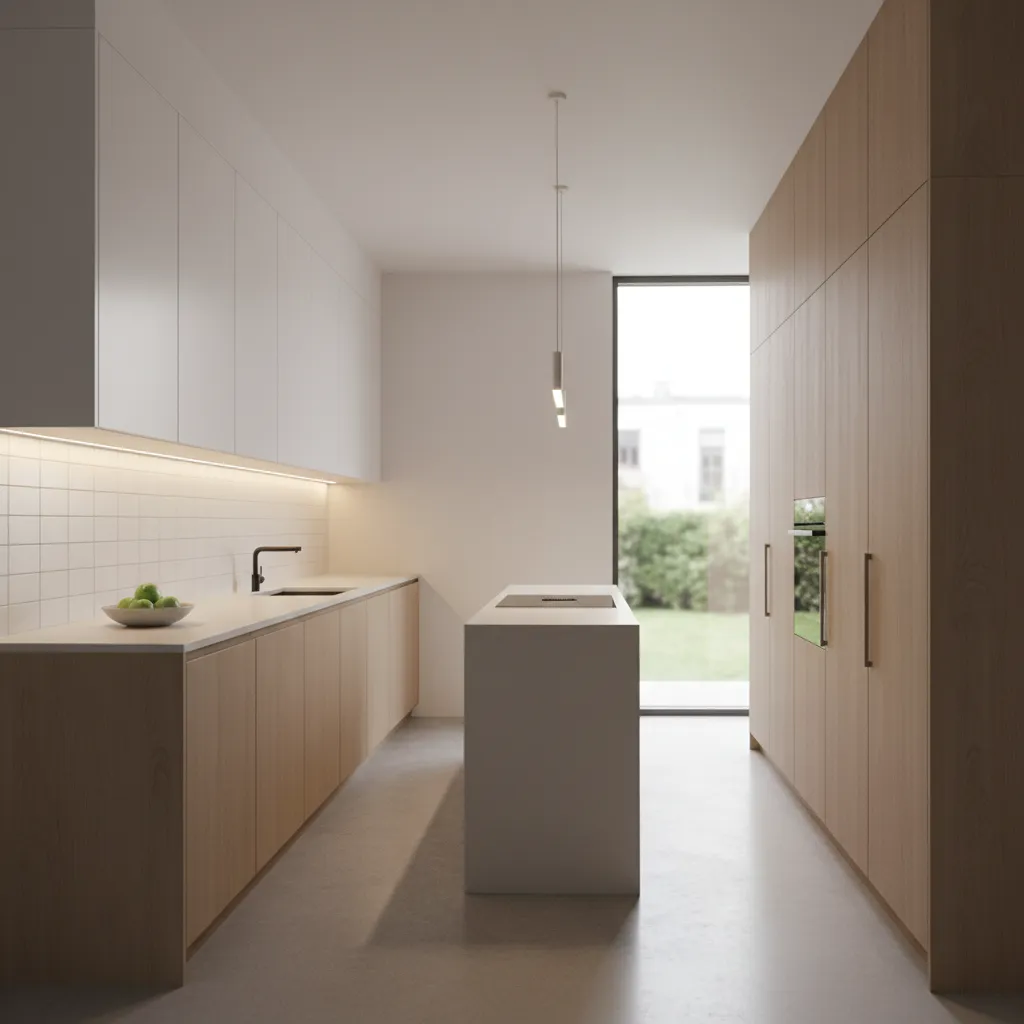

Minimalist modern kitchens

1. Thin recessed channels
2. Warm 3000K lighting
3. Under-cabinet task lighting only

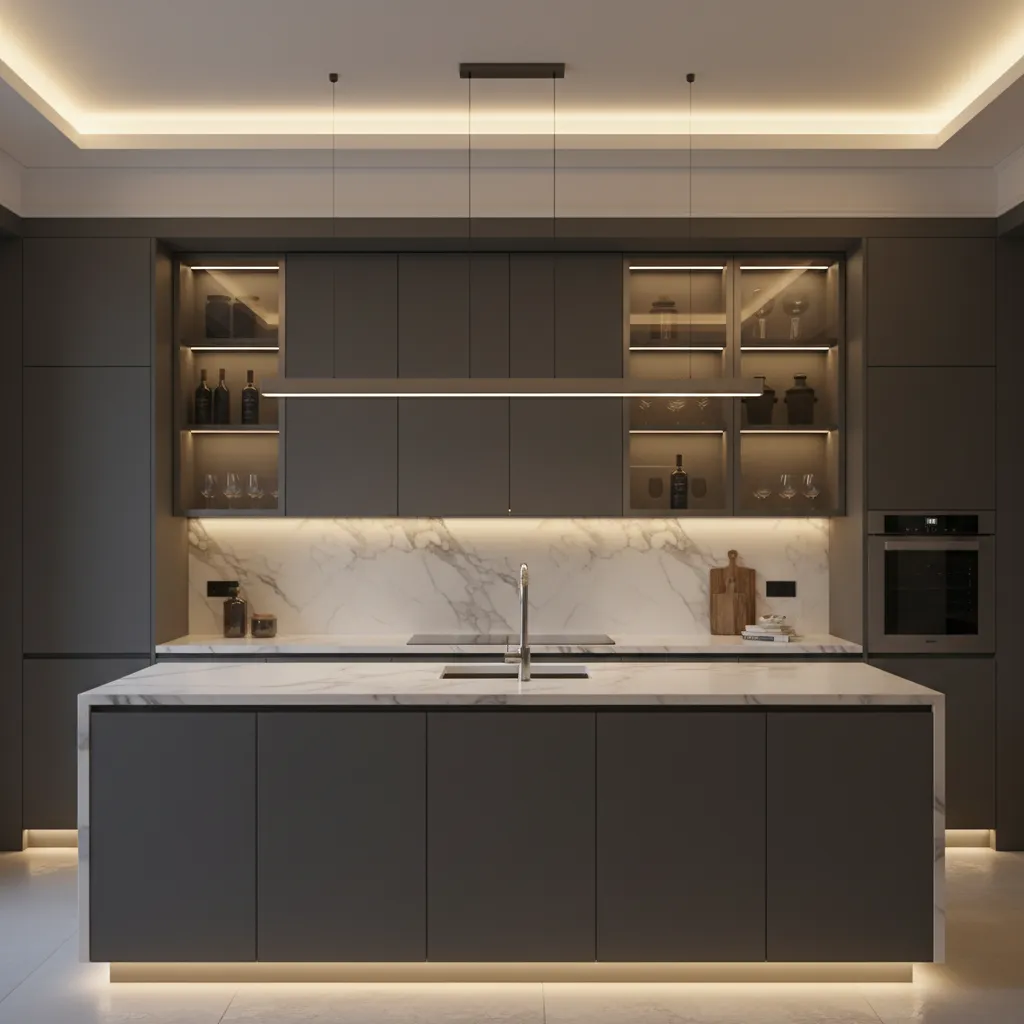

Luxury layered kitchens

1. Under-cabinet lighting
2. Inside glass cabinet lighting
3. Toe kick glow lighting
4. Upper cabinet ceiling wash

The biggest surprise for many homeowners is that luxury kitchens often use lower brightness levels. Instead of flooding the space with light, designers control contrast and shadow.

Answer Box

The key to successful hidden cabinet lighting is simple: hide the source, soften the light, and plan placement early. Recessed channels, diffusers, and strategic positioning create the seamless glow seen in modern luxury kitchens.

Final Summary

1. Hidden cabinet lighting works best when the LED source is completely invisible.
2. Recessed aluminum channels produce cleaner, longer-lasting installations.
3. Lighting placement affects results more than brightness.
4. Diffusers eliminate harsh LED dot patterns.
5. Planning lighting during cabinetry design prevents costly mistakes.

FAQ

What is hidden cabinet lighting?

Hidden cabinet lighting uses LED strips concealed inside channels, grooves, or cabinet edges so the light source itself is not visible.

How do you hide LED strip lights in cabinets?

Install LED strips inside aluminum channels with diffusers, then mount them behind cabinet lips or inside routed grooves.

Is recessed LED cabinet lighting better than surface strips?

Yes. Recessed LED cabinet lighting techniques produce cleaner lines, protect LEDs, and hide the light source.

What color temperature works best for cabinet lighting?

Most designers recommend 2700K–3000K for warm, natural kitchen lighting.

Can hidden cabinet lighting be installed in existing kitchens?

Yes, but it may require trim pieces or surface channels if cabinets were not designed for recessed lighting.

Do LED diffusers reduce brightness?

Yes slightly, but they dramatically improve light quality by removing visible diode dots.

How bright should cabinet lighting be?

Under-cabinet task lighting typically ranges between 200–500 lumens per foot depending on countertop material.

Is hidden cabinet lighting expensive?

Material costs are moderate, but professional routing and installation increase project cost.
