Hole Saw Size Comparison for 4-Inch, 5-Inch, and 6-Inch Recessed Lights: Understand the real ceiling cutout sizes behind common recessed light diameters before choosing a hole saw.

Direct Answer

The hole saw size for recessed lights is rarely the same as the fixture’s labeled diameter. Most 4‑inch recessed lights require about a 4.25‑inch cutout, 5‑inch fixtures usually need around a 5.25‑inch hole, and 6‑inch lights typically require a 6.25‑inch ceiling opening. Always check the manufacturer’s cutout specification before drilling.

Quick Takeaways

1. The fixture label (4", 5", 6") refers to trim size, not the ceiling hole.
2. Most recessed lights need a hole about 0.25–0.5 inches larger than the nominal fixture size.
3. LED wafer lights often have slightly different cutout requirements than traditional can lights.
4. Always verify the cutout diameter printed on the light housing or installation guide.
5. A hole saw that is too large is much harder to fix than one slightly small.

Introduction

One of the most common mistakes I see in residential lighting projects is choosing the wrong hole saw for recessed lights. The confusion usually starts with the fixture label: a homeowner buys a “6‑inch recessed light” and assumes the hole in the ceiling must also be exactly 6 inches.

After working on dozens of kitchen remodels and basement lighting upgrades, I can tell you that assumption causes a lot of unnecessary drywall repairs. Recessed light cutout sizes vary by brand, trim style, and housing design. The difference may only be a quarter inch, but once the hole is cut, that small difference matters.

When planning lighting layouts, I often sketch the spacing and openings first using tools similar to this interactive layout planner for mapping ceiling fixtures and room dimensions. It helps visualize spacing before anyone touches a drill.

Below is a practical comparison of hole saw sizes for 4‑inch, 5‑inch, and 6‑inch recessed lights based on typical installation standards and real manufacturer specs.

save pin

Standard Cutout Sizes for 4-Inch Recessed Lights

Key Insight: Most 4‑inch recessed lights require a cutout between 4.1" and 4.4", so a 4‑1/4" hole saw is usually the safest choice.

Small recessed fixtures are popular for task lighting, accent lighting, and modern kitchens. However, manufacturers rarely design them to fit a perfectly 4‑inch hole. The housing clips need extra clearance so the light can lock into the drywall.

Typical specs I see across multiple brands:

1. Nominal fixture size: 4 inches
2. Typical cutout range: 4.1" – 4.4"
3. Most common hole saw: 4‑1/4"

In practice, I prefer drilling slightly smaller and adjusting if necessary. A snug opening allows the spring clips to hold firmly against drywall without visible trim gaps.

Manufacturers such as Halo, Lithonia, and Commercial Electric all list cutout tolerances close to this range in their installation guides.

Typical Hole Saw Sizes for 5-Inch Fixtures

Key Insight: 5‑inch recessed lights usually need a 5.25" cutout, even though the trim ring measures about 5 inches.

Five‑inch fixtures are less common today but still appear in many older homes or mid‑sized room layouts where designers wanted something between 4‑inch accents and larger 6‑inch flood lighting.

Typical installation specs:

1. Fixture diameter: 5 inches
2. Typical cutout: 5.2" – 5.35"
3. Recommended hole saw: 5‑1/4"

The extra quarter inch allows the housing or wafer light to slide into the drywall before the clips expand. If the hole is exactly 5 inches, the light usually will not fit.

When mapping multiple lights across a ceiling, spacing matters just as much as cutout size. Many designers plan fixture placement first using tools similar to a

save pin

digital room layout planner for testing recessed lighting spacing before finalizing drilling locations.

Cutout Requirements for 6-Inch Recessed Lights

Key Insight: Most 6‑inch recessed lights require a 6.25" cutout, making a 6‑1/4" hole saw the most common installation tool.

Six‑inch fixtures are still the standard for general room lighting in living rooms, kitchens, and basements. Because the housings are larger, they require slightly more clearance inside the drywall opening.

Typical measurements:

1. Fixture size: 6 inches
2. Typical ceiling cutout: 6.2" – 6.4"
3. Most used hole saw: 6‑1/4"

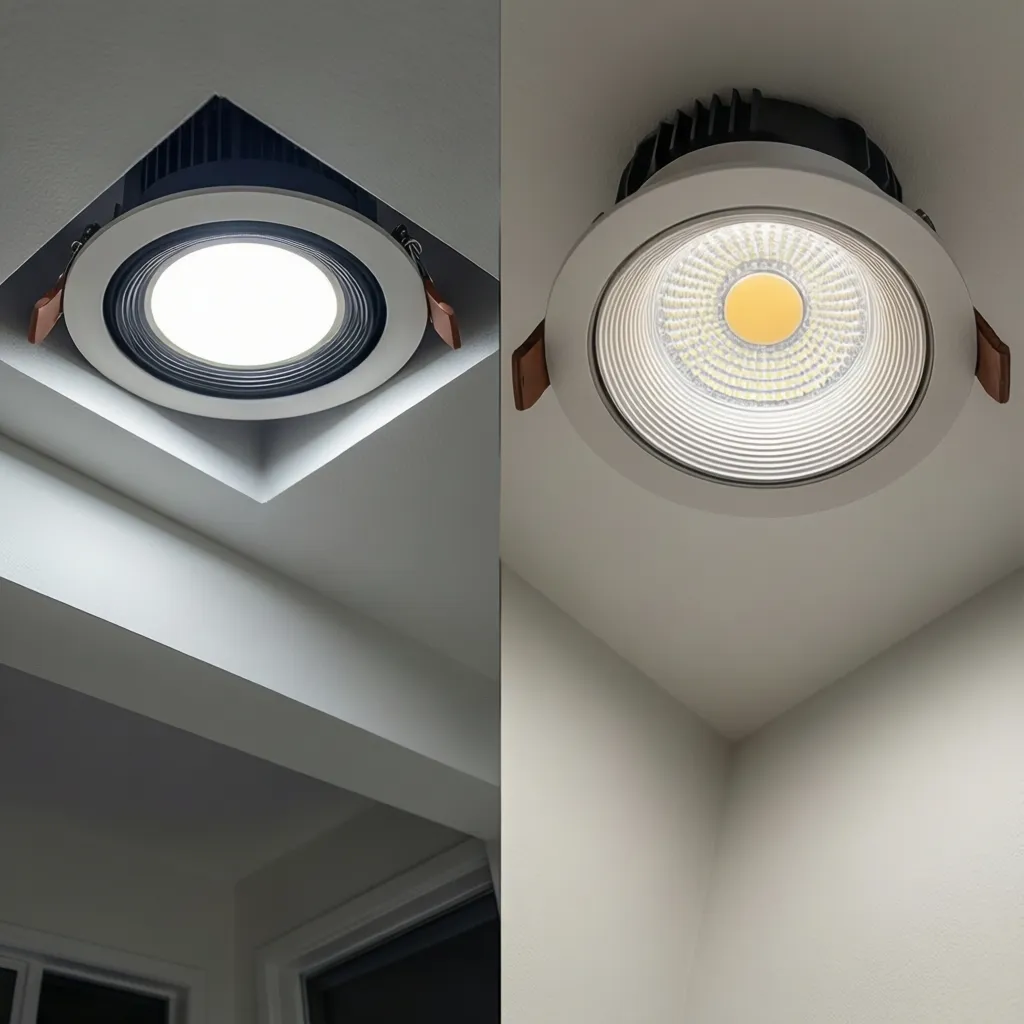

One detail many installers overlook: LED wafer lights labeled as 6 inches sometimes require a slightly smaller opening, often around 6.0"–6.1". Always confirm the spec sheet.

save pin

Manufacturer Variations in Ceiling Cut Dimensions

Key Insight: The biggest sizing mistakes happen because installers assume all recessed lights follow identical cutout standards.

In reality, the difference between brands can reach almost half an inch.

Example comparison from common LED recessed lights:

1. Halo 6" LED: 6.25" cutout
2. Lithonia 6" wafer: 6.0" cutout
3. Commercial Electric 6" slim: 6.1" cutout
4. Sunco 6" retrofit: 6.3" cutout

That variation explains why experienced installers always read the cutout diagram first. I’ve seen ceilings where someone drilled 6‑3/8" holes for a light requiring 6‑1/8", leaving visible trim gaps.

When planning renovations, I often preview lighting layouts inside a visual interior planning workspace for testing lighting placement to confirm spacing, furniture alignment, and beam coverage before installation.

Answer Box

Recessed light labels do not equal ceiling hole sizes. A 4‑inch light typically needs about a 4.25" hole, a 5‑inch light around 5.25", and a 6‑inch light roughly 6.25". Always verify the manufacturer’s specified cutout diameter before choosing a hole saw.

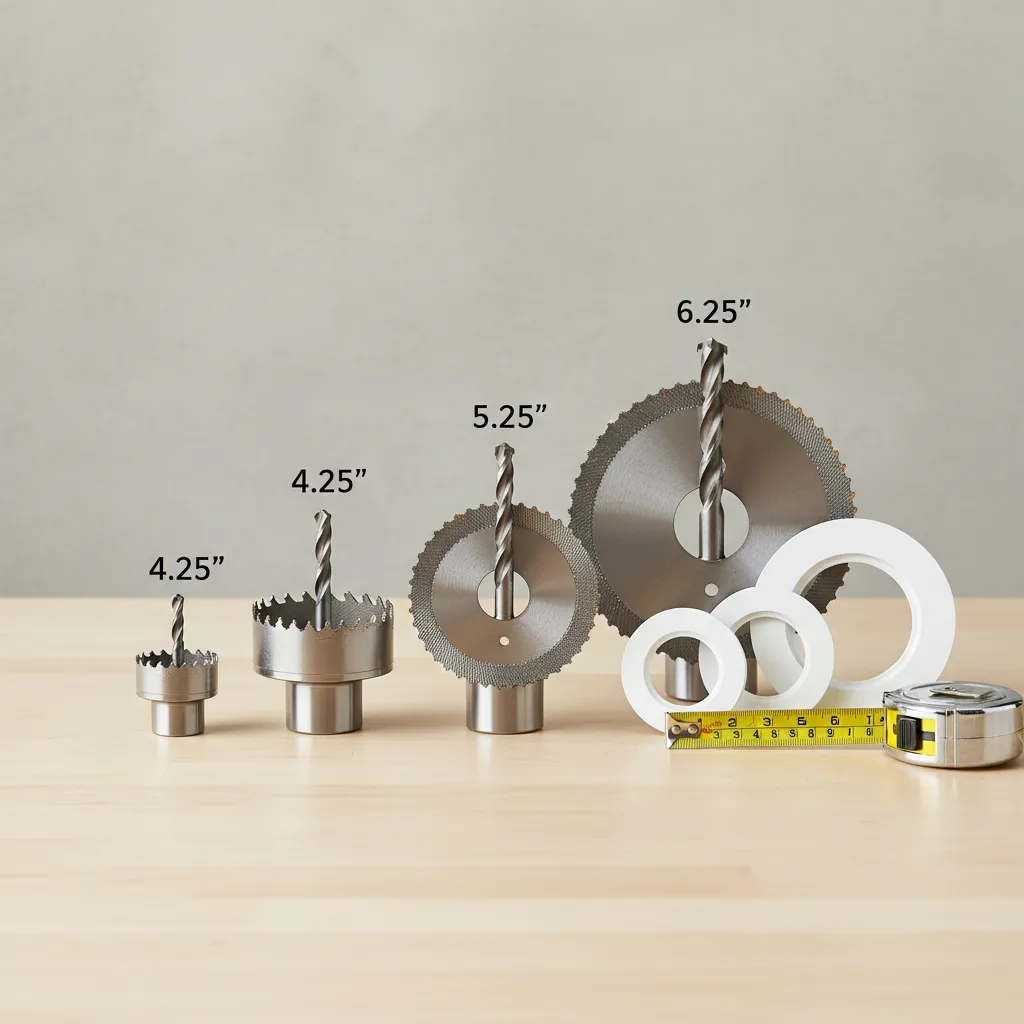

Quick Reference Chart for Hole Saw Selection

Key Insight:A simple chart can prevent most recessed light installation errors.

Fixture SizeTypical CutoutRecommended Hole Saw 4-inch recessed light4.1" – 4.4"4-1/4" 5-inch recessed light5.2" – 5.35"5-1/4" 6-inch recessed light6.2" – 6.4"6-1/4" This chart covers the majority of standard recessed lighting installations found in residential construction.

save pin

Common Mistakes When Comparing Fixture Size vs Cutout Size

Key Insight: The most expensive recessed lighting mistakes happen when installers confuse trim diameter with cutout diameter.

These are the errors I see most often during renovations:

1. Buying the hole saw before the light. Fixture specs should determine the hole size.
2. Confusing trim size with housing size. The trim hides the edge but doesn't define the cutout.
3. Ignoring drywall thickness. Thicker ceilings sometimes require slightly wider openings.
4. Assuming all LED wafers are identical. Cutouts vary widely by manufacturer.

Once a hole is oversized, fixing it usually requires drywall patch rings or trim extenders. It’s far easier to start slightly small and widen carefully.

Final Summary

1. Recessed light labels describe trim size, not ceiling hole diameter.
2. 4" lights typically use a 4‑1/4" hole saw.
3. 5" fixtures usually require a 5‑1/4" cutout.
4. 6" recessed lights commonly need a 6‑1/4" opening.
5. Always verify the manufacturer’s cutout specification first.

FAQ

What size hole saw for a 4 inch recessed light?

Most 4 inch recessed lights require a 4‑1/4 inch hole saw, though some LED wafer lights may need slightly smaller openings.

What size hole saw for 6 inch recessed lighting?

The typical hole saw size for 6 inch recessed lighting is 6‑1/4 inches, matching most manufacturer cutout specifications.

Why is the recessed light hole bigger than the fixture size?

The housing clips need extra clearance so the light can slide into the drywall before locking in place.

Can I use a 6 inch hole saw for a 6 inch recessed light?

Usually no. Most 6 inch fixtures require a slightly larger cutout around 6.25 inches.

Do LED wafer lights use the same hole saw sizes?

Not always. Many slim LED lights use slightly smaller cutouts than traditional recessed cans.

What happens if the recessed light hole is too big?

The trim may not fully cover the opening, requiring repair rings or drywall patching.

Is there a universal recessed light cutout size?

No. Each manufacturer lists a specific ceiling cut dimension in the installation manual.

Should I drill the hole before buying the light fixture?

No. Always purchase the fixture first and match the hole saw to the specified cutout diameter.
